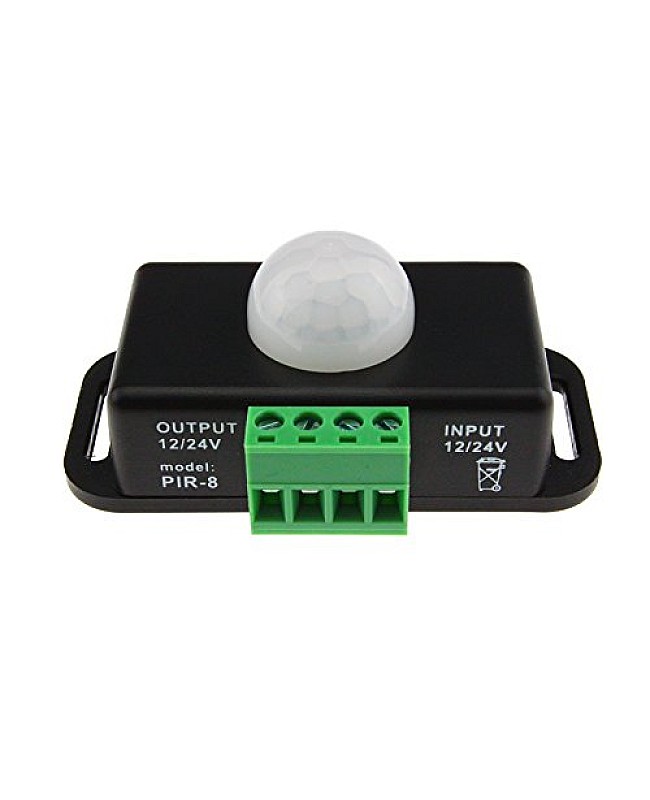

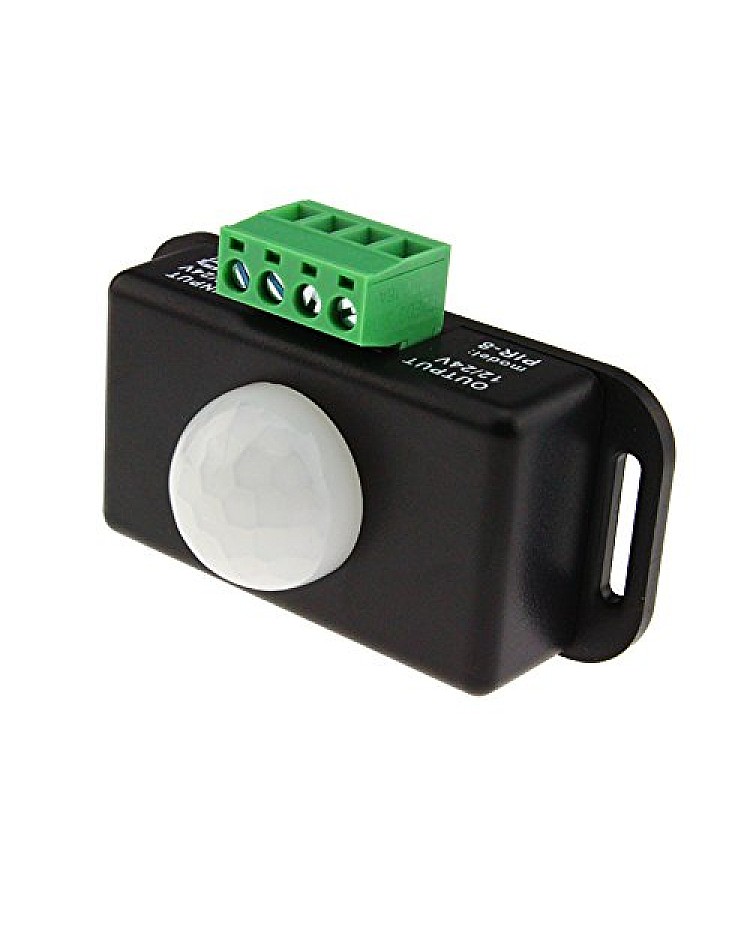

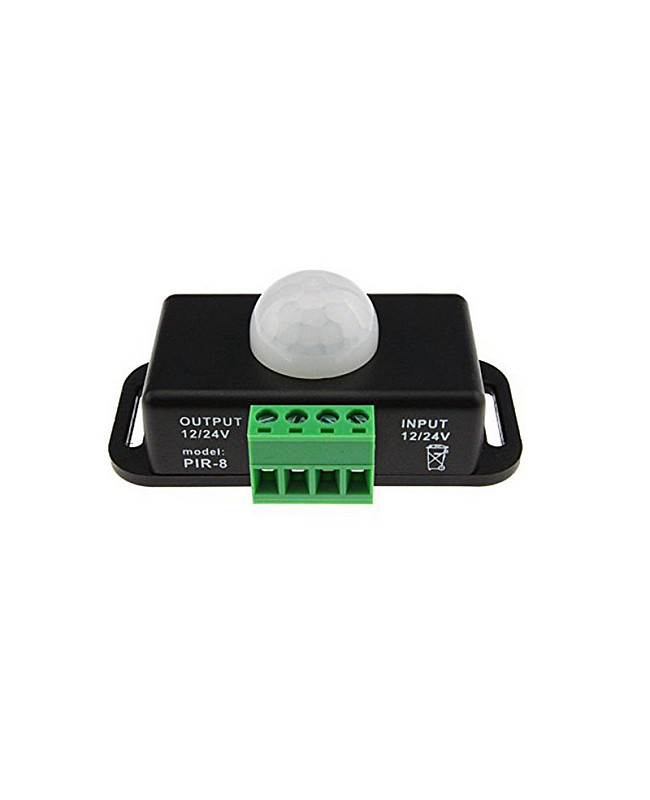

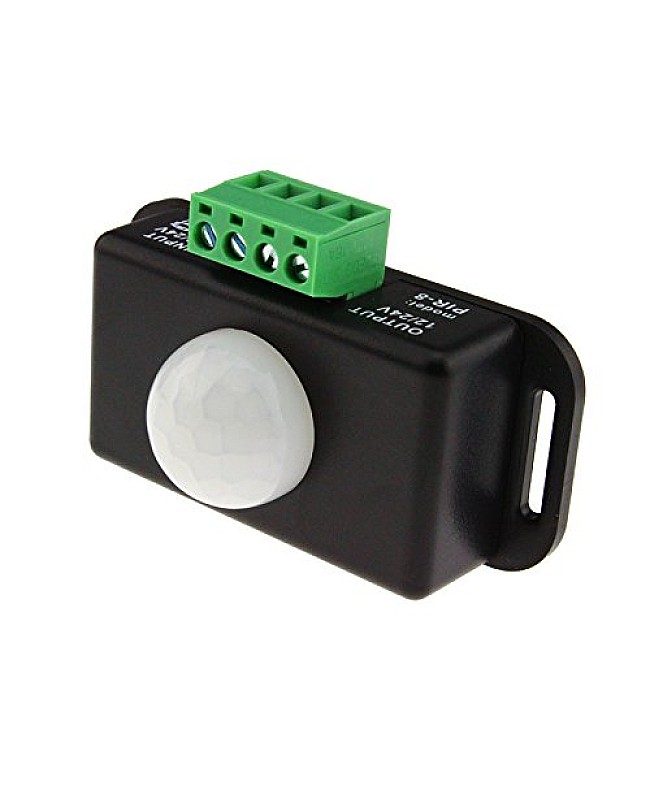

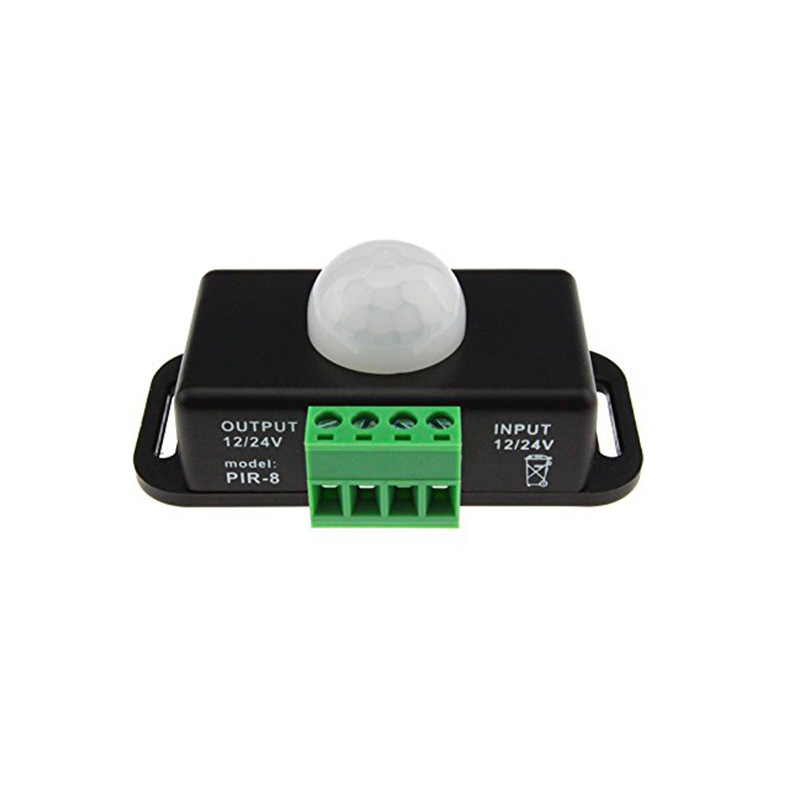

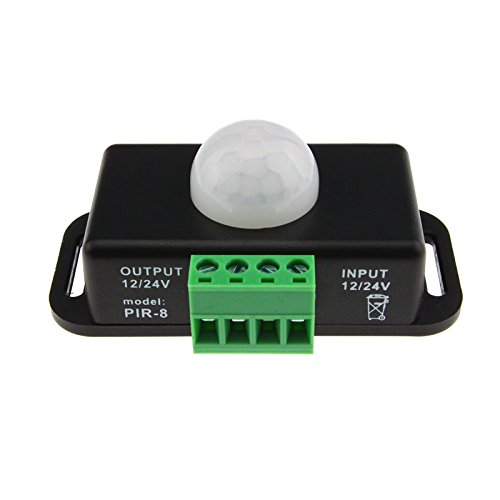

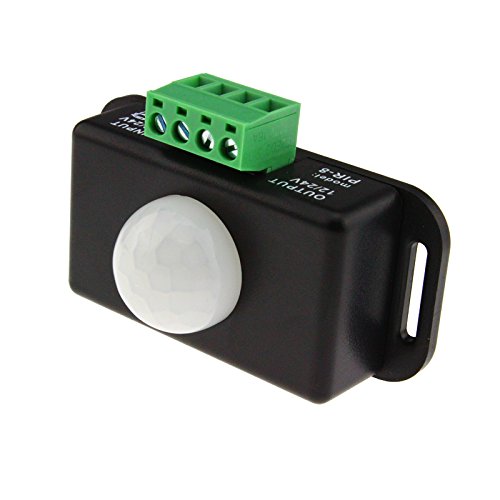

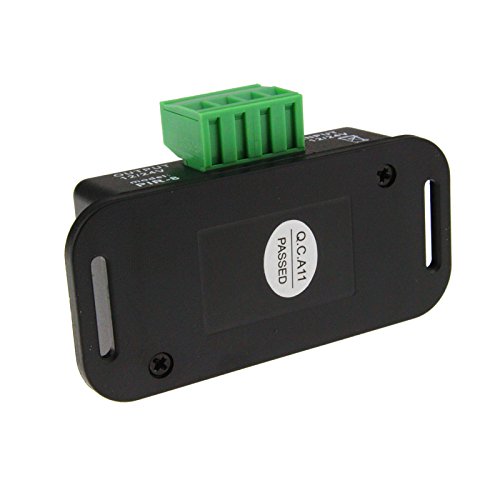

The PIR-8 infrared motion sensor light switches utilize passive infrared (PIR) technology to detect motion and control lighting. It's commonly used in homes, offices, and commercial spaces to save energy by turning lights on only when movement is detected and off when no motion is detected for a while. The sensing distance is up to 8 meters. The LED light will turn on automatically when someone is within the sensing distance. It features a delay timing function to allow the delay time to be set from 1 to 10 minutes. You can set the time the light stays on after motion stops. The PIR8 features a single-output channel design with a maximum output current of 6A. They are not waterproof and should only be placed in dry locations.
Specifications:
- Material: ABS

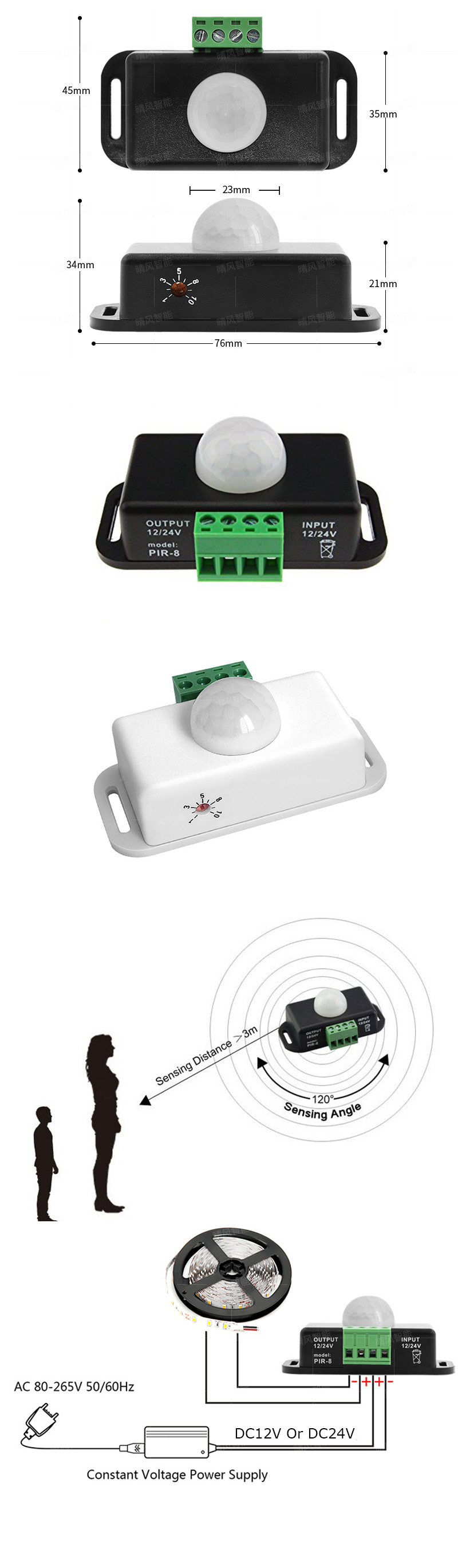

- Size (L x W x H) : 76 mm x 45 mm x 34 mm / 2.99" x 1.77" x1.34"

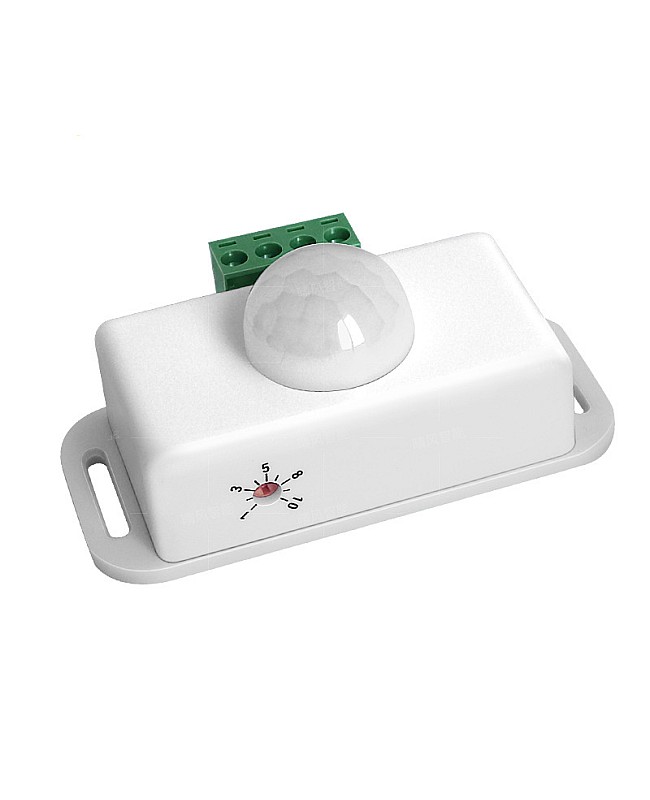

- Colors: White/black
- Input voltage: DC12-24V
- Output voltage: DC12-24V
- Output current: Max 6A
- Output channel: 1
- Power: 72W ( 12V ), 144W ( 24V )
- Sensor: Infrared motion
- Sensing distance: ≤8 meters
- Detecting angle: 120°

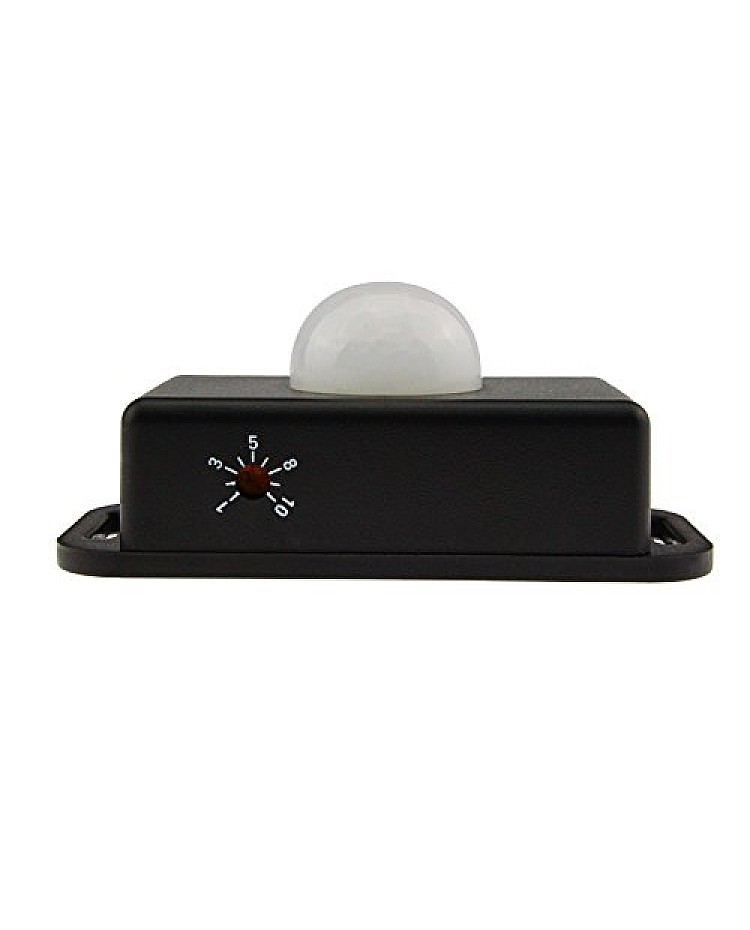

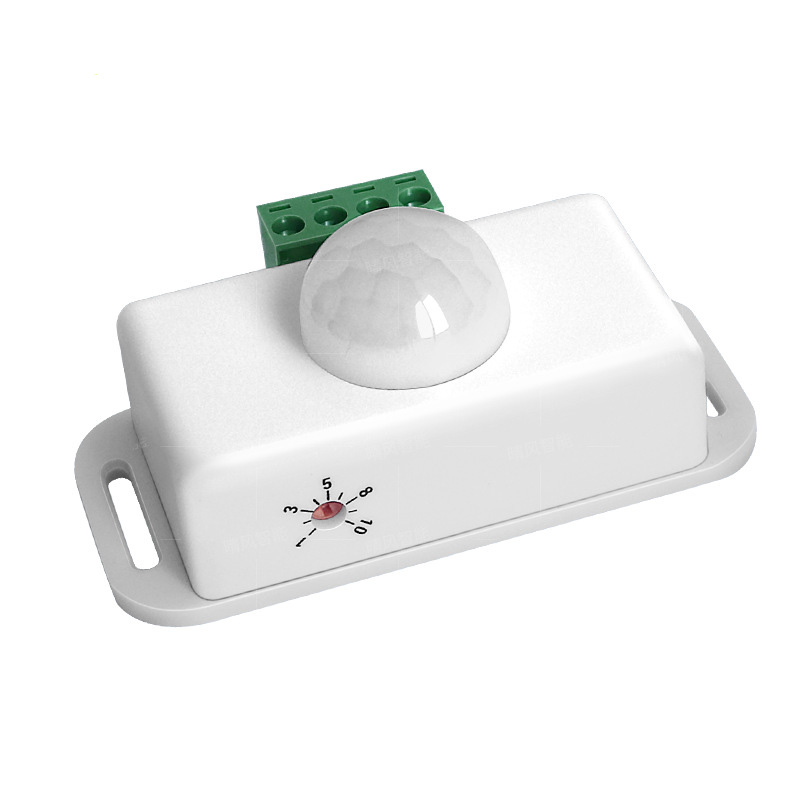

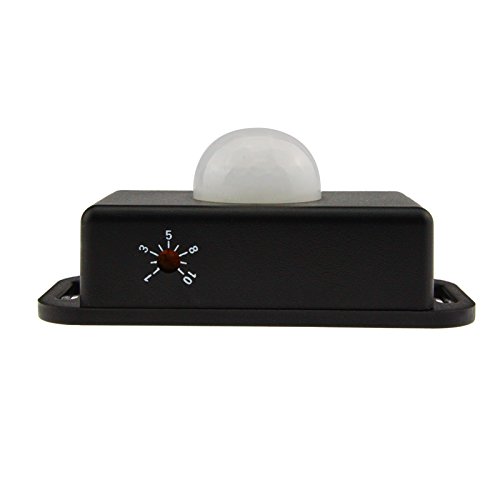

- Delay time: 1- 10 mins ( adjustable )
- IP rating: IP20 non-waterproof
- Dimmable: NO
- Applications: Hallways, closets, bathrooms, garages, offices, storage rooms, warehouses, porch lights, security lighting, etc
- Working temperature: -20-+60℃
- Certifications: CE, ROHS
- 2-year warranty
Includes:
1 * PIR8 infrared light switch
