- Product Code: LB249

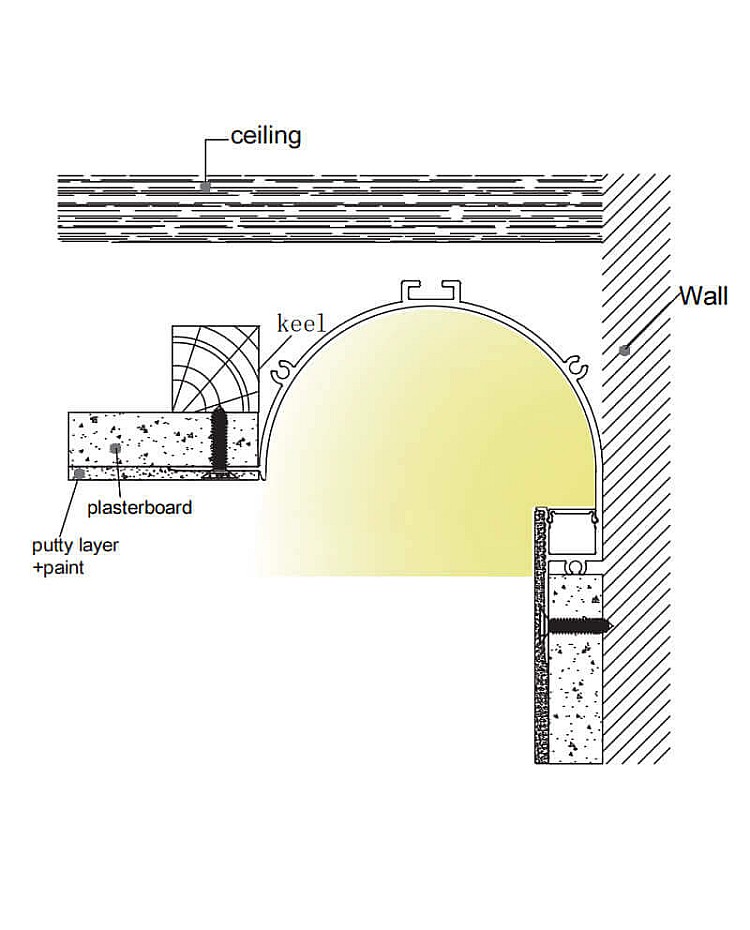

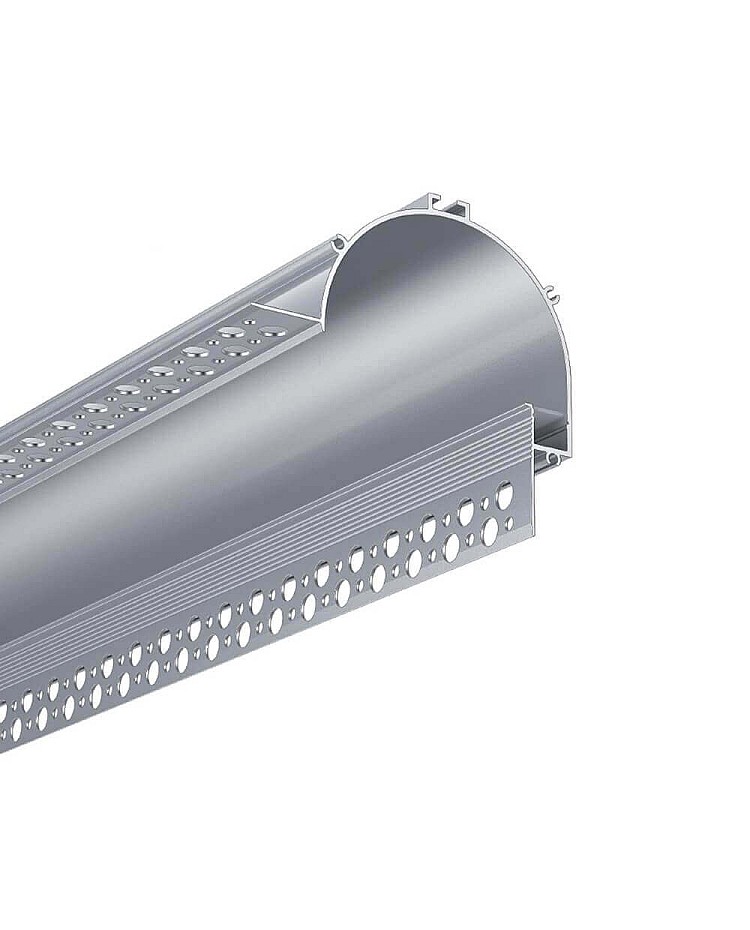

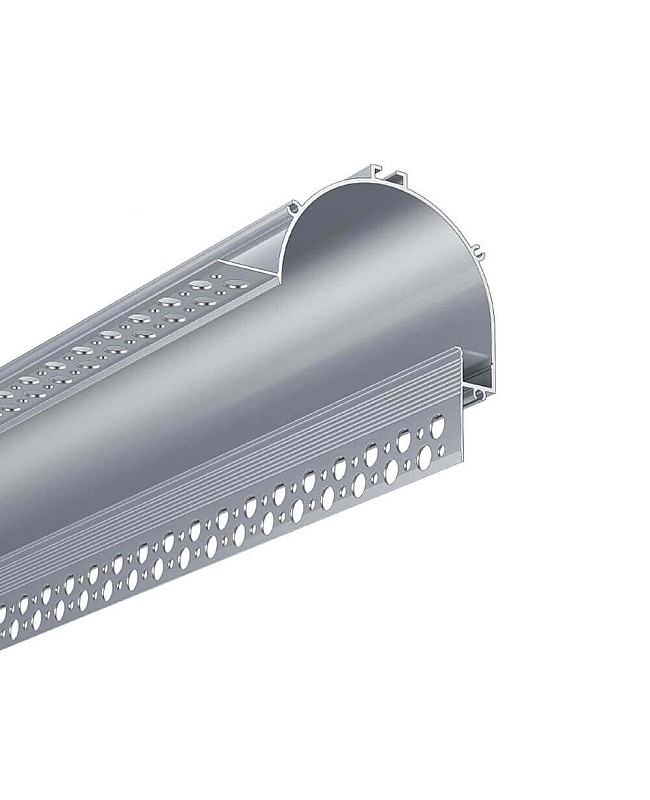

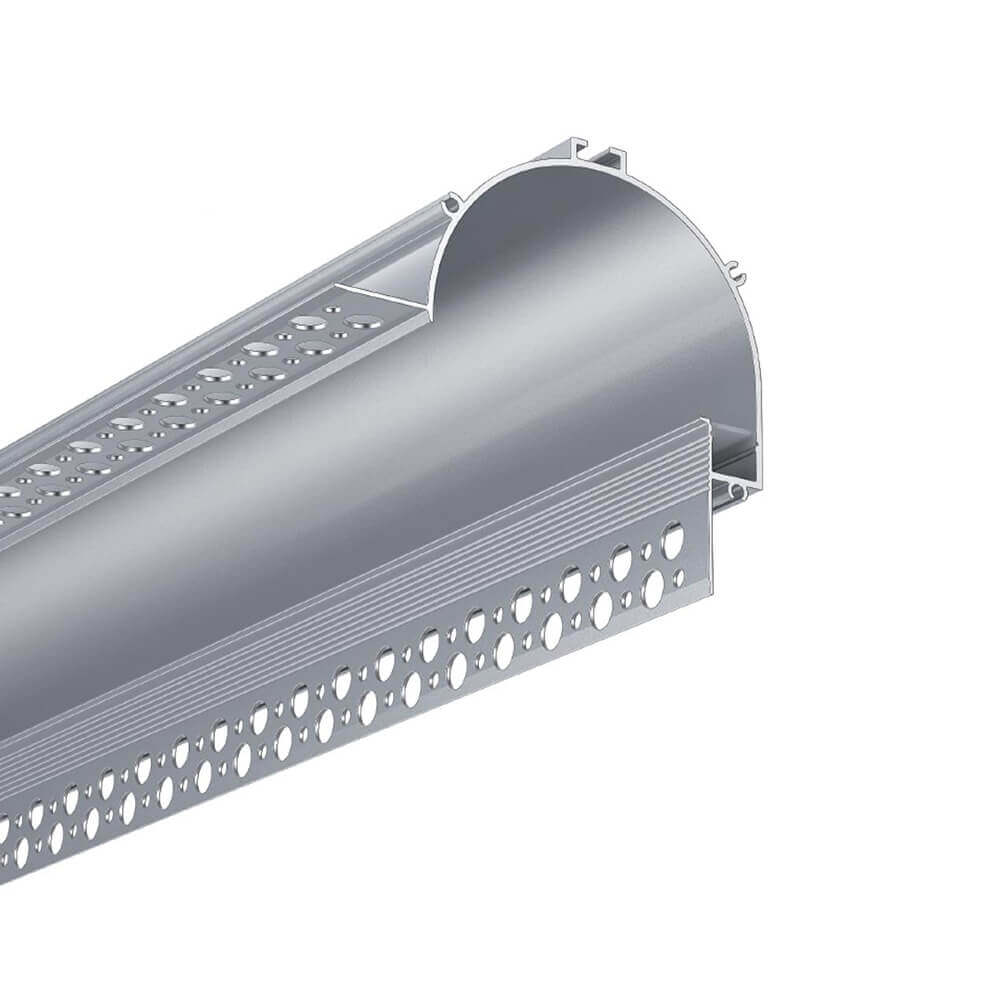

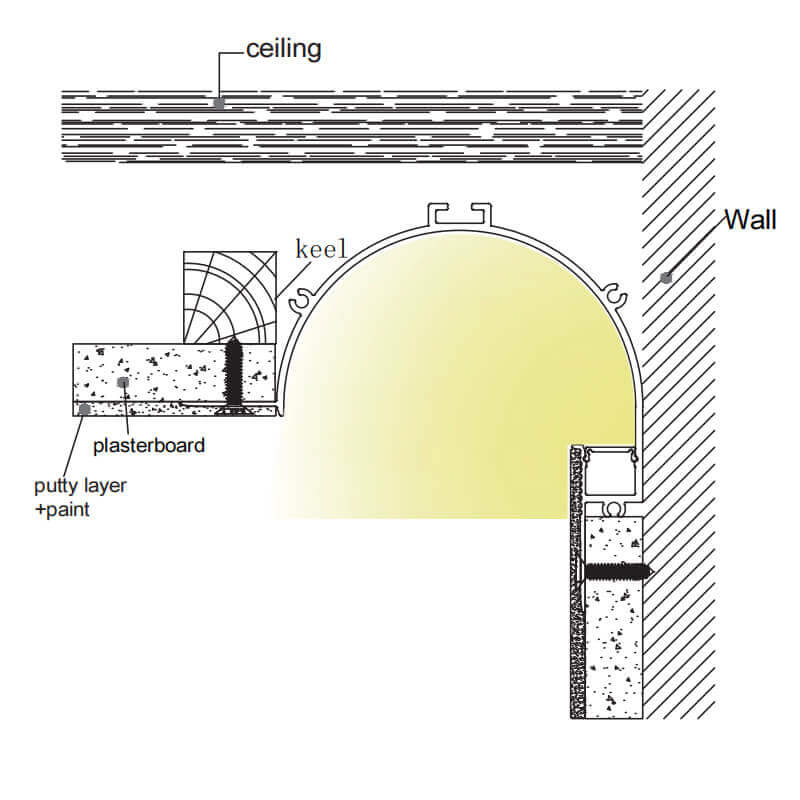

The LB249 extruded arch LED profile is engineered to be plastered directly into plasterboard ceilings and walls, leaving a perfectly flush, frameless finish, no visible trim, no shadow gaps, no compromise. The deep semicircular reflector washes the ceiling with soft, glare-free indirect light, making it a favorite for hotel lobbies, luxury residences, showrooms, museums, and modern interiors.
The white LED channel has perforated flanges that allow it to lock into plasterboard and putty; it disappears into the surface after painting. Crafted from 6063-T5 extruded aluminum material and has a powder-coated surface treatment for corrosion resistance and a longer lifespan. 1m and 2m lengths are selectable, and custom lengths are available.

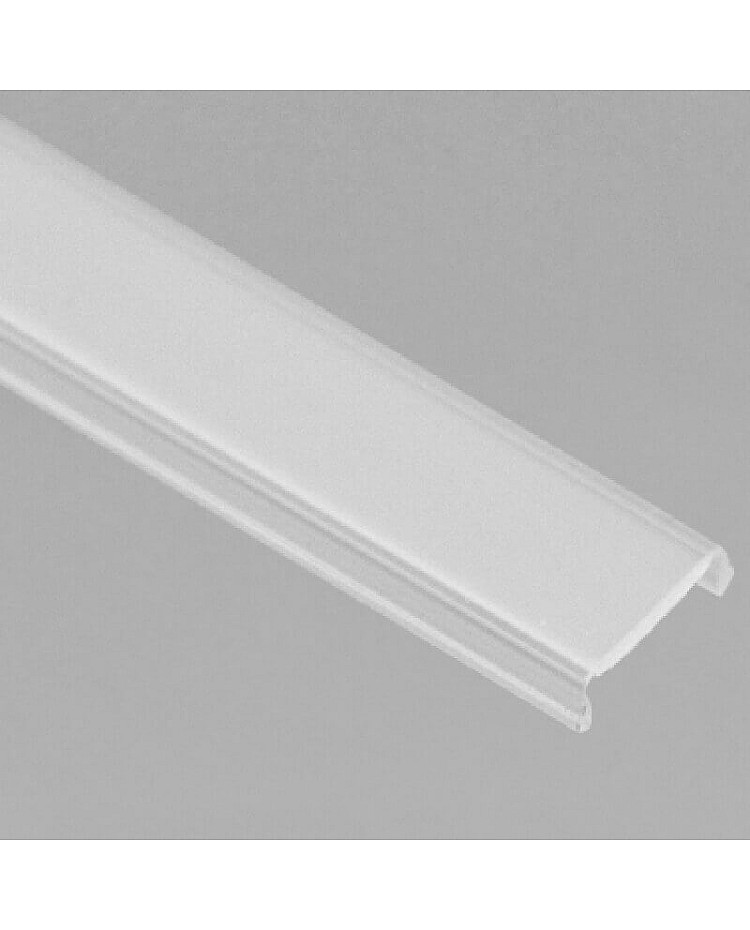

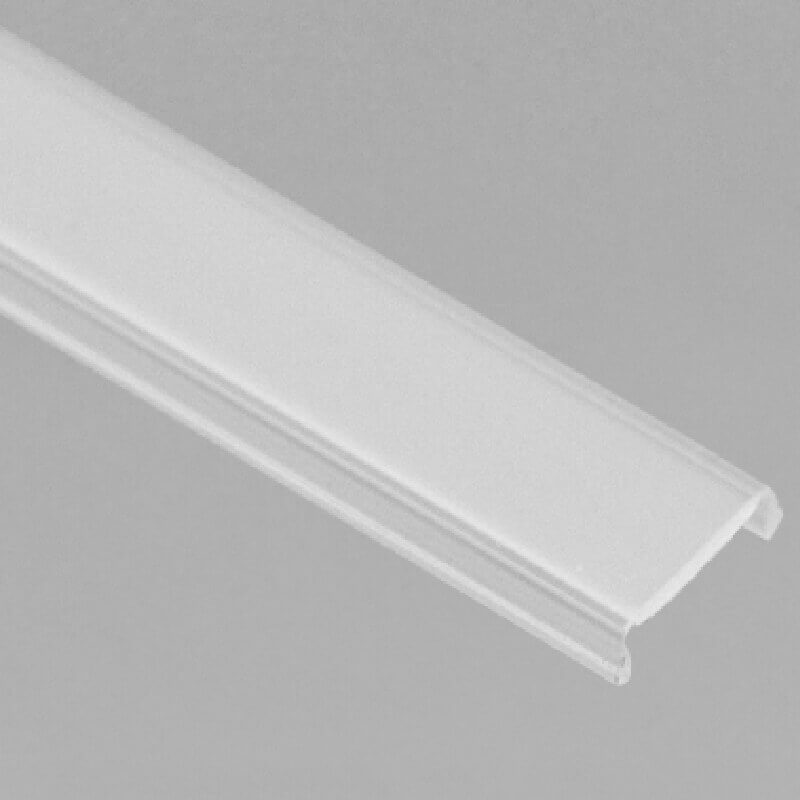

The inner width is 10.3mm, allowing the maximum width of tape lights to be 10mm. Recommend adding our high-density COB tape lights as the light source to create uniform lighting without hotspots. The PC diffused cover will soften the lighting for smooth illumination without dark areas. The aluminum profile can serve as a heat sink to improve heat management and extend the LED light's lifespan.
Three types of LED joiners are sold separately; you can use them for angled or straight connections.

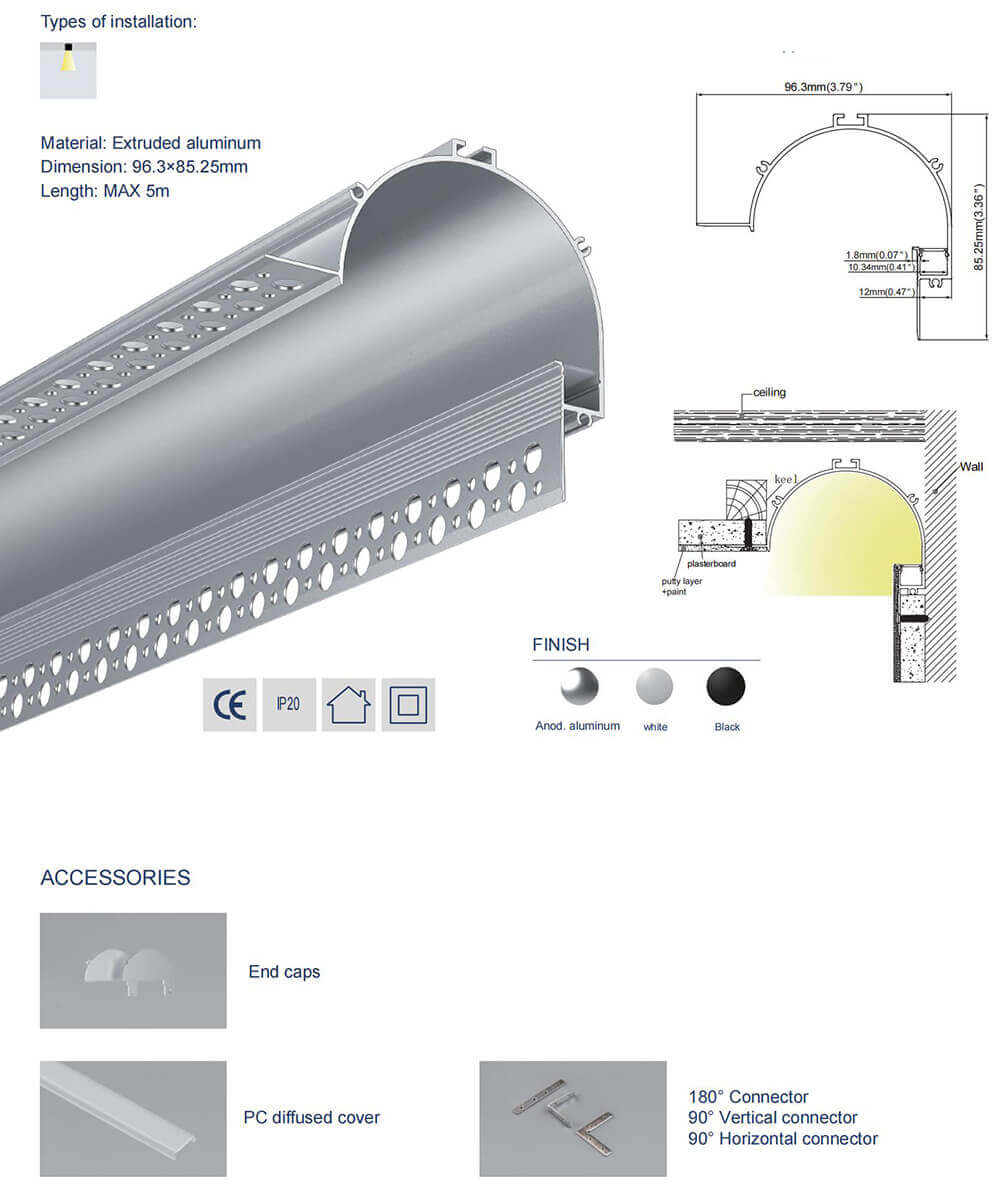

Specifications:
- Material: Extruded aluminum 6063-T5
- Surface treatment: Powder-coated
- Color: White

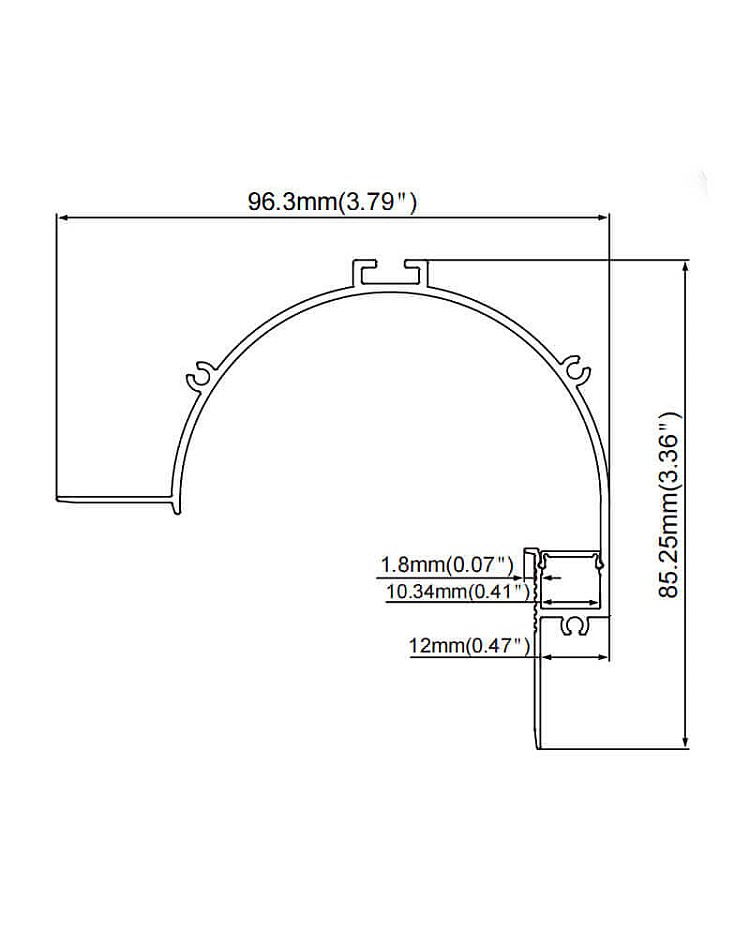

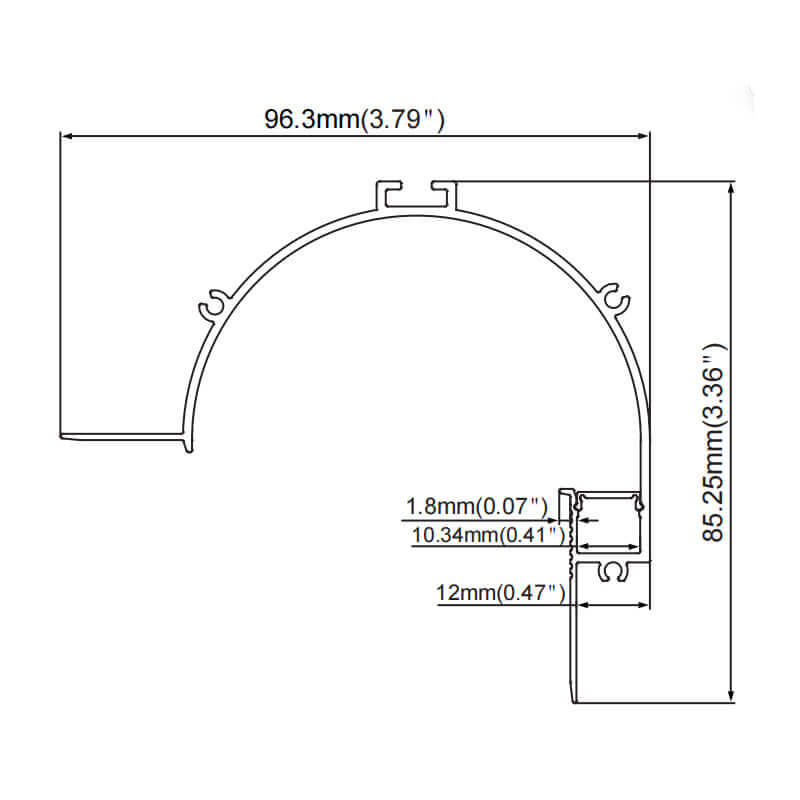

- Size ( Width x Height ): 96.3 mm x 85.25 mm ( 3.79" x 3.36" )
- Lengths: 1 m ( 39.37" ), 2 m ( 78.74" )
- Custom length available: YES
- Inner width: 10.3 mm ( 0.41" )
- Maximum width of strip lights: 10 mm ( 0.39" )
- Maximum power: 15W/m
- Diffusers: PC diffused cover only
- 180°, 90° vertical, 90° horizontal joiners sold separately
- The height of drywall or plasterboards: 12mm ( 1/2" )
- Installation method: Plaster-in
- Warranty: 5 years
Includes:
1 x Plaster-in cove LED profile
1 x PC diffuser
1 x End caps
