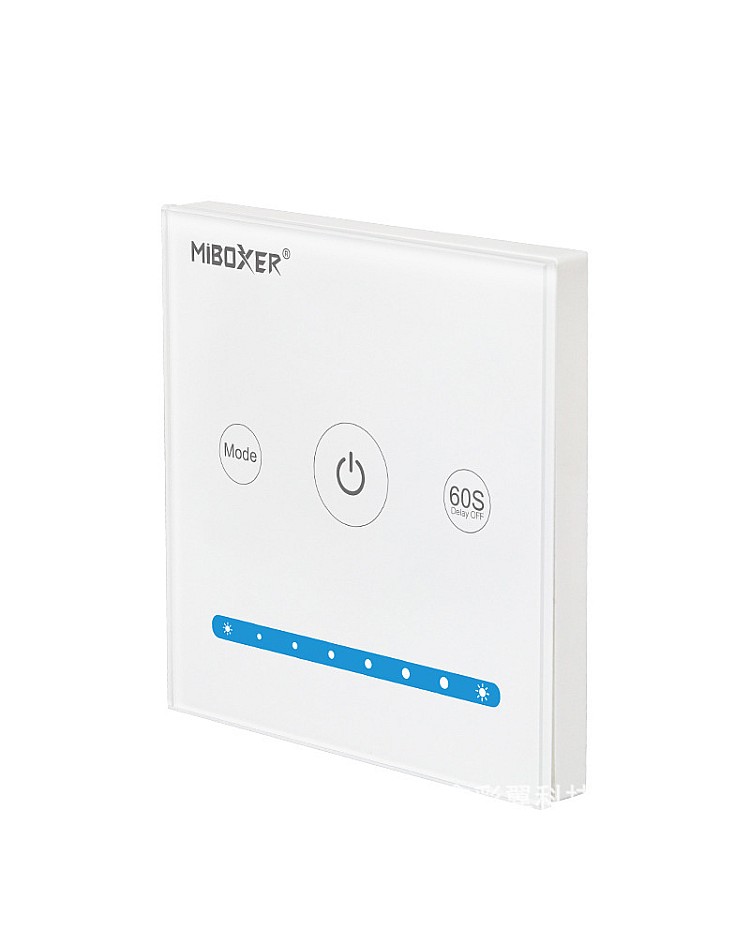

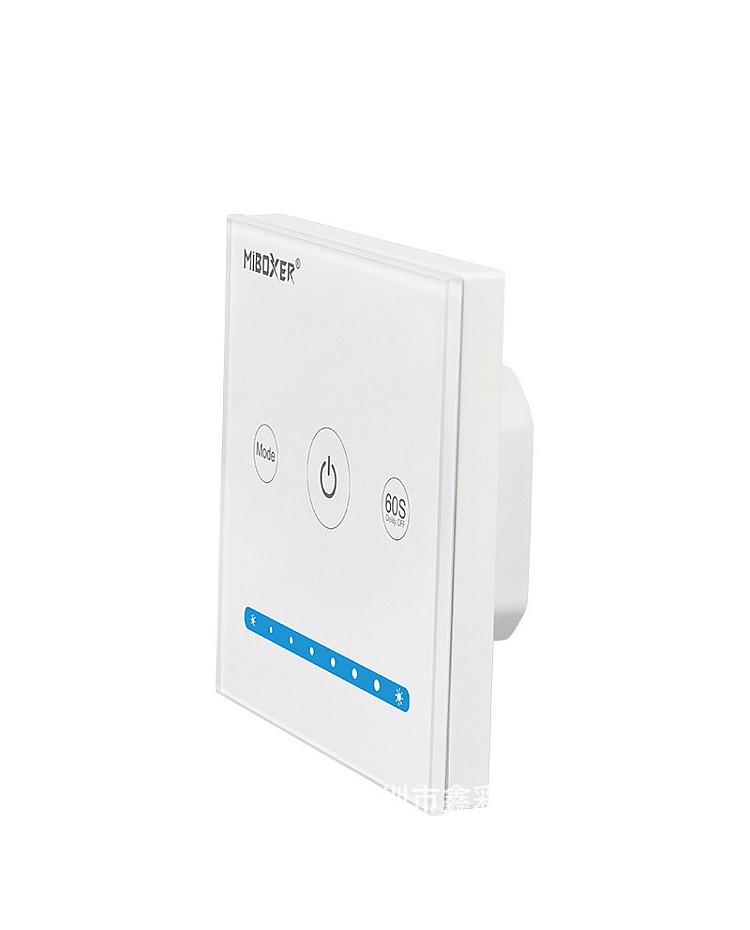

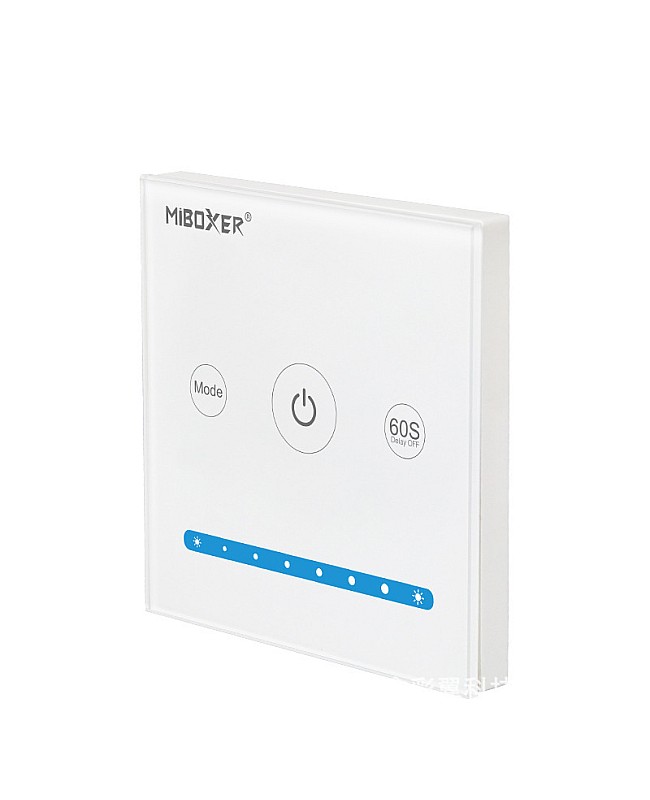

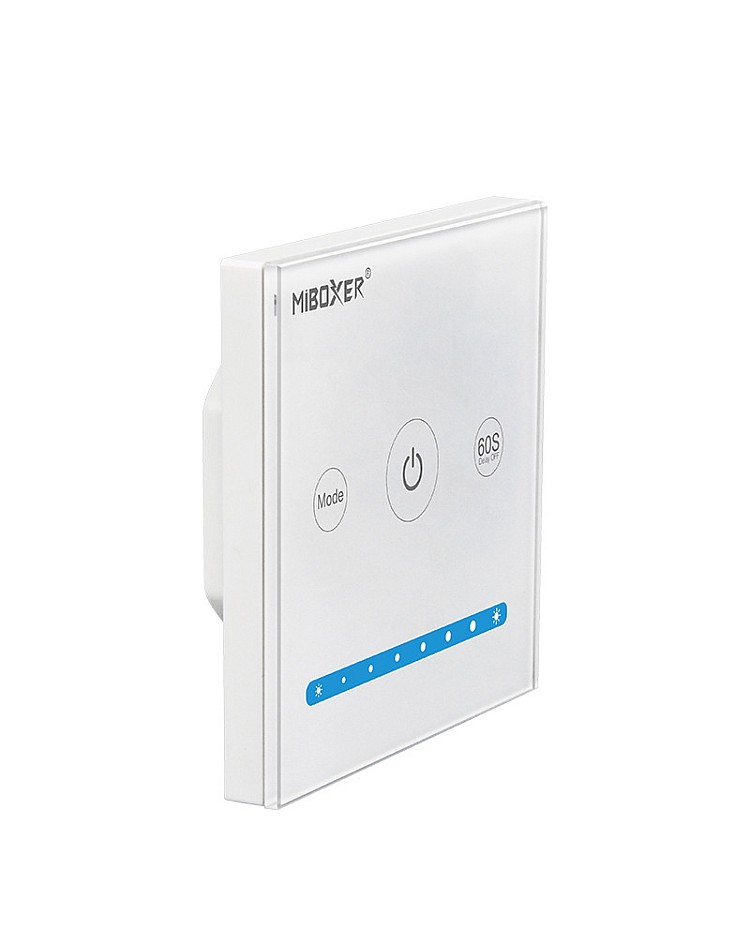

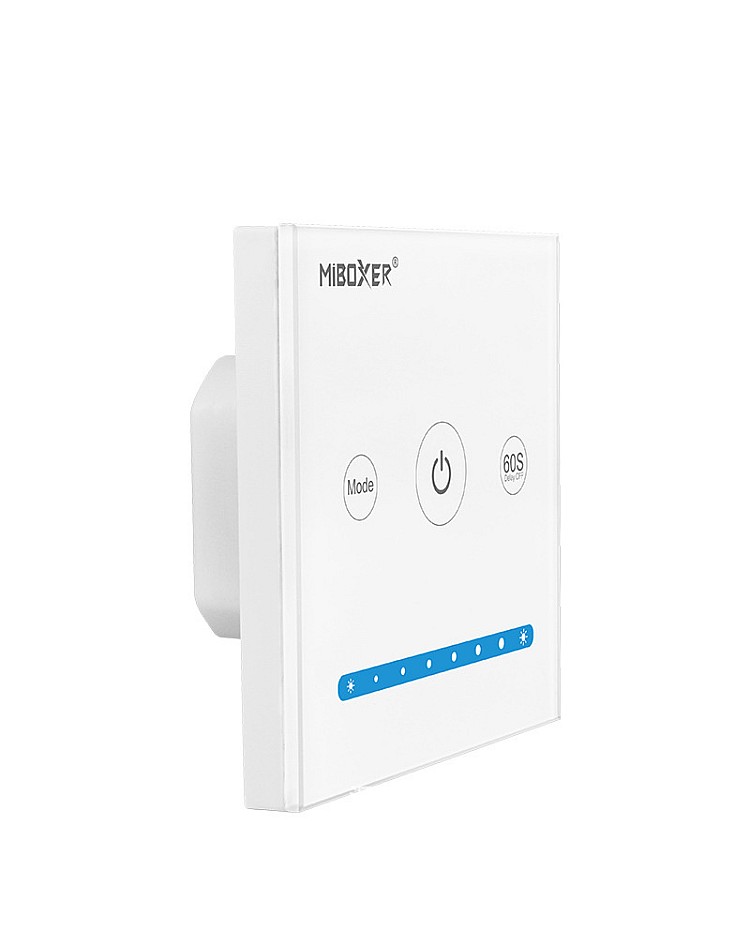

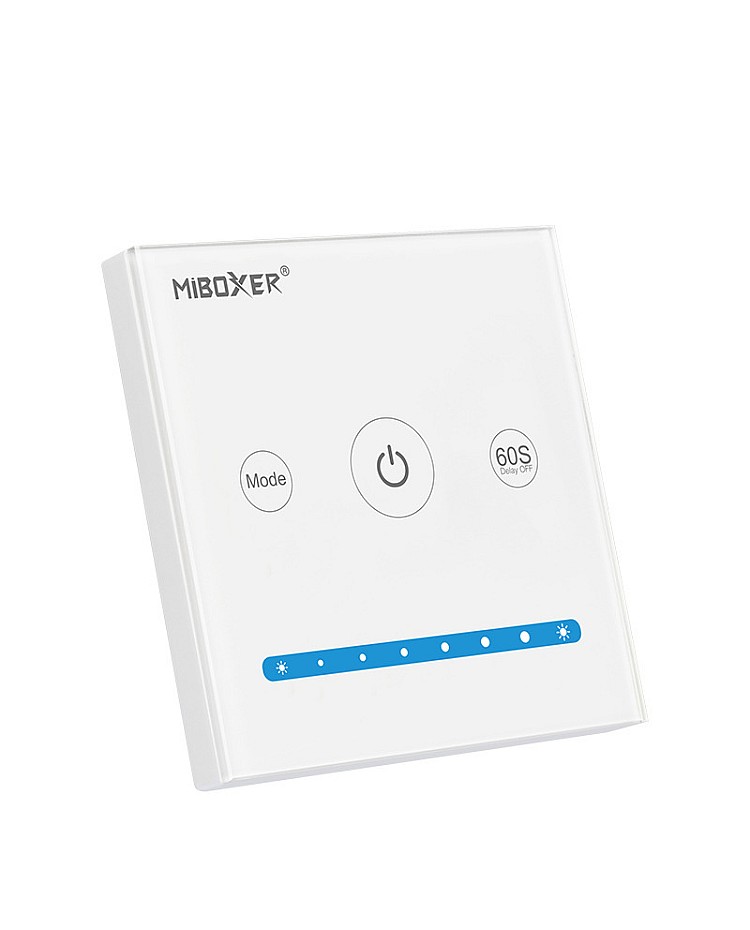

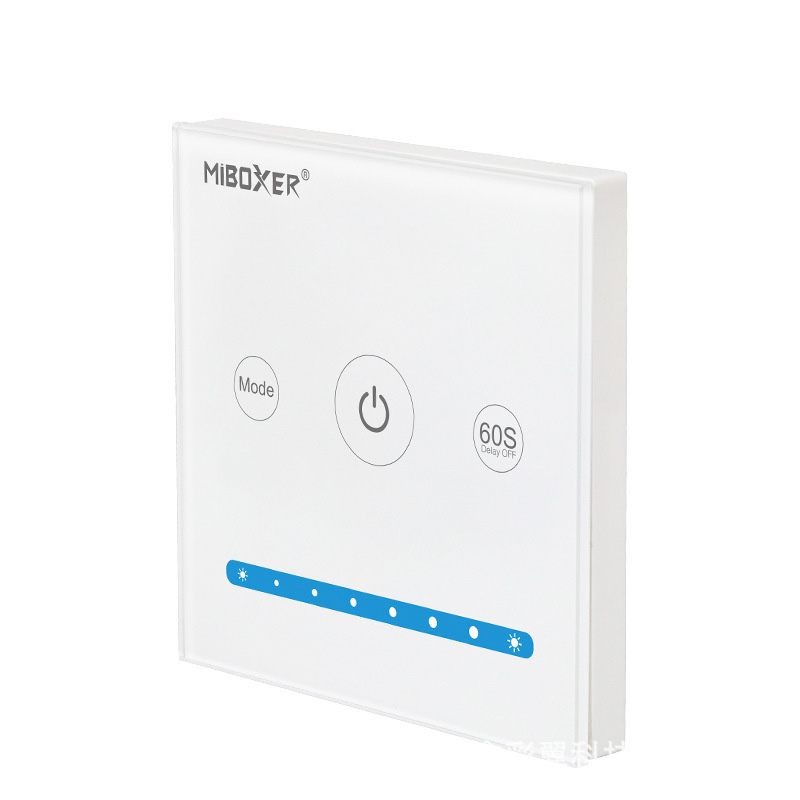

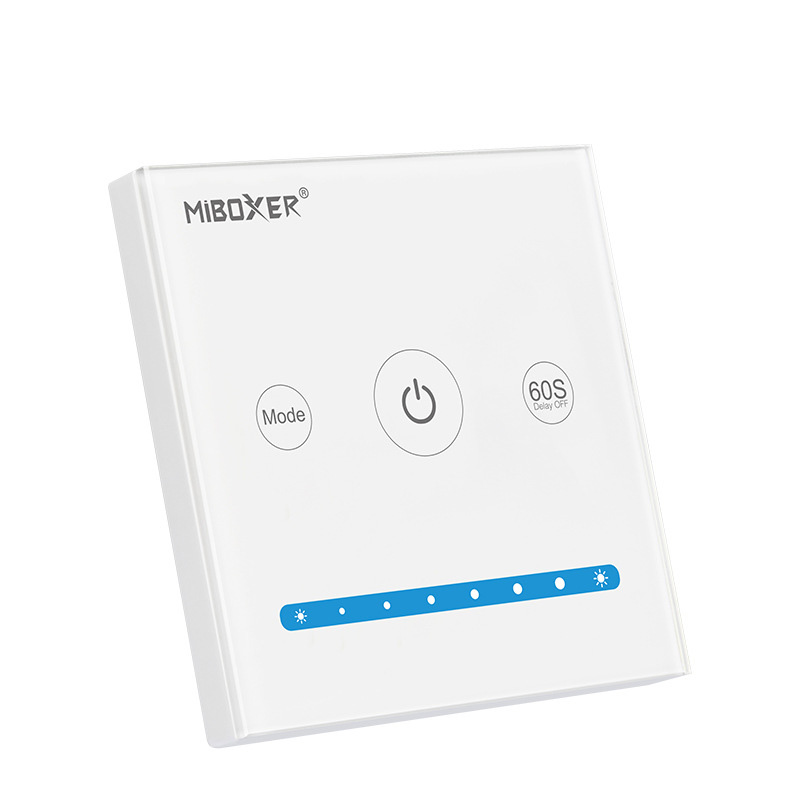

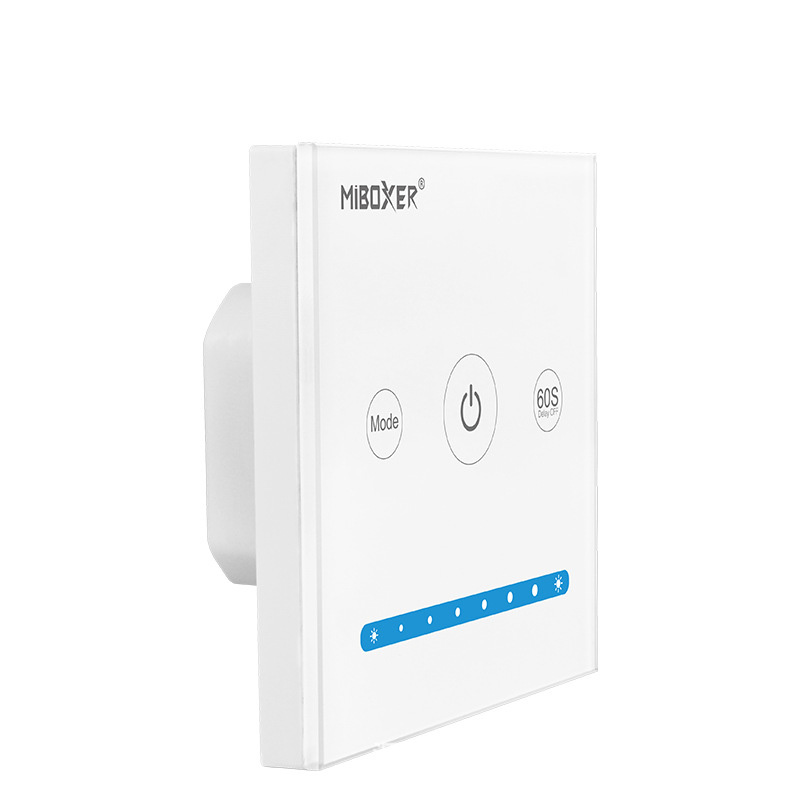

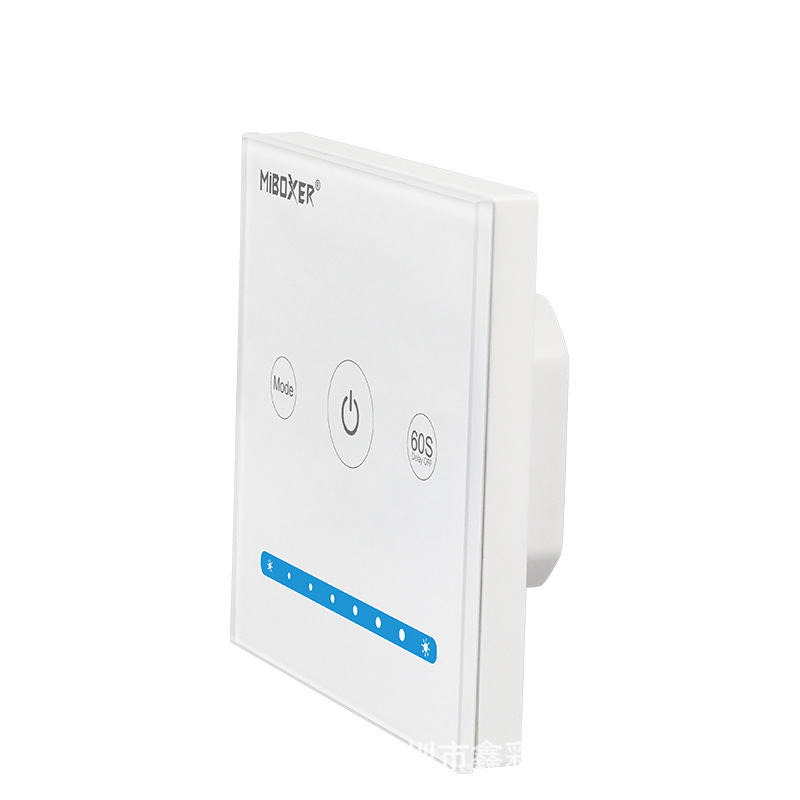

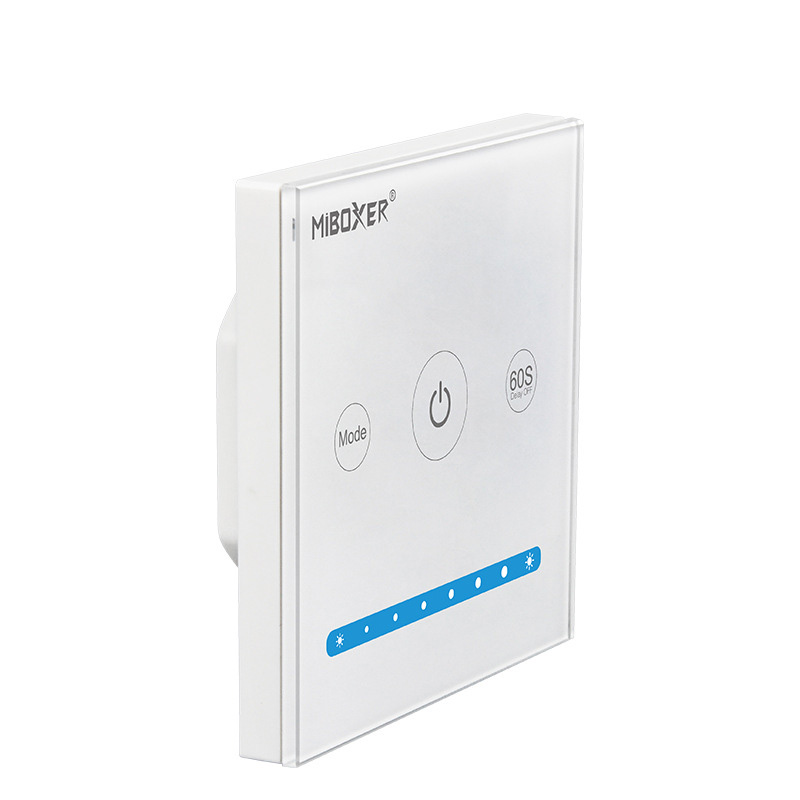

The MiBoxer P1 Dimmable Lighting Control Panel has a standard 86*86 European box structure and can be connected with constant voltage LED Lights or LED Strips. The Panel Controller has a capacitive touch screen design, and you can touch the screen to change the dynamic mode, adjust the brightness, or delay the light off easily. You can touch the dimming slider to adjust the brightness from 1% to 100% and touch the mode button to switch the dynamic mode. There are 9 dynamic modes available, and you can touch the "60S" button to delay off the LED Light. The Light will be turned off automatically after 60 seconds. The MiBoxer P1 adopts 2.4G transmission technology and can be controlled by MiBoxer 2.4G RF Remote Controls. The control distance is up to 30 meters. After adding the 2.4G Gateway WL-BOX1, the Controller Panel can be controlled by Smartphone APP and third-party voice commands. The Controlling Panel will receive the signals and transmit them to other Dimmable Panels within 30 meters, and different Panels will work synchronously.

Quick Links:

MiBoxer P1 Dimmable Lighting Control Panel User Manual


Features:

  • Size:86*86*26mm(L*W*H)
  • Working Voltage: DC12-24V
  • Output Max: 5A/Channel
  • Total Output Current: MAX 10A
  • Capacitive Touch Screen
  • 1%-100% Dimmable Control
  • 9 Dynamic Modes Available
  • 60S Delay-Off
  • 2.4GHz RF Wireless Transmission Technology
  • Support Third-Party Voice Control: Amazon Alexa And Google Assistant(2.4G Gateway Need)
  • Smartphone APP Control(2.4G Gateway Needed)
  • Compatible With 2.4G RF Remote Controls: FUT006, FUT007, B1, T1, FUT087
  • PWM High Frequency(8KHz)/Low Frequency(500Hz) Switching
  • Control Distance: ≤30m
  • Signal Transmitting
  • Modes Synchronization
  • Night Light Mode
  • Working Temperature: -20-+60℃
  • 2 Years Warranty


Includes:

1*MiBoxer P1 Dimmable Lighting Control Panel
