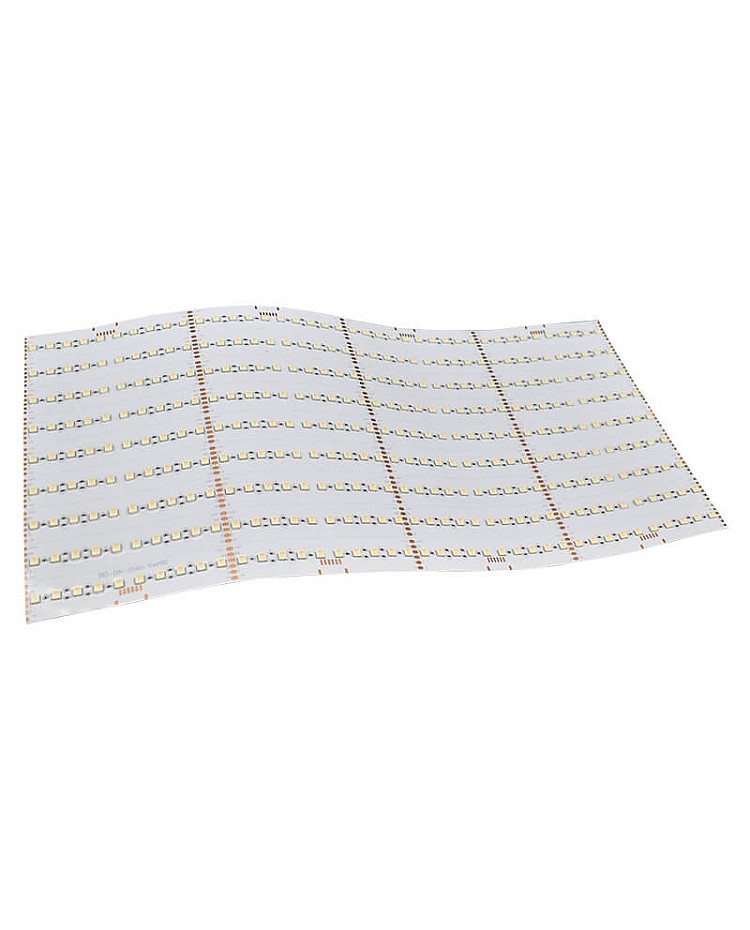

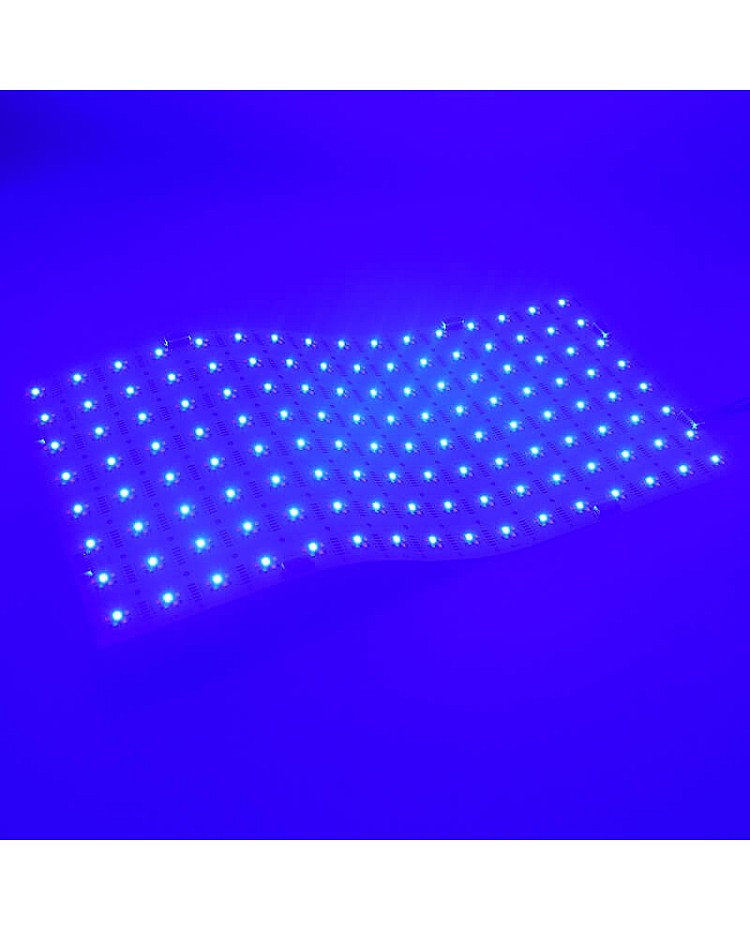

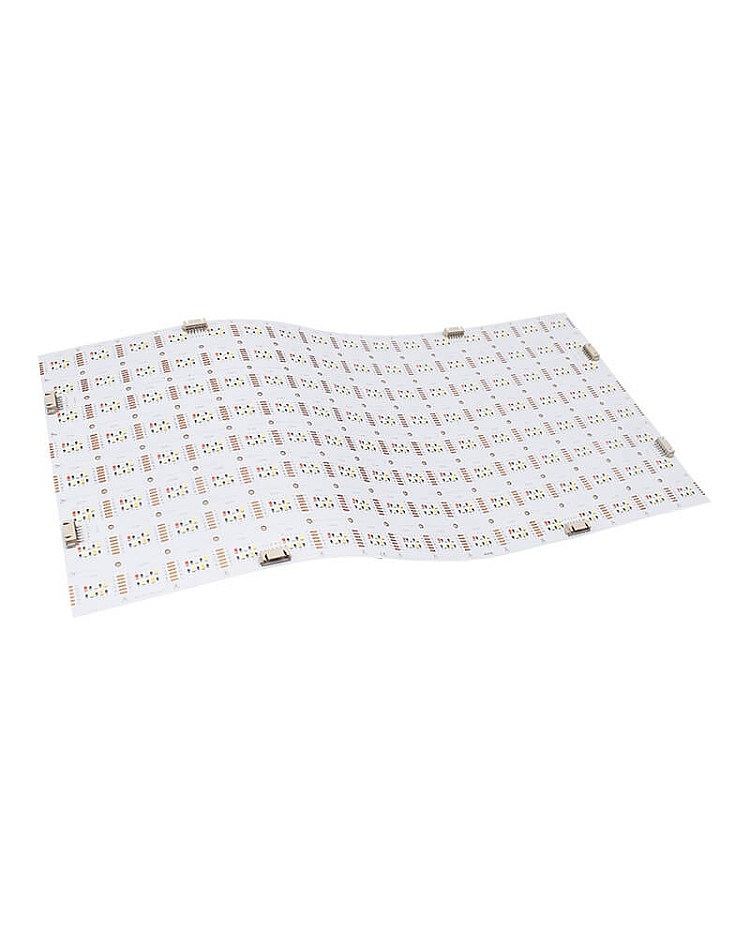

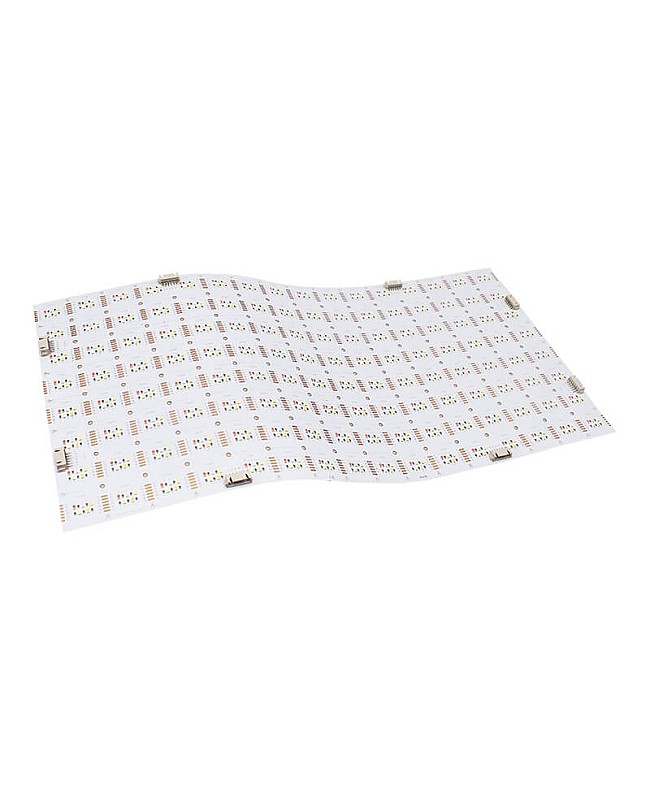

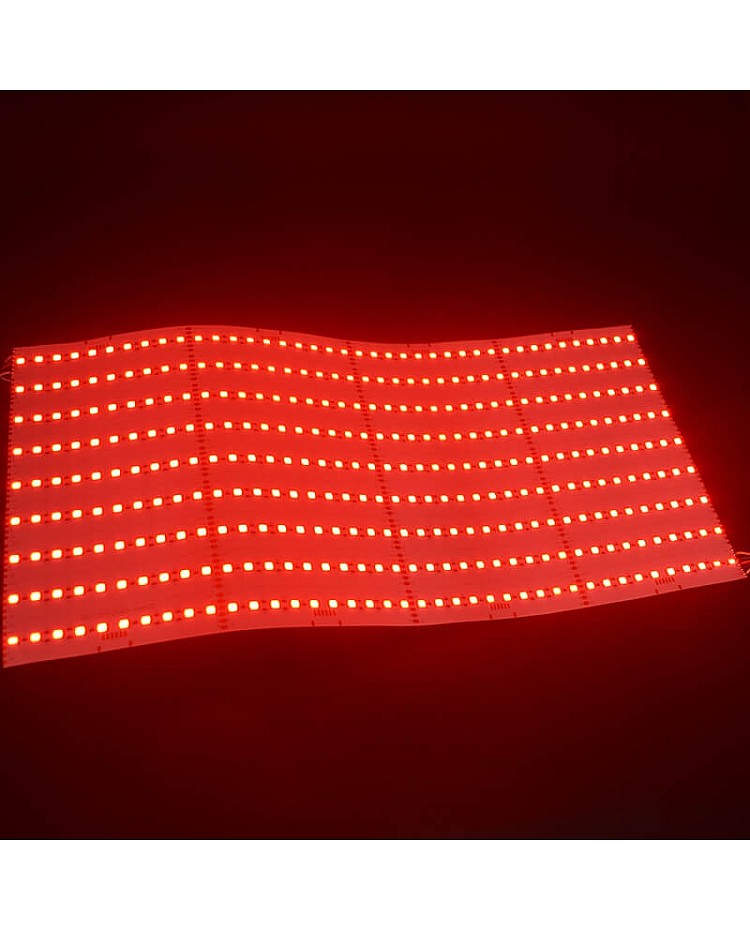

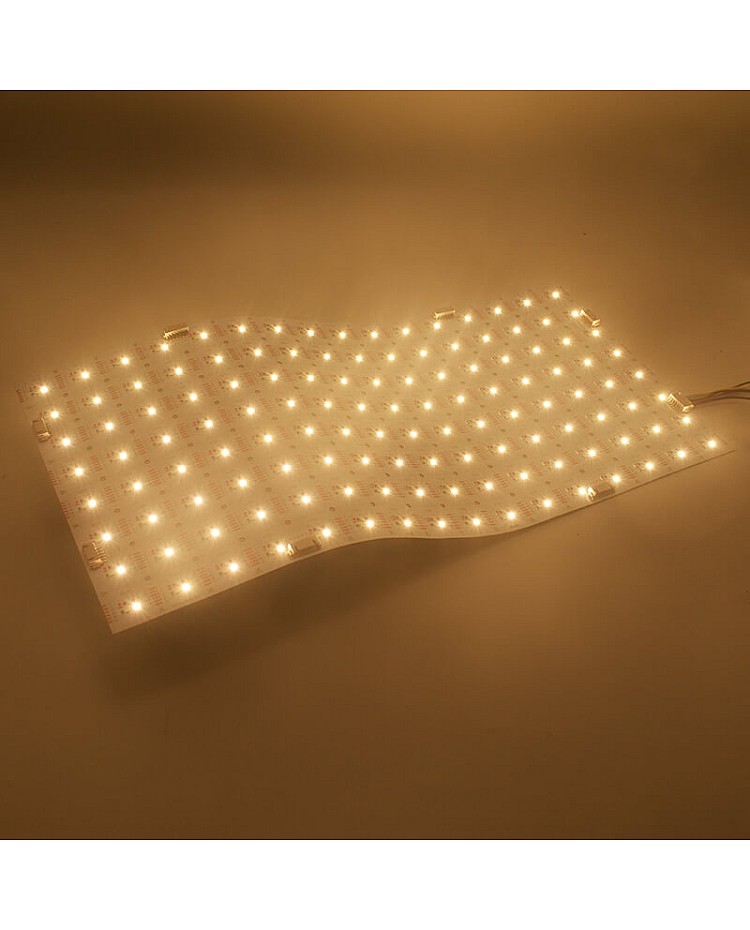

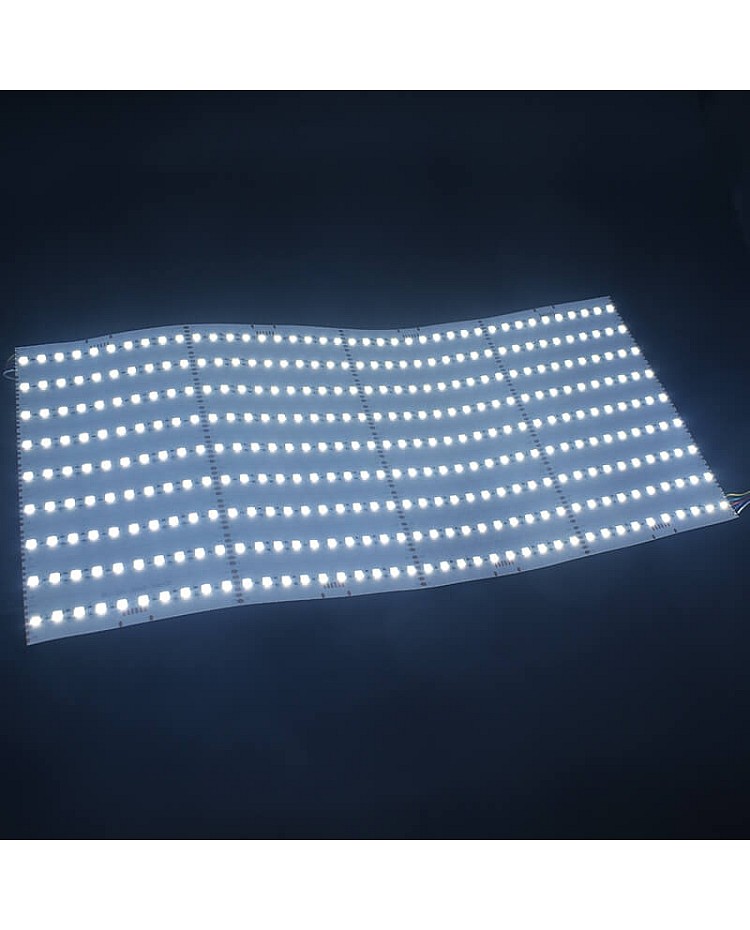

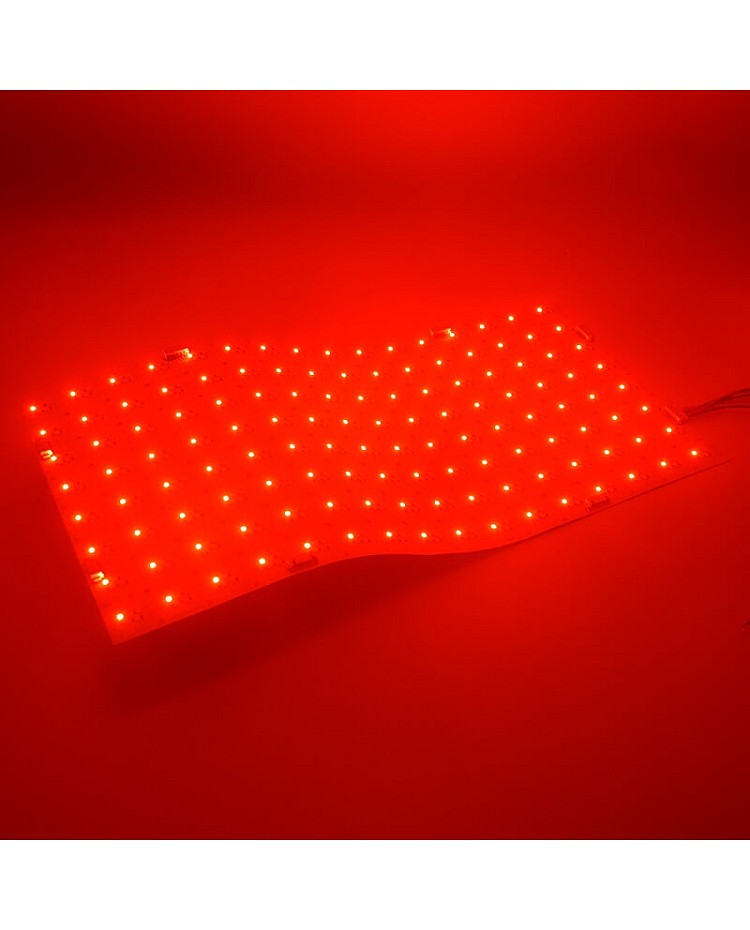

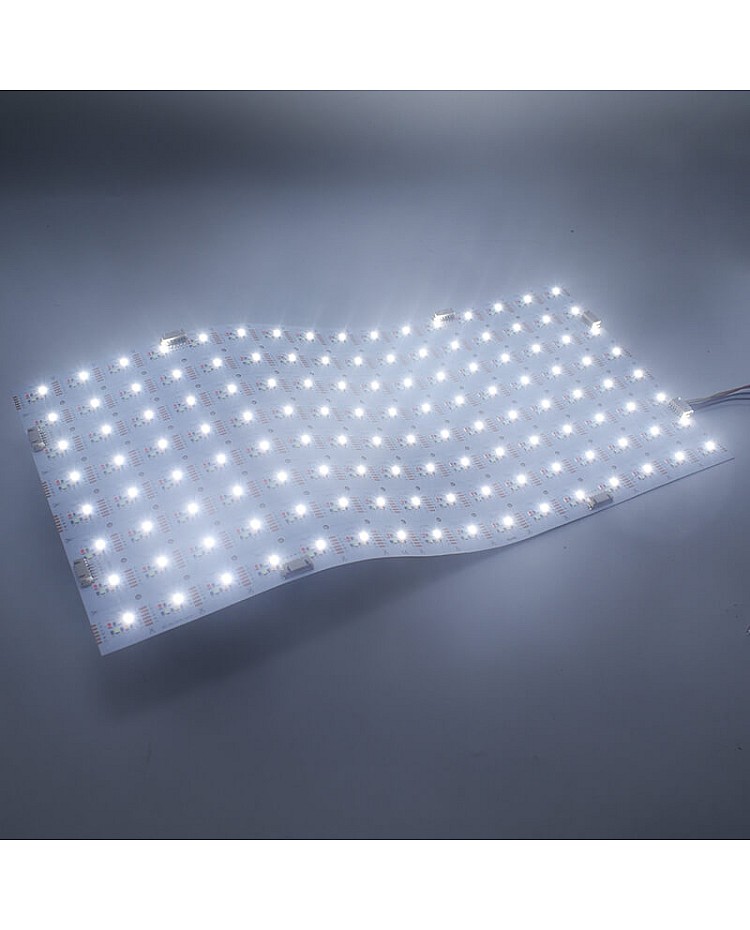

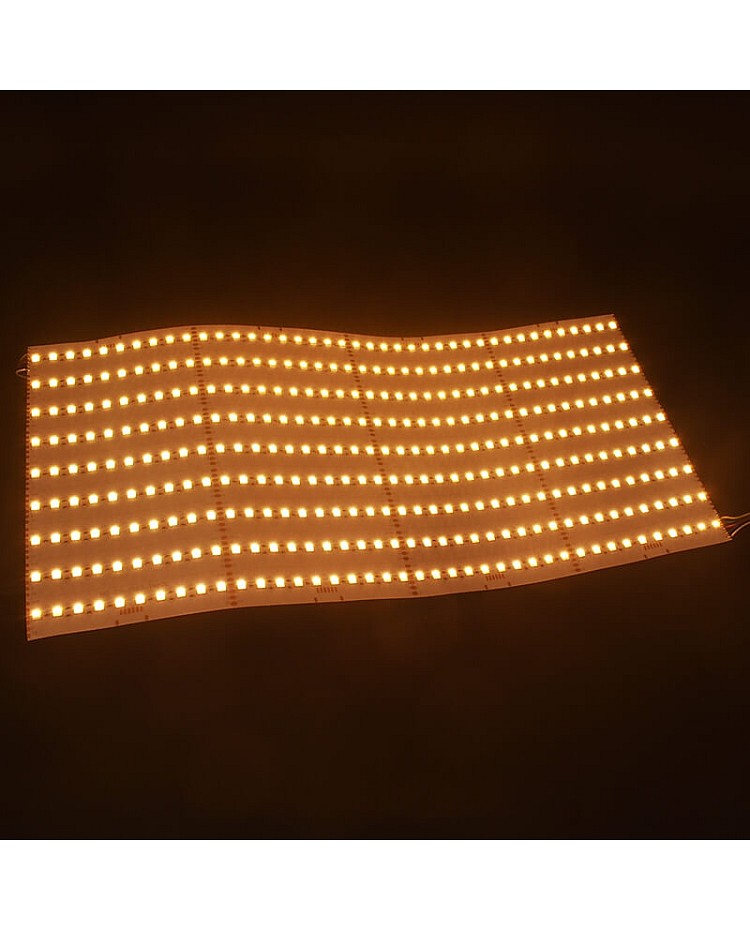

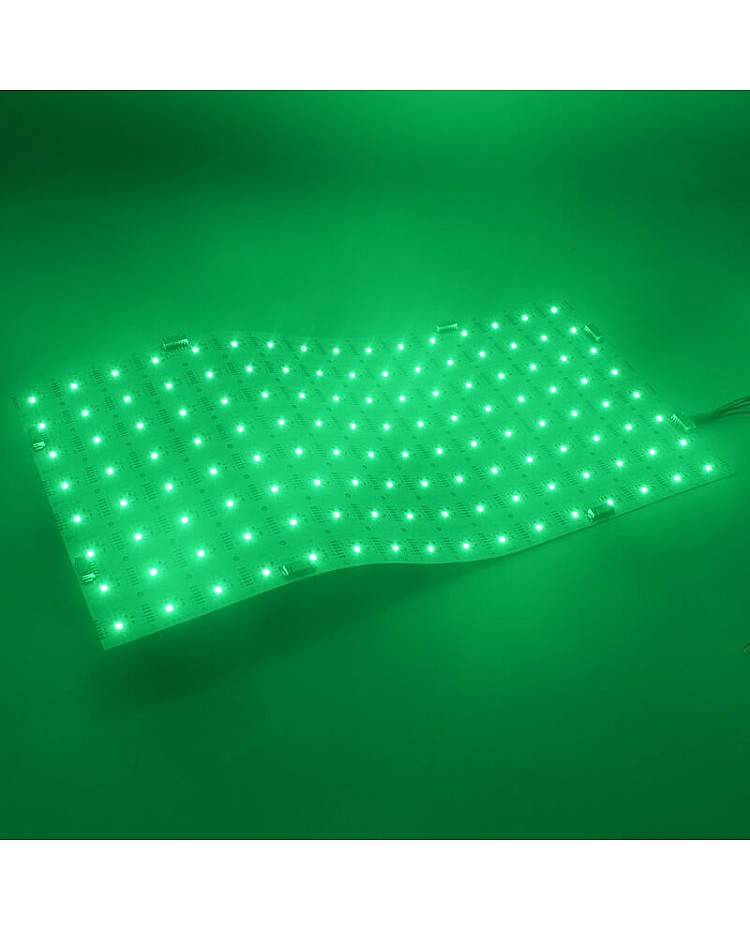

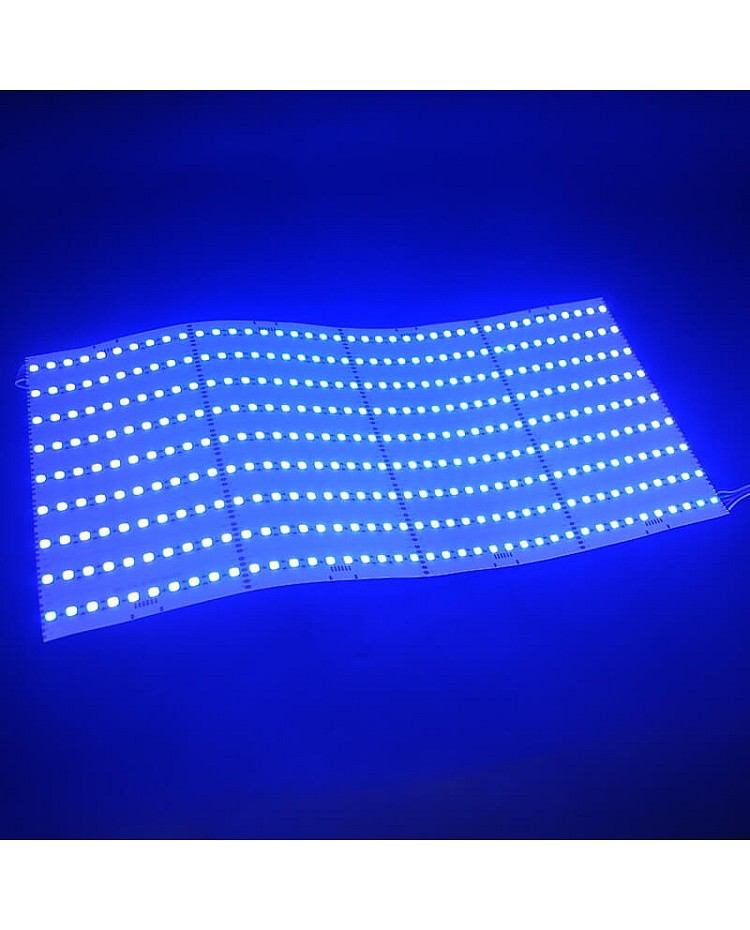

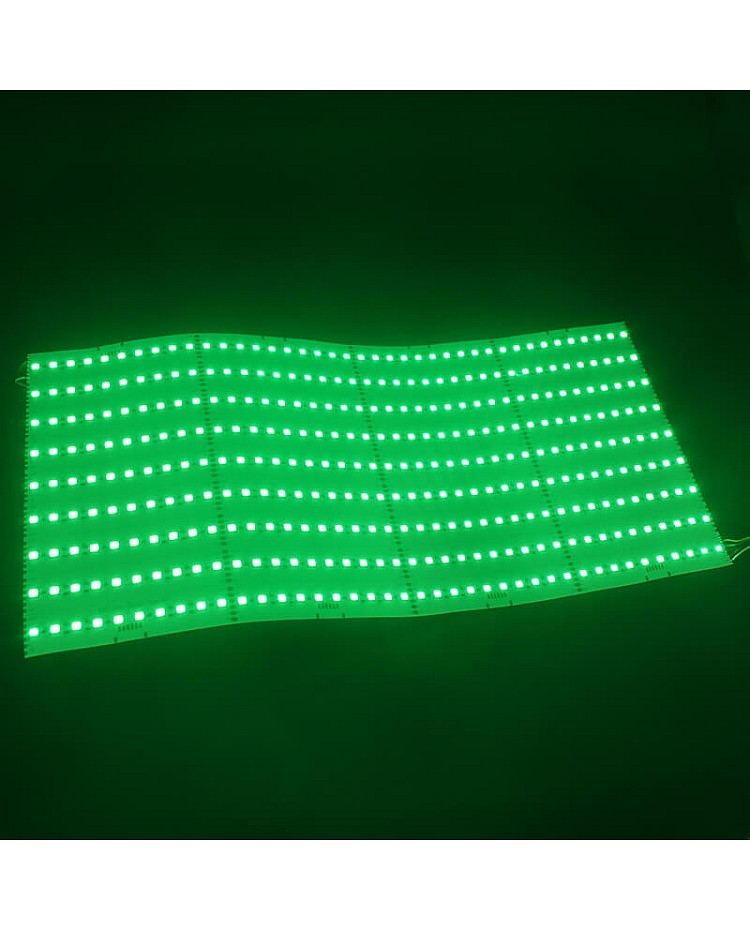

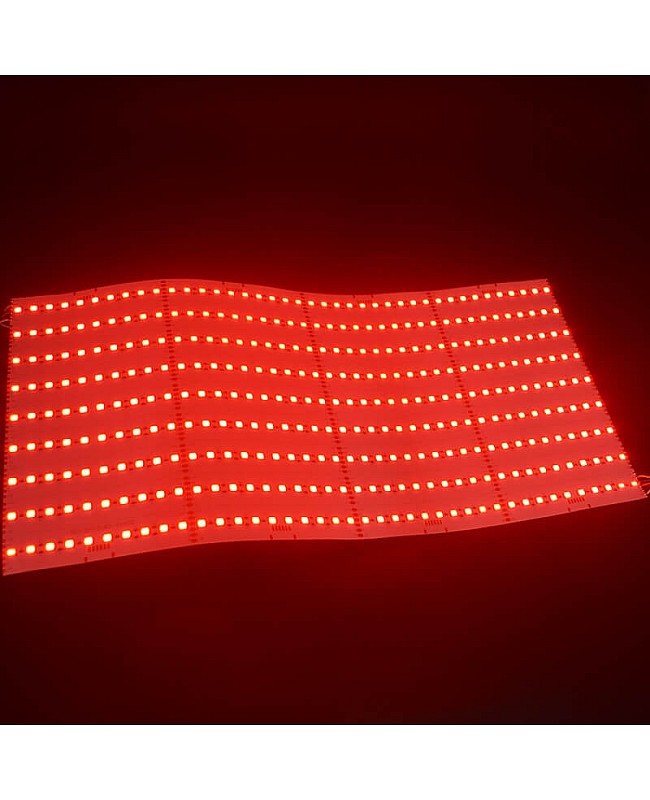

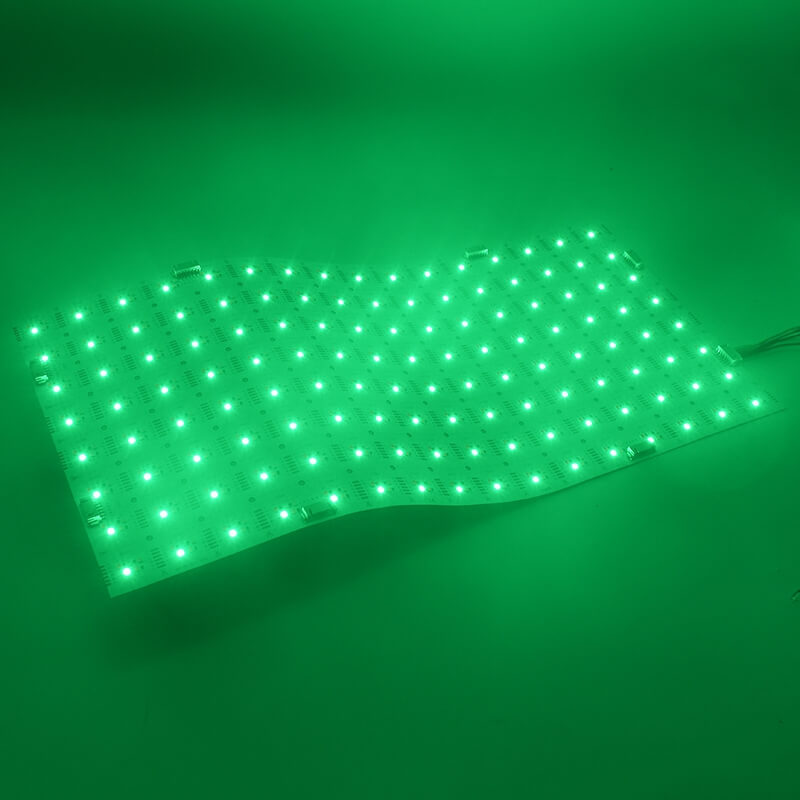

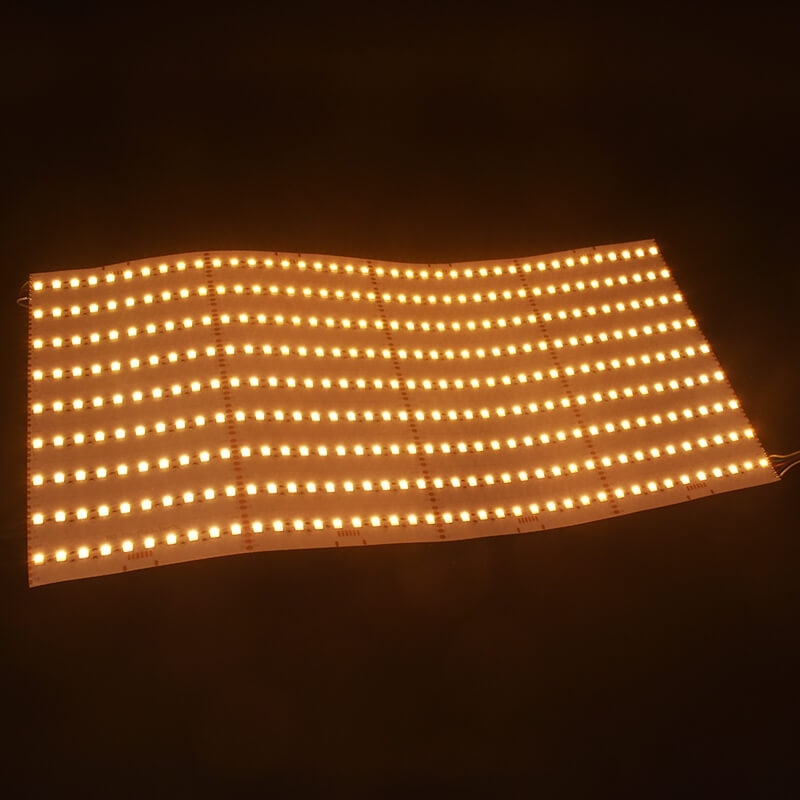

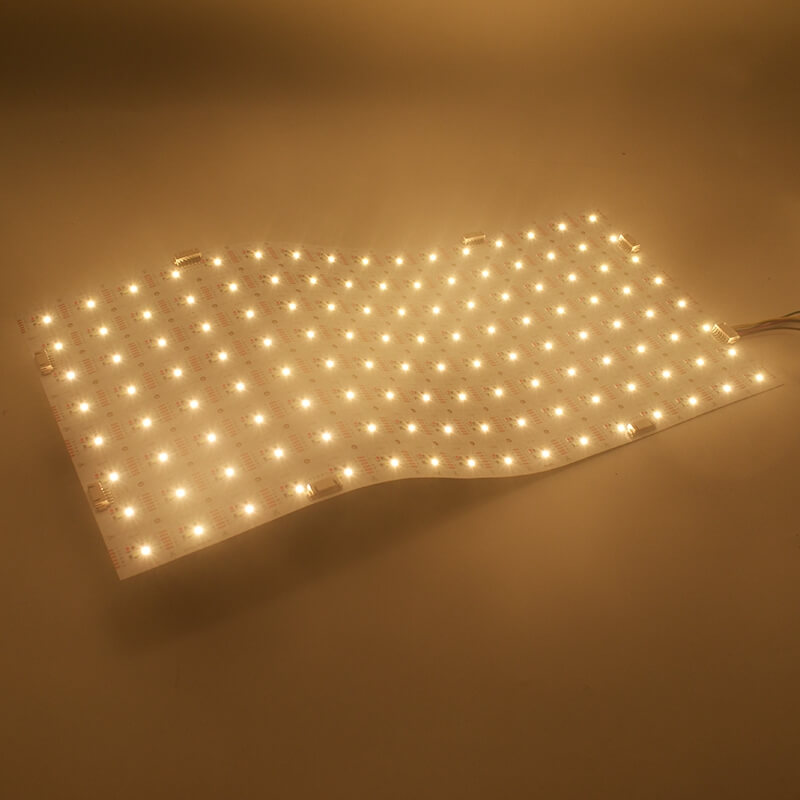

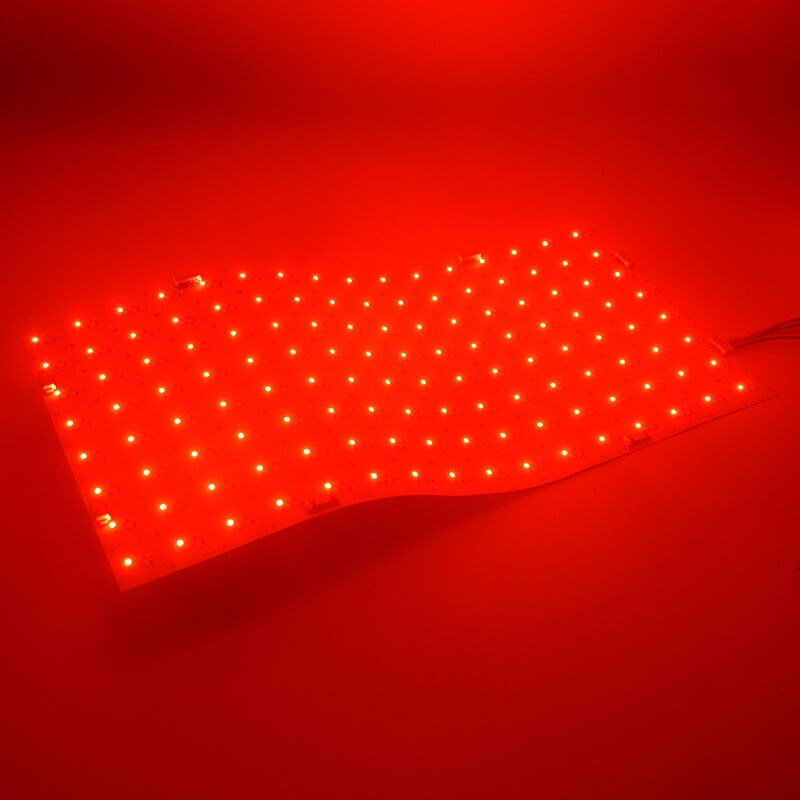

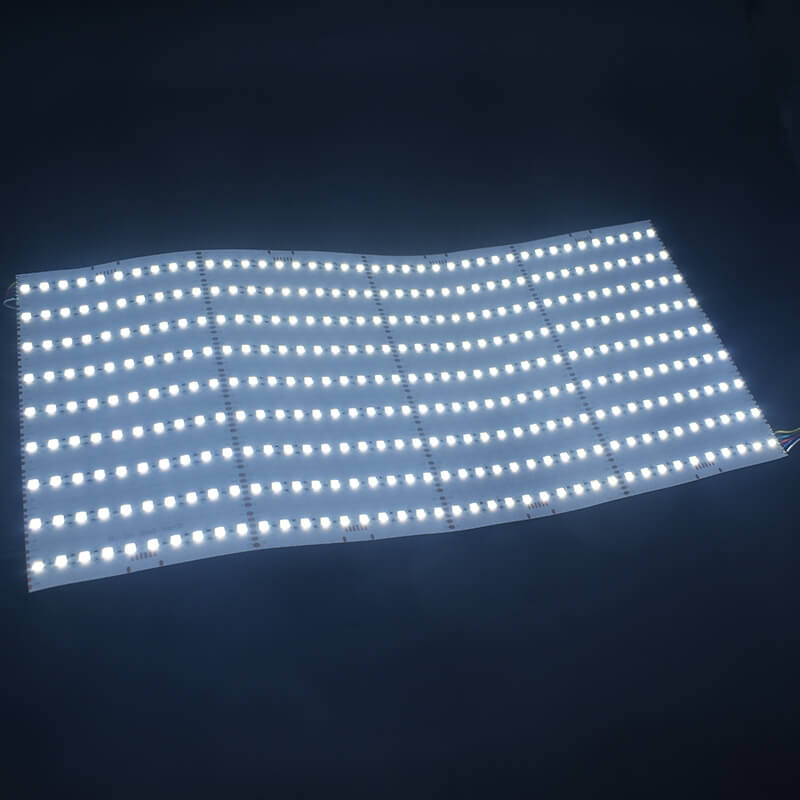

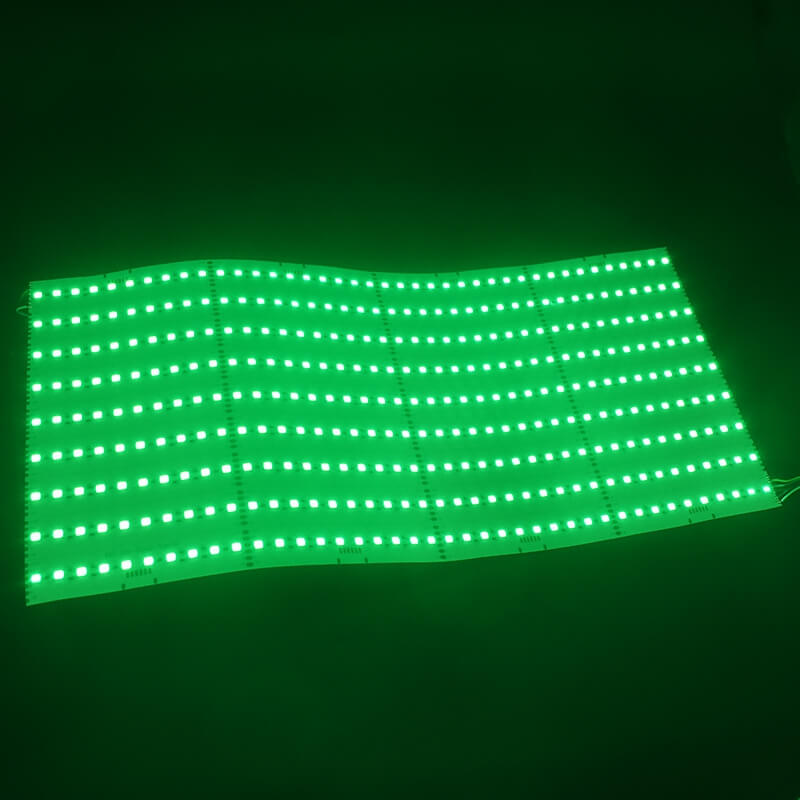

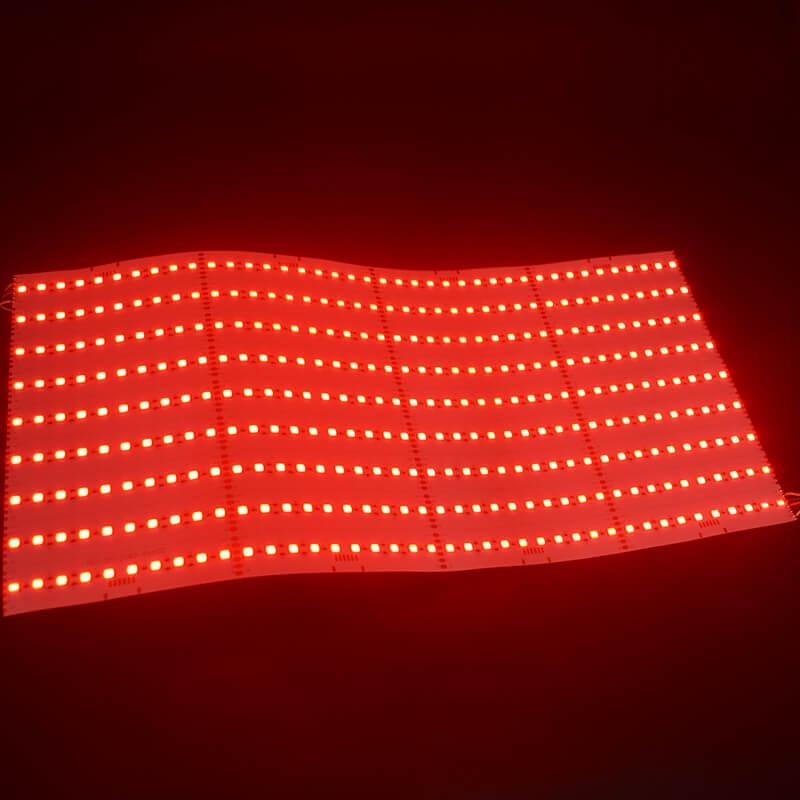

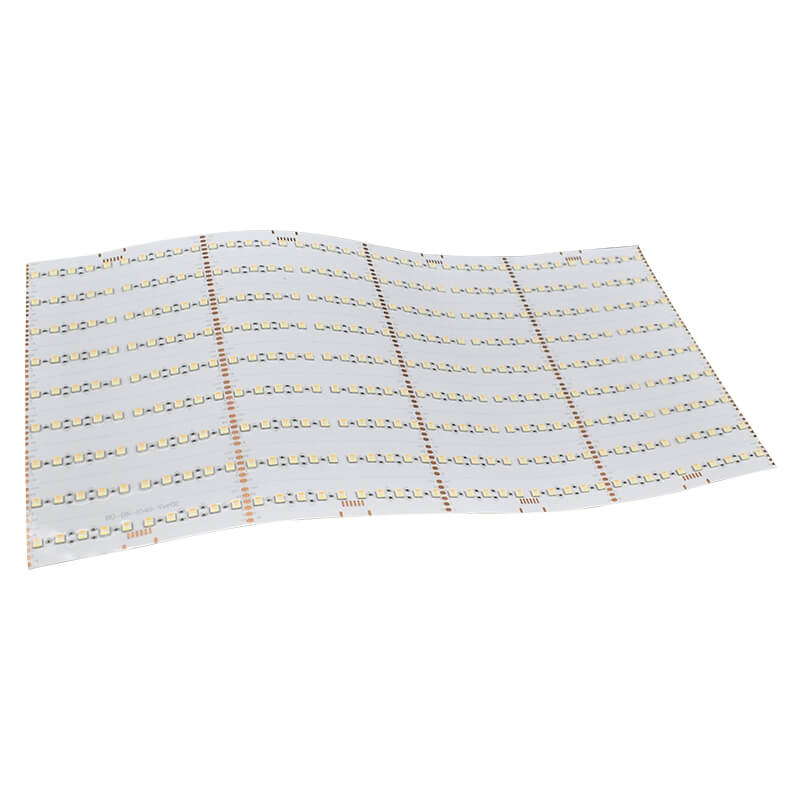

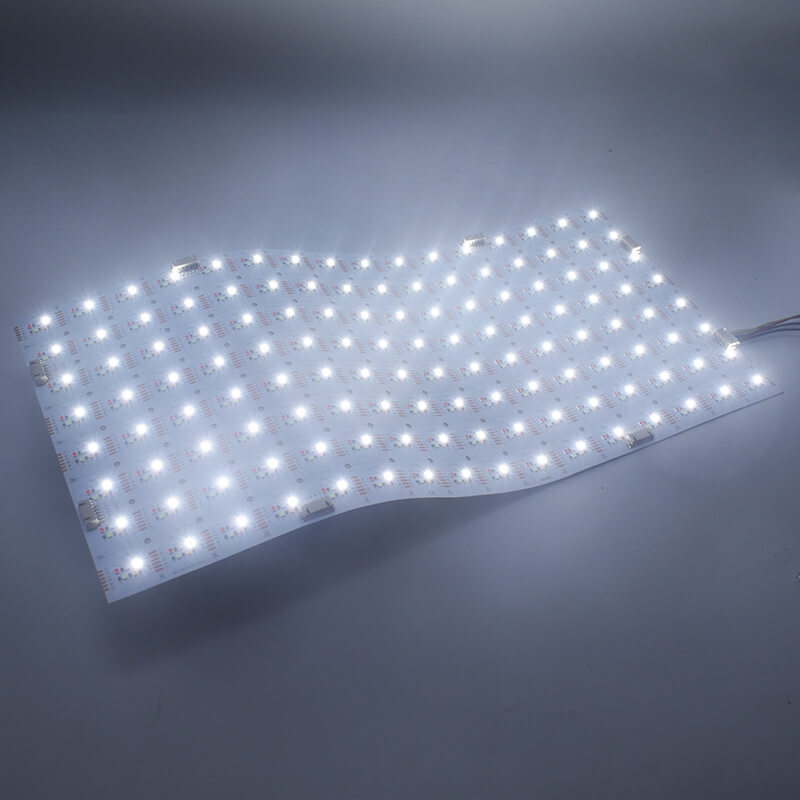

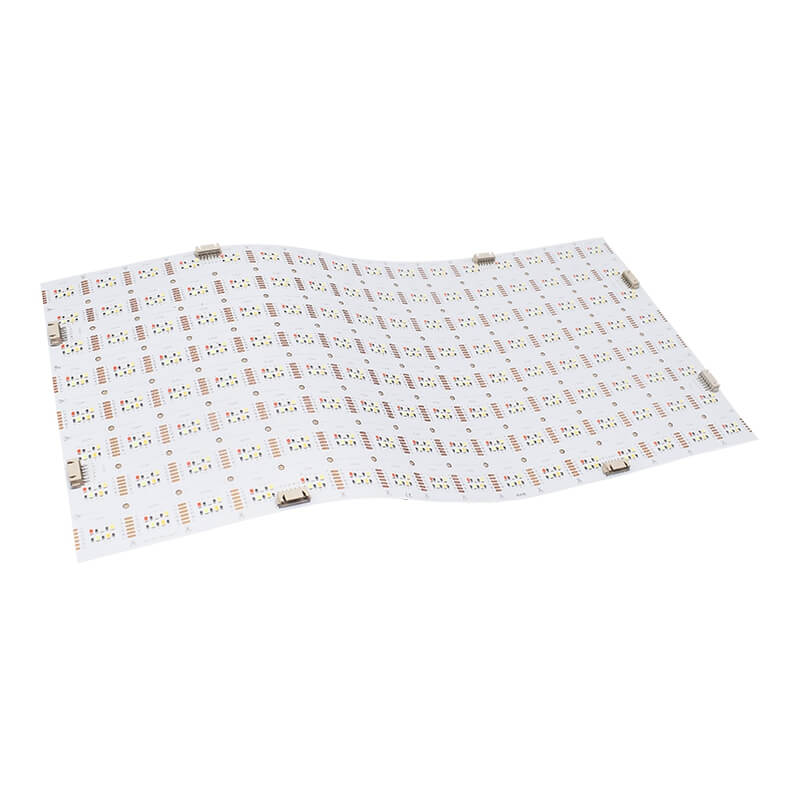

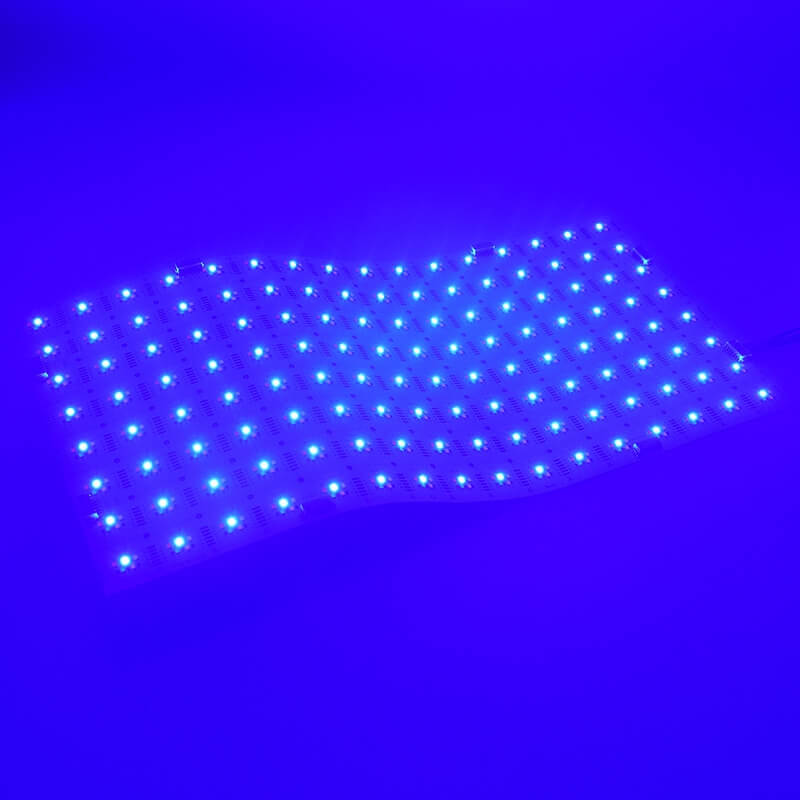

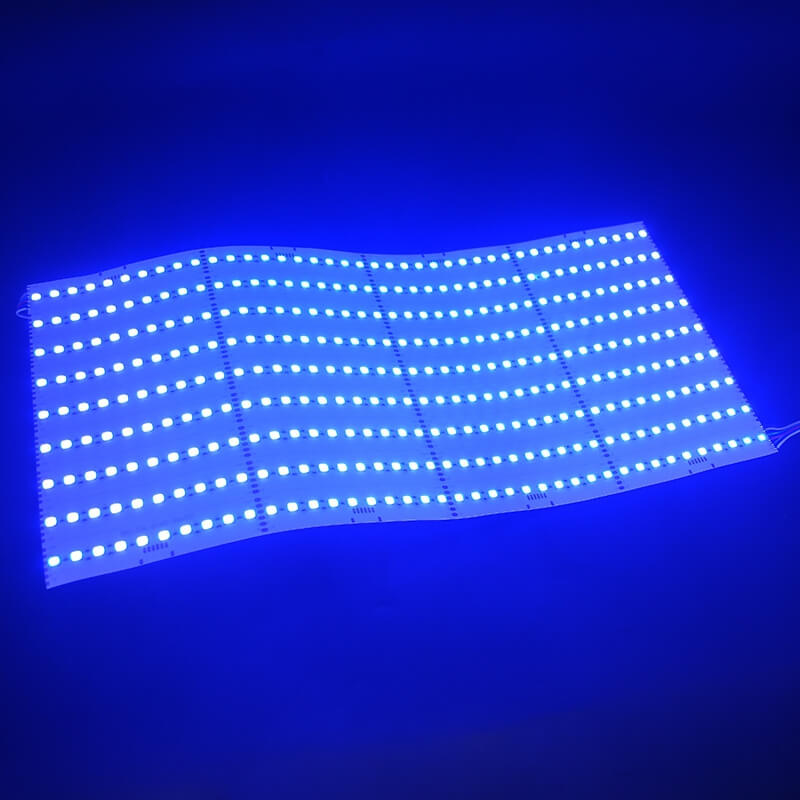

The cuttable RGB+CCT backlighting LED sheets are a versatile and innovative lighting option for backlighting in countertops, display boxes, signs, and DIY projects. The RGBWW LED sheets use 2835 or 5050 SMD LEDs as the light source. The LEDs are arranged evenly on the dual-layer PCB board, making them flexible and bendable. It's easy to connect to an LED light controller, which allows you to choose from millions of static colors, adjust the color temperature from warm white to cool white, and control brightness for various scenes. The back has double-sided adhesive tape, and the surface with screw holes for easy installation. The backlighting sheet lights feature a cuttable design, allowing you to create a specific size to fit a unique space or intricate lighting patterns, as needed. The RGB+CCT LED sheets are connectable for large lighting projects; you can connect multiple pieces for various applications, including retail displays, architectural lighting, and other home projects.
Link: RGB+CCT Backlighting LED Sheet Data Sheet
Specifications:
- Type: RGB+CCT flexible backlighting LED sheets
- Models: LB-318-2835-640 / LB-297-5050-360

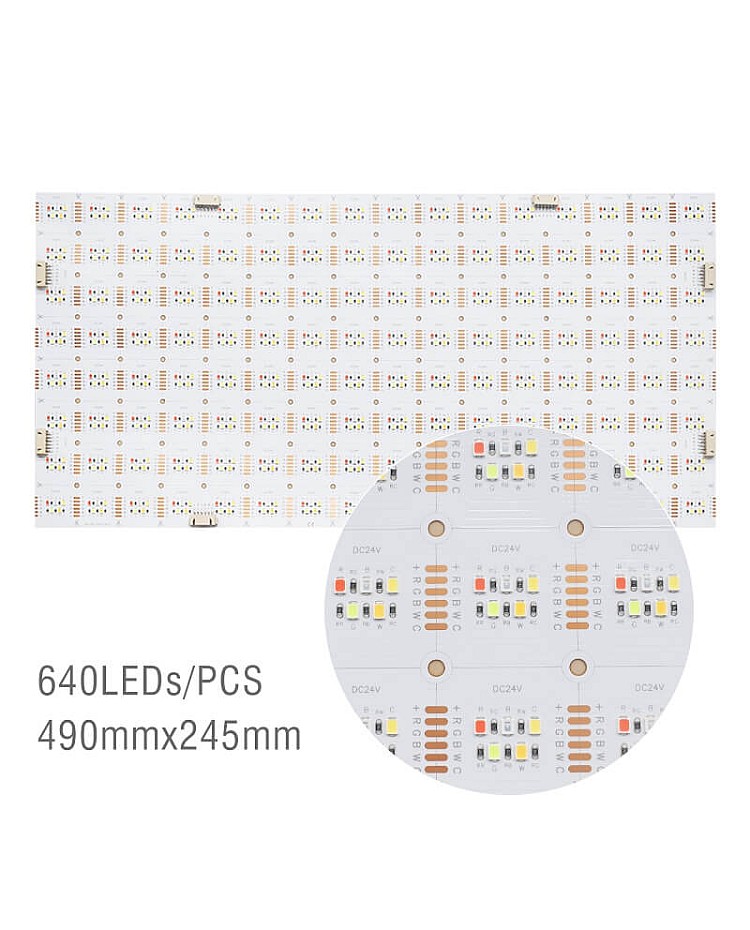

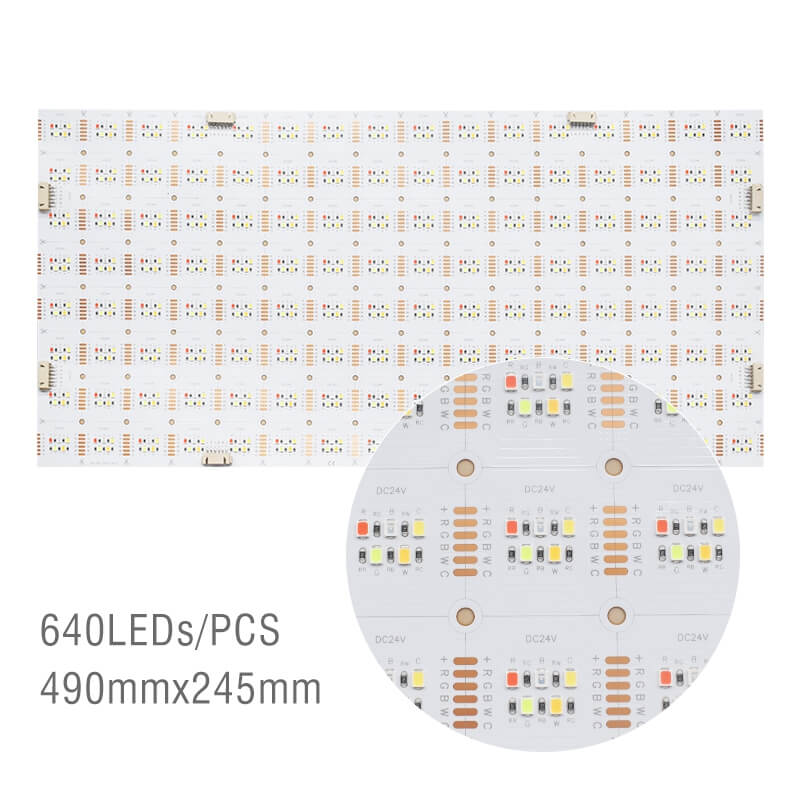

- Size( L x W ): 490 mm x 245 mm ( 19.29" x 9.65" )( LB-318-2835-640 ) / 500 mm x 245 mm ( 19.69" x 9.65" )( LB-297-5050-360 )
- LED type: 2835 SMD LEDs ( LB-318-2835-640 ) / 5050 SMD LEDs ( LB-297-5050-360 )
- LED quantity: 640PCS ( LB-318-2835-640 ) / 360PCS ( LB-297-5050-360 )
- Working voltage: DC 24V
- Power: 50W/piece ( LB-318-2835-640 ) / 60W/piece ( LB-297-5050-360 )

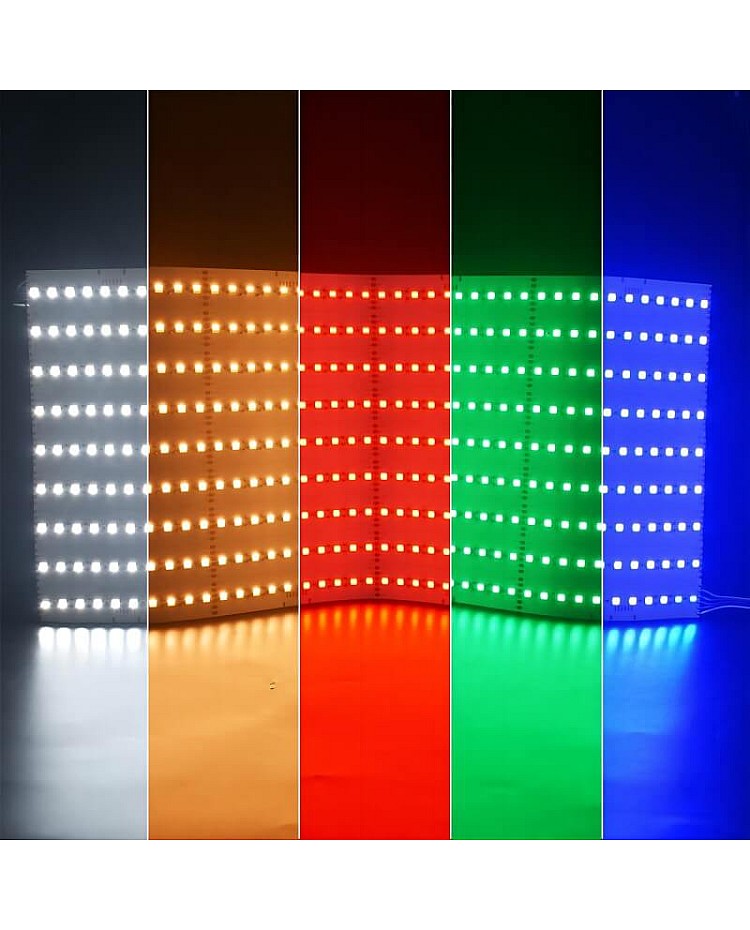

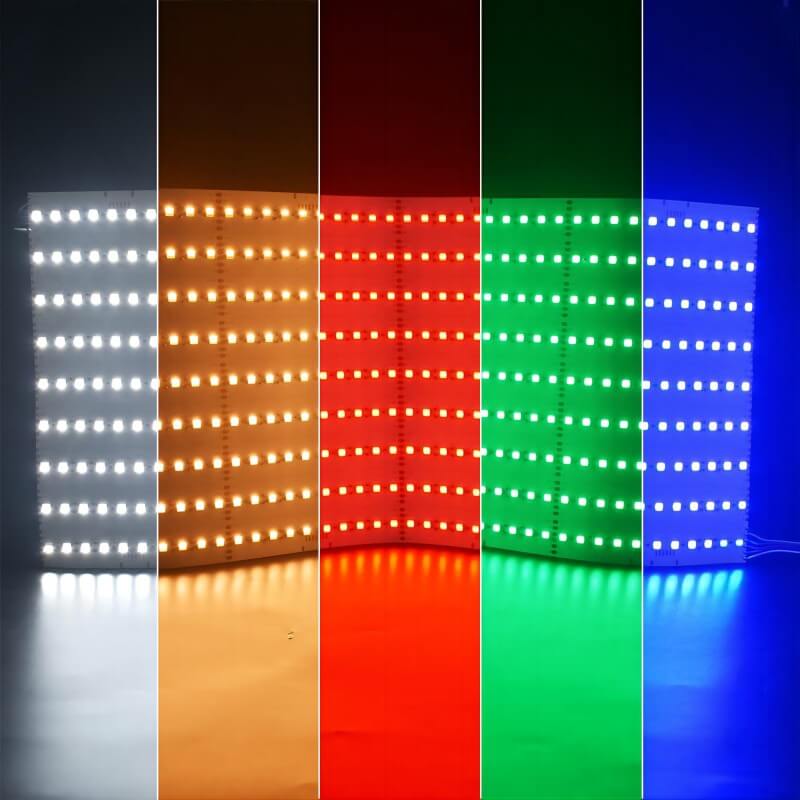

- Colors: RGB+tunable white
- Luminous flux: 1800 lm/m ( LB-318-2835-640 ) / 2160lm/m ( LB-297-5050-360 )
- Dimmable: Yes
- Color temperature adjustable: Yes
- CRI: >80Ra
- Beam angle: 120°
- PCB material: Double-layer FPC

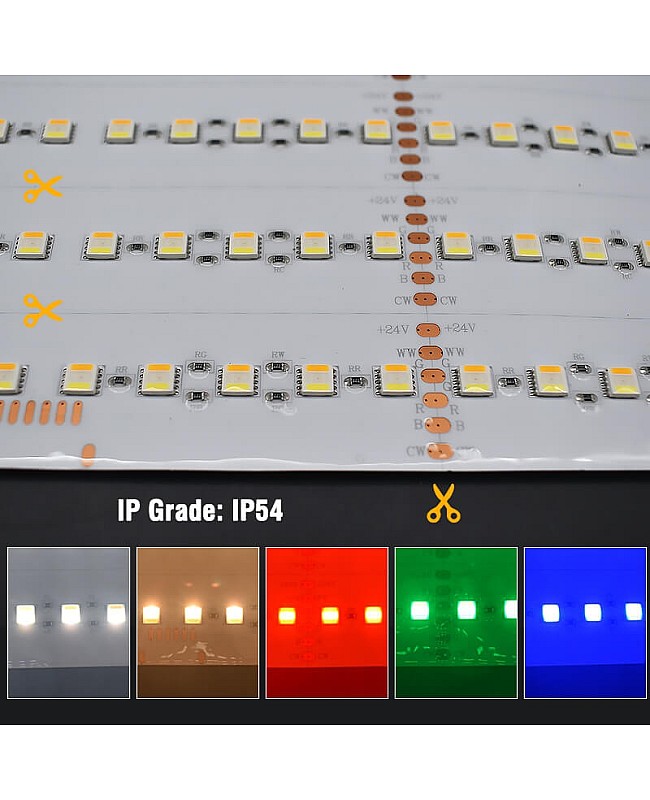

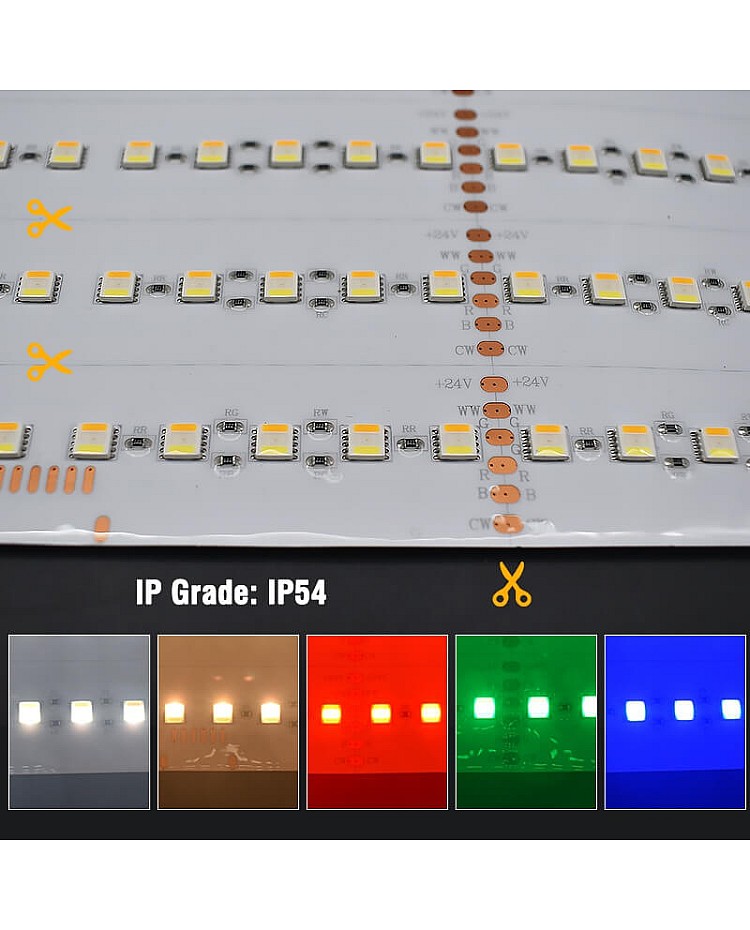

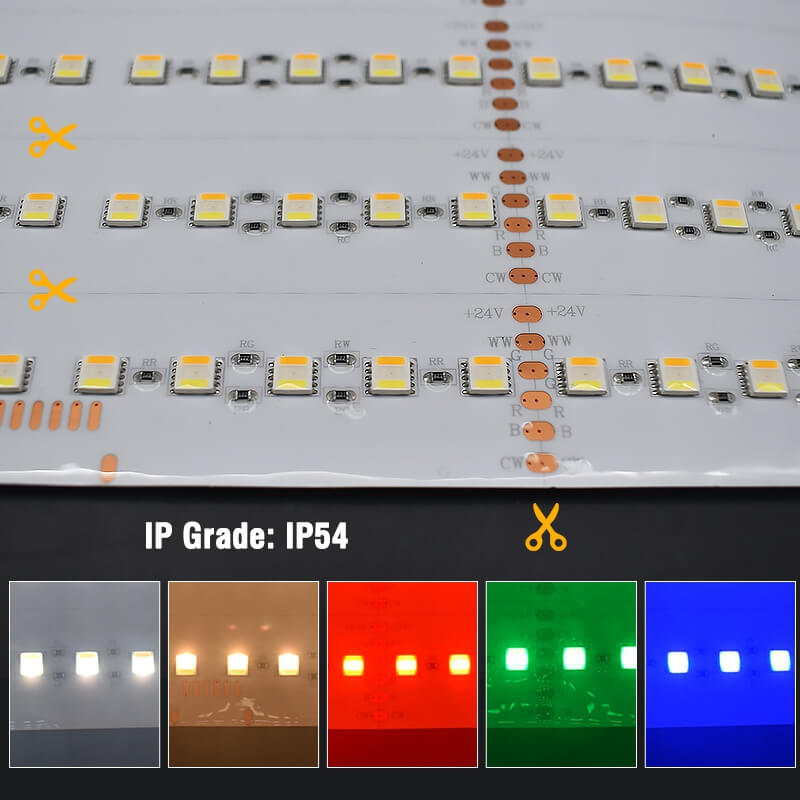

- Cut length: 30.6 mm x 30.6 mm ( LB-318-2835-640 ) / 125 mm ( LB-297-5050-360 )

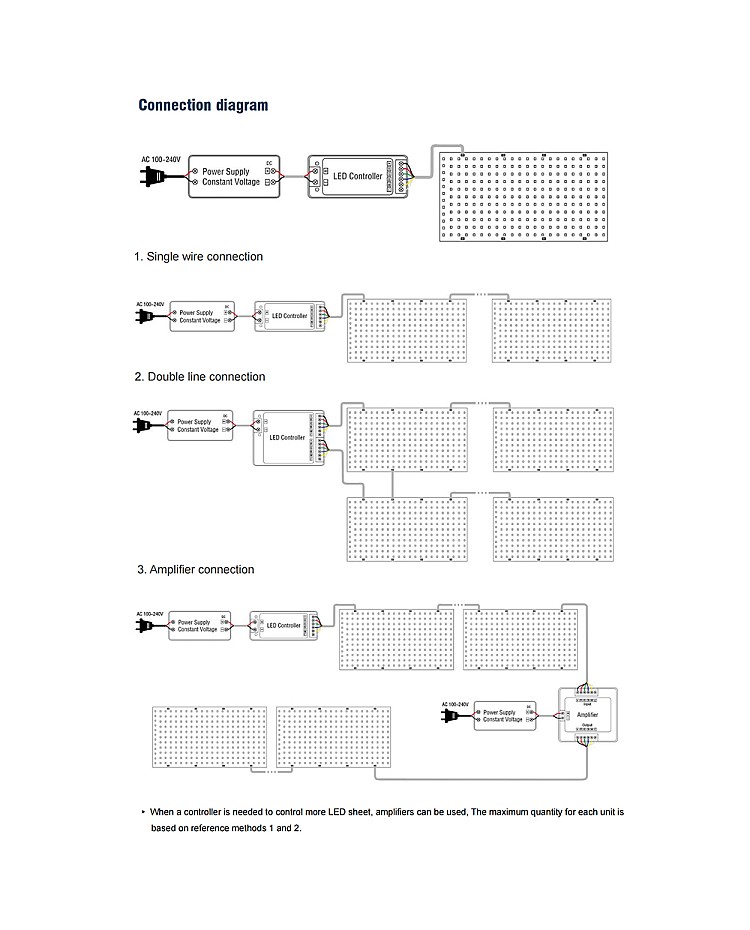

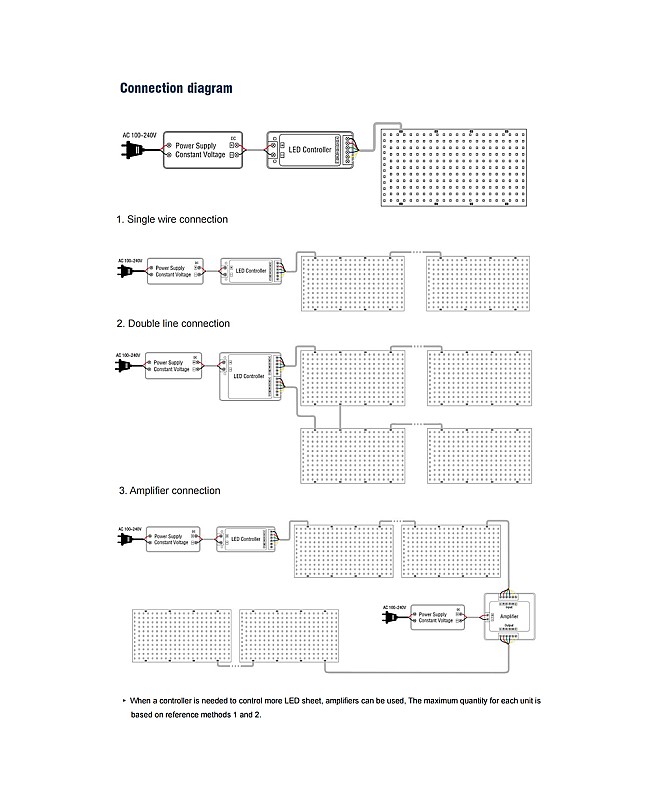

- Has multiple power connectors for easy connection
- The back has double-sided adhesive tape
- The surface has screw holes for easy mounting
- Waterproof Level: IP20 non-waterproof, IP54 waterproof
- Storage temperature: -20 ℃ + 65 ℃ ( -4 °F - 113 °F )
- Working temperature: -20 ℃ + 45 ℃ ( -4 °F - 149 °F )
- UL listed
- Lifespan: > 36,000 hours
- Warranty: 3 years

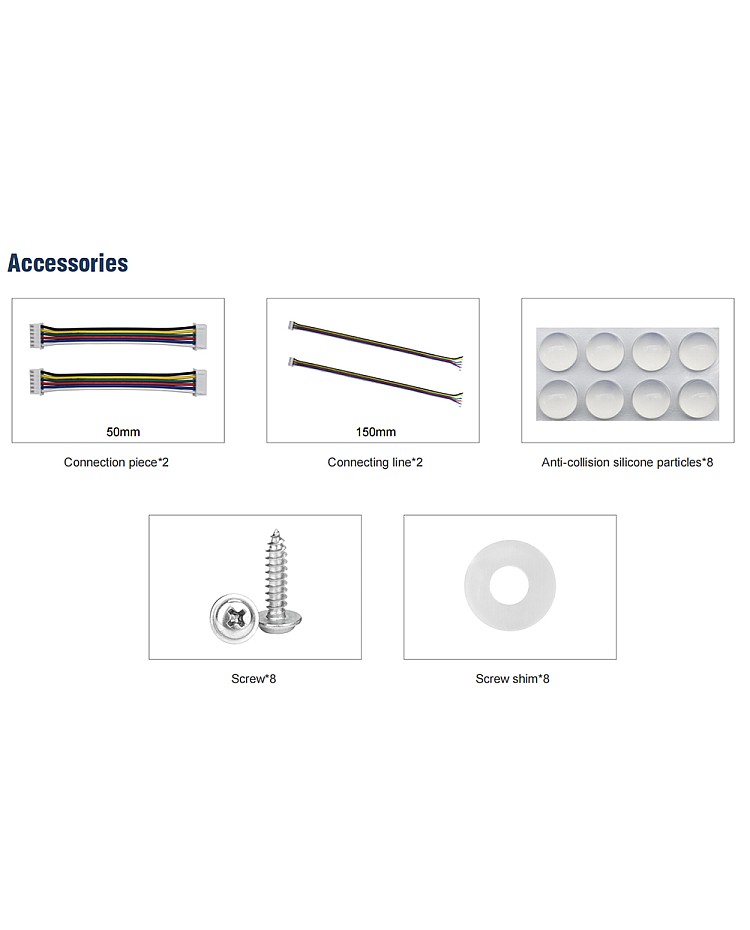

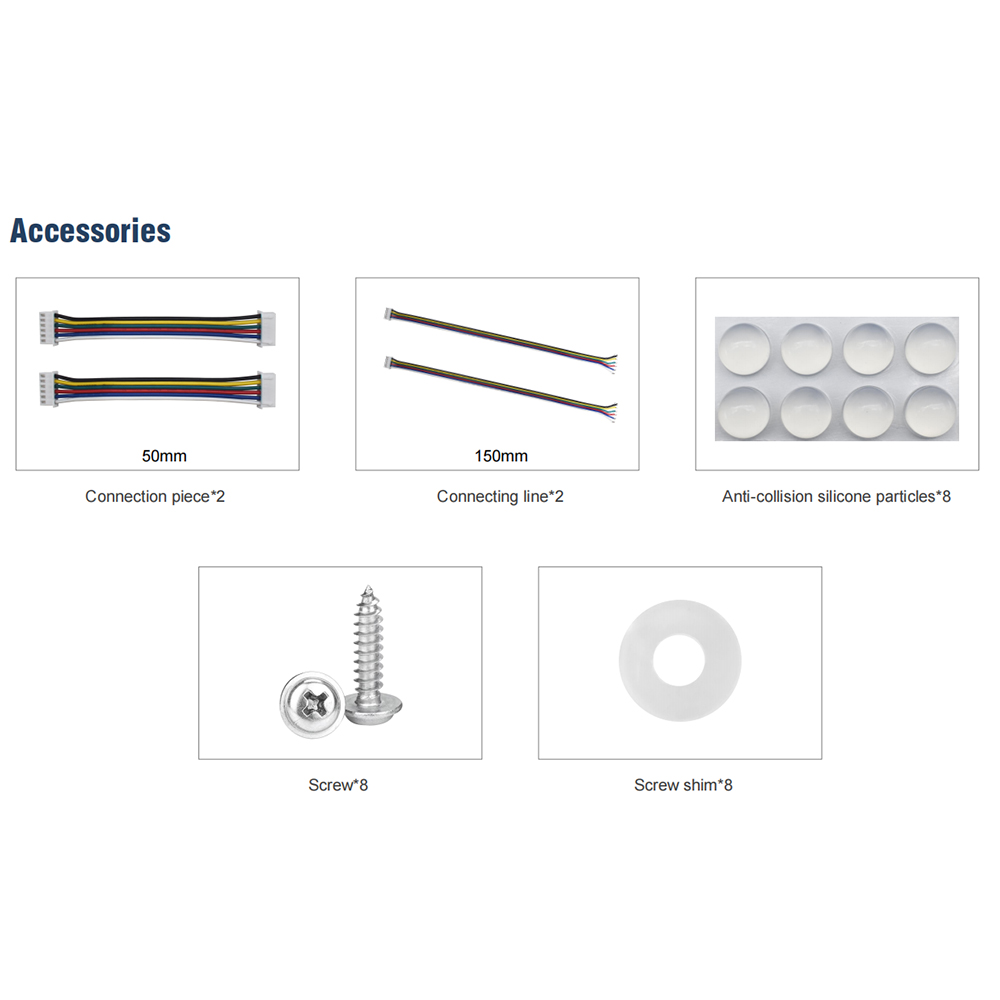

Includes:
1 x RGBWW backlight LED sheet
2 x 6P connection cables
2 x 6P Input Cables
8 x Anti-collision silicone particles
