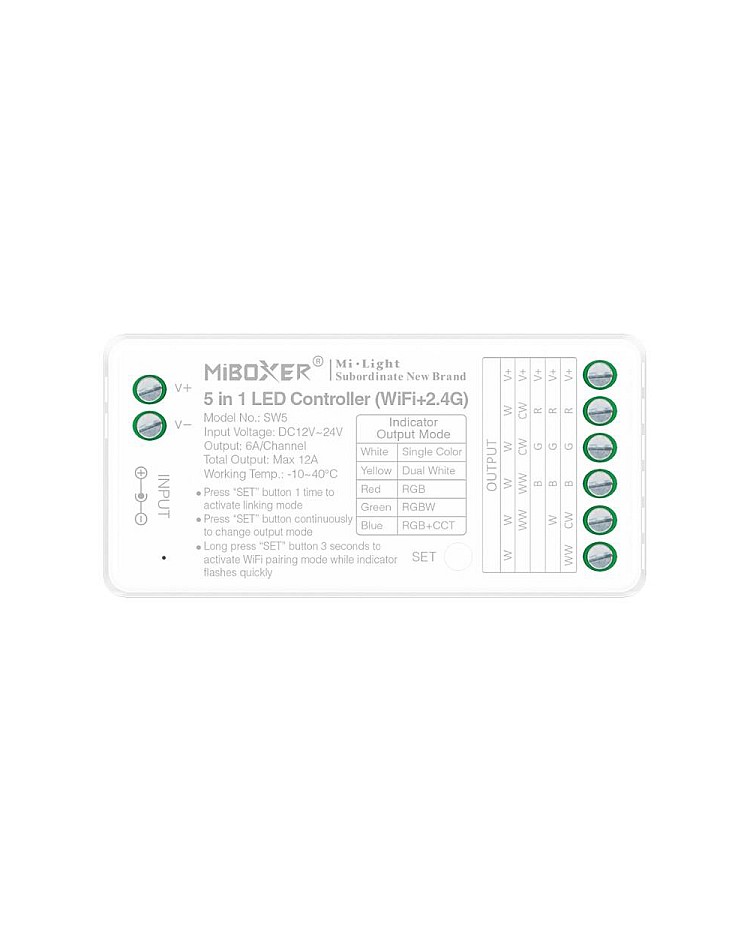

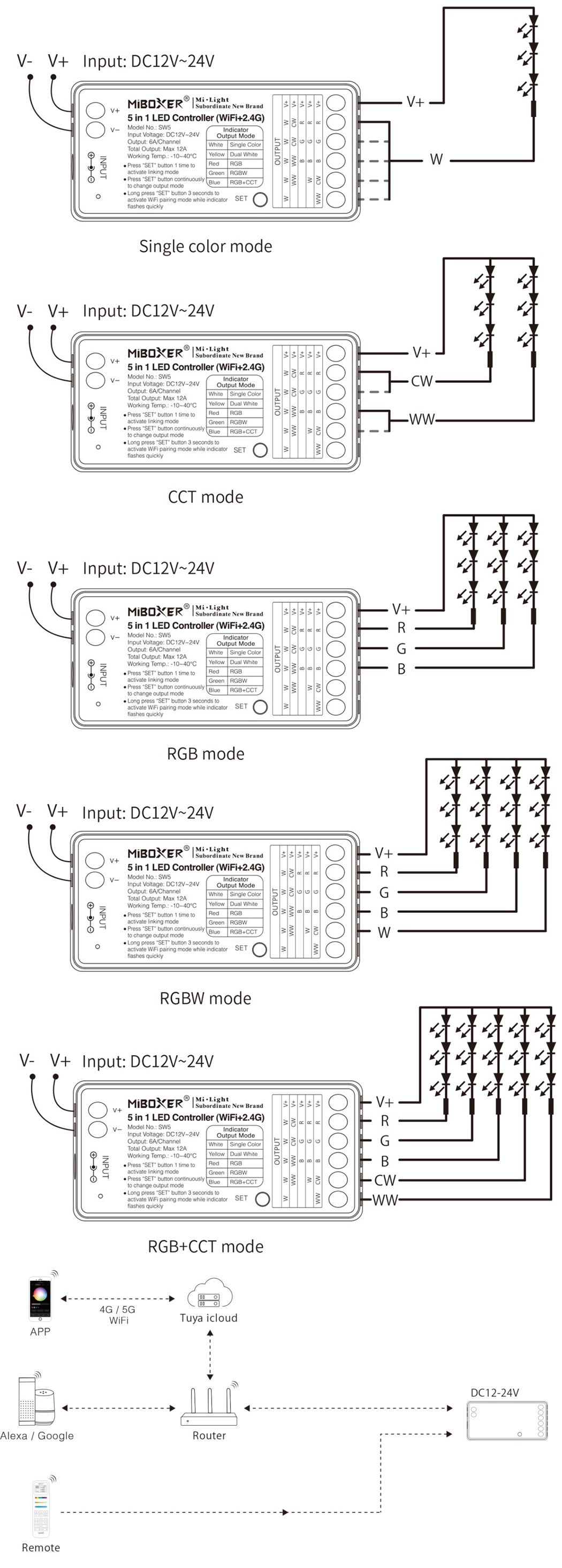

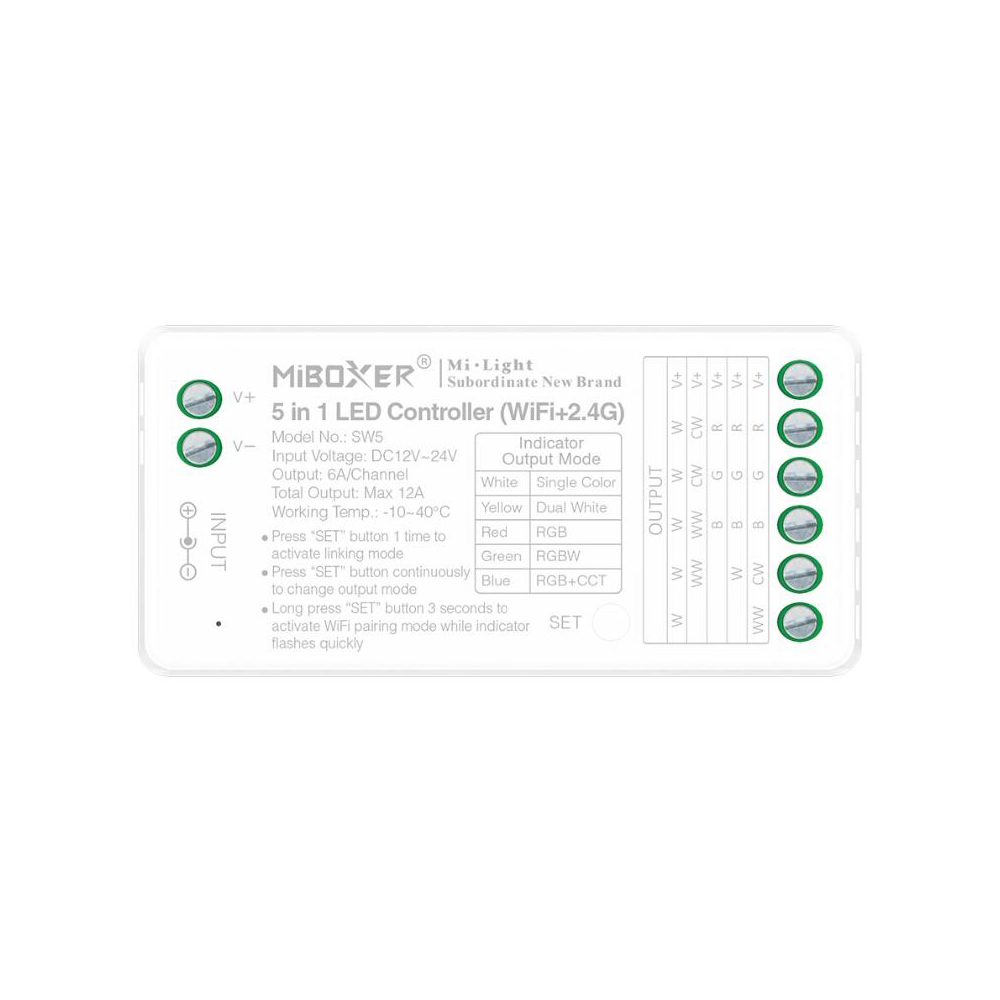

The MiBoxer SW5 WiFi Controllers feature a 5-in-1 design, supporting single-color, dual-white, RGB, RGBW, and RGB+CCT LED strip lights. The controller has a " SET" button, which you can press to switch the output mode. The WiFi LED controllers have 5 output channels; the max output current of each channel is 6A, and the total output current is 12A. It integrates WiFi and 2.4G communication modules, allowing for control via 2.4G RF remote controls, smartphone apps, and third-party voice commands. You can change the output mode and static color and adjust the brightness, color temperature, and saturation for various scenes. 16 million colors and 18 dynamic modes are available. The SW5 features an auto-forwarding function, which accepts signals from a remote control and forwards them to the same controller within a 30-meter range, ensuring all controllers synchronize. With a WiFi module, you can connect the Controller directly to your mobile phone, bypassing the need for a gateway, and control the LED lights using the TUYA SMART APP. It supports third-party voice control services, including Amazon Alexa, Google Assistant, Yandex Alice, and Tmall Genie, among others. It supports DMX control after pairing with a DMX512 LED transmitter.
Specifications:
- 5 In 1 LED Controller
- Models: SW5(WiFi+2.4G) / SR2(2.4G)

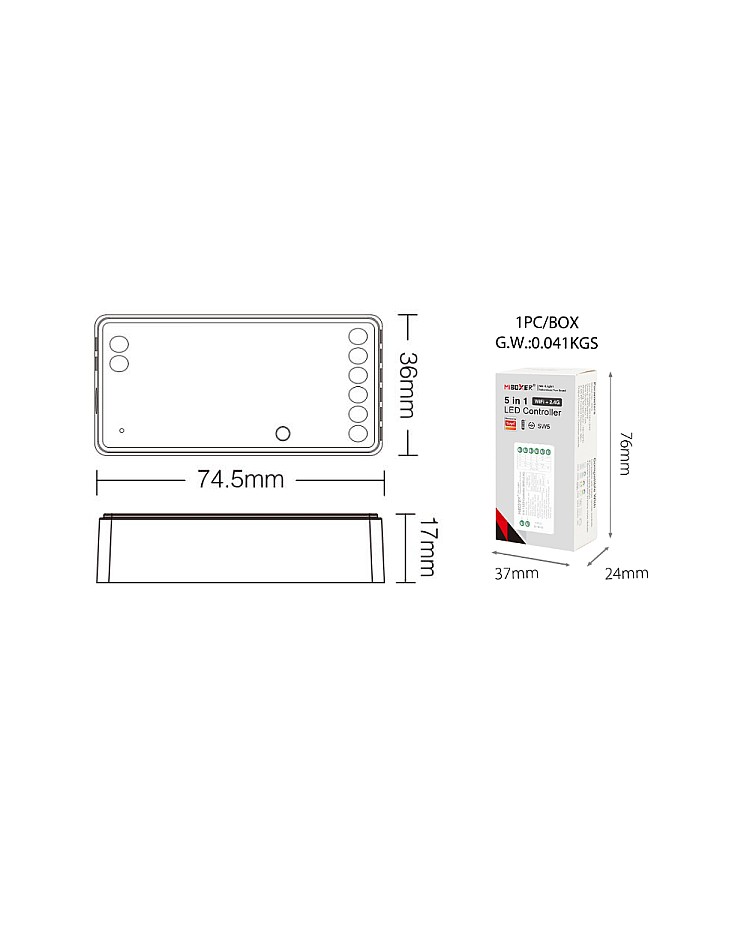

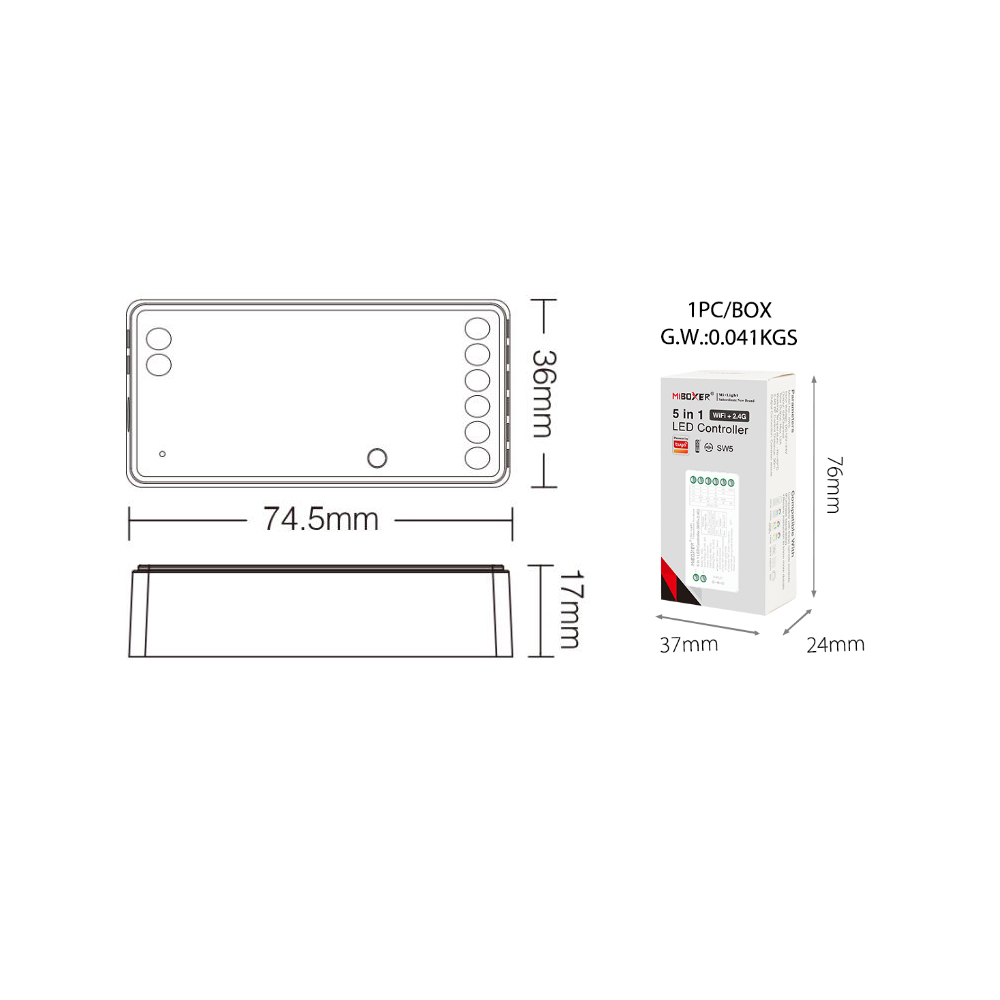

- Size:74.5*36*17mm(L*W*H)
- Colors: White
- Input Voltage: DC12-24V
- Output Current: 6A/Channel
- Total Output: 12A Max
- Output power: 144W-288W
- 5 In 1 Design For Single-color, Dual-white, RGB, RGBW, RGB+CCT
- 16 Million Colors Adjustable, Saturation Adjustable, Color Temperature And Brightness Adjustable
- Built-in 18 Dynamic Modes With Jumping, Gradually Changing(Only For 2.4G Remote Control)
- Control Signal: 2.4G RF
- Control Distance: ≤30M
- Support Tuya Smart APP Control(2.4G Version Needs A 2.4G Gateway, WiFi+2.4G Version Does Not Need)
- Support Third-party Voice Control: Amazon Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu, And Xiaomi(2.4G Version Needs A 2.4G Gateway, WiFi+2.4G Version Does Not Need)
- Have a DND Function, Usually Used In Power Failure areas, And Save Power
- Singal Auto-Forwarding(Remote Control Only)
- IP Rate: IP20 Non-waterproof
- Dimming Curve: Logarithmic
- Support DMX512 Control(DMX512 LED Transmitter Needed)
- Certification: CE, EMC, RED
- Working Temperature: -10-40℃
- 2 Years Warranty
Includes:
1 * SW5 LED Strip WiFi Controller
