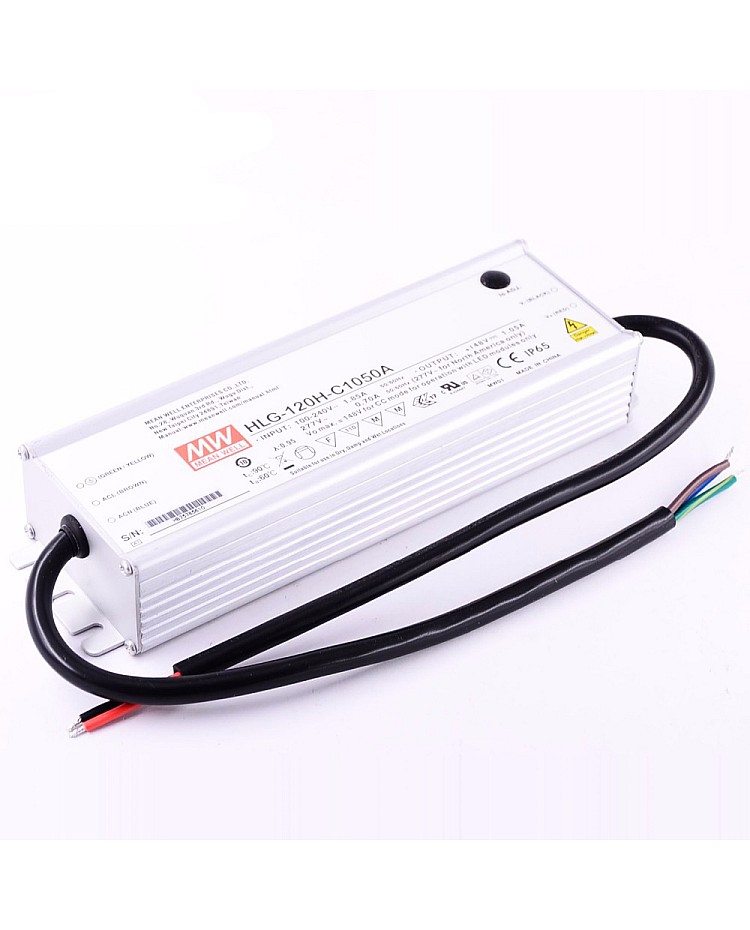

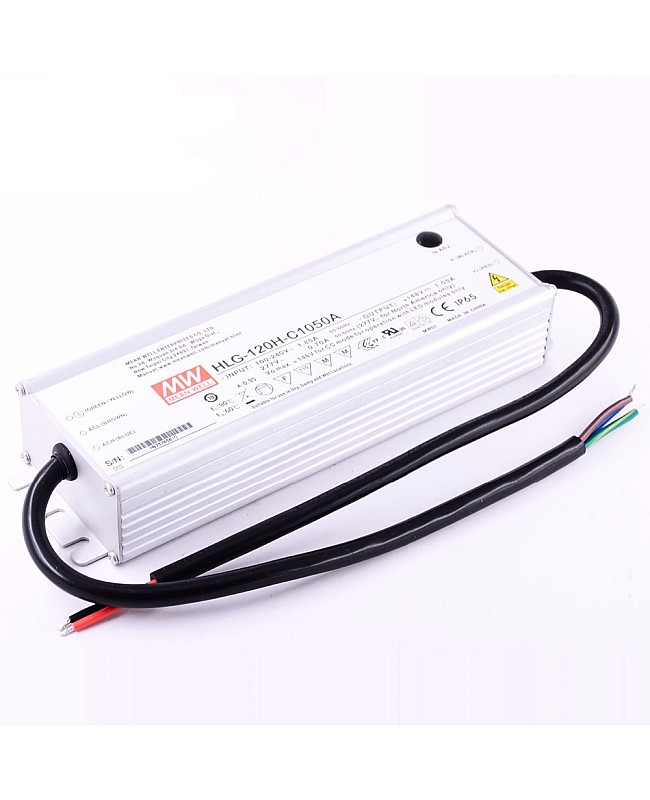

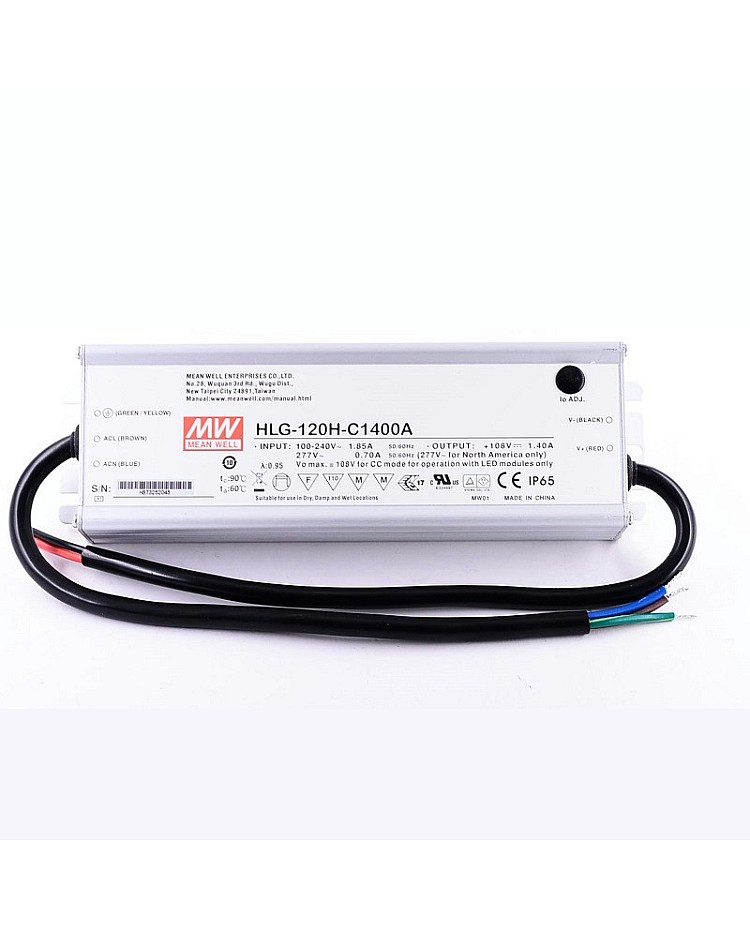

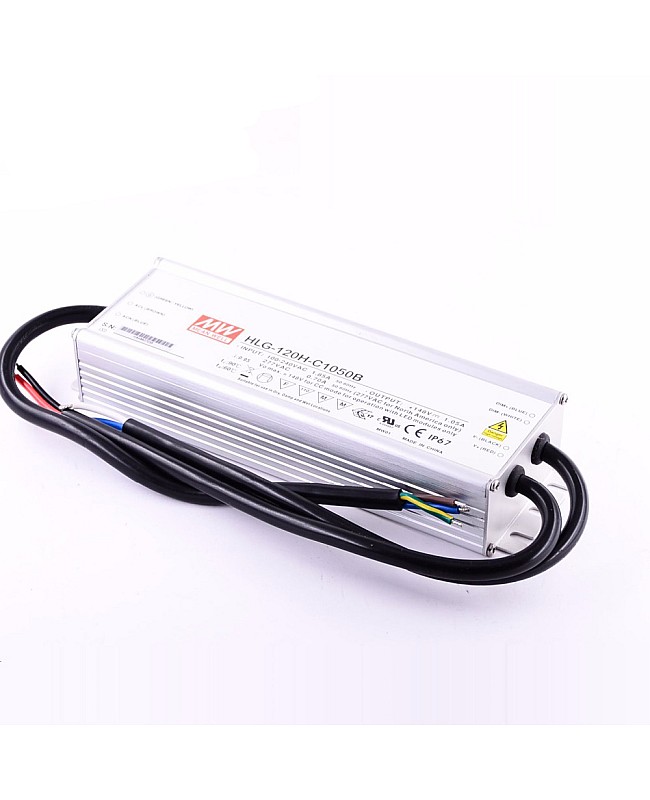

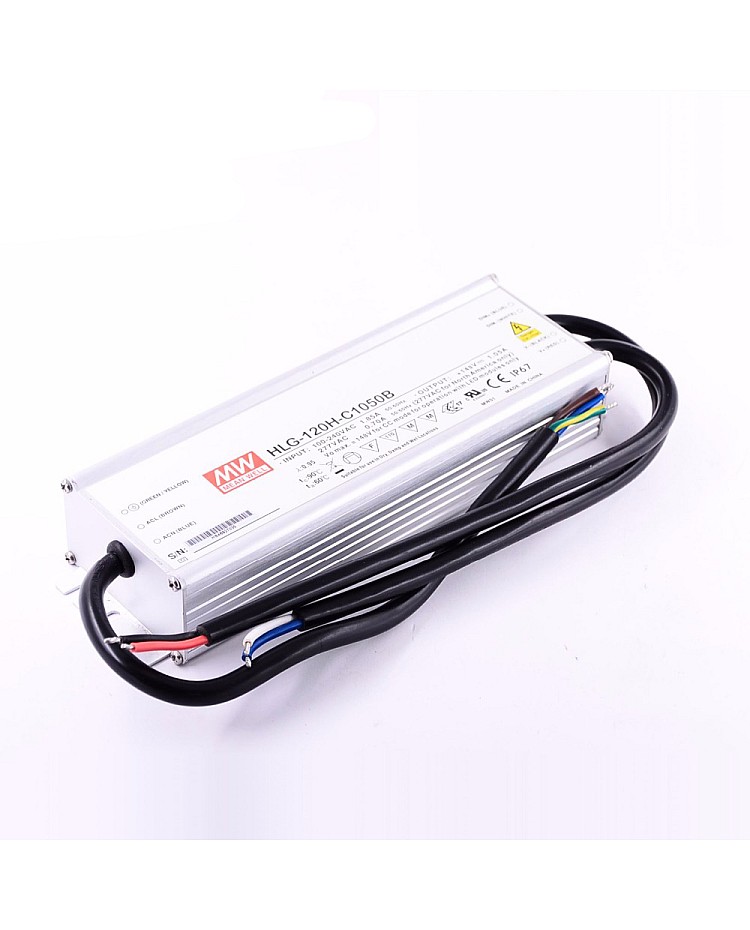

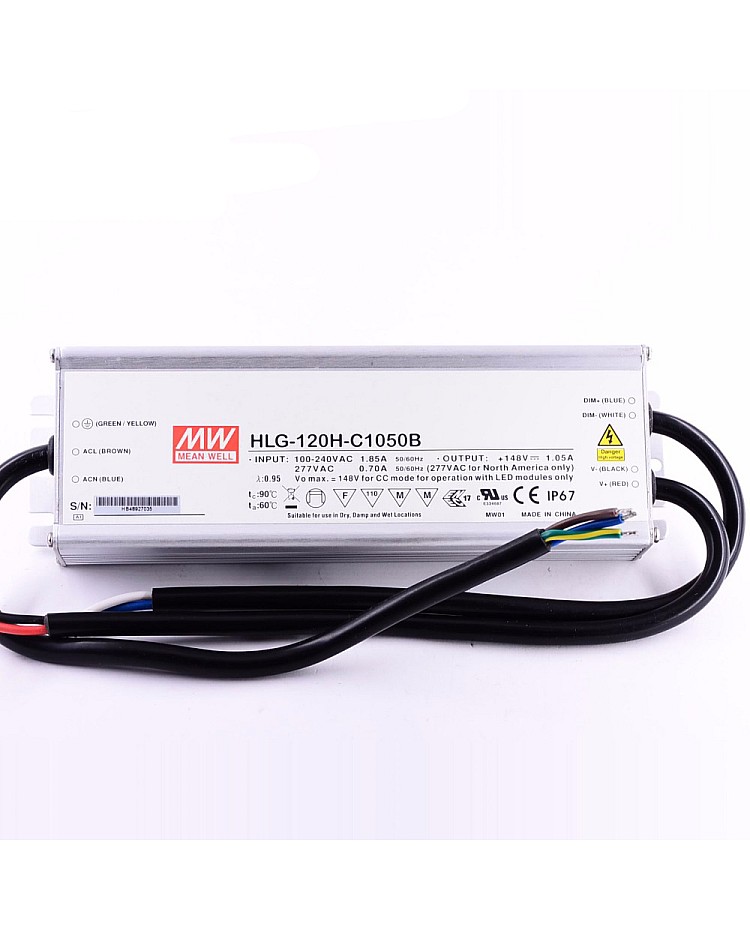

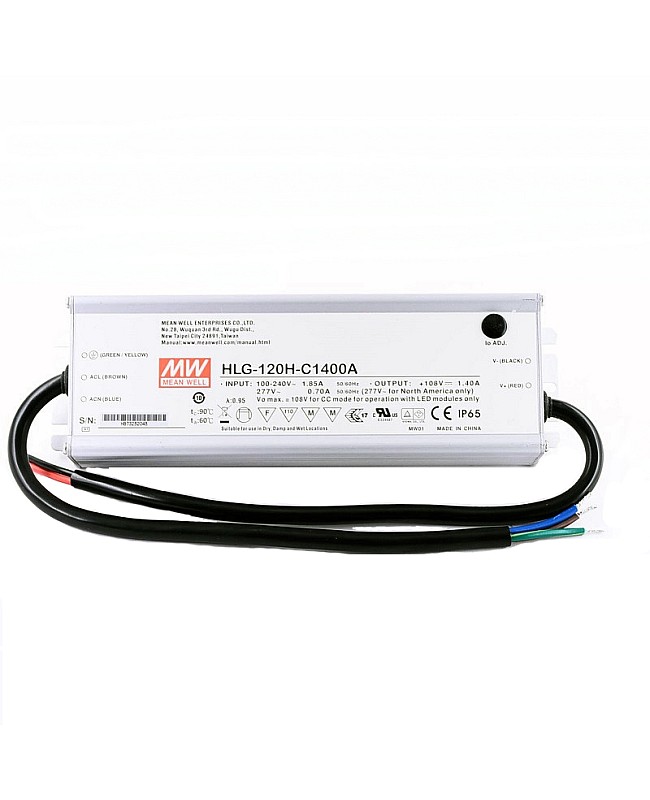

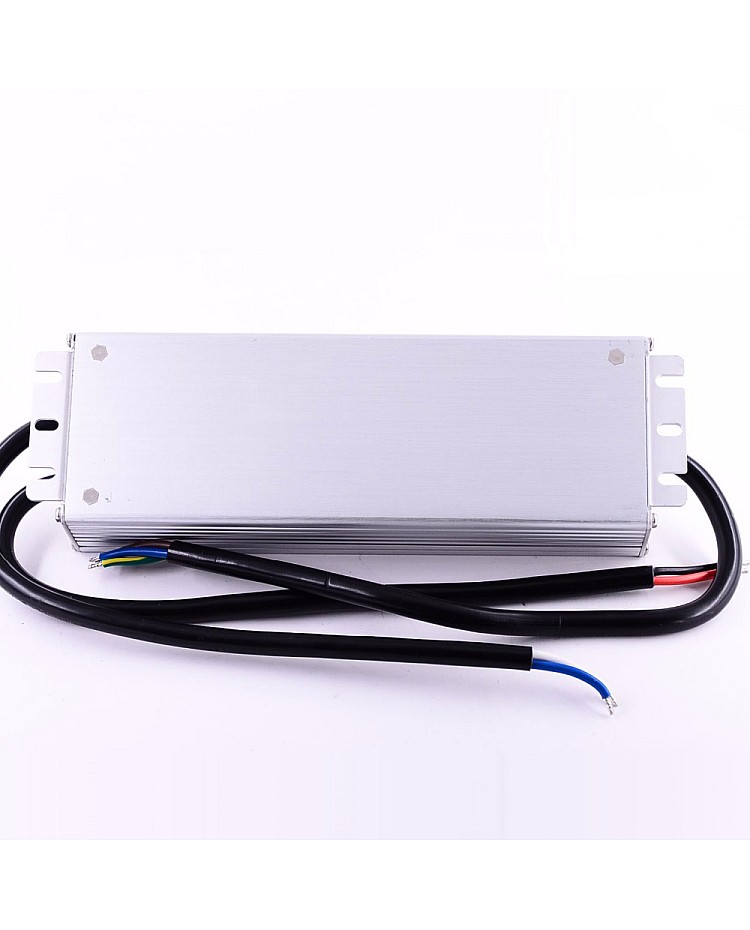

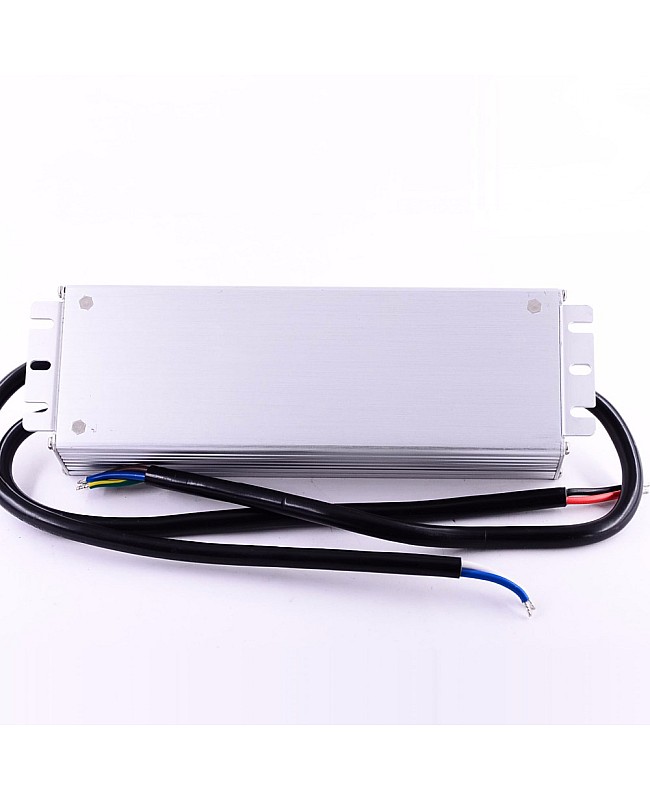

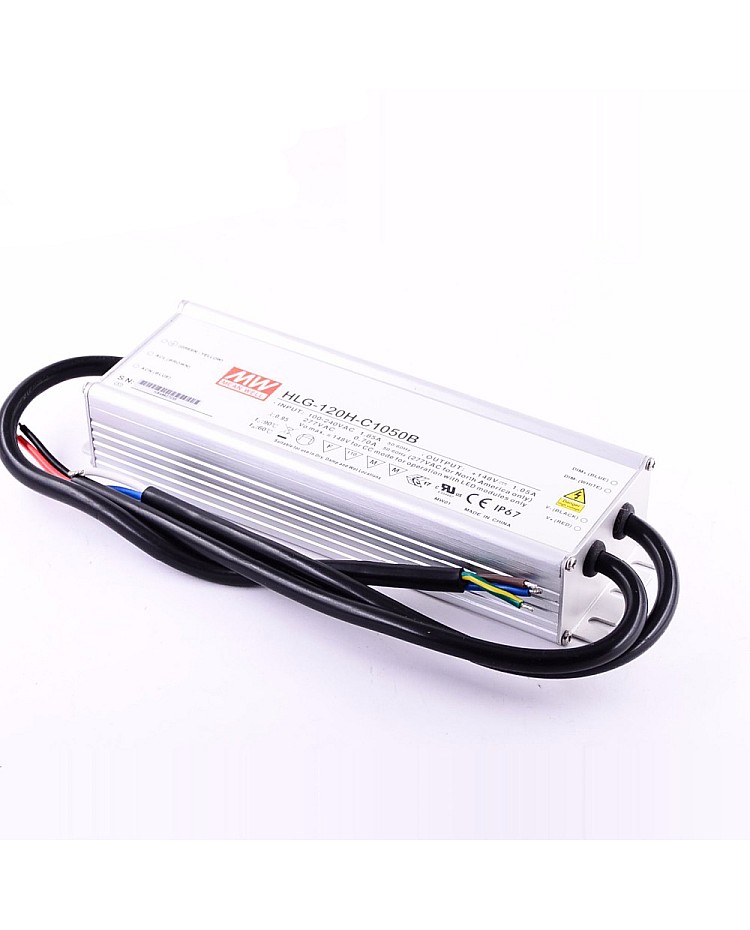

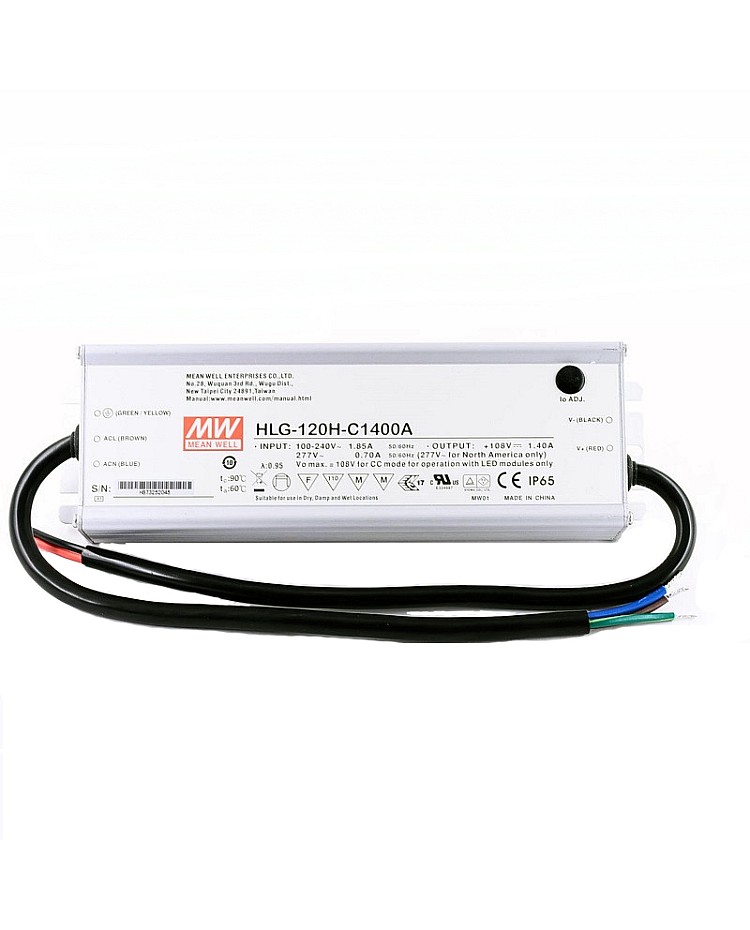

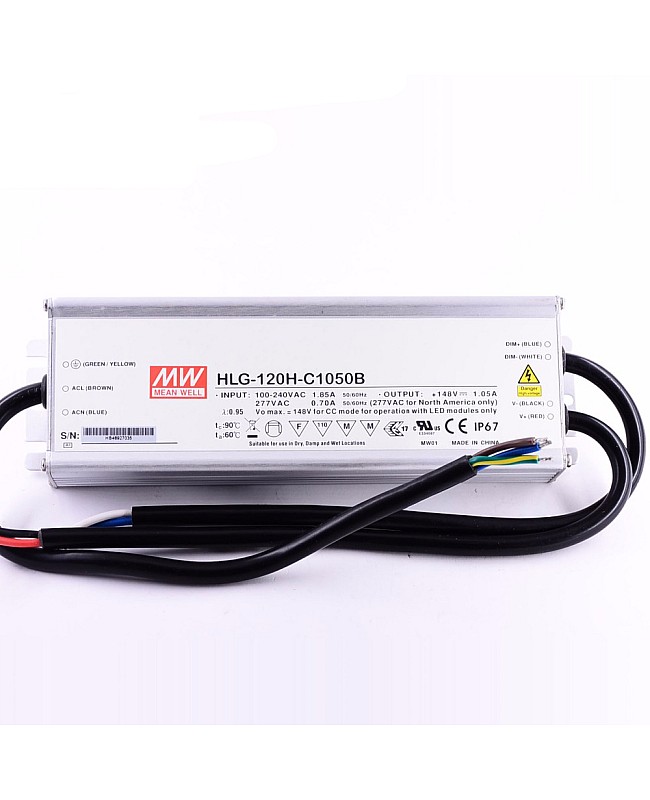

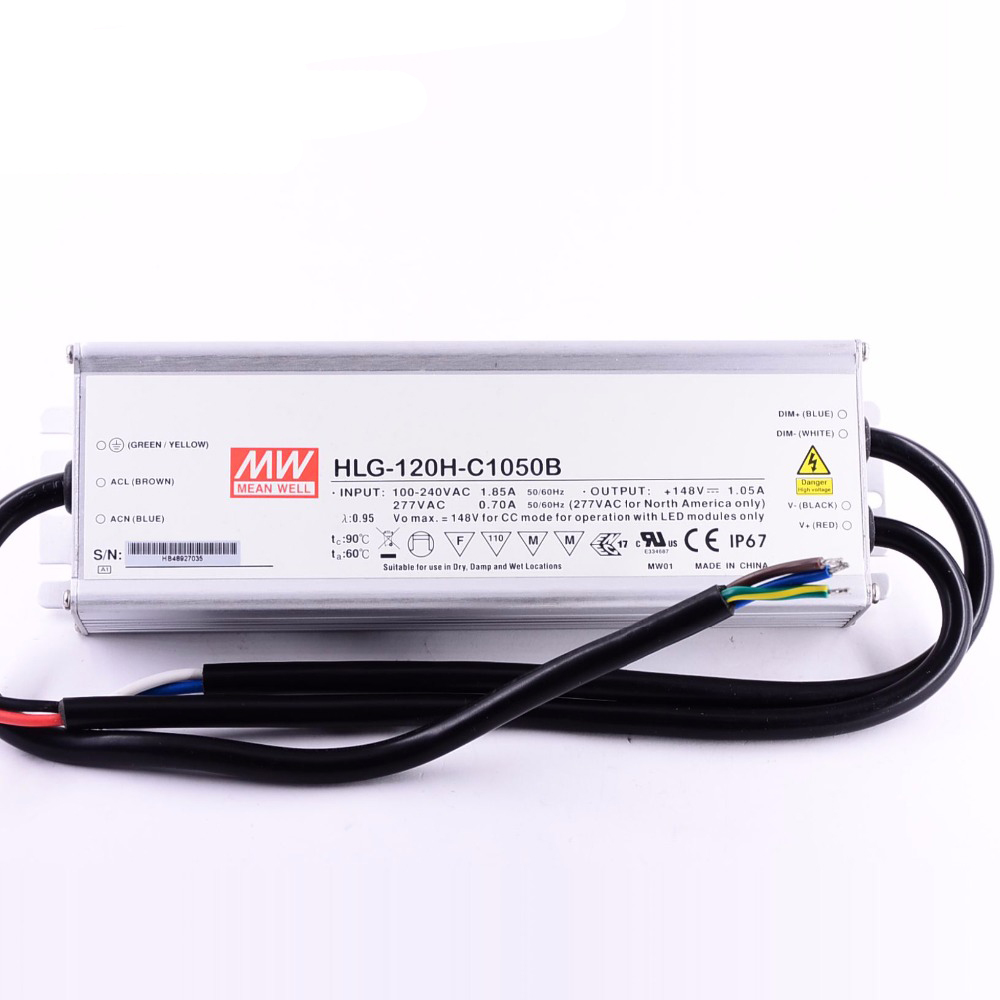

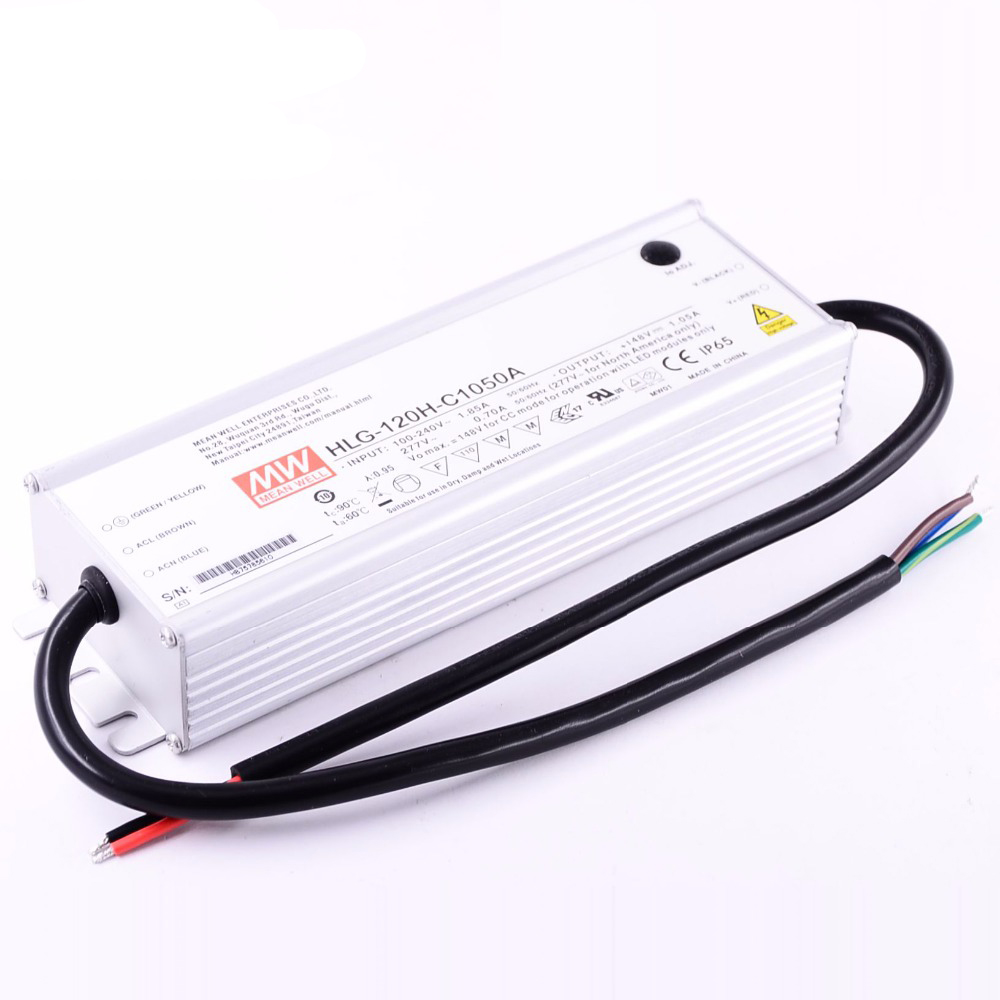

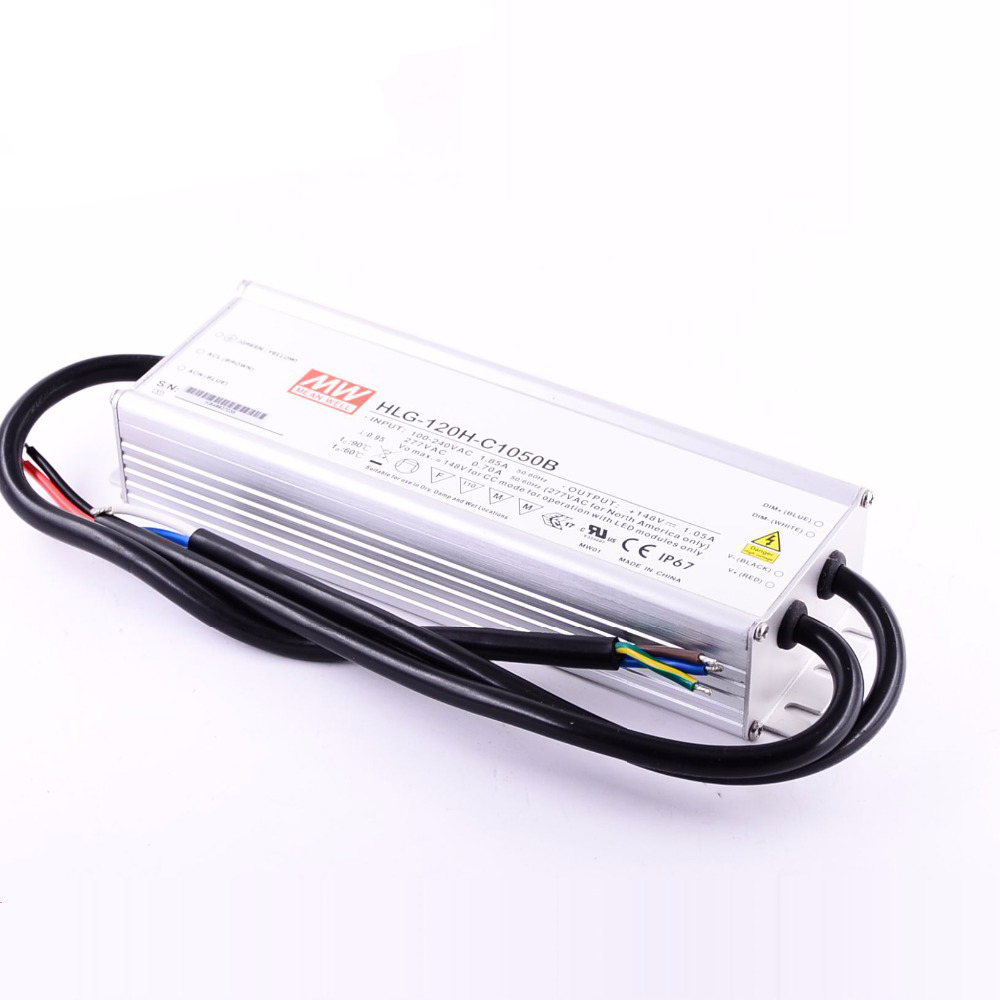

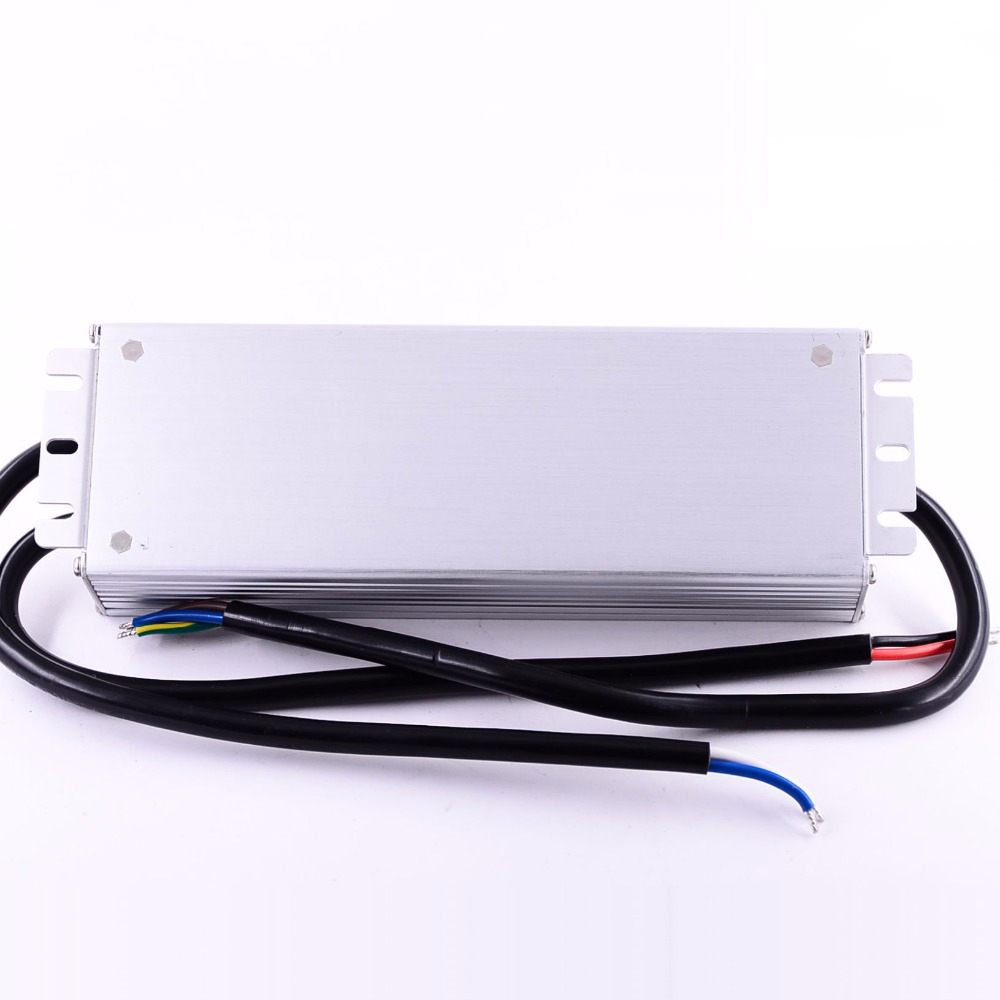

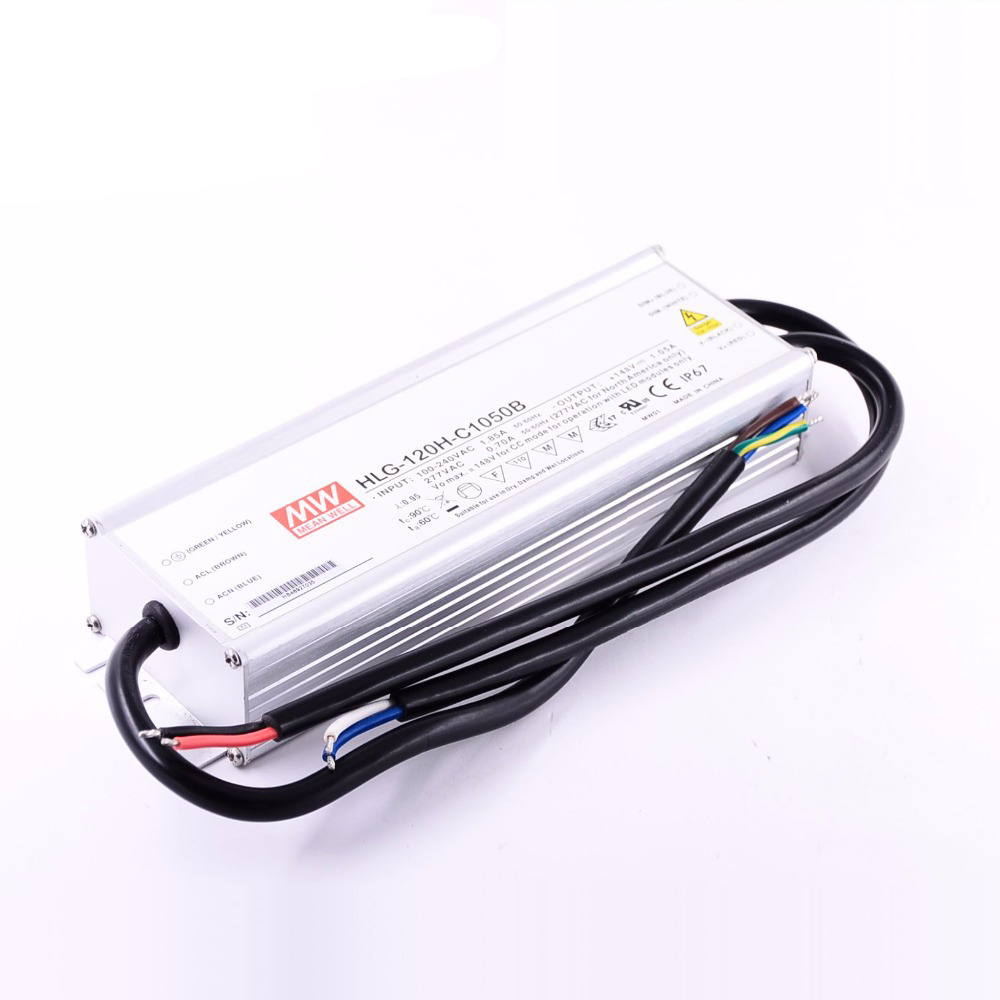

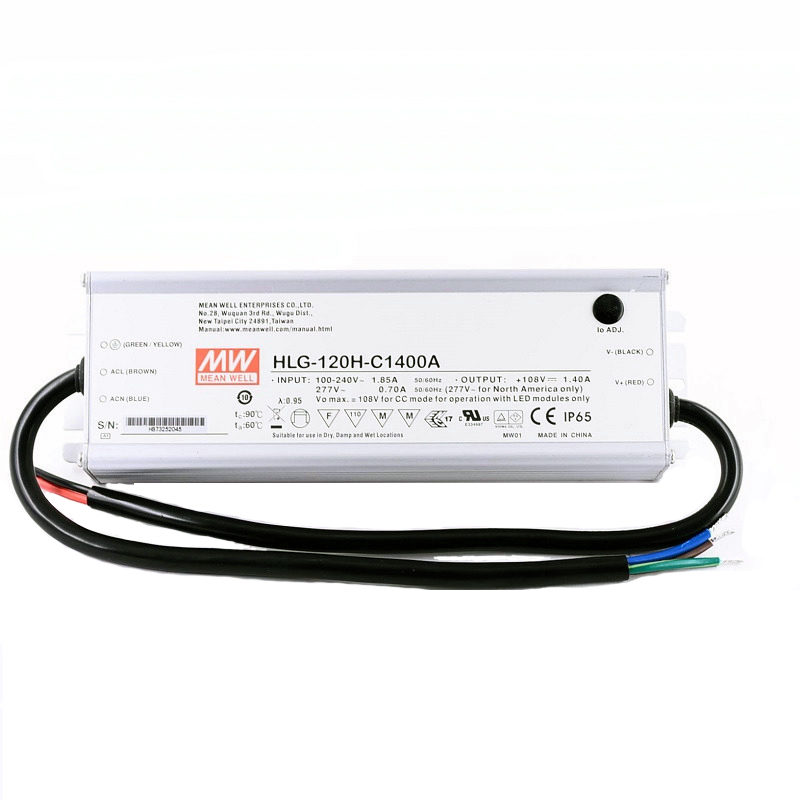

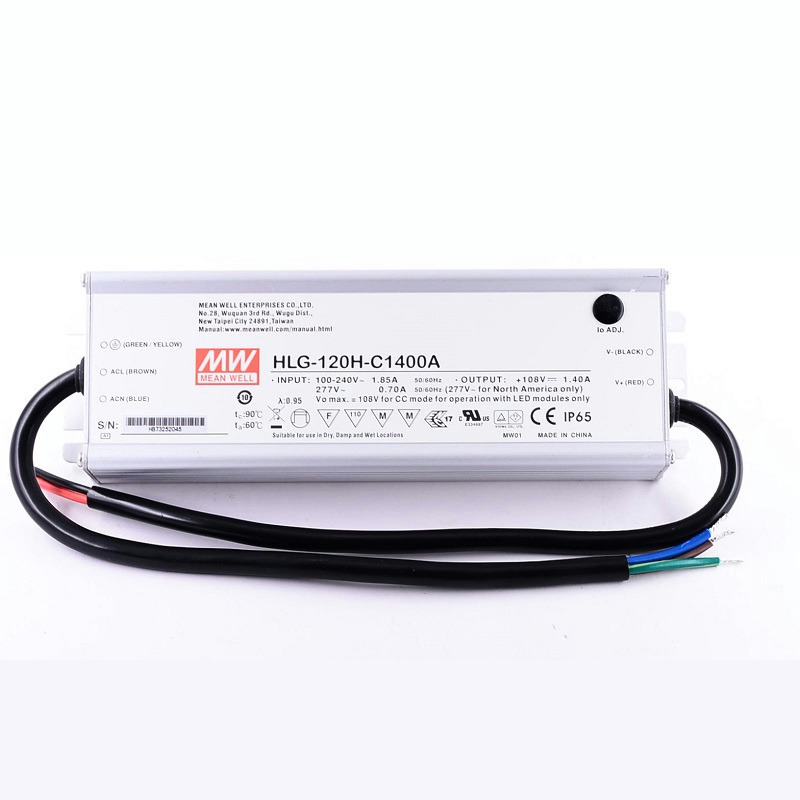

The Well Mean HLG-120H-C dimming LED strip drivers provide a 7-year warranty; five various output current LED drivers are available, with max output currents of 350mA, 500mA, 700mA, 1050mA, and 1400mA. Four types of products available, A, B, AB and D, all of them are waterproof, the output current of A type adjustable through the built-in potentiometer, the B type with 3 in 1 dimming function, the AB type with output current adjustable and 3 in 1 dimming function, the D type with timer dimming function. The Well Mean dimming LED strip driver operates from 90VAC to 305VAC, with a high efficiency of up to 94%, and features a fanless design, with a working temperature range from -40° to +90° case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows the entire series of LED drivers to fit for indoor and outdoor applications for street lighting, fishing lights, harbor lights, architectural lights, greenhouse projects, and bar lights.
Quick Links:

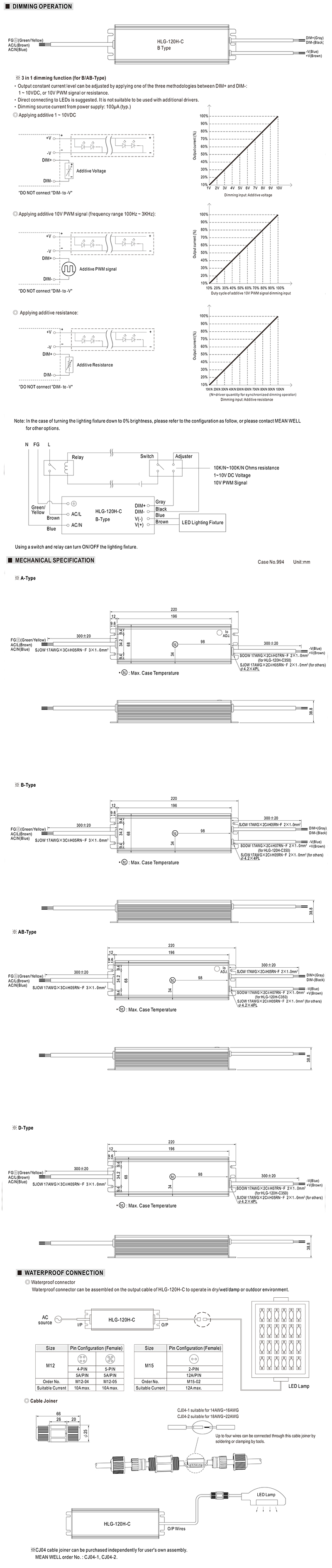

Well Mean HLG-120H-C Series Dimming LED Strip Driver Specification Document
Specifications:
- Size: 220*68*38.8mm(L*W*H)
- Model: HLG-120H-C350/HLG-120H-C500/HLG-120H-C700/HLG-120H-C1050/HLG-120H-C1400
- Types:
- A, IP Rating IP65, Output Current Adjustable Through Built-In Potentiometer
- B, IP Rating IP67, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- AB, IP Rating IP65, Output Current Adjustable Through Built-in Potentiometer And 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- D, IP Rating IP67, Timer Dimming Function
- Output:
- Rated Current: 350mA(C350)/500mA(C500)/700mA(C700)/1050mA(C1050)/1400mA(C1400)
- Rated Power: 150.5W(C350)/150W(C500)/150.5W(C700)/155.4W(C1050)/151.2W(C1400)
- Constant Current Region: 215-430V(C350)/150-300V(C500)/107-215V(C700)/74-148V(C1050)/54-108V(C1400)
- Current Adjustable For A/AB Type Via Built-In Potentiometer:
- 175-3350mA(C350)/250-500mA(C500)/350-700mA(C700)/525-1050mA(C1050)/700-1400mA(C1400)
- Current Ripple: 8.0%
- Current Tolerance: ±5%
- Set Up Time: 1000ms/115VAC, 500ms/230VAC
- Input:
- Voltage Range: 90- 305VAC
- Frequency Range: 47- 63Hz
- Power Factor: PF≥0.98/115VAC, PF≥0.96/230VAC, PF≥0.93/277VAC
- Efficiency: 94%
- AC Current: 1.6A/115VAC, 0.8A/230VAC, 0.7A/277VAC
- Working Temperature: -40°-+90°
- Constant Current Mode Output
- Metal Housing With Class I Design
- Built-in Active PFC Design
- IP67/IP65 Design For Indoor And Outdoor Applications
- 3 Function Options Available
- Typical Lifespan Over 62,000 Hours
- Short Circuit Protection
- Over Voltage Proteciton
- Overtemperature Protection
- Vibration: 100-500Hz, 5G 12min./1cycle, period for 72min.each along X,Y,Z axes
- Safety Standards: UL8750, CSA C22.2 No.250.13-12, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13, EN62384 independent, GB19510.1, GB19510.14, IP65 Or IP67, J61347-1, J61347-2-13(For A Type Only), EAC TP TC 004 Approved
- 7 Years Warranty
Includes:
1 * Well Mean LED Strip Driver
