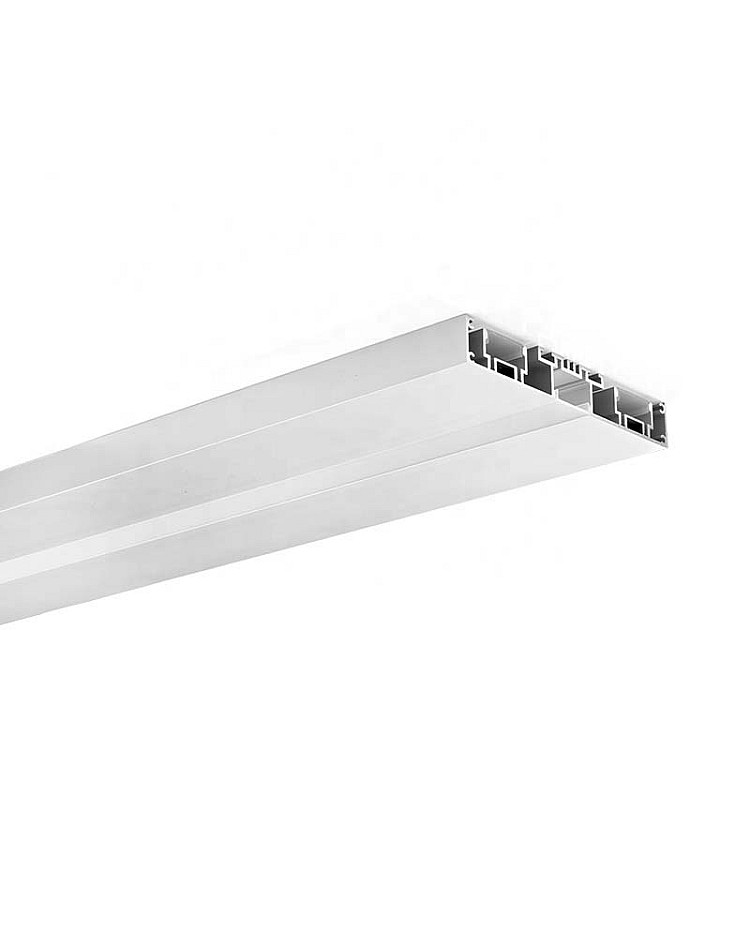

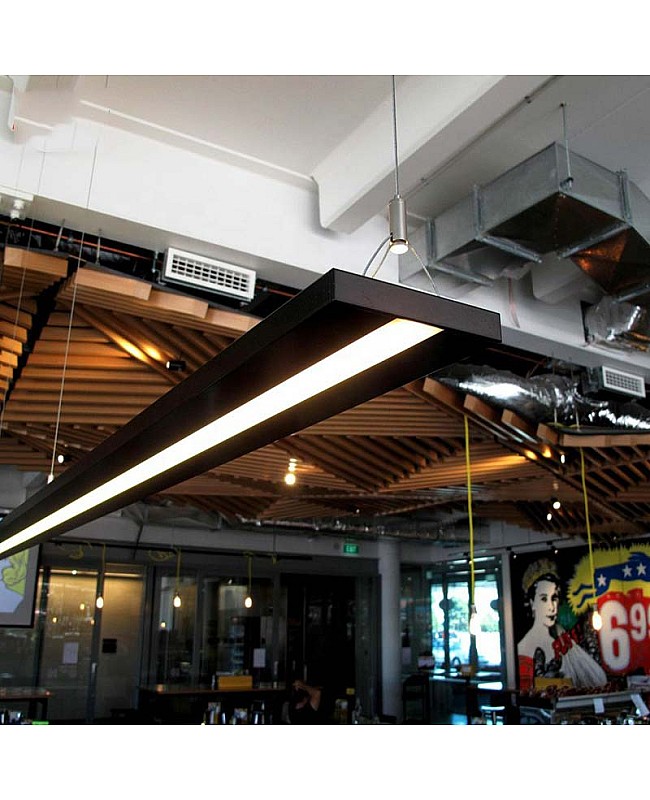

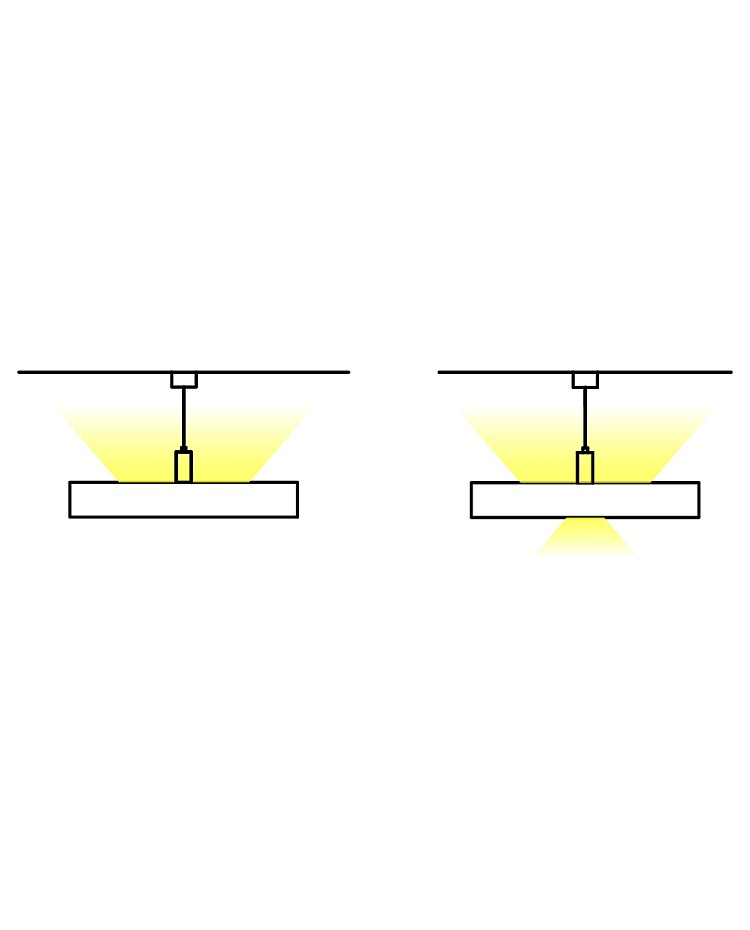

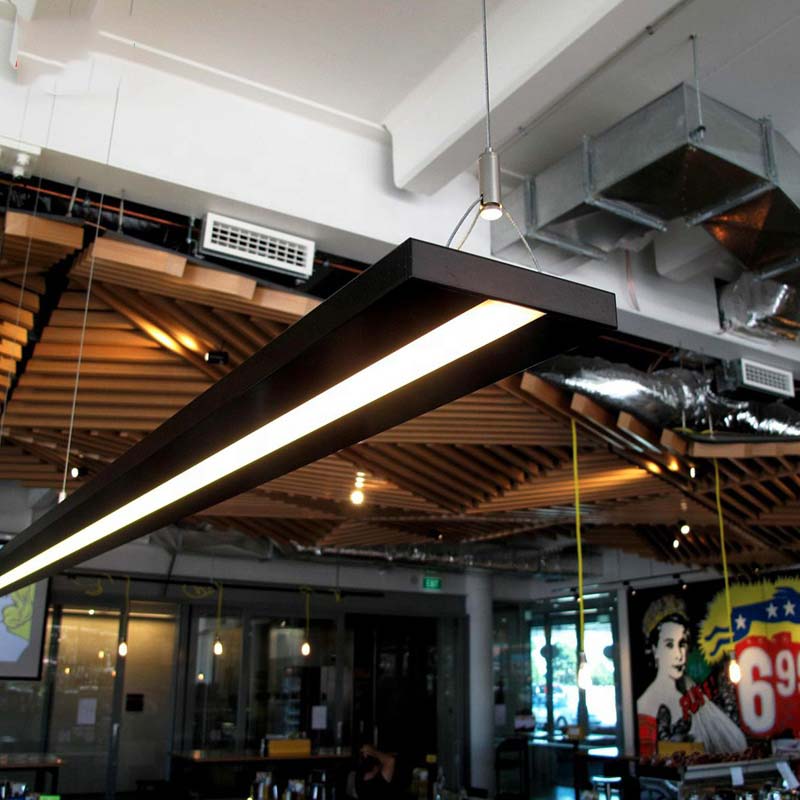

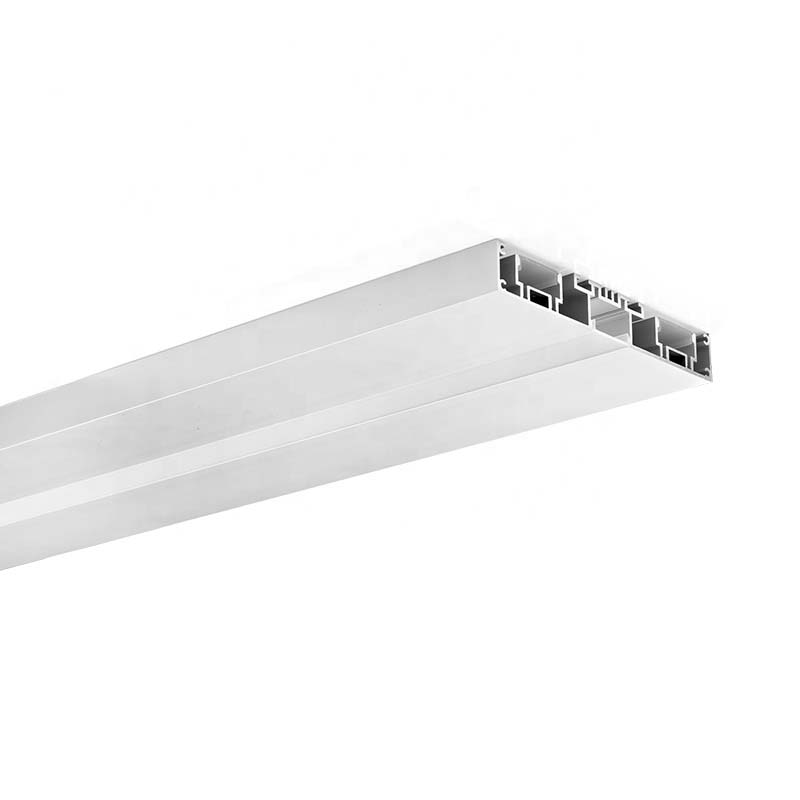

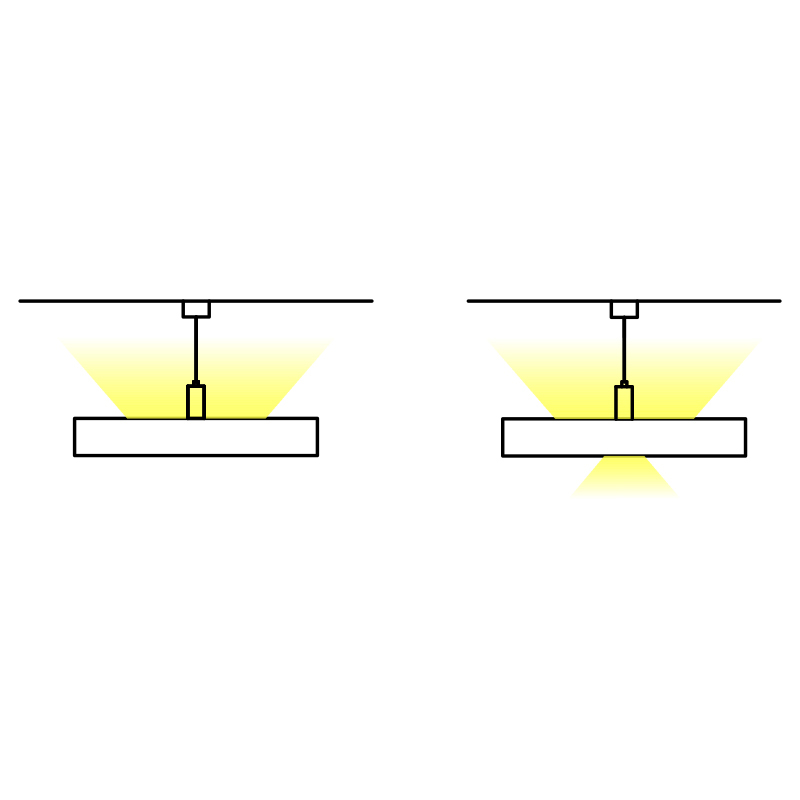

Check the Up And Down Pendant LED Profile Housing, which can be hung on the ceiling for the main lighting in your room or office. The standard length is 1 meter, and other lengths are available; you can choose 1.5 meters, 2 meters, or 2.5 meters, and the max length can be 5 meters, and you can cut to any length you want. The LED Housing is made of 6063-T5 aluminum alloy material with the anodized silver surface treatment for a better anti-oxidation feature and a longer lifespan than similar products. Only the PC frosted opal cover is available for the smooth output light, which is made of brand material with stable quality, anti-yellowing, and perfect light distribution. End caps and suspension wires included allow the pendant or suspended installation. It's designed to accommodate 140mm, 280mm, and 560mm rigid constant current LED Modules, a good idea for the wall lamp for modern office design, restaurants, schools, stores, shopping centers, and hospitals. You can install the LED Modules on the LED Profile Housing upside as the backlight or install them on the downside as the main light.


  • Model: ALP15023
  • Aluminum Body: AL6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver, White, Black

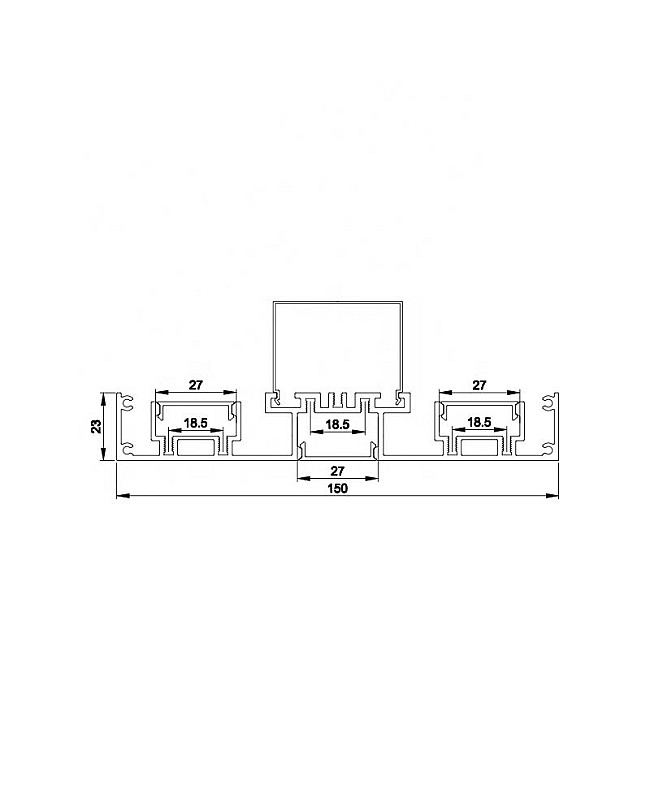

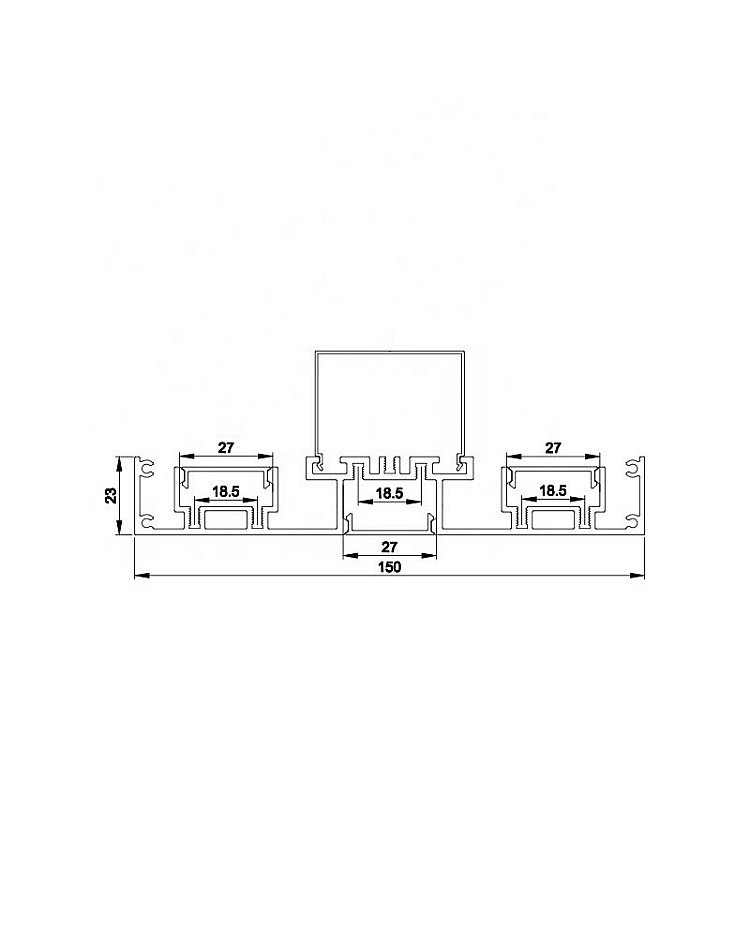

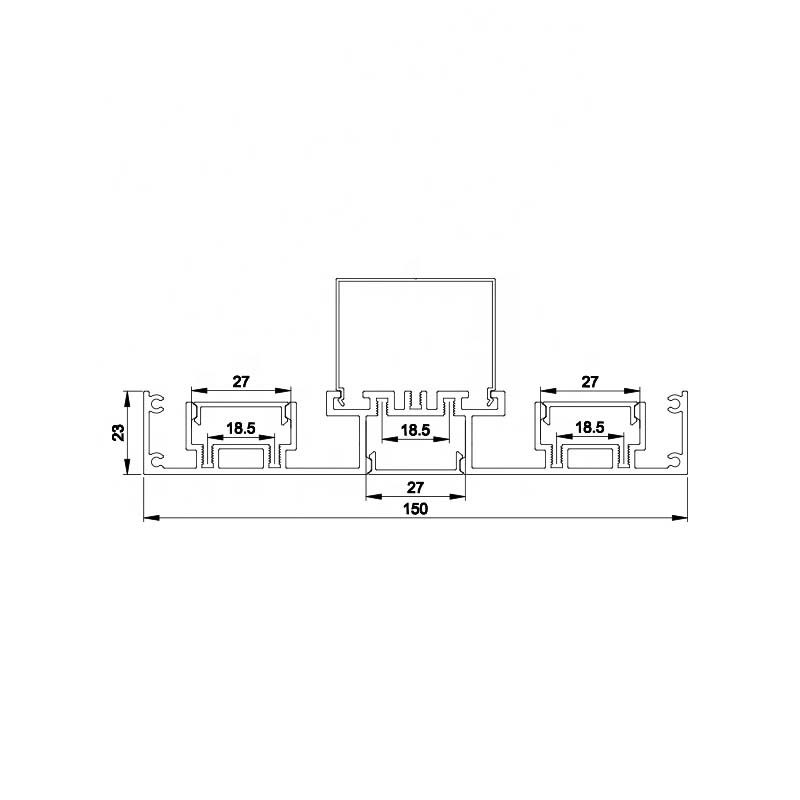

  • Size: 150*23mm

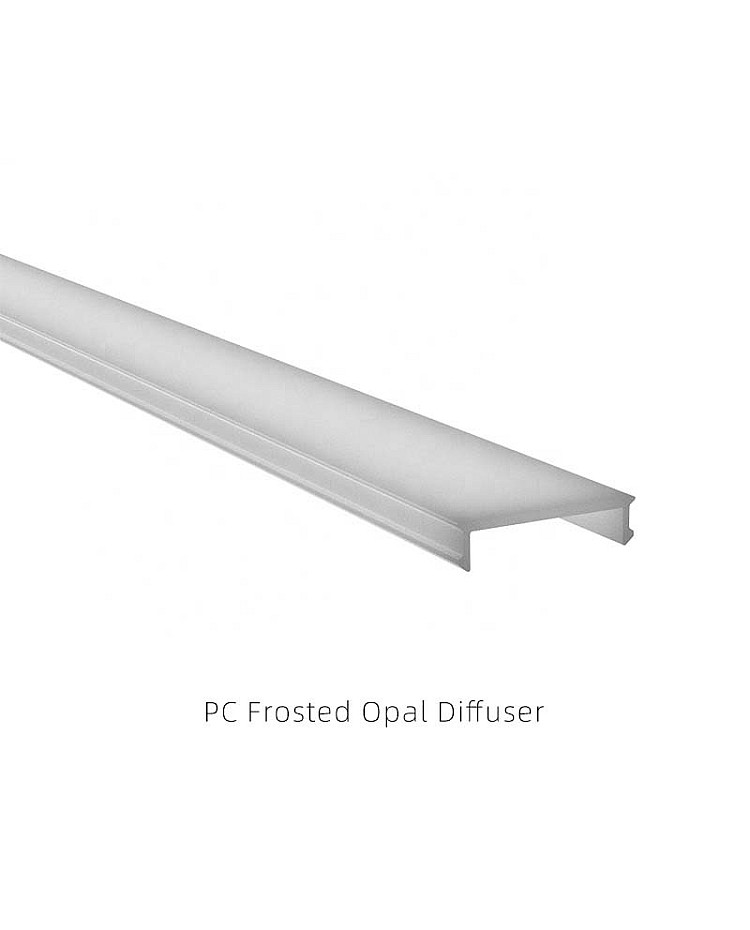

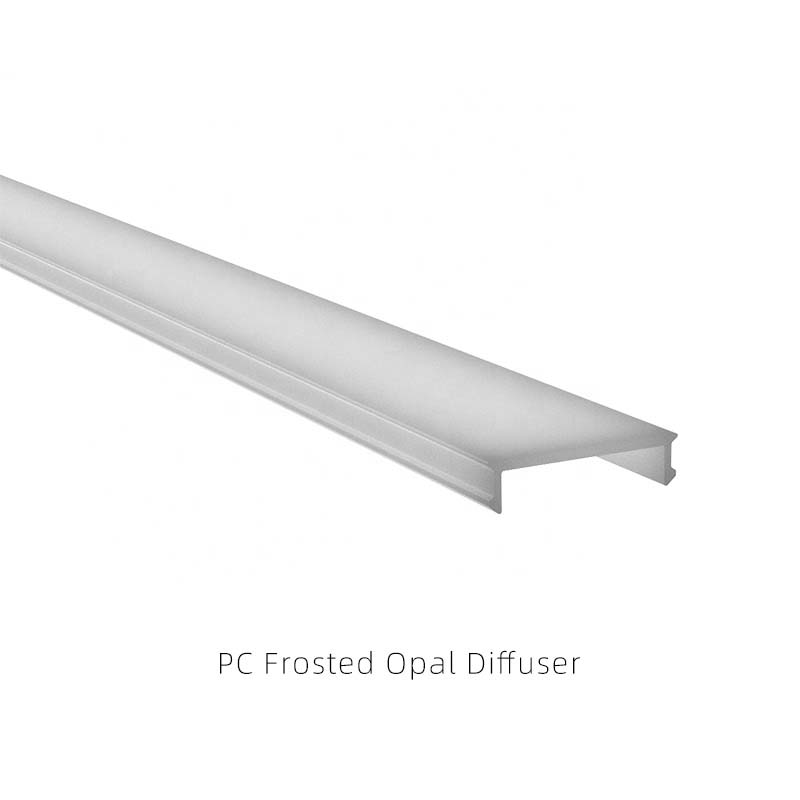

  • Diffuser: PC Frosted Opal Cover
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5Meter, 2Meter, 2.5Meter, 3Meter, 5Meter
  • Custom Length Available: YES
  • End Caps And Suspension Wires Included
  • Inner Width: 18.5mm
  • Compatible LED Light: 140mm, 280mm, 560mm Rigid Constant Current LED Modules
  • Max Power: 50W/Meter
  • End Caps, Suspension Wires, And Connectors Included
  • Installation: Pendant/Suspended
  • Application: Pendant UP & DOWN LED Linear Light
  • Warranty: 5 Years


1*LED Profile Housing

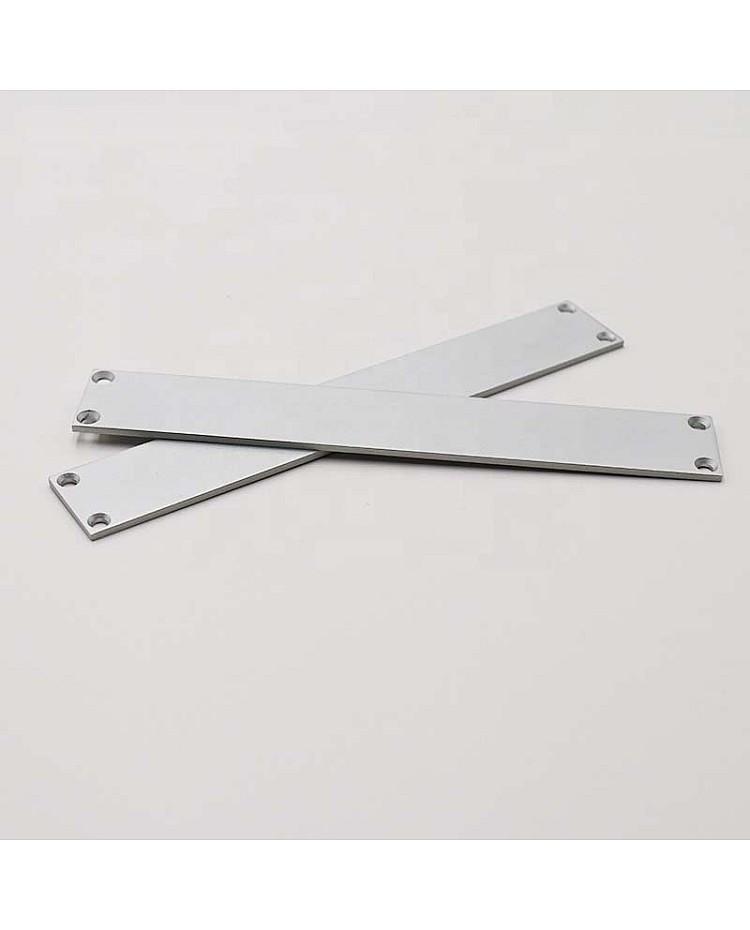

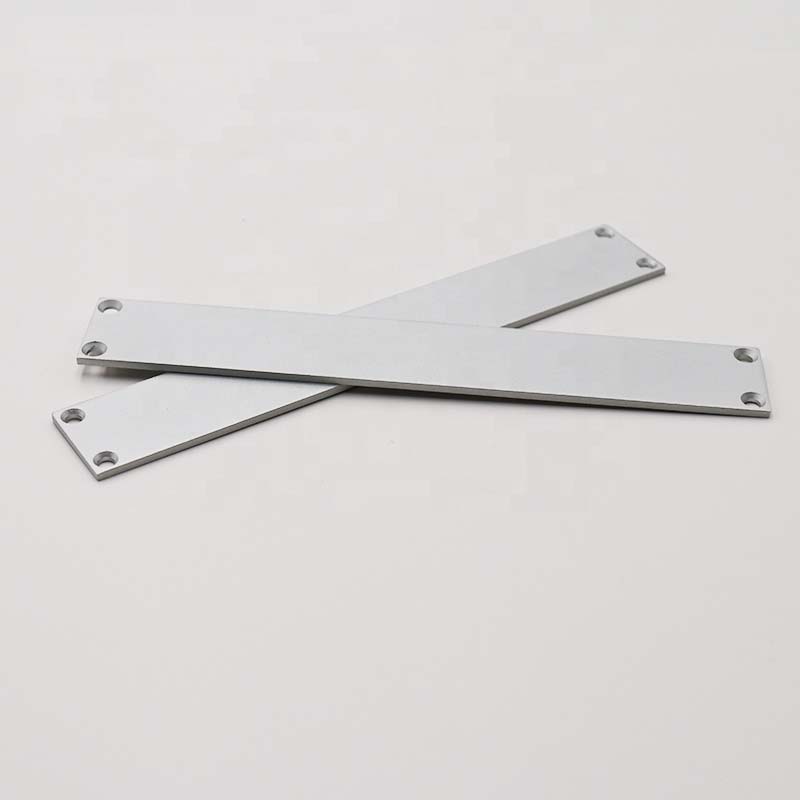

End Caps

Suspension Wires

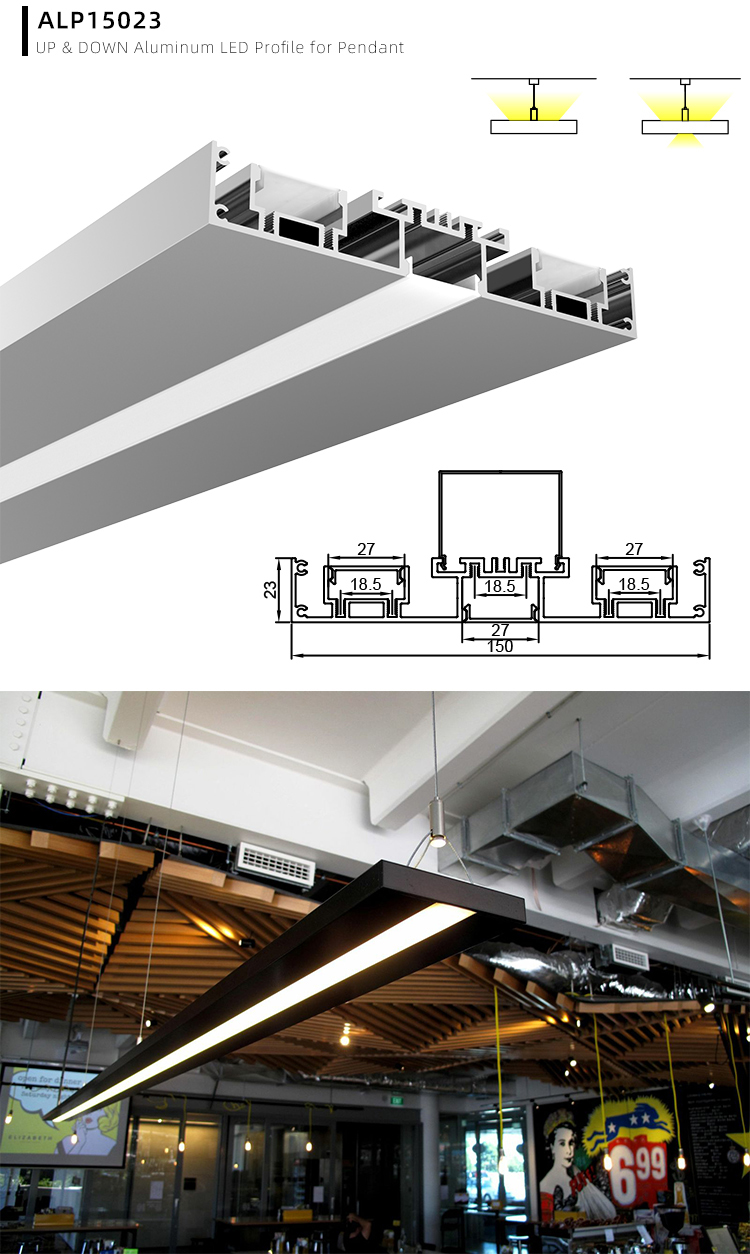

Suspend LED Profile Housing
