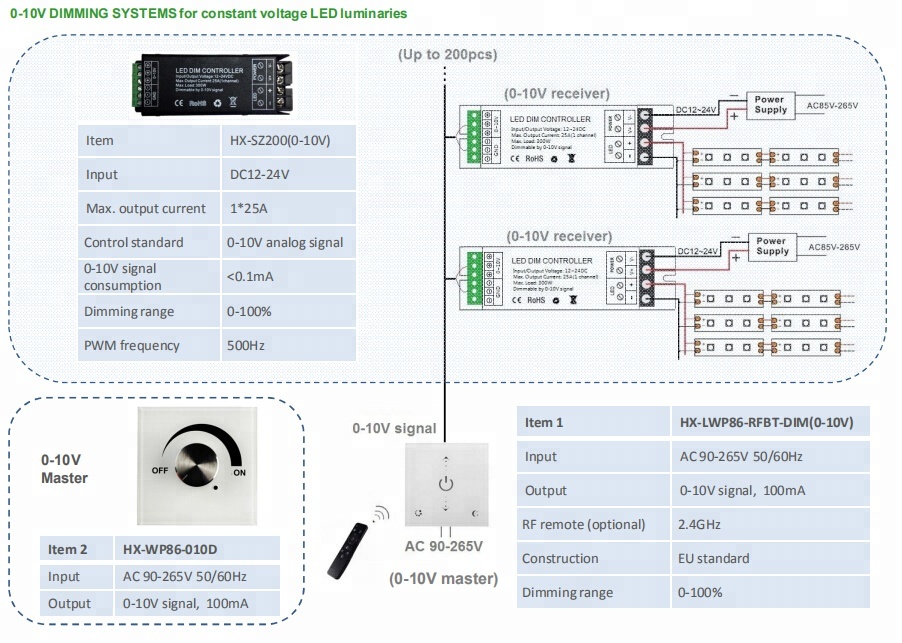

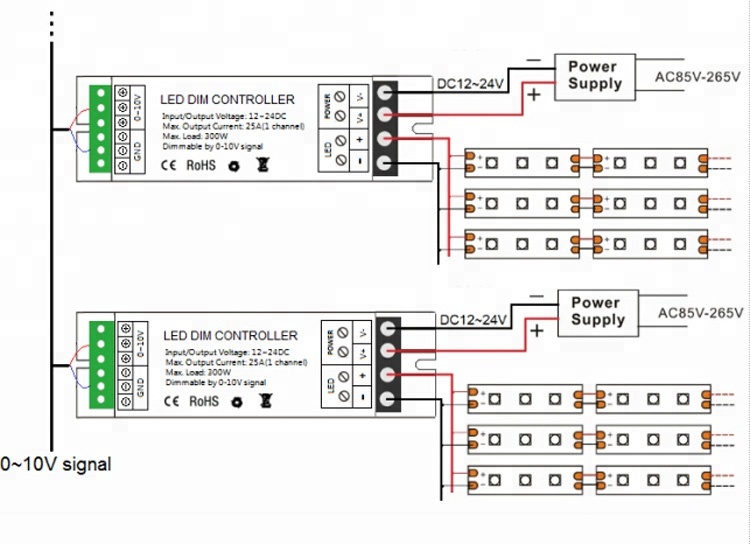

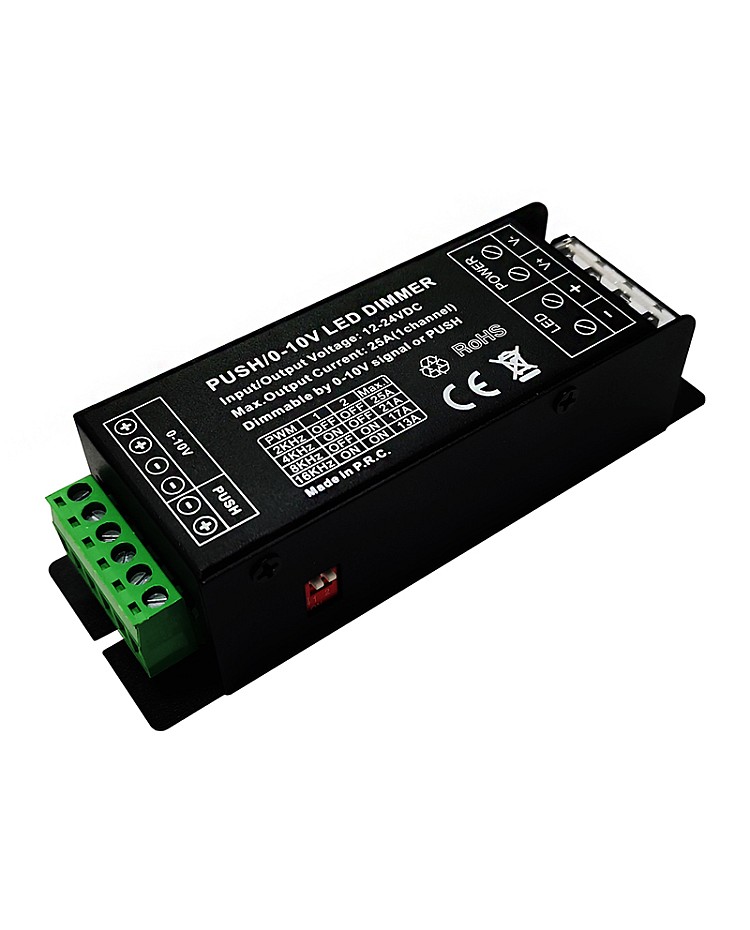

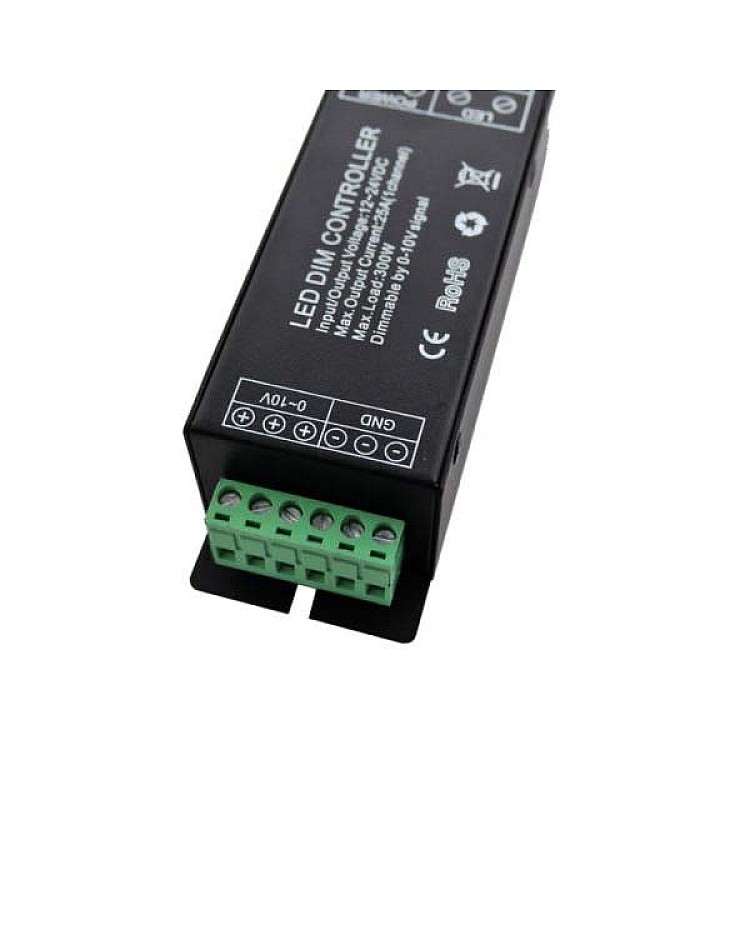

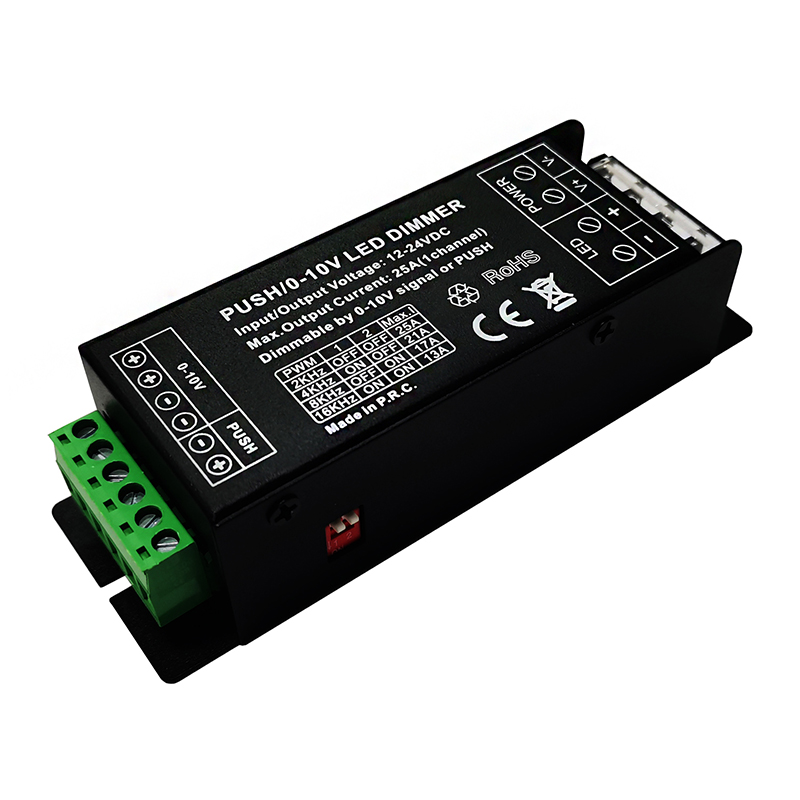

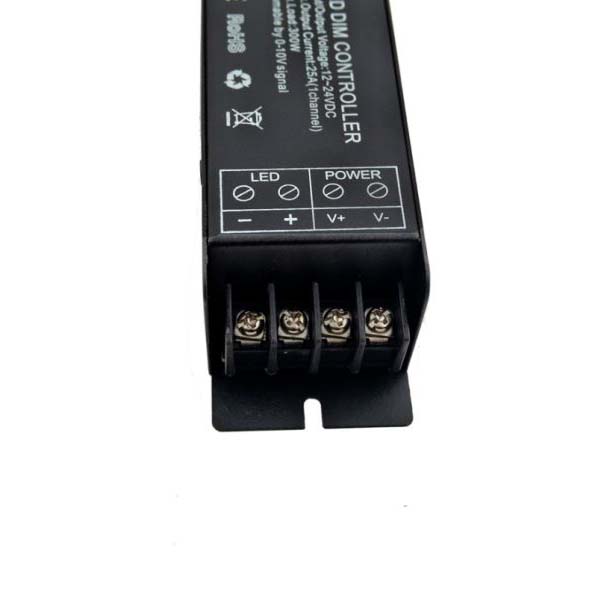

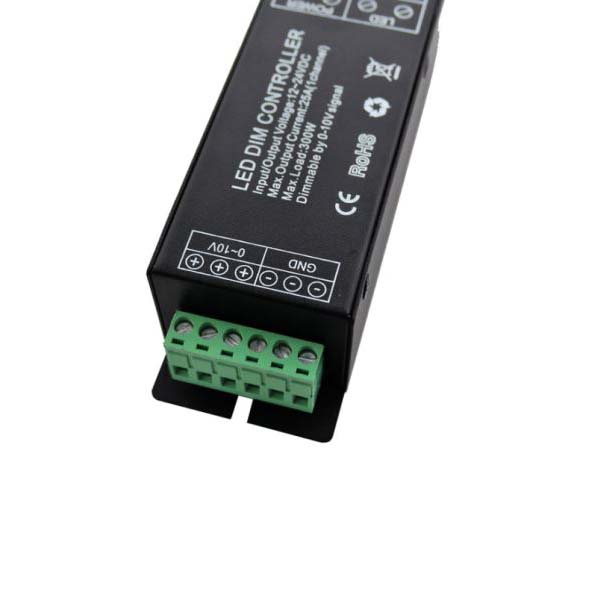

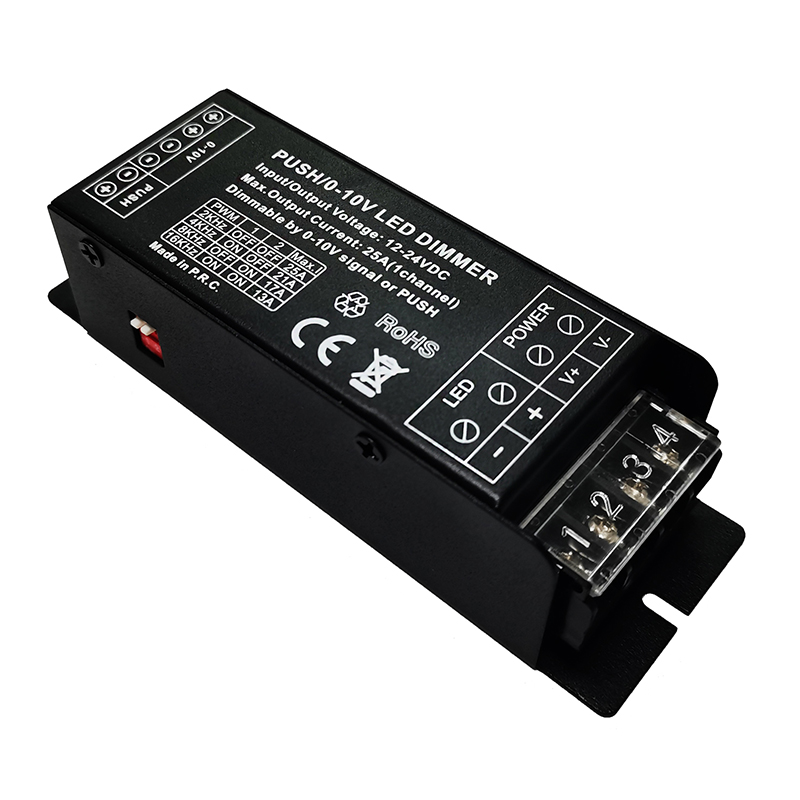

The 0- 10V PWM LED dimmer adopts the advanced micro control unit, which will receive the 0- 10V analog control signal, which is widely used internationally. Changes the PWM control signal to actuate the LED lamps, single-color LED strip lights, with a dimming range from 0-100%, smooth and flicker-free. You could adjust the brightness of flexible LED strips to a stable and soft setting. The LED dimmer works in DC12V or DC24V, with one output channel design, and the max load power is up to 600W when working in 24V. Compatible with HX-WP86-010D and HX-LWP86-RFBT-DIM(0- 10V) LED dimmers.
Quick Links:
0-10V Knob Wall Panel LED Dimmer
Specifications:
- Working Temperature: -20-60℃
- Size: L127* W42* H33 mm
- Color: Black
- Working Voltage: DC12V-DC24V
- 1 Channel Output
- Output Current: <25A
- Max Load Power: 300W(12V), 600W(24V)
- Output Gray: 256 Levels
- Control Standard: 0- 10V Analog Signal
- Dimming Range: 0-100%
- PWM Frequency: 2 KHz
- Weight: 200g
- 3 Years Warranty
Includes:
1 * PWM LED Dimmer
