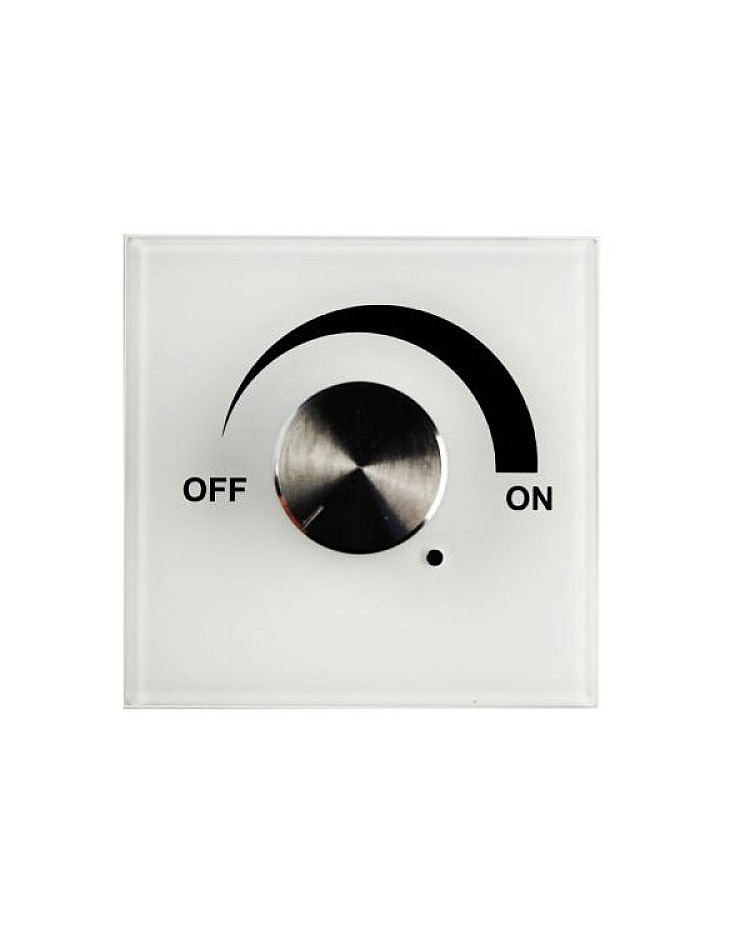

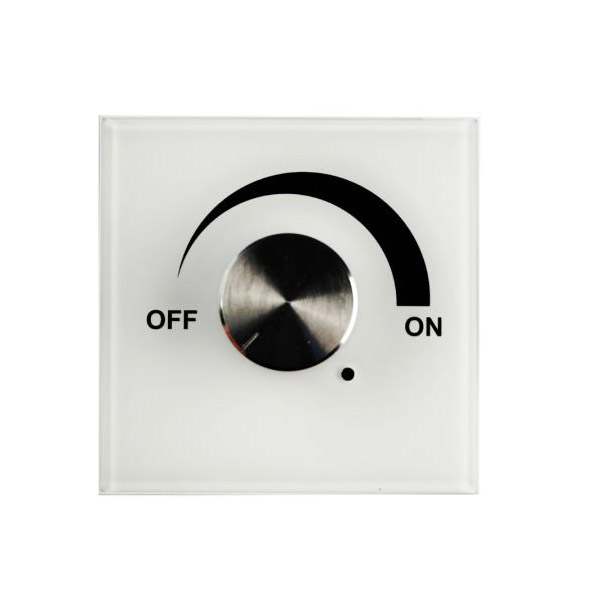

The Knob Wall Panel LED Dimmer works between AC90V to AC265V, can connect to the home power system directly, the output is single-channel, max current is 100mA and output voltage adjustable between 0V to 10V, multiple LED Lamps can be parallel connected. the Panel LED Dimmer with Knob design, turn the knob clockwise to increase the brightness(OFF-100%), turn the knob counterclockwise to decrease the brightness(100%-OFF). recommend works with 12V PWM LED Dimm Controller to achieve all Units work synchronization. the structure and dimension according to the 86-type European standards.


  • Size: 86*86*50mm
  • Working Temperature: -20-60℃
  • Working Voltage: AC90-265V
  • Standby Power: <0.3W
  • Max Input Power: <1.8W
  • Output Voltage: 0-10V
  • Max Supply Current: <0.04A
  • Connection: Wiring Terminal
  • Max Output Current: 100mA
  • Short Circuit Protection


1*Wall Panel LED Dimmer

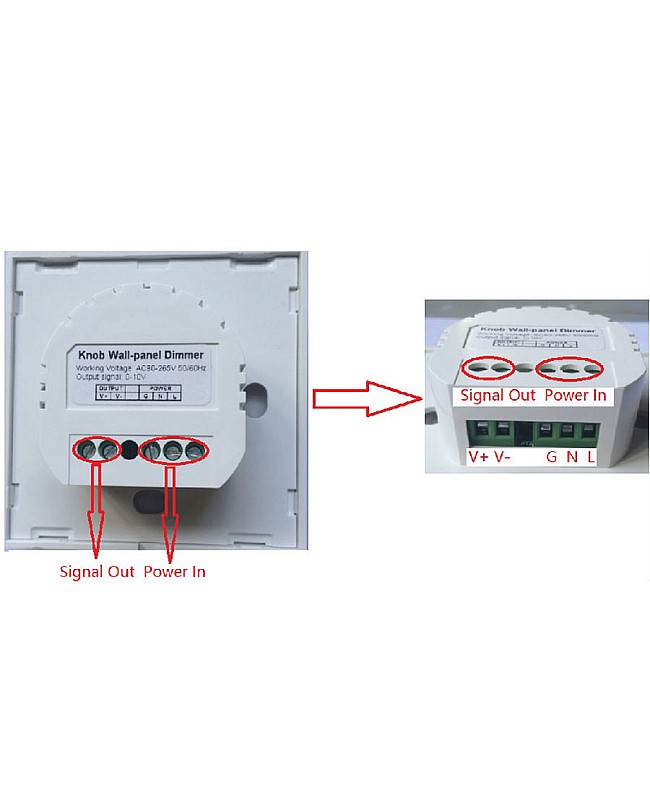

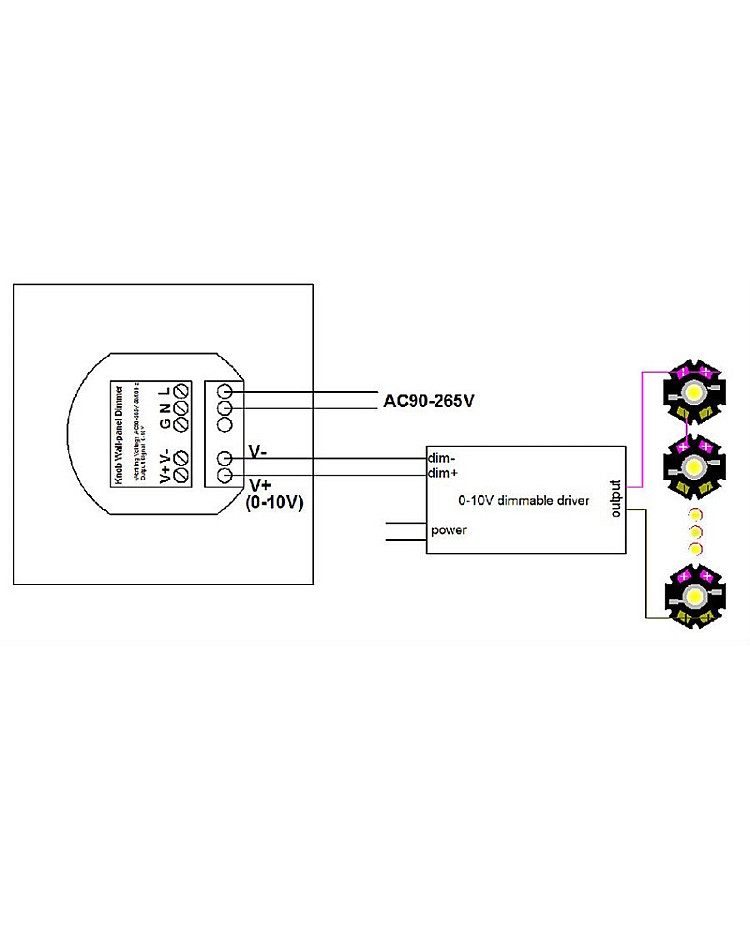

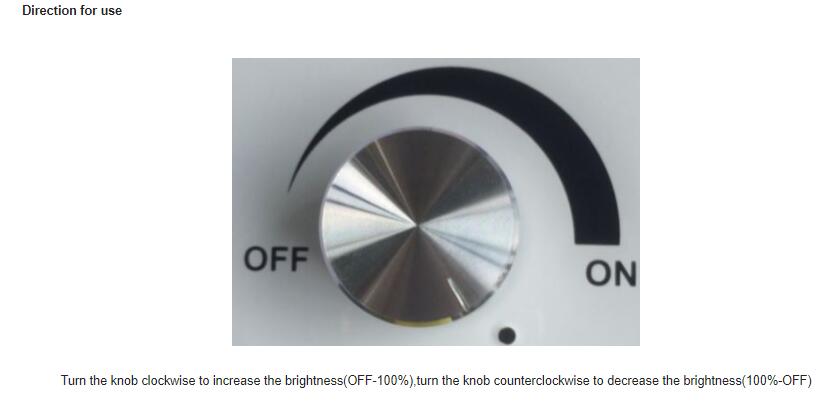

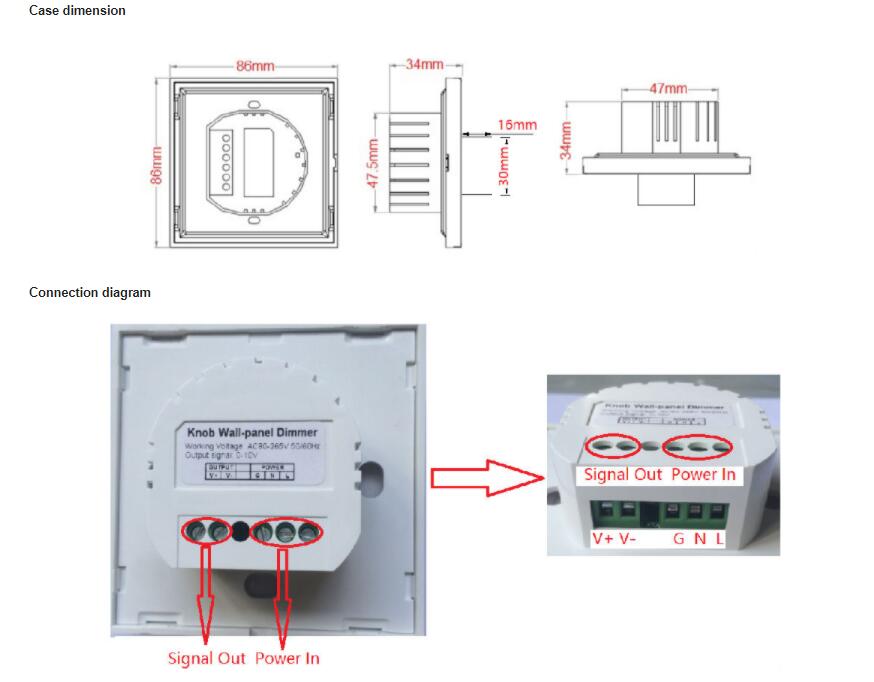

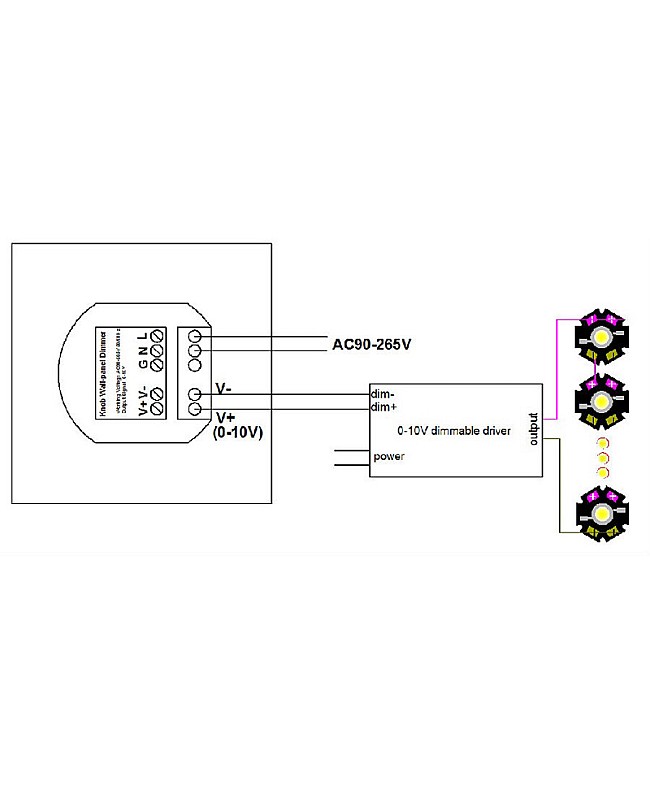

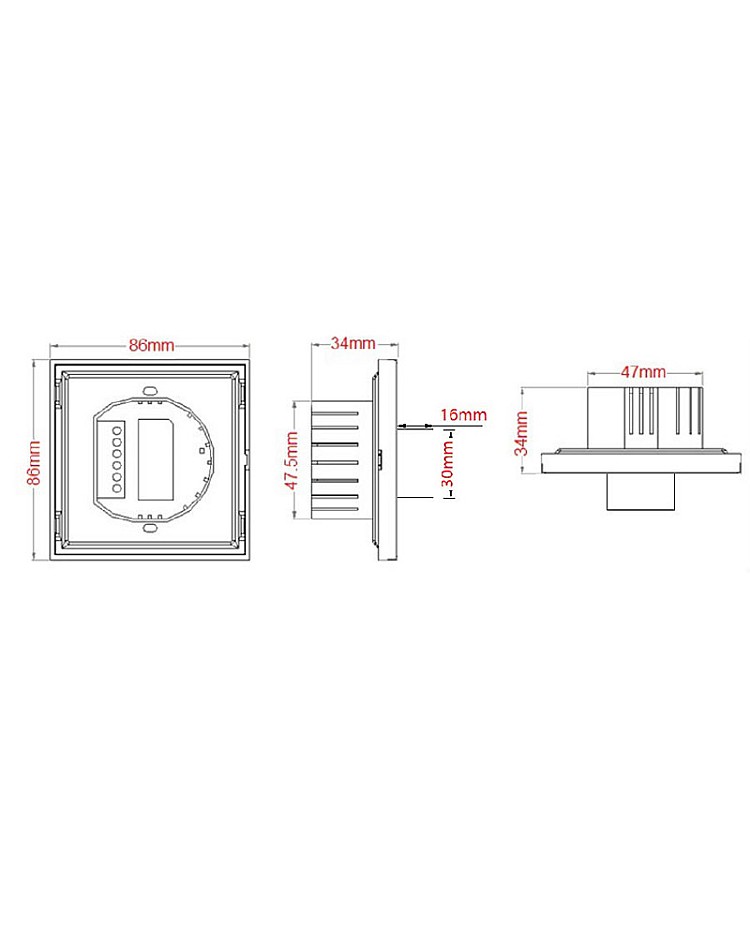

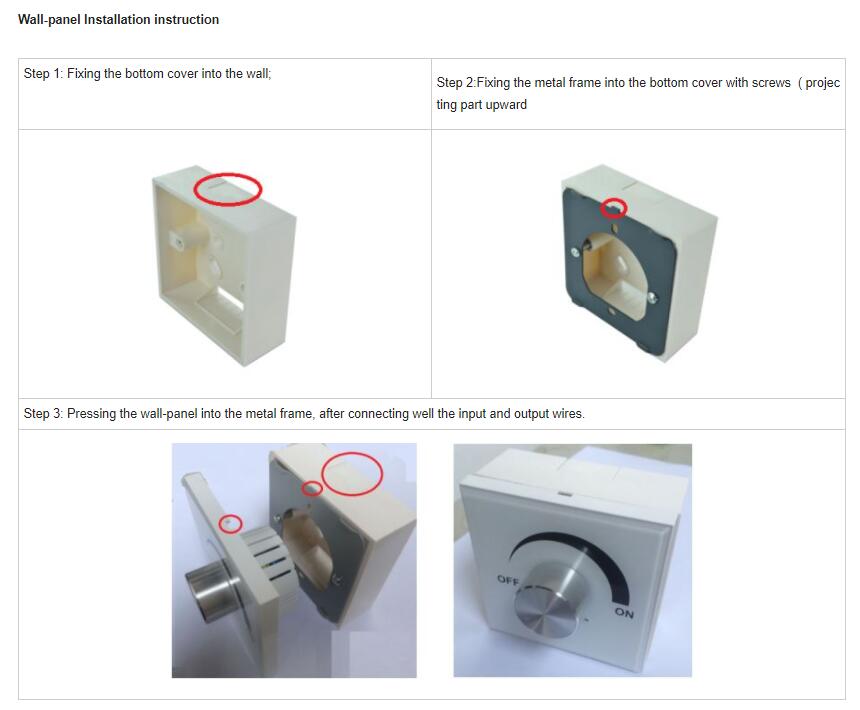

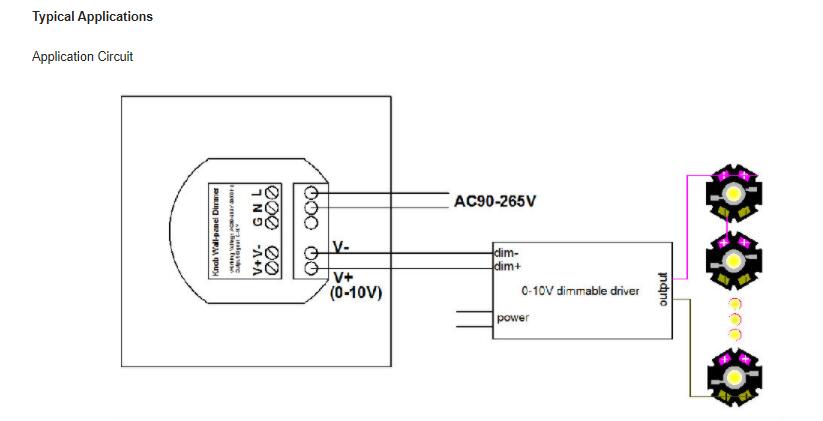

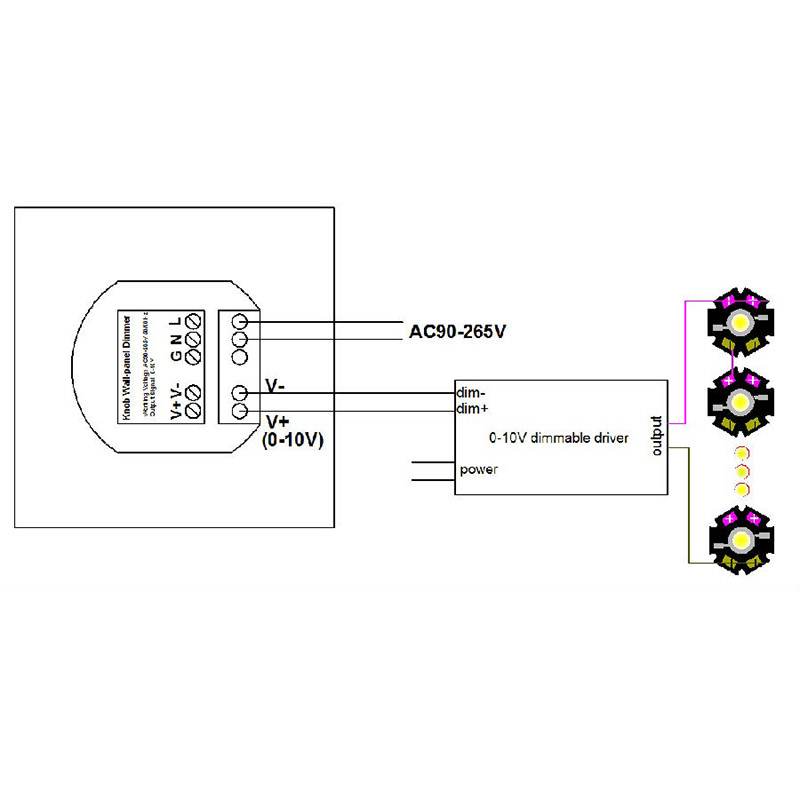

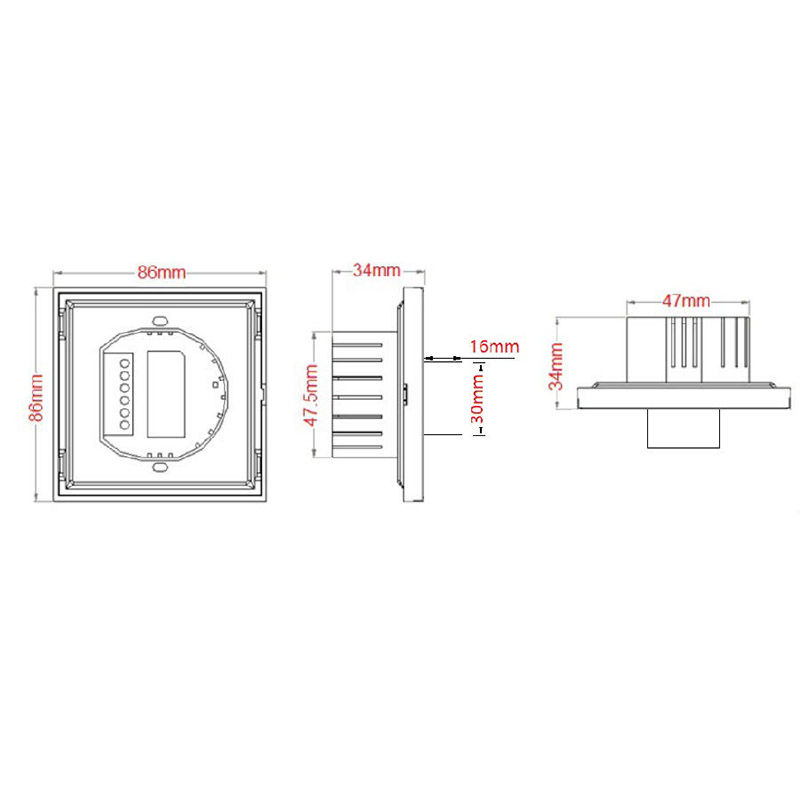

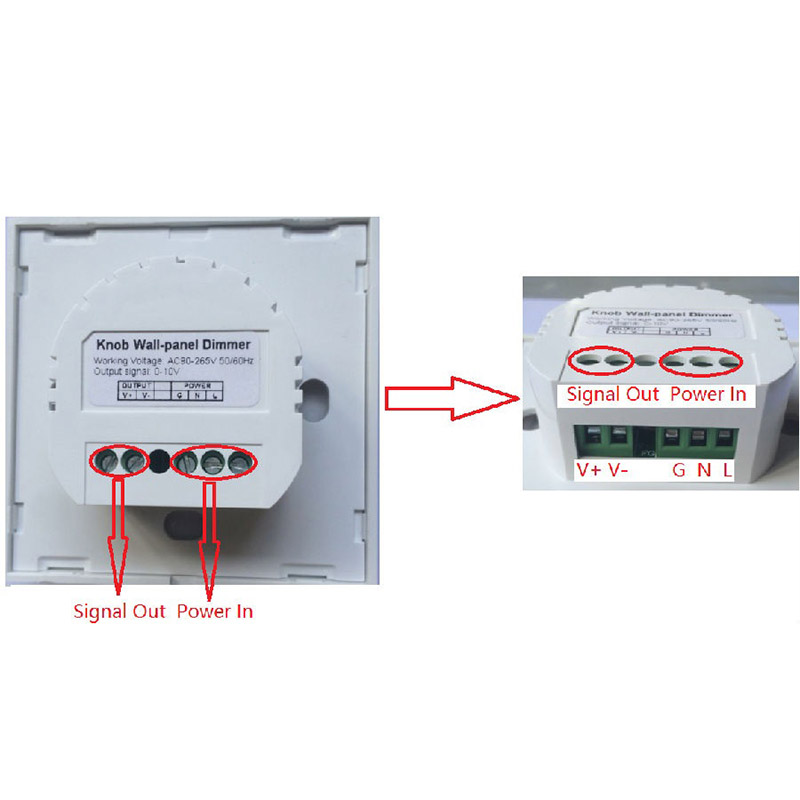

Knob Wall Panel LED Dimmer's Dimension And Connection Knob Wall Panel LED Dimmer Installation Knob Wall Panel Dimmer Direction For Use Knob Wall Panel LED Dimmer Application
