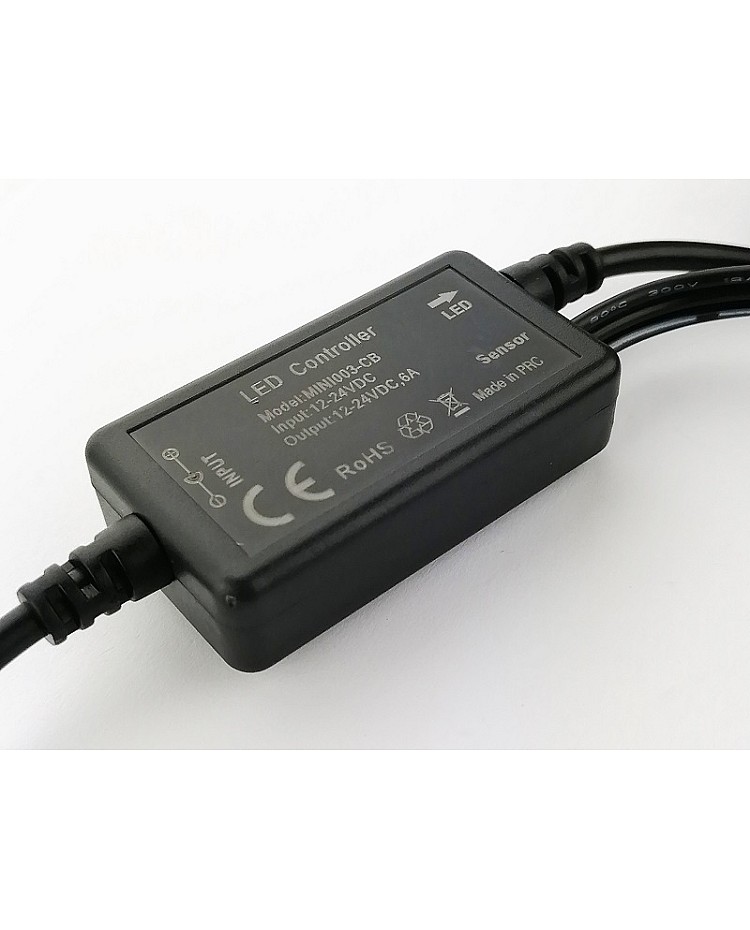

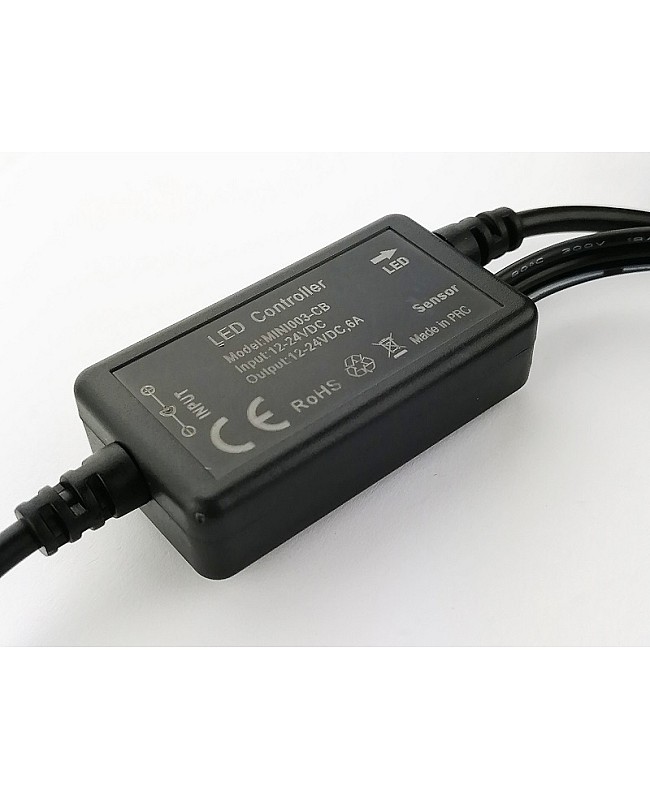

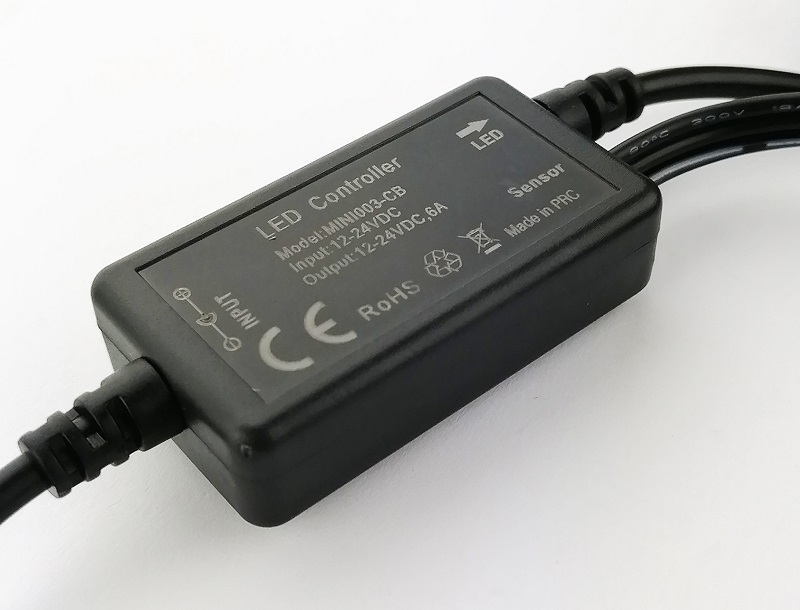

The 12V-24V Mini LED Dimmer With Sensor, which adopts the advanced PWM(Pulse Width Modulation) digital control technology for controlling constant voltage single color LED Lights in the cabinet or furniture application, the Mini LED Dimmers come with two different sensors, you can order separately, the A Model will automatically switch on or off the light by the operation of people close the door to block the ITR sensor or open the door to release the blocking. the B Model will switch on or off the light by the operation of people's hand go through the ITR sensor without touching. the LED Mini Dimmer with stable sensitivity feature with an ITR sensor, soft light up and down.


  • Size: 48*26*13mm
  • Working Temperature: 0-45℃
  • Size: L48*W26*H13mm
  • Working Voltage: DC12-24V
  • Output Current: 6A*1CH
  • Output Power: 72W(DC12V)/144W(DC24V)
  • Static Power Consumption: <1W

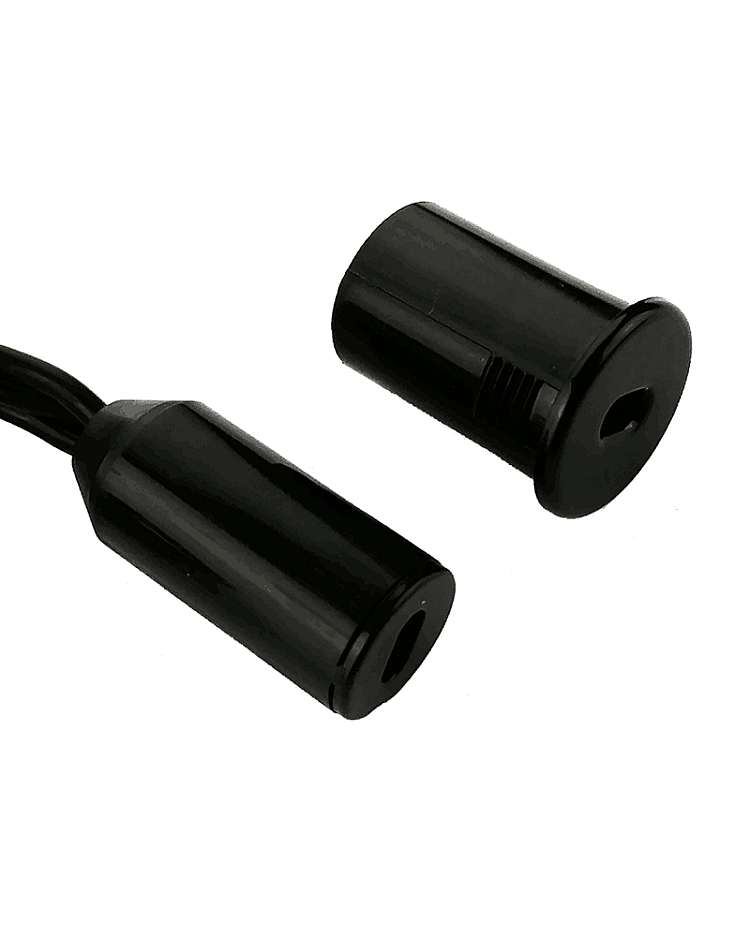

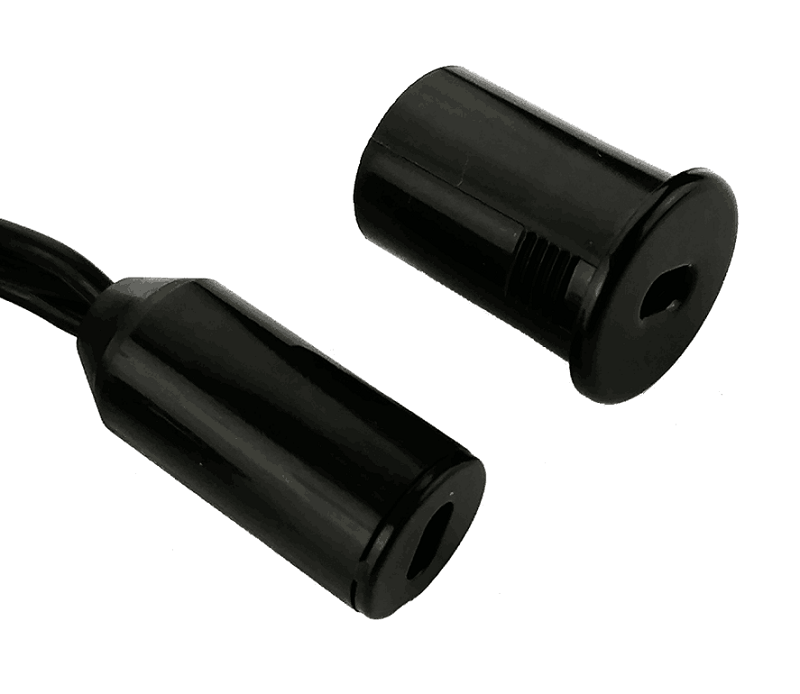

  • Sensor: ITR
  • Sensor Range: 0-8cm
  • Sensor Cable: 1Meter
  • PWM Frequency: 490Hz
  • Model A: Automatically Switch On/Off By Close The Door Or Open
  • Model B:  Switch On/Pff By Operation Of People's Hand Go Through Without Touch
  • 3 Years Warranty Exclude The Artificial Situation Of Damaged Or Overload Working

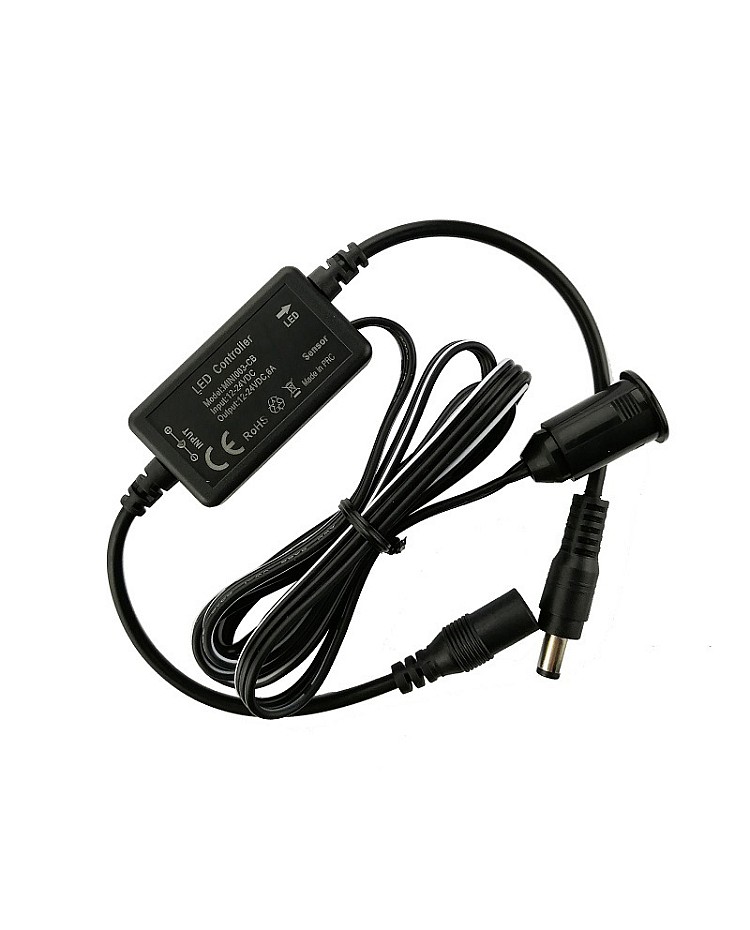

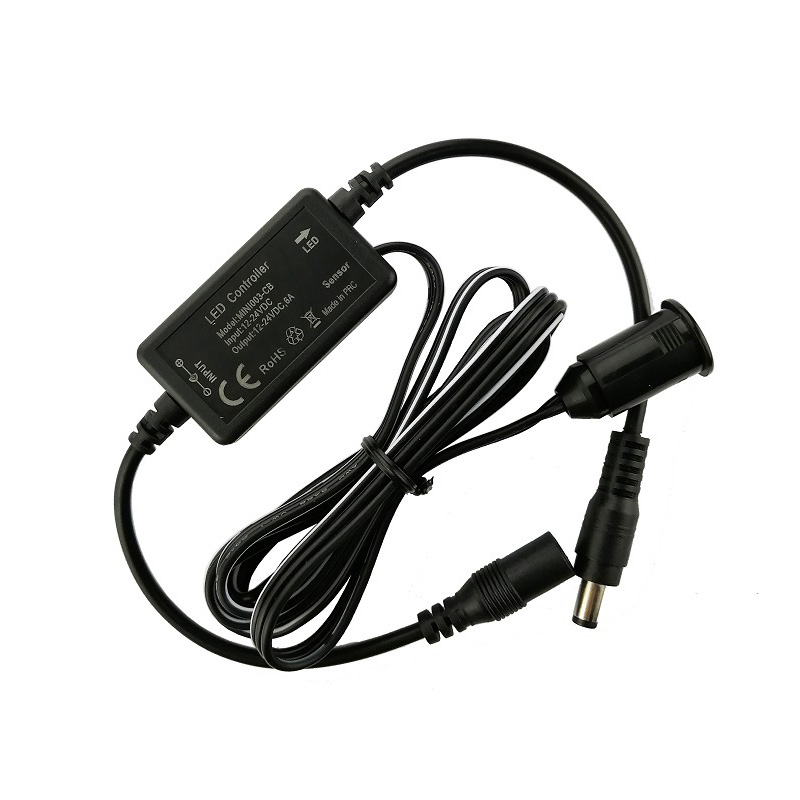

1*Mini LED Dimmer With Sensor

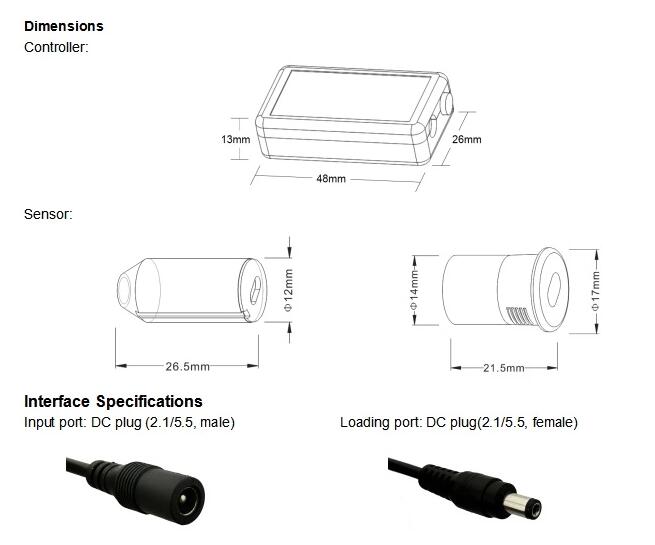

Mini LED Dimmer Size

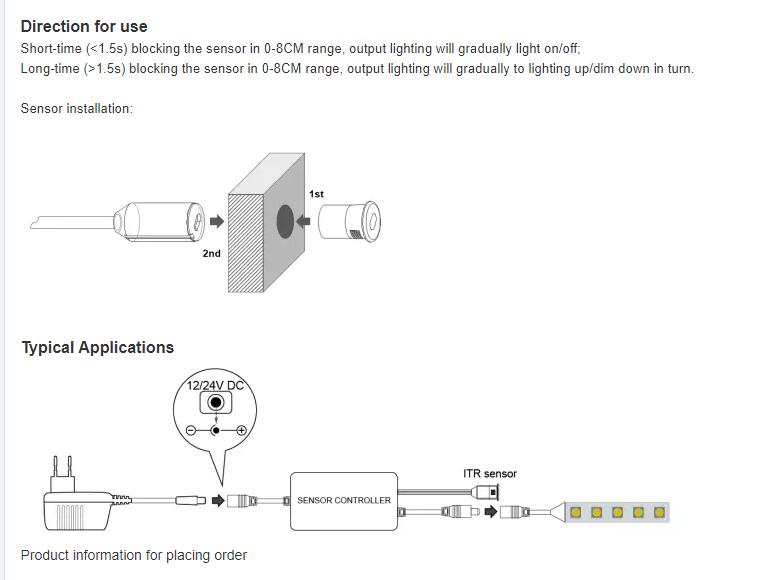

Mini LED Dimmer Application
