In Stock
$13.70 $8.00 Sale -42% OFF
Reward Points: 8
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP105

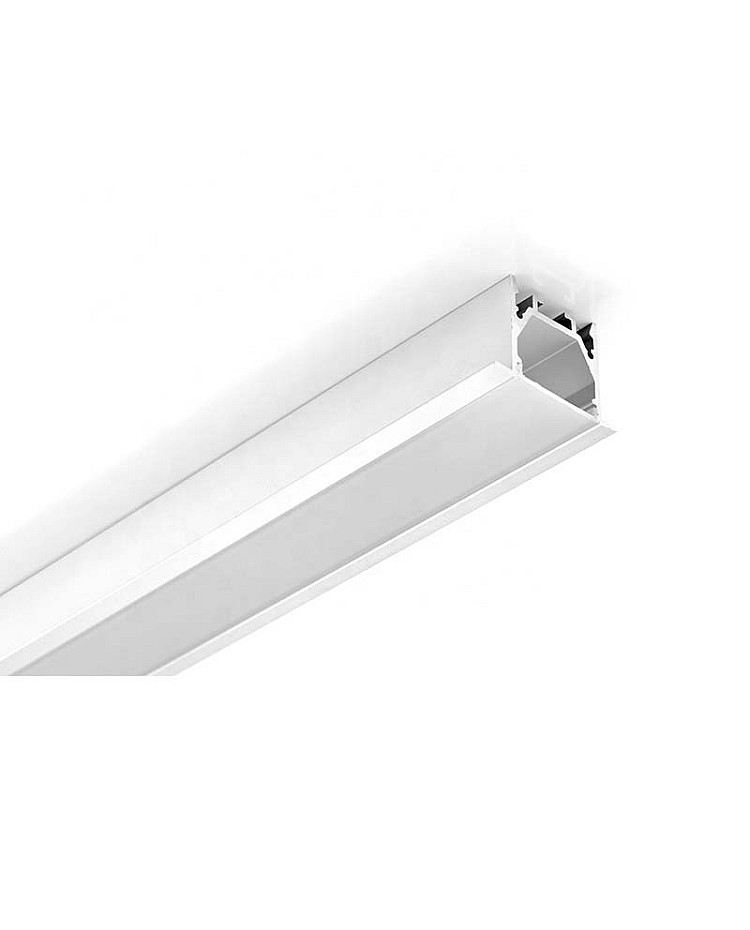

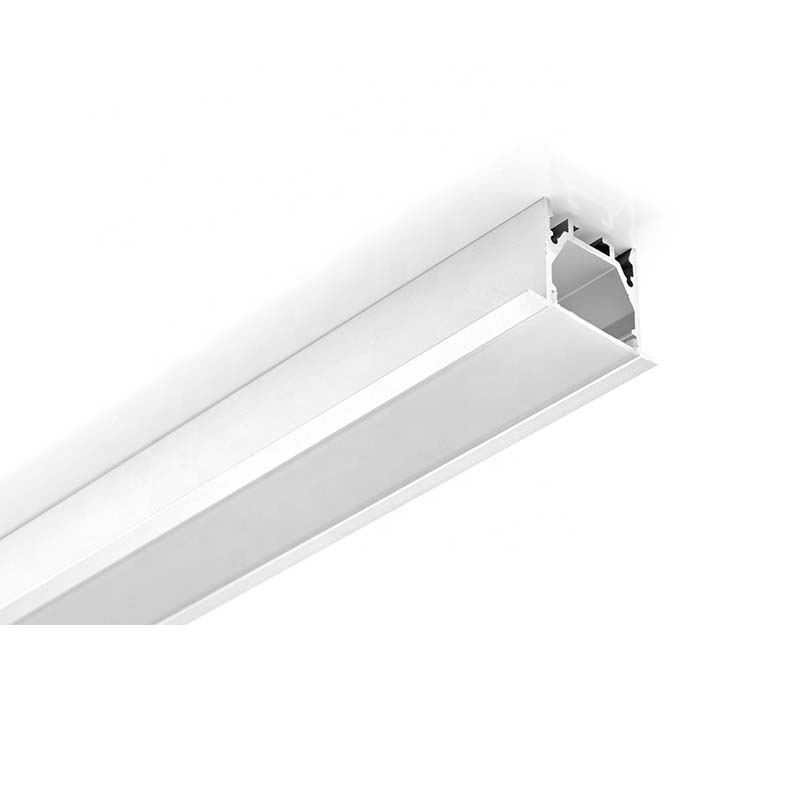

Check the 1 Inch Recessed LED Channels And Diffusers for LED Tape Light, with the square shape for recessed installation. you can install them on walls, ceilings for indoor commercial lighting. the LED Channels and Diffusers made of 6063-T5 aluminum alloy material and with the silver anodized surface treatment, which allows the better anti-oxidation feature and a longer lifespan. the standard length is 1meter, the max length can do 3meter per piece and cuttable. there is only one type of diffuser available, the PC diffuser cover for the smooth output lighting. the inner width is 13.2mm, you can install the Flexible LED Strips the width up to 13mm on the LED Channels, the aluminum base for better heat dissipation. the end caps with wire holes included, you could connect the LED Strips with LED Power Supply directly to light them up. the "L" and “-” shape connectors optional, you can purchase them for your LED Projects for modern office design in schools, stores, shopping malls, hospitals, airports.


  • Model: ALP105
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Anodized Silver
  • Colors: Silver, White, Black

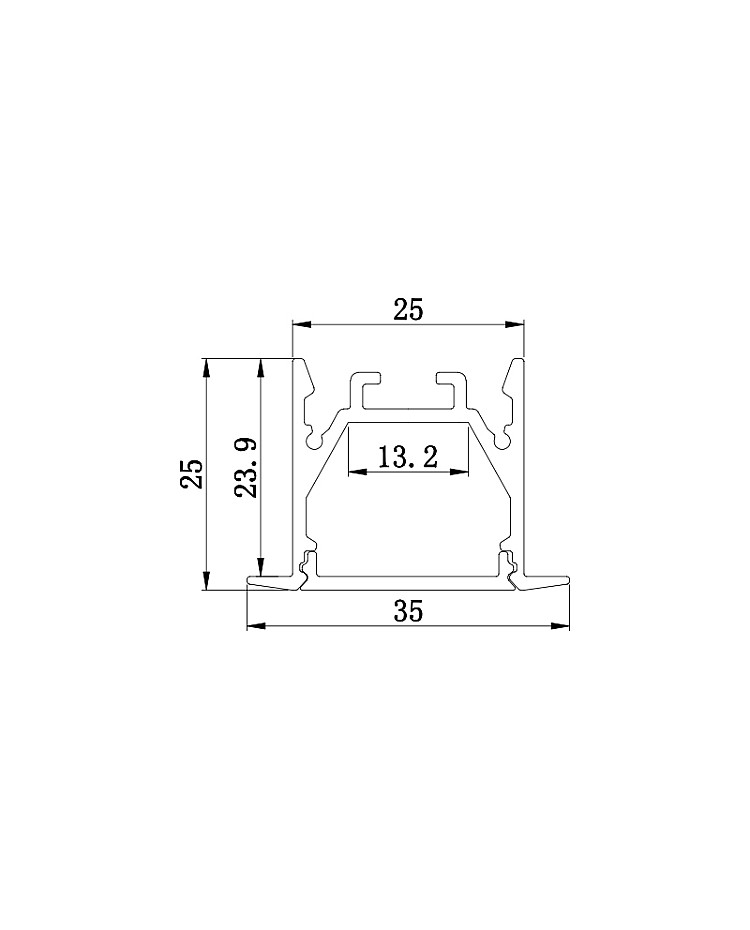

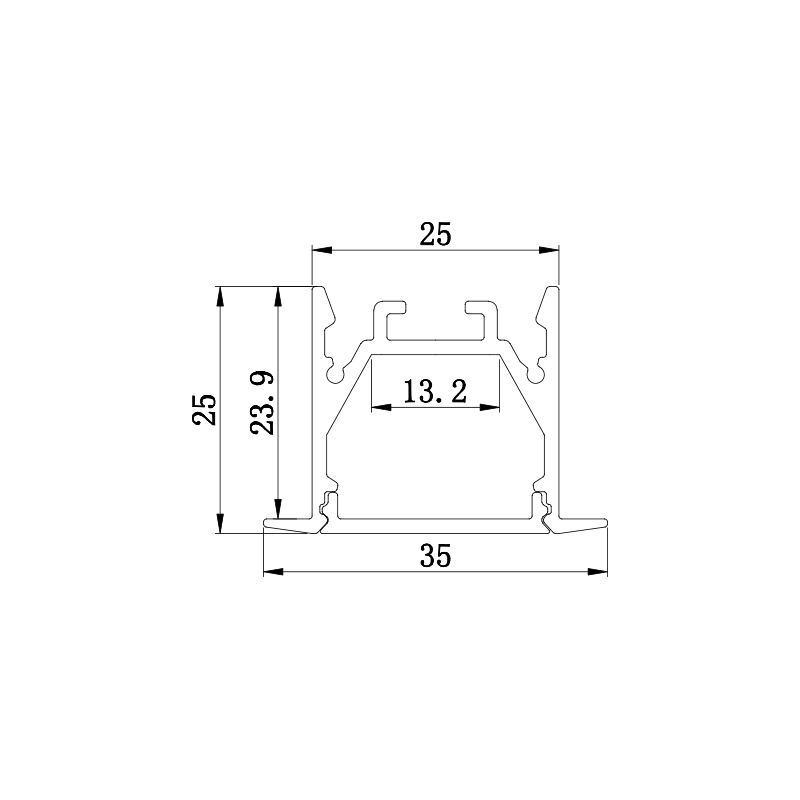

  • Size:35*25mm
  • Inner Width: 13.2mm
  • Compatible With Flexible LED Strips Up To 13mm
  • Diffuser: PC Diffused Cover
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Metal Cips, End Caps With Wire Hole/Without Wire Holes Included
  • "L" And "-" Connectors Optional
  • Installation: Recessed

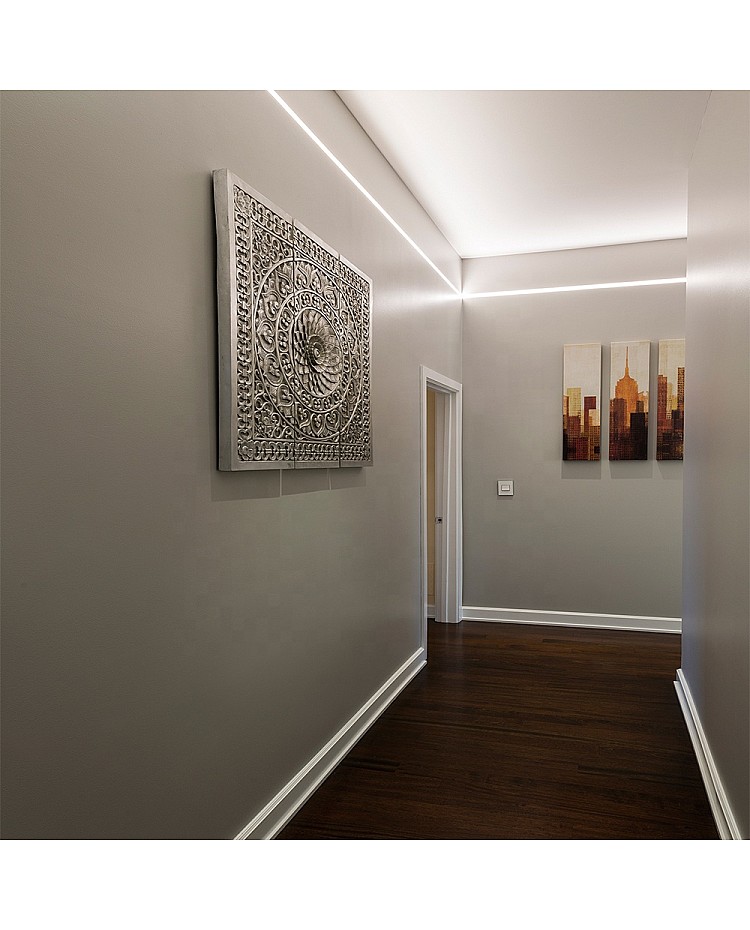

  • Application: Wall/Ceiling/Indoor Commercial Lighting/Office, School, Stores, Shopping Mall, Hospital, Airport
  • 5 Years Warranty


1*Recessed LED Light Channel Diffuser

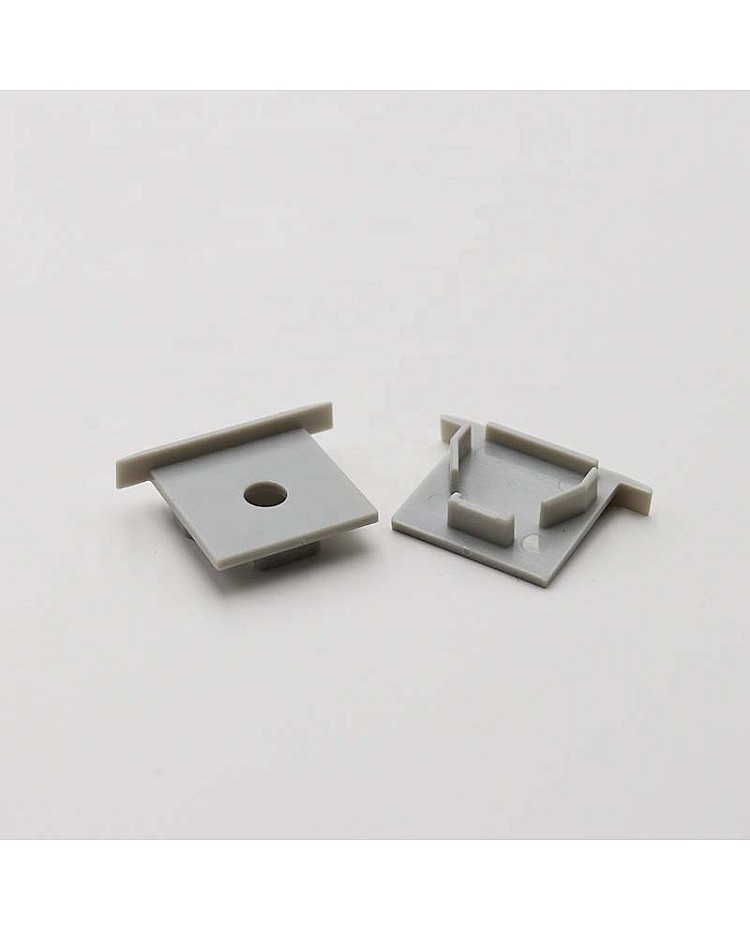

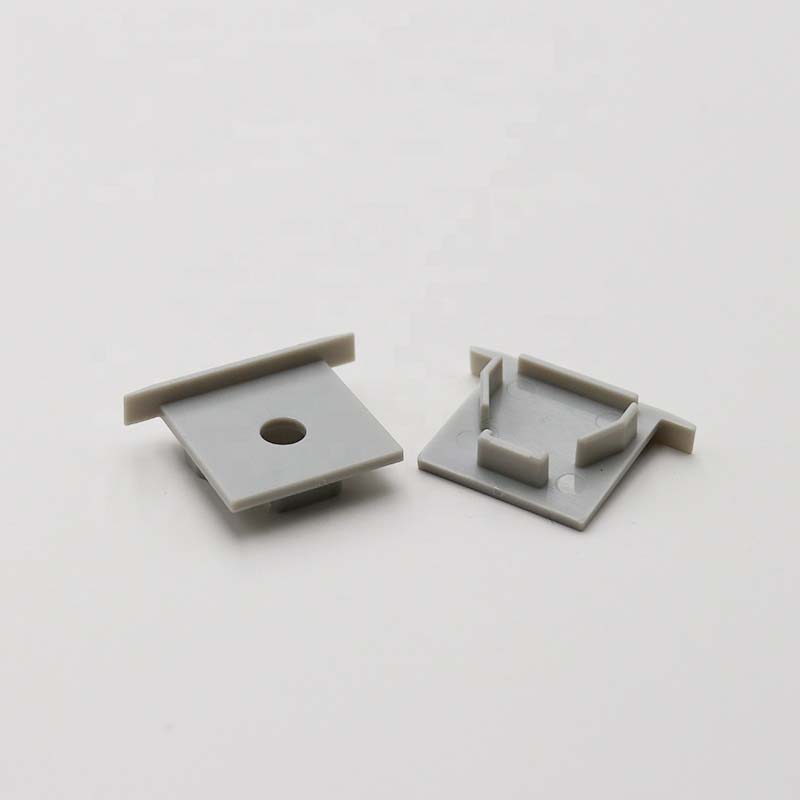

End Caps(With Wire Hole/Without Wire Hole)

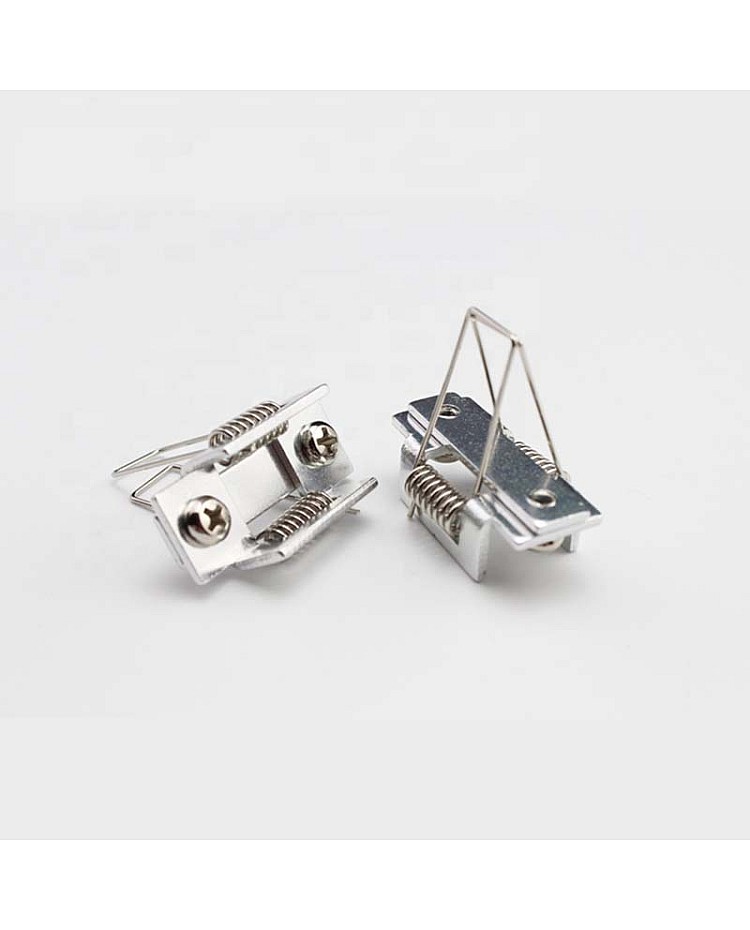

Metal Clips

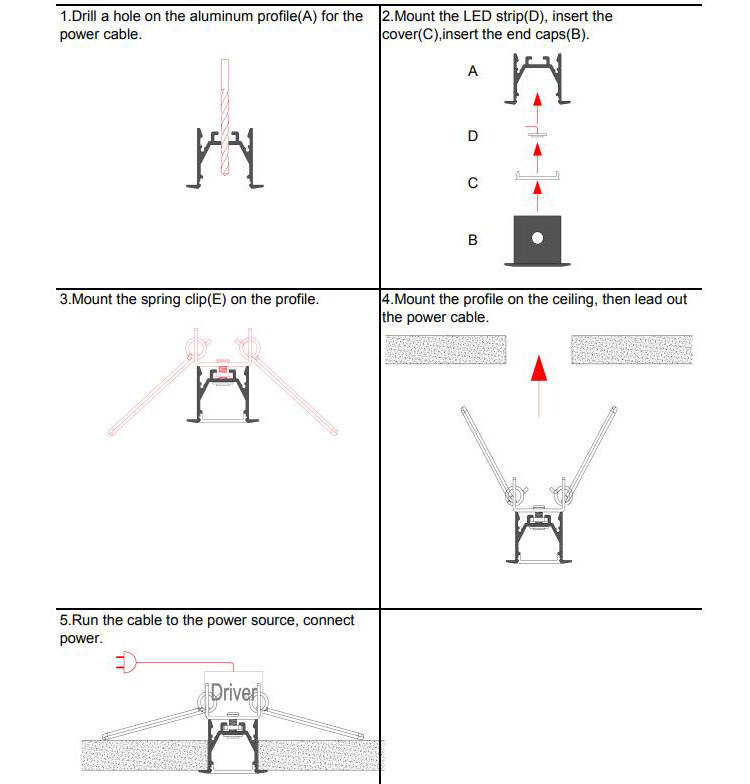

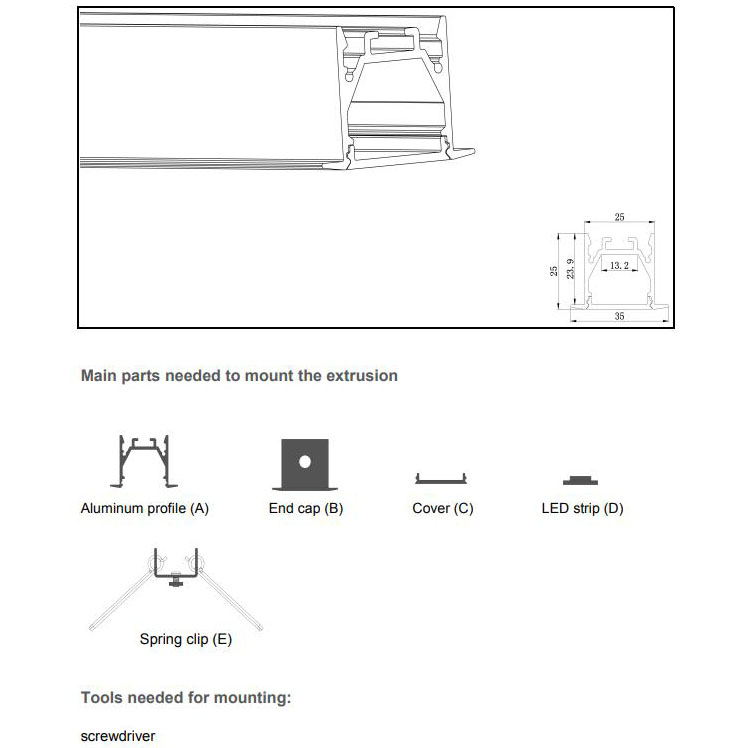

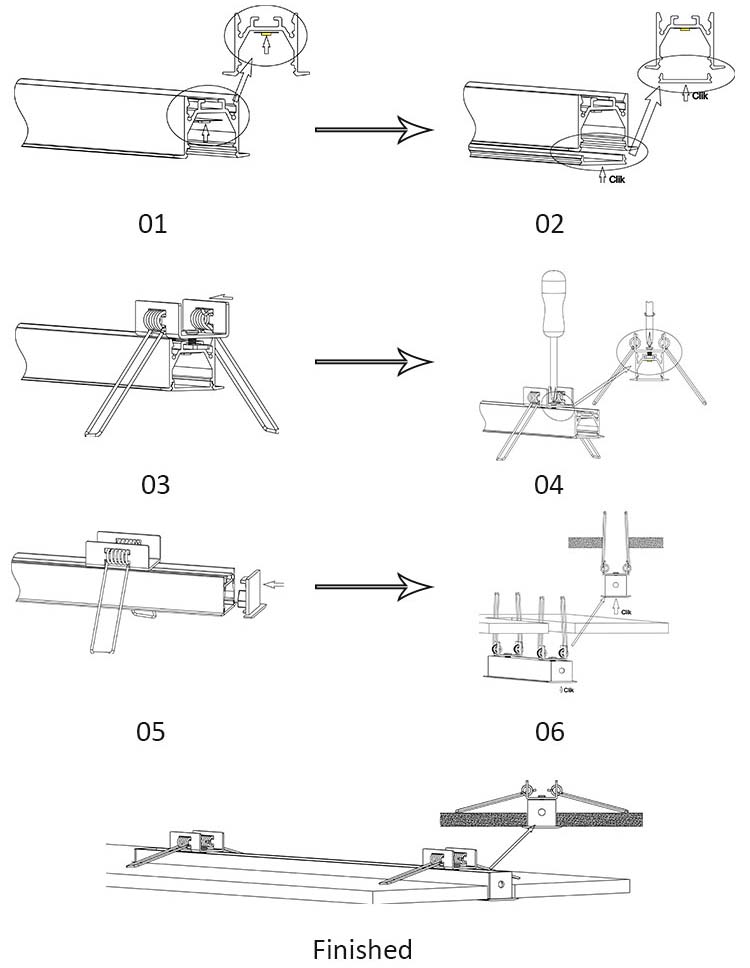

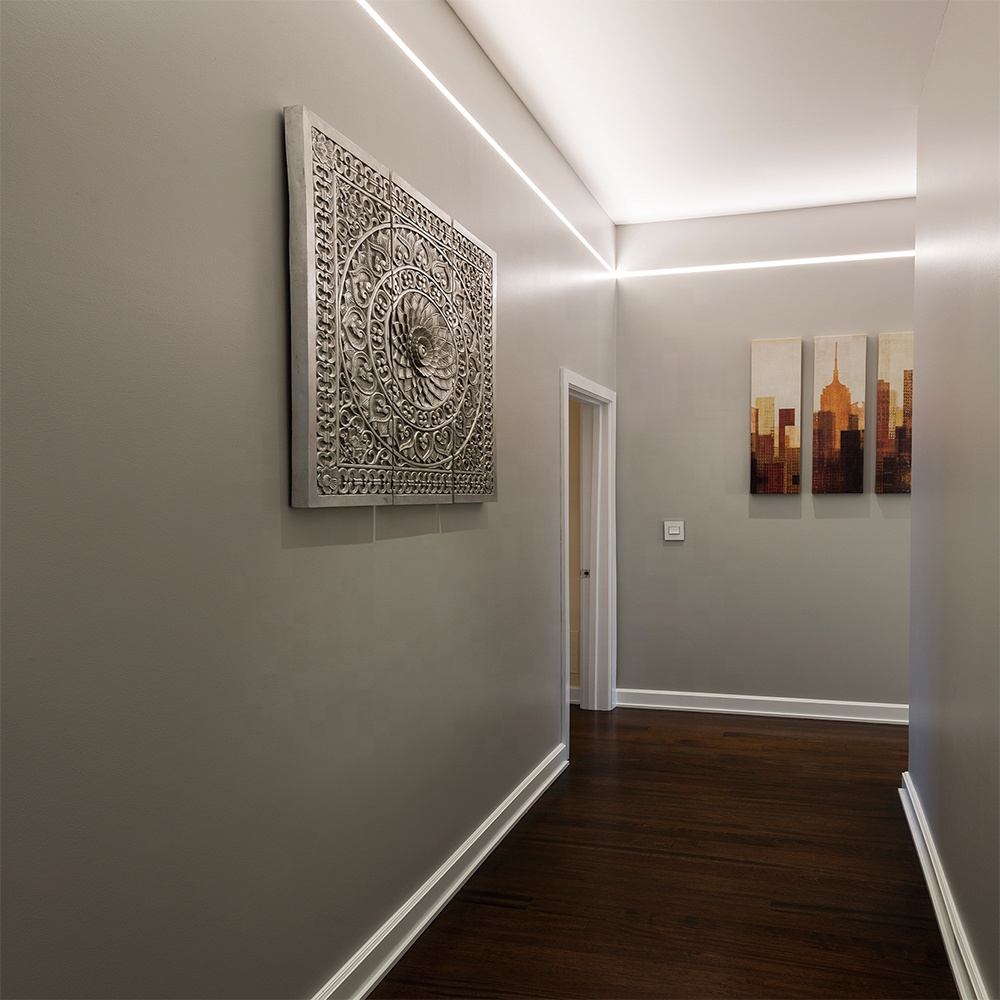

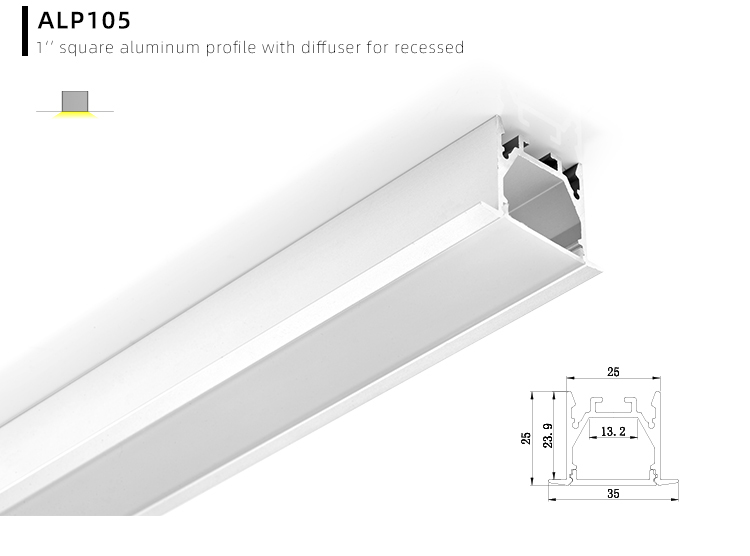

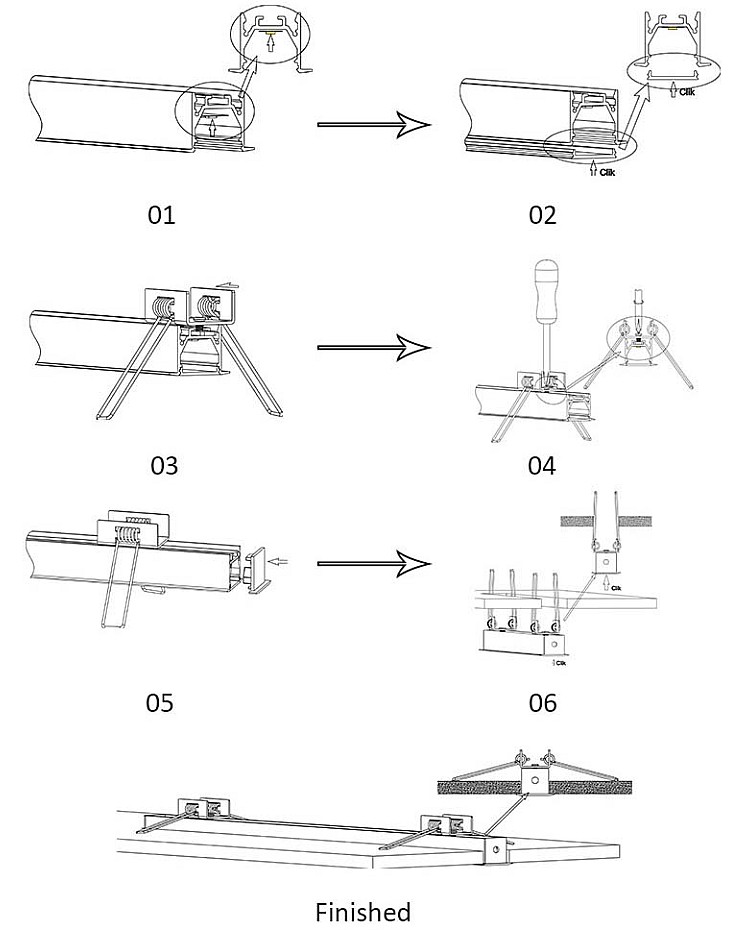

Recessed LED Channels And Diffusers For Tape Lighting Review Recessed LED Channels And Diffusers For Tape Installation Recessed LED Channels And Diffusers For Tape Recessed LED Channels And Diffusers How To Install 25mm Recessed LED Channel And Diffuser
