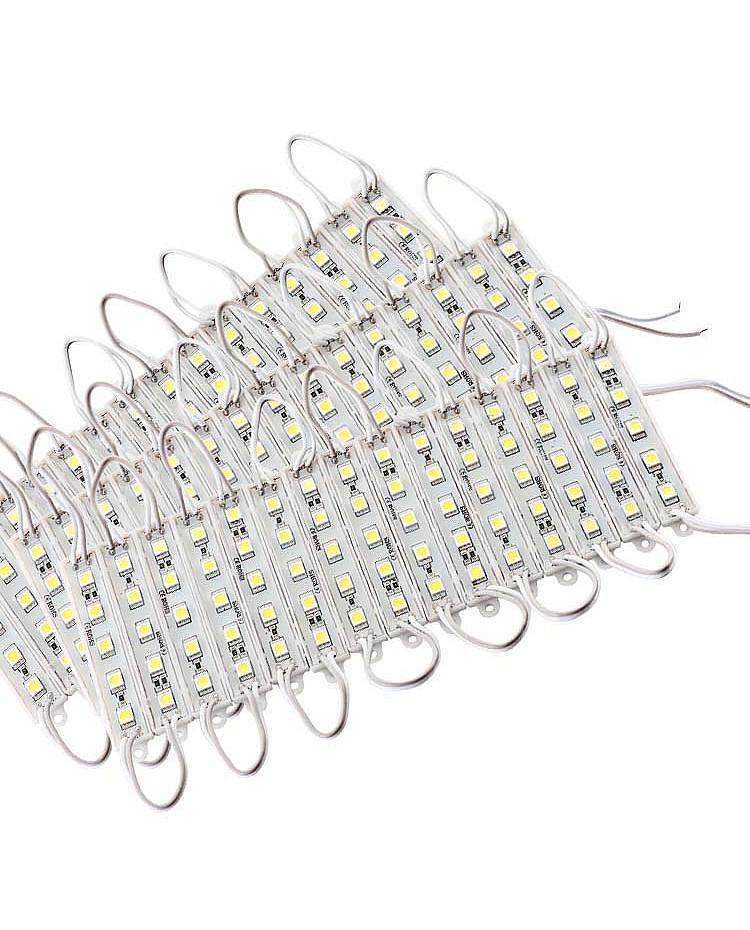

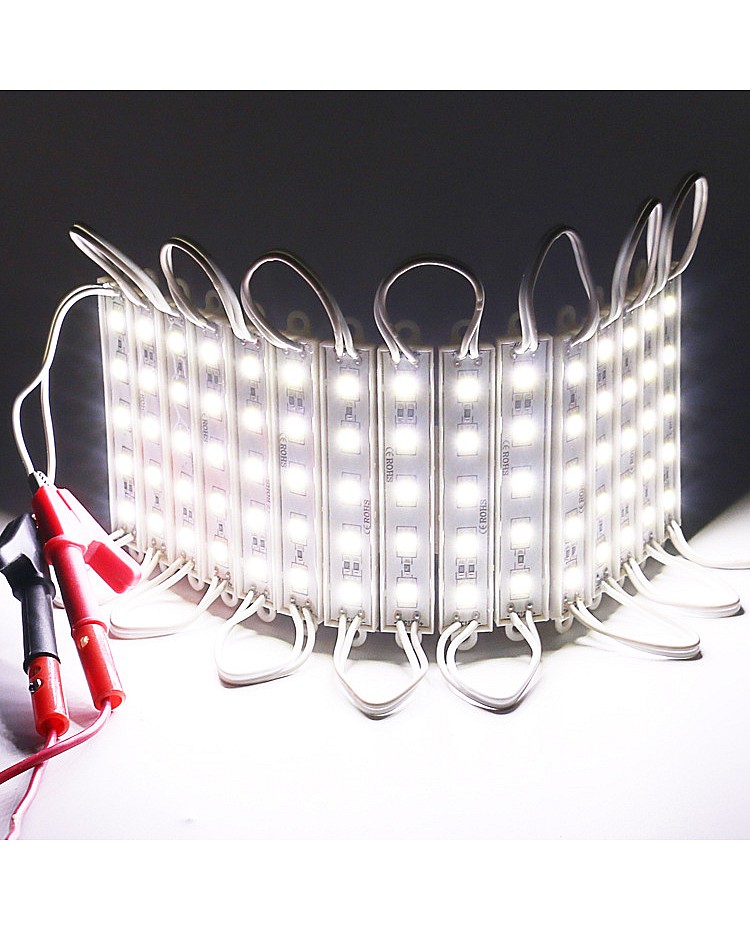

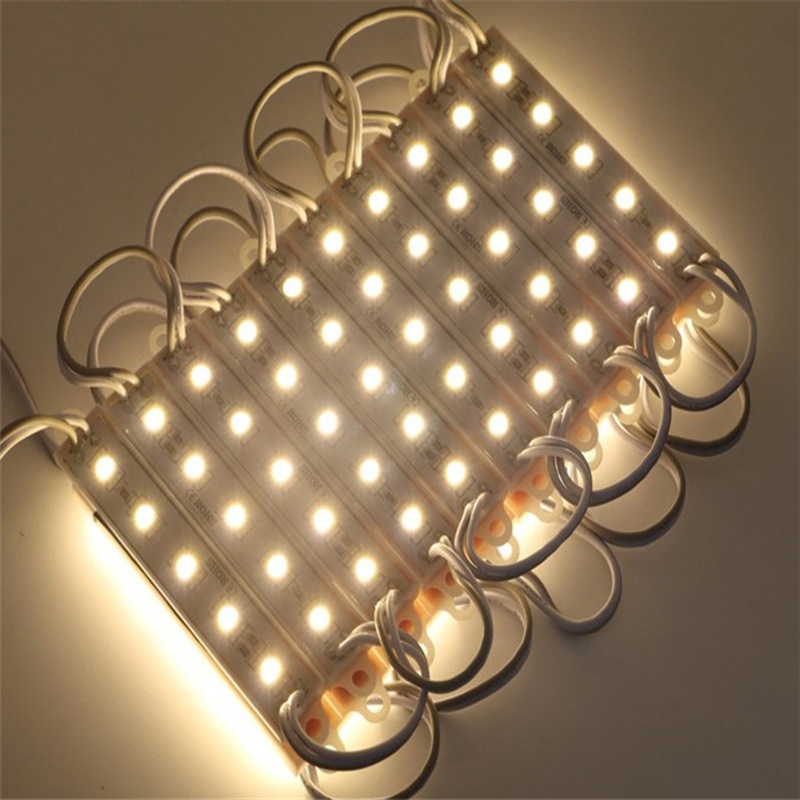

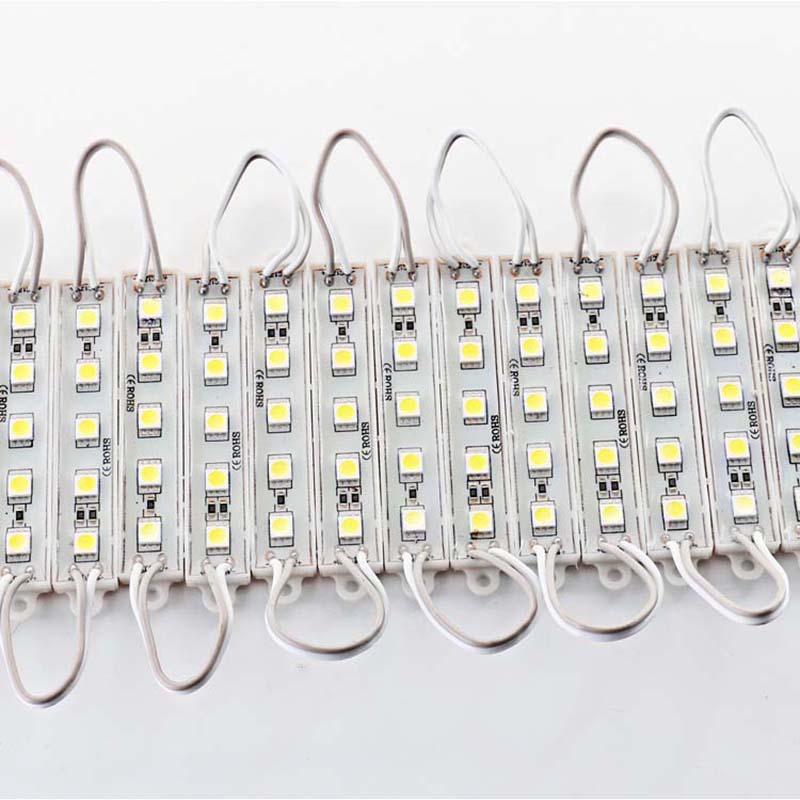

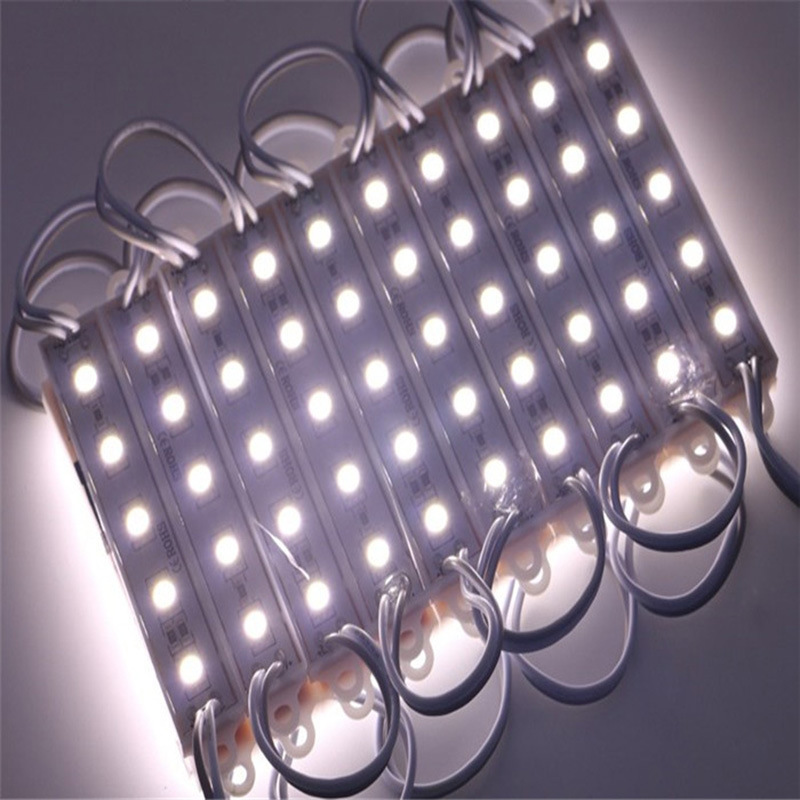

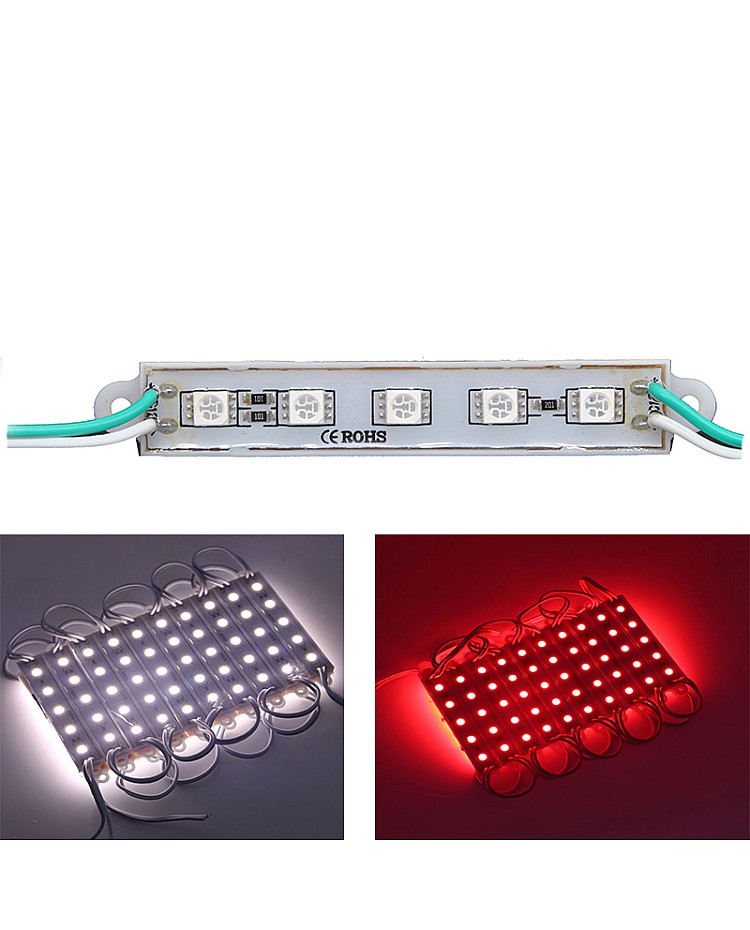

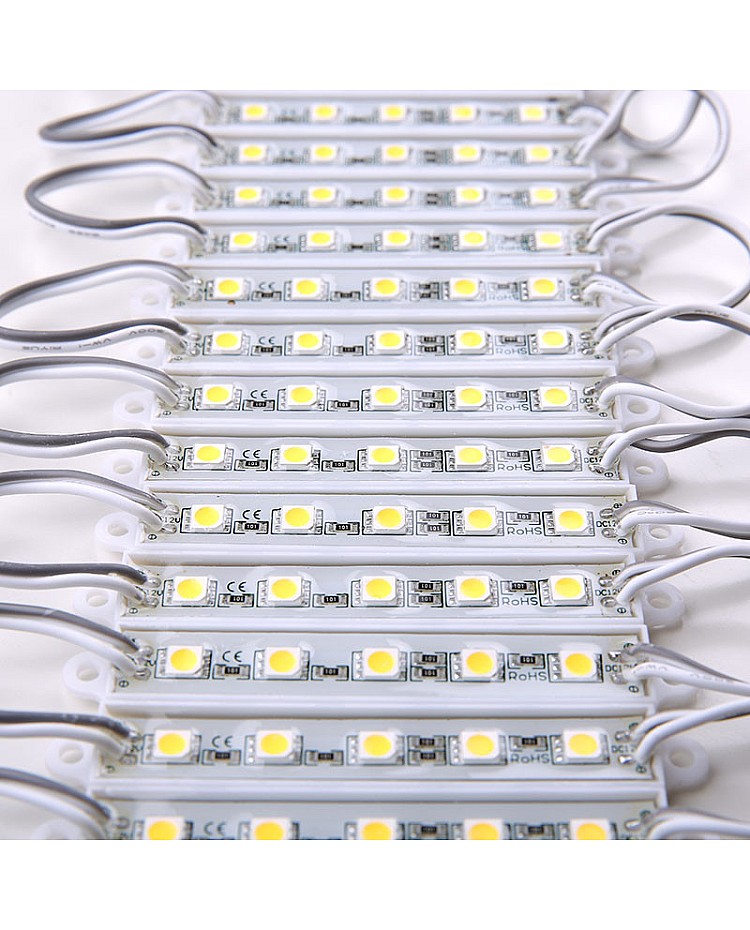

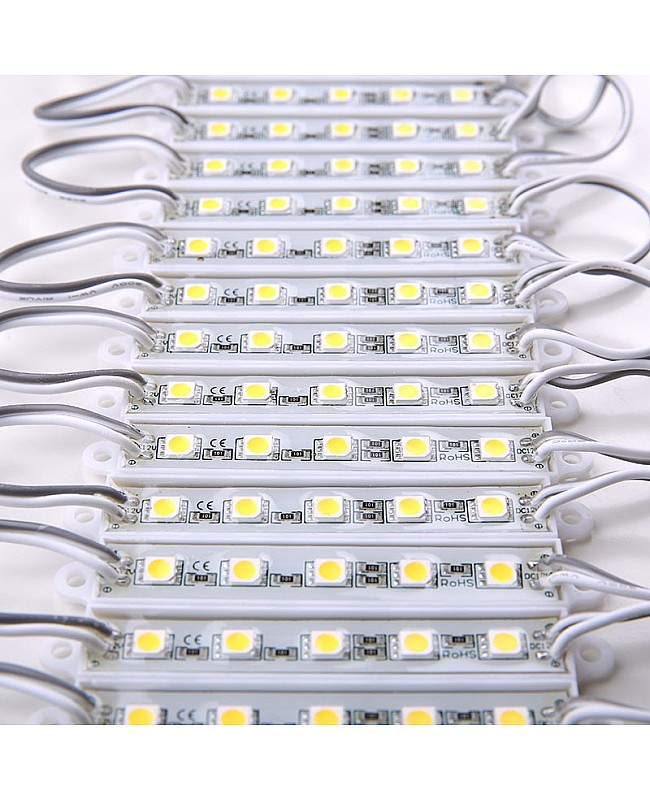

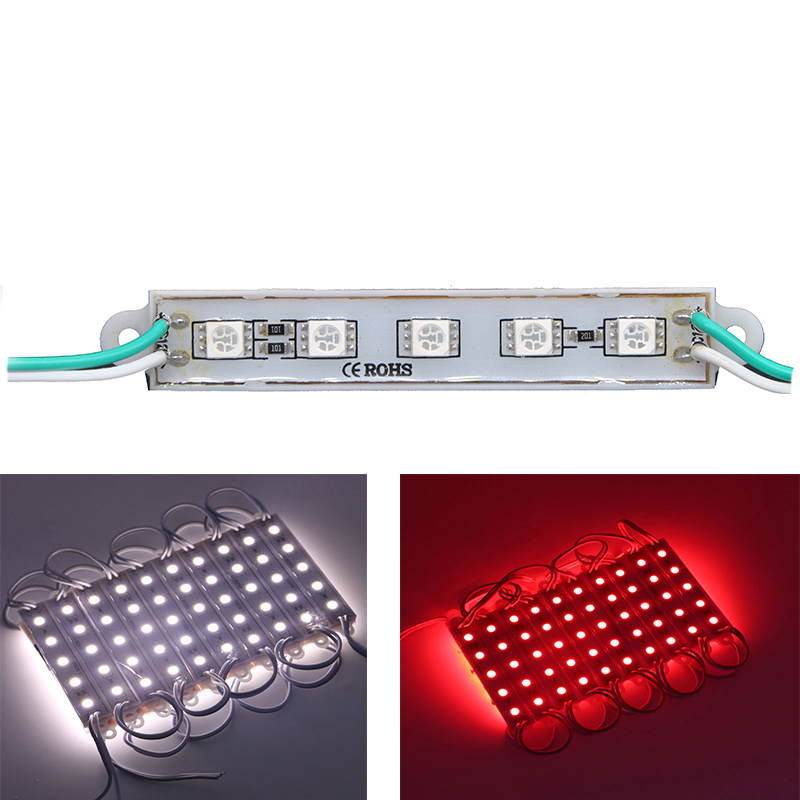

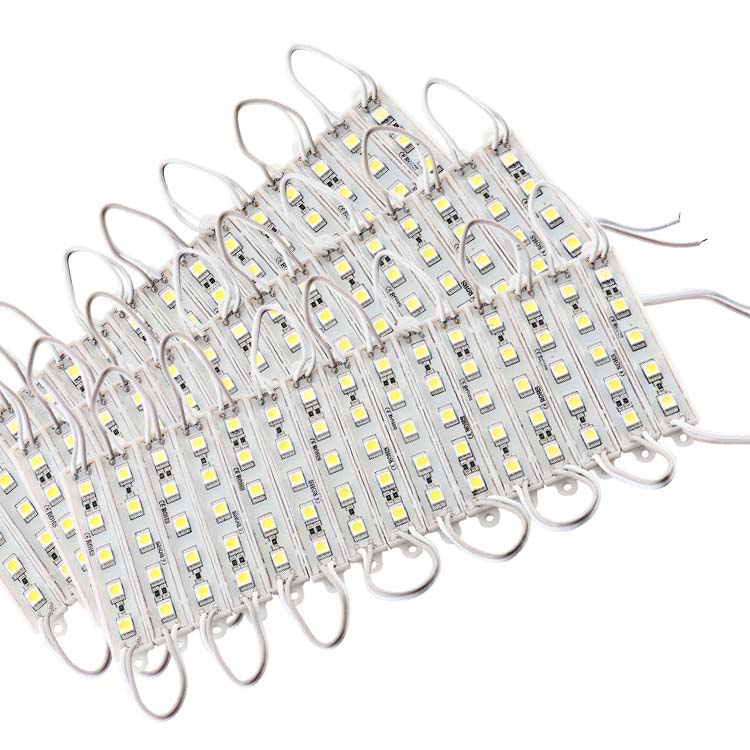

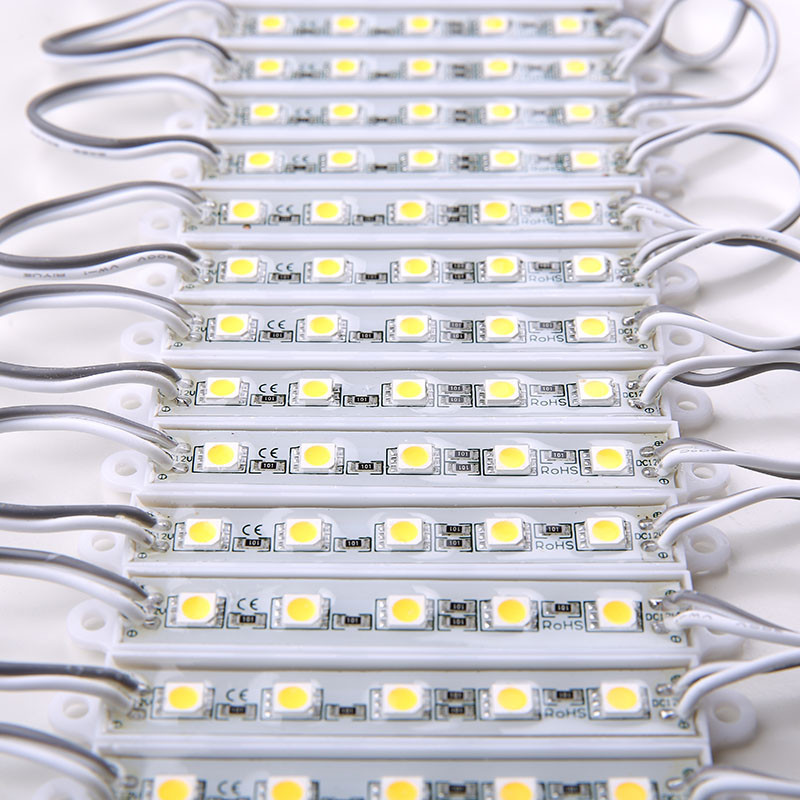

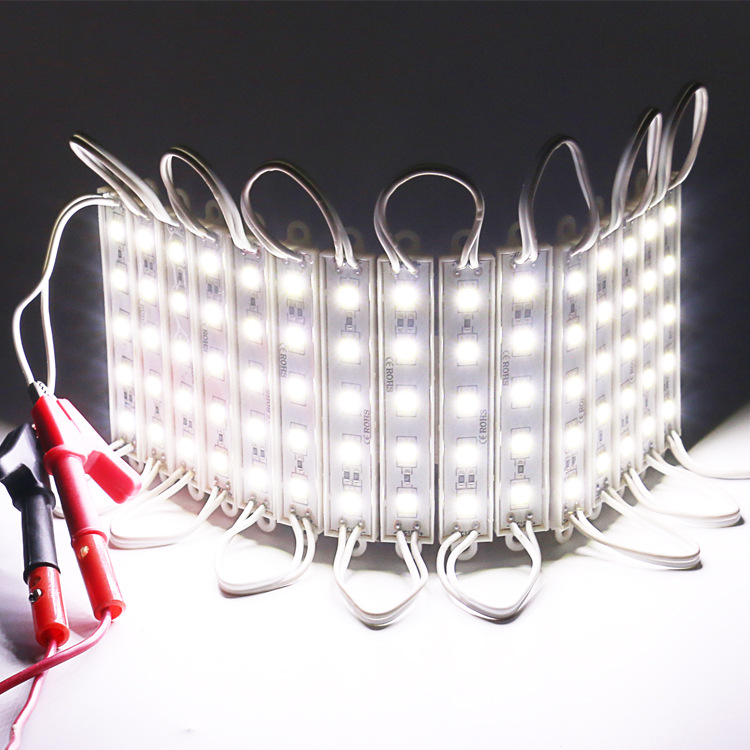

The LED module strings use the 5PCS high-quality 5050 SMD LEDs as the light source. With a fireproof ABS shell and epoxy sealing, the SMD LEDs are mounted on the aluminum PC board for better heat dissipation. The IP rating is IP65 for indoor and outdoor applications. The LED string modules work at DC12V, are available in single color or RGB color, and can easily connect to the LED controller or dimmer to change the color-changing mode or adjust the brightness. The back has double-sided adhesive tape. Please remove the protector from the tape and stick it where you want to install it. You can use them to replace the Neon Light or other traditional advertising lights. The 5050 SMD LED module string has 20 pieces per string, and you can cut any quantity and reconnect them for the application.
Specifications:
- Model: 5050-7512-5LEDs

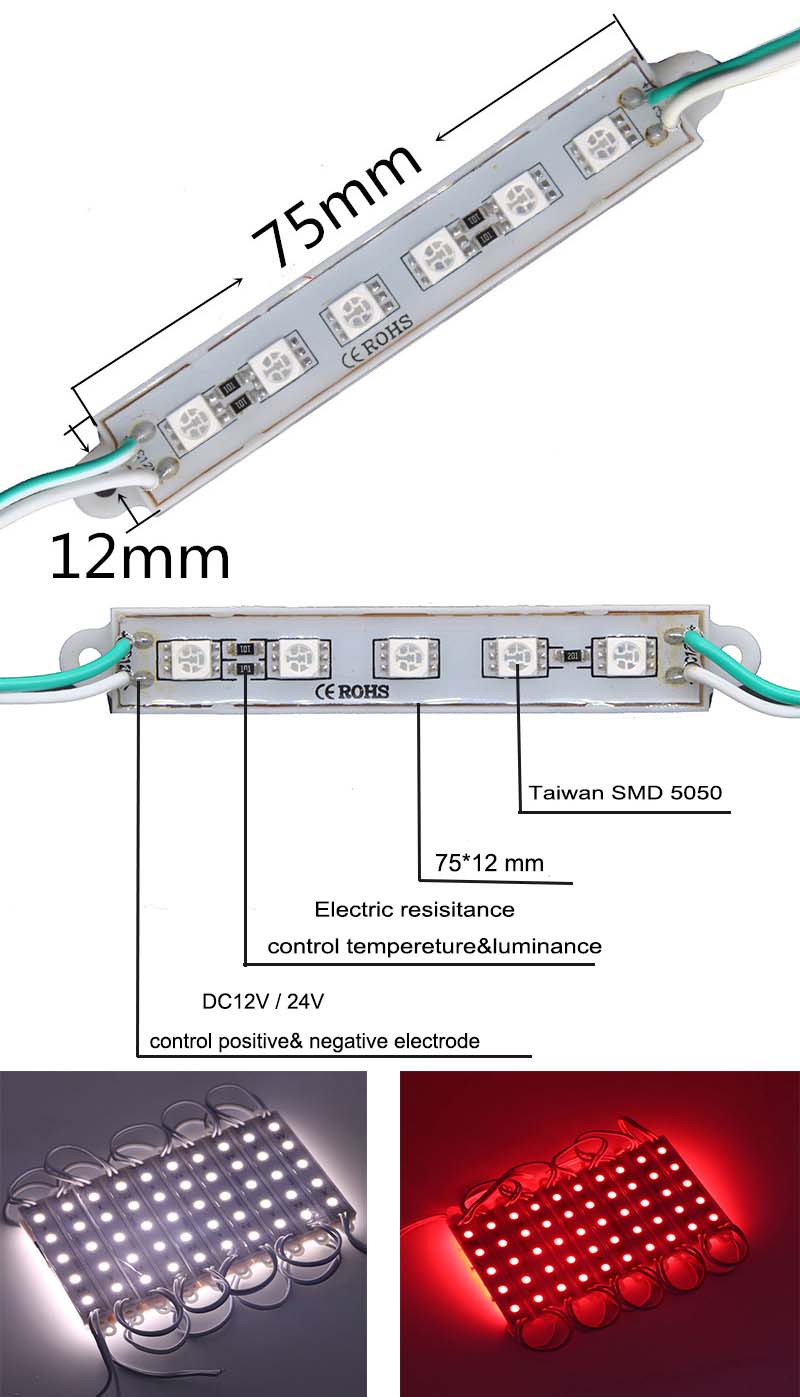

- Size: 75*12*8mm(L*W*H)
- LED Type: 5050 SMD LEDs
- LED Quantity: 5PCS
- Working Voltage: DC12V
- Output Power: 1.2W/PC
- Lumen: 70-80lm
- IP Rating: IP65

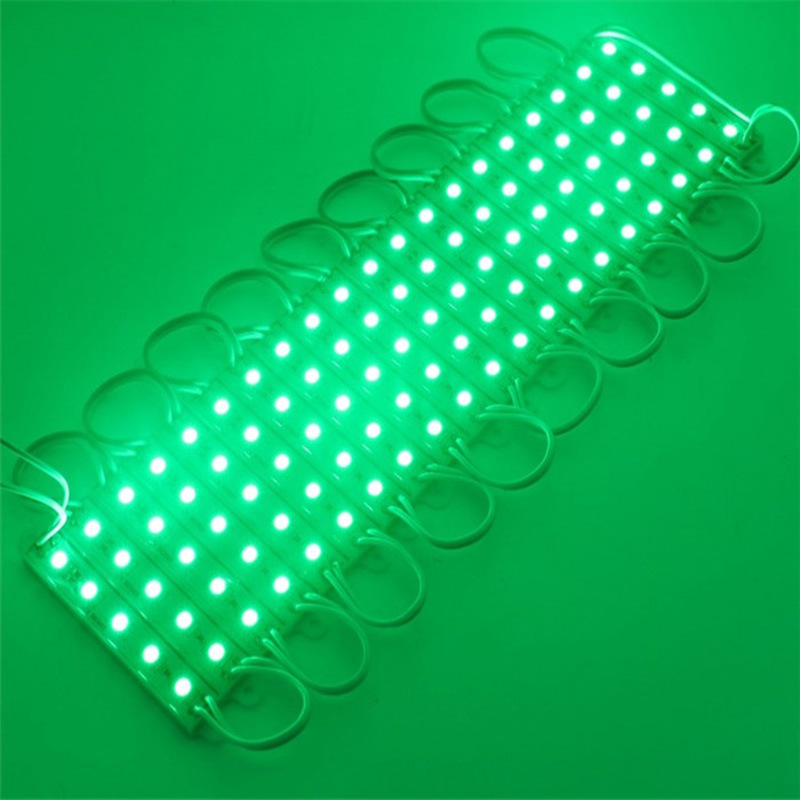

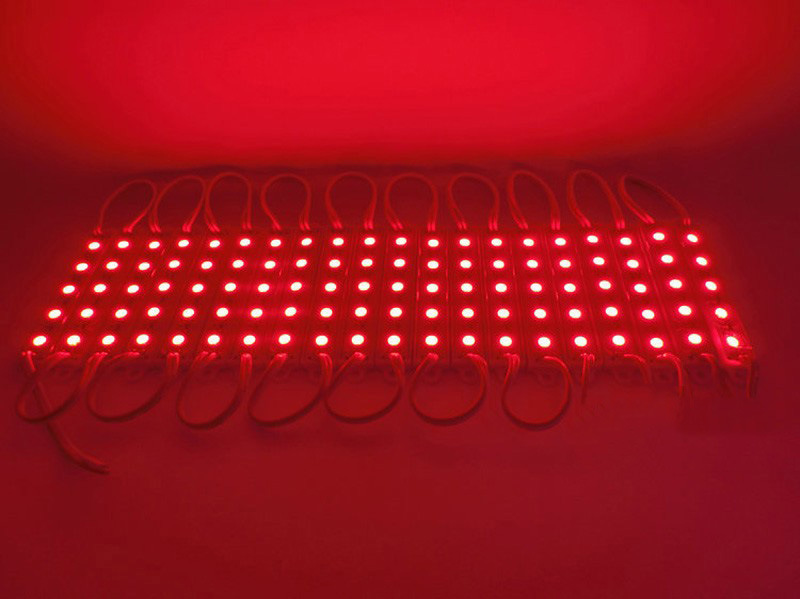

- Emitting Colors: Warm White, White, Blue, Green, Yellow, Pink
- Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
- View Angle: 120°
- 20PCS Per String

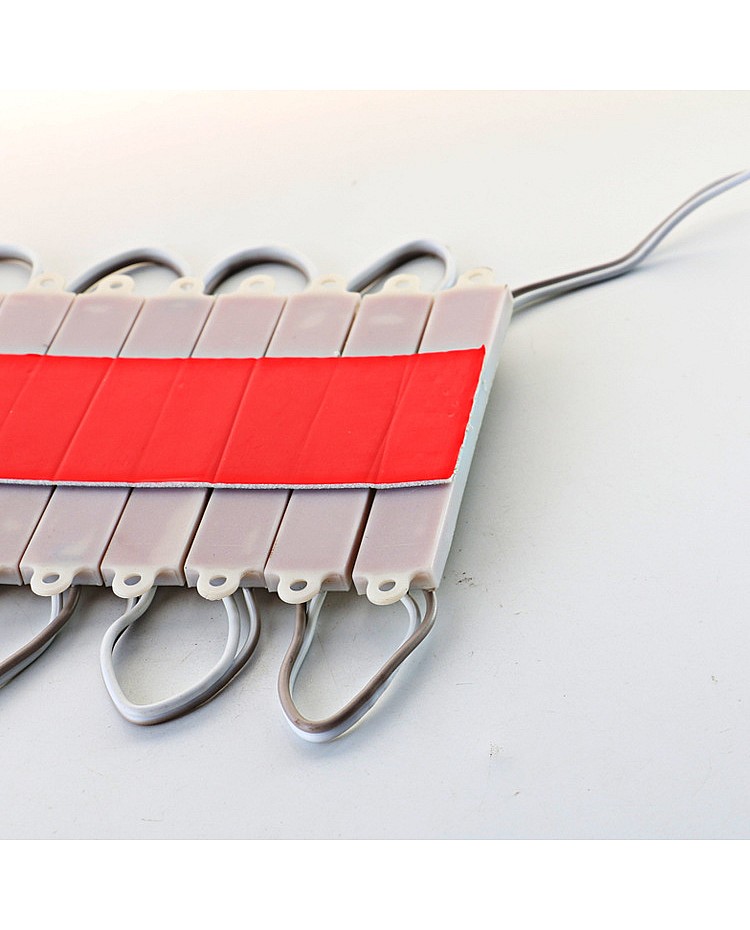

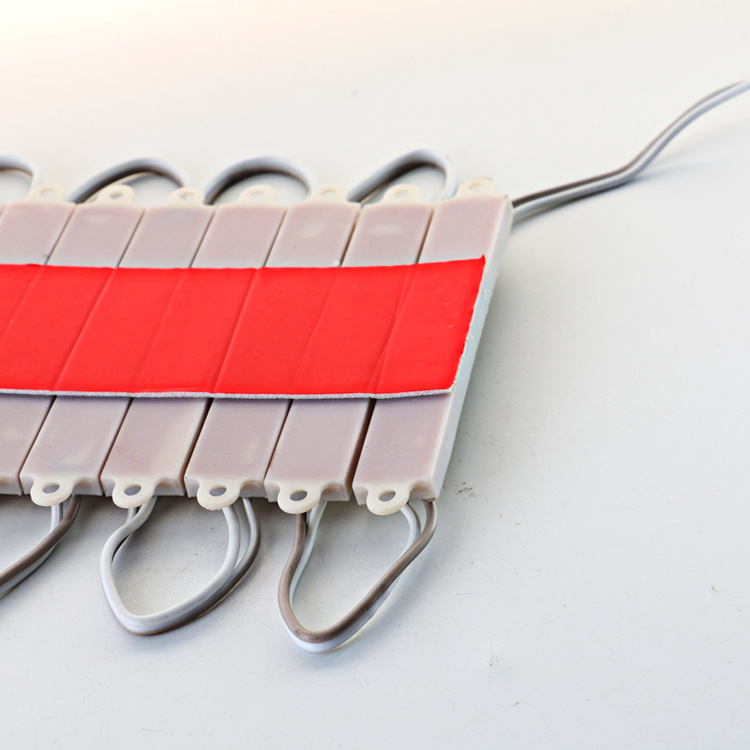

- Back With 3M Double-Sided Tape
- Cable Length Between 2PCS Modules: 8cm for Single Color/9mm for RGB
- Applications: Backlighting, Concealed Lighting, Channel Letters, Advertise Signs, etc
- 2 Years Warranty
Includes:
1 * 5050 LED Module String(20PCS/String)
