The mini WiFi LED controller for DIM, CCT, RGB and RGBW, adopts the most advanced PWM(pulse width modulation) digital control technology, working in DC12V or DC24V, you can choose the different output channels product for various LED lights, for the single color LED light only one channel output and the max output current is 6A, for the CCT has two output channels. The max output of each channel is 3A, while that of the RGB and RGBW channels is 2A or 1.5A. With the wireless sync control function, receivers will transmit the signals from the remote control and self-inspect the work status for each other. Multiple receivers will work wholly and wirelessly. The WiFi LED controller has a memory function; each time it is powered on, it remembers the mode it was in the last time. Paired with the rotate WiFi remote, you can use it to adjust the brightness of single color LED lights or CW and WW LED Strips, as well as the brightness and speed of RGB and RGBW Lights. The TUYA Application could control the WIFI Controller to achieve smart control, like group control, scene control, timer control, and music control. The LED controller is also compatible with voice control via Amazon Alexa, Google Assistant, and Yandex Alice.
Mini WiFi LED Controller Specifications:
- Working Temperature: -20-60℃

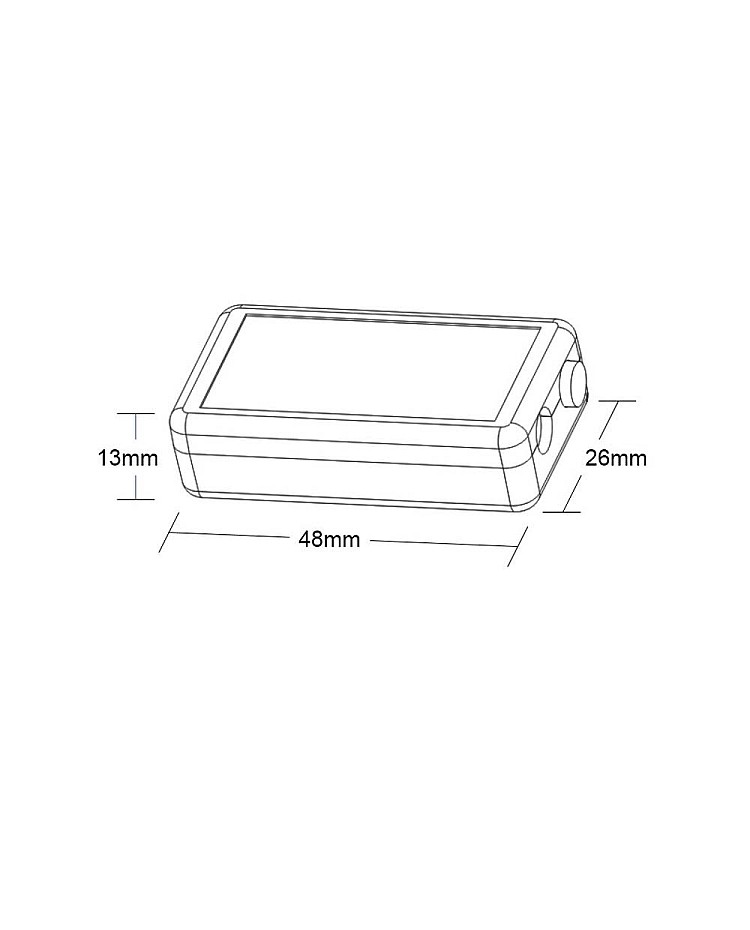

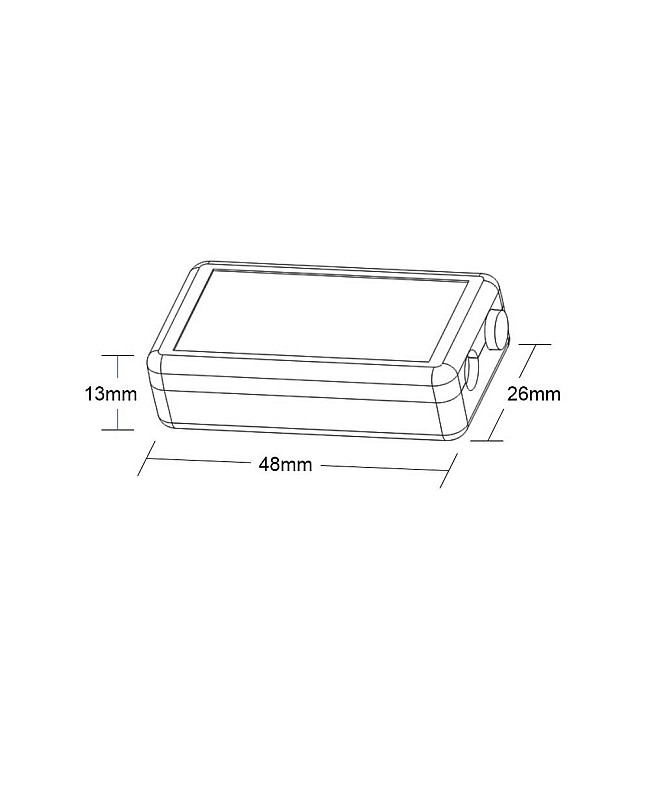

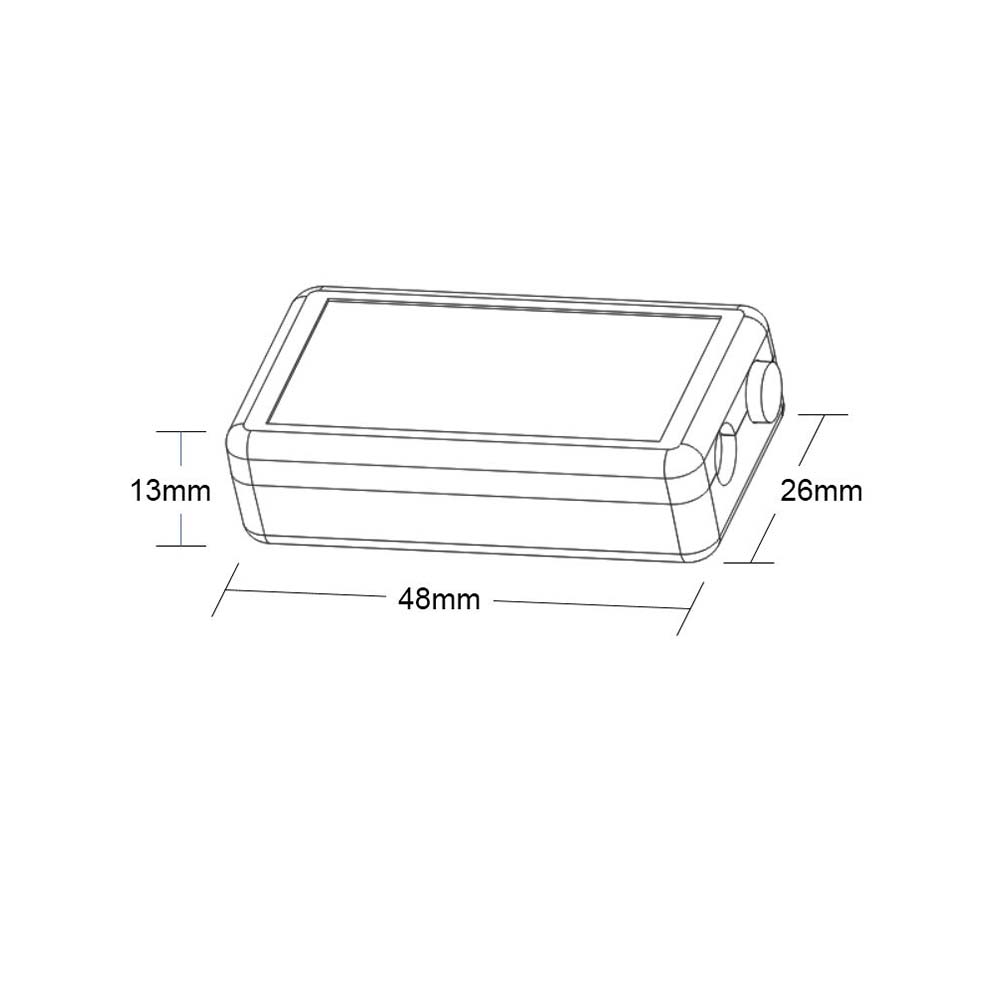

- Size: 48*26*13mm
- Working Voltage: DC12V-24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Grayscale: 1024 Levels
- Speed Stage: 1024 Levels
- RF Frequency: 2.4GHz
- RF Distance: <20
- Button Control: YES
- Memory Function: YES
- Output Channels: DIM(1CH)/CCT(2CHs)/RGB(3CHs)/RGBW(4CHs)
- Output Current: 6A(DIM)/2*3A(CCT)/3*2A(RGB)/4*1.5A(RGBW)
- Max Output Power: 72W(12V)/144W(24V)
- PWM Frequency: 1.95 KHz
Remote Control Specifications:
- Size: 60*35mm
- Working Temperature: -20-60℃
- Working Voltage: DC3V(2PCS*AAA)
- Static Current: <25uA
- Emission Current: <17mA
- Sleep Power Consumption: <75uW
- Emission Power Consumption: <51mW
- RF Distance: <30m
- RF Frequency: 2.4GHz
- Accessories: 1*Holder/1*3M Foam Sponge Glue
