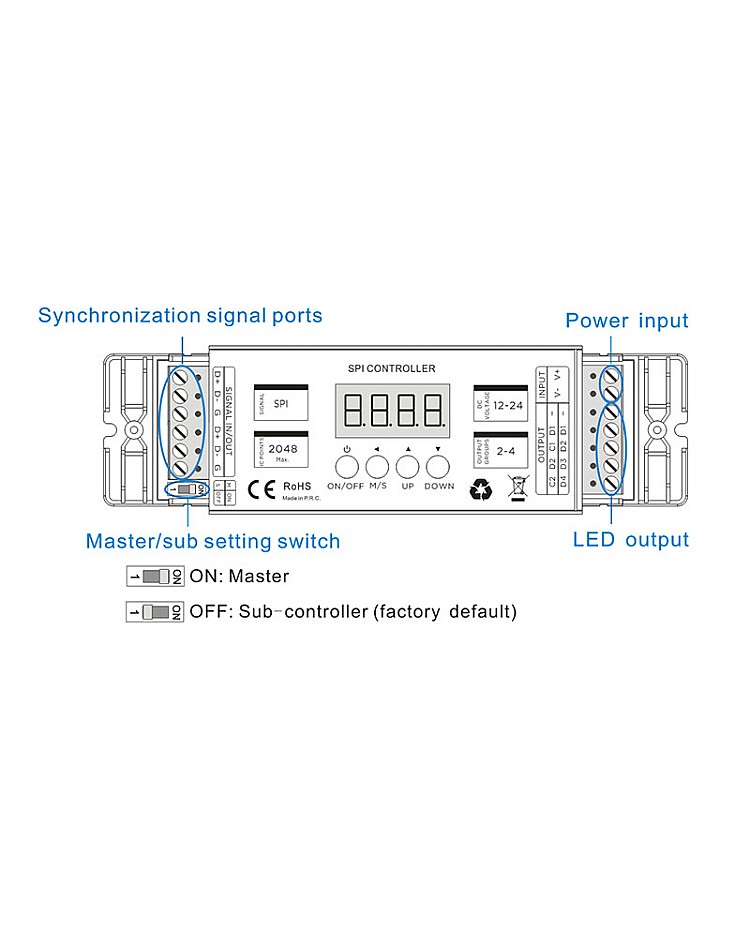

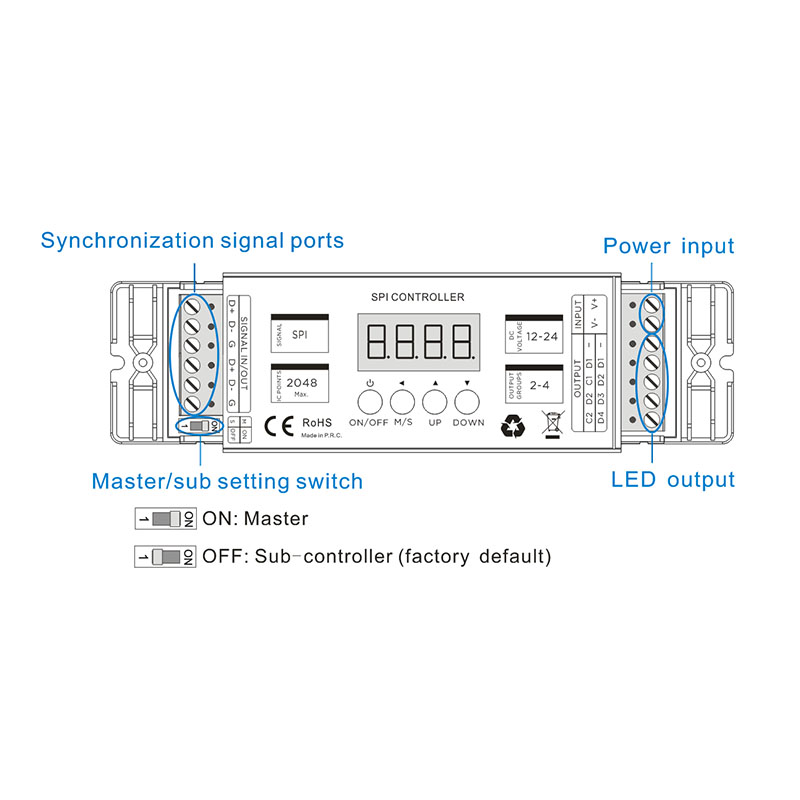

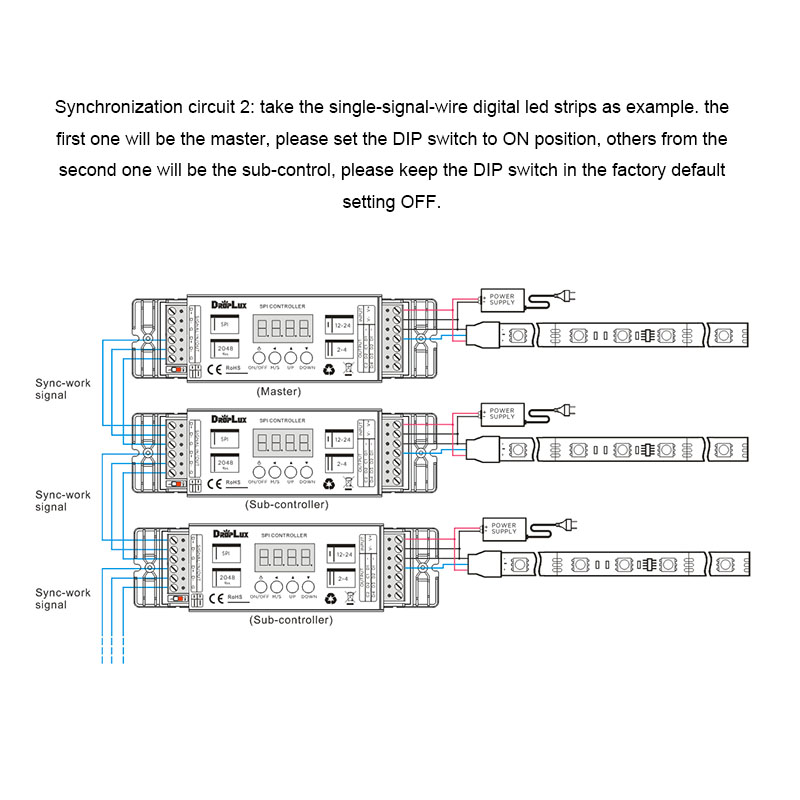

The Pixel SPI Light LED Controllers, which have four groups of SPI signal output ports for 3-wire Digital LED Strips or 2 groups of SPI signal output ports for 4-wires Pixel LED Strips, suitable for controlling various types of ICs, compatible with UCS1903, WS2801, TM1804, SM16703, and LPD6803. You can use them to control the Programmable LED Strips with those types of ICs to achieve hundreds of amazing lighting effects, like horse racing, running water, trailing, color painting, scanning, raindrops, etc. There are built-in 136 effect modes. You can choose various working modes using the LED Controller or RF Remote Control buttons. With the memory function, the controller will reserve the last working setting. The SPI LED Controllers can realize synchronous changes through a shielded wire connection. The synchronization function can be formed by connecting up to 32PCS Controllers, and all Controllers follow the first primary control to achieve synchronous changes without delay.

SPI LED Controller Features:

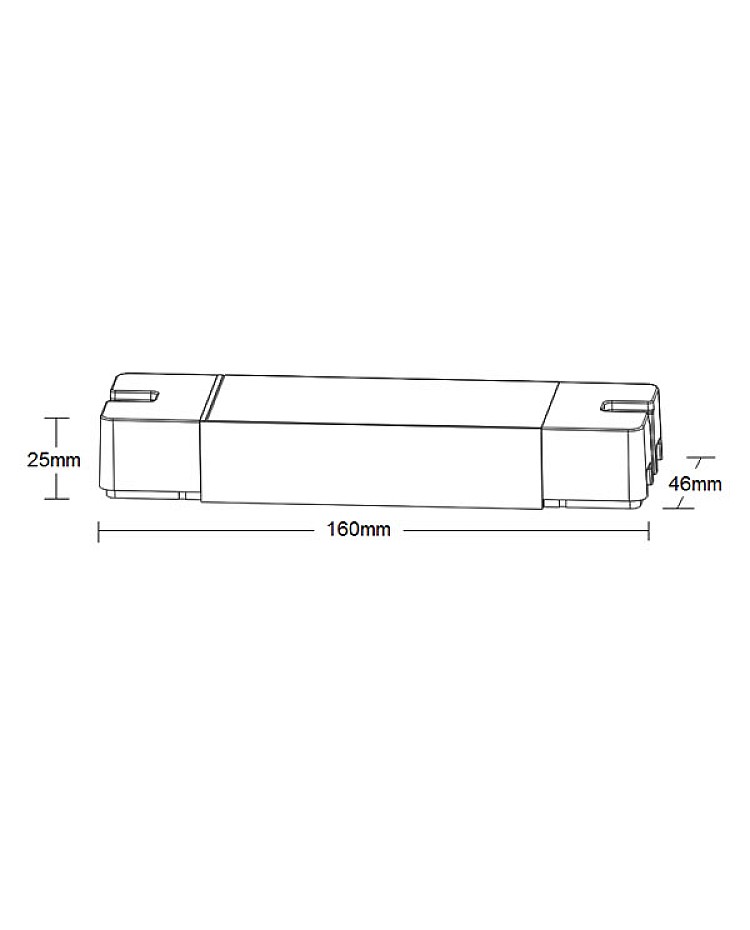

  • Size: 160*46*25mm(L*W*H)
  • Working Voltage: DC12-24V
  • Static Power Consumption: <1W

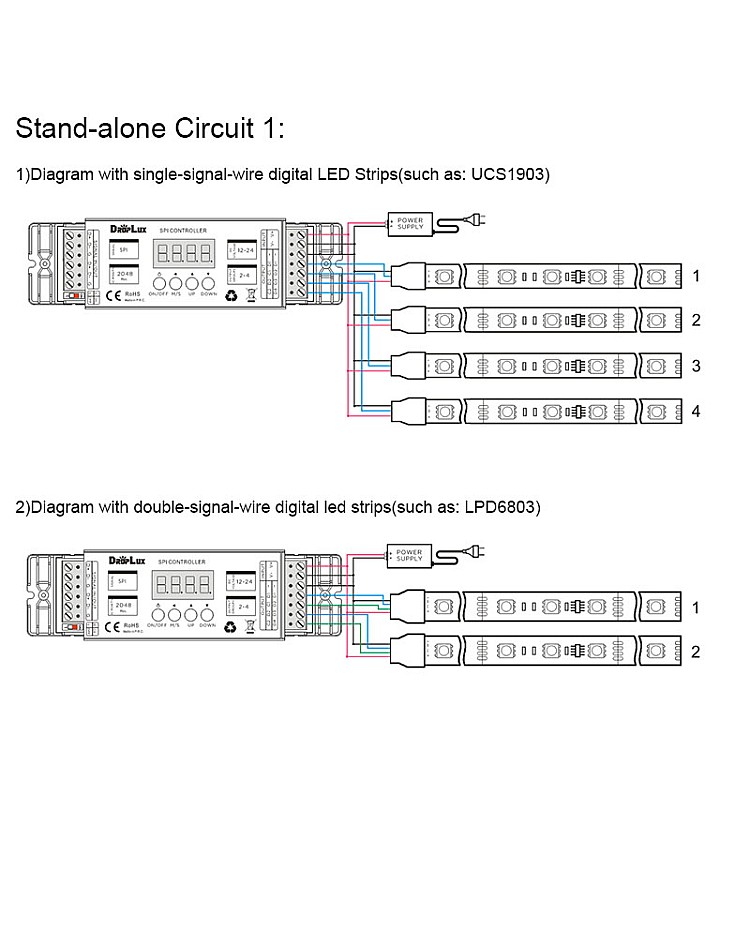

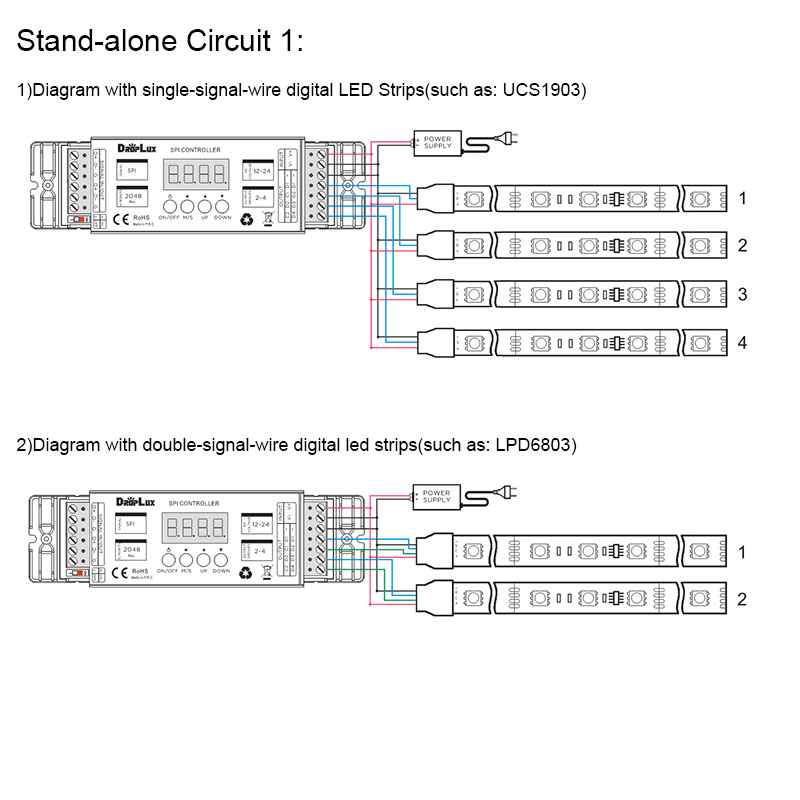

  • Output Signals: 4 Groups SPI(3-Wire LED Digital Strips)/2 Groups SPI(4-Wire LED Digital Strips)
  • Max Control Pixels: 2048
  • Modes: 136
  • Gray Levels: 256
  • Memory Function: YES

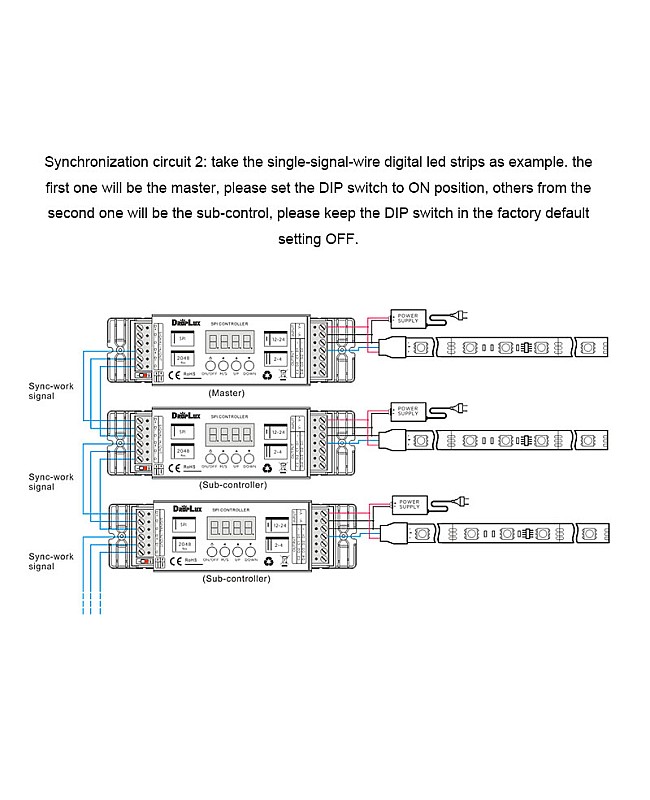

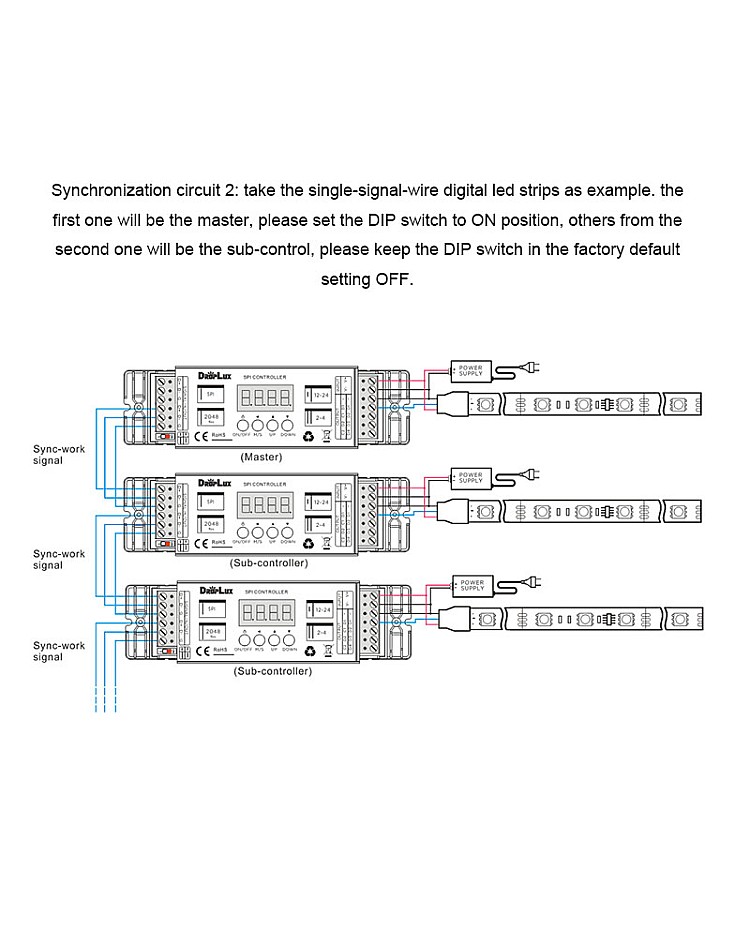

  • Sync-work Function: YES
  • Compatible ICs: UCS1903, WS2811, TM1804, SM16703, LPD6803
  • Speed Levels: 99
  • Brightness Adjustable: YES
  • RF Control Distance: ≤20m
  • RF Frequency: 2.4GHz
  • Working Temperature: -20℃-+60℃
  • 3 Years Warranty

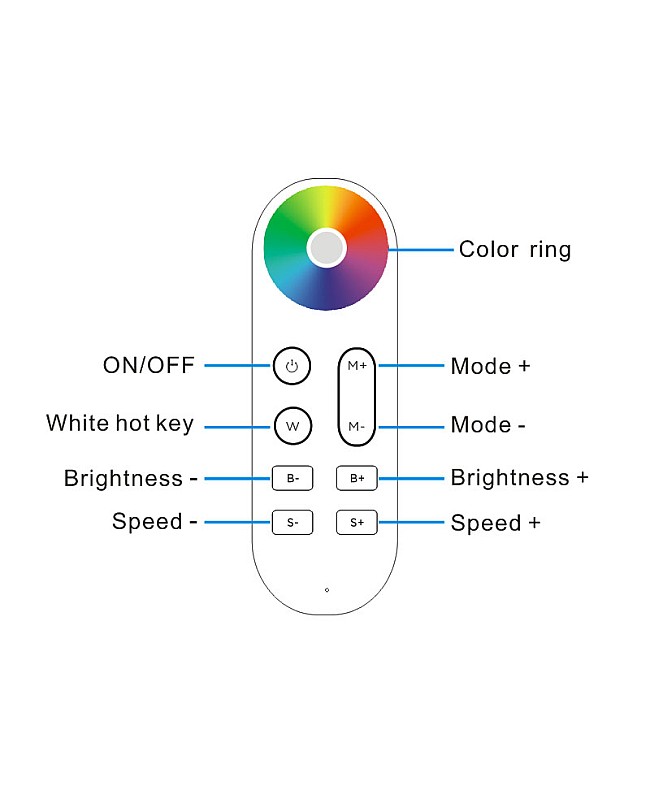

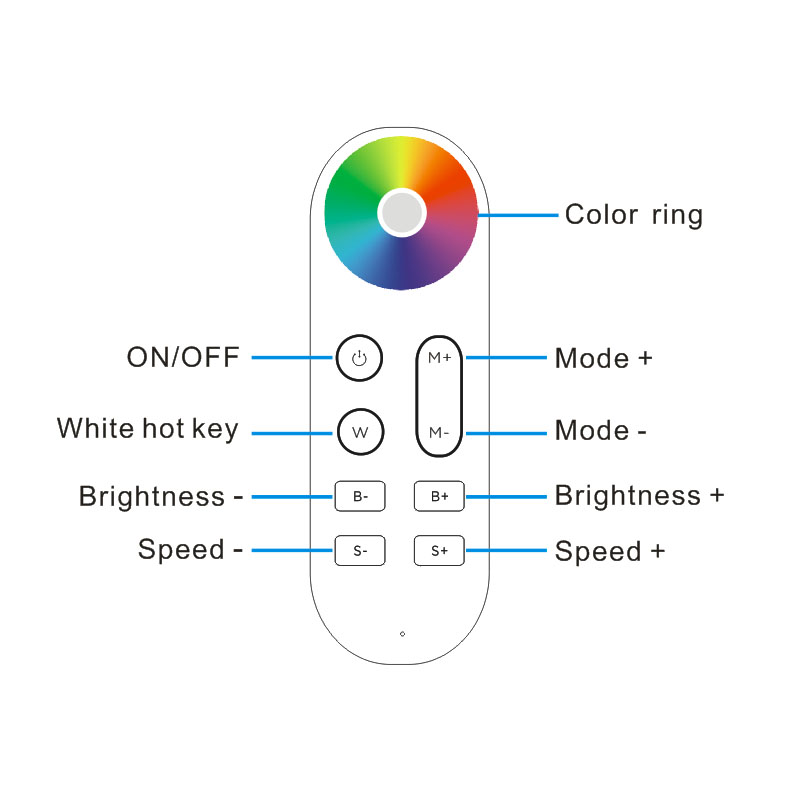

RFBT03-2.4G Remote Control Features:

  • Size: 108*36*22mm(L*W*H)
  • Working Voltage: DC3V(AAA*2)
  • Standby Current: 20uA
  • Working Current: 20mA
  • Standby Power: 60uW
  • Working Consumption: 60mW
  • RF Distance: ≤20m
  • RF Frequency: 2.4GHz
  • Working Temperature: 0℃-+40℃

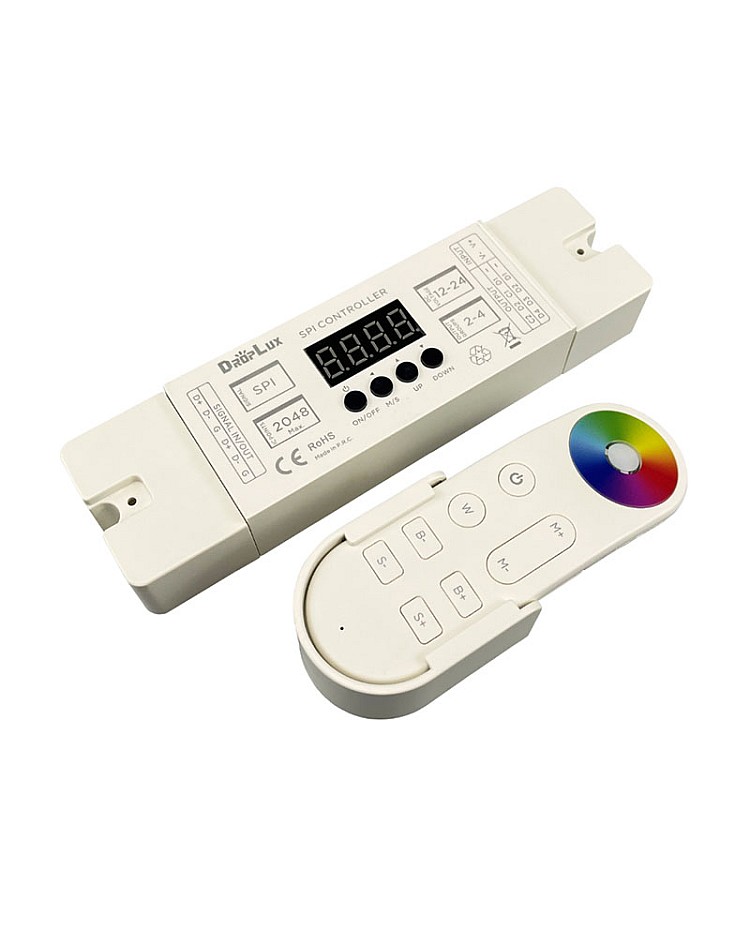

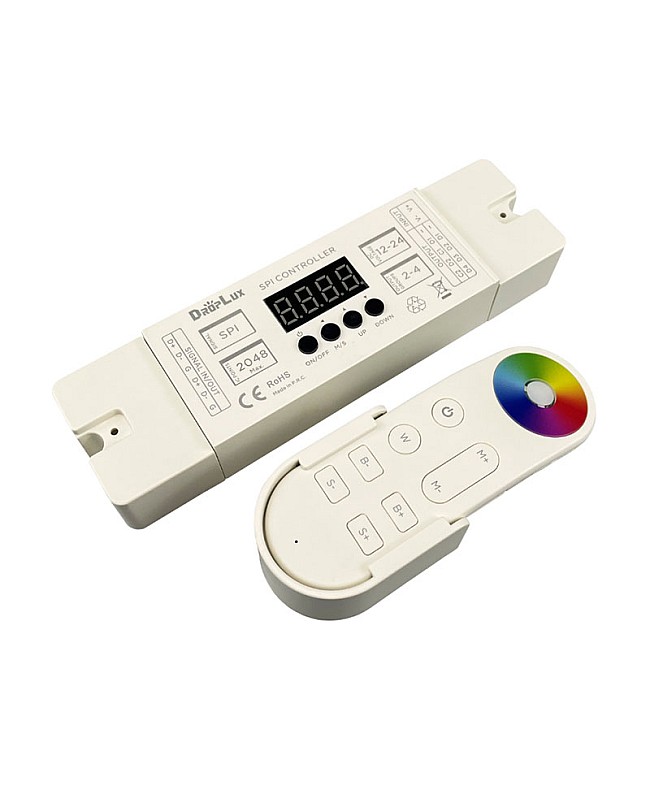

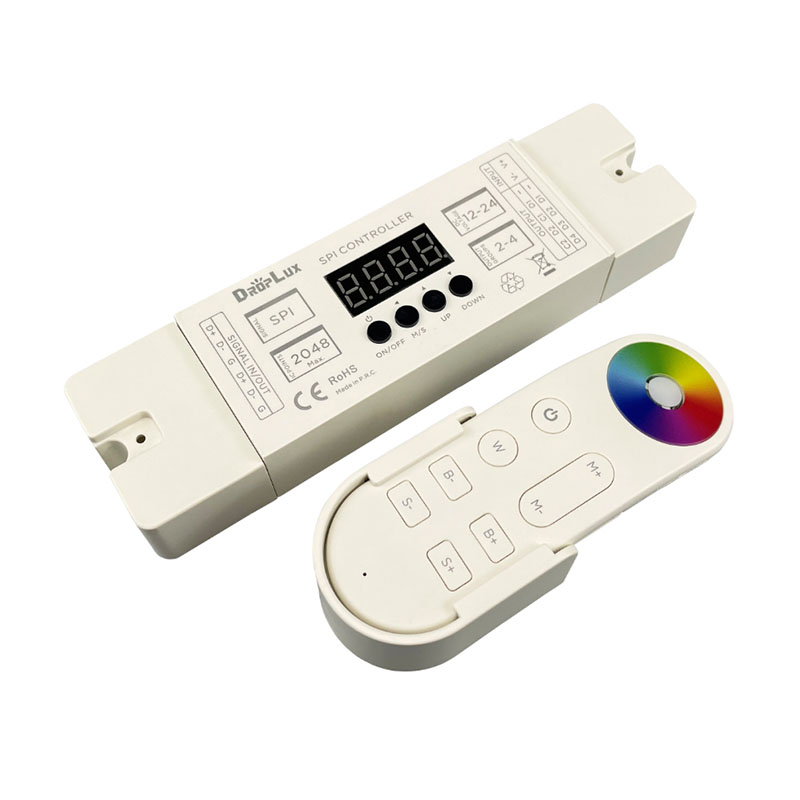

1*Pixel SPI LED Controller

1*RFBT03-2.4G Remote Control

1*User Manual
