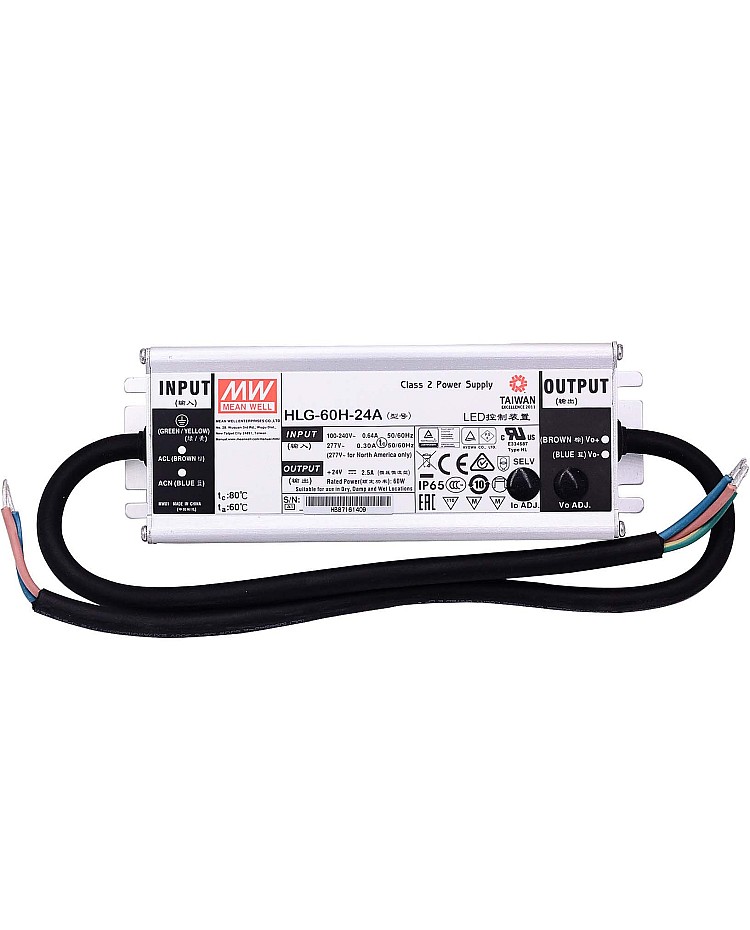

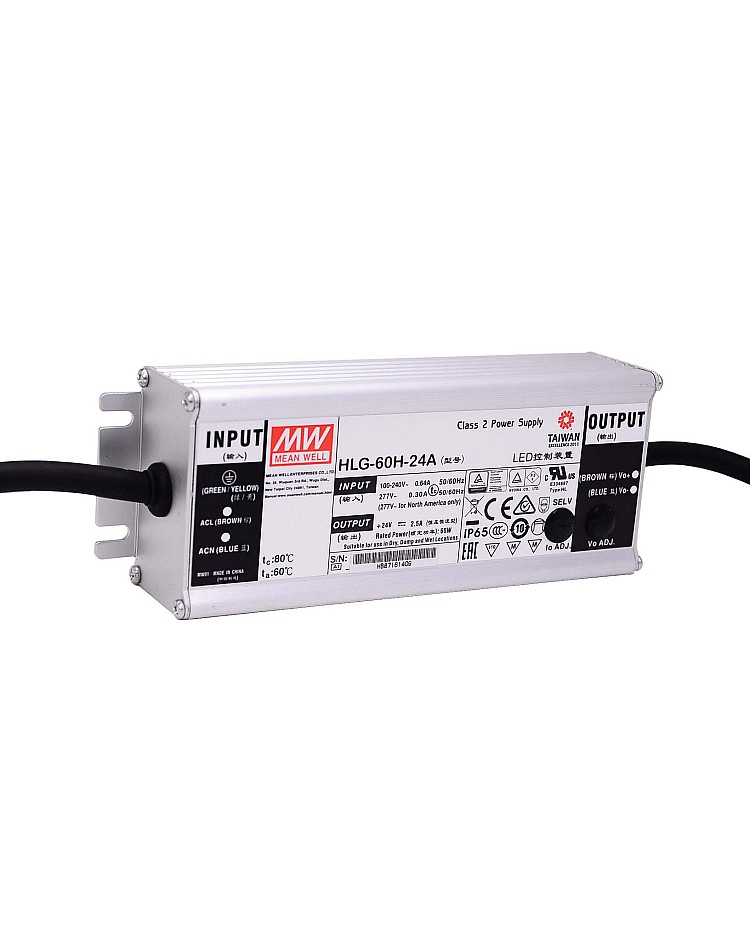

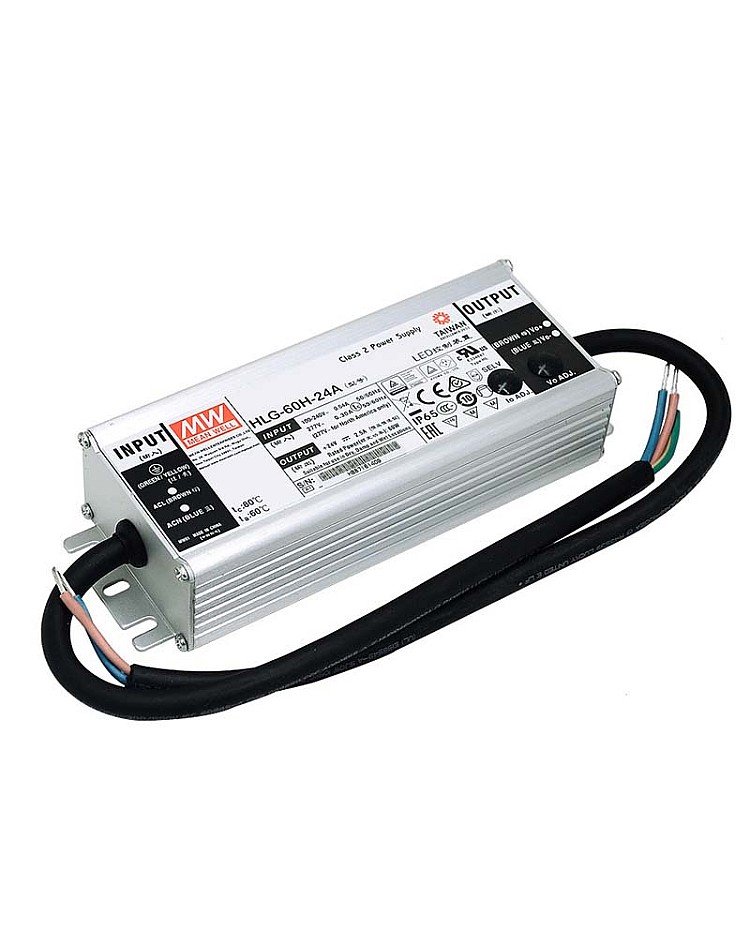

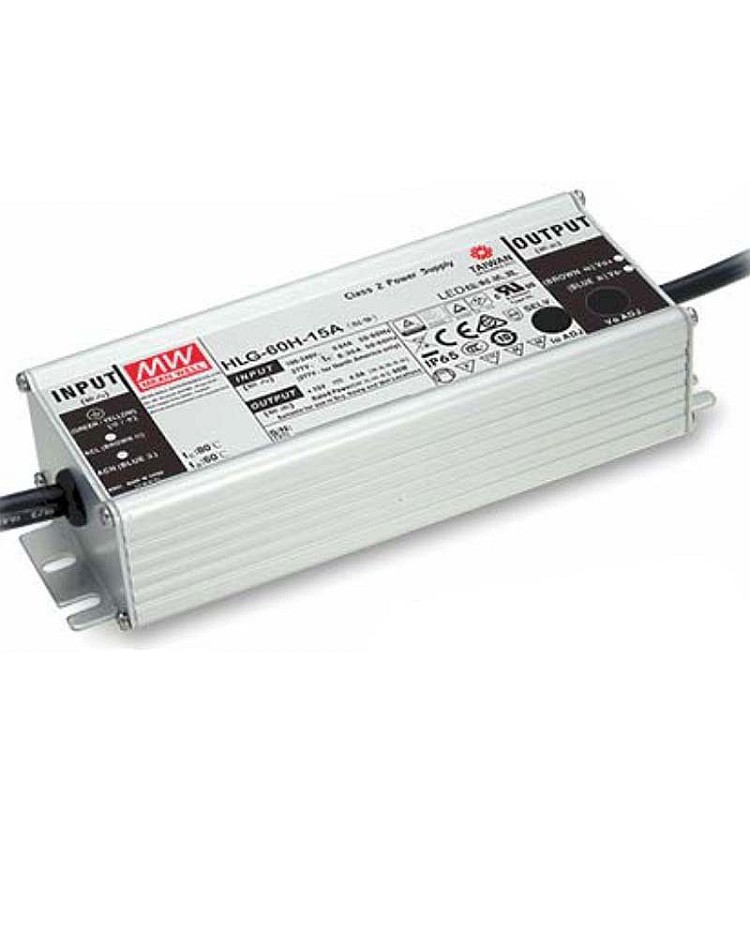

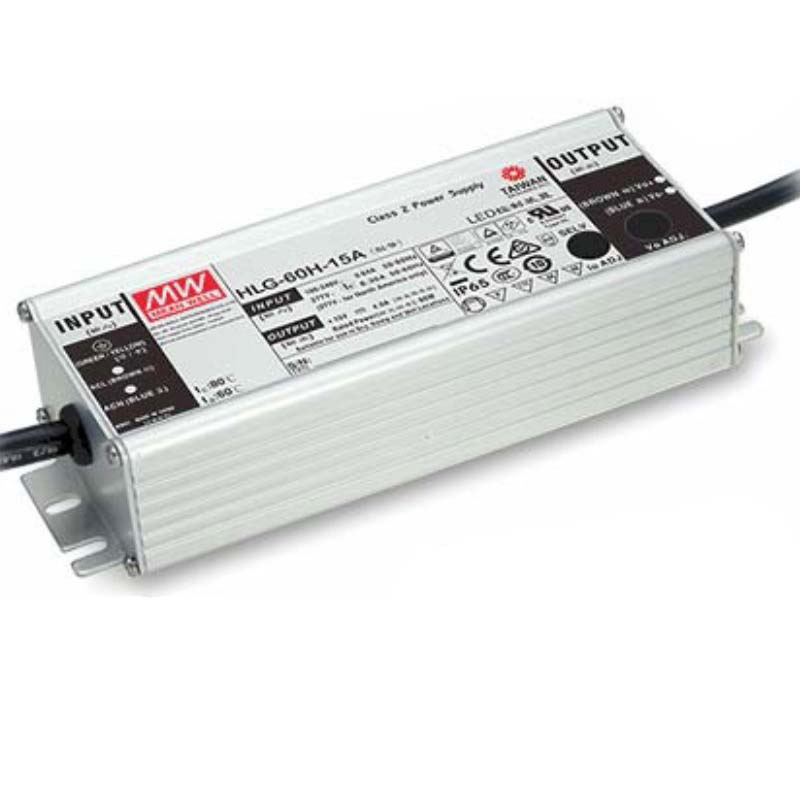

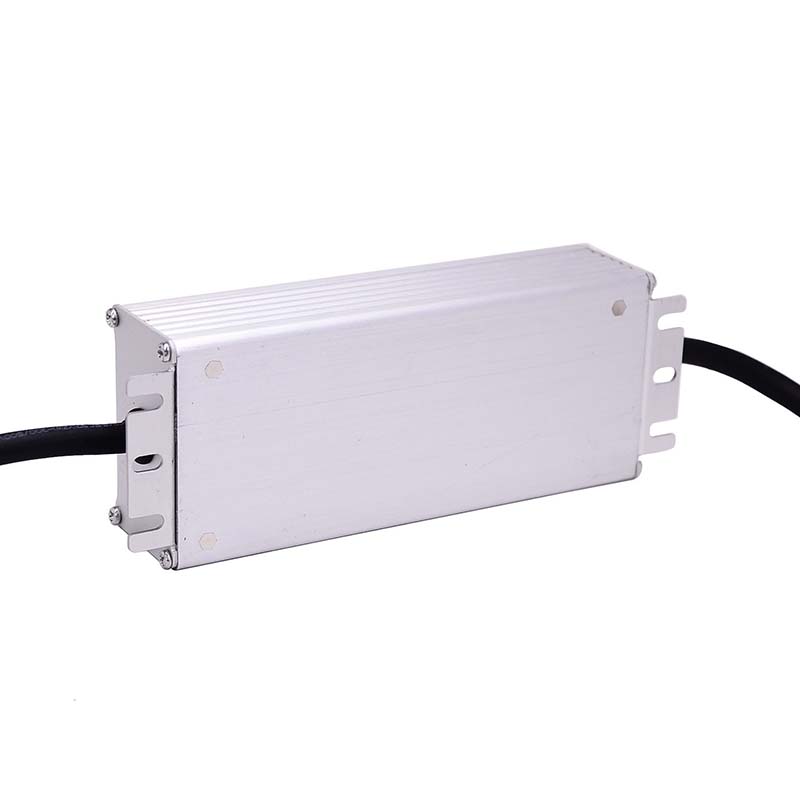

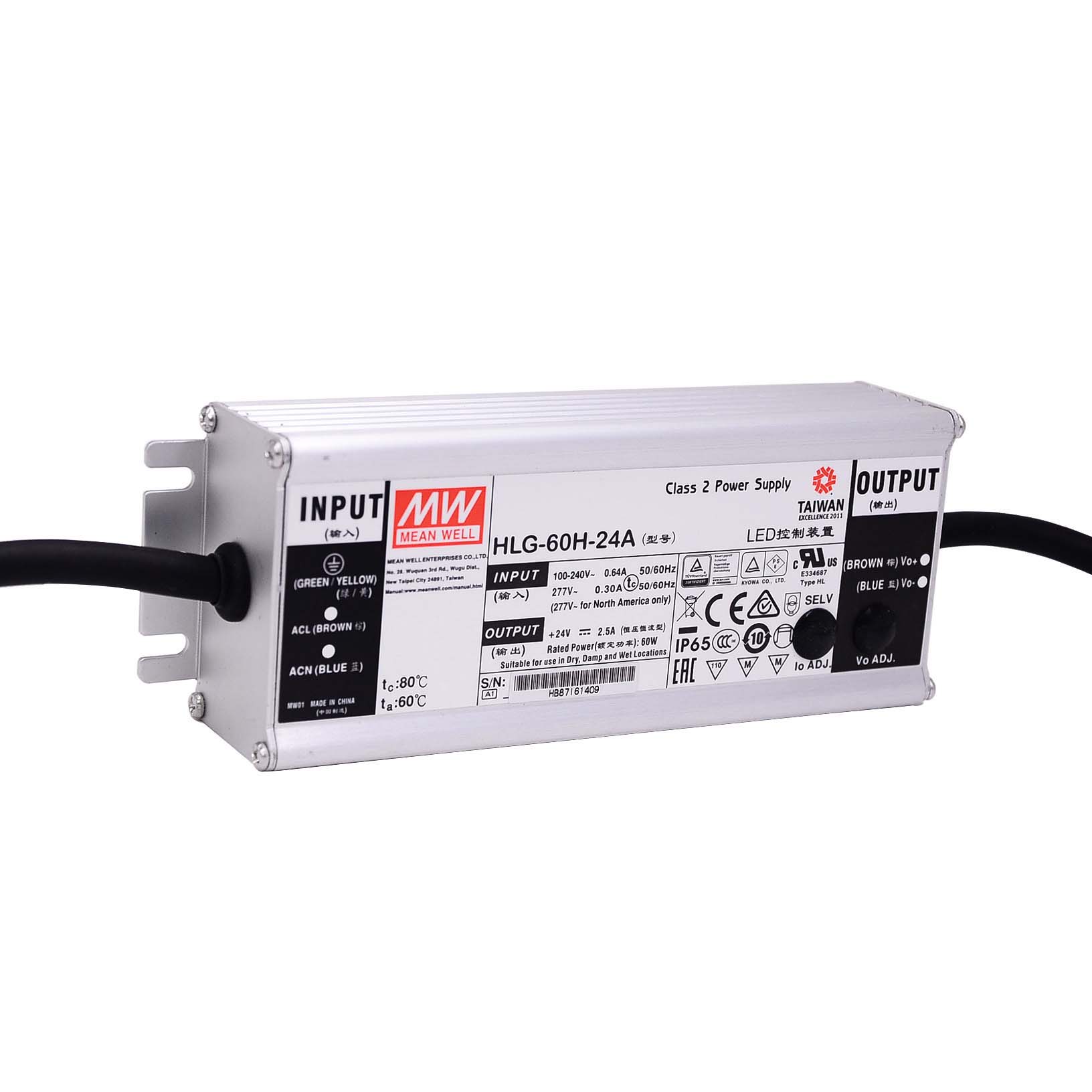

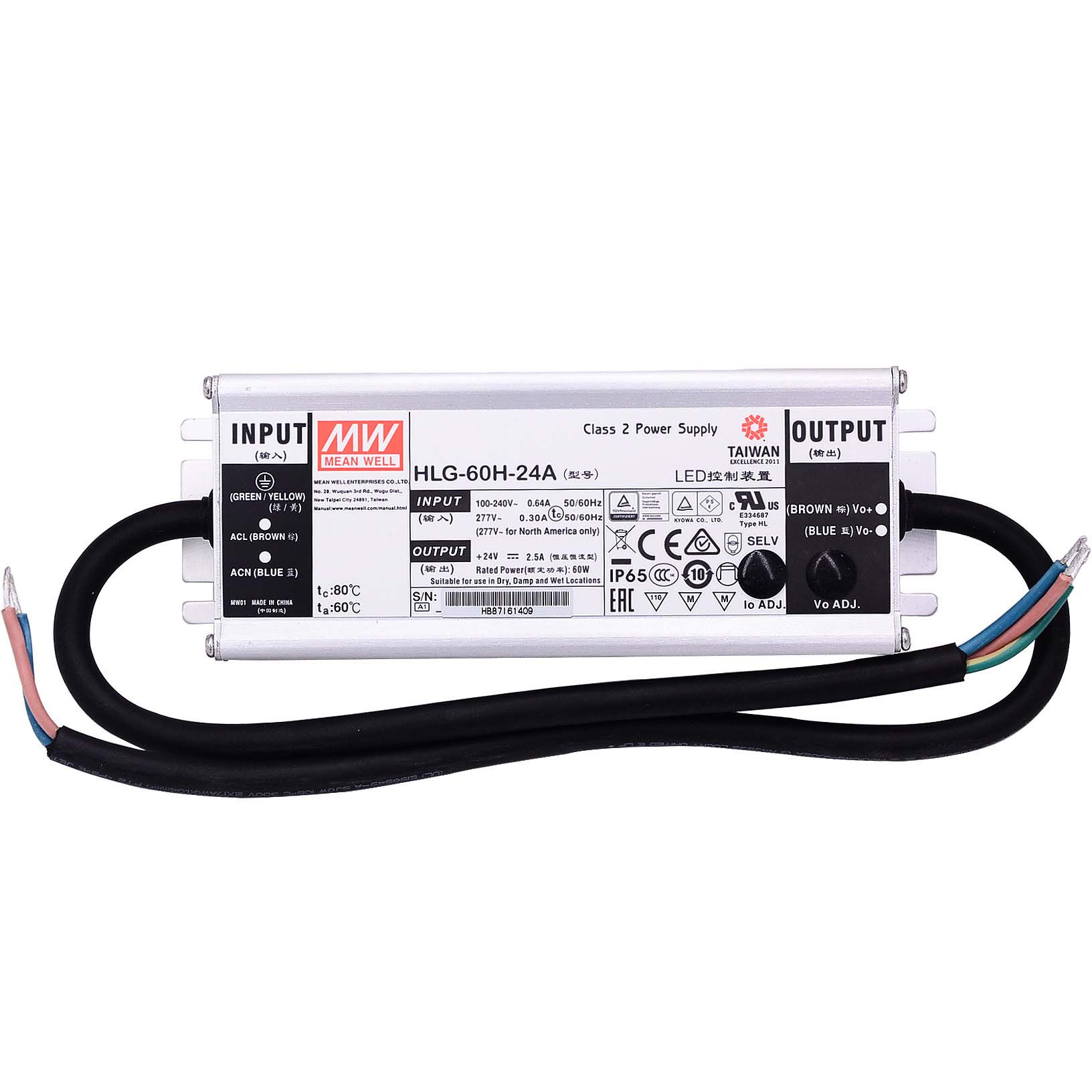

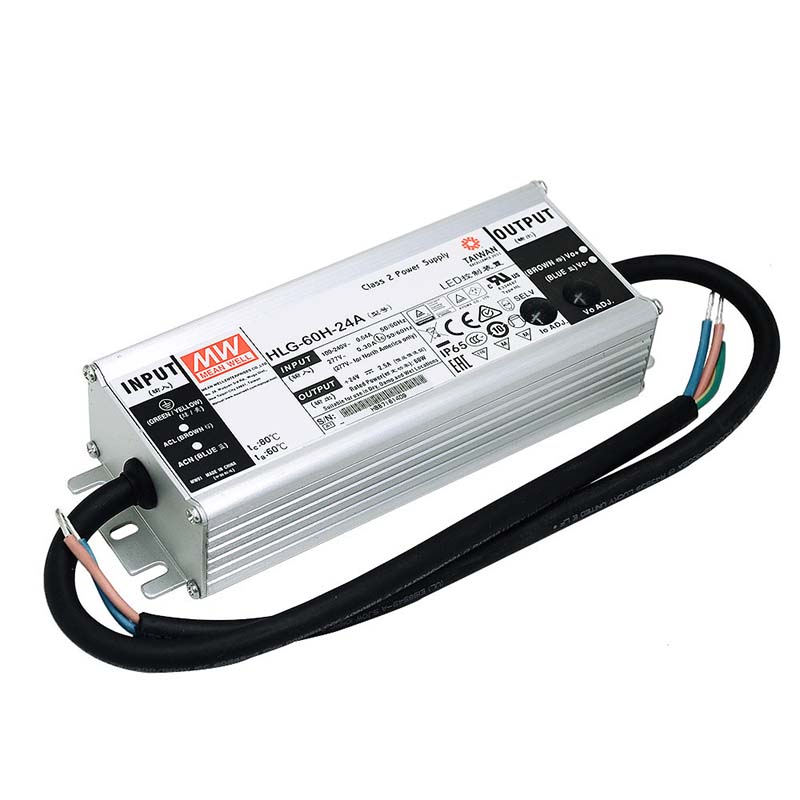

The Mean Well HLG-60H Series waterproof LED lighting power supply, which was enclosed in a metal housing and has a class I design, has a waterproof level that can reach IP65 / IP67. You can use them in dry, damp, or wet locations for indoor or outdoor applications. Five types of LED power supplies are available: the A and AB with output voltage and output current adjustable through the potentiometer, the B, AB, and D Types with dimming function. The input voltage ranges from AC90V to AC305V and offers modes with different rated voltage ratings from DC15V to DC54V. You can choose the various products for your LED lights. Thanks to the high-efficiency rate up to 90.5%, with fanless design, the HLG 60H lighting power supplies can operate for -40℃ to 80℃ case temperature under free air convection. You can use the Meanwell HLG-60H power supplies for the outdoor LED lights, street lamps, high-bay lights, waterproof fishing lamp, greenhouse lights, etc.
- Constant Voltage + Constant Current Mode Output

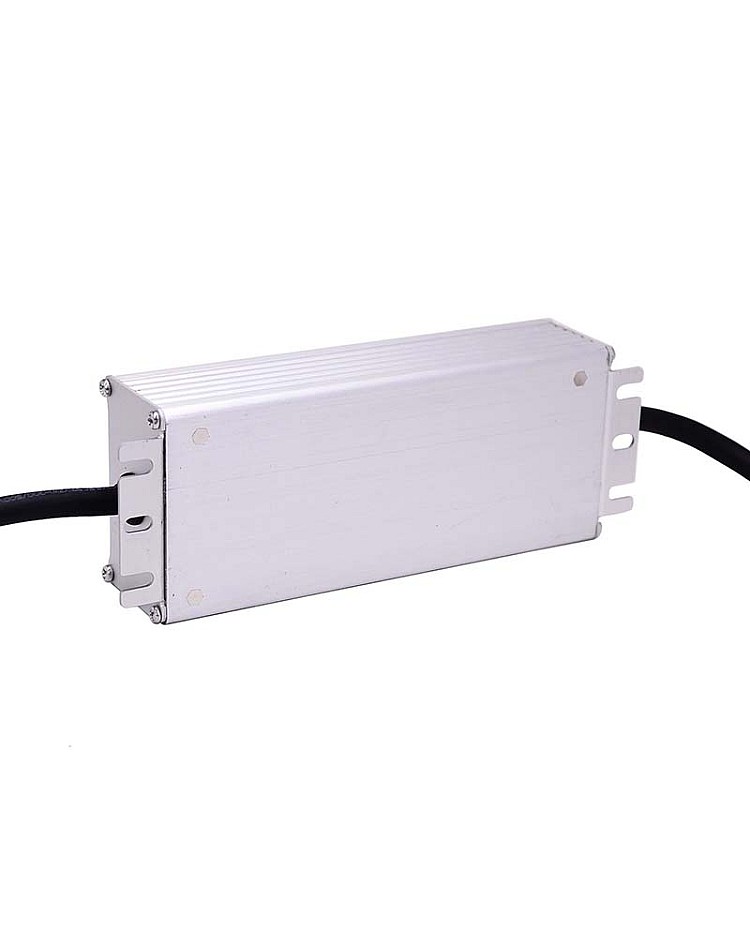

- Metal Housing With Class I Design
- Built-in Active PFC Function
- Class 2 Power Unit
- IP65 / IP67 Rating For Indoor Or Outdoor Installations
- Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
- Typical Lifespan: >62,000 Hours
- 7 Years Warranty
- Applications: LED Street Lights, High-Bay Lighting, Parking Space Light, Fishing Lamps, Greenhouse Lighting
Quick Links:
Mean Well HLG-60H Series Specification Document
Specifications:
- Model: HLG-60H

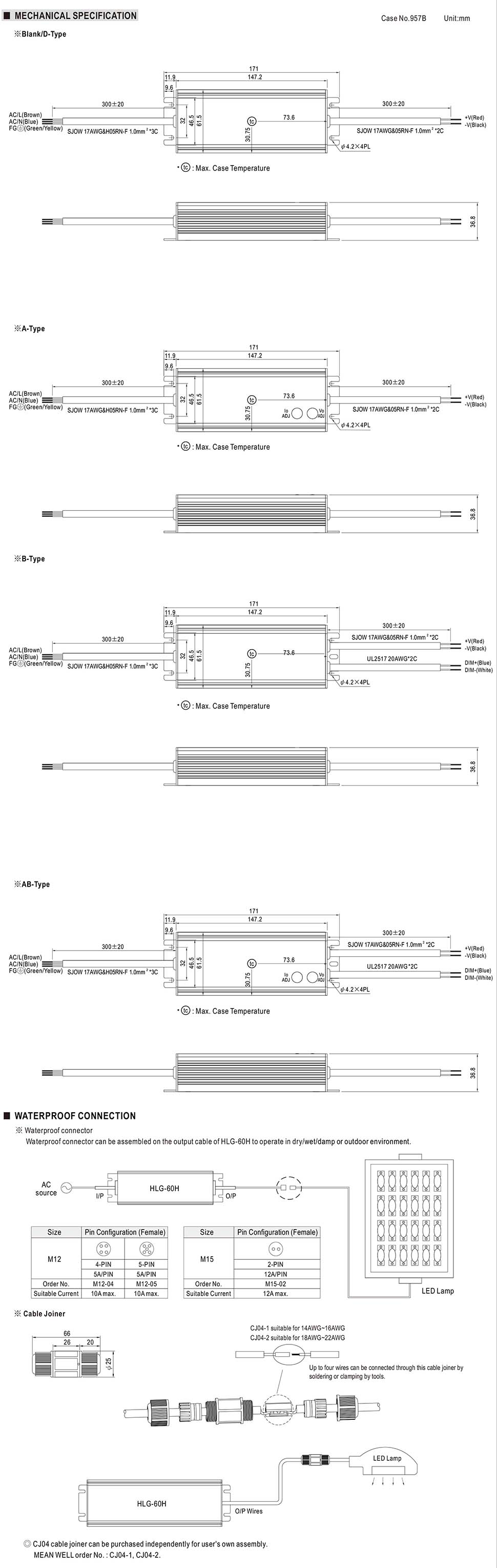

- Size: 171*61.5*36.8mm(L*W*H)
- Types:
- Blank: IP67 Waterproof Level, Voltage, And Current Fixed
- A: IP65 Waterproof Level, Voltage, And Current Adjustable Through Built-in Potentiometer

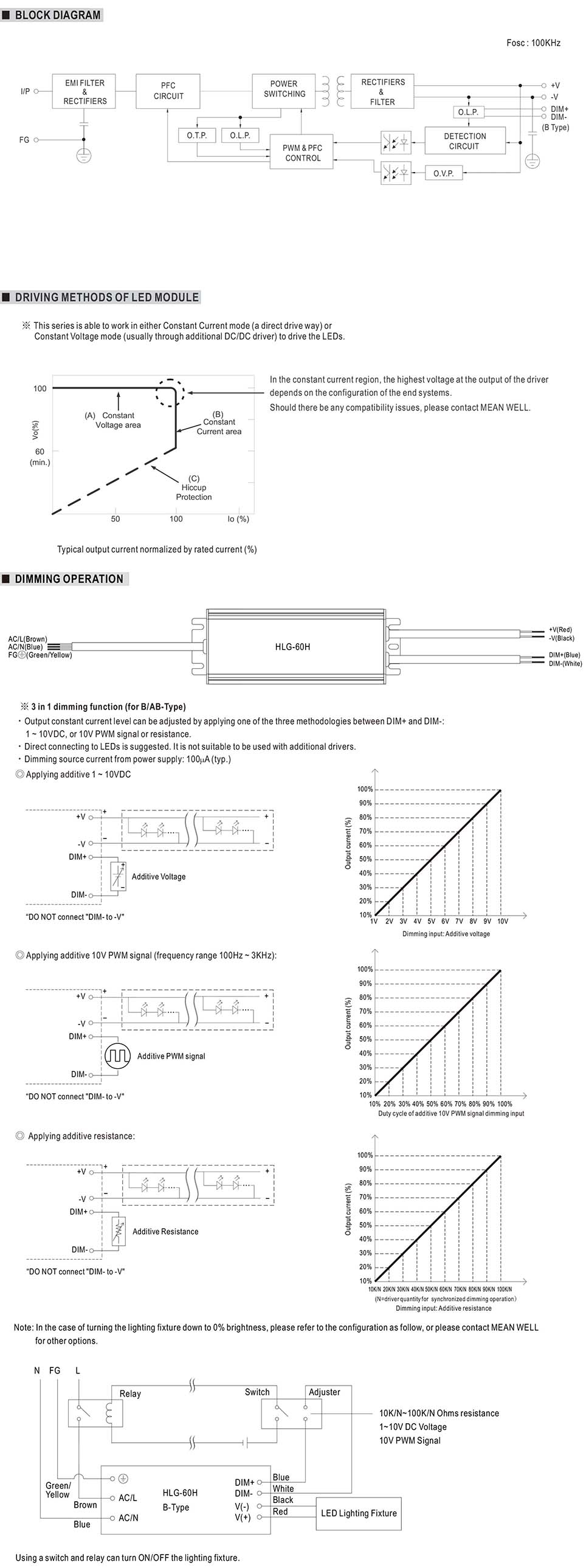

- B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- D: IP67 Waterproof Level, Timer Dimming Function
- Input Voltage Range: 90- 305VAC
- Frequency Range: 47- 63Hz
- Power Factor: PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC
- Efficiency: 87.5%(DC15V), 89%(DC20V), 89.5%(DC24V), 90%(DC30V), 90%(DC36V), 90%(DC42V), 90.5%(DC48V), 90.5%(DC54V)
- AC Current: 0.64A/115VAC, 0.32A/230VAC, 0.3A/277VAC
- Output Voltage: DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
- Rated Current: 4A(DC15V), 3A(DC20V), 2.5A(DC24V), 2A(DC30V), 1.7A(DC36V), 1.45A(DC42V), 1.3A(DC48V), 1.15A(DC54V)
- Rated Power: 60W(DC15V), 60W(DC20V), 60W(DC24V), 60W(DC30V), 61.2W(DC36V), 60.9W(DC42V), 62.4W(DC48V), 62.1W(DC54V)
- Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 2.4-4A(DC15V), 1.8-3A(DC20V), 1.5-2.5A(DC24V), 1.2-2A(DC30V), 1-1.7A(DC36V), 0.87-1.45A(DC42V), 0.78-1.3A(DC48V), 0.69-1.15A(DC54V)
- Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 13.5-17V(DC15V), 17-22V(DC20V), 22-27V(DC24V), 27-33V(DC30V), 33-40V(DC36V), 40-46V(DC42V), 44-53V(DC48V), 49-58V(DC54V)
- Working Temperature: -40℃-+80℃
- Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
- Safety Standards: UL8750(Type "HL"), CSA C22.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 Independent, GB19510.1, GB19510.14, EAC TP TC 004, KC61347-2-13(Except For AB-Type), IP67 Or IP65 Approved
- Short Circuit Protection
- Over-Voltage Protection
- Over Temperature Protection
- 7 Years Warranty
Includes:
1 * Mean Well HLG-60H LED Lighting Power Supply
