Out Of Stock
$15.99
Reward Points: 16
-
+
  • Brand: Ledbe
  • Product Code: COB 504

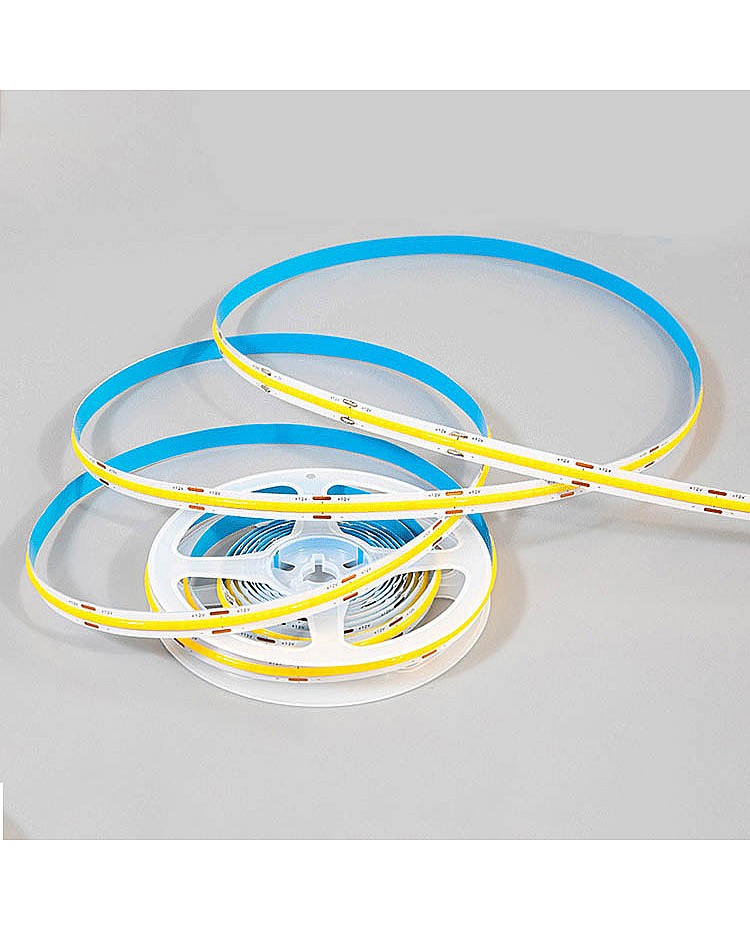

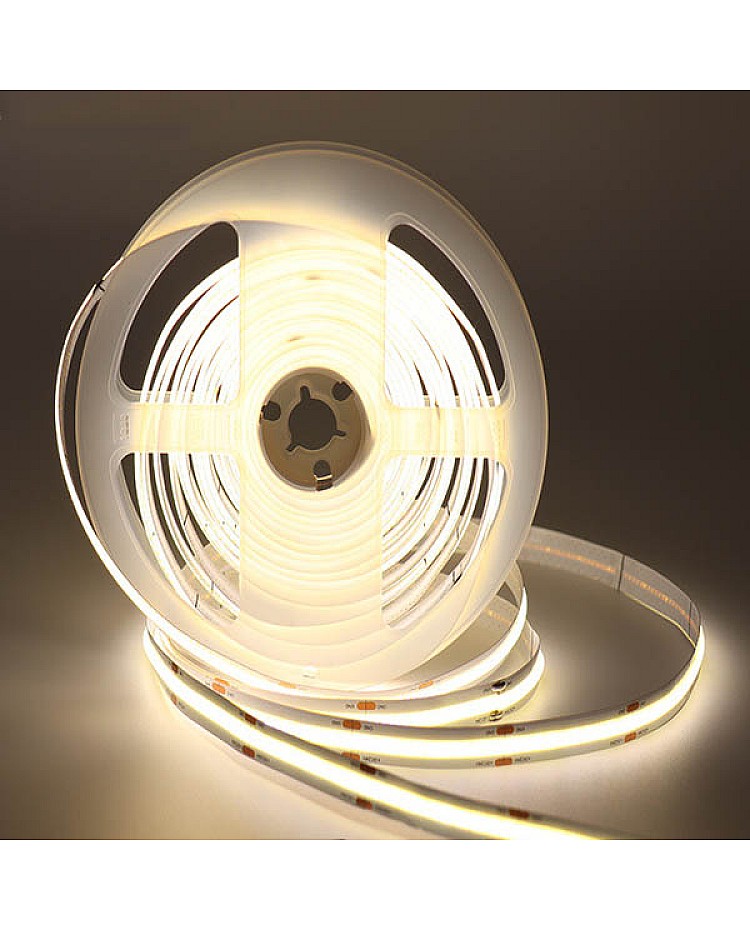

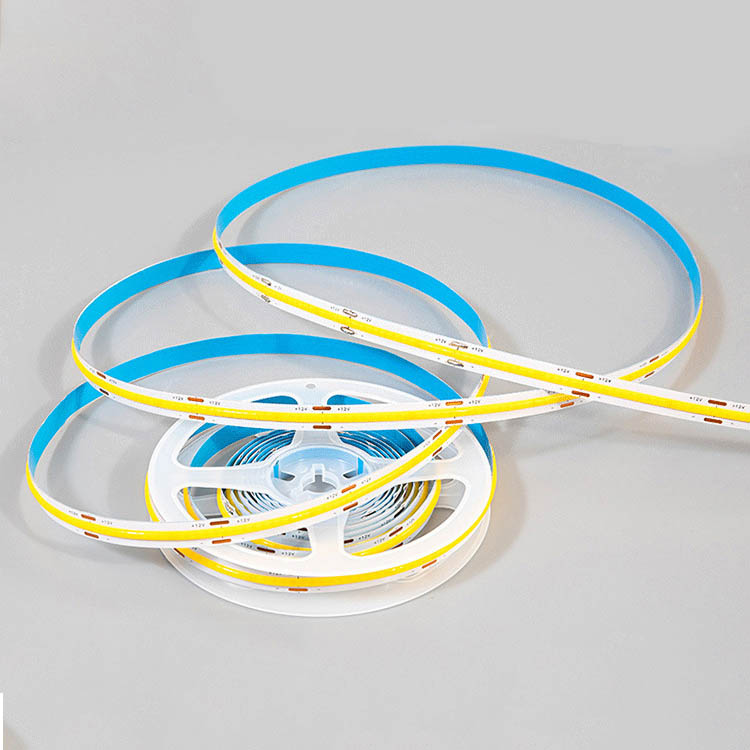

The FCOB LED strips use high-quality San An LED chips as the light source. The LED chips are mounted on the dual-layer flexible PCB board, 504 LEDs per meter, and the high-density LEDs create a seamless line of light with no visible light dots and hotspots. 90+ CRI for quality color rendering, excellent efficiency and color consistency, incredibly bright and comfortable visual experience, perfect for various indoor linear lighting projects. Flexible and bendable, you can cut to any size for your project from the cuttable marks. You can choose the DC12V or DC24V products, working on DC24V for longer max runs. The waterproof rate is IP20; it is non-waterproof and is only recommended for indoor projects. The back of the COB strip lights with double-sided adhesive tape is easy to stick to where you want to install. It can connect to an LED light dimmer to adjust the brightness freely. Three emitting colors of products are available, and you can choose warm white, natural white, and cool white for various scenes. Suitable for narrow applications like jewelry cases and backlighting. There are 3-width products available, and you can take the 5mm, 8mm, and 10mm for different lighting projects.


Specifications:

  • PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board

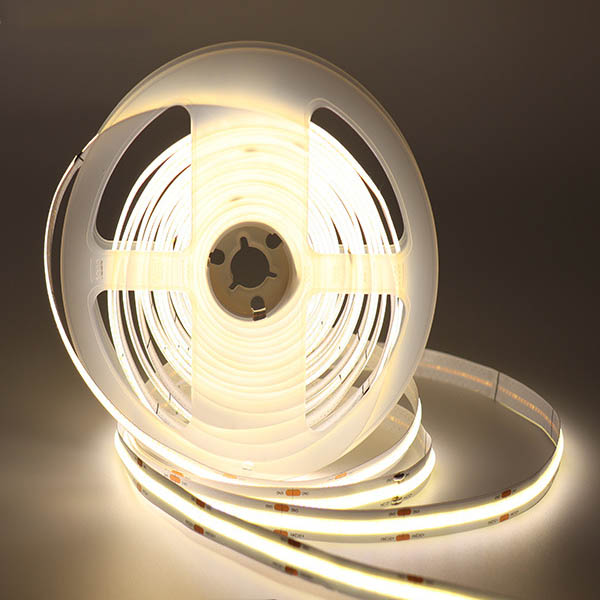

  • Working Voltage: DC12V/DC24V
  • LED Chip: San An
  • LED QTY: 504 LEDs/Meter
  • Length: 5 Meters/Reel
  • Width: 10mm, 8mm
  • Thickness: 1.6mm
  • Power: 12W/M(10mm), 10W(8mm)

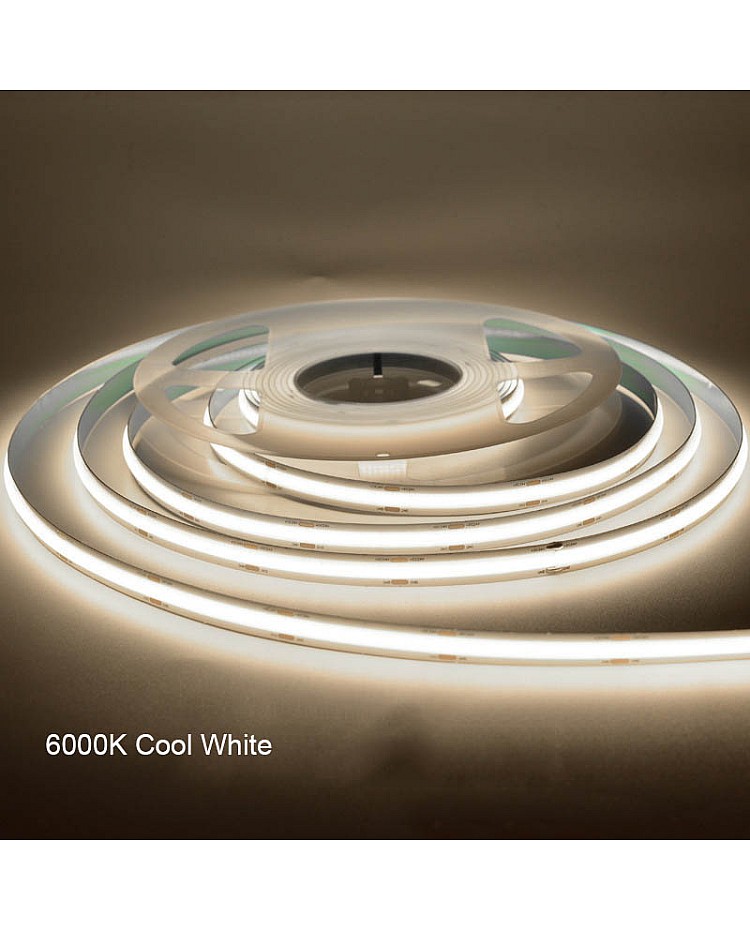

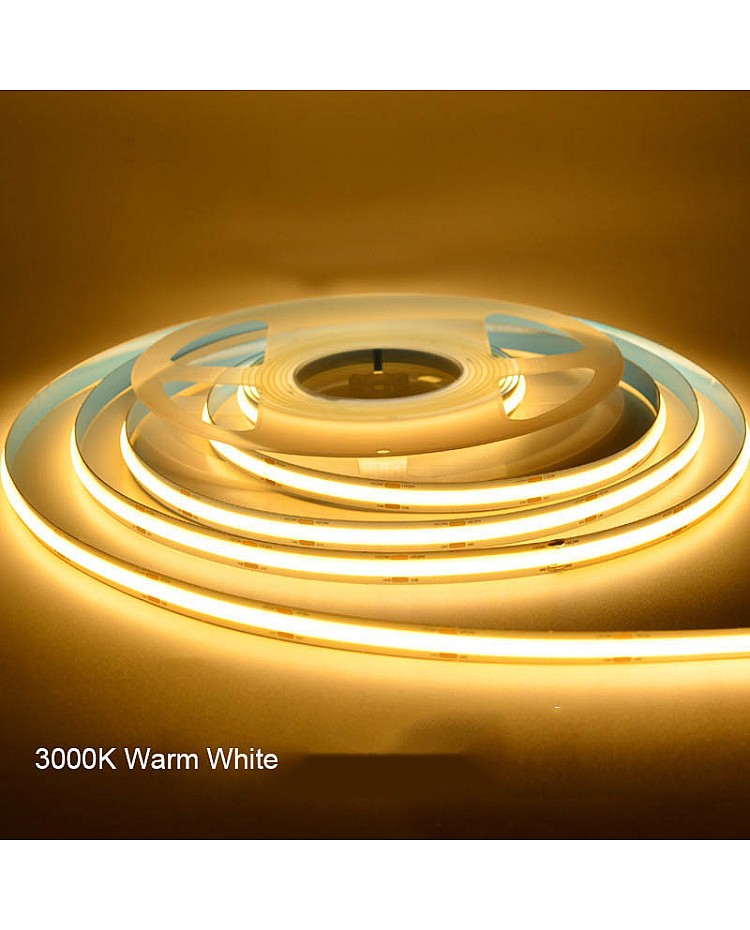

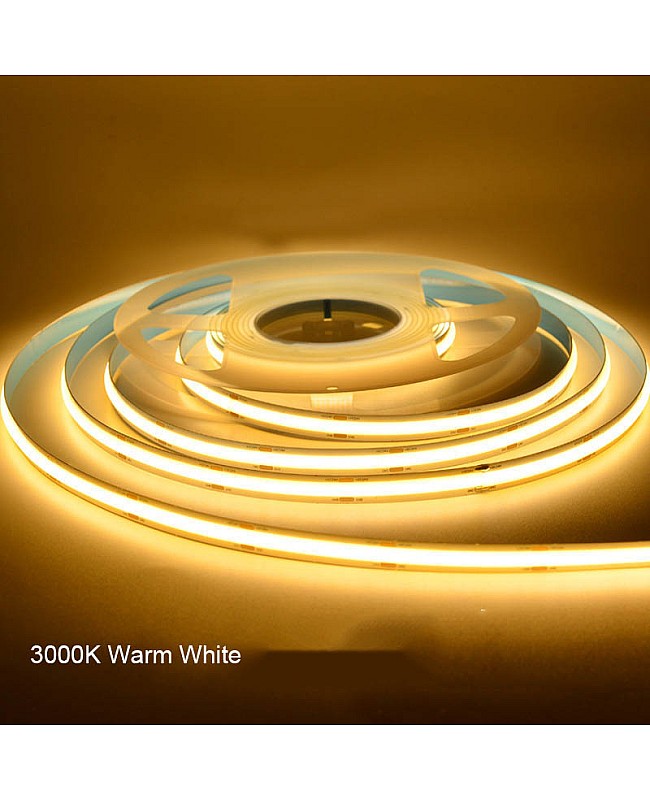

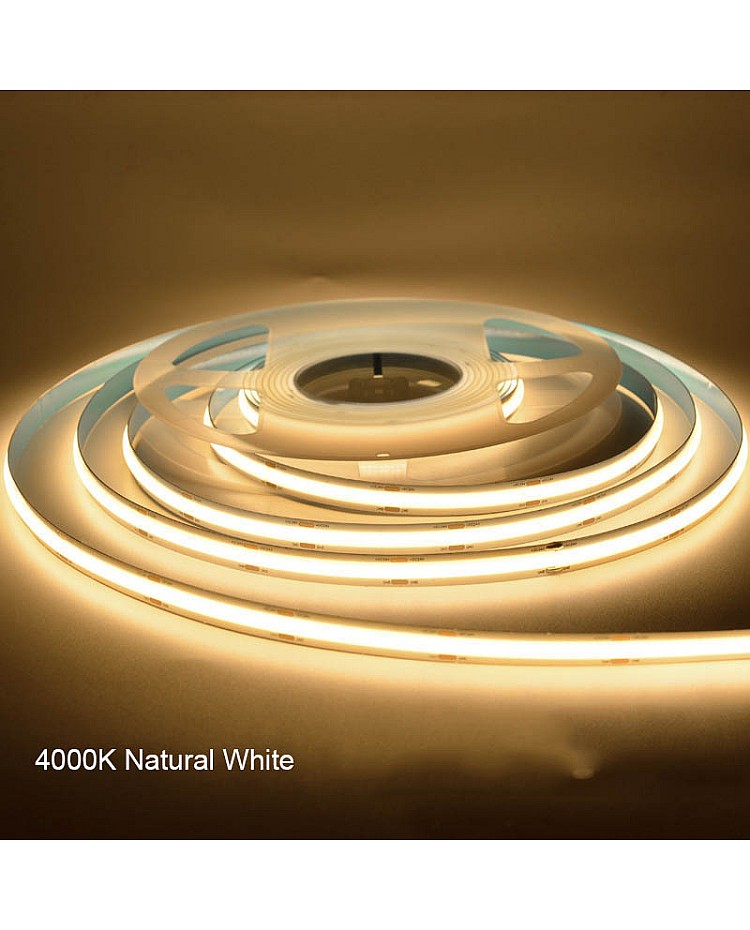

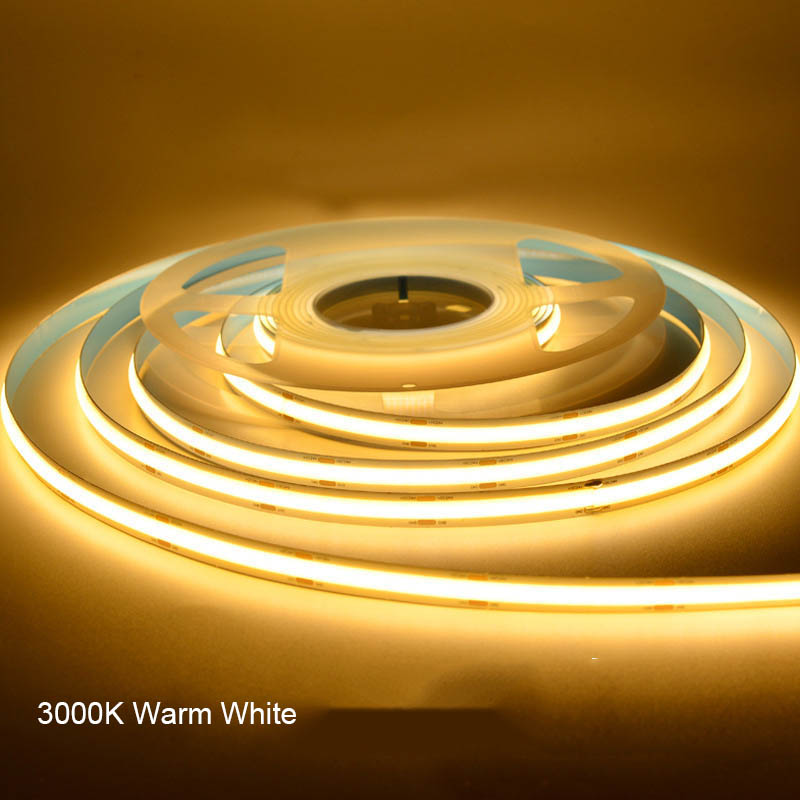

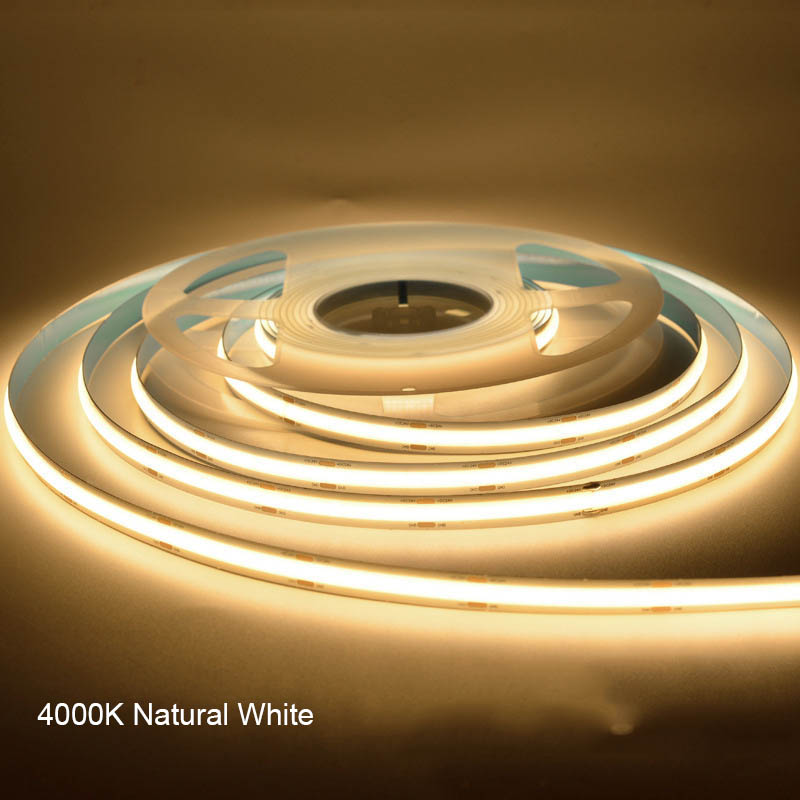

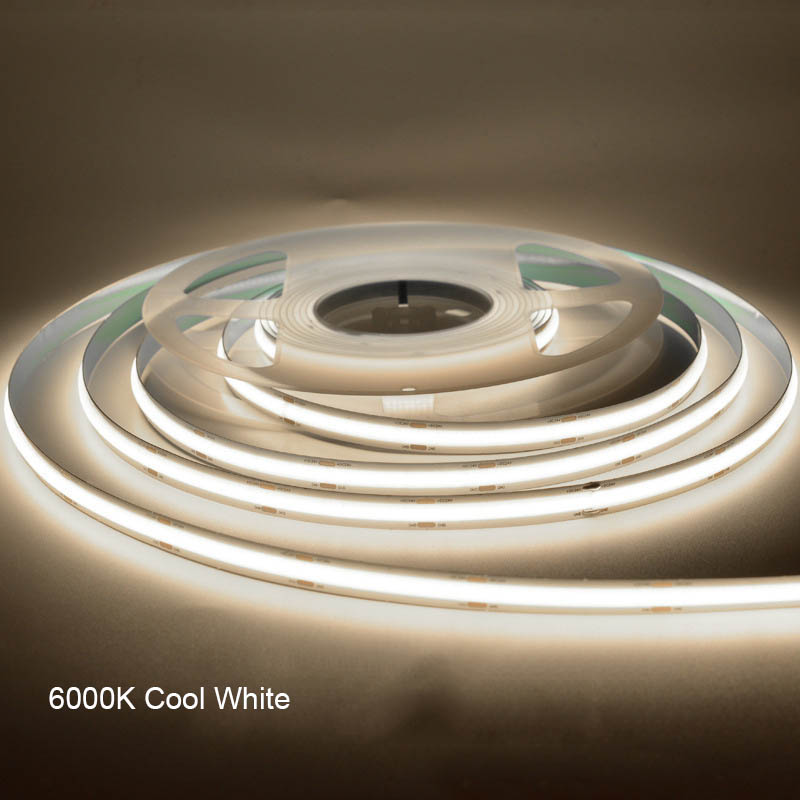

  • Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6000K)
  • Luminous Flux: 1400-1700LM/M
  • Luminous Efficiency: 110-120LM/W
  • View Angle: 180°
  • Dimmable: 0-100%
  • Cuttable: YES
  • IP Rating: IP20 Non-waterproof
  • CRI: 90Ra+
  • Minimum Cuttable Length: DC12V: 7.94mm(5mm), 17.86mm(8mm), 17.85mm(10mm); DC24V: 13.89mm(5mm), 41.67mm(8mm), 41.66mm(10mm);
  • NO Visible Light Dots, NO Hotspots
  • Flexible, Bendable And Cuttable

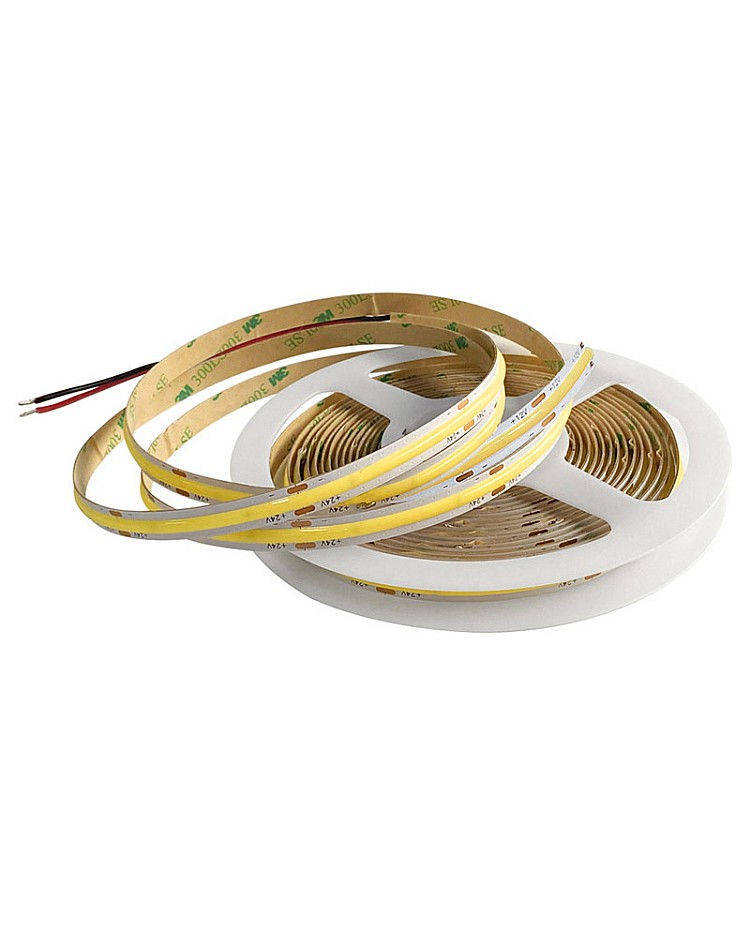

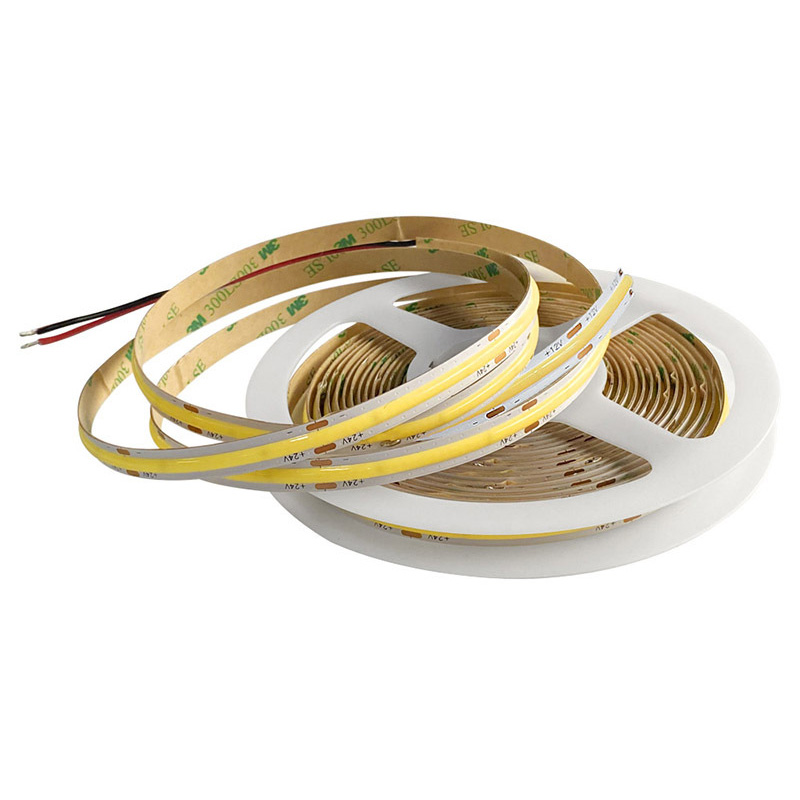

  • Back With Double-Sided Adhesive Tape
  • Working Temperature: -20℃-+45℃
  • Storage Temperature: -20℃-+60℃
  • Lifespan: 50,000 Hours
  • UL Listed: YES
  • 2 Years Warranty


Includes:

1 * FCOB LED Strips(5Meters/Reel)

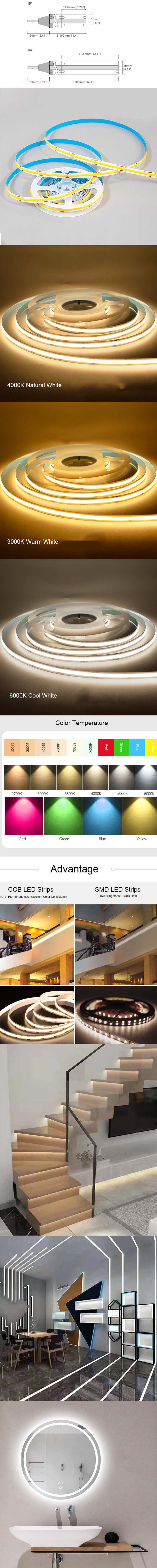

FCOB LED Strip Dimmable
