Out Of Stock
$8.40
Reward Points: 8
-
+
  • Brand: Ledbe
  • Product Code: TY-5050-M003

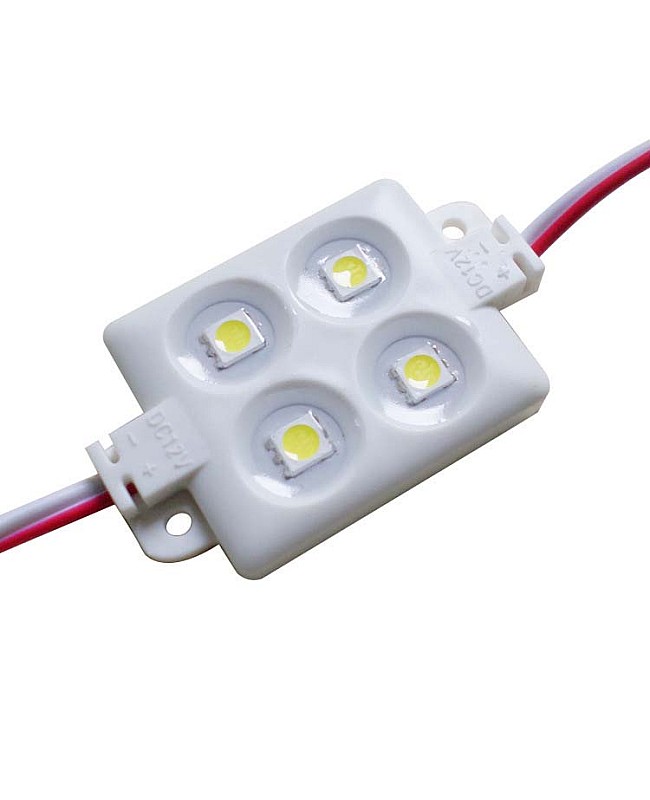

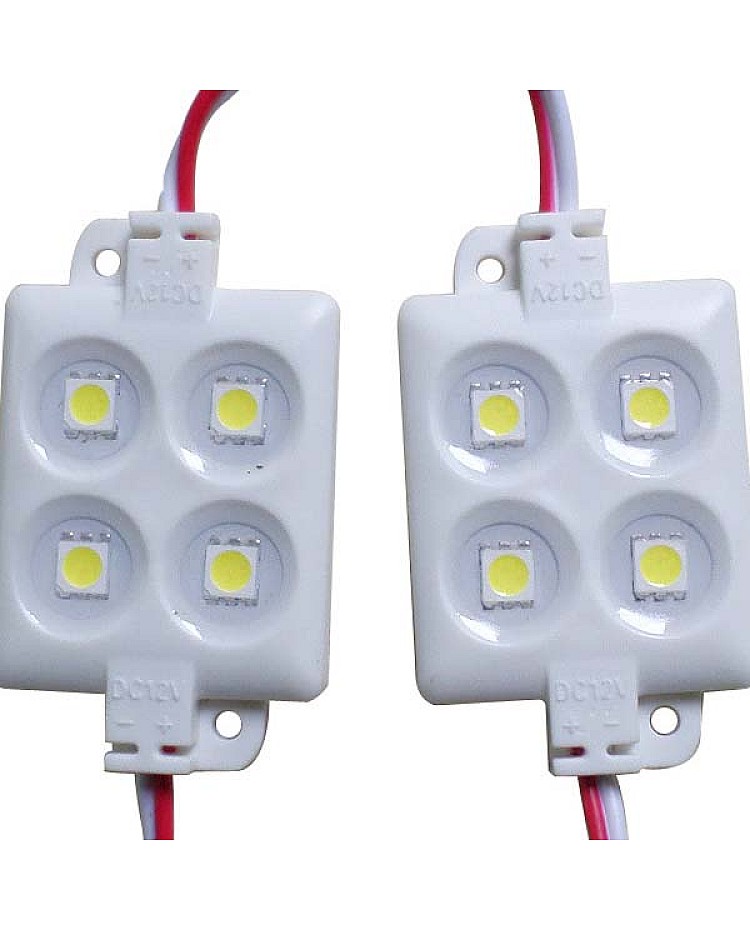

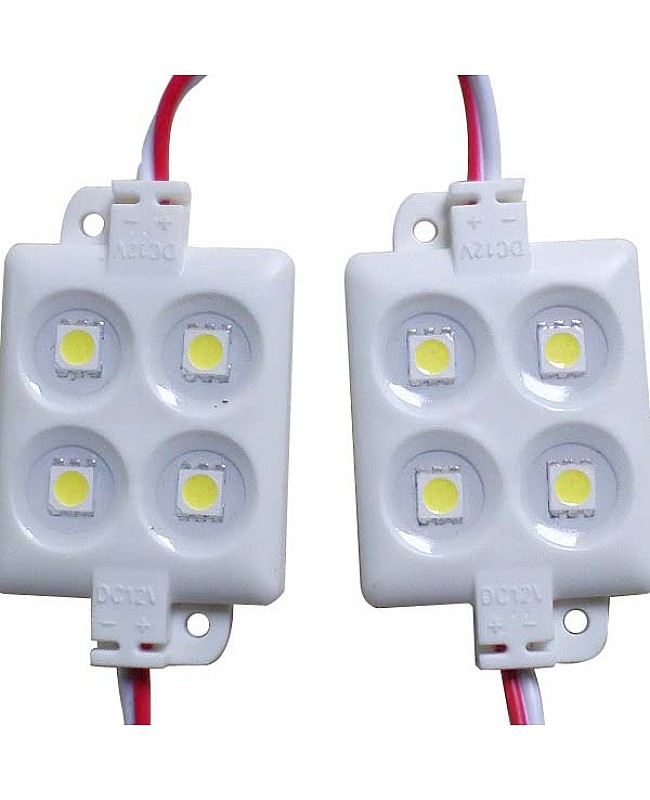

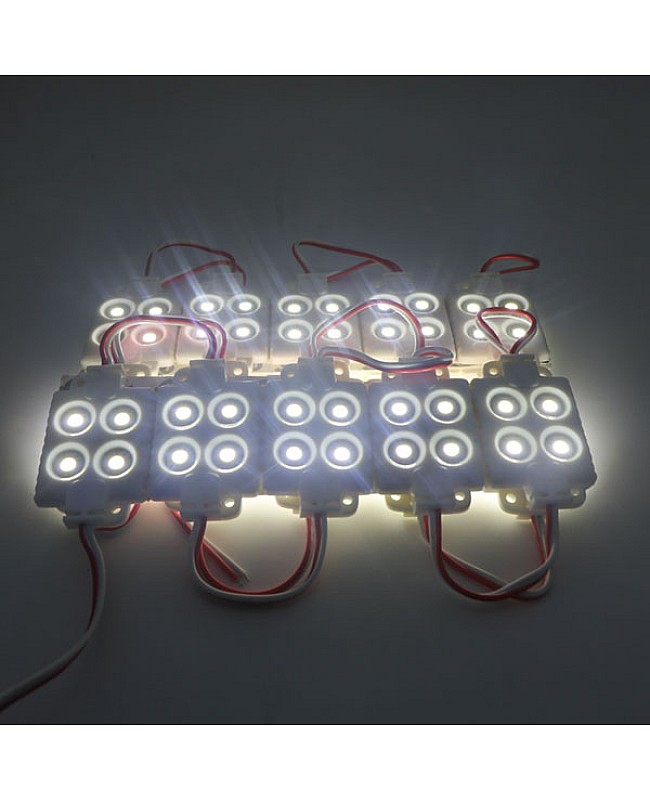

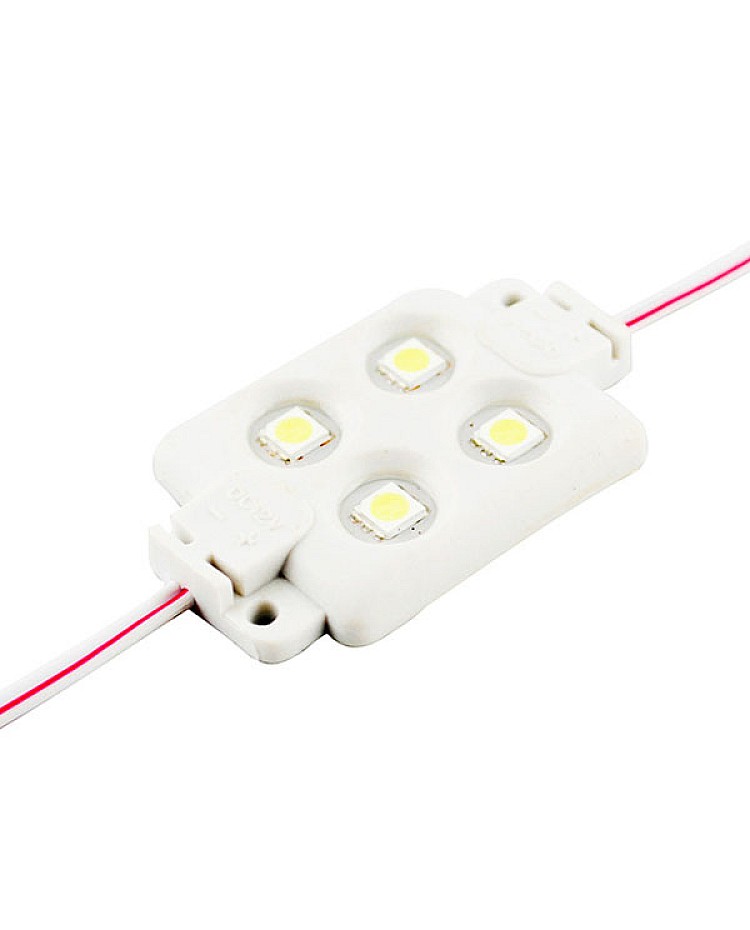

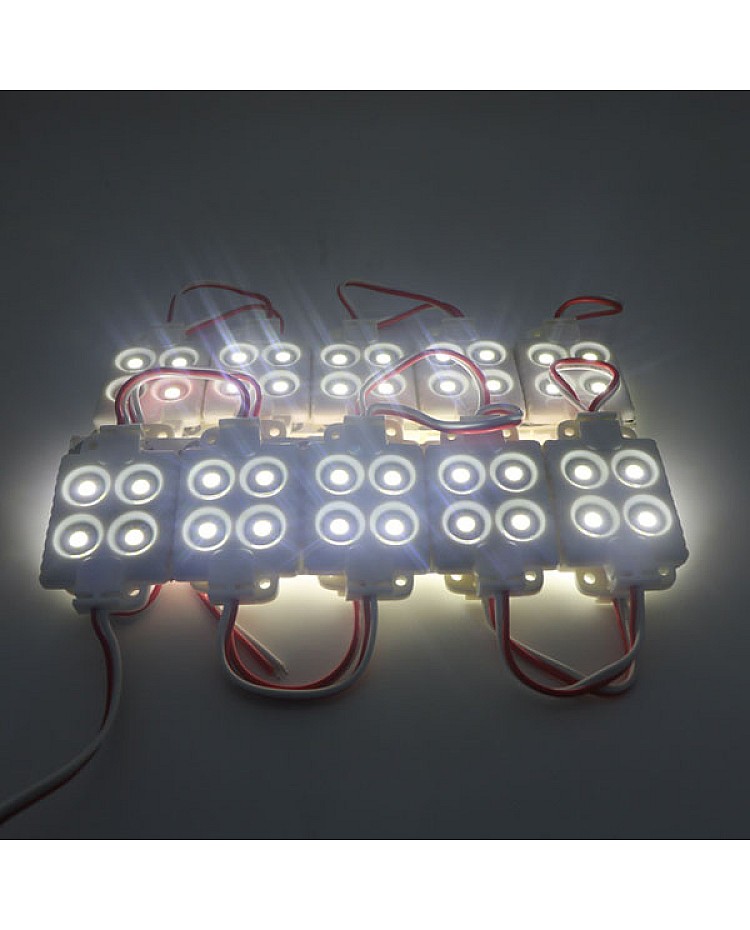

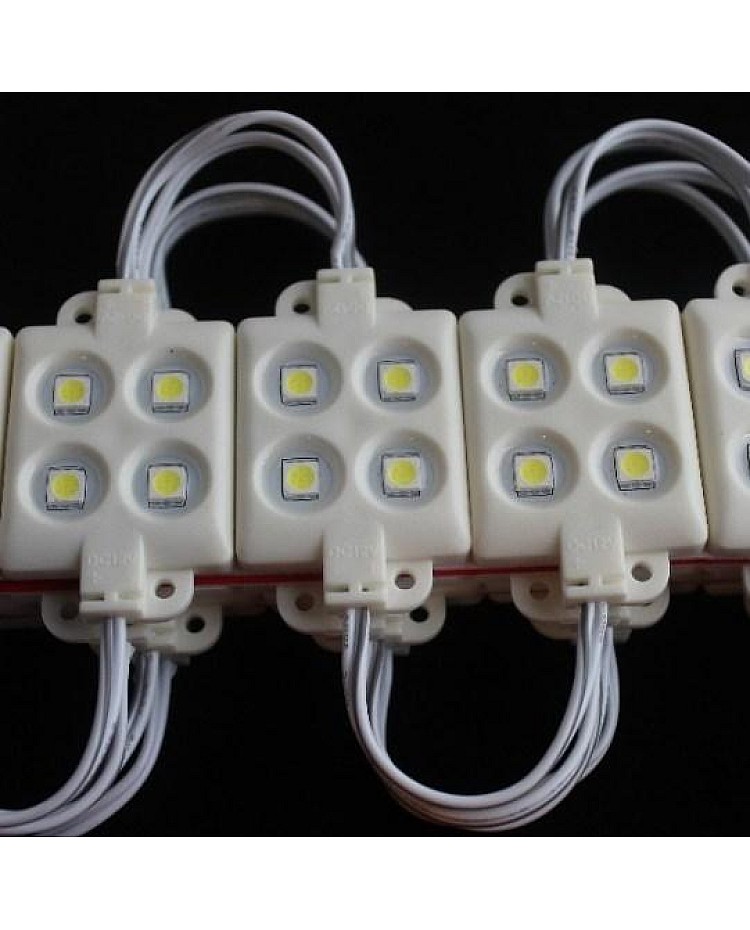

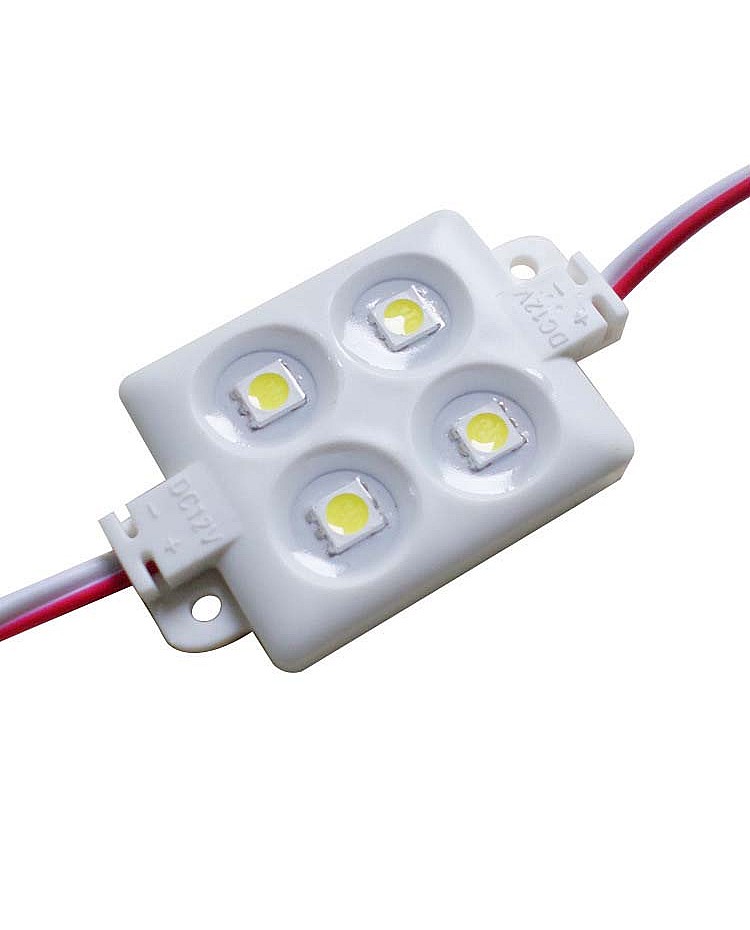

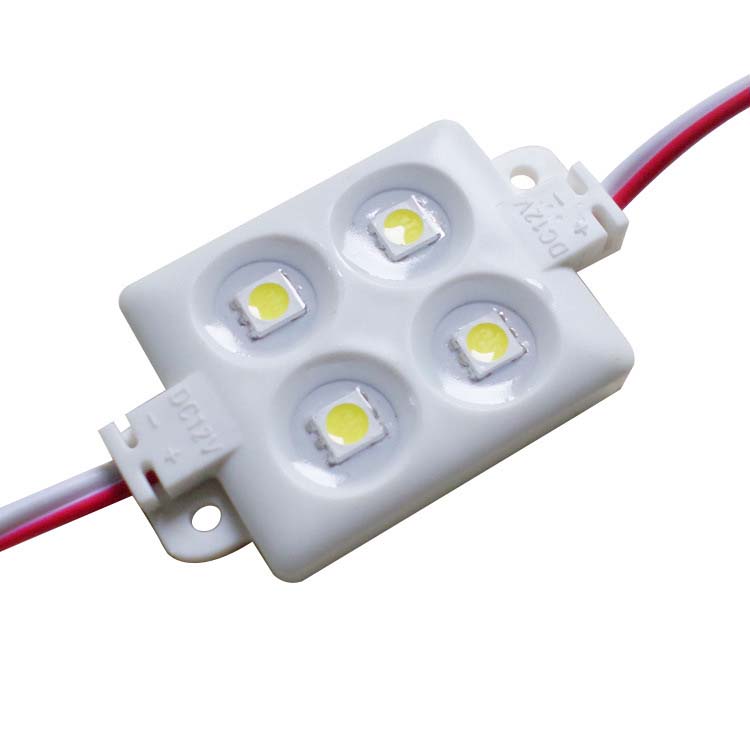

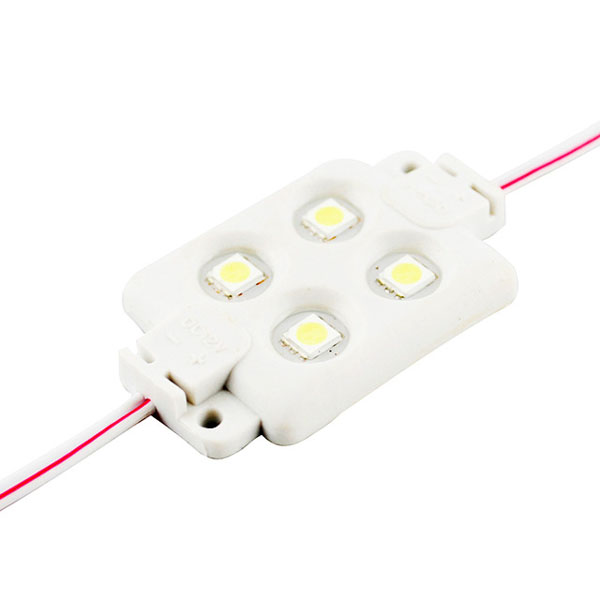

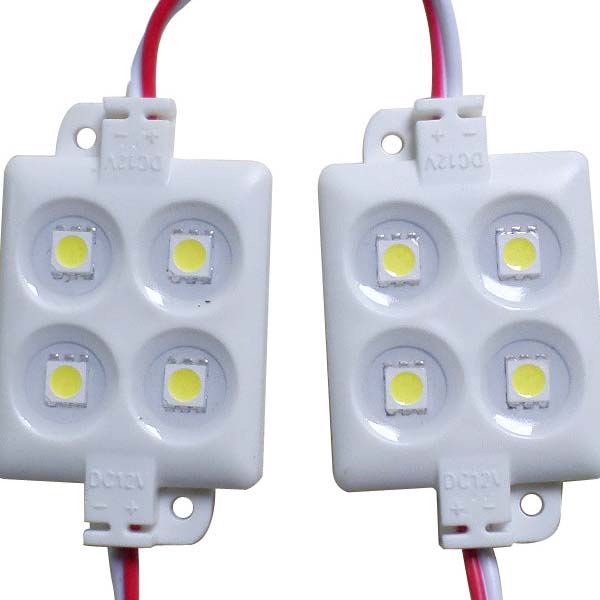

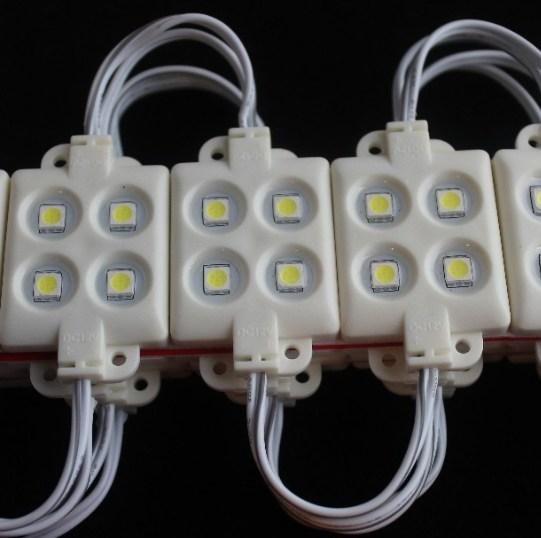

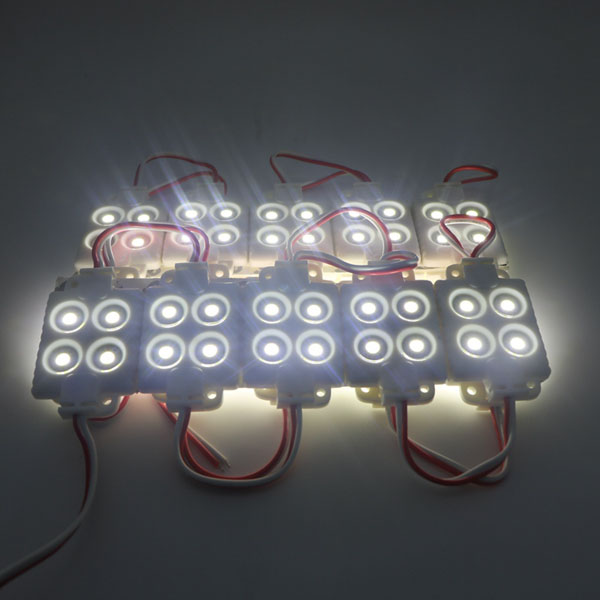

The 5050 LED Modules use 4PCS high-quality and super-bright SMD LEDs as the light source. The LEDs are mounted on the aluminum board for better heat dissipation, with a fireproof ABS shell and epoxy sealed. The IP rating reaches IP65 for indoor and outdoor applications. The back has double side adhesive tape and both sides with screw holes, take off the protector on the tape and stick on the place you want to install, or use the screws to fix them on the project. The 5050 LED modules, which have 20 pieces per string, are cuttable and reconnectable, and can be cut to any quantity and reconnected for your project. Working in DC12V, easy to connect to the LED adaptor to light up or connect the LED dimming controller to adjust the brightness for single color or color-changing style for the RGB. You can use them as the backlight for signs, channel letters, billboards, interior light for cars, trucks, vans, etc.


Specifications:

  • Item NO: TY-5050-M003
  • Manufacturer: TYoung
  • Working Temperature: -25°-+60°
  • Size: 55*33mm(L*W)
  • LED: 5050 SMD LEDs
  • LED Quantity: 4PCS
  • Voltage: DC12V
  • Power: 0.96W/PC
  • IP Rating: IP65
  • Lumen: 15-17lm/LED
  • MCD/LED: 1300-1500
  • Power Factor: >0.9
  • Luminous Flux: 56-64lm
  • Color: Red/Yellow/Blue/Green/Cool White/Warm White/RGB
  • Color Temperature: Warm White(2700K-3200K), Cool White(9000-12000K), Red(620-625nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
  • Luminous Flux/PC: White(80-88lm), Red(26lm), Green(50lm), Blue(16lm), Yellow(20lm)
  • Beam Angle: 120°
  • Color Rendering Index: >70Ra
  • 20PCS Per String
  • Back With Double-sided Adhesive Tape
  • Both Sides With Screw Holes
  • Weight: 220g
  • Lifespan: 35000-50000hours
  • 3 Years Warranty


Package:

1 * mold injection 5050 LED modules(20PCS/String)

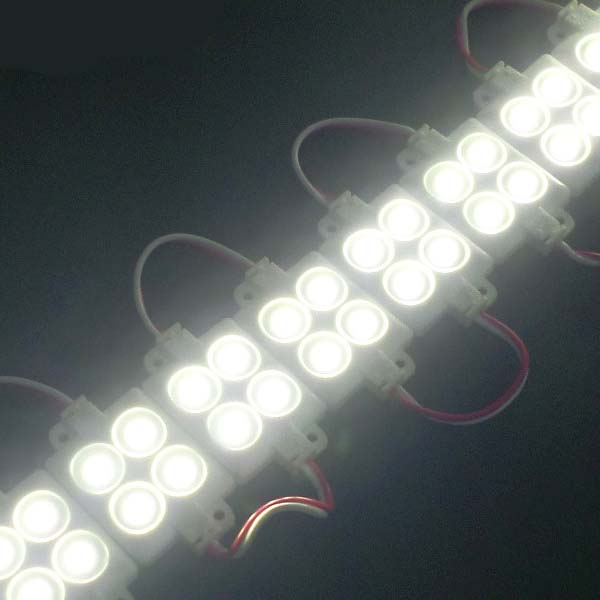

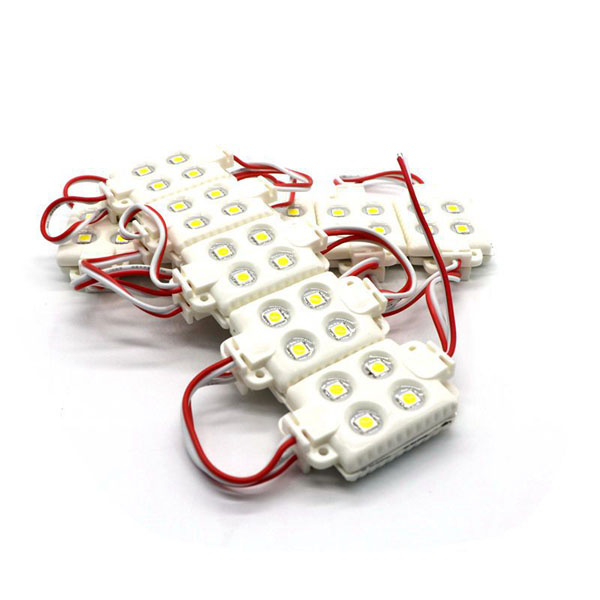

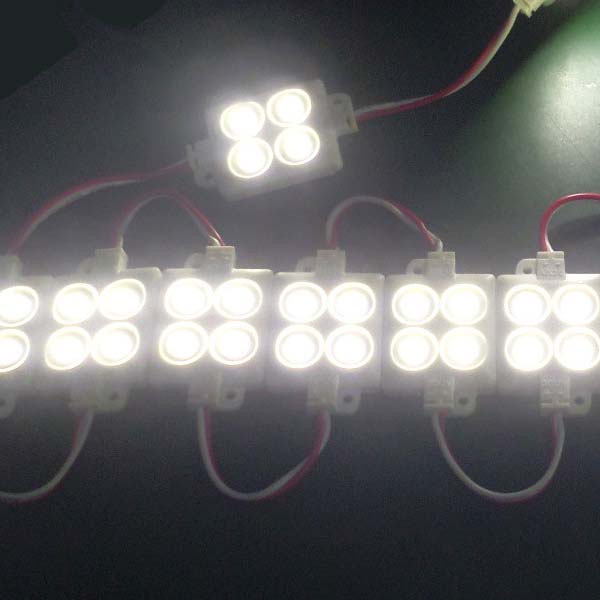

Mold Injection 5050 LED Module 5050 SMD LED Module 5050 4 LED Module Light
