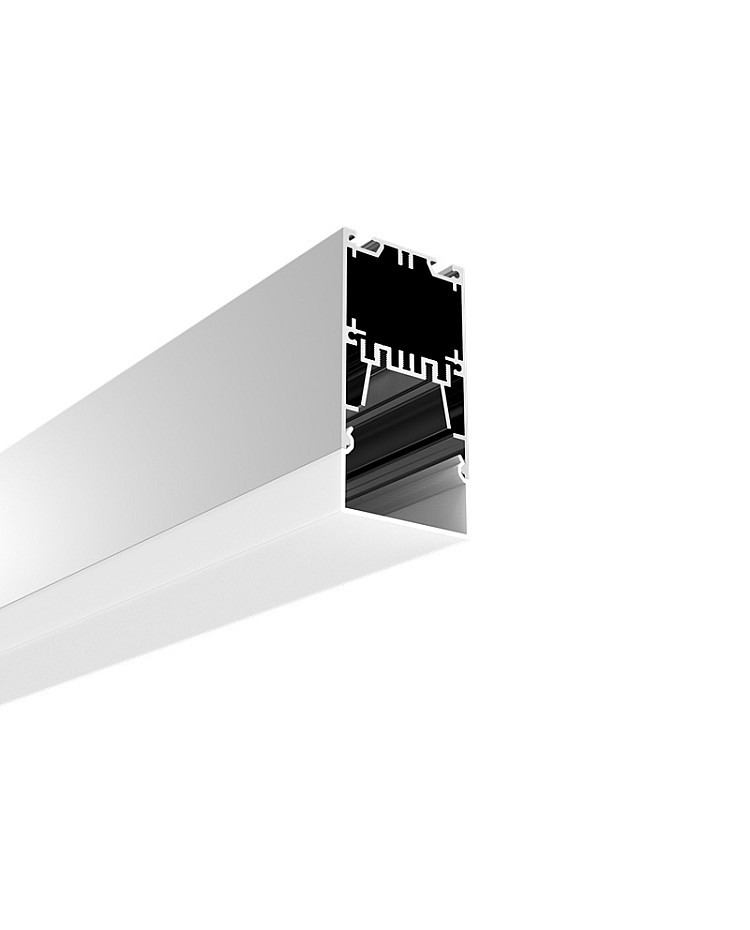

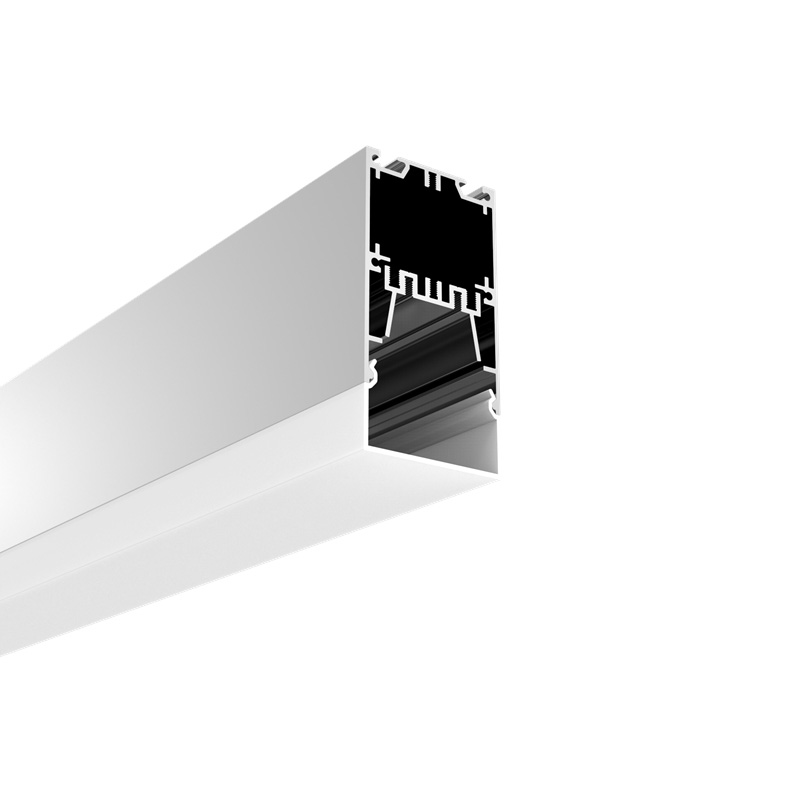

The 2-inch Pendant LED Strip Light Channel and Diffuser has a 20mm dropped lens for a wide view angle and seamless light output without light dots. It comes with suspension wire kits that allow hanging on the ceiling for interior linear lighting. It can be used as architectural Lighting in homes, offices, restaurants, supermarkets, hotels, etc. The LED Diffuser Channels are made of 6063-T5 aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan. There are three colors available: silver, white and black. The standard length is 1M and 2M and can be cut to any length, and custom lengths are available. Only one type of diffuser is available: the 20mm dropped covers, which are made of imported brand material, anti-yellowing, and soft light output. The inner width is 27.4mm and allows the max-width of LED Light to be 26mm, and you can install Rigid LED Strips, Rigid LED Modules, or Flexible LED Tapes as the light source. The Aluminum Channels can be used as heat sinkers for better heat dissipation. The 90°, 90° vertical, and 180° Connectors are sold separately, and you can use them to reconnect the LED Light Channels. Metal clips and steel wires are included.


  • Model: ALP5075-RD
  • Material: 6063-T5 Aluminum

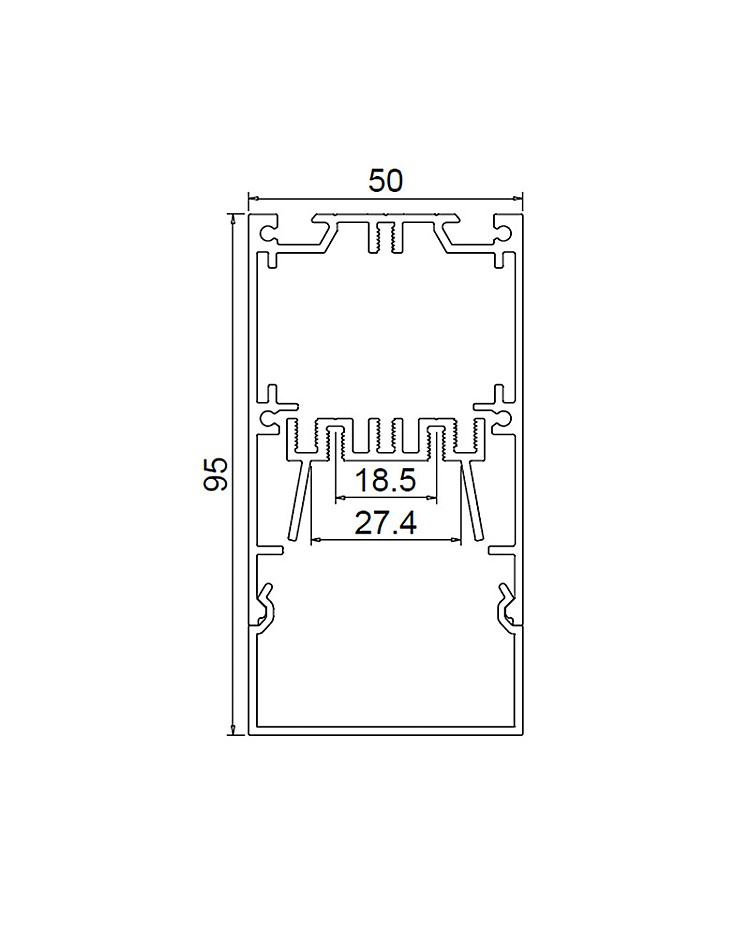

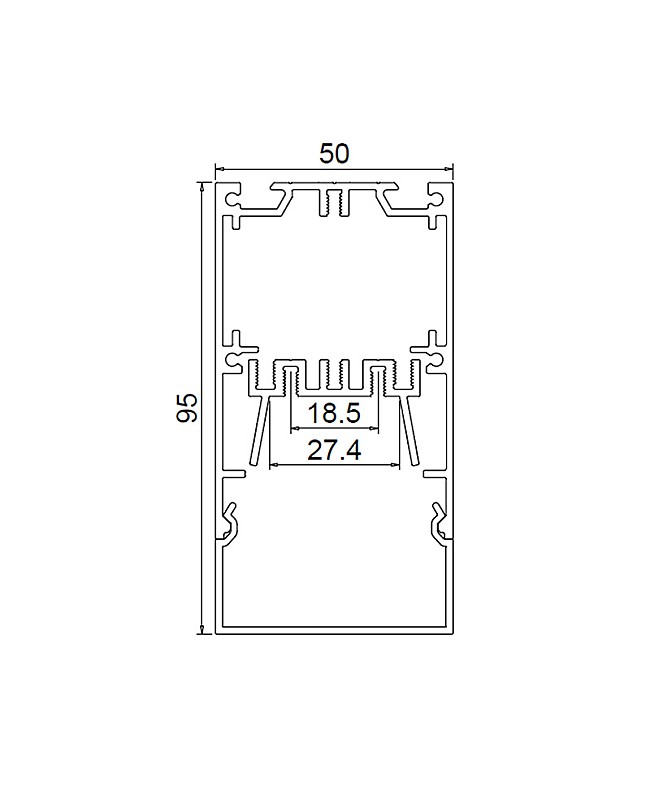

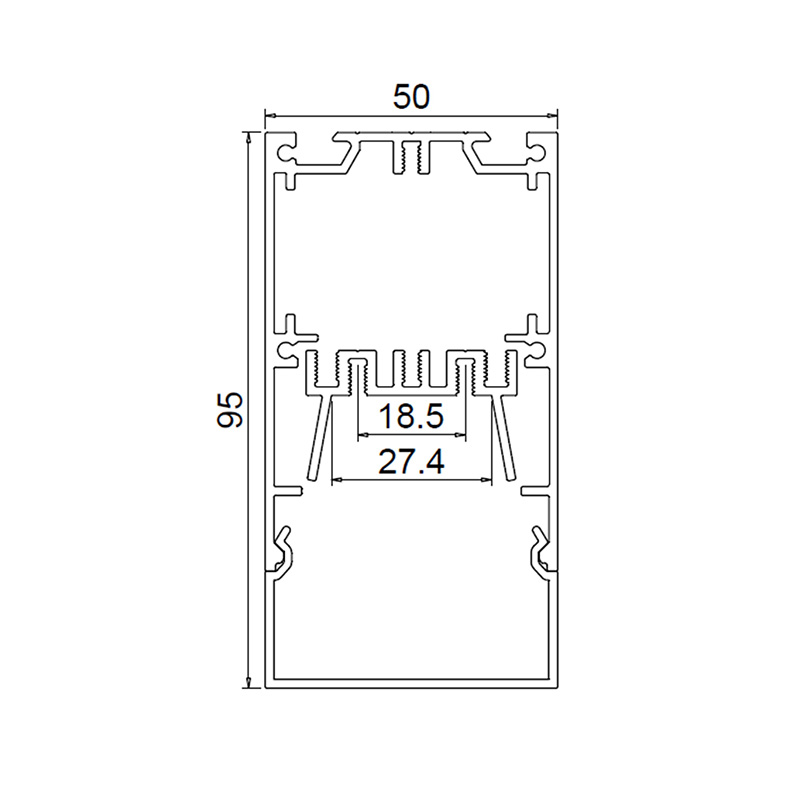

  • Size: 50*95mm(W*H)
  • Surface Treatment: Anodized
  • Colors: Silver(Default), White, Black
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M
  • Custom Length Available: YES
  • Inner Width: 27.4mm
  • Max Width Of LED Strips: 26mm
  • Max Power: 35W/M
  • Beam Angle: 100°
  • IP Rate: IP20 Non-waterproof
  • Tolerance: ±1%
  • 180°, 90° And 90° Vertical Connectors Sold Separately
  • End Caps And Steel Wires Included
  • Installation: Pendant/Surface Mounted
  • 5 Years Warranty


1*LED Strip Light Channel And Diffuser

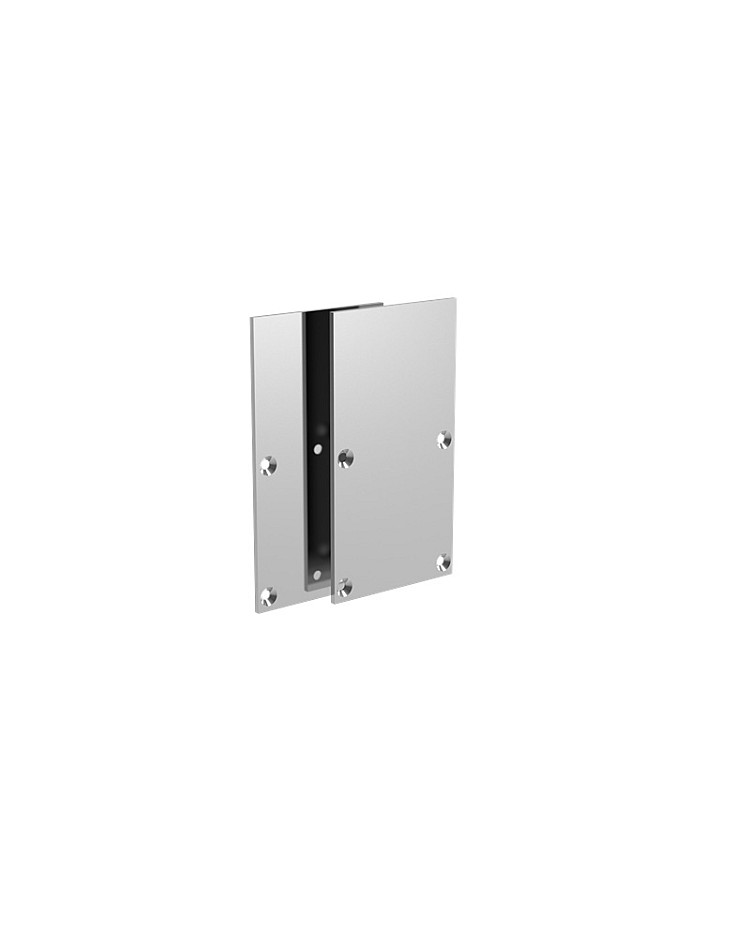

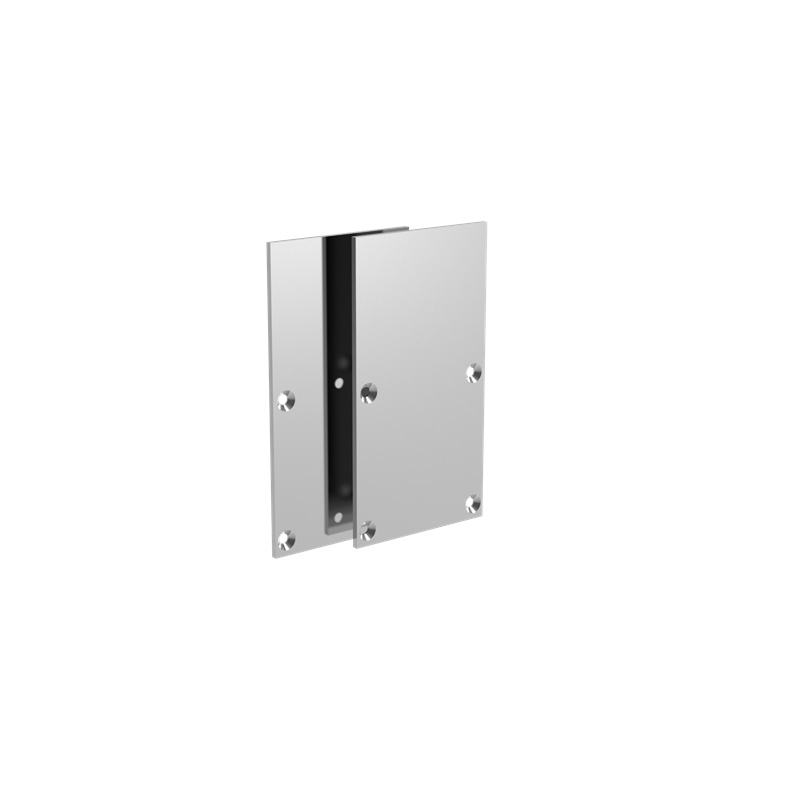

End Caps

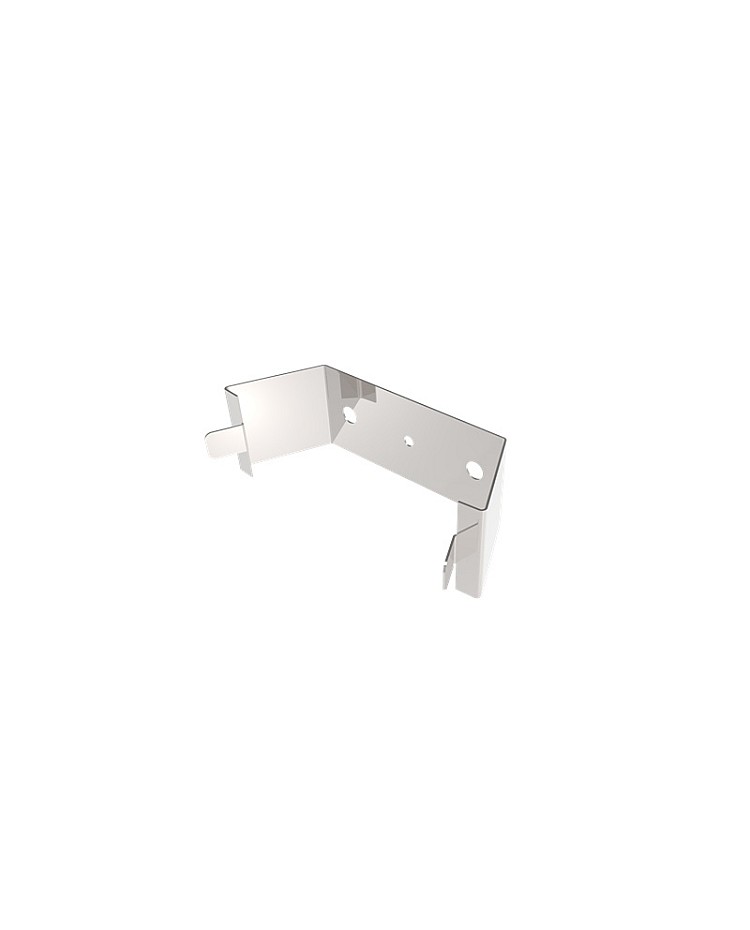

Inside Clips

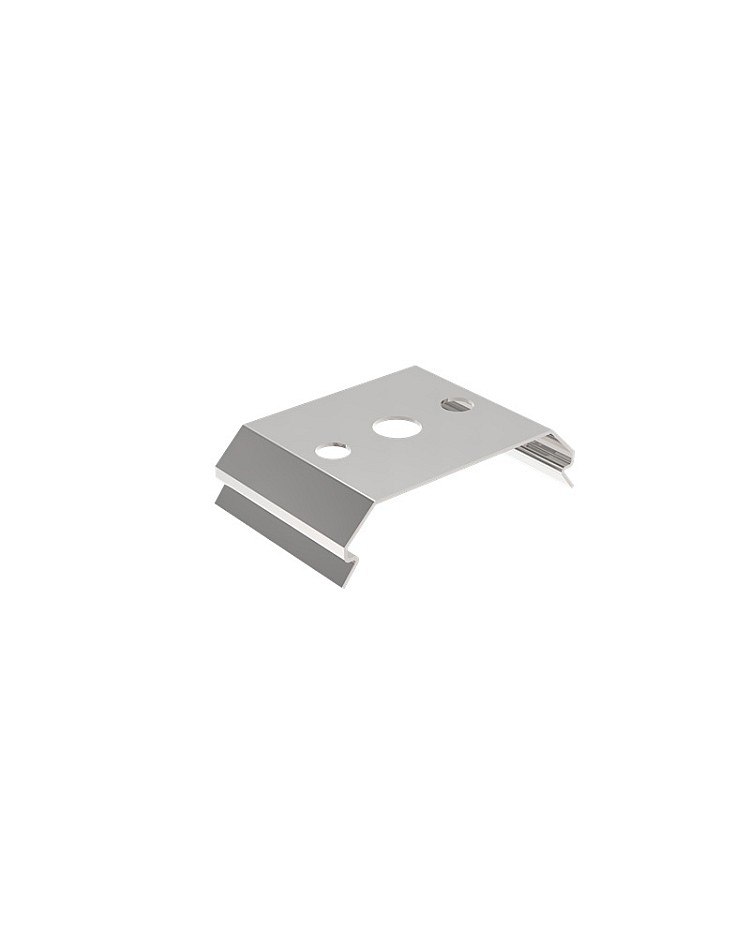

Stainless Clips

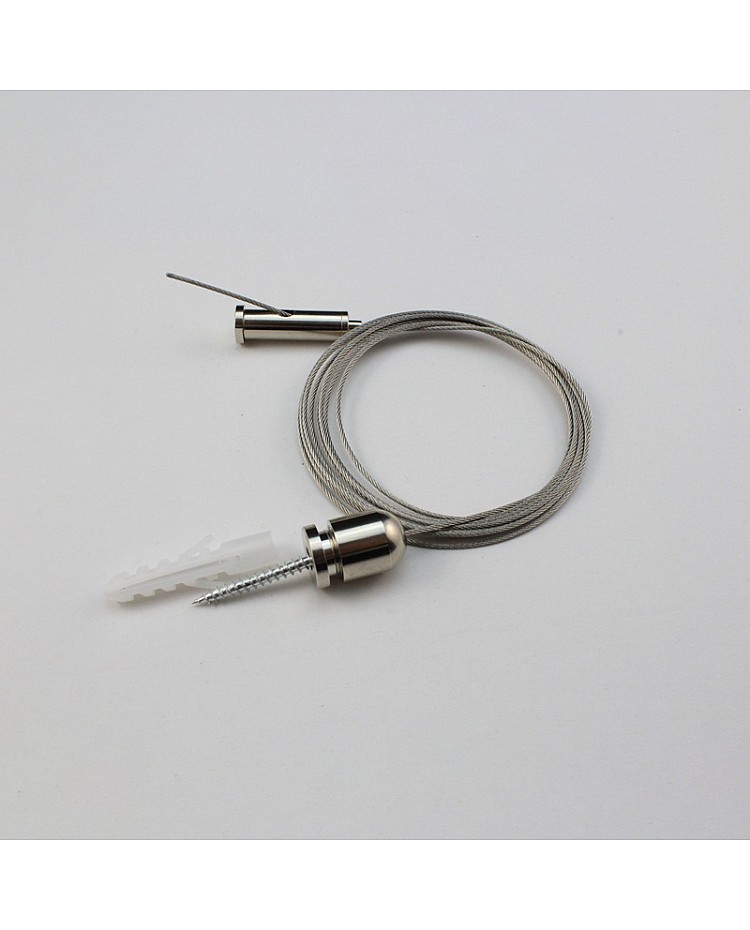

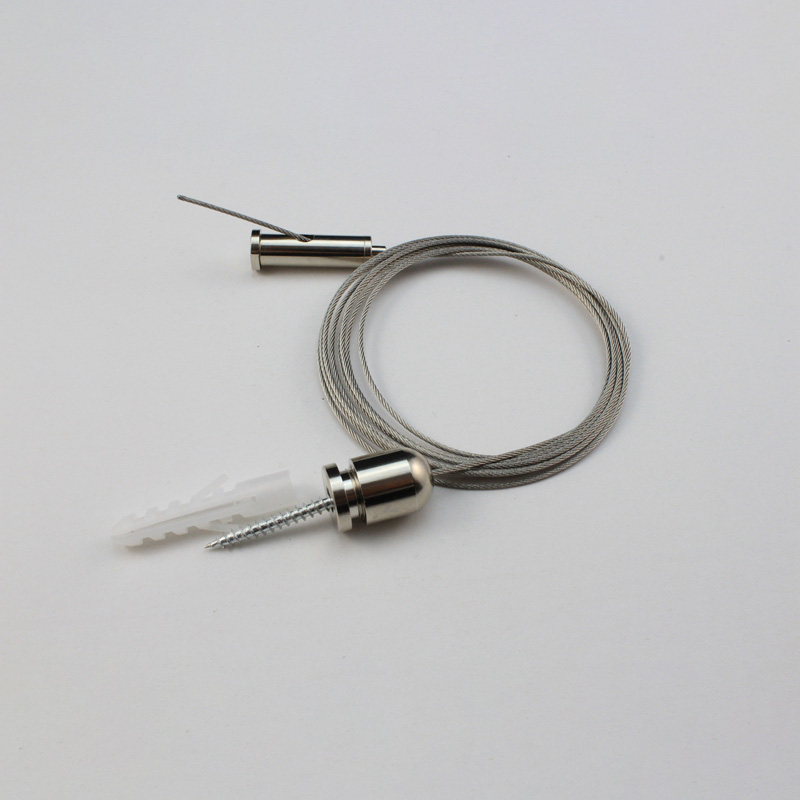

Steel Wires

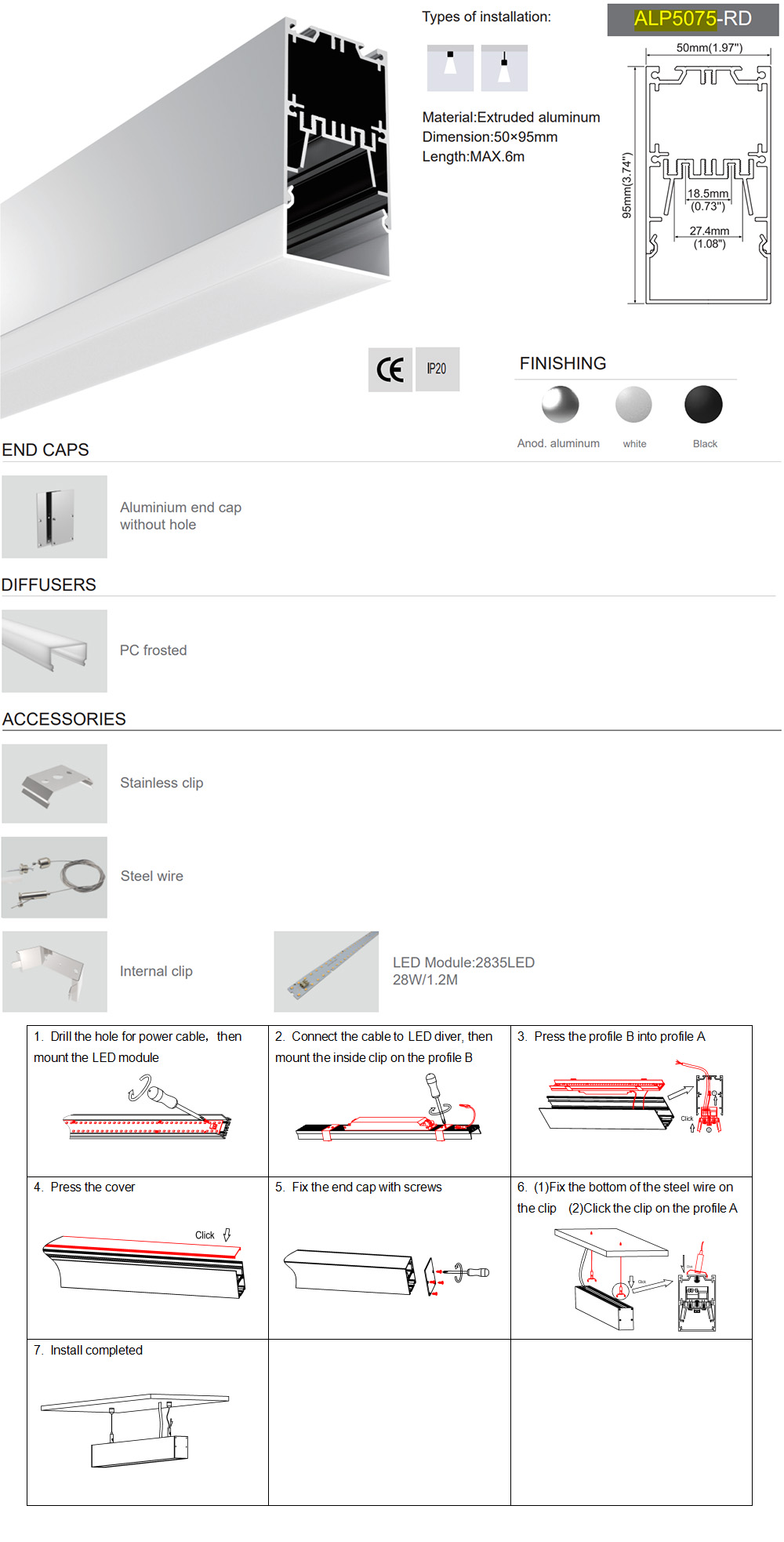

led channel and diffuser
