In Stock
$4.81 $2.99 Sale -38% OFF
Reward Points: 3
  • Brand: Ledbe
  • Product Code: SK6812 LED Chips

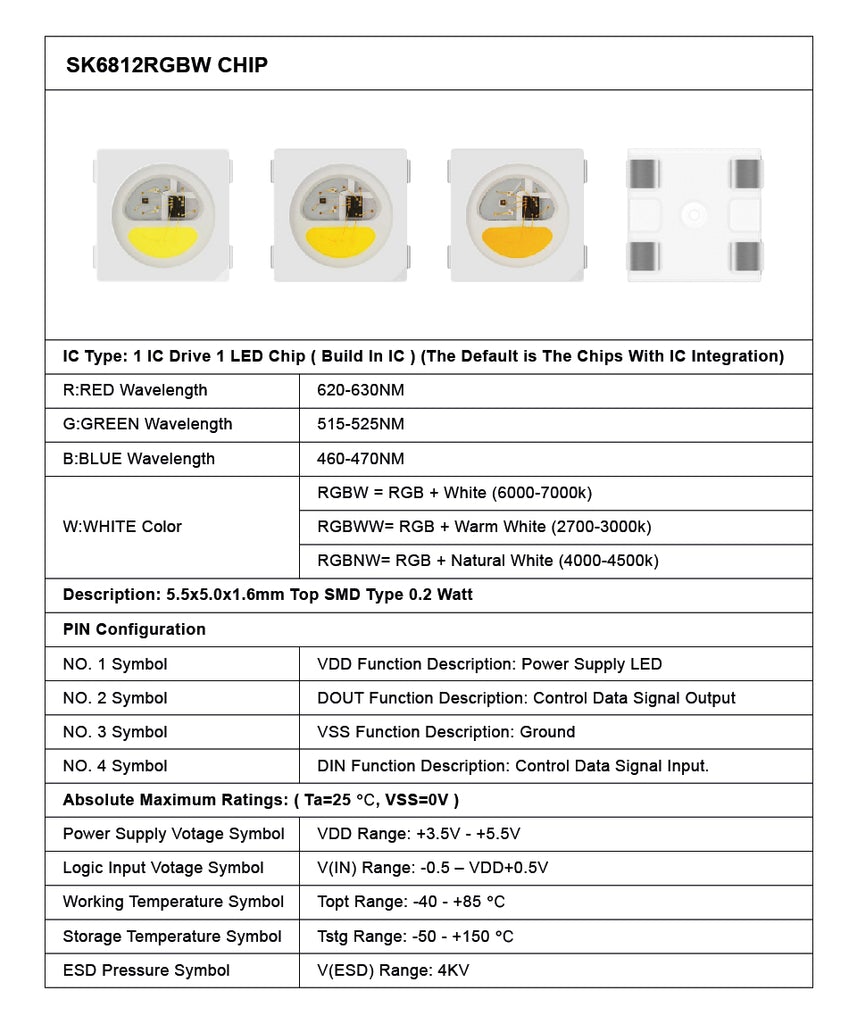

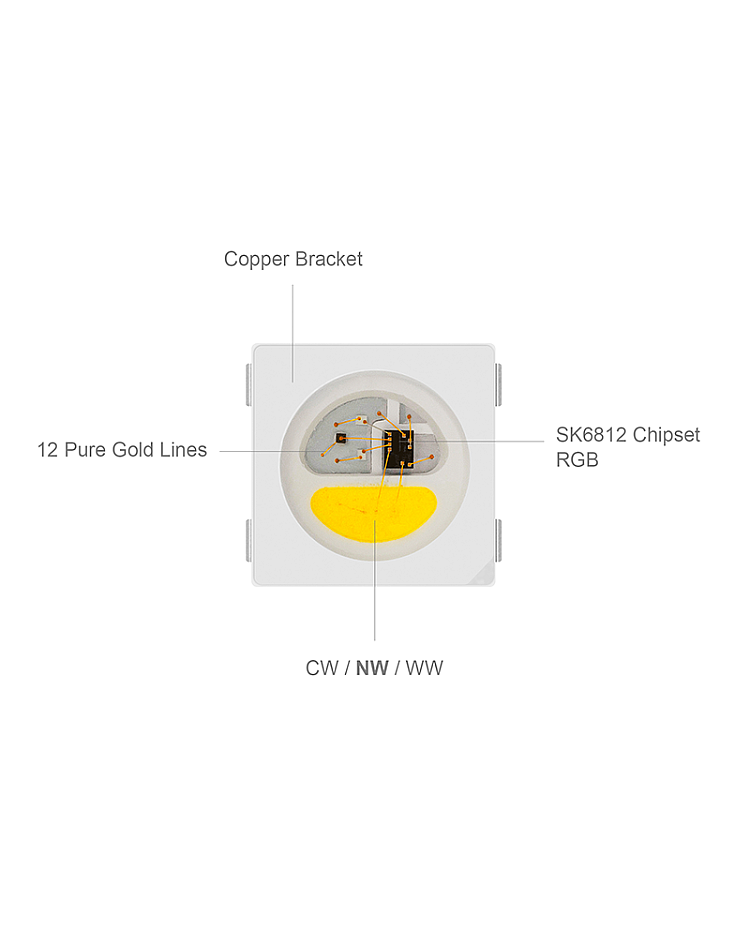

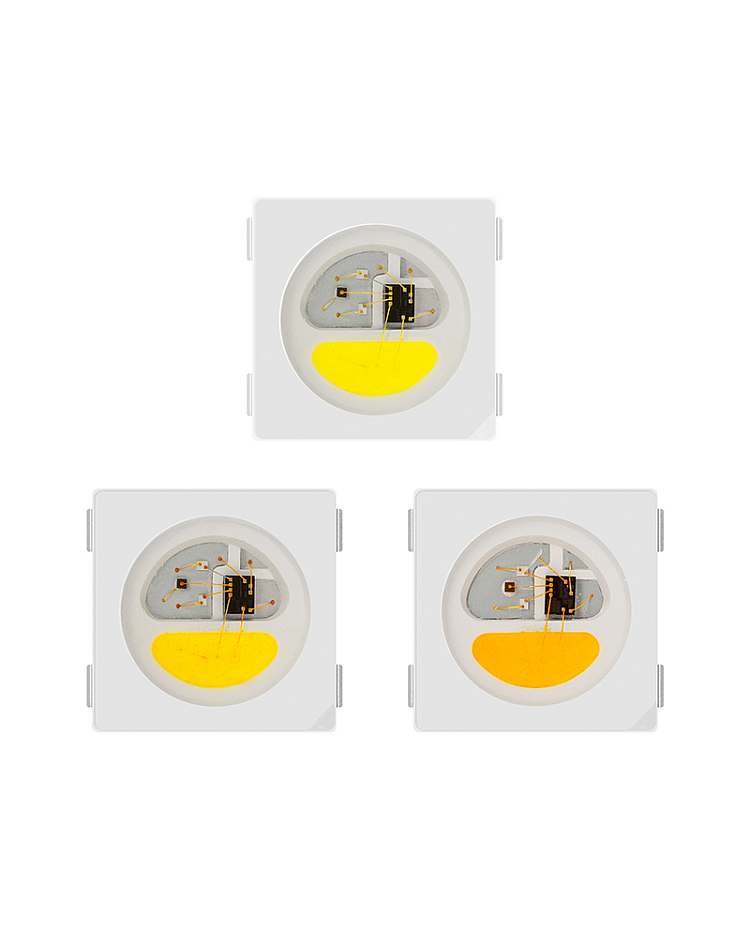

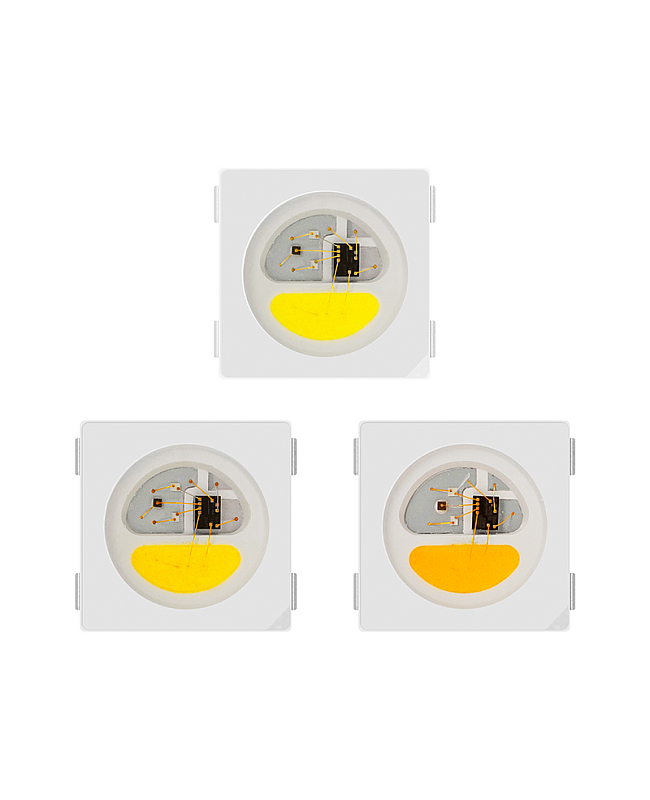

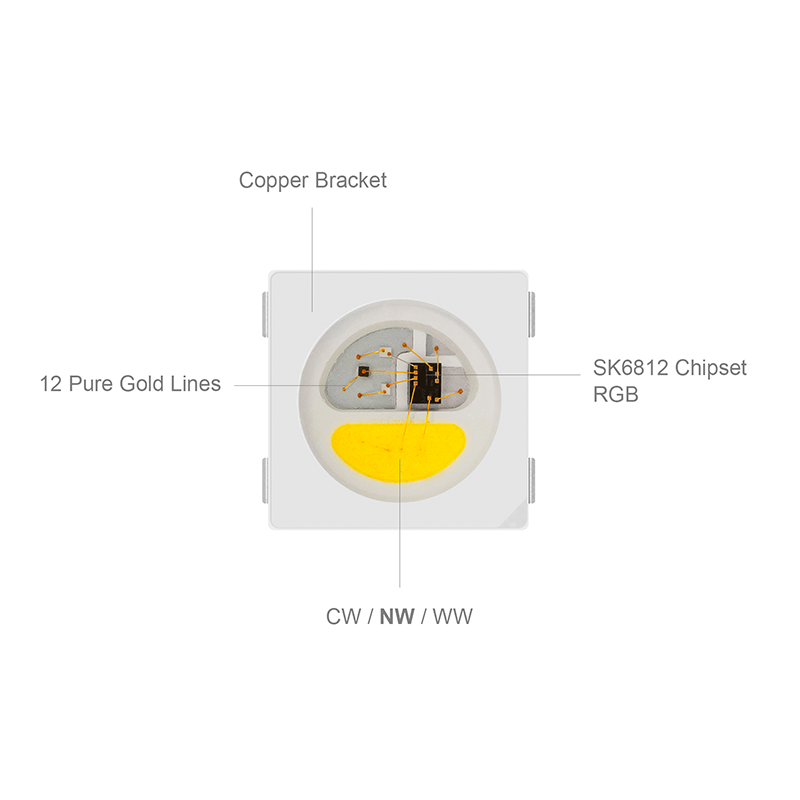

Check the SK6812 RGBW Replacement SMD LED Chips, which built-in SK6812 IC, the SMD LEDs not just include the red, blue and green LED Chips, also add the White LED Chips, you could choose warm white, natural white and cool white for various scenes. use this compact SMD LED to blend your four source colors while reducing hot spots, glare and shadows. the red, green and blue chips have 630nm, 525nm, 470nm and color temperatures from 2700K to 7000K. the SMD LEDs emit a wide 120° viewing angle. you can use them to replace the broken LEDs on the LED Lights or for DIY Lighting Projects.


  • Voltage: 5V
  • Size: 5.5*5.0*1.6mm
  • Power: 0.3W
  • Current: 20mA Per Color, 60mA Total

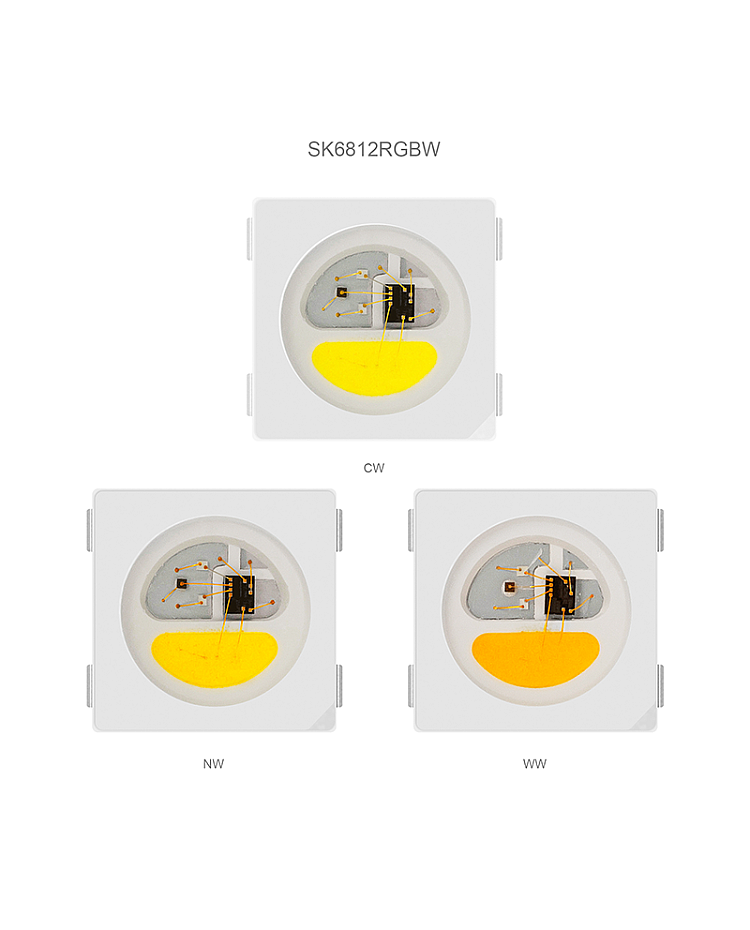

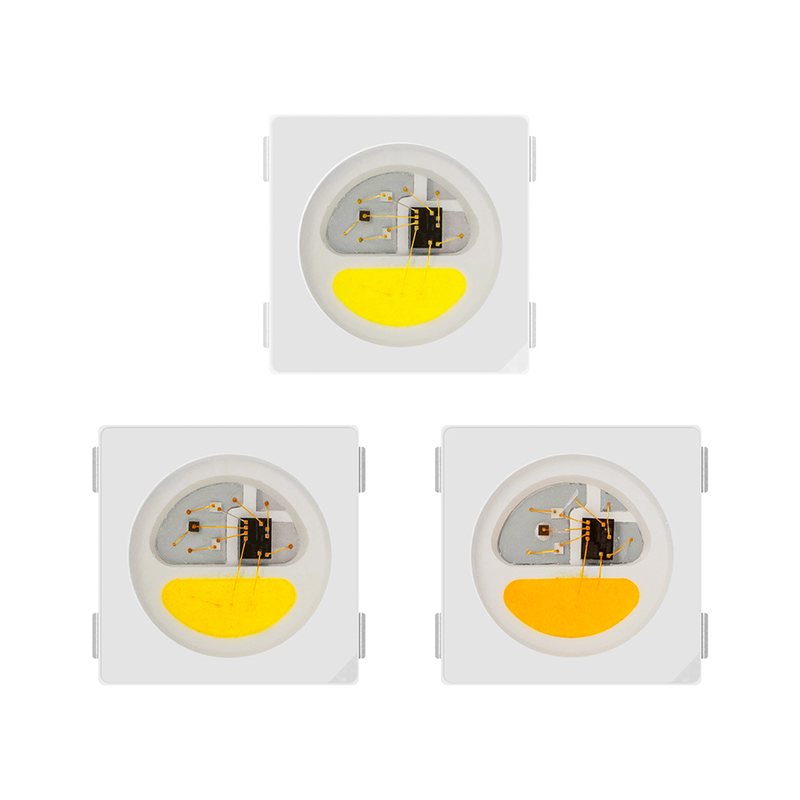

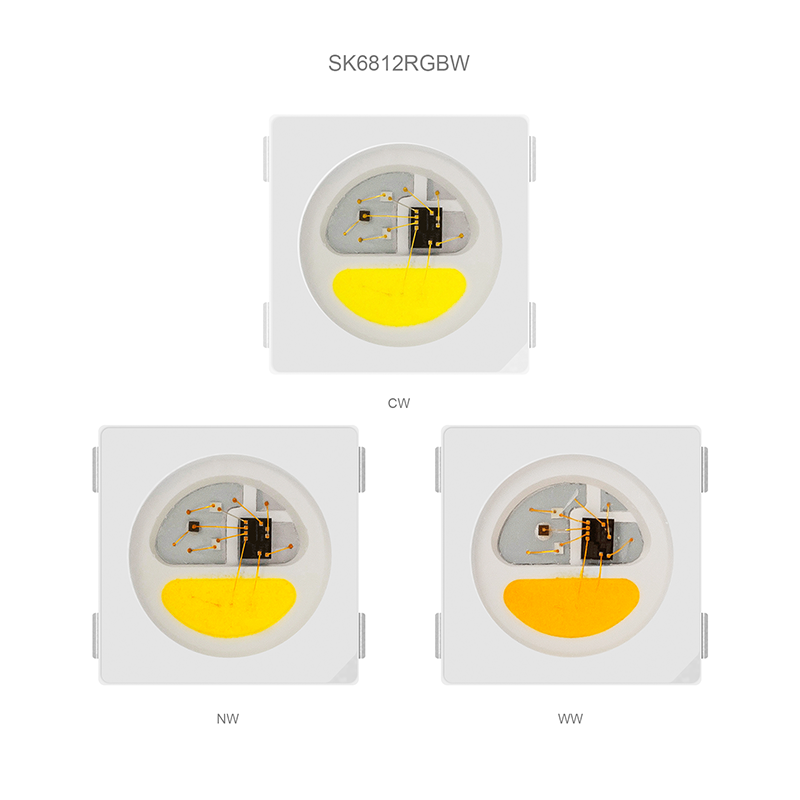

  • Colors: RGBW: RGB+White(6000-7000K), RGBWW: RGB+Warm White(2700-3000K), RGBNW: RGB+Natural White(4000-4500K)
  • Wavelengths: Red(620-630nm), Green(515-525nm), Blue(460-470nm), Warm White(2700-3000K), Cool White(6000-7000K), Natural White(4000-4500K)
  • IC Type: SK6812 Built-In
  • Pin Configuration:
  • NO.1 Symbol: VDD Function Description: Power Supply LED
  • NO.2 Symbol: DOUT Function Description: Control Data Signal Output
  • NO.3 Symbol: VSS Function Description: Ground
  • NO.4 Symbol: DIN Function Description: Control Data Signal Input
  • Absolute Max Ratings:(Ta=25℃,VSS=0V)
  • Power Supply Voltage Symbol: VDD Range: +3.5V-+5.5V
  • Logic Input Voltage Symbol: V(IN) Range: -0.5-VDD+0.5V
  • Working Temperature Symbol: Topt Range: -40-+85℃
  • Storage Temperature Symbol: Tstg Range: -50-+150℃
  • ESD Pressure Symbol: V(ESD) Range: 4KV
  • View Angle: 120°
  • Lifespan: 50,000 Hours
  • 2 Years Warranty


1*RGBW SMD LED Chips With SK6812 IC
