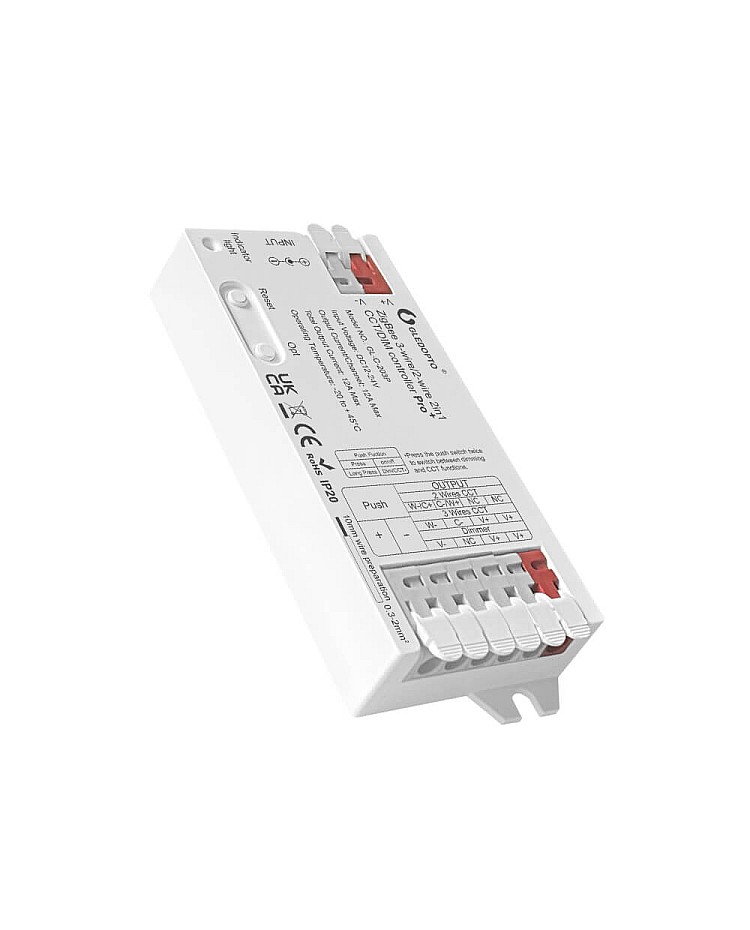

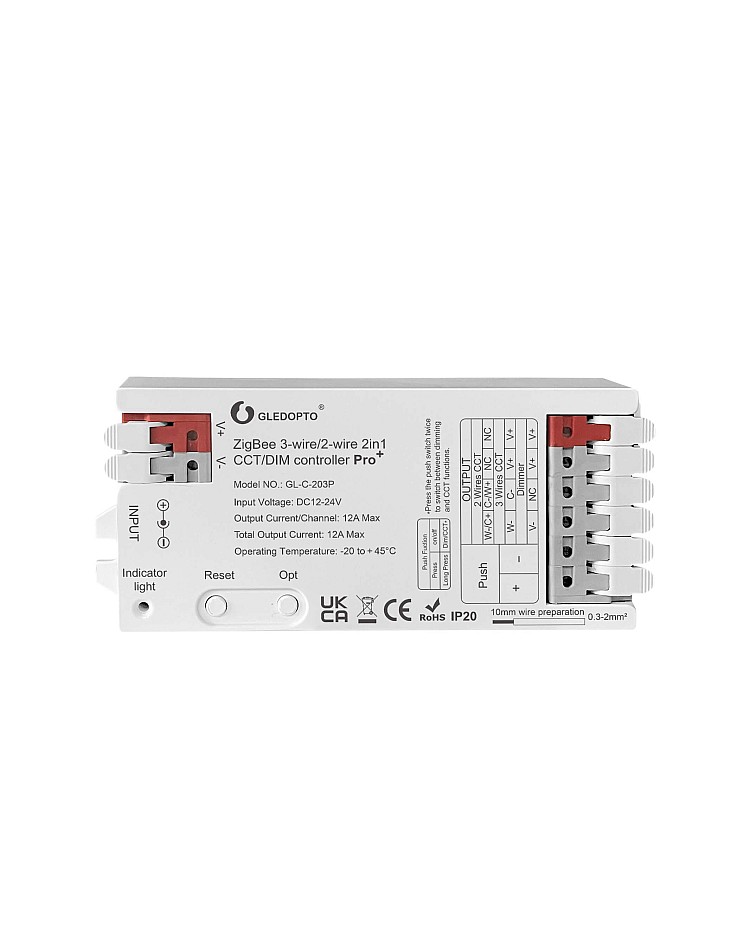

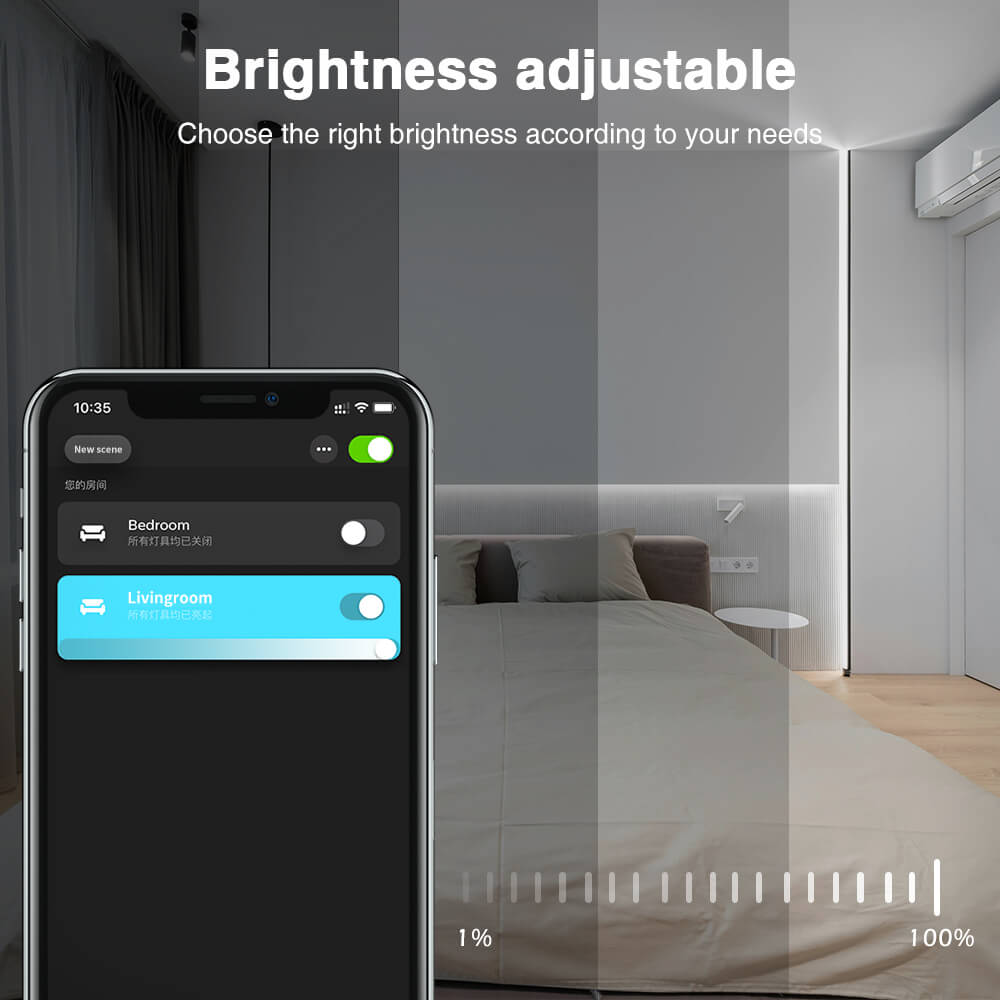

The Gledopto GL-C-203P 2-wire LED strip controllers are designed for smart CCT lighting applications. They use advanced Zigbee 3.0 technology and support 2.4 GHz RF, enabling smooth adjustment between warm and cool white while delivering stable dimming performance.

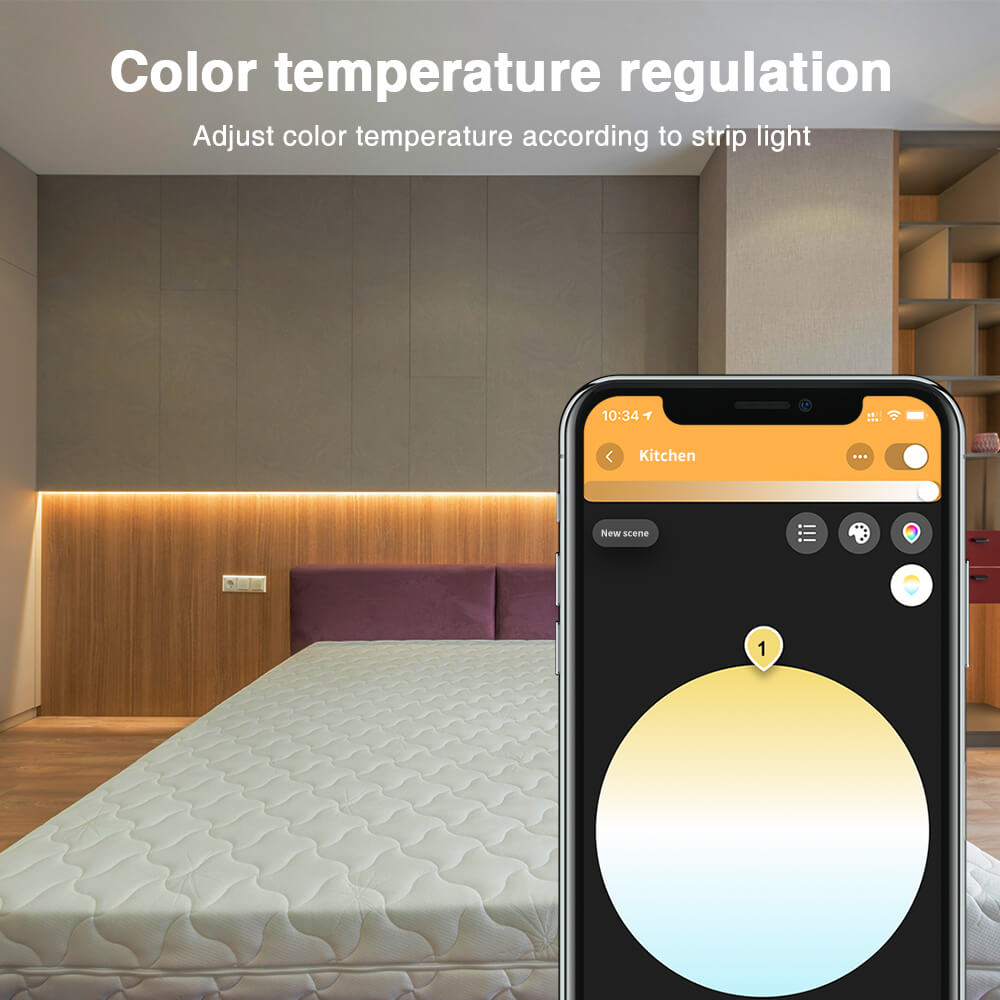

Compatible with most 2-wire CCT strip lights, the Gledopto controller provides precise control over brightness and color temperature to create comfortable lighting in kitchens, bedrooms, offices, retail spaces, hotels, and other areas. It works with Zigbee gateways such as Philips Hue, Home Assistant, Tuya, Alexa, and others, letting you control the LED lights from a phone app. You can also control it with the Gledopto remote to easily change the lighting effect.

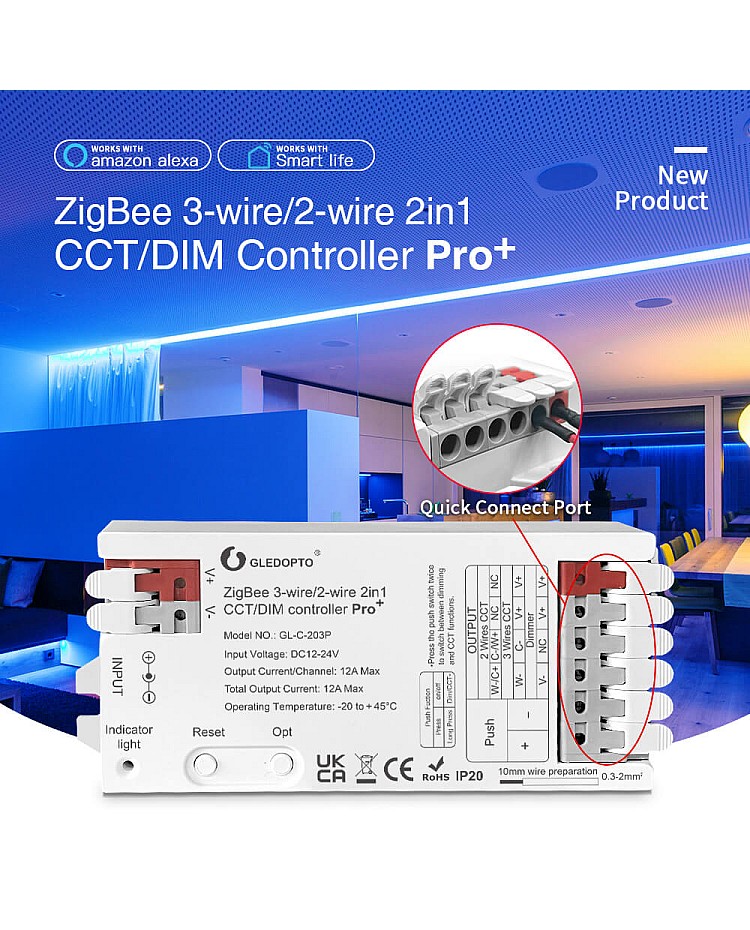

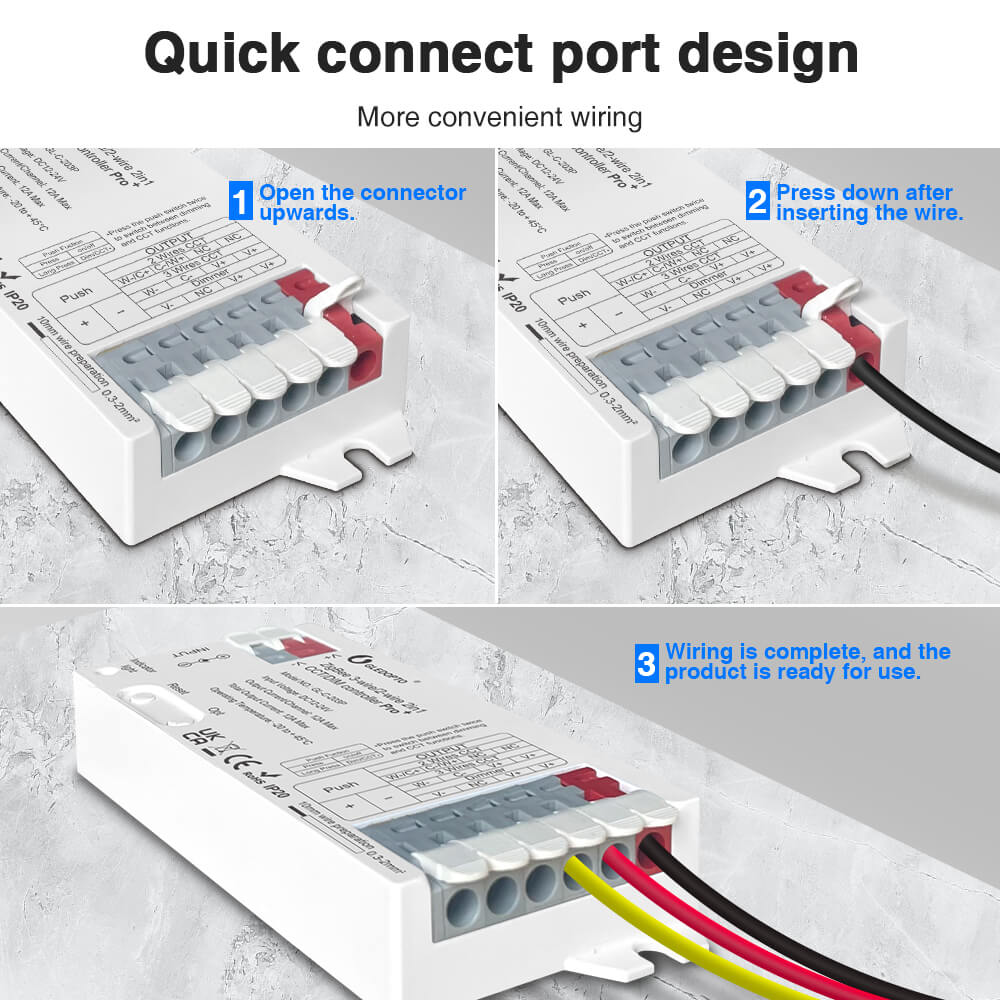

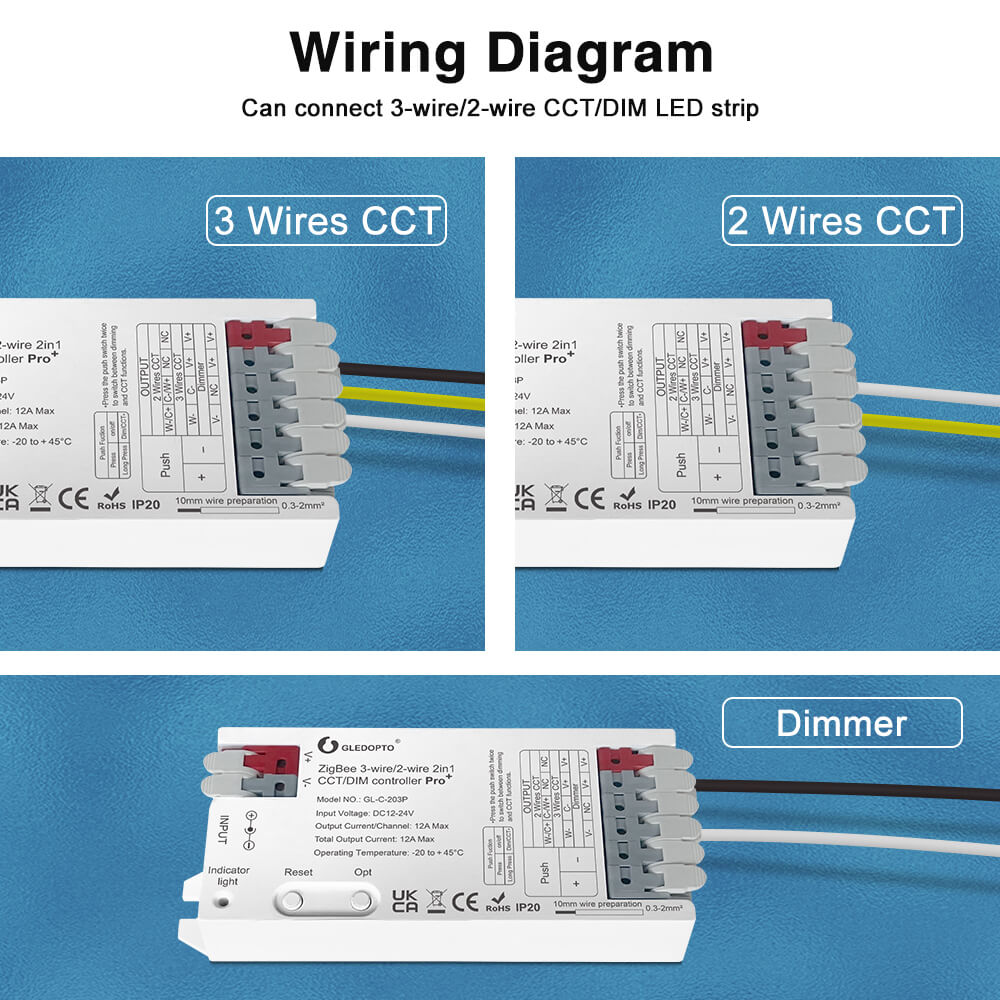

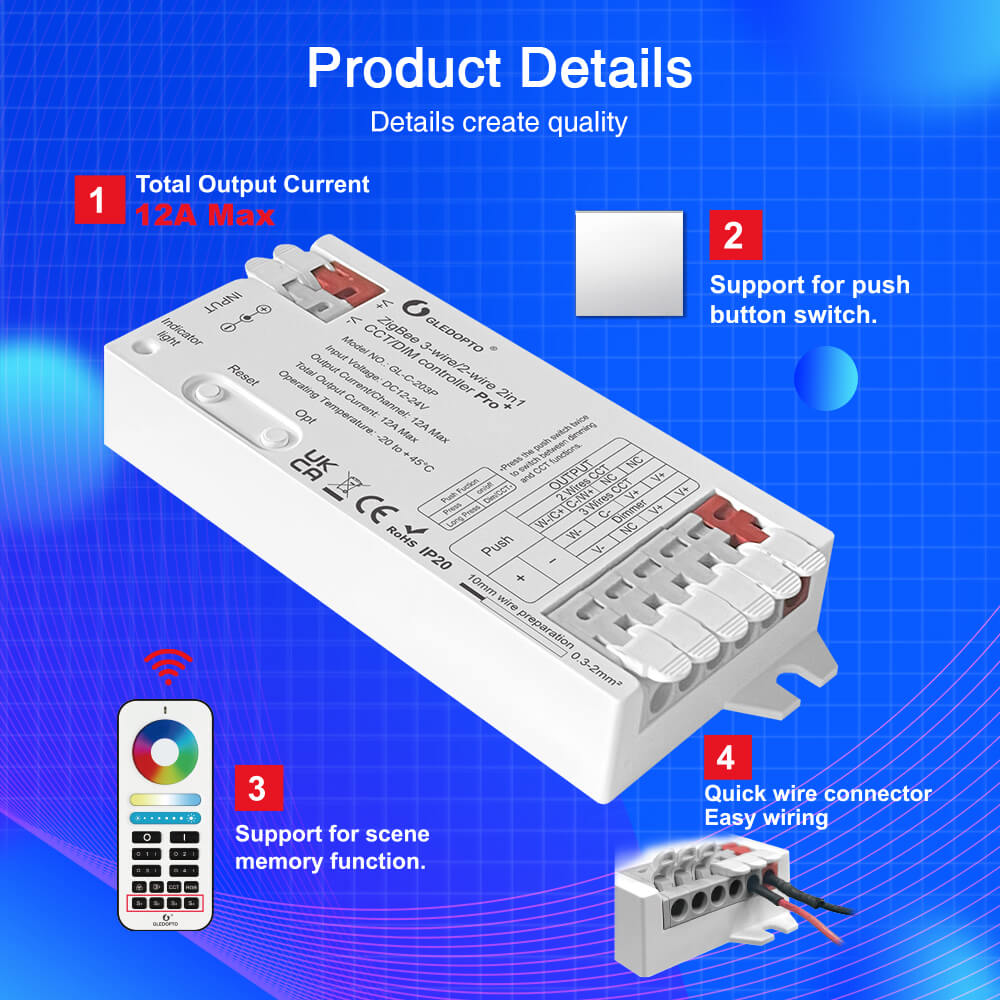

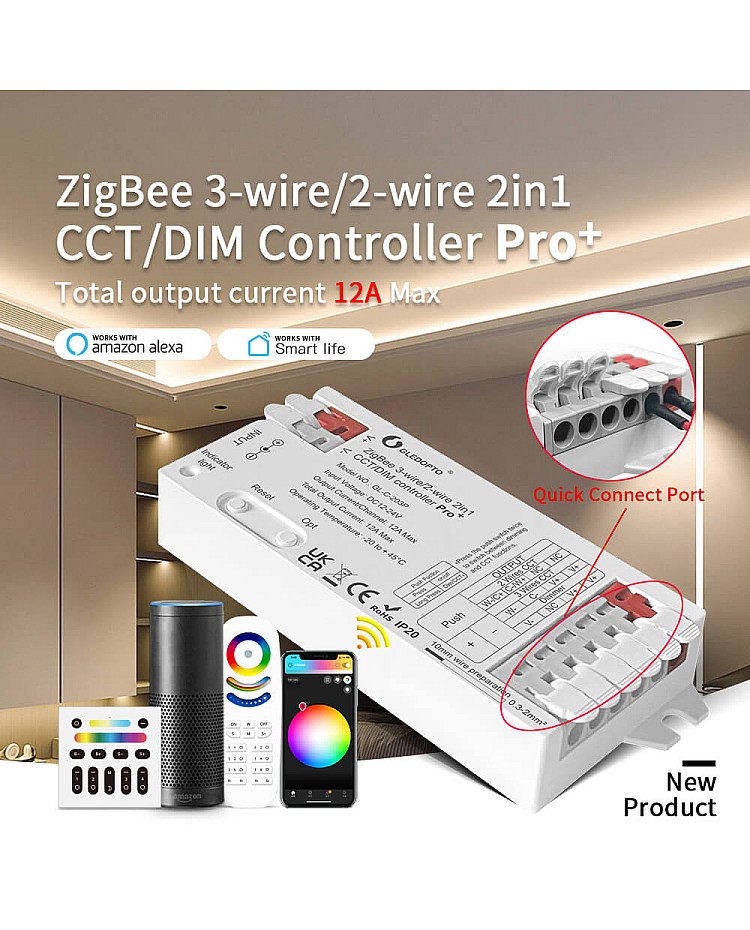

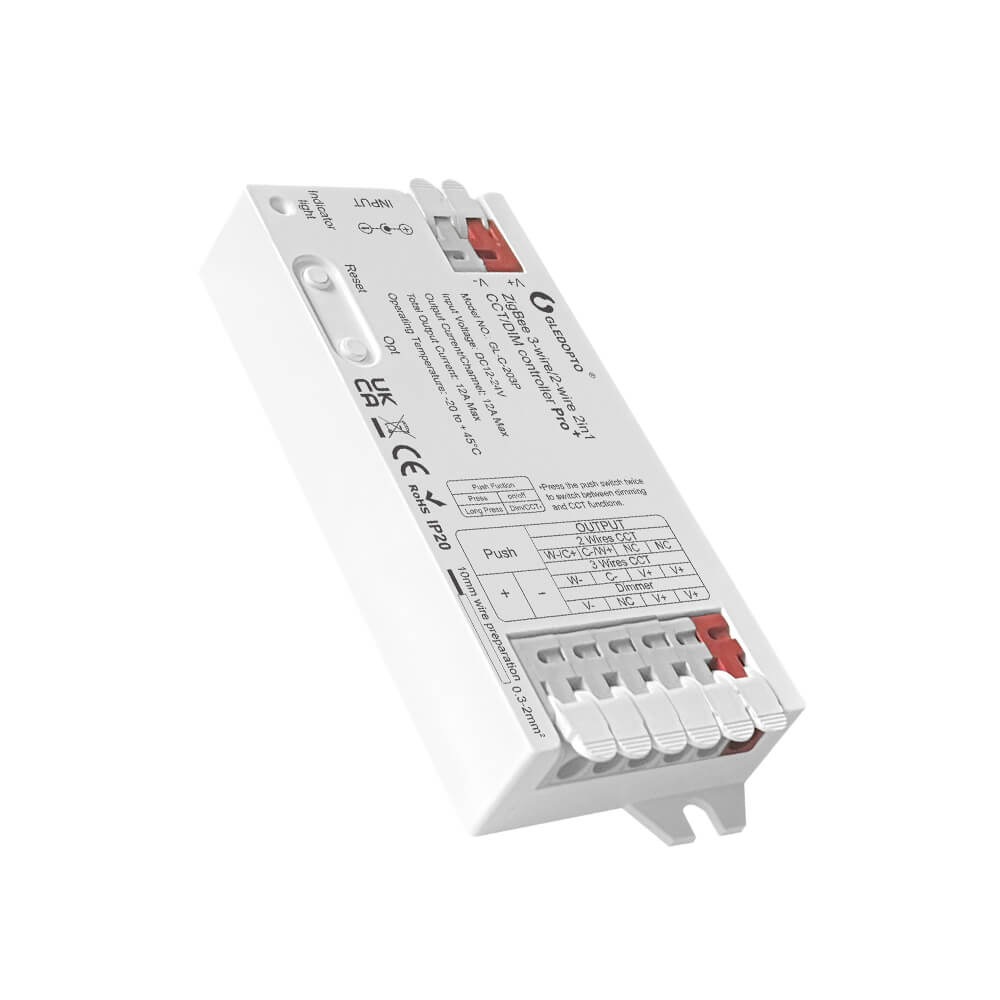

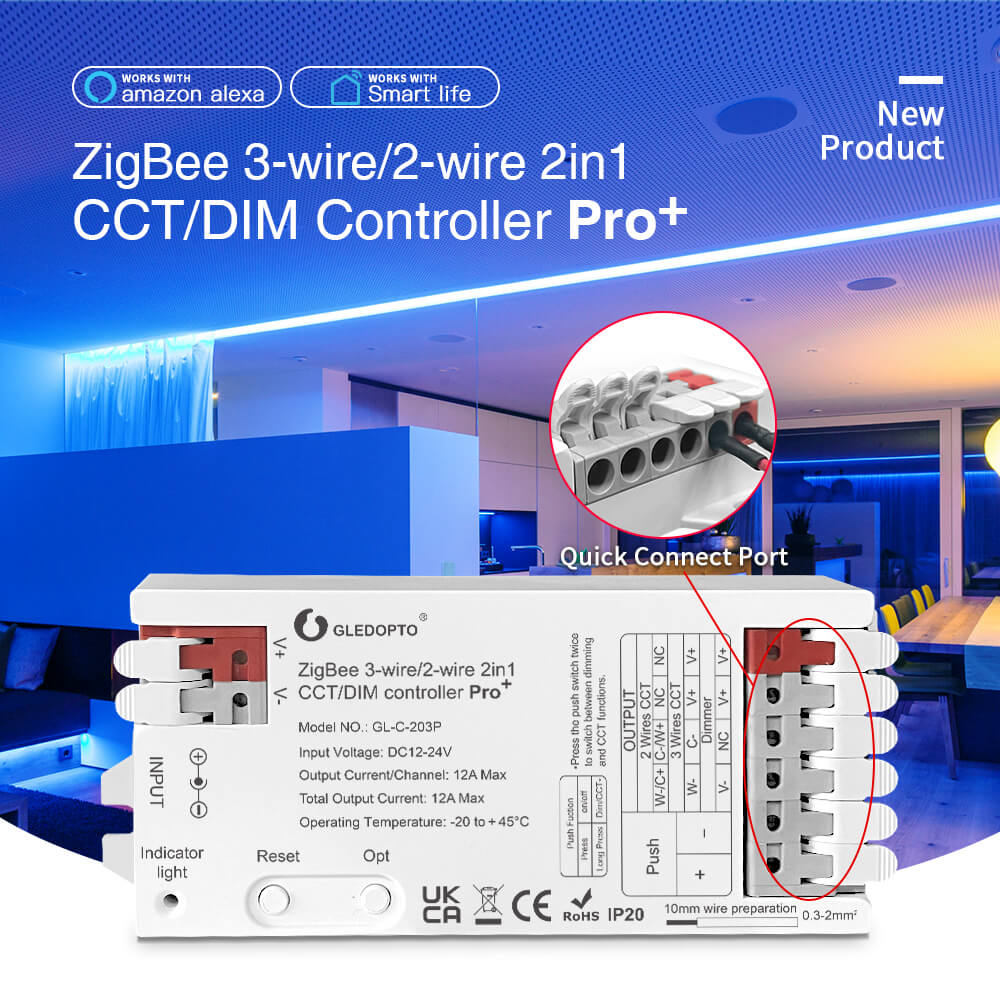

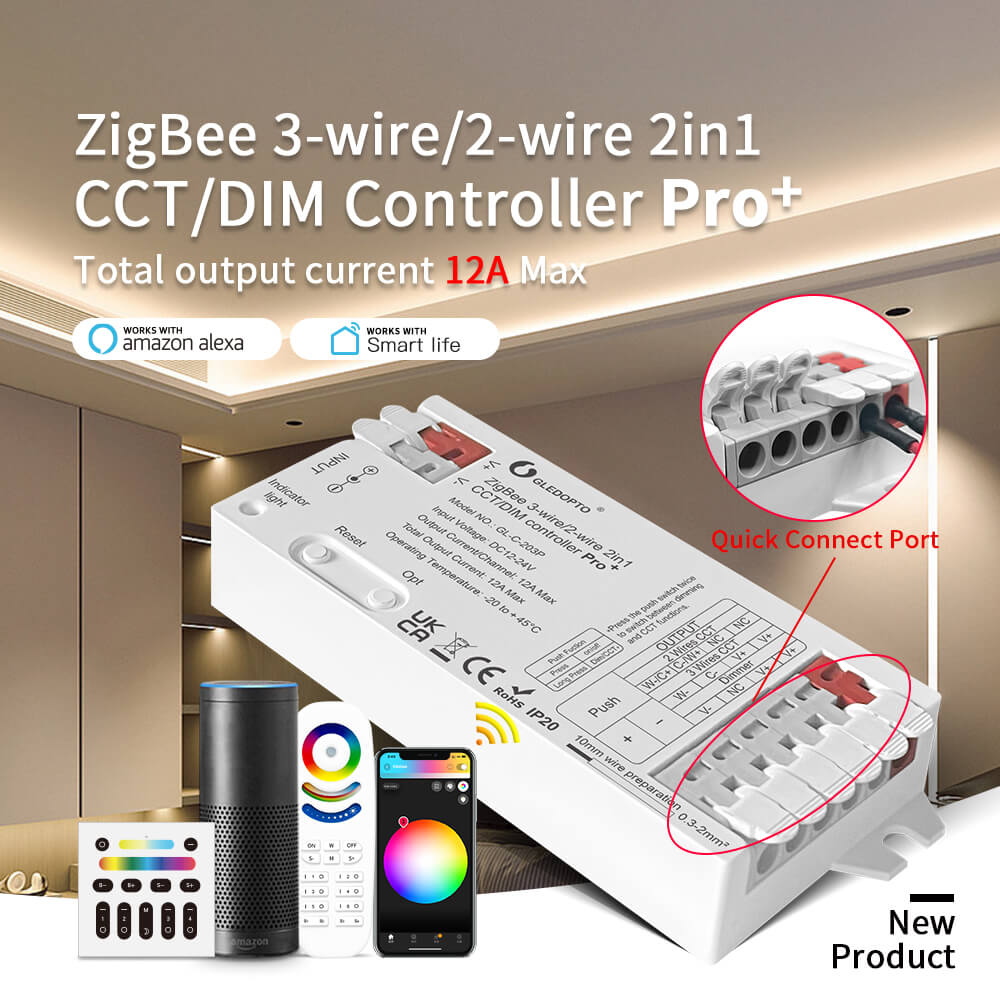

It features a quick-connect terminal design that simplifies wiring and installation for 2 or 3-wire CCT LED strips. Operates on DC12-24 constant-voltage systems and supports up to 12A of output, making it suitable for longer LED strip runs and high-power tunable white lighting applications.
Link: GL-C-203P User manual
Specifications:

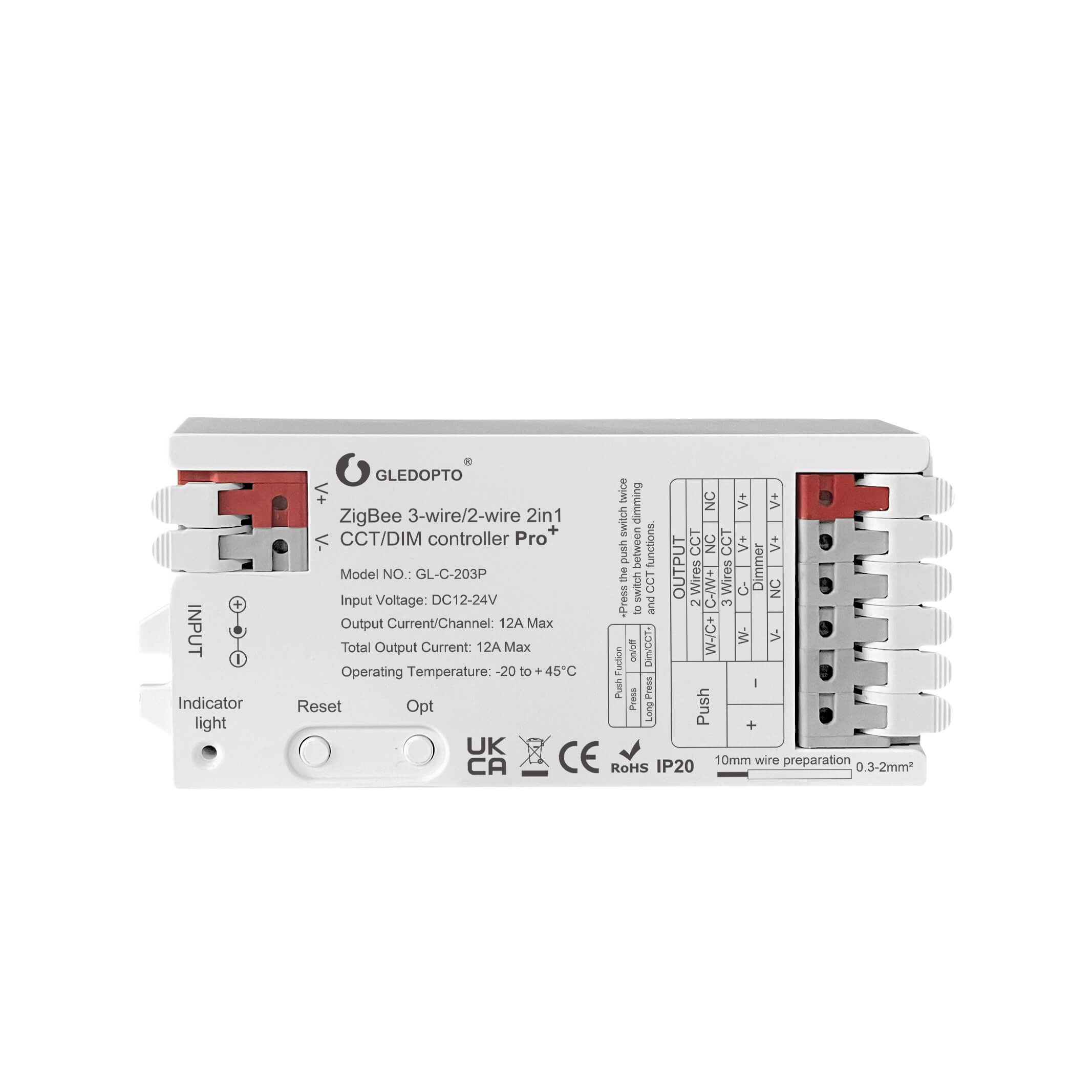

- Type: 2-wires/3-wires tunable white LED controller
- Model: GL-C-203P
- Material: Flame-resistant PC
- Color: White
- Size: ( L X W X H ):108 x 46 x 18mm/4.25" x 1.81" x 0.71"
- Input voltage: DC12-24V

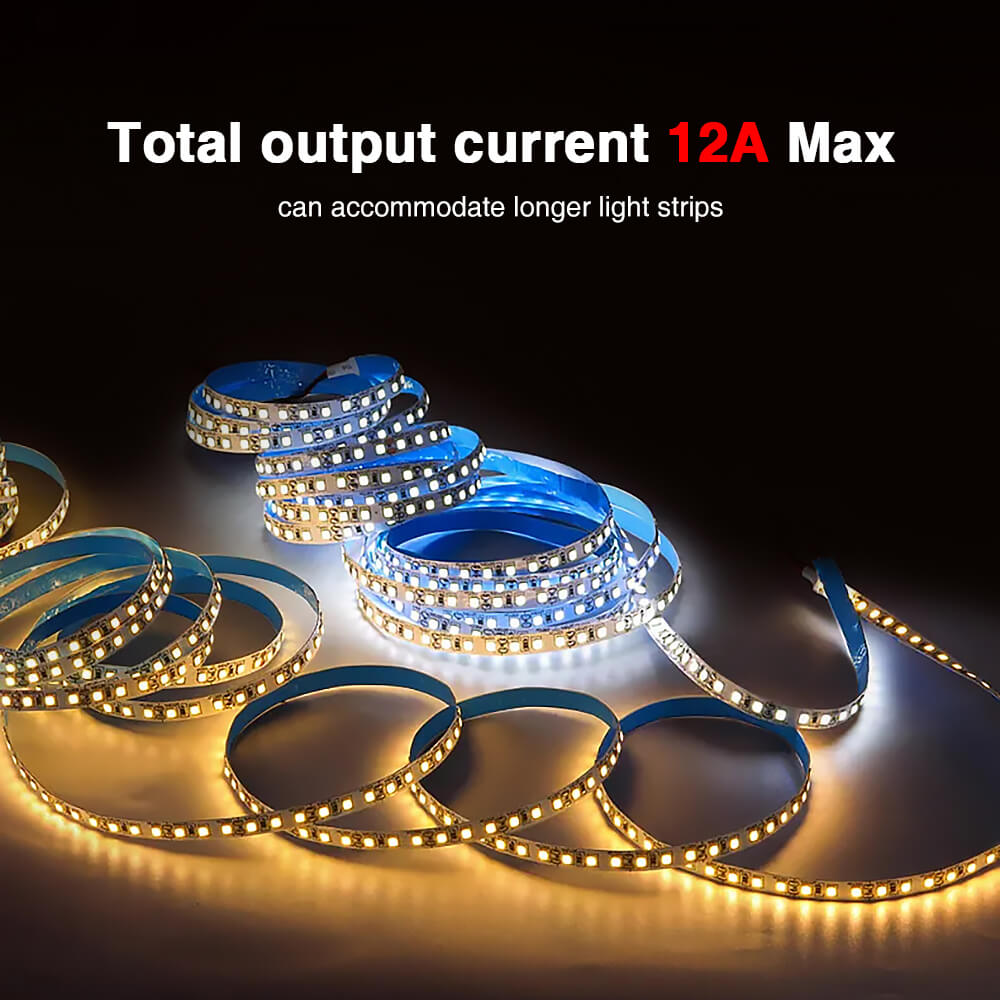

- Output current: 12A Max
- Output current per channel: 12A Max
- Wireless communication protocols: Zigbee, 2.4G RF

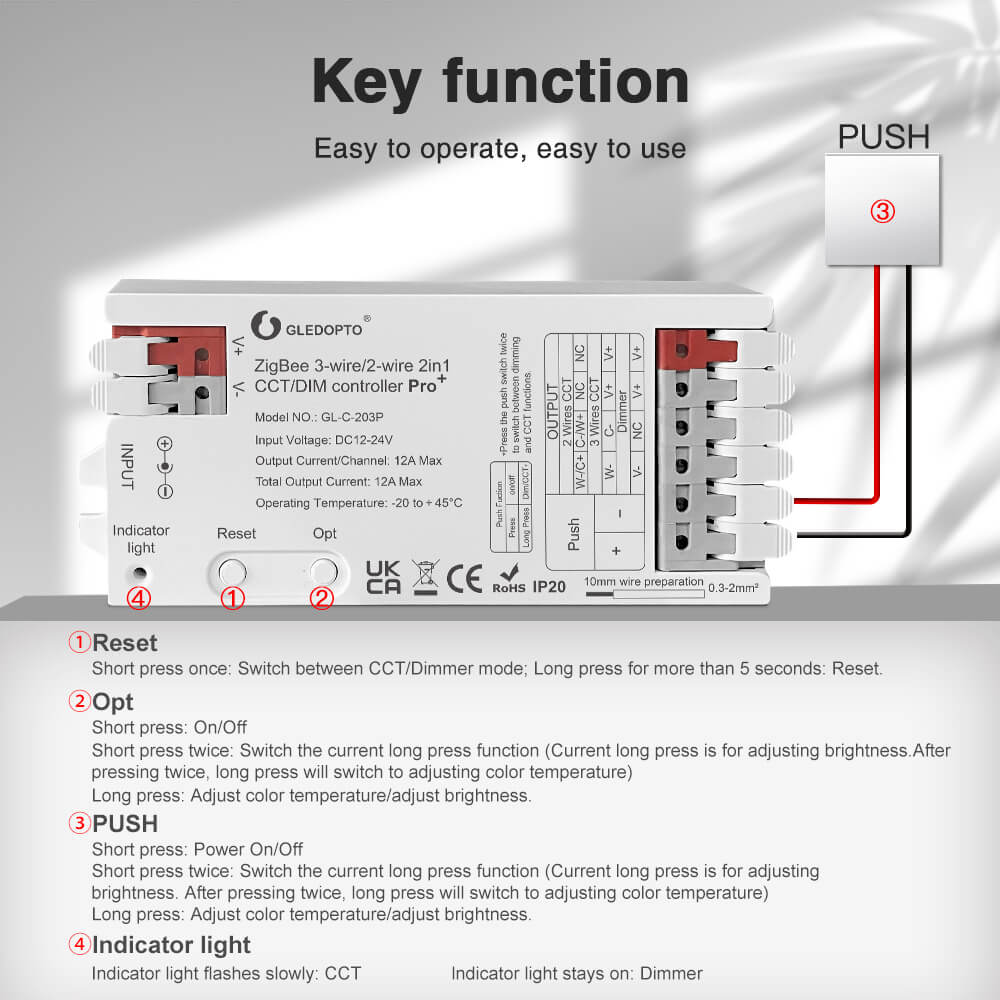

- Support push dimming
- Waterproof level: IP20 non-waterproof
- Working temperature: -20℃-+45℃
- Warranty: 2 years

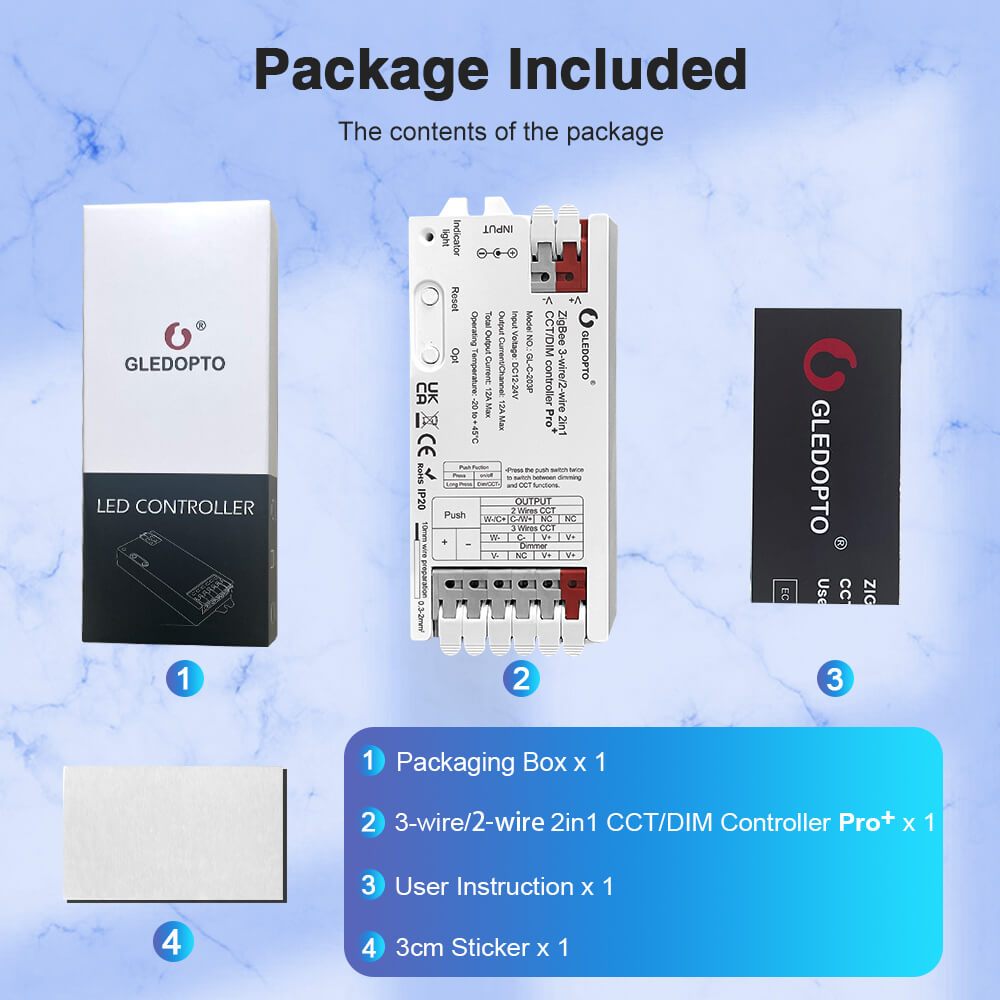

Includes:
1 x Tunable white LED strip controller
1 x User manual
