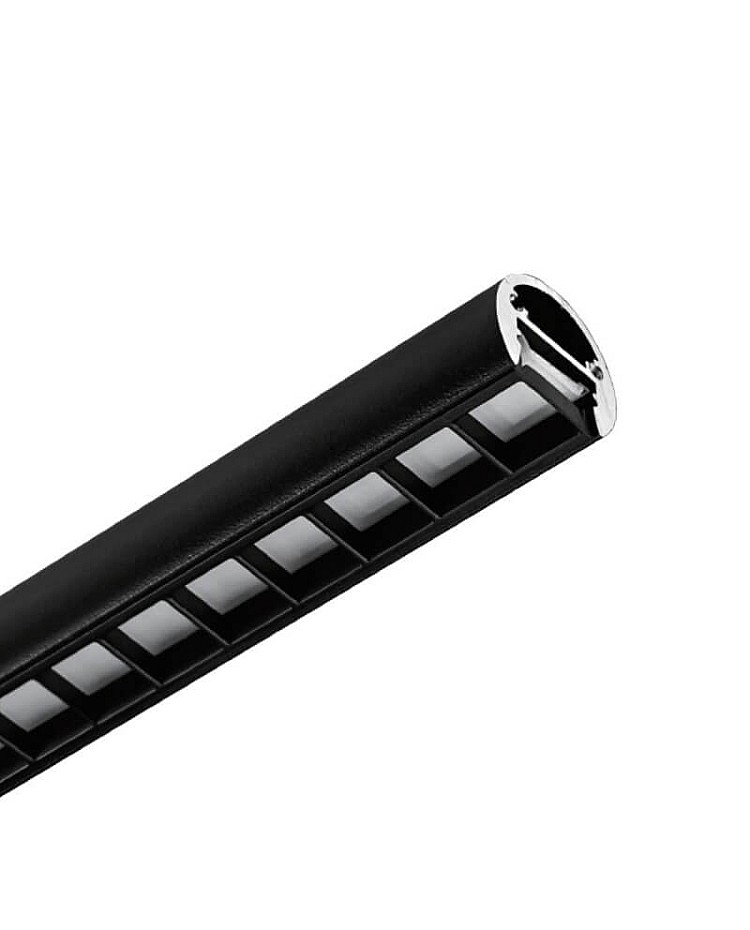

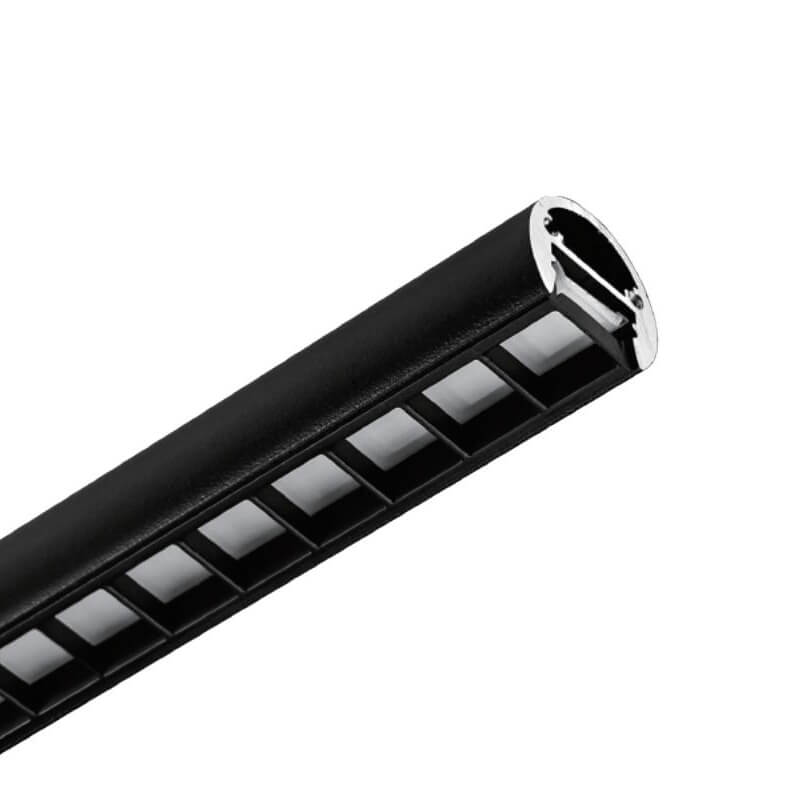

The mini LED linear profile is a compact, extruded aluminum channel designed to create clean, professional linear lighting installations. With a slim 20mm round structure, it's suitable for decorative, architectural, retail, hospitality, residential, and commercial lighting applications.

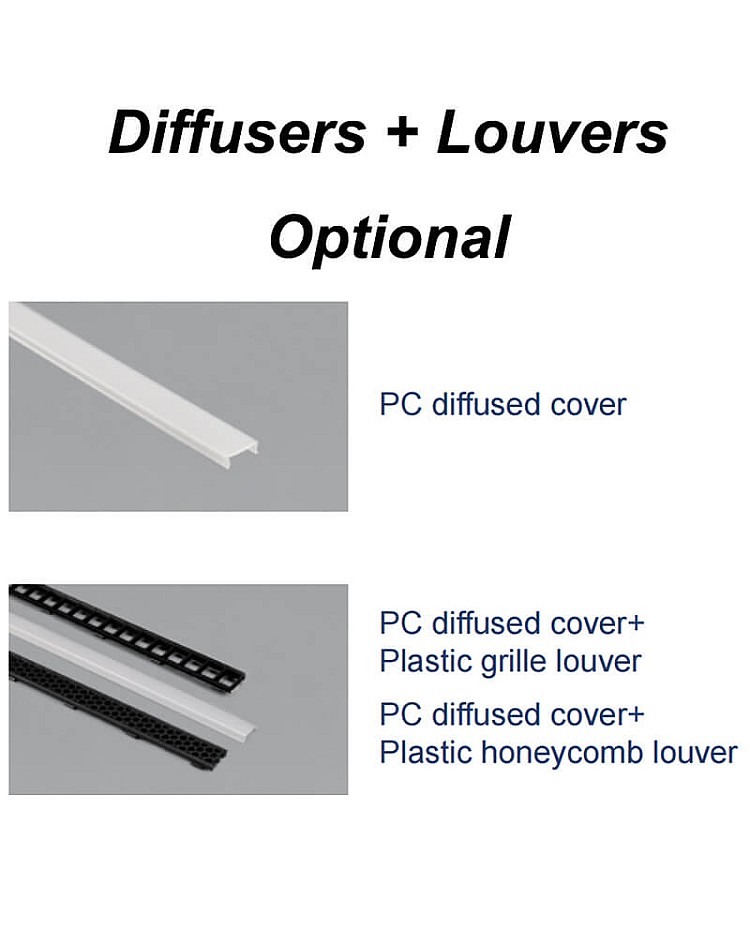

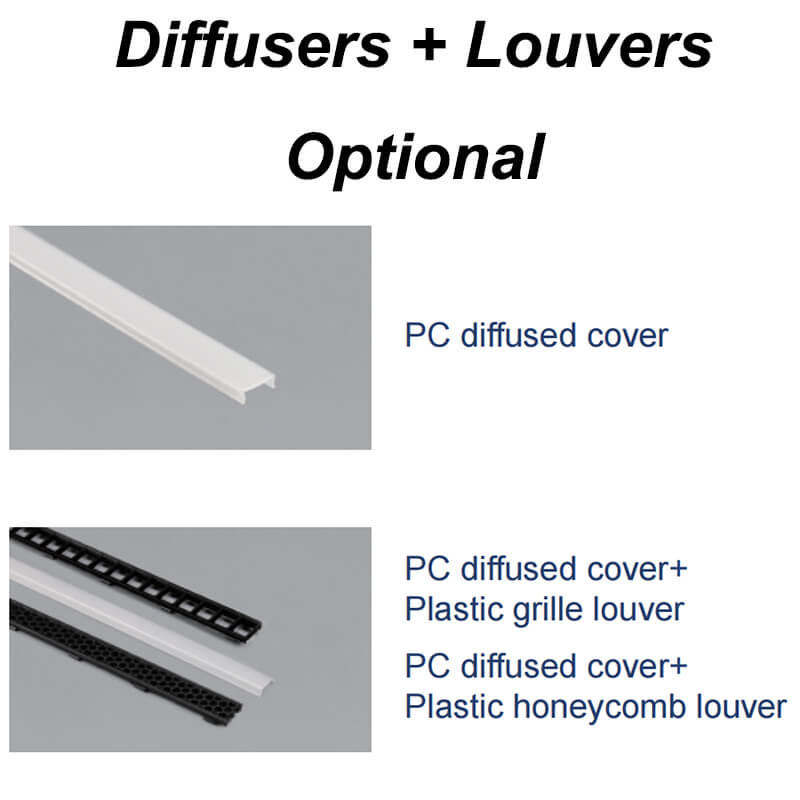

It comes with PC diffused covers and offers two types of louvers: grille and honeycomb louvers. The plastic diffuser helps create a smooth, uniform lighting effect; grille and honeycomb louvers can improve glare control and visual comfort.
Crafted from premium-quality 6063-T5 extruded aluminum and with a black powder-coated finish, the black linear channel has corrosion resistance and a longer lifespan. The 1m and 2m lengths are available and can be free-cut to any size you desire. The inner width is 13.2 mm, and the maximum width of tape stripes is 13mm. Recommend adding high-density COB tape lights to create a uniform, dotless lighting.

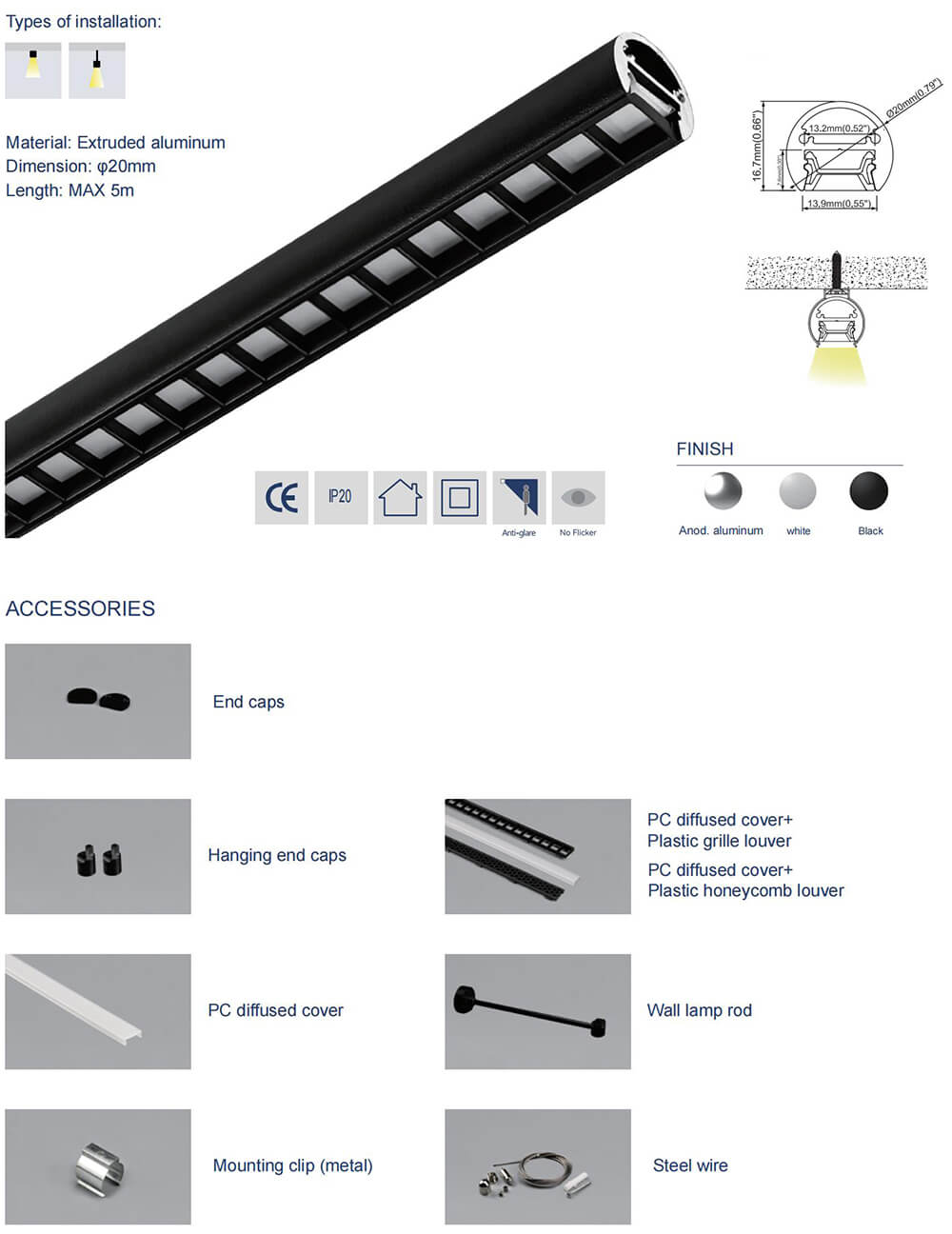

The linear profiles support multiple installation methods, including suspended installation and wall-mount applications. A range of compatible accessories is available: end caps, hanging end caps, metal mounting clips, wall lamp rods, and steel wire suspension kits.
Specifications:
- Material: Extruded aluminum 6063-T5
- Surface treatment: Powder-coated
- Color: Black

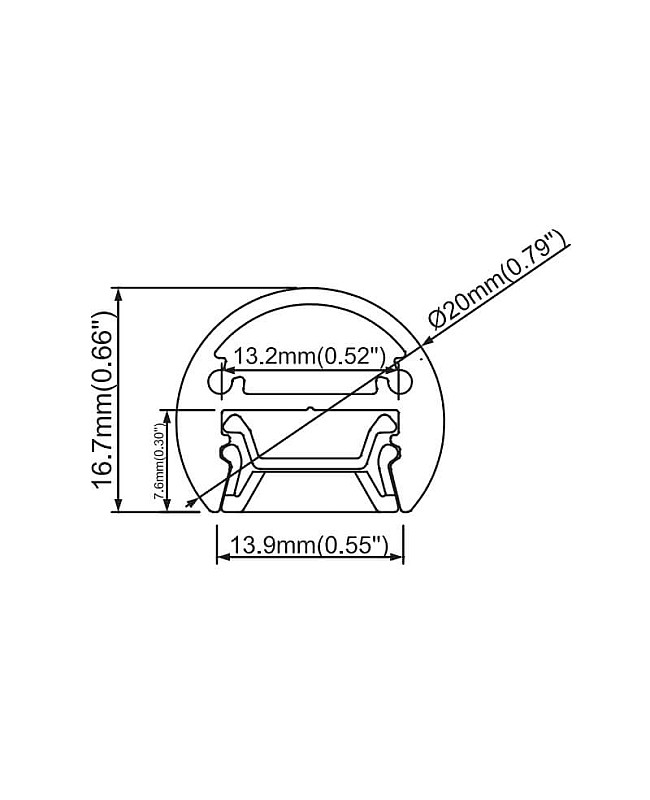

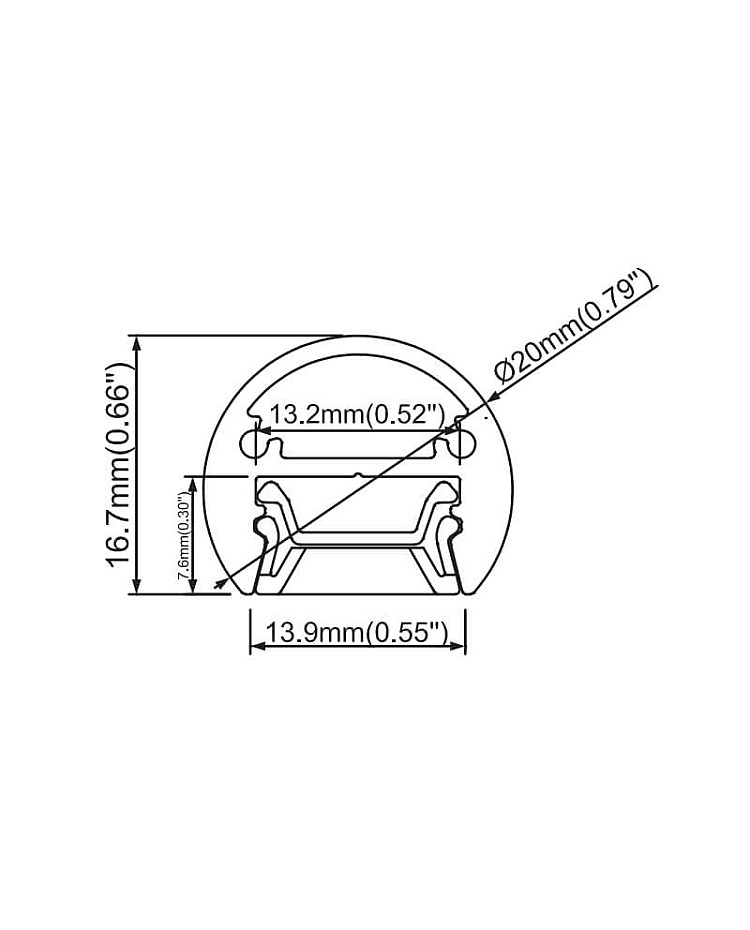

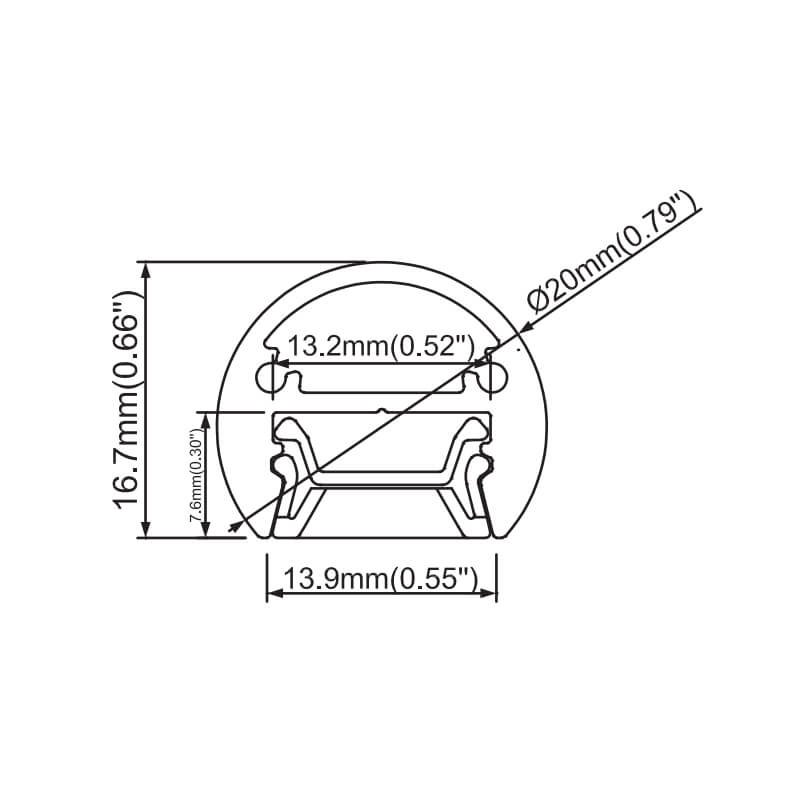

- Size: Ø 20mm ( 0.79" )
- Lengths: 1 m ( 39.37 ), 2 m ( 78.74" )
- Custom length available: YES
- Inner width: 13.2 mm ( 0.52" )
- Maximum strip light width: 13mm (0.51")51" )
- Maximum power: 15W/m
- Diffusers: PC diffused covers only
- Louvers: Plastic grille louvers, plastic honeycomb louvers ( Length: 305 mm ( 12.01" ) per piece )
- End caps included
- Metal mounting clips, stainless steel wires, and wall lamp rods are optional

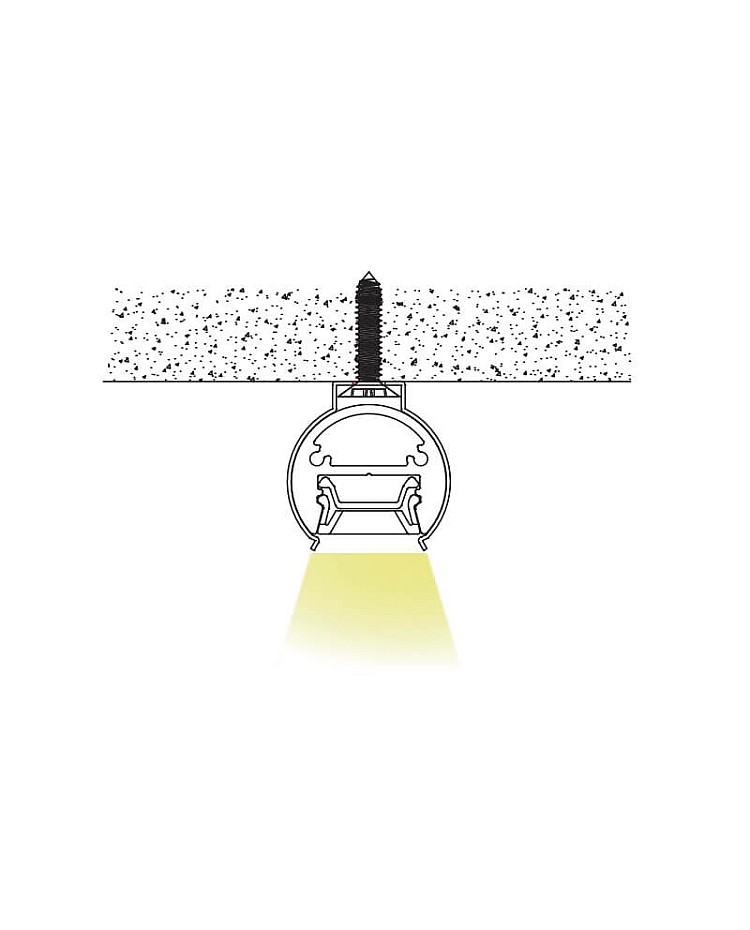

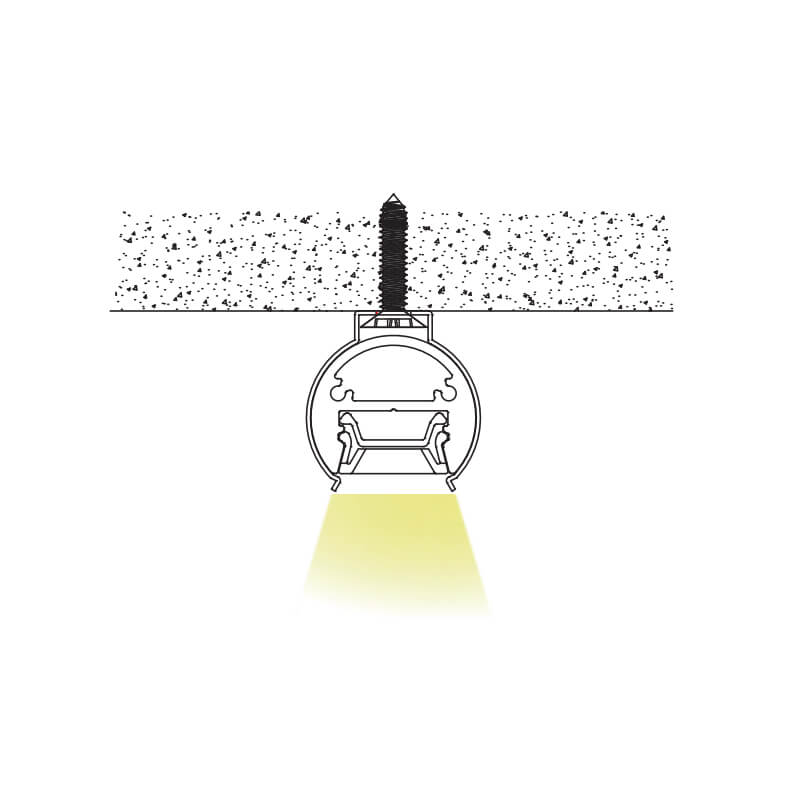

- Installation methods: Surface-mounted. suspended
- Warranty: 5 years
Includes:
1 x Round aluminum LED profile
1 x LED strip plastic diffuser
1 x Plastic grille louver / Plastic honeycomb louver ( optional )
1 x End Caps
1 x Metal mounting clips / Stainless steel wires ( optional )
