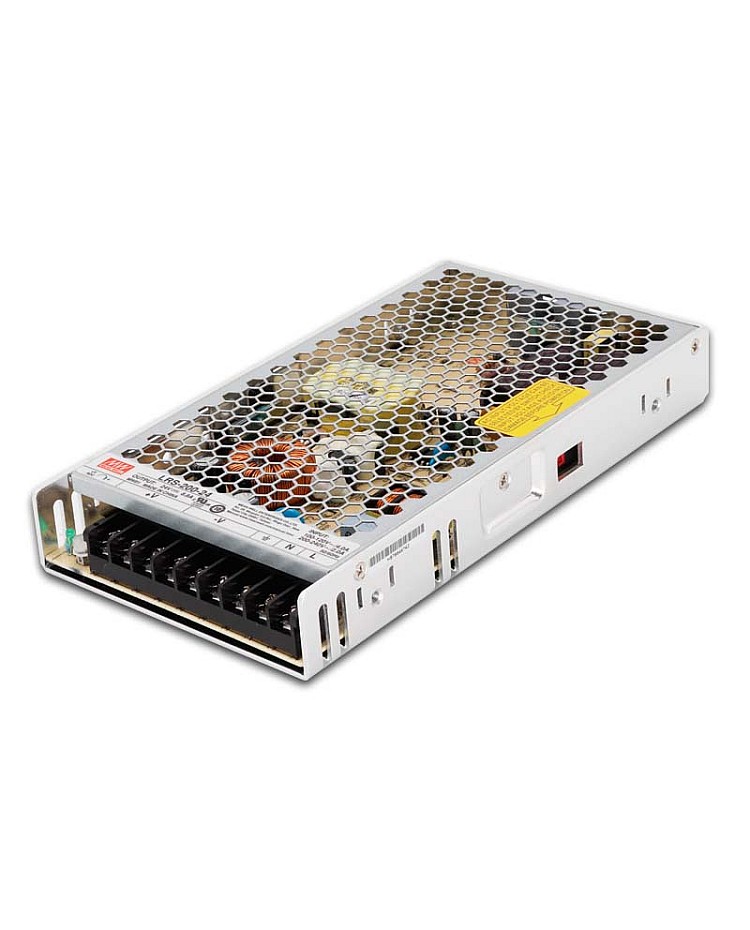

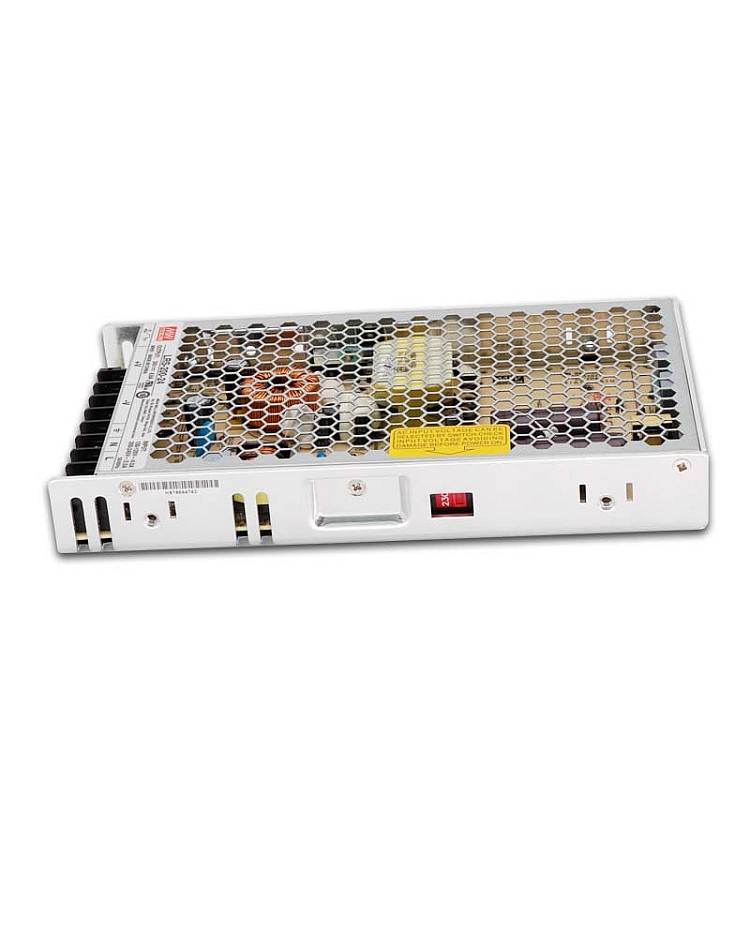

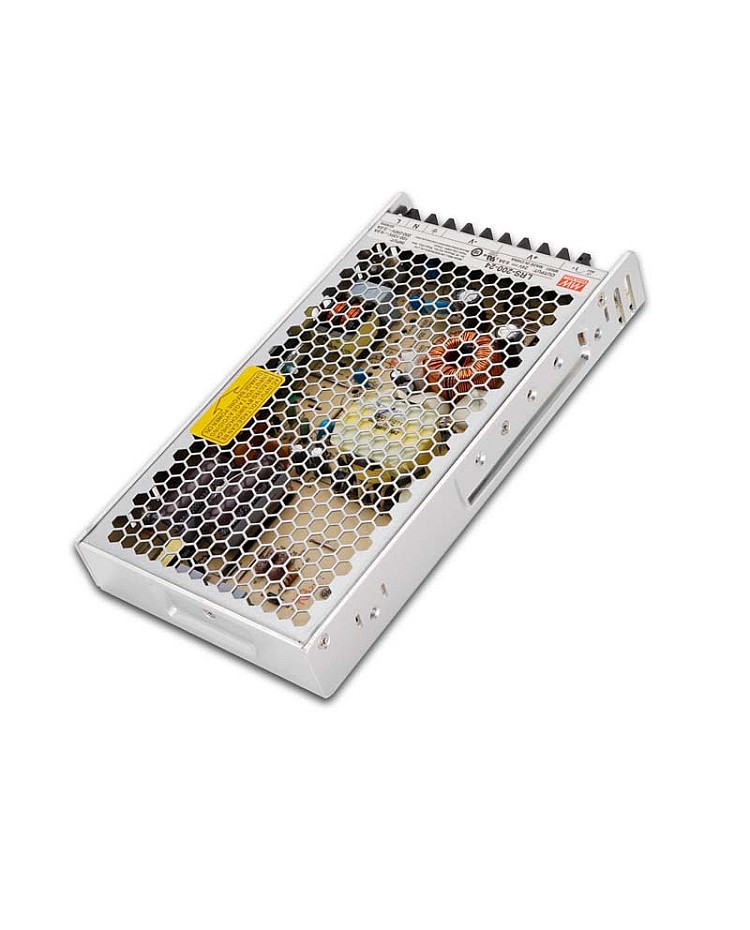

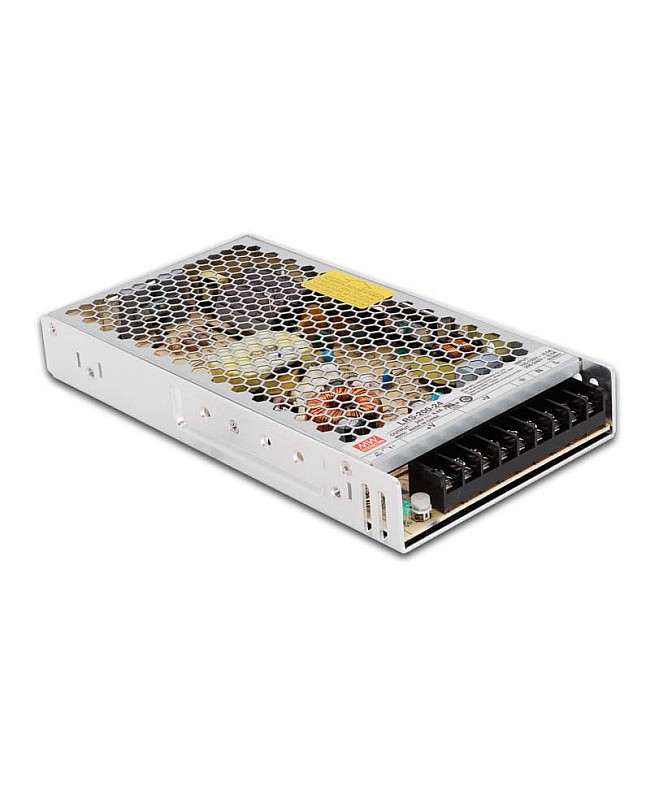

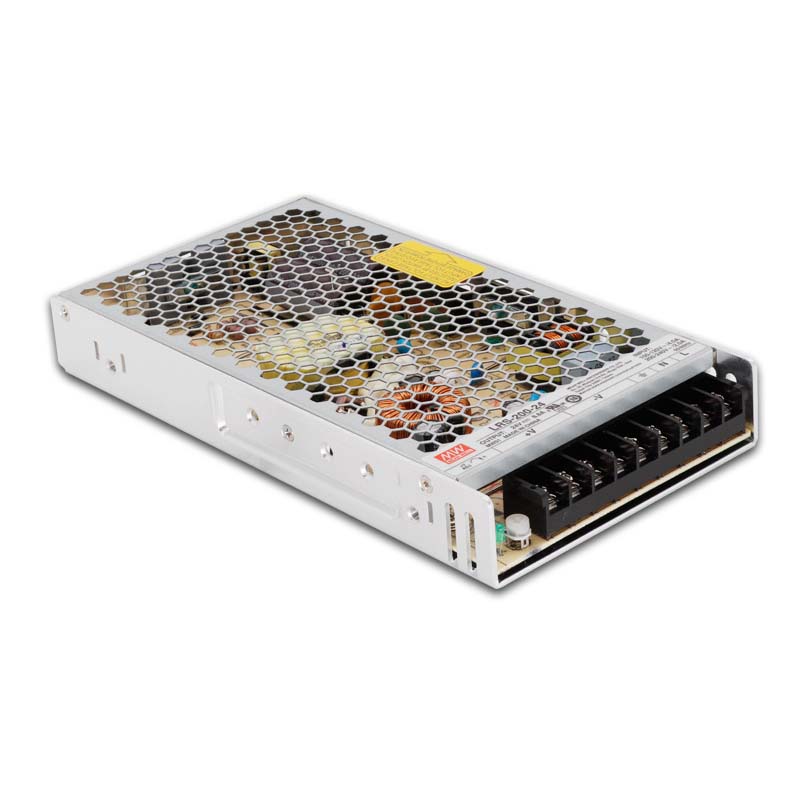

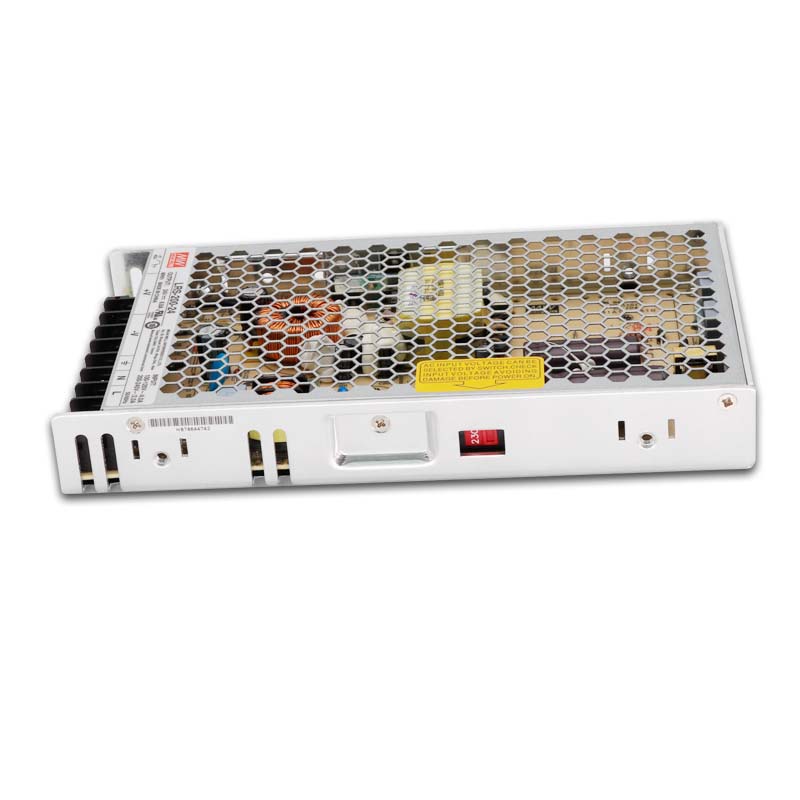

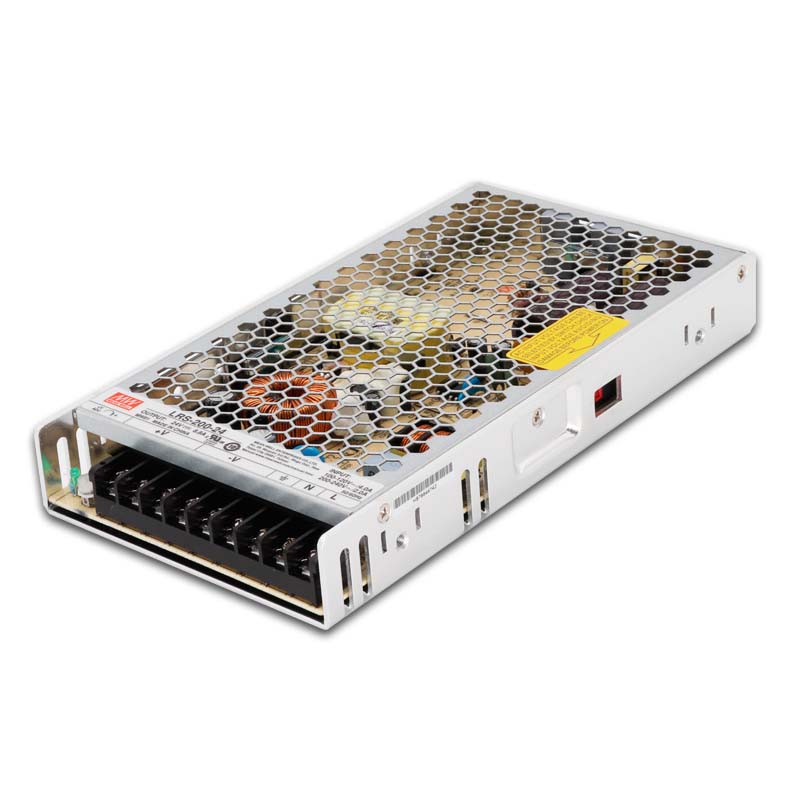

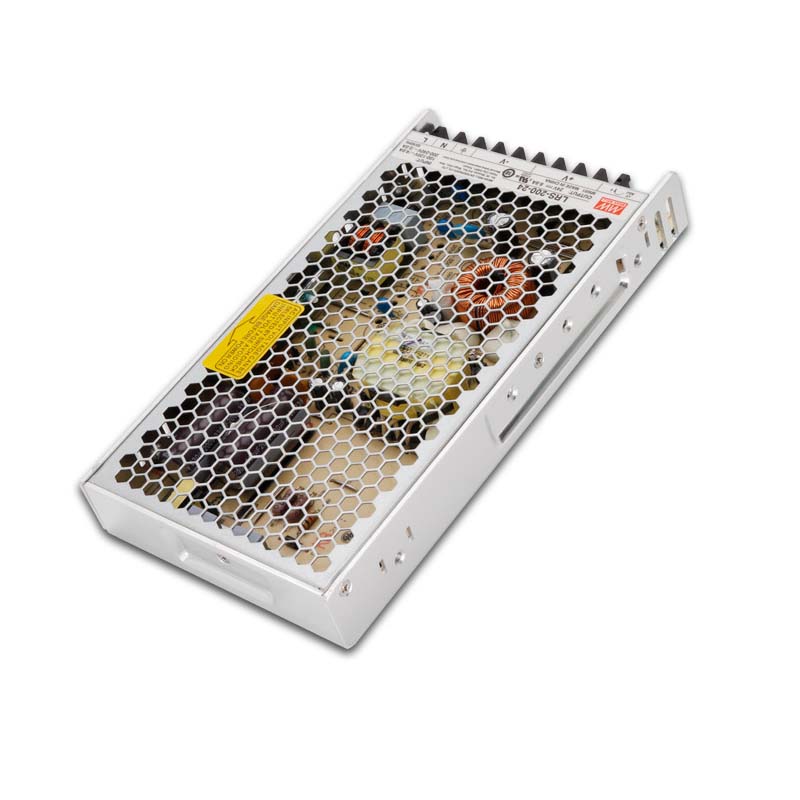

Check the Mean Well 12 Volt Power Supplies LRS-200 series, which is a 200W single-output enclosed type Power Supply with 30mm of low profile design, you can choose the output voltage from DC3.3V to DC48V, the max loading power up to 212.4W when working in DC36V, the input voltage range from AC90V to AC264V by the switch, you can connect to the public power system without an extra adapter.

  • AC Input Range Selectable By Switch
  • Withstand 300VAC Surge Input For 5 Seconds
  • Protections: Short Circuit / Over Load / Over Voltage / Over Temperature
  • Cooling By Free Air Convection
  • 1U Low Profile
  • Withstand 5G Vibration Test
  • LED Indicator For Power On
  • No Load Power Consumption: <0.75W
  • 100% Full Load Burn-In Test
  • High Operating Temperature Up To 70℃
  • Operating Altitude Up To 5000 Meters
  • High Efficiency, Longe Lifespan And High Reliability
  • Safety Regulations: IEC/UL 62368-1
  • 3 Years Warranty

Quick Links:

LRS-200 Specification Document



Features:

  • Model: LRS-200

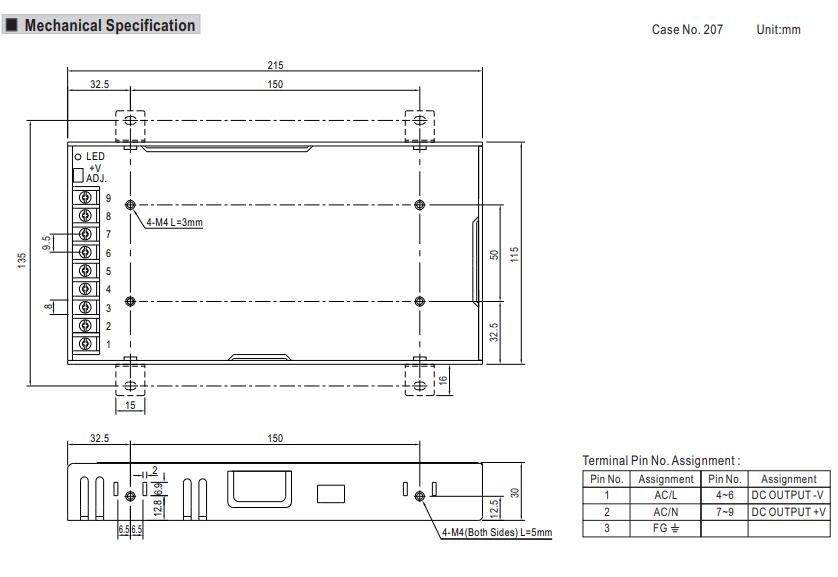

  • Size: 215*115*30mm(L*W*H)
  • Input Voltage: 90-132VAC/180-264VAC By Switch
  • Frequency Range: 47-63Hz
  • Output Voltage: DC3.3V, DC4.2V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
  • Rated Current: 40A(3.3V), 40A(4.2V), 40A(5V), 17A(12V), 14A(15V), 8.8A(24V), 5.9A(36V), 4.4A(48V)
  • Rated Power: 132W(3.3V), 168W(4.2V), 200W(5V), 204W(12V), 210W(15V), 211.2W(24V), 212.4W(36V), 211.2W(48V)
  • Working Temperature: -25℃-+85℃
  • Vibration: 10-500Hz, 5G 10min./1cycle, 60min.each along X, Y, Z axes
  • Over Load Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • 3 Years Warranty


Includes:

1*Mean Well LRS 200 Power Supply
