  • Brand: MiBoxer
  • Product Code: CL Series

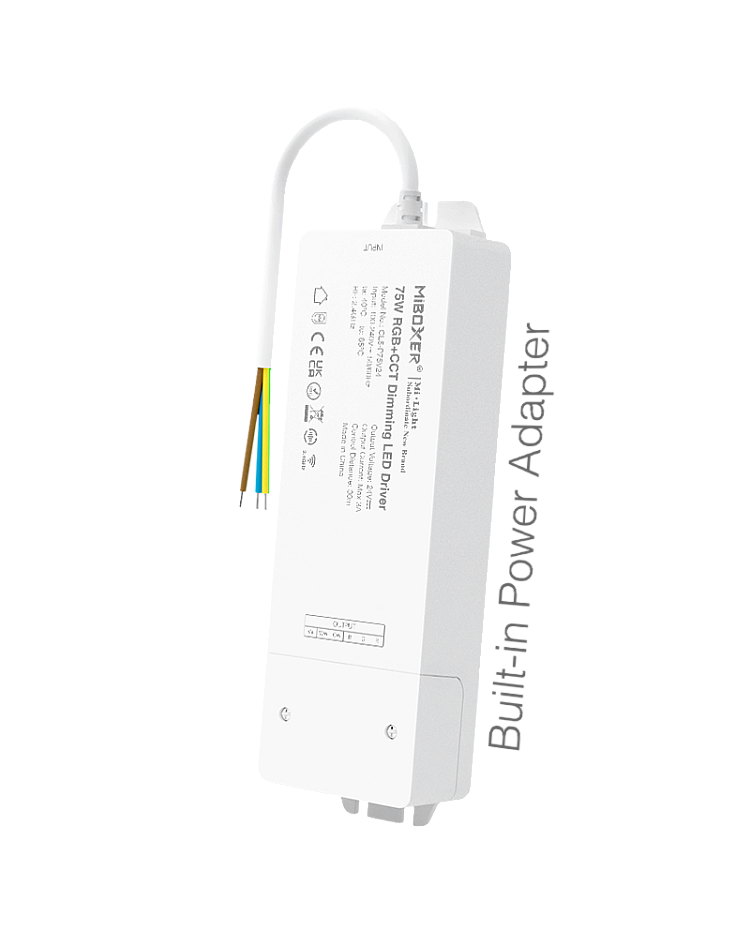

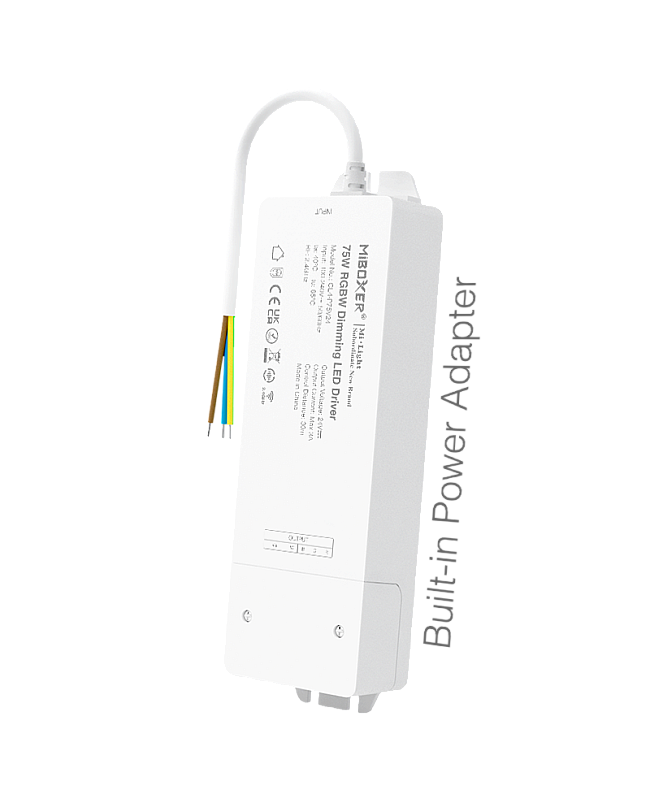

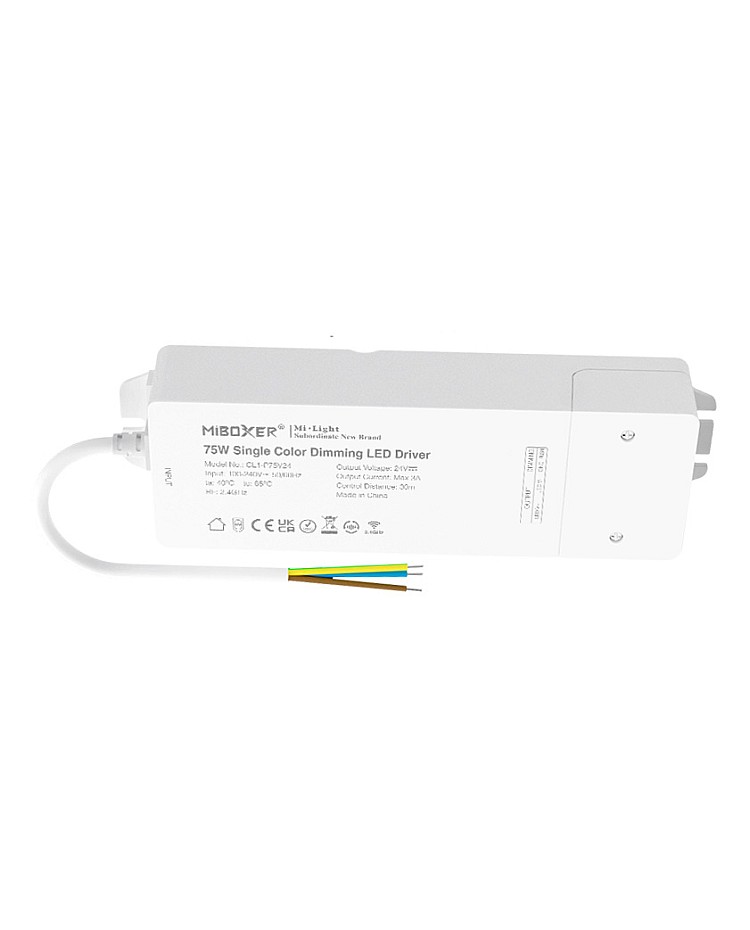

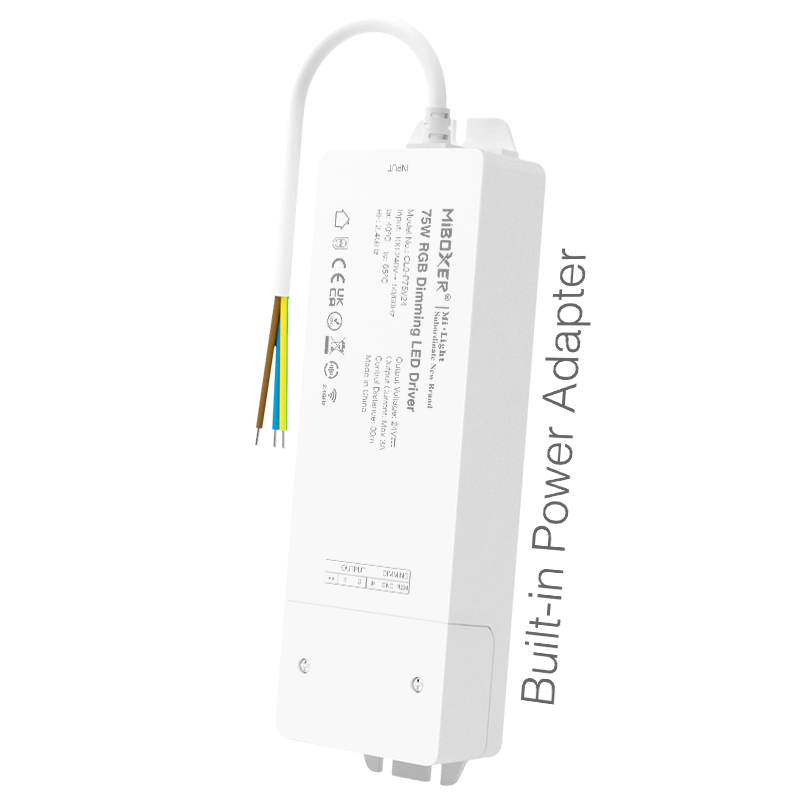

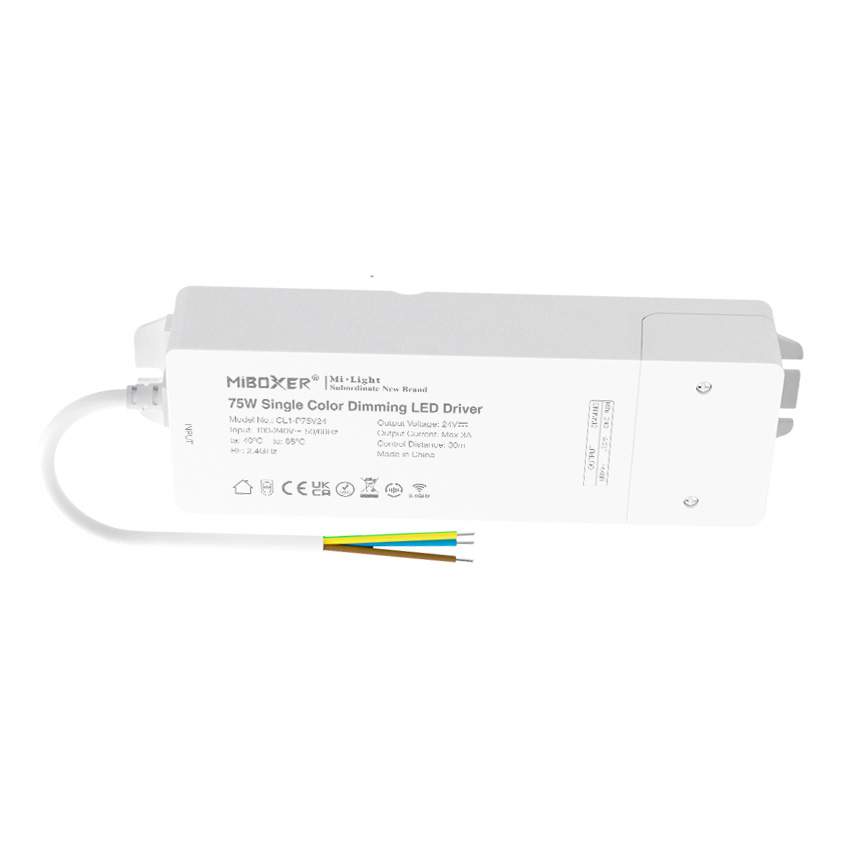

The MiBoxer CL Series Dimmable LED Driver has a constant voltage output design. The output voltage is DC24V, with no extra power adapter, which is convenient to use and suitable for various scenes. The LED Drivers can be controlled by 2.4G RF Remotes, smartphone APP, and third-party voice commands. You can adjust the brightness from 1% to 100% easily. For the Dual White and RGB+CCT Version, you can adjust the color temperature from 2700K to 6500K. There are 16 million colors available for the RGB, RGBW, and RGBWW versions, and the saturation of static color is adjustable. The LED Driver will receive the signals from the remote control and will transmit to other same 24V Dimming LED Drivers within 30 meters, all of them will work synchronously. the PWM frequency of the 24V LED Drivers can be switched from high frequency(8KHz) to low frequency(500Hz).

Quick Links:

MiBoxer-CL5-P75V24-Dimmable-LED-Driver-User-Manual



Features:

  • Size: 190*53*32mm(L*W*H)
  • Models: CL1-P75V24(For Single Color), CL2-P75V24(For Dual White), CL3-P75V24(For RGB), CL4-P75V24(For RGBW), CL5-P75V24(For RGB+CCT)
  • Input Voltage: AC100-240V, 50/60Hz
  • Output Voltage: DC24V
  • Output Current: Max 3A
  • RF: 2.4GHz
  • Remote Control Distance: ≤30meters
  • 16 Million Colors Available And Saturation Adjustable(CL3-P75V24, CL4-P75V24, CL5-P75V24)
  • Color Temperature Adjustable(CL2-P75V24, CL5-P75V24)
  • Stepless Dimming Brightness
  • 2.4G RF Remote Controllable
  • Support Smartphone APP Control And Third-Party Voice Control 2.4G Gateway Needed)
  • PWM High Frequency(8KHz) / Low Frequency(500Hz) Can Be Switched
  • Signal Transmitting And Modes Synchronization
  • IP Rating: IP20 Non-Waterproof
  • Ta: 40℃
  • Tc: 85℃
  • No Need Extra Power Adapter
  • Remote Control Sold Separately
  • Remote Controls Recommended:
  • CL1-P75V24(For Single Color): FUT006, FUT007, B2, T2, B1, T1, FUT087, S1-B, S1-W, S1-G
  • CL2-P75V24(For Dual White): FUT006, FUT007, B2, T2, S1-B, S1-W, S1-G
  • CL3-P75V24(For RGB): FUT089, FUT088, FUT092, FUT096, B8, B4, T4, B3, T3, B0, S2-B, S2-W, S2-G
  •  CL4-P75V24(For RGBW): FUT089, FUT088, FUT092, FUT096, B8, B4, T4, B3, T3, B0, S2-B, S2-W, S2-G
  • CL5-P75V24(For RGB+CCT): FUT089, FUT088, FUT092, FUT096, B8, B4, T4, B3, T3, B0, MiBoxer S2
  • 3 Years Warranty


Includes:

1*2.4G MiBoxer 24V Dimmable LED Driver

Constant Voltage Dimmable LED Driver 24V
