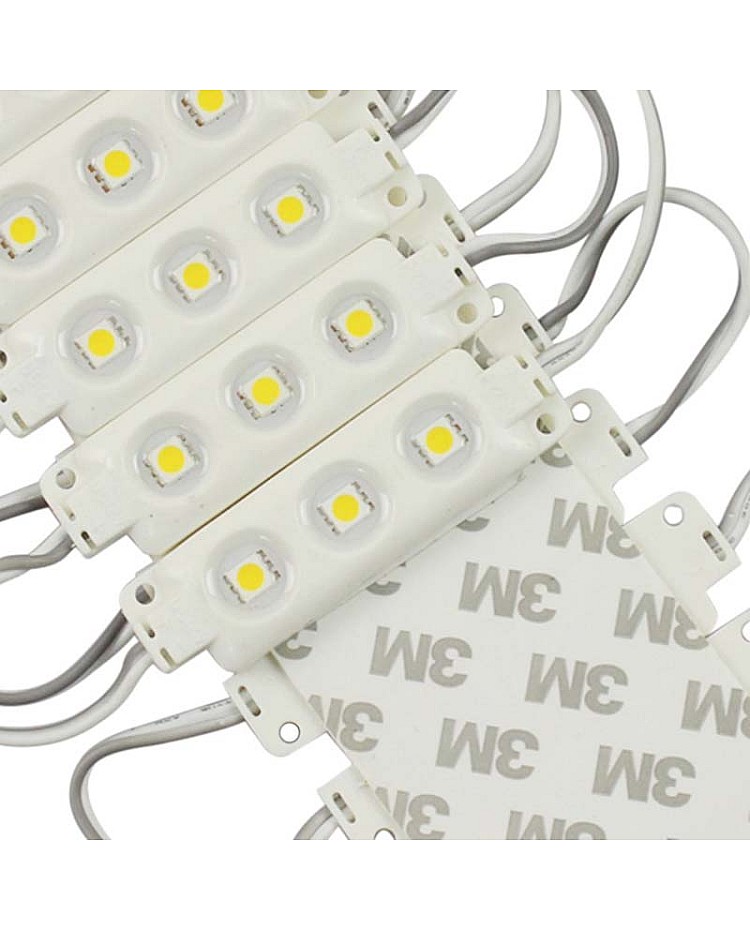

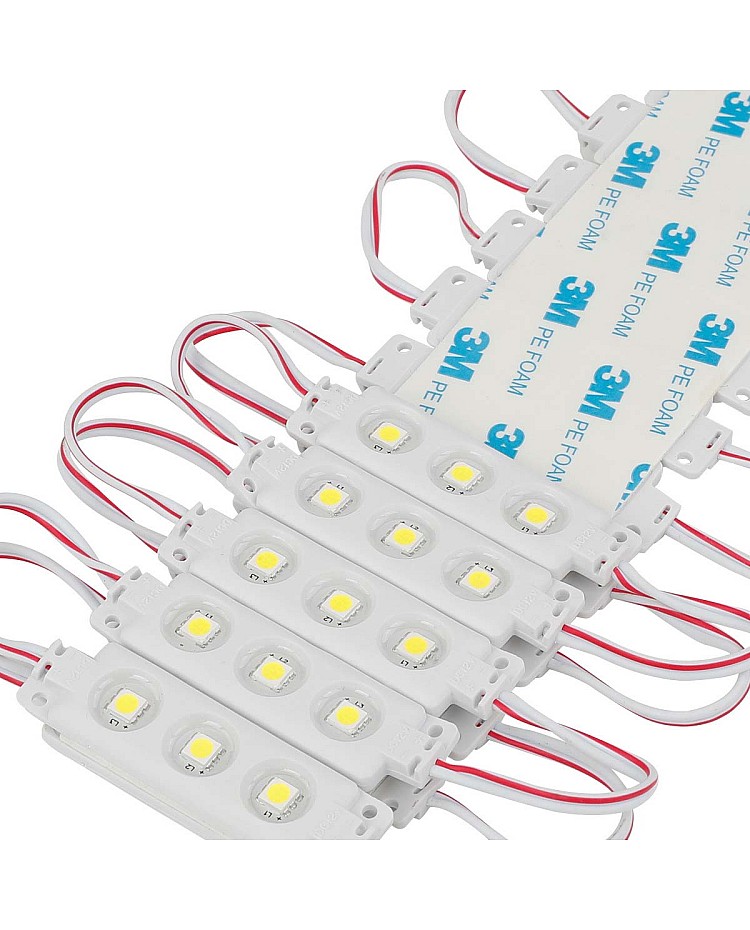

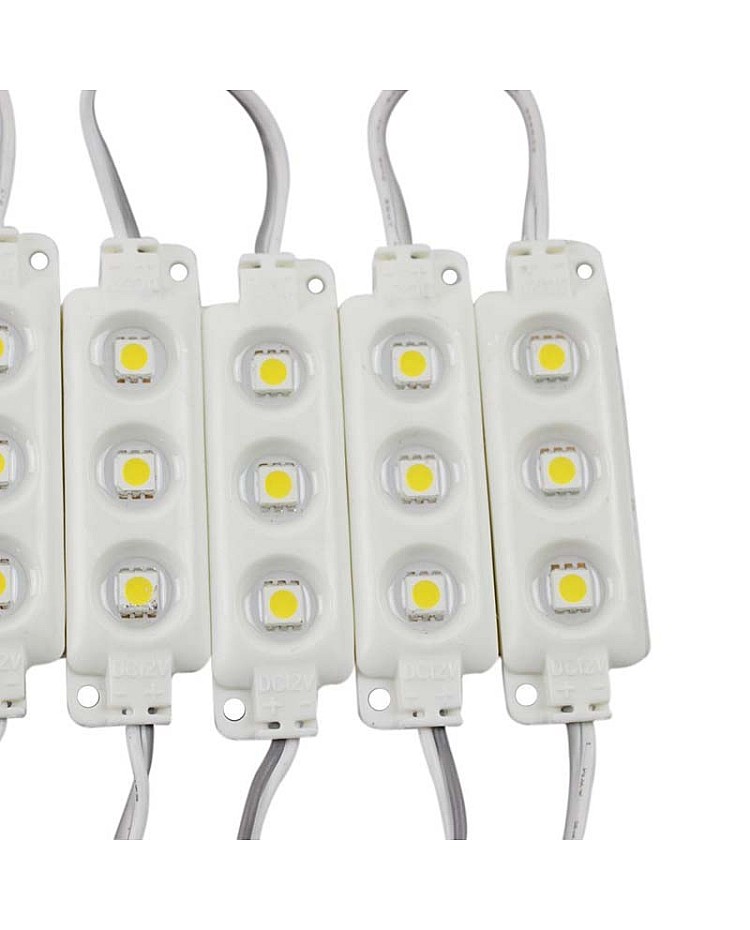

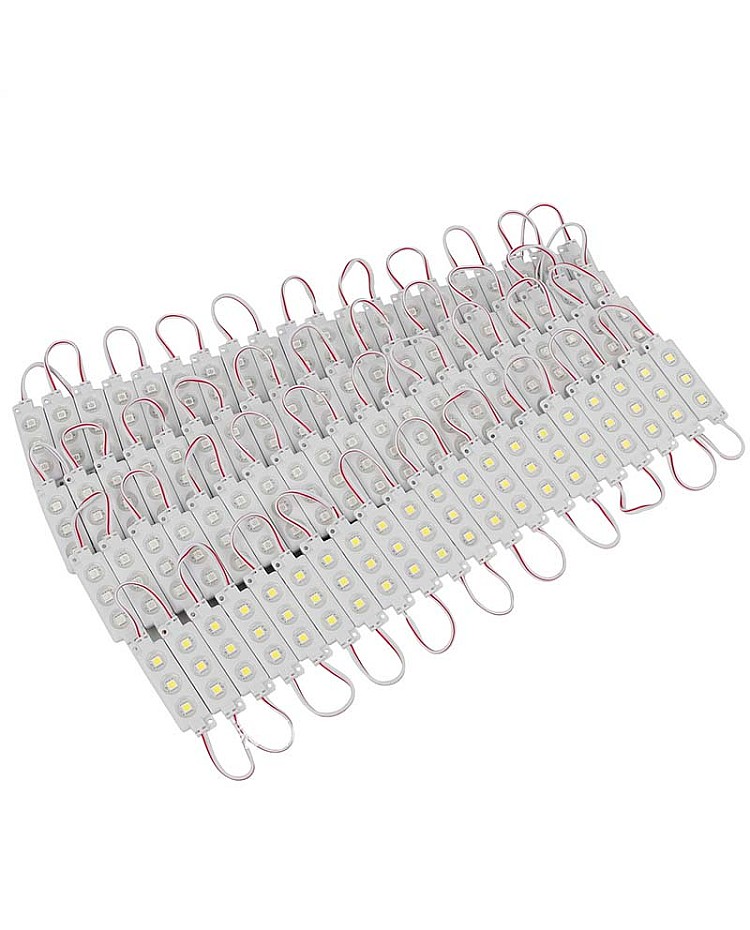

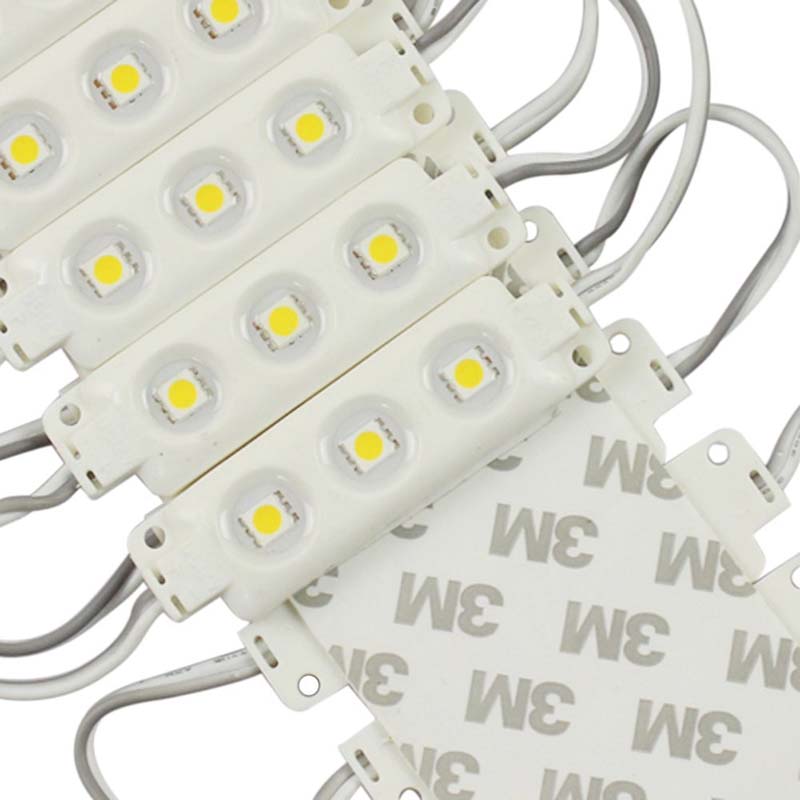

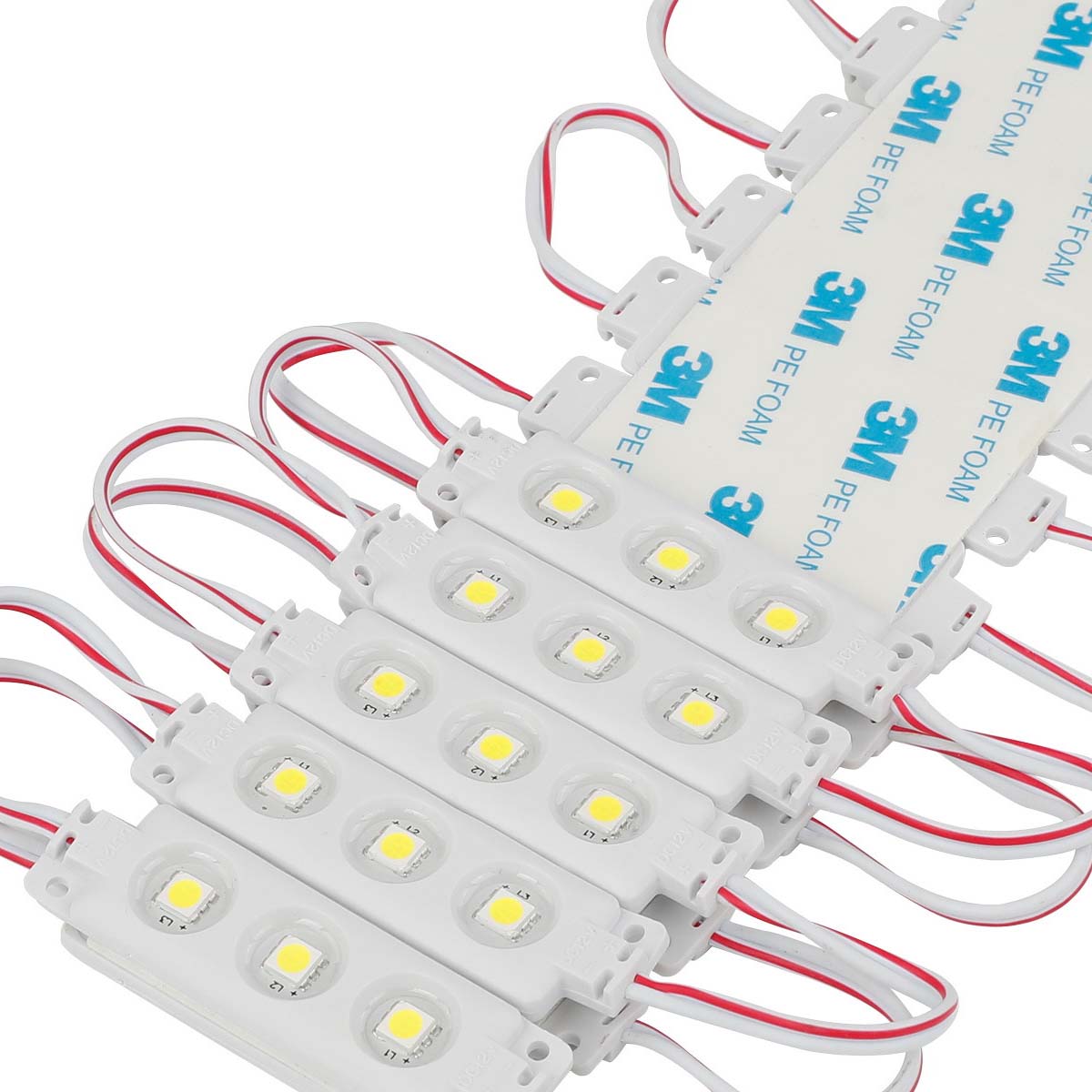

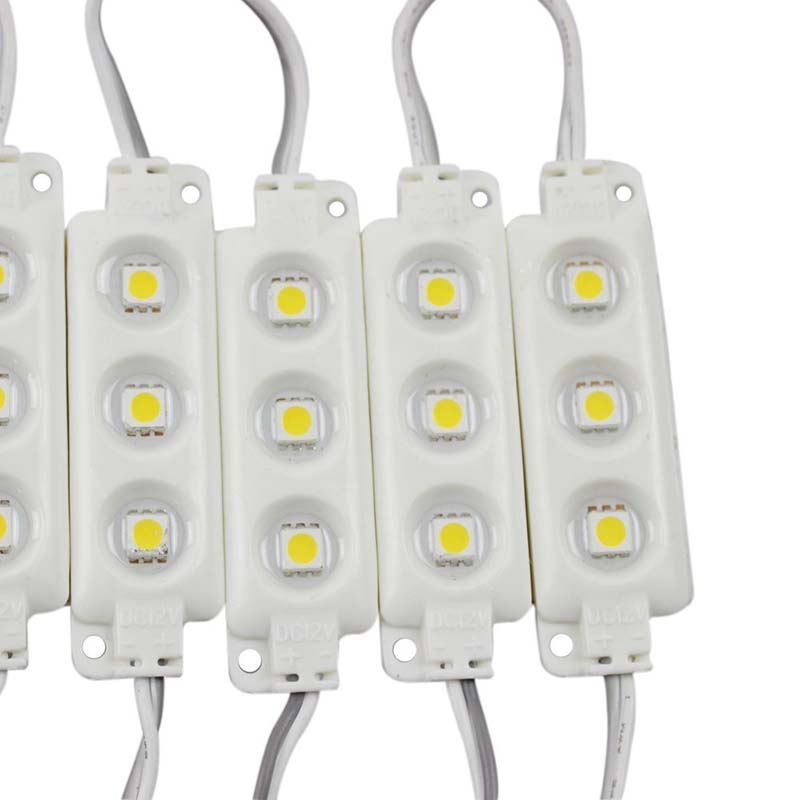

Check the 5050 LED Display Modules, which use the high-quality and super bright 5050 SMD LEDs as the light source, 3PCS LEDs mounted on the aluminum board for better heat dissipation and in the ABS injection shell, the surface with epoxy sealed, the IP rating reach to IP65, can be used for indoor and outdoor signs, channel letters, metal letters, lightboxes, etc. the LED 5050 Modules with screw holes and the back with double side adhesive tape, you can stick them on the place you want to install or use the screws to fix. the Waterproof LED Modules with 20 PCS per string, cuttable and connectable, you can cut any quality and reconnect them for your project. working in DC12V, easy to connect to the Waterproof LED Power Supply or the Mini LED Dimmer to adjust the brightness. there are various emitting colors LED Modules available, you can choose single colors or RGB.


  • Item NO: TY-5050-M002
  • Manufacturer: TYoung
  • Working Temperature: -40°-50°
  • Size: 68mm*19mm*6mm(L*W*H)
  • Color: Red/Yellow/Blue/Green/White/Warm White/RGB
  • LED: 5050 SMD LEDs
  • LED Quantity: 3PCS
  • Voltage: DC12V
  • Power: 0.72W/PC
  • IP Rating: IP65
  • Luminous Flux: Red(18-21lm)/Green(45-50lm)/Blue(13.5-15lm)/Yellow(18-21lm)/Warm White(58.2-63lm)/Cool White(58.2-63lm)/Neutral White(58.2-63lm)
  • Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
  • Luminous Intensity: 800-1500mcd
  • Beam Angle: 120°
  • Length Of Wire Between 2PCS Modules: 5cm
  • Weight: 200g
  • Lifespan: >50,000 Hours
  • Warranty: 2 Years

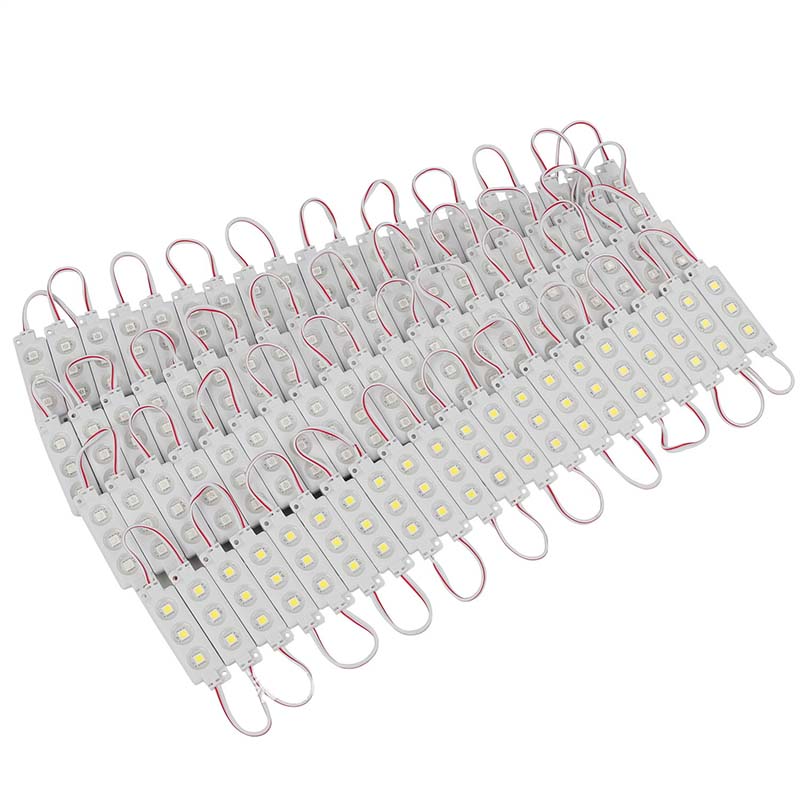

1*Waterproof 5050 LED Display Module(20PCS/Set)

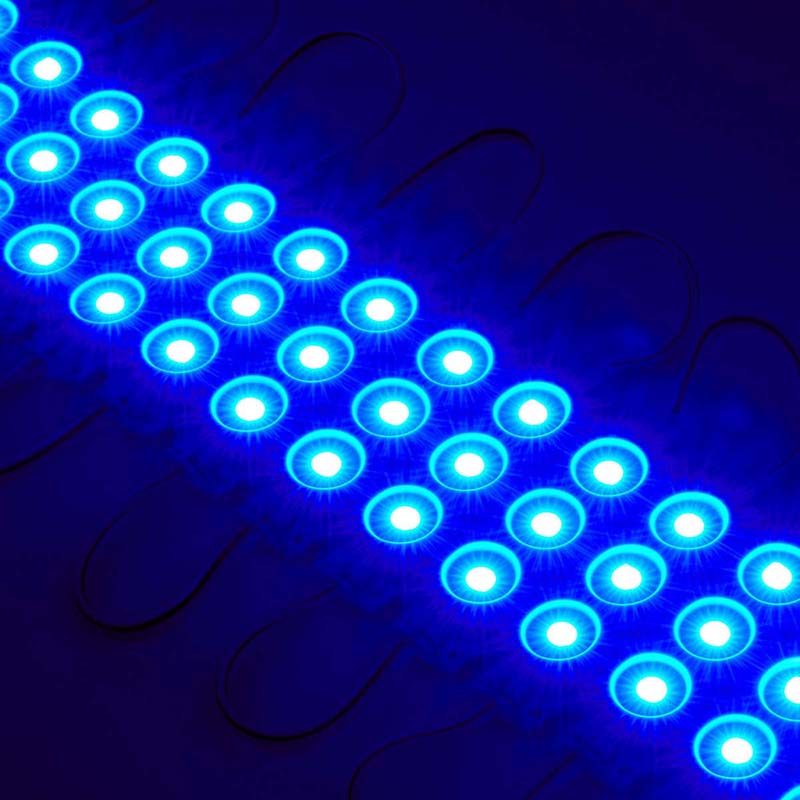

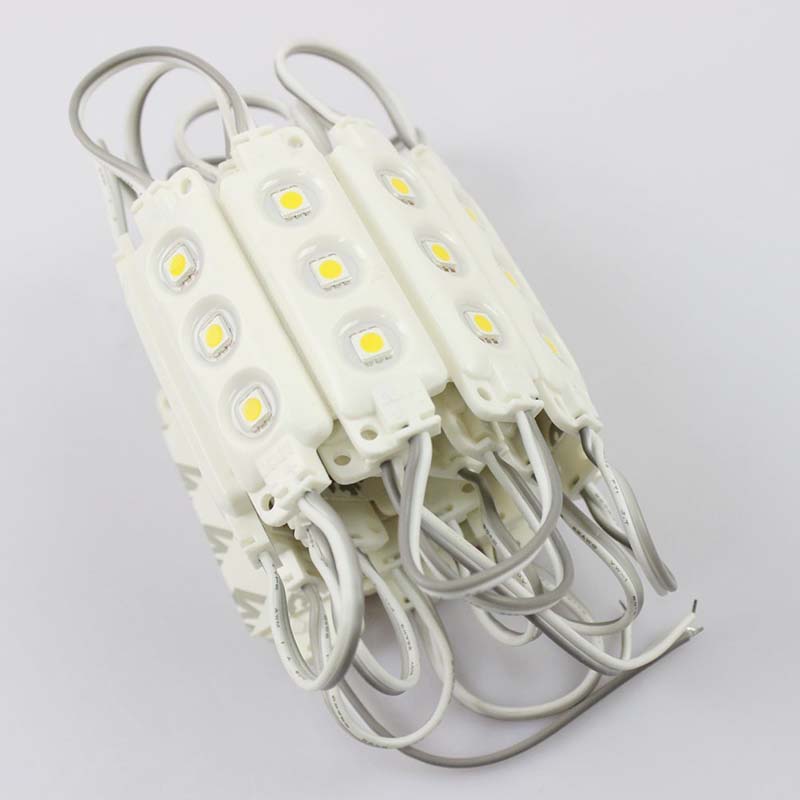

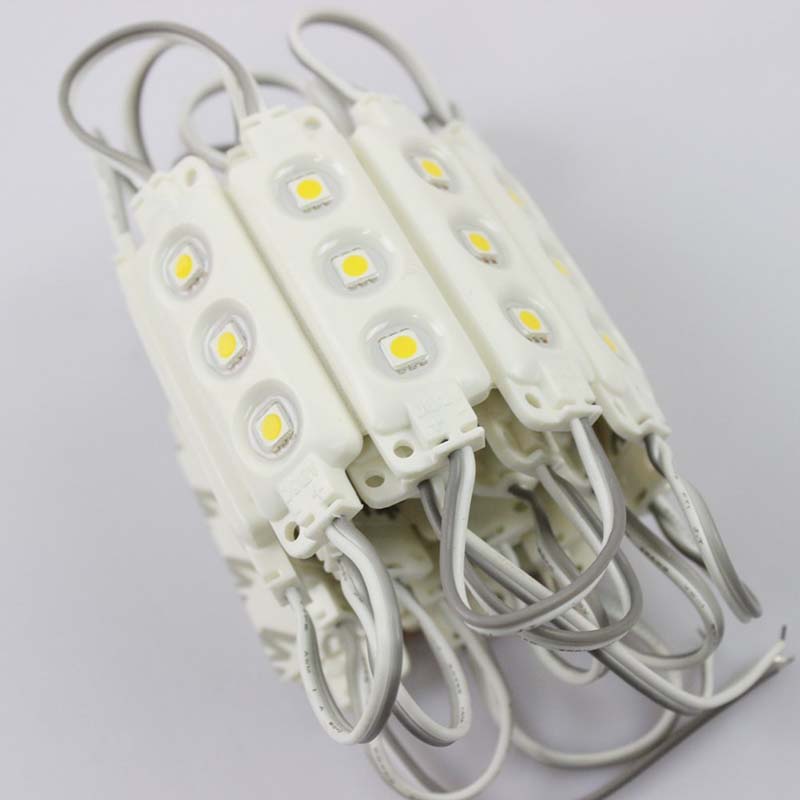

12V LED Display Modules 24V LED Module Light 5050 LED Light Module Red LED Display Module Light Green LED Display Modules LED Display Cabinet Module Blue
