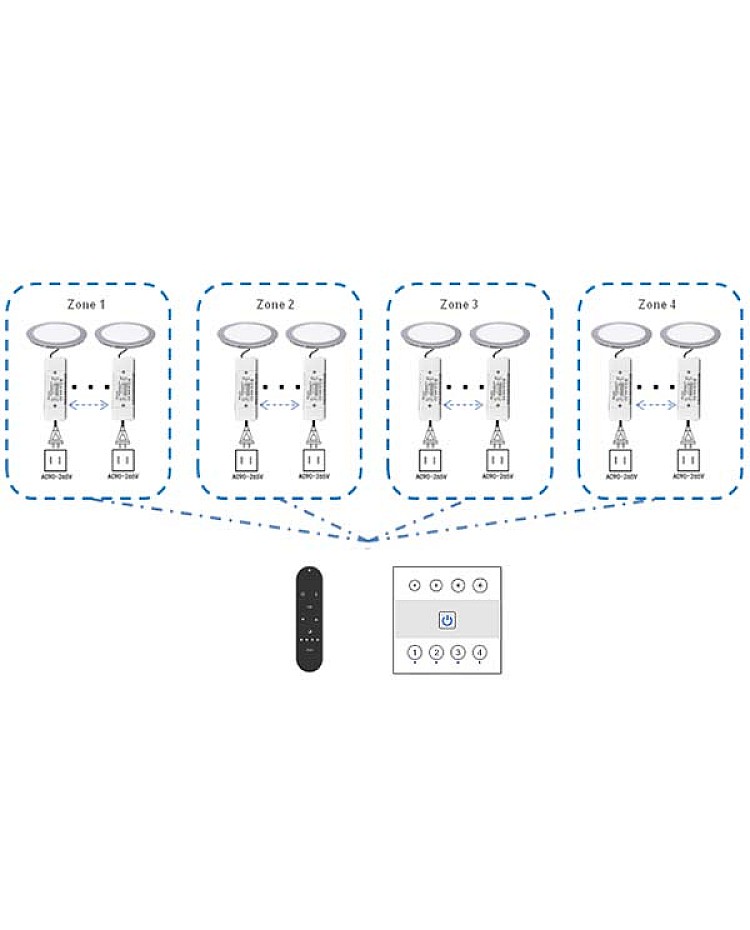

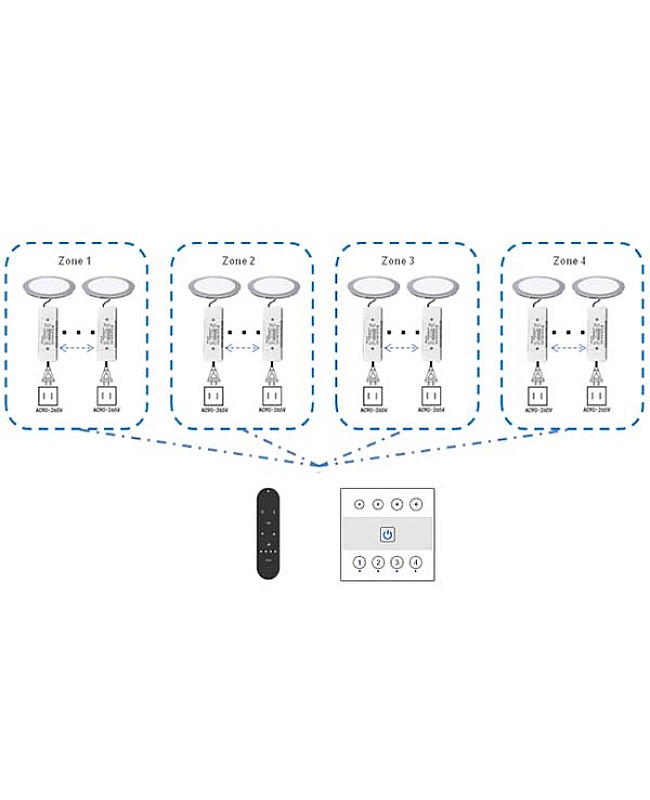

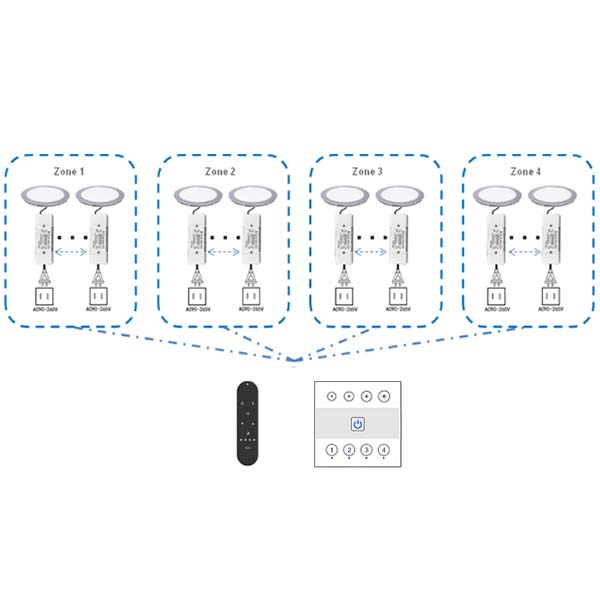

The dimmable LED driver with an isolated power supply design adopts PWM technology, is high efficiency/PF/flicker-free, and is protected from miswiring, overloading, over-voltage, and short circuit. High-quality smooth dimming design, 1024 grades, you can adjust the brightness from 0% to 100%, supports 2.4G RF wireless control remote design, can work with a variety of 2.4G remote controls. Compatible with the free lighting control system and phone WiFi smart control. The innovative air self-inspection sync control function not only makes the product more advantageous than other similar products in wireless sync function, but also makes one remote control out of the limitation of remote control distance, achieving control of numerous LED drivers through wireless connection sync control function. You can use them to work with LED panels, ceiling lamps, LED down lights, and other constant current LED lights in the home, shop, hotel, office, etc.
Specifications:
- Working Temperature: -20°-45°C
- Size: 88*38*22mm(L*W*H)
- Model: DLC005
- Input Voltage: AC90-265V
- Output Type: Single
- Output Voltage: 30V-38V
- Output Current: 180mA(7W)/150mA(6W)/130mA(5W)
- Output Frequency: 3 KHz
- Dimming Range: 0-100%
- Dimming Grade: 1024
- RF Frequency: 2.4GHz(Support Multiple Drivers Wireless Sync Work)
- Control Method: Wireless Control By Remote(Sold Separately)
- Waterproof Level: IP40
- Efficiency: 77%
- Power Factor: 0.5

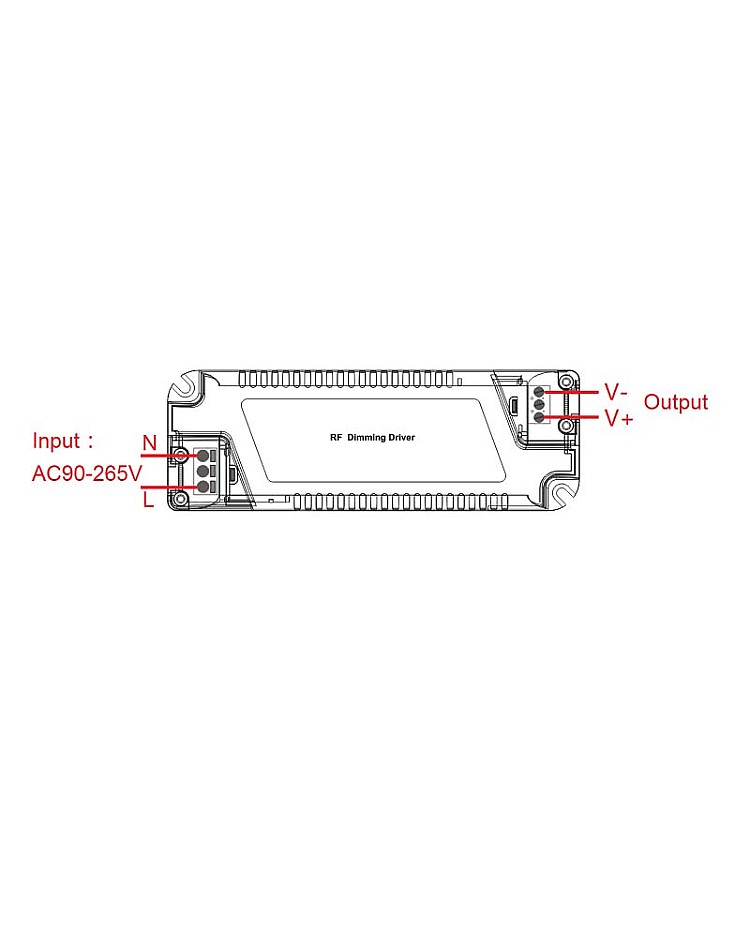

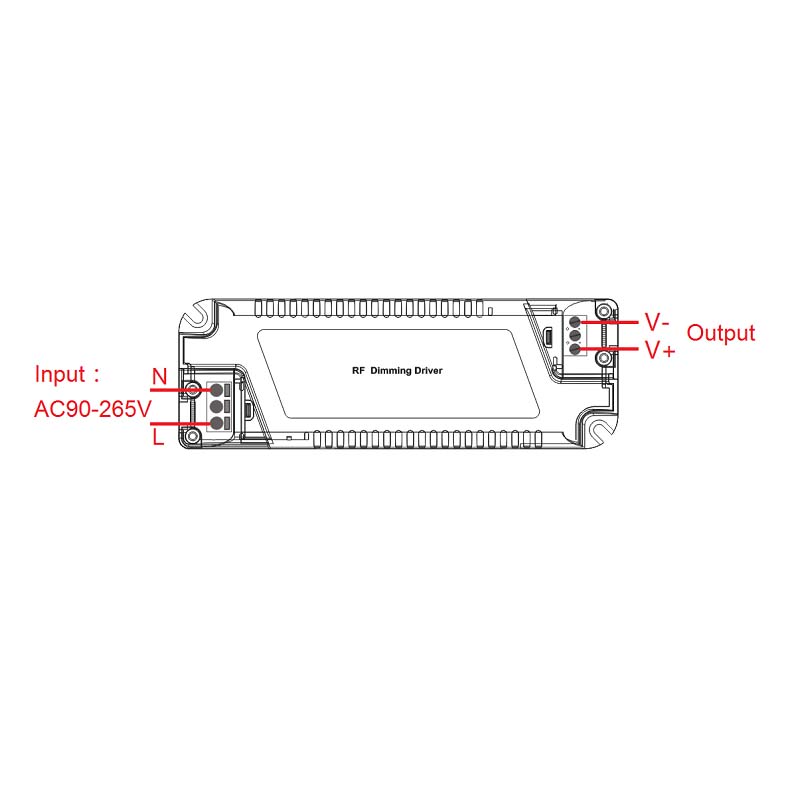

- Port: Two Wire Input(L/N)
- String Number: 10-12 LEDs
- PWM Signal Output Frequency: 7.8 KHz
- Memory Function
- Over-Voltage Protection
- Short Circuit Protection
- Compatible With Freelighting Control System, Coollight System, Realized Phone WIFI Smart Control
- Applicable LED Lamps, LED Panels, LED Ceiling Lamps, LED Down Lights, And Other Constant Current Lights
- Warranty: 3 Years
Includes:
1* Dimmable LED Driver
