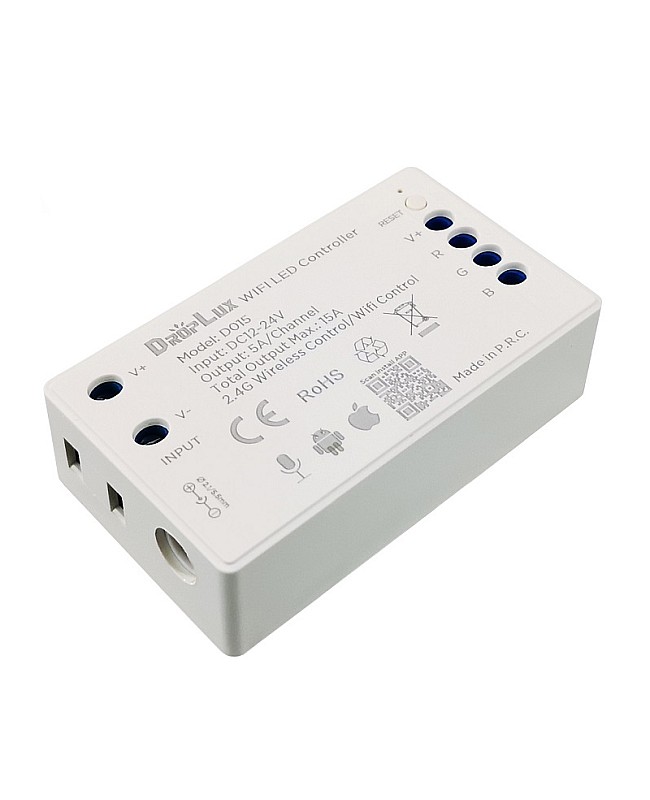

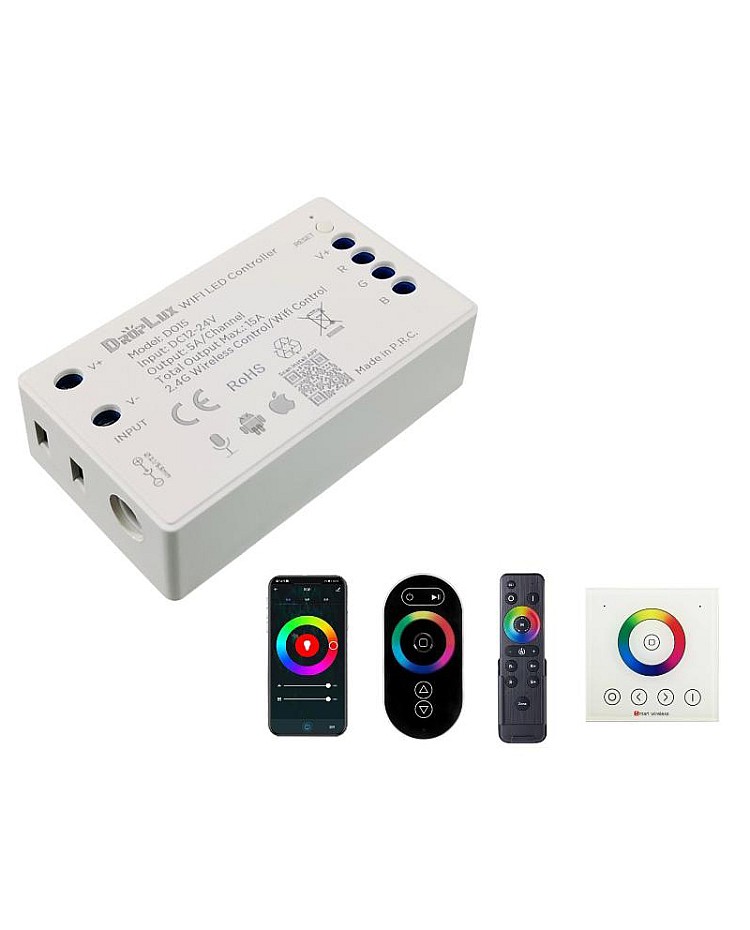

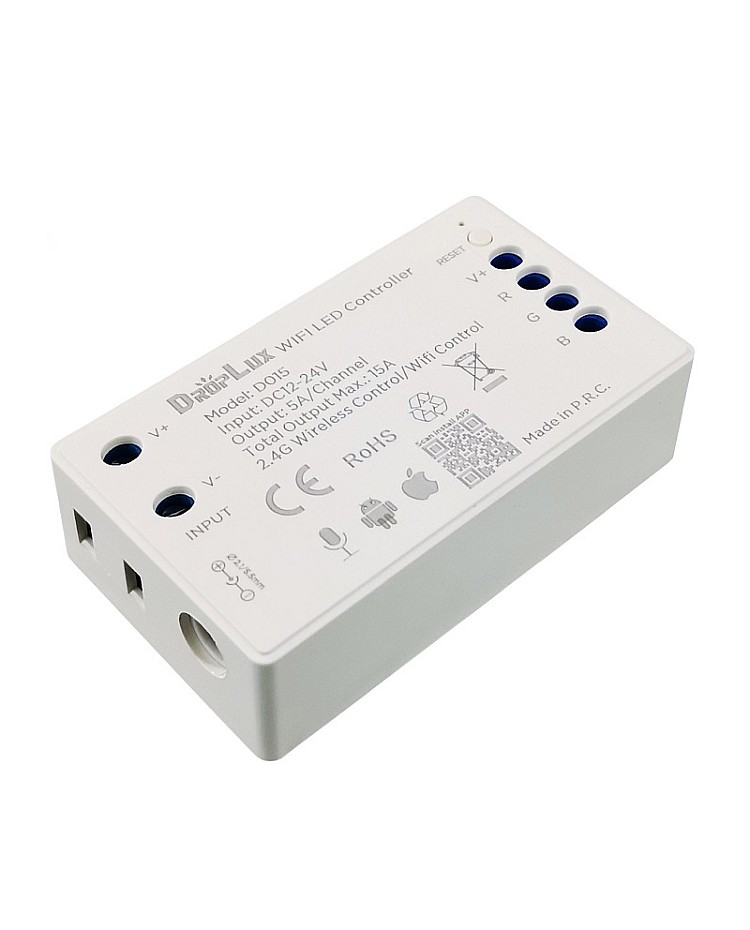

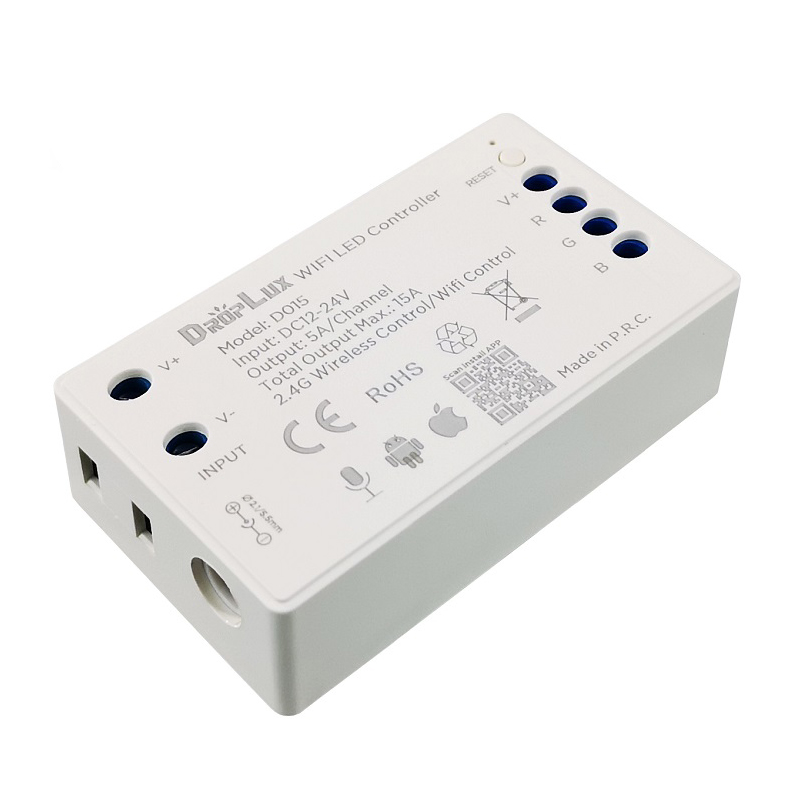

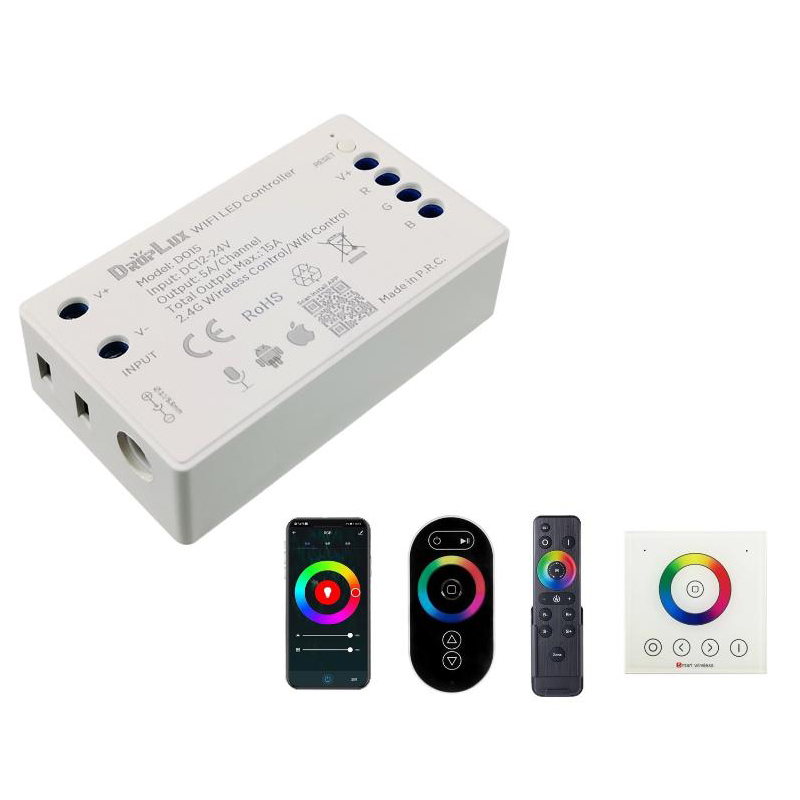

The WiFi RGB LED controllers are designed to control your RGB strip lights in multiple ways. They can be controlled by smart voice speakers via voice commands via Amazon Alexa, Google Assistant, Yandex Alice, etc., to turn the lighting on/off and adjust it remotely. You can also control them with the included remote control or an APP. The LED WiFi controller operates on 12V-24V DC, features a 3-channel design, and delivers up to 5A per channel. With the memory function, each time the power is turned on, it retains the mode which stops last turned off. There are three types of RF remote control available: RFBK-RGB-2.4G LED Remote is included, you can set the mode to RGB, and it works with the RGB WiFi LED controller. Can use the LED remote control to set 4 groups, each group can add many LED controllers, and you can control them synchronously. You can touch the color ring to adjust the static color steplessly, using 64 colors. You can also use it to adjust the brightness of static colors or the speed of dynamic modes. You can scan the QR code on the controller to download the TUYA APP, long-pressing the "Reset" button on the controller and hold for 5 seconds until the loading LEDs flash to start the connection with Tuya APP to achieve the intelligent control like group control, sense control, timer control, music control and so on. the WiFi RGB controller will transmit the control signals from the remote control and self-inspection the work status for each other, multiple receivers can wireless-sync-work completely when being paired to the same one remote control, not only static mode but also dynamic mode. To achieve a wired-like operation experience.
WiFi LED Controller Specifications:

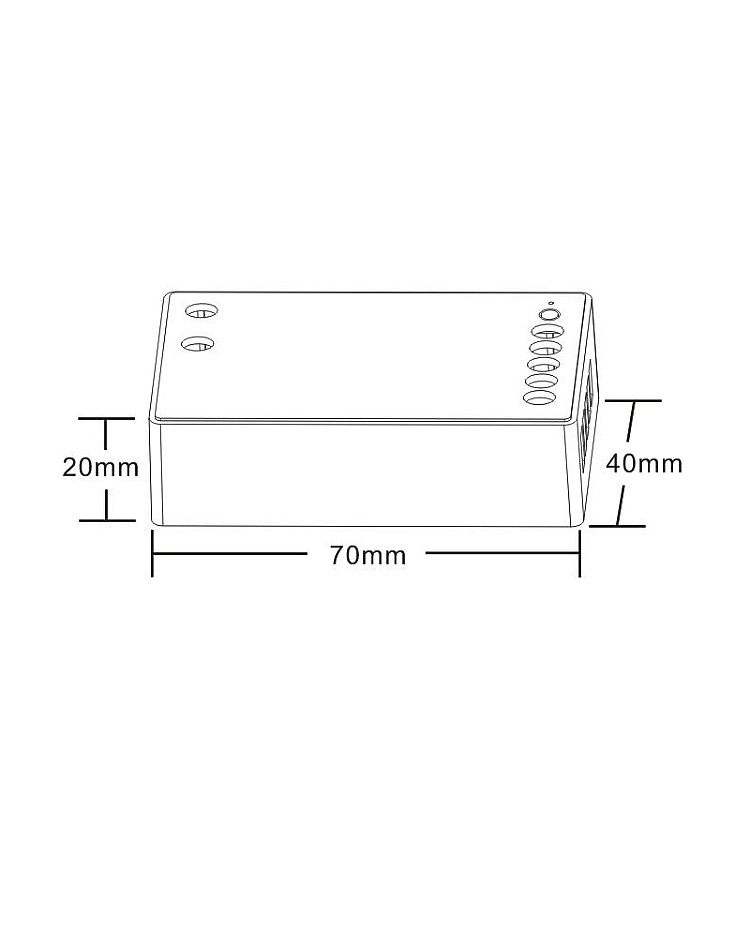

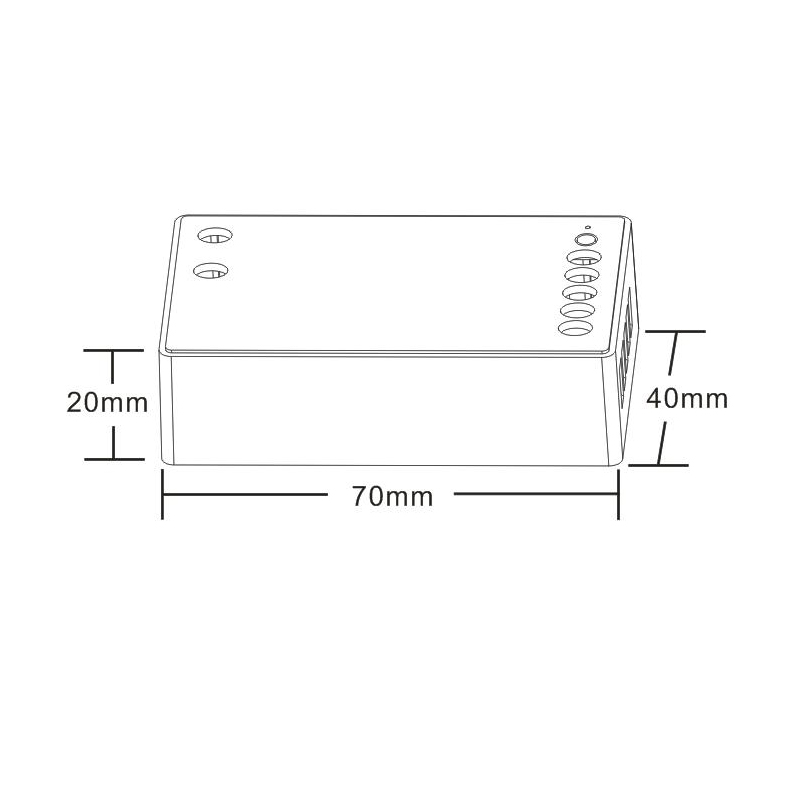

- Size ( L x W x H ):70 mm x 40 mm x 20 mm / 2.76" x 1.57" x 0.79"
- Working voltage: DC12-24V
- Output: 3 channels
- Output current: ≤5A ( Per channel )
- Power: 180W ( DC12V ) / 360W ( DC24V )
- Static power consumption: <1W

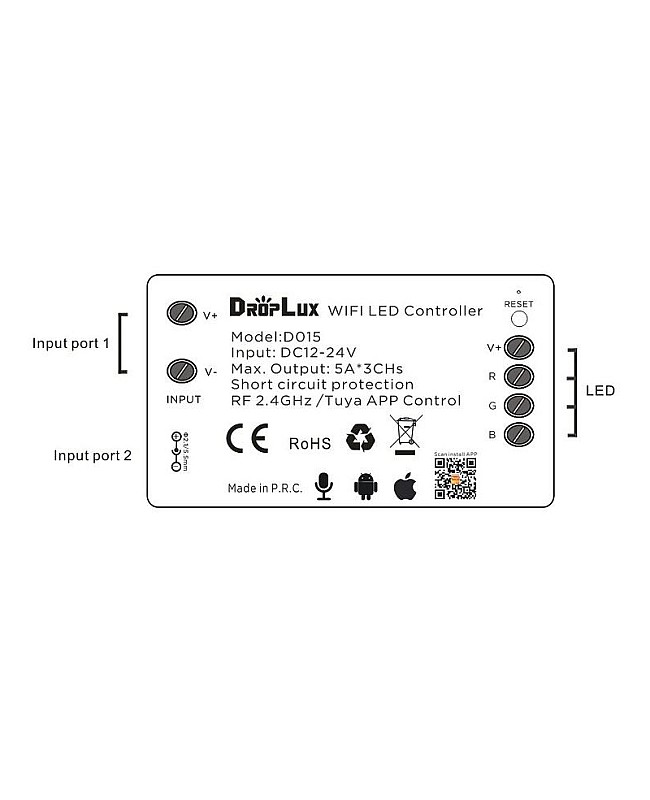

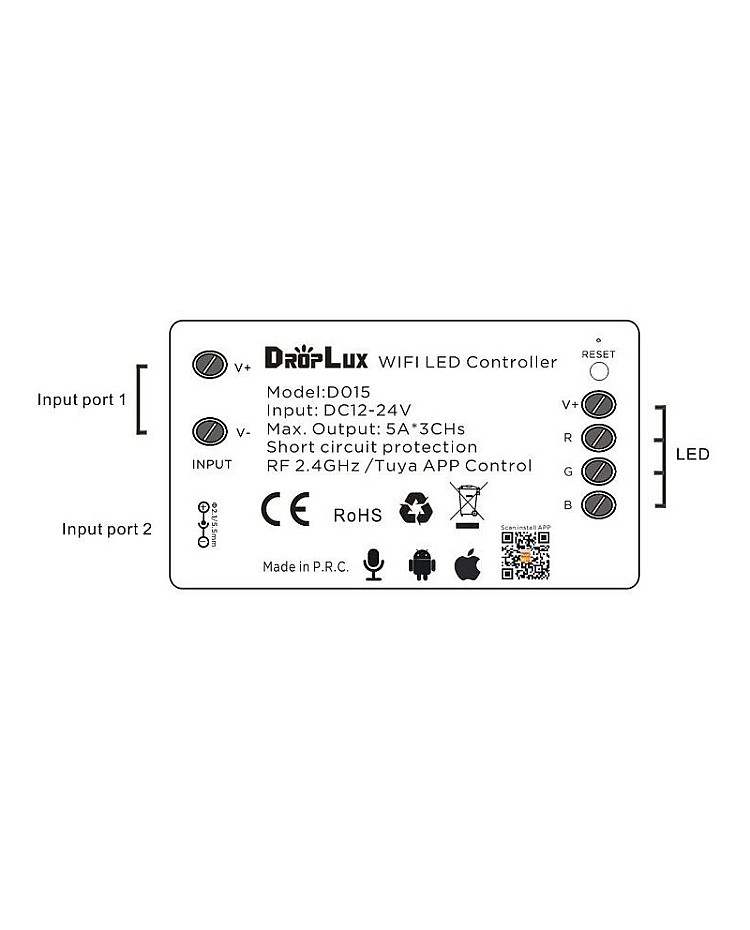

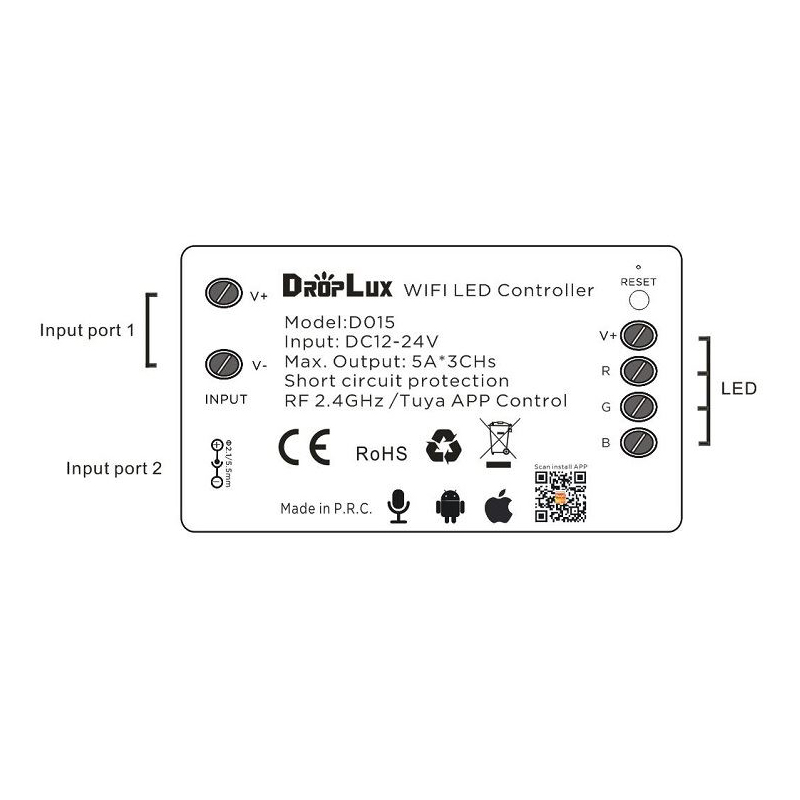

- Connecting mode: Common anode
- WIFI technology powered by Tuya
- Compatible with voice control by Amazon Alexa, Google Assistant, and Yandex Alice
- PWM frequency: 1.95 KHz
- Grayscale: 1024 Levels
- Speed stage: 100 Levels
- RF frequency: 2.4GHz
- Wireless synchronization function under the remote-controlled type
- Short circuit protection: YES
- Memory function: YES
- Weight: 80g
- Working temperature: -20-60℃
- Certifications: CE, ROHS
- Warranty: 3 years
LED Remote Specifications:
- Size ( L x W x H ): 150 mm x 40 mm x 20 mm / 5.91" x 1.57" x 0.79"
- Color: Black
- Working voltage: DC3V
- Powered by 2PCS AAA batteries
- Standby current: <18uA
- Working current: <25uA
- Standby power: 54uW
- Working power: 75mW
- RF frequency: 2.4GHz
- RF control distance: <20m
- Weight: 95g
- Working Temperature: -20-60℃
- Certifications: CE, ROHS
- Warranty: 2 years

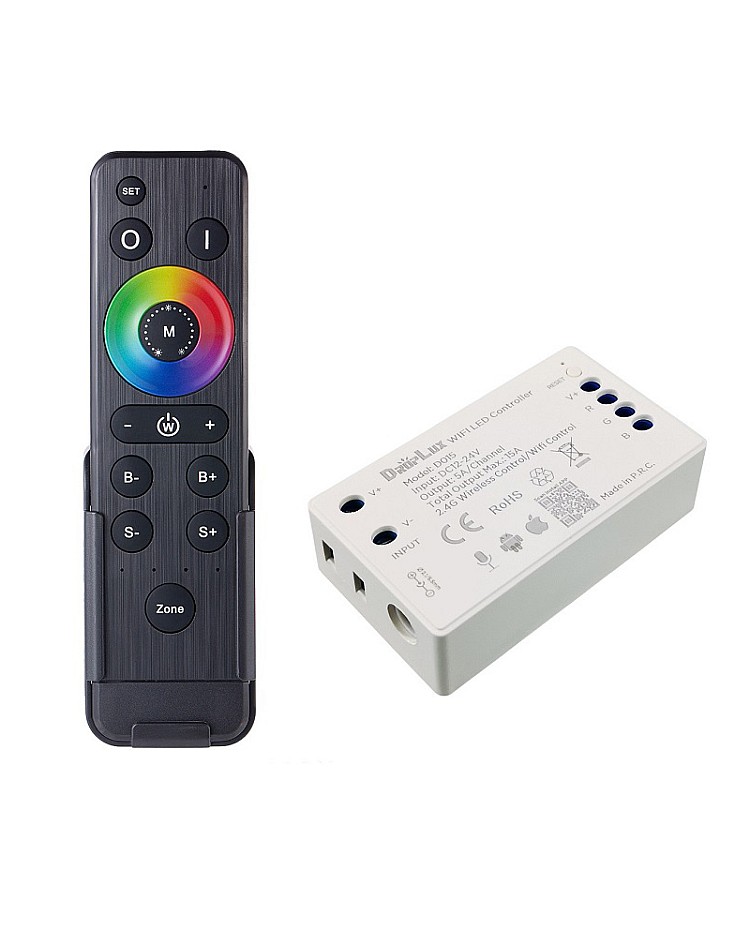

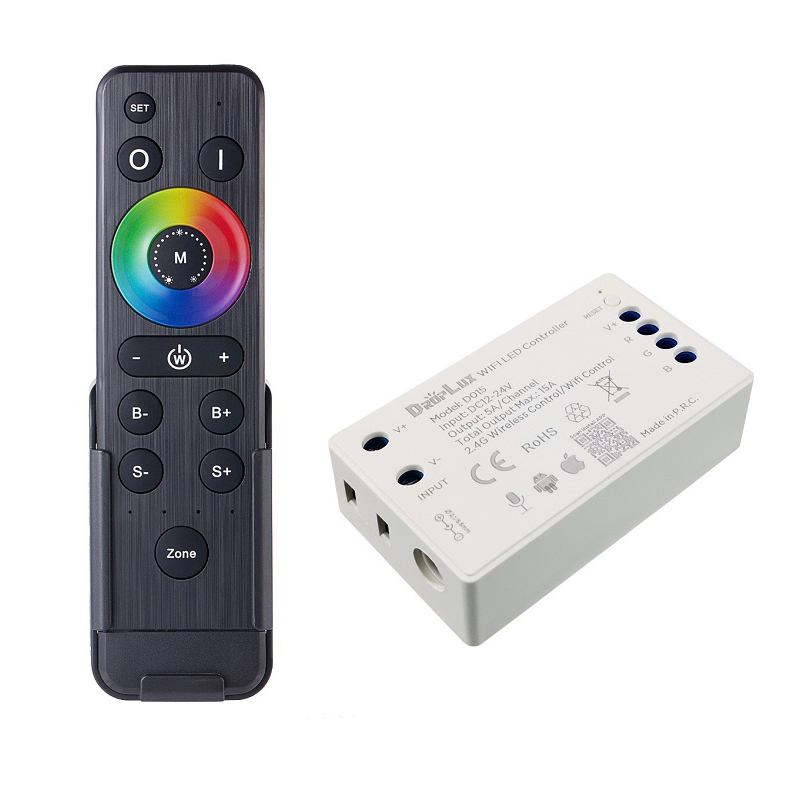

Includes:
1 * WiFi RGB controller
1 * RFBK-RGB-2.4G remote control
