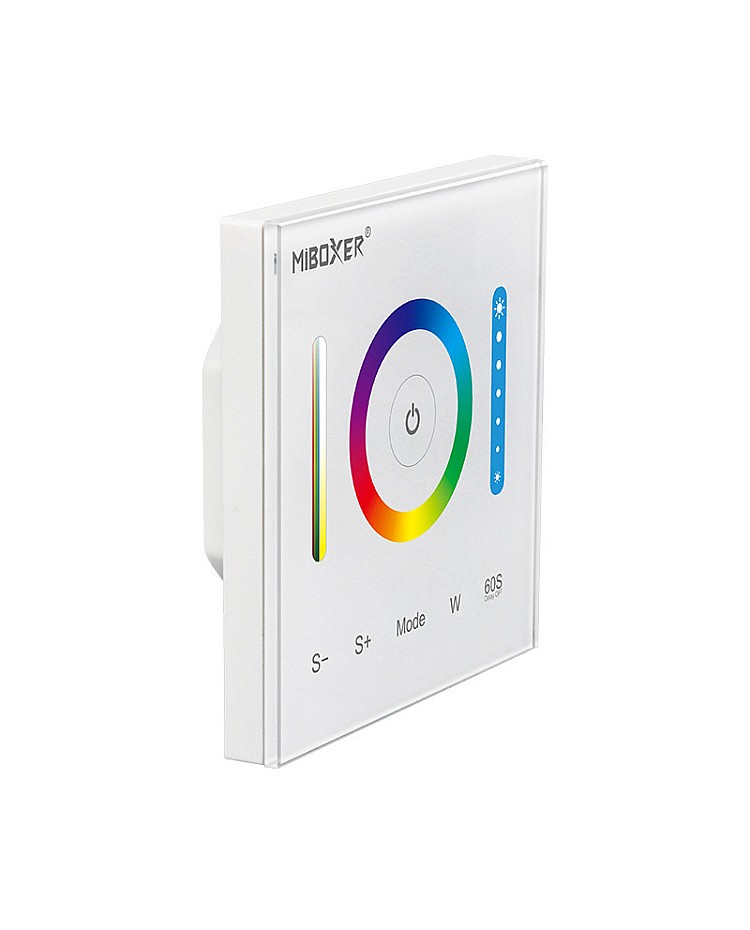

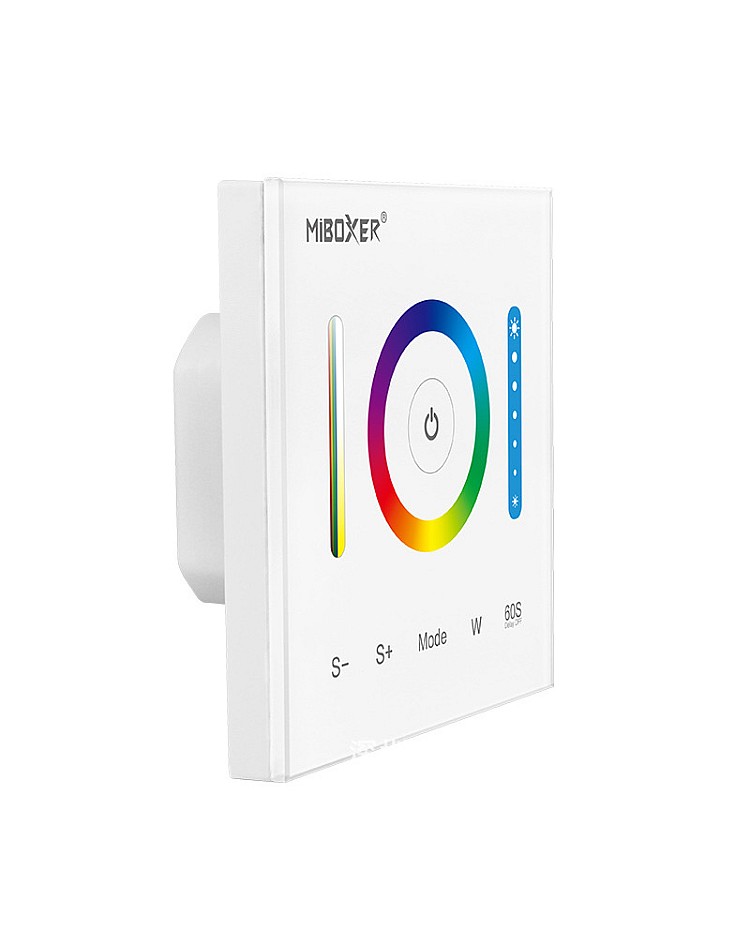

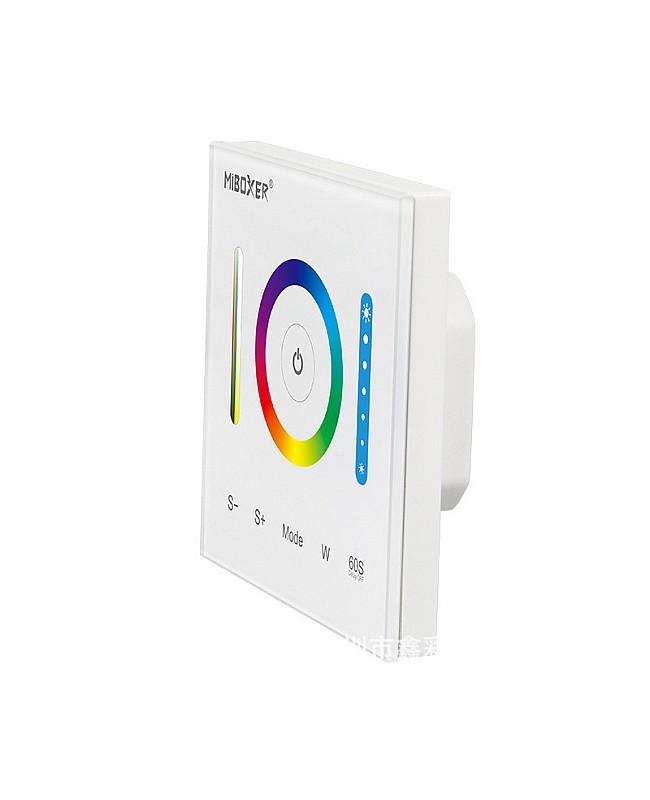

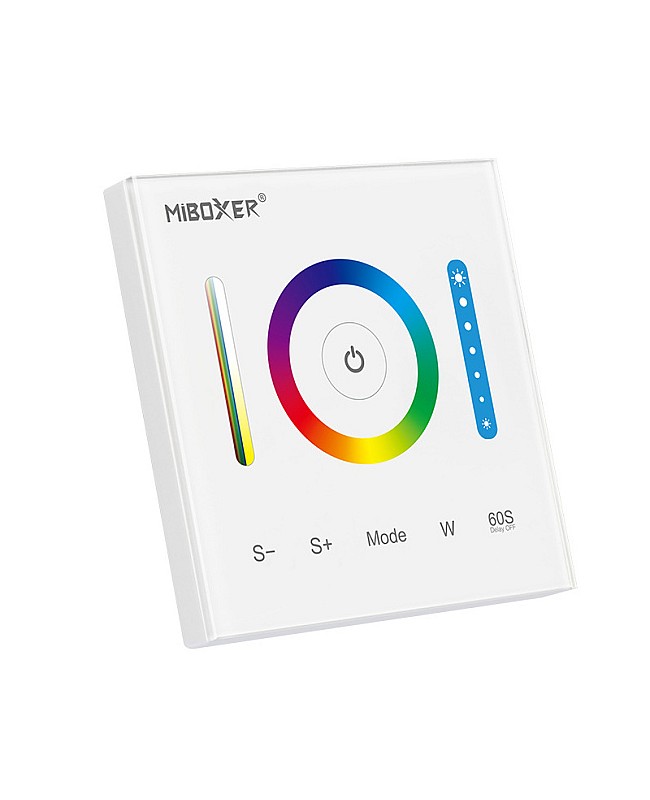

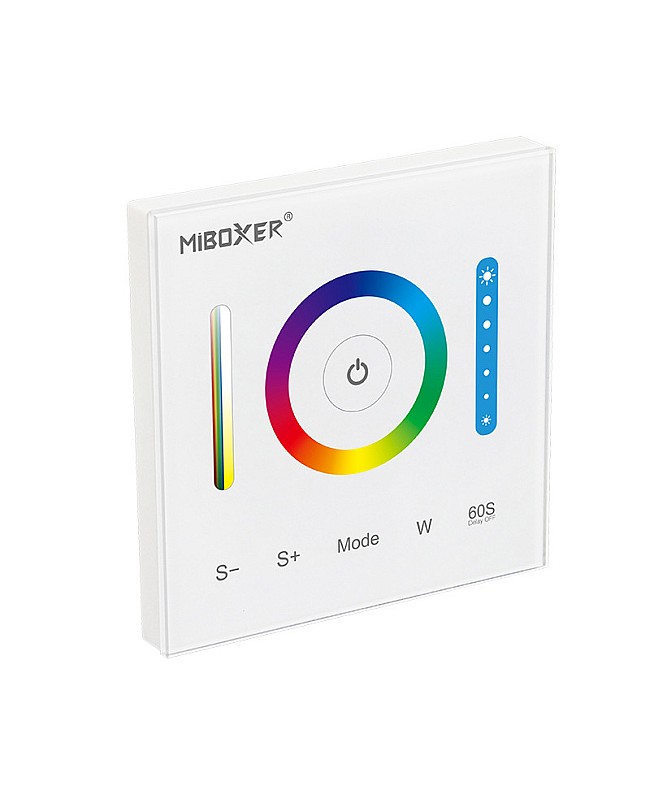

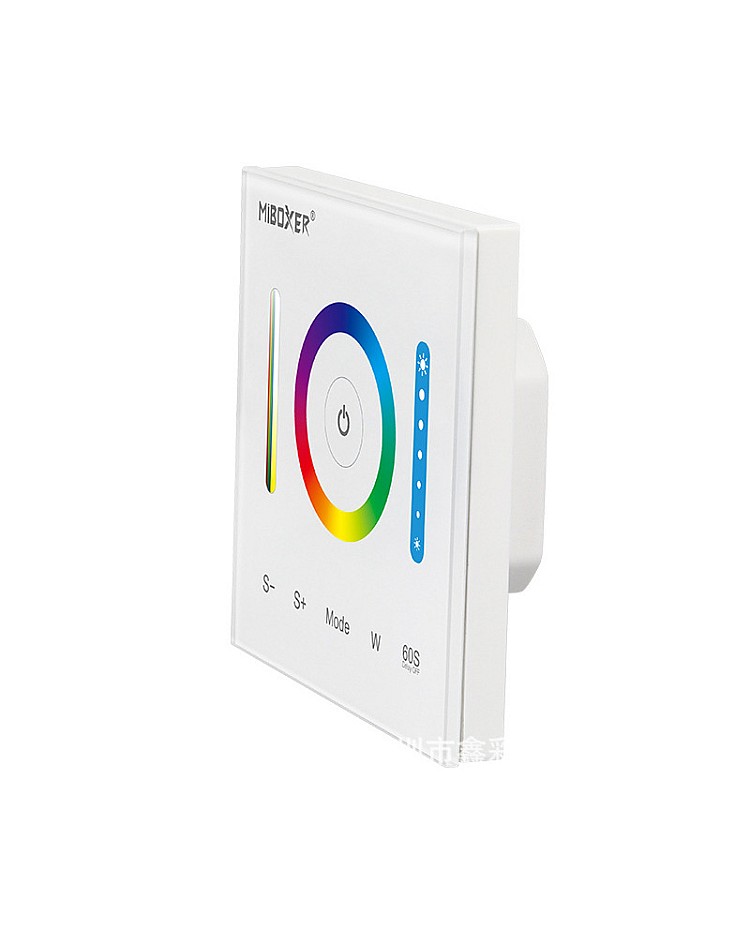

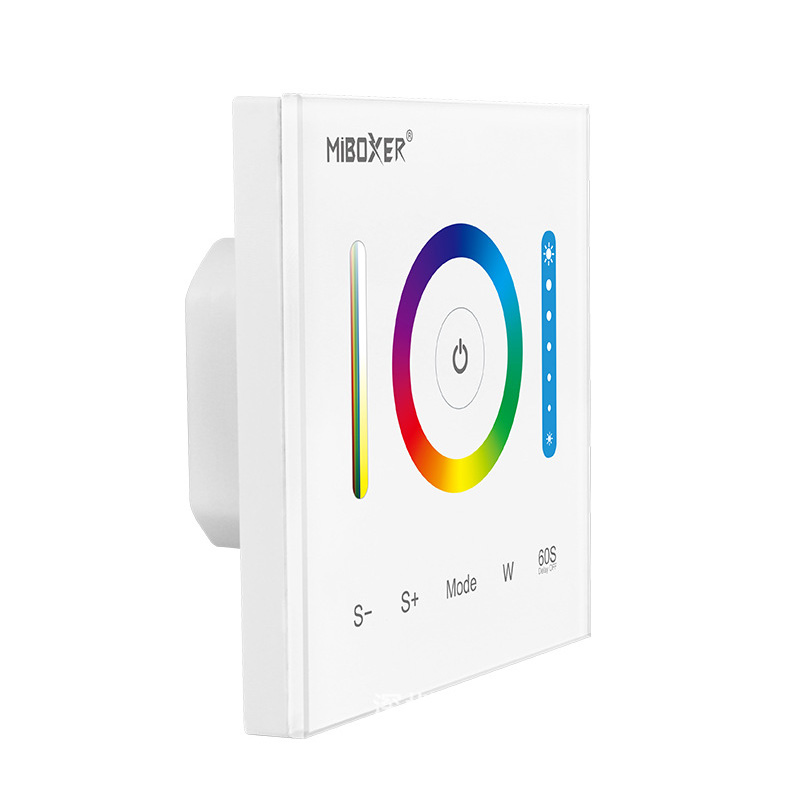

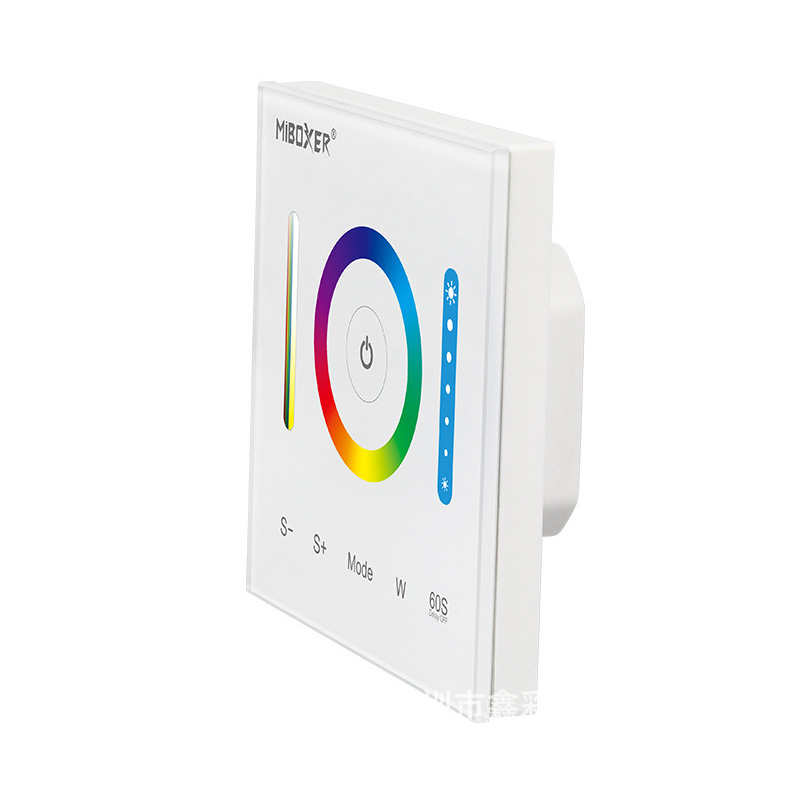

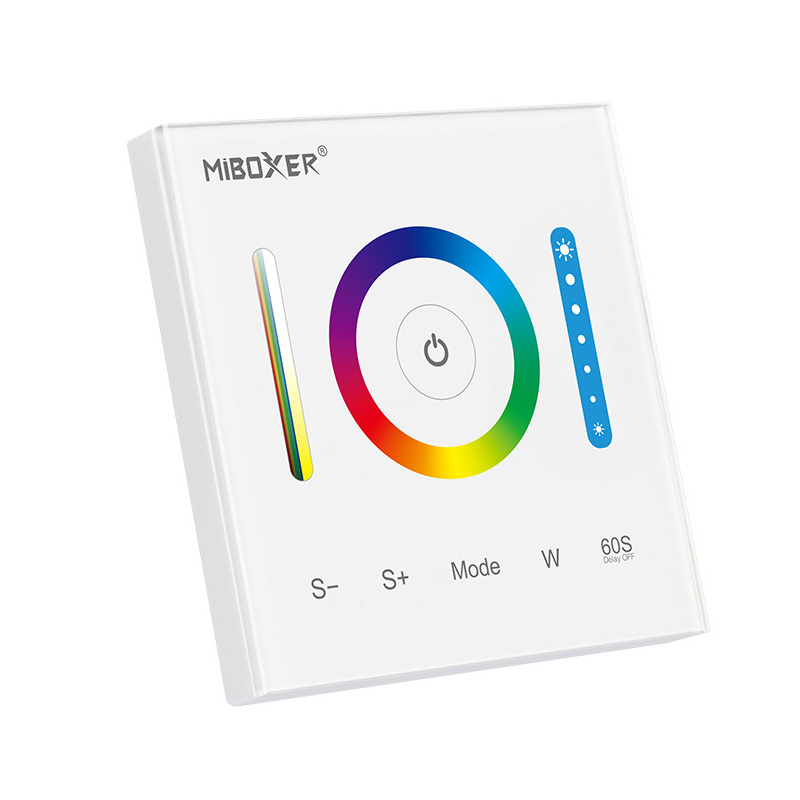

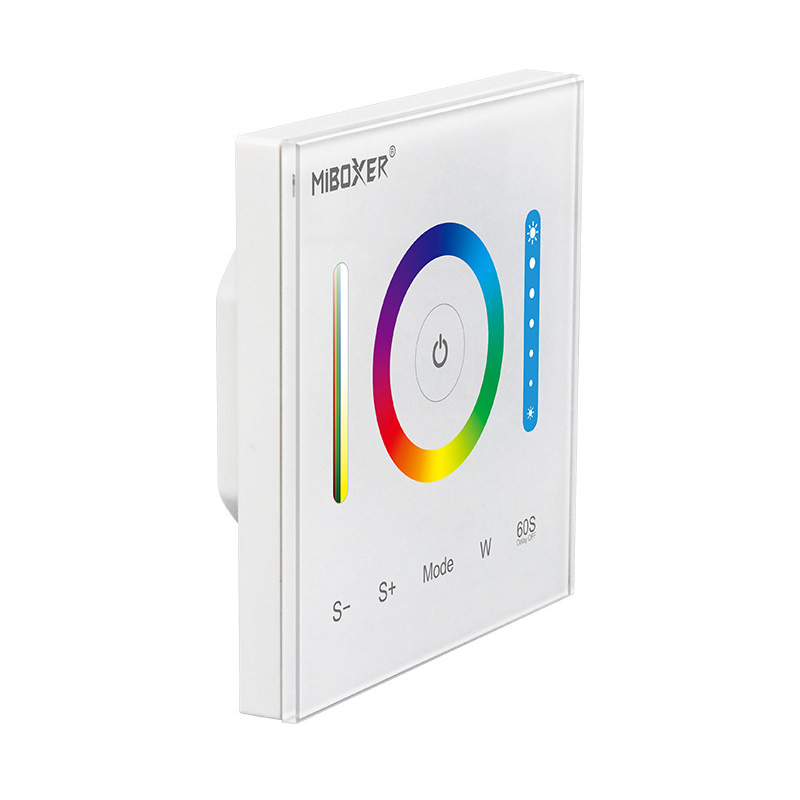

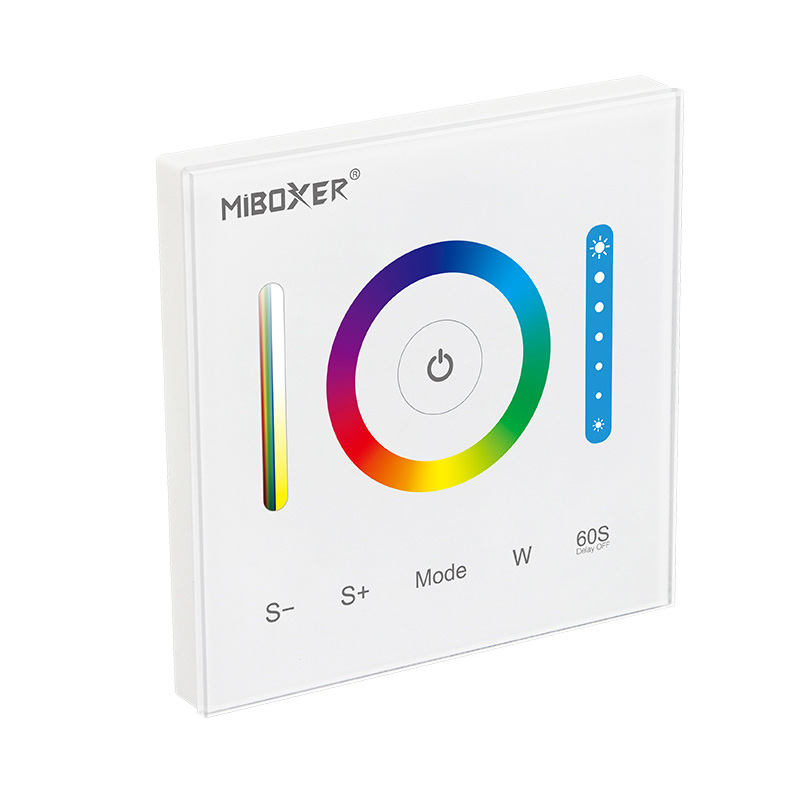

The MiBoxer P3 Panel Controller is designed for RGB, RGBW, and RGB+CCT LED Strip Lights. The LED Panel Controller with high precision capacitive touch screen IC touch screen is very stable; when touching the buttons, the LED indicating lamp will flash once with a different sound. You can touch the buttons to turn On/Off, change the static color or dynamic mode, adjust the brightness of the static color, or change the speed of dynamic mode. Sixteen million colors adjustable, 2700K to 6500K color temperature adjustable, there are 12 dynamic modes available, you can use the remote control to switch, the 2.4GHz Remote Control sold separately. After adding the 2.4GHz gateway(WL-Box1), the MiBoxer P3 will support smartphone APP and third-party voice control; you can use your phone or voice to control the LED Light. The Panel LED Controller will receive the signal from the Remote Control and transmit it to another controller within 30 meters. Different controllers can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within a 30m distance.

Quick Links:

MiBoxer P3 Manual


Features:

  • Size: 86*86*26mm(L*W*H)
  • Working Voltage: DC12-24V
  • Output Max Current: 5A/Channel
  • Total Output Current: 10A
  • RF: 2.4GHz
  • Control Distance: ≤30M
  • Designed For RGB/RGBW/RGB+CCT LED Light Strips
  • 16 Millions Of Colors To Choose
  • Dimmable Saturation Control
  • Color Temperature Adjustable
  • 2.4G RF Wireless Transmission Technology
  • Smartphone APP Control(2.4GHz Gateway Needed)
  • Supports Third-Party Voice Control(2.4GHz Gateway Needed)
  • DMX512 Controllable(DMX512 LED Transmitter Needed)
  • High Frequency(8KHz) And Low Frequency(500Hz) Can Be Switched According To Needs
  • Signal Transmitting
  • Modes Synchronization
  • Compatible With FUT089, FUT088, FUT092, FUT096, B8, B0, B3, T3, B4, T4, WL-Box1
  • Working Temperature: -20℃-+60℃


Includes:

1*MiBoxer P3 Panel Controller
