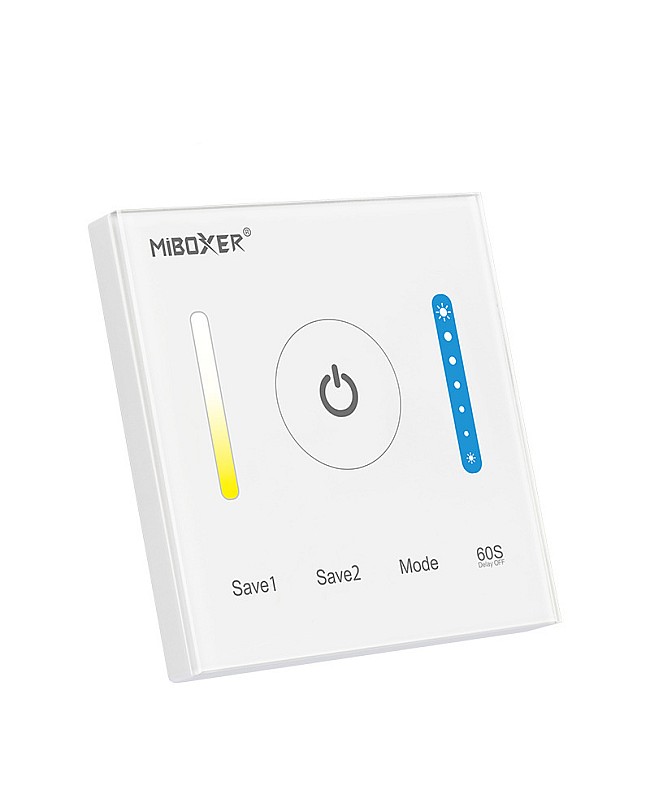

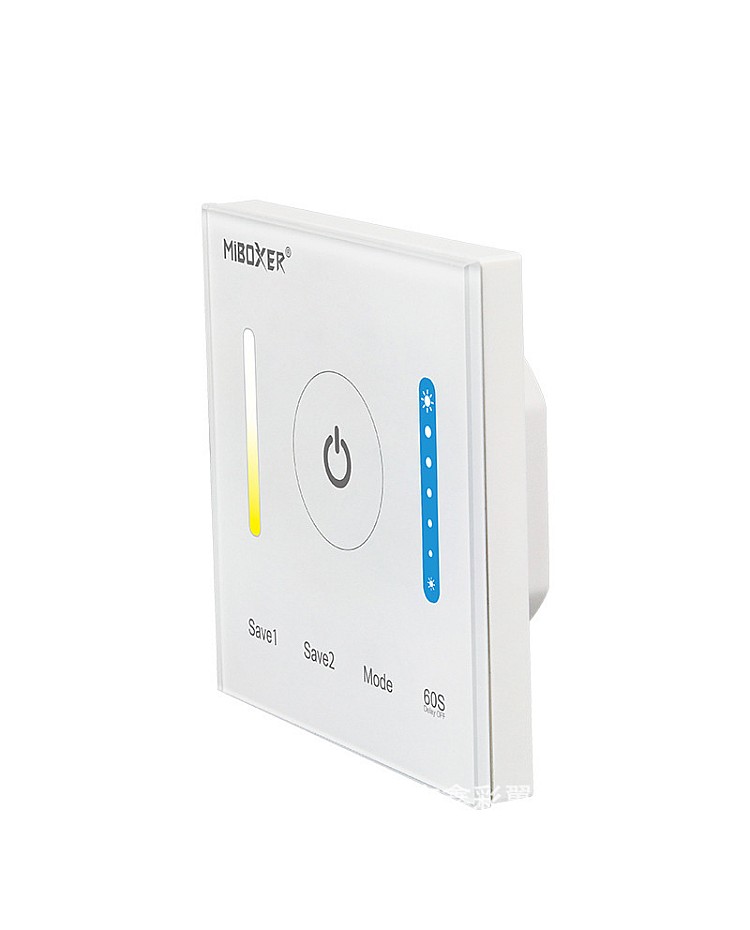

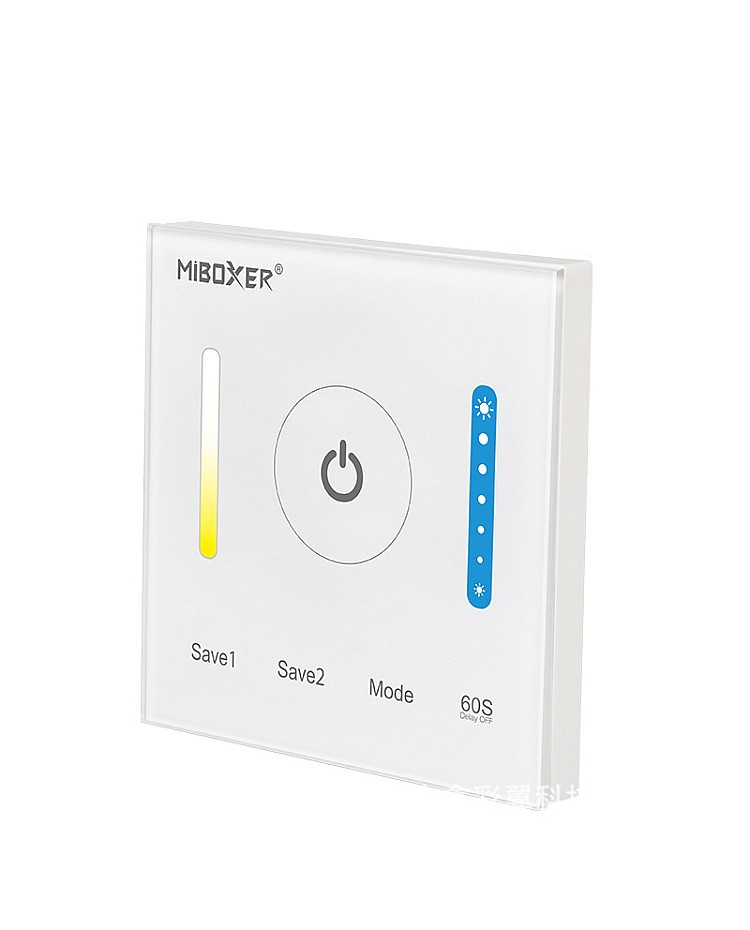

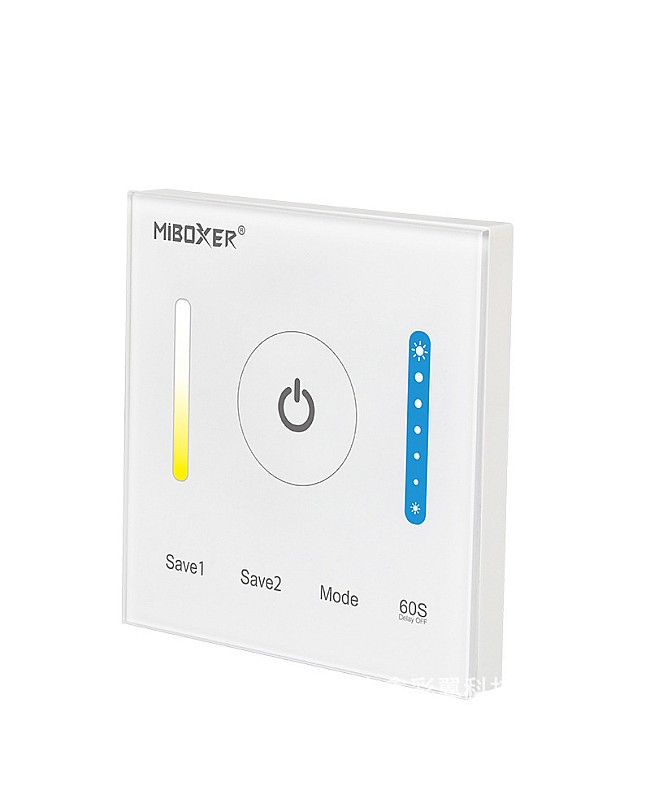

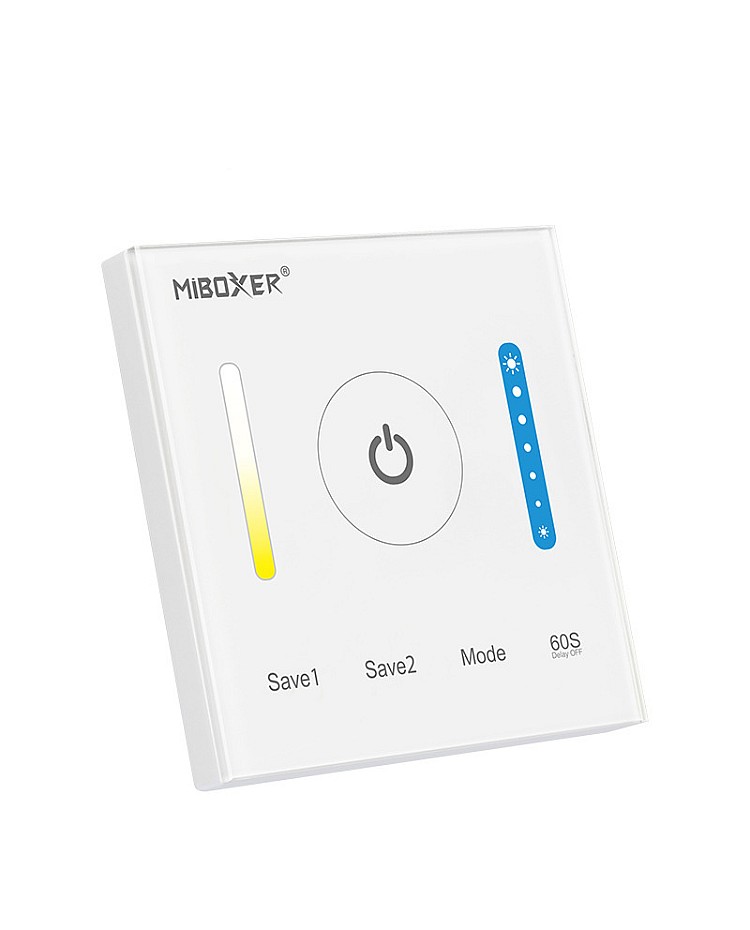

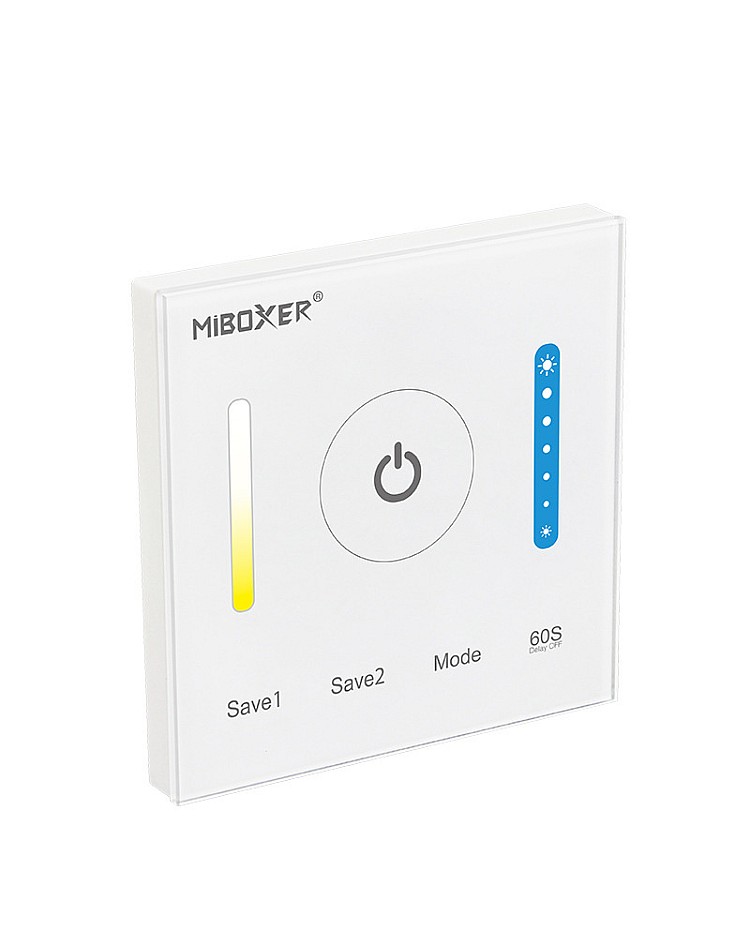

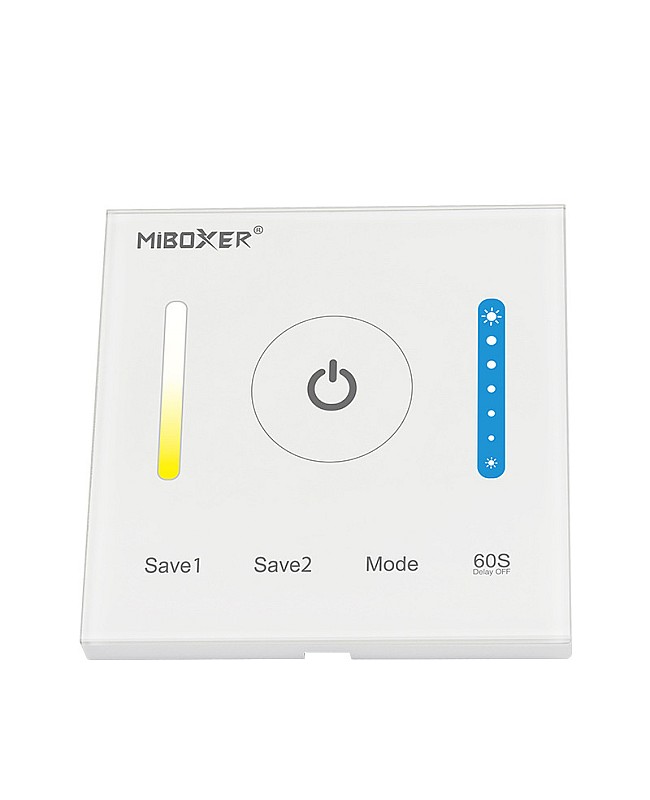

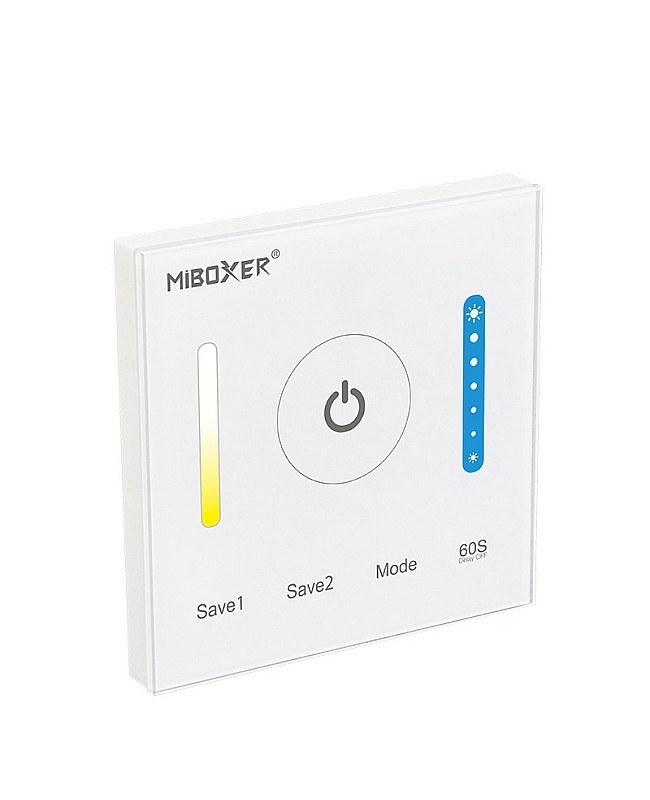

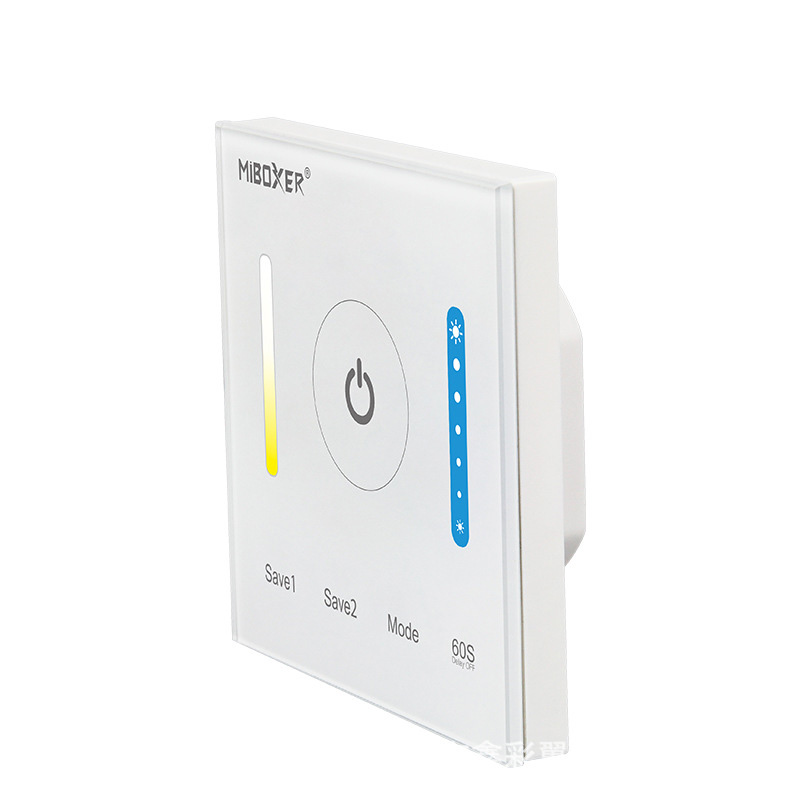

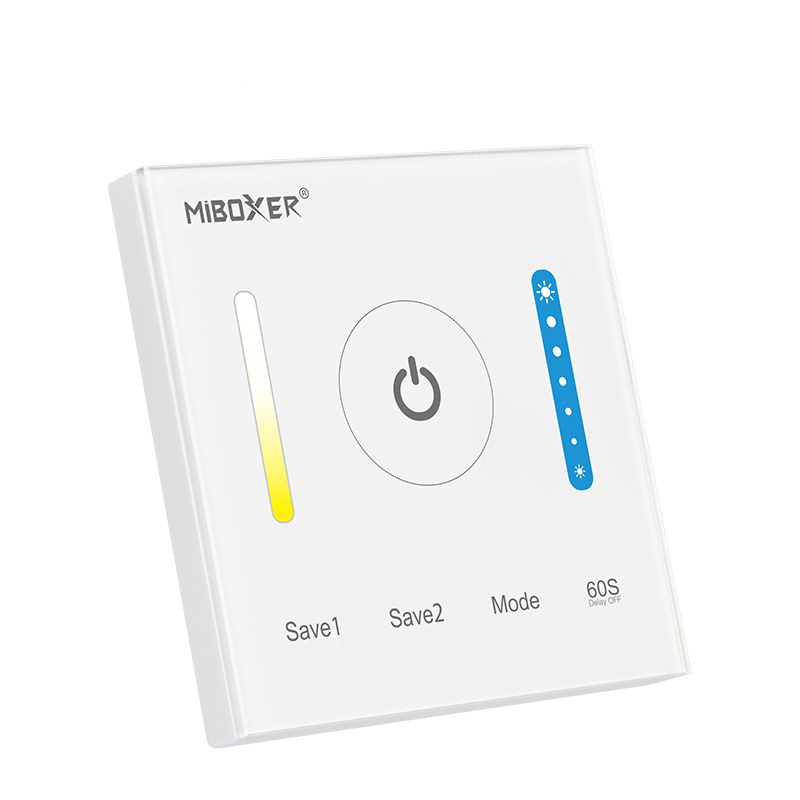

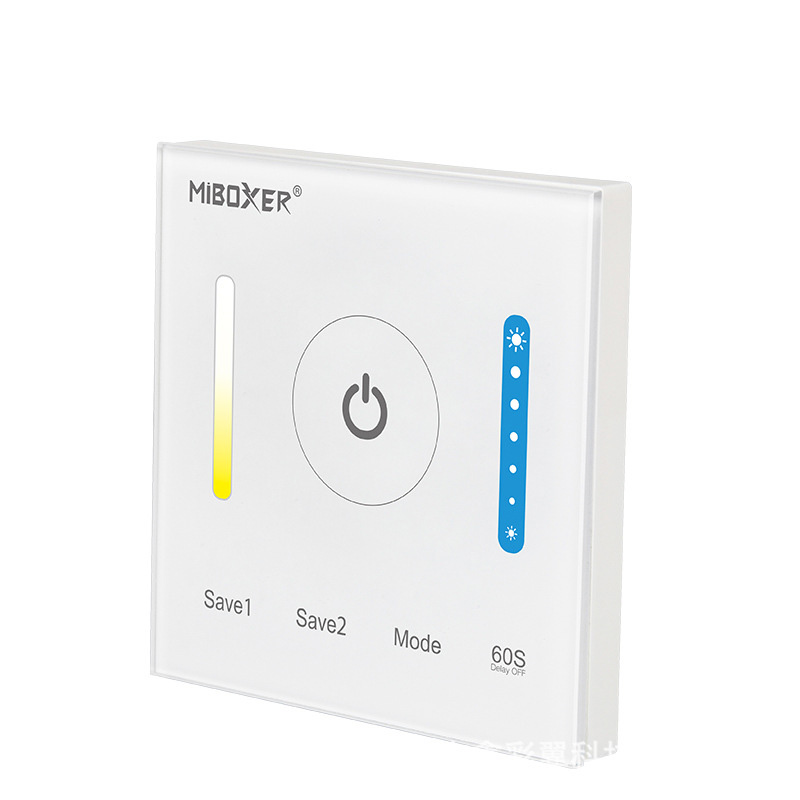

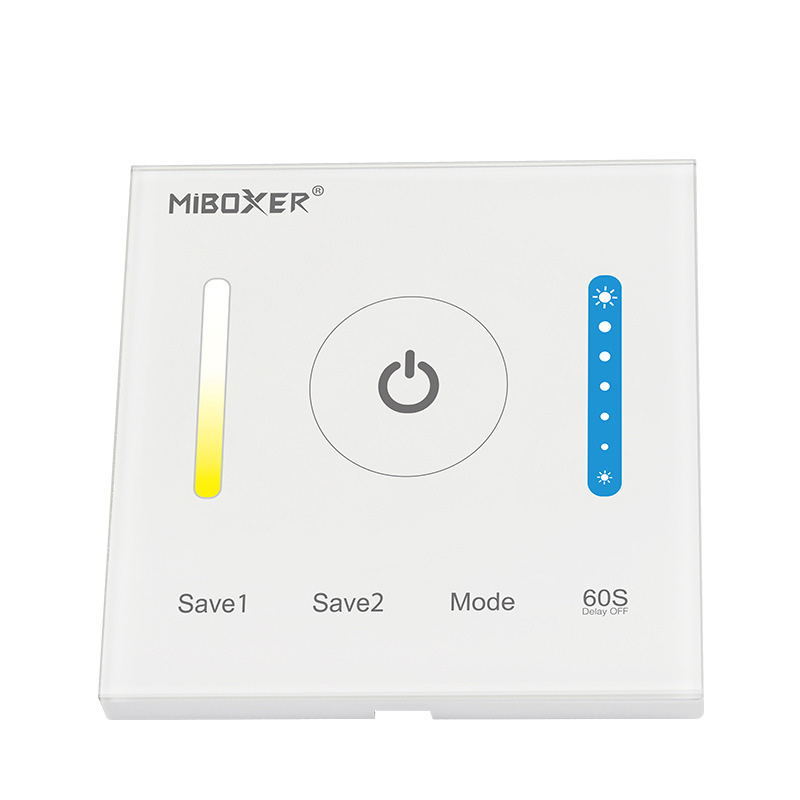

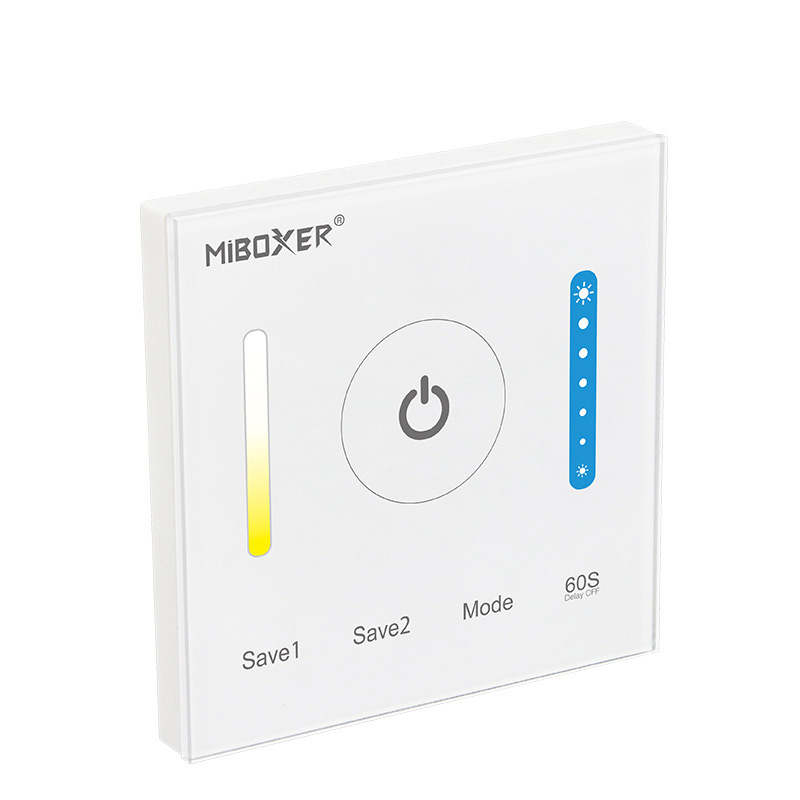

The MiBoxer P2 CCT Adjustable LED Panel Controller, which has a sensitive touching panel design, can touch the panel to adjust the color temperature from 2700K to 6500K, dimming the brightness from 1% to 100%. You can touch the button "60S" to delay off the LED Light, which will be turned off automatically after 60 seconds. There are 9 dynamic modes available, and you can touch the button"Mode" to switch the mode for various scenes. When the buttons are touched, the LED indicator light will flash with different sounds. The MiBoxer P2 adopts 2.4G RF transmission technology, compatible with MiBoxer RF Remote Controls. You can adjust the LED Light remotely after adding the 2.4G Gateway WL-BOX1, a smartphone APP can control the LED Light and third-party voice commands(Amazon Alexa and Google Assistant), and the Panel Controller will receive the signals and transmit them to other Controllers within 30meters, different Controllers will work synchronously. You can save present CCT, brightness, and mode randomly and easily get the saving mode by touching the save 1 or save 2 buttons.

Quick Links:

MiBoxer P2 2.4G RF Adjustable CCT LED Panel Controller User Manual


  • Size: 86*86*26mm(L*W*H)
  • Working Voltage: DC12-24V
  • Output Current: Max 5A/Channel
  • Total Output Current: Max 10A
  • Color Temperature Adjustable From 2700K-6500K
  • Dimmable Control: 1%-100%
  • 2.4GHz RF Wireless Transmission Technology
  • Smartphone APP Control(2.4G Gateway Needed)
  • Support Third-Party Voice Control(2.4G Gateway Needed)
  • 60S Delay OFF
  • 9 Dynamic Modes Available
  • Compatible 2.4G RF Remote Controls: FUT007, B2, T2
  • PWM High Frequency(8KHz)/Low Frequency(500Hz) Switching
  • Signal Transmitting And Modes Synchronization
  • Saving Mode: YES
  • Night Light Function: YES
  • Control Distance: ≤30M
  • IP Rating: IP20 Non-Waterproof
  • Working Temperature: -20-60℃
  • 2 Years Warranty


1*MiBoxer P2 CCT LED Panel Controller

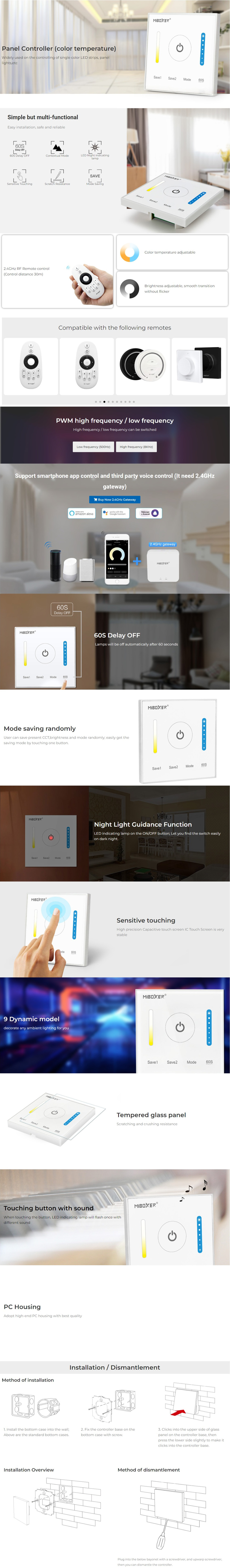

Remote Control CCT LED Panel Light
