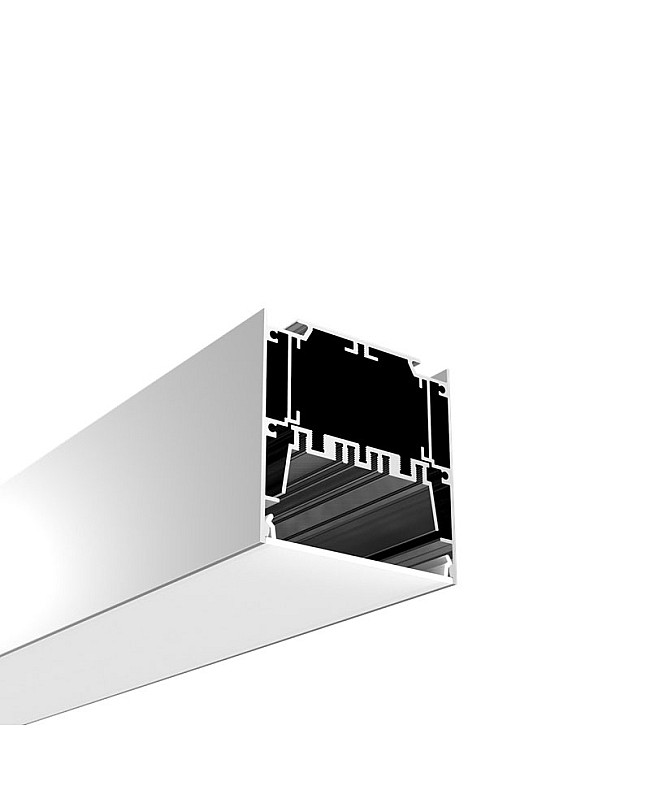

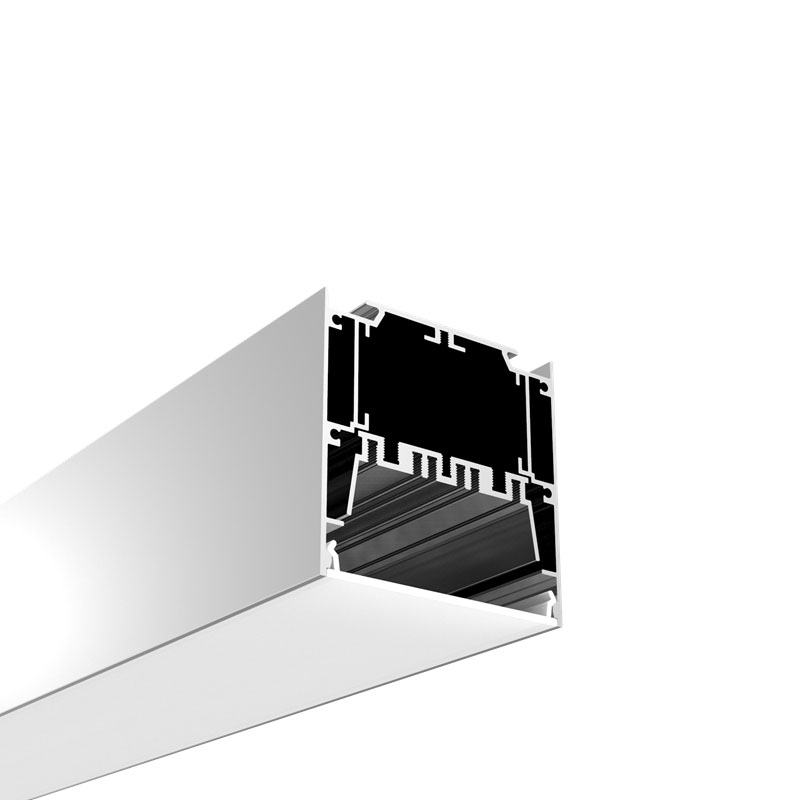

The 3-inch frosted LED strip diffuser is 75mm wide, with suspension wire kits that allow it to be hung from the ceiling. It can be used as the main lighting or architectural lighting. The standard length is 1M, and the maximum length per piece is 2.5M; custom lengths are available. There are four types of connectors available: "T", “X”, "IL", and "L". You can choose any of them for your DIY lighting projects.
Aluminum diffusers are made of 6063-T5 material with an anodized surface treatment, and three colors are available: silver, black, and white. Pendant diffusers for LED light strips allow a maximum LED strip width of 52mm. You can install LED modules, flexible LED strips, or rigid LED tapes inside as the light source, and the aluminum channel base can serve as a heat sink for better heat dissipation. End caps, metal clips, and steel wires are included for pendant installation, and you can hang them from the ceiling for main or architectural lighting in offices, supermarkets, restaurants, libraries, etc.
Only one type of LED strip light diffuser is available: the PC diffused cover, which is made of high-quality material, is anti-yellowing, provides perfect light distribution, and delivers seamless light output.

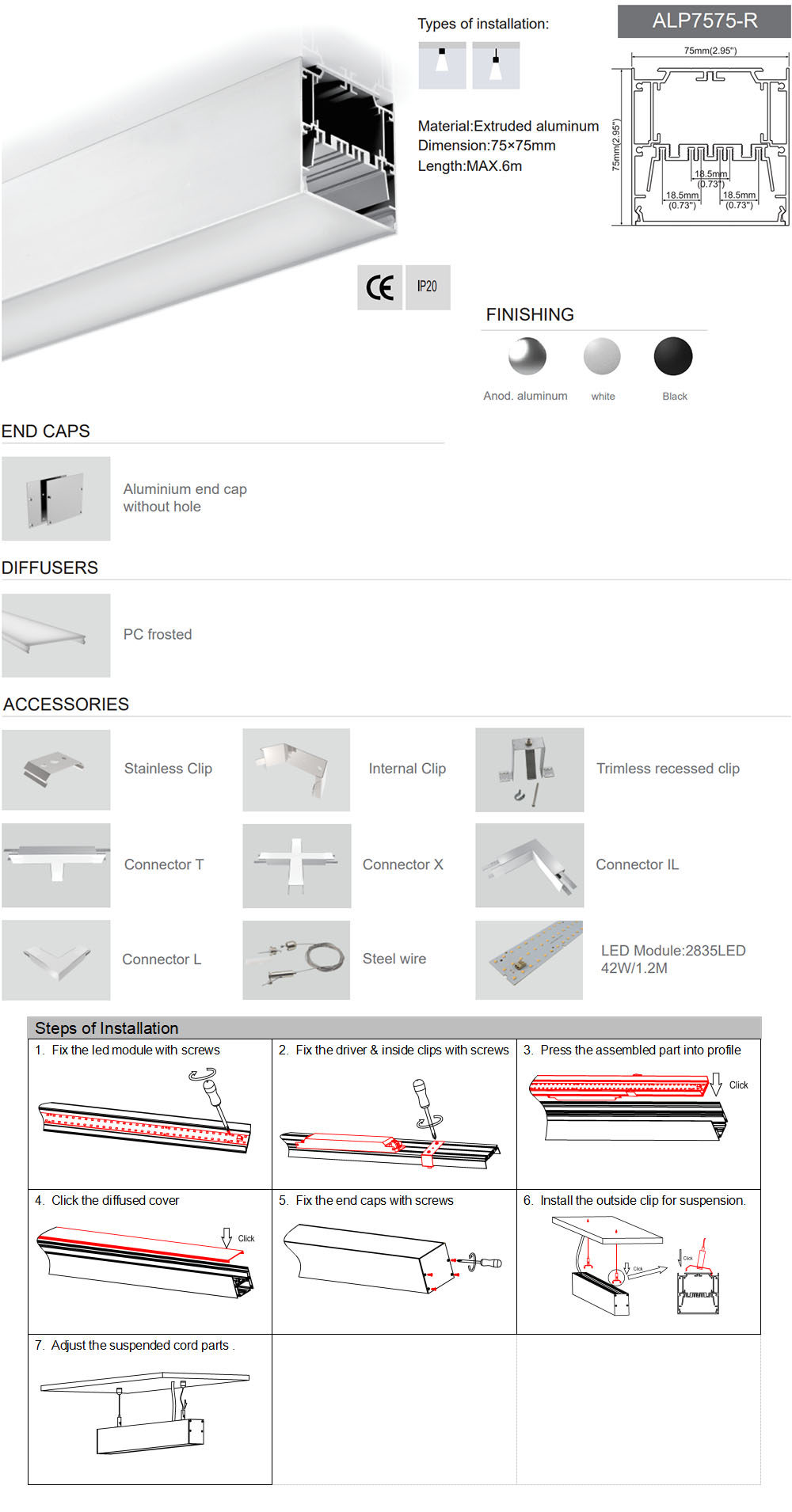

Specifications:
- Model: ALP7575-R
- Material: 6063-T5 Aluminum
- Surface Treatment: Anodized
- Colors: Silver(Default), White, Black

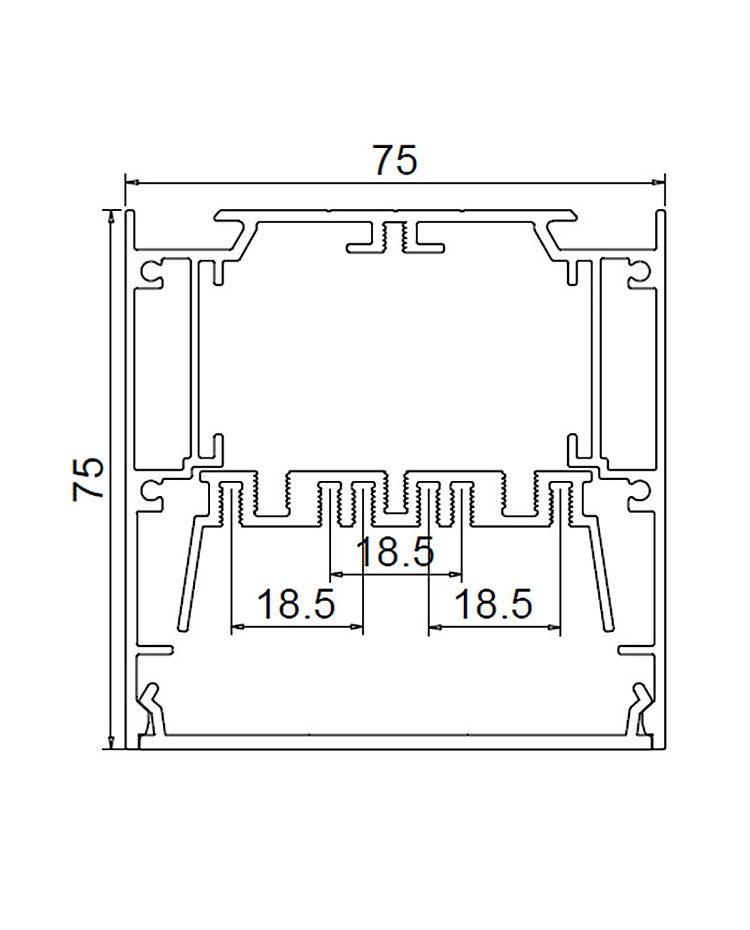

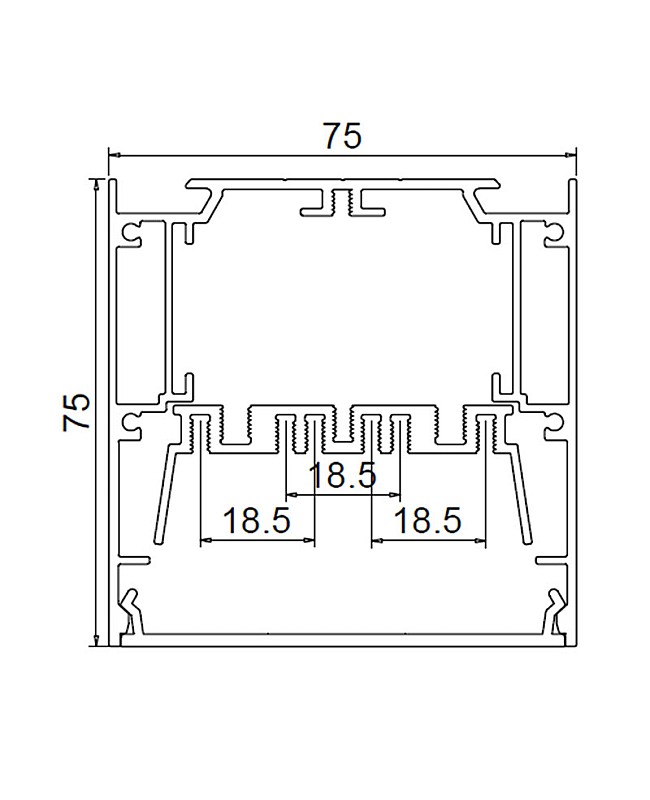

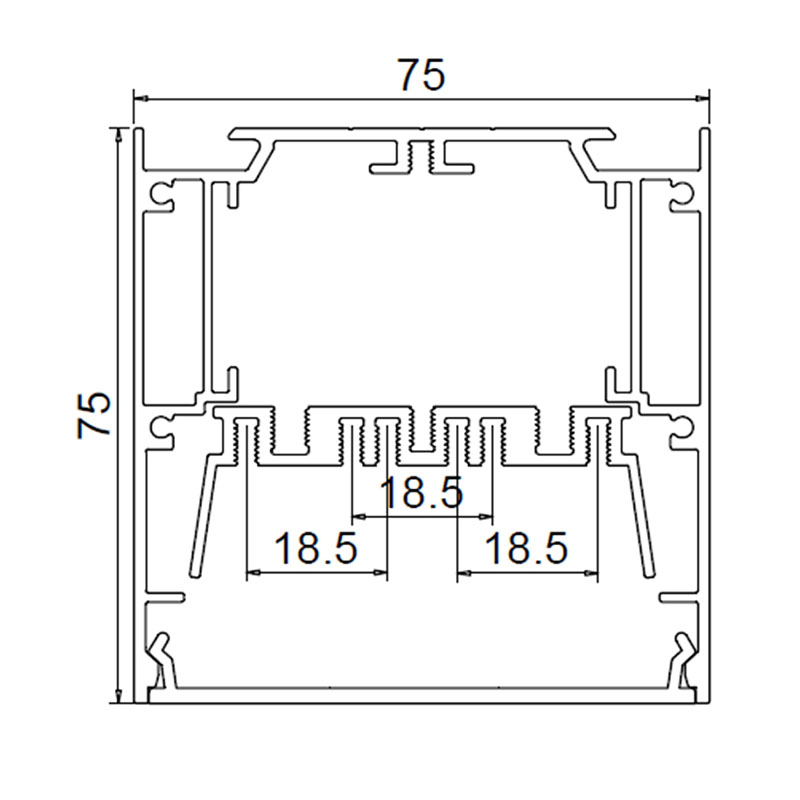

- Size: 75*75mm
- Standard Length: 1M
- Other Lengths Available: 2M, 2.5M
- Custom Length Available: YES
- Diffuser: PC Diffused Cover
- Max Width Of LED Strips: 52mm
- Max Power: 40W/M
- Beam Angle: 100°
- Tolerance: ±1%
- IP Rate: IP20 Non-waterproof
- End Caps And Other Accessories Included
- T, X, IL And L Connectors Sold Separately
- Installation: Pendant/Surface Mounted
- 5 Years Warranty
Includes:
1 * Aluminum Frosted LED Strip Diffuser

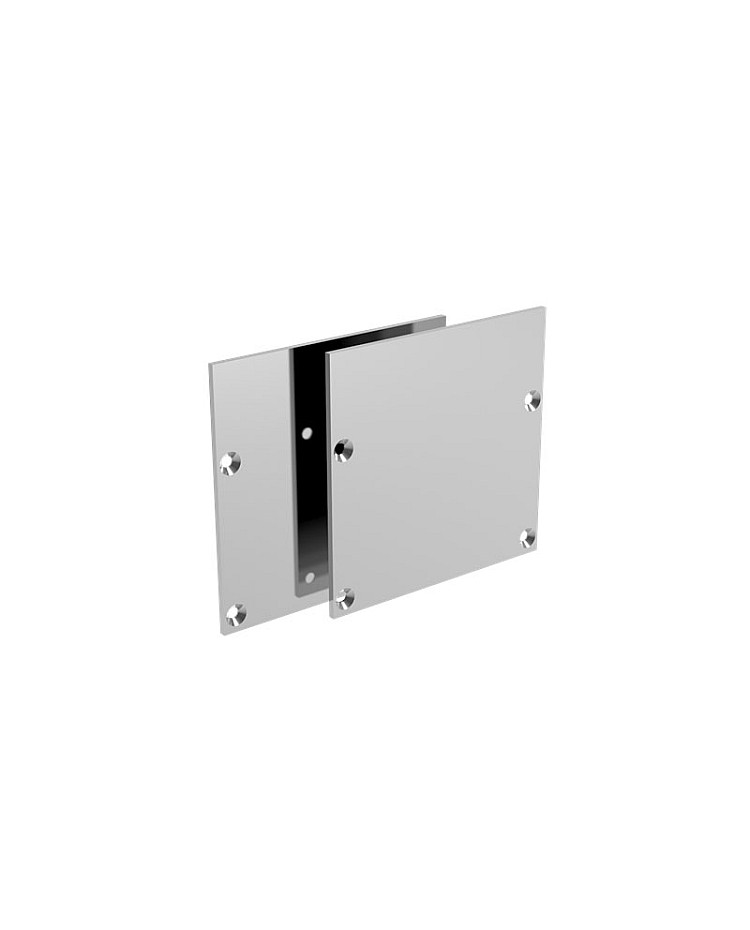

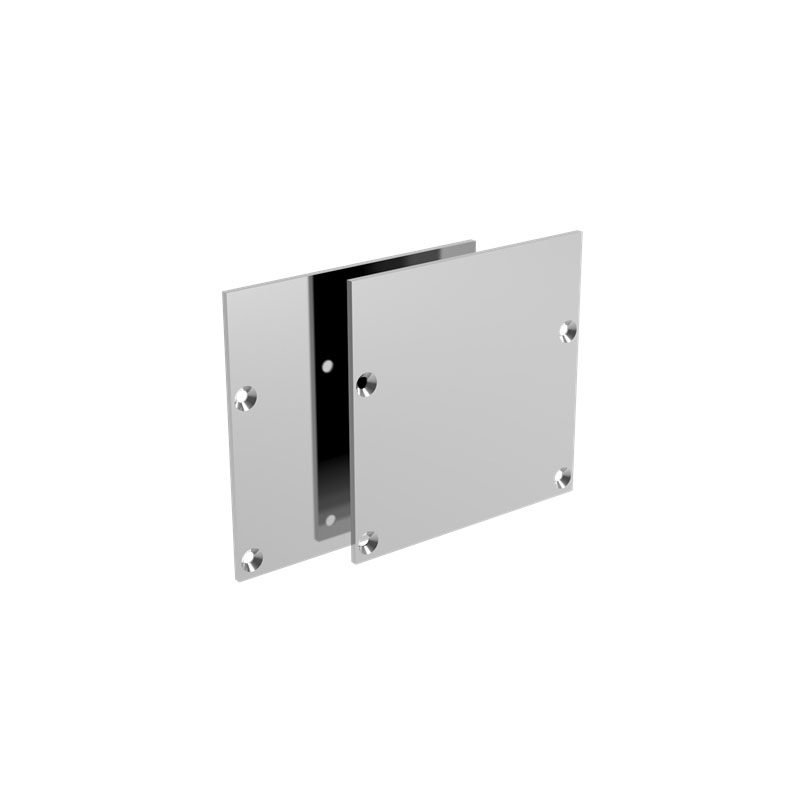

End Caps

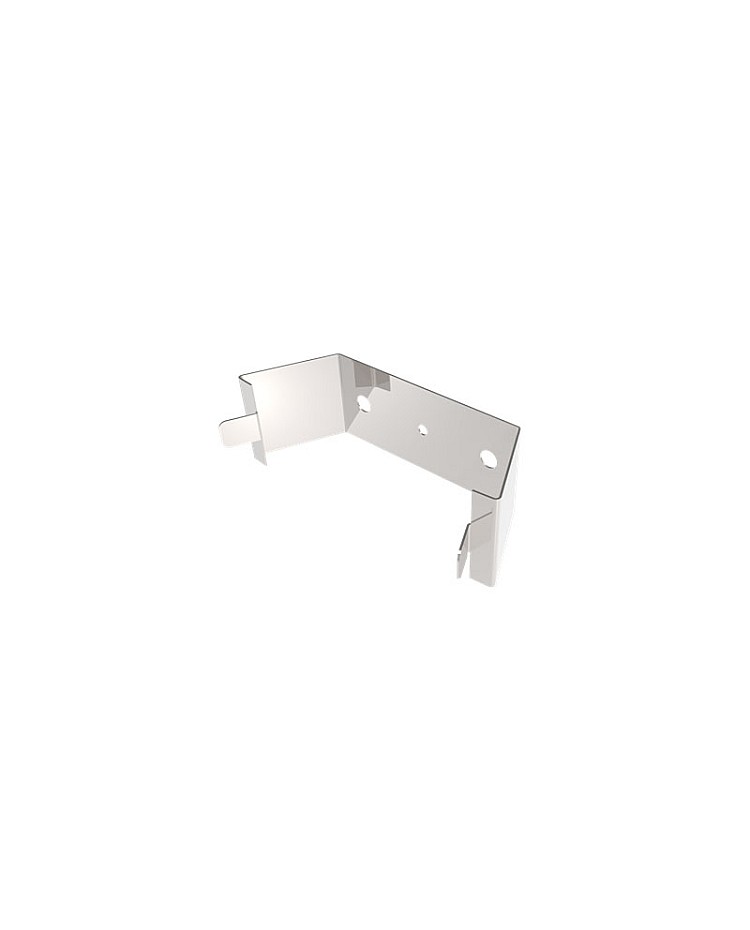

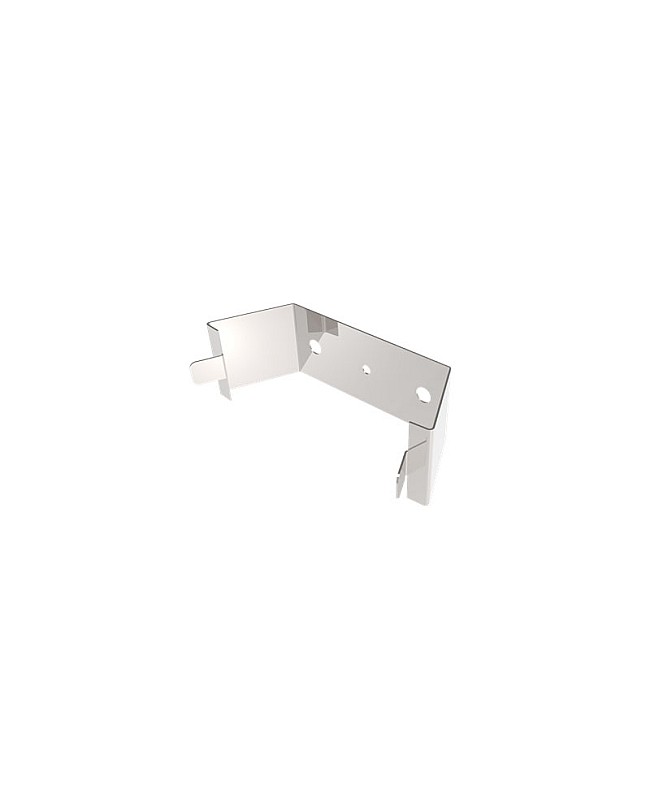

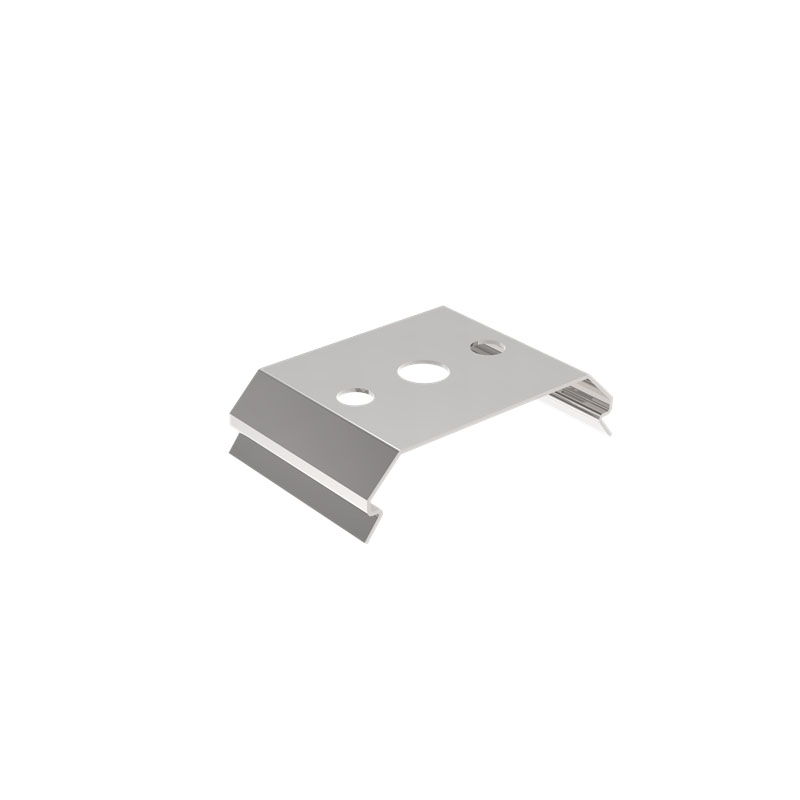

Stainless Clips

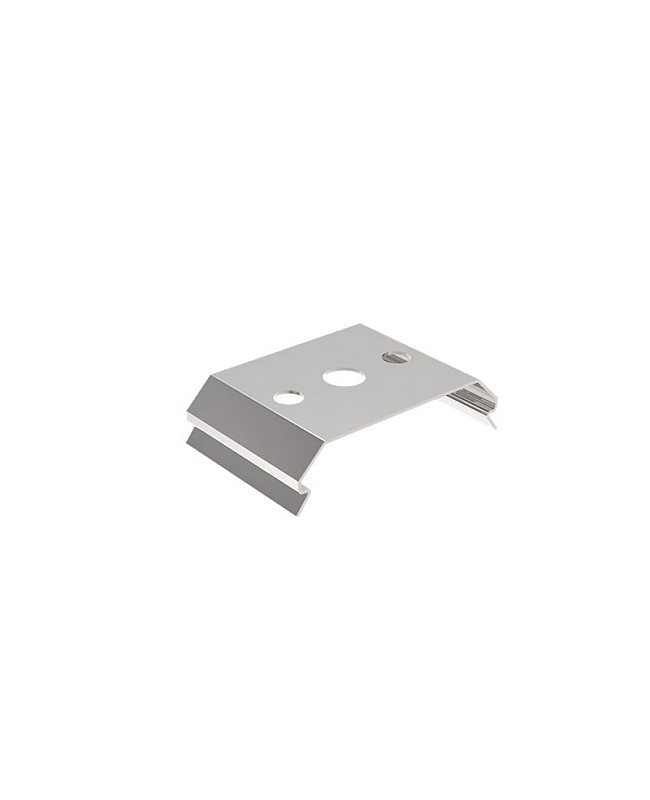

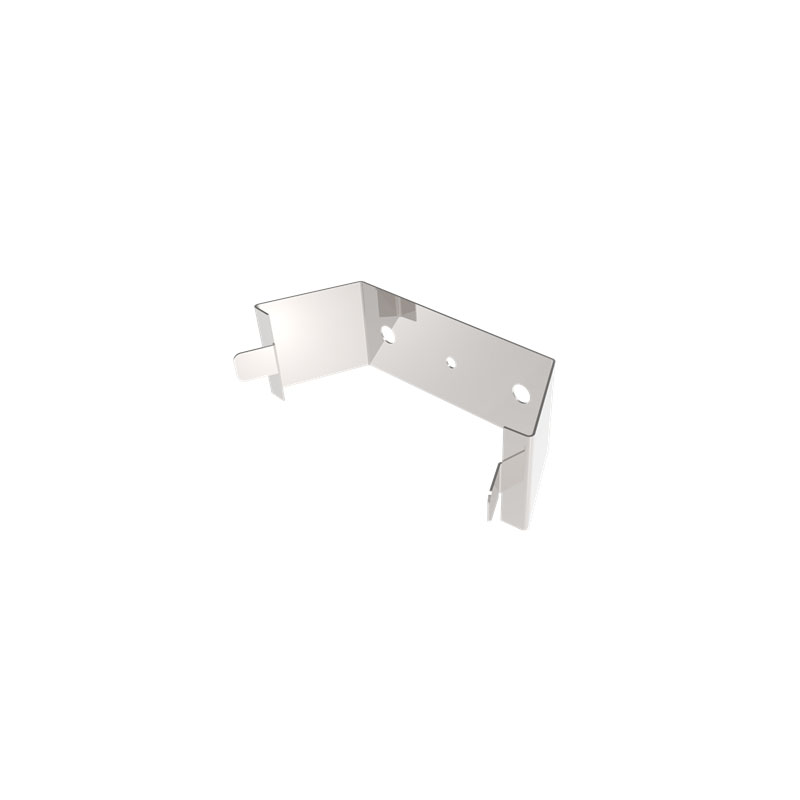

Internal Clips
Steel Wires
