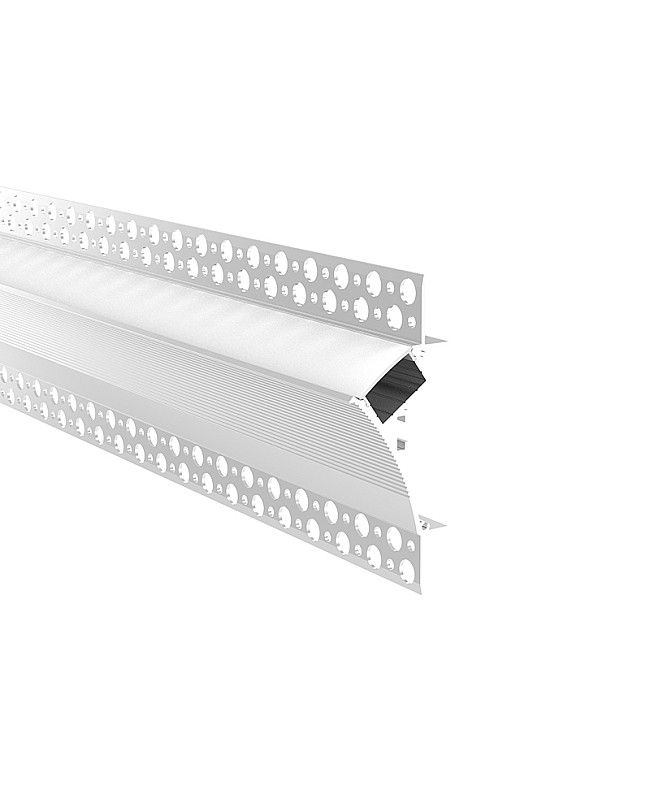

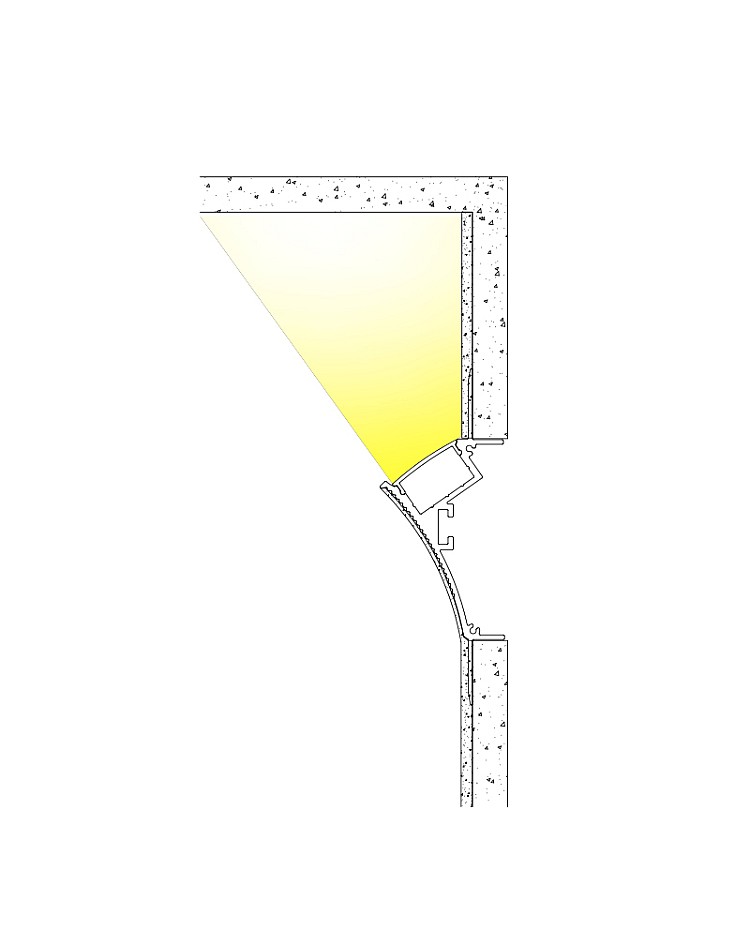

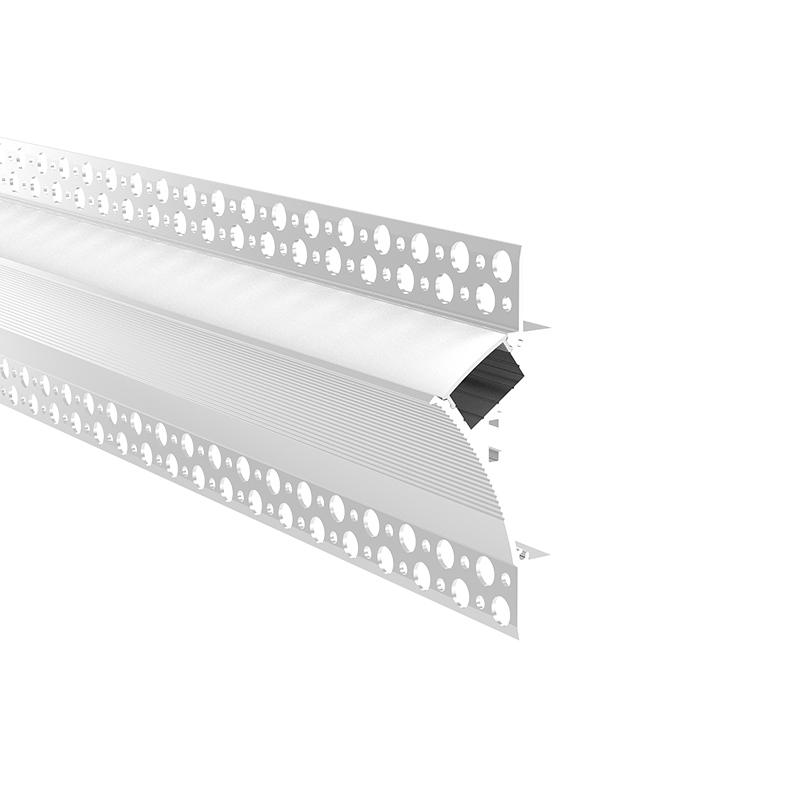

The Light Diffuser For LED Strip is an excellent option for achieving upward architectural lighting. When used in an architectural setting, it provides a more aesthetically pleasing appearance, especially for the Cove Lighting. These LED Strip Diffusers are designed to diffuse Lighting evenly, creating a uniform and even light effect. It's made of 6063-T5 aluminum alloy material with white powder-coated surface treatment, anti-oxidation, durable and long-lasting. The standard length is 1M and 2M and can be cut to any size that fits your project. The inner width is 18.7mm, allowing the maximum width of LED tapes to be 18mm. Only one type of Diffusers For LED Strip Lights are available: the PC opal matte diffuser, which is made of brand-stable material, anti-yellowing, and provides an even light distribution. There are 90°, 90° vertical, and 180° couplers available, and you can purchase them to reconnect the LED Diffusers and Aluminum Profiles. They are easy to install and require minimal maintenance. The flanges with honeycomb hole design, which is perfect for trimless installation between plasterboards. They are excellent for creating an attractive and uniform upward lighting effect.

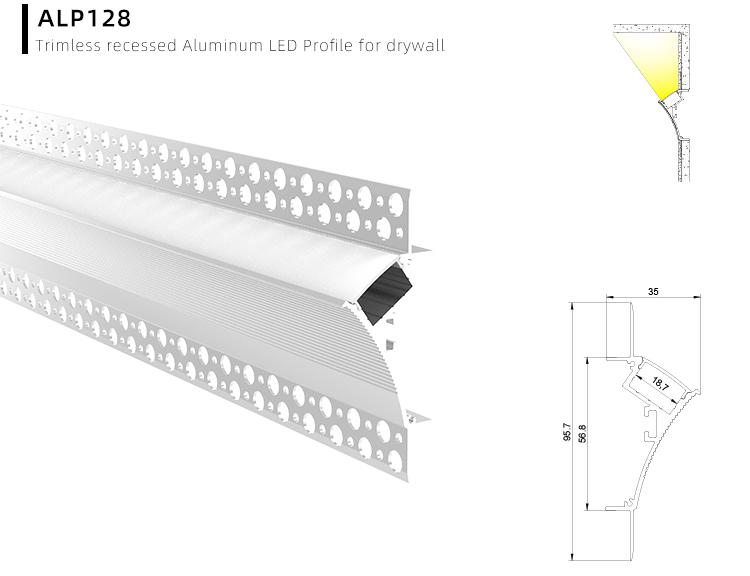

  • Model: ALP128
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: White Powder Coated
  • Colors: White(Default), Silver, Black

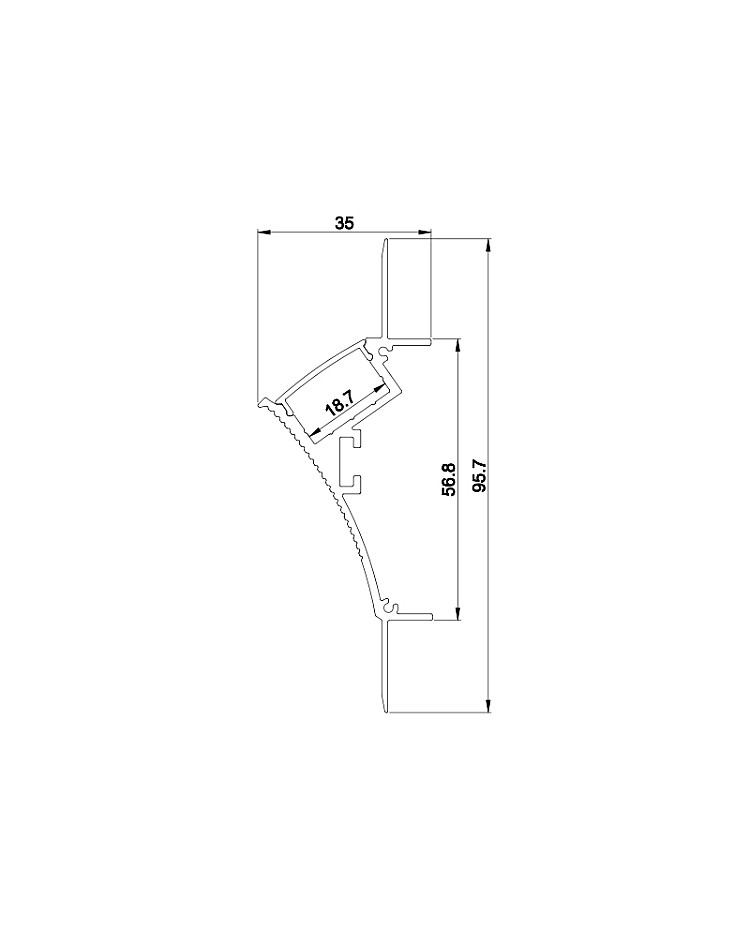

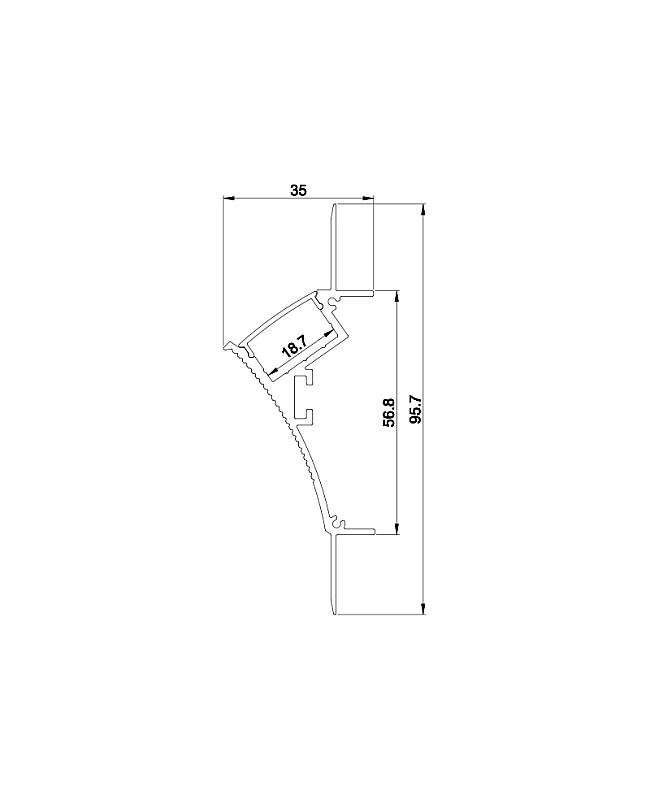

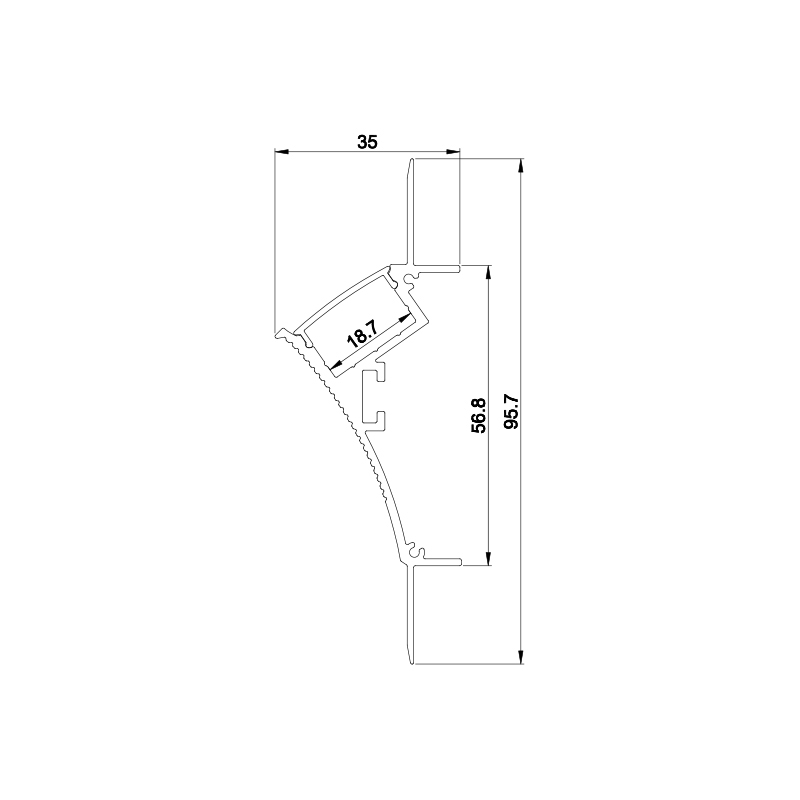

  • Size:95.7*35mm(H*W)
  • Inner Width: 18.7mm
  • Compatible With 3528 Or 2835 LED Ribbon In Double Rows/ 5050 Strip Light In A Single Row
  • Max Power: 15W/M
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M
  • Custom Length Available: YES
  • Diffusers: PC Opal Matte Diffuser (78% Light Transmission)

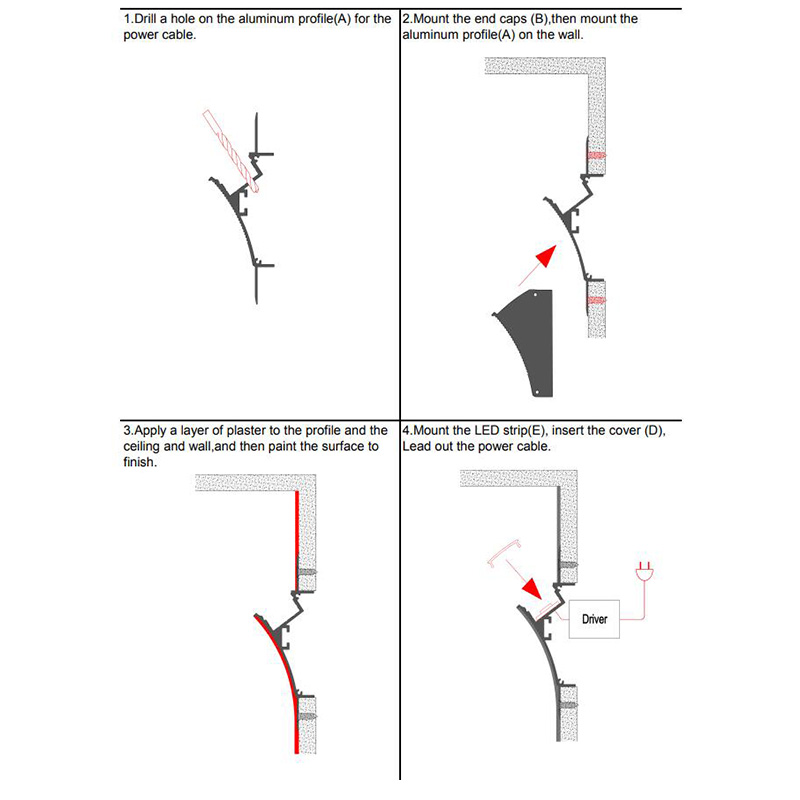

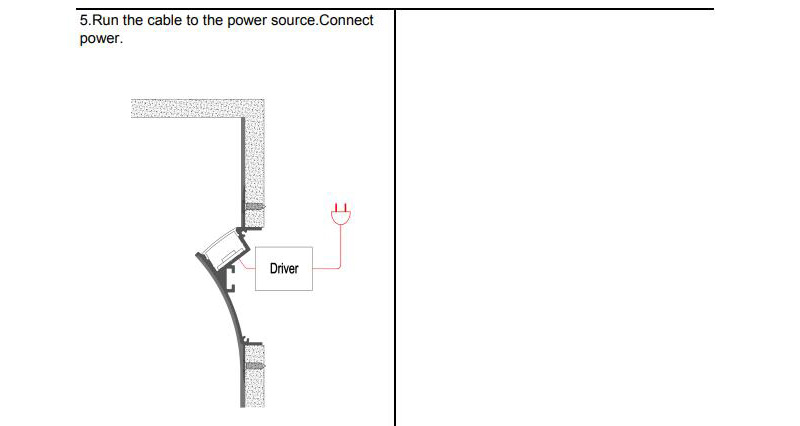

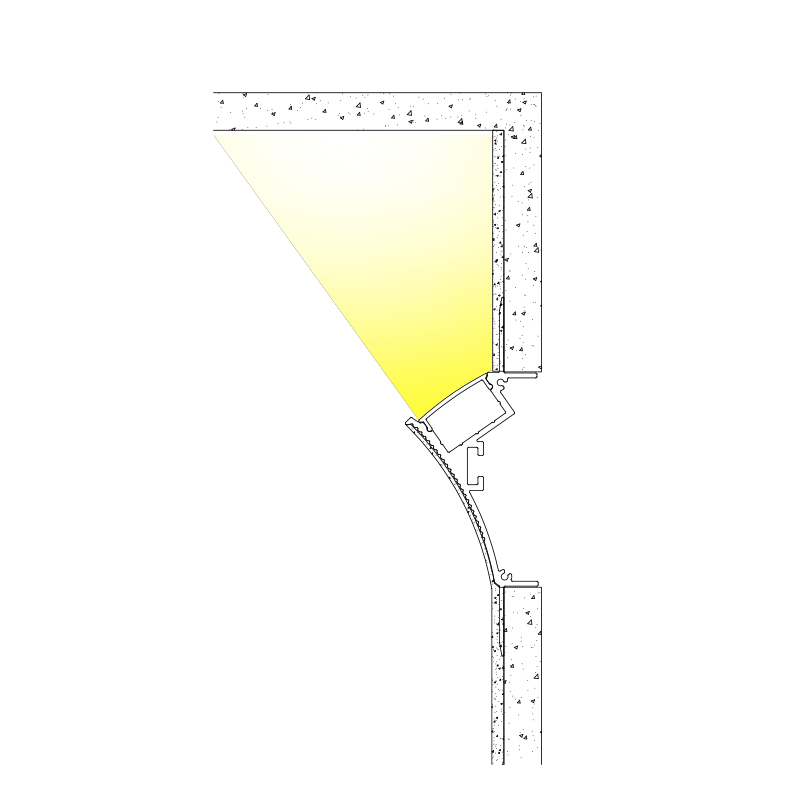

  • Installation: Drywall Ceiling / Wall Plaster-in

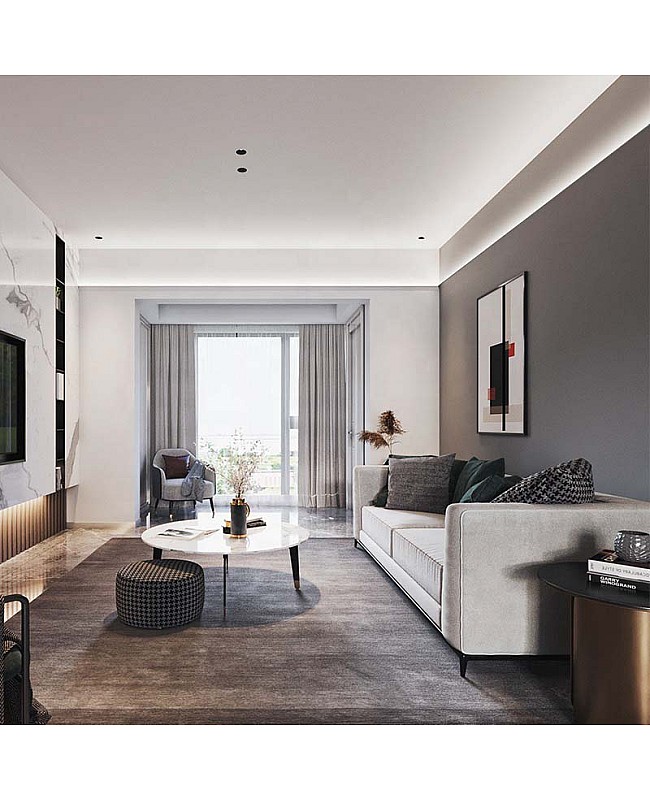

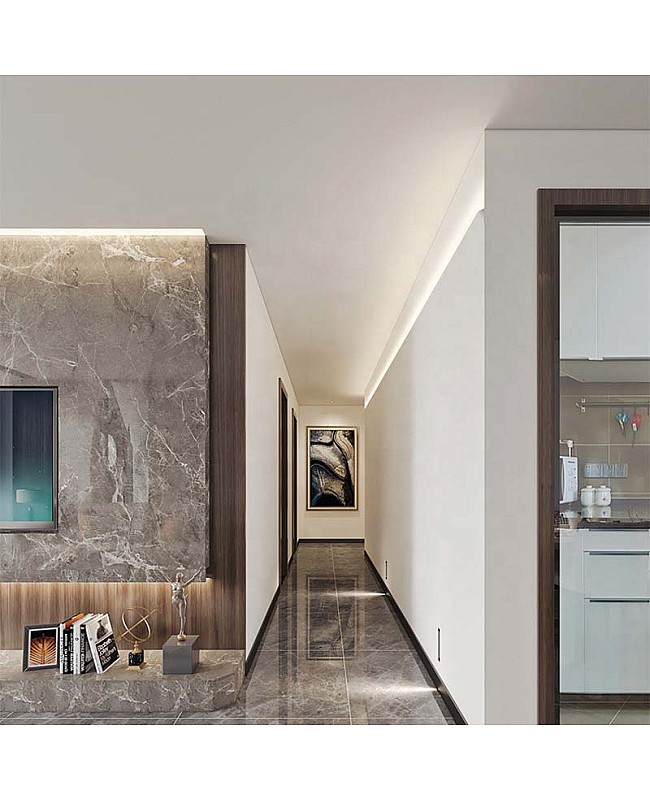

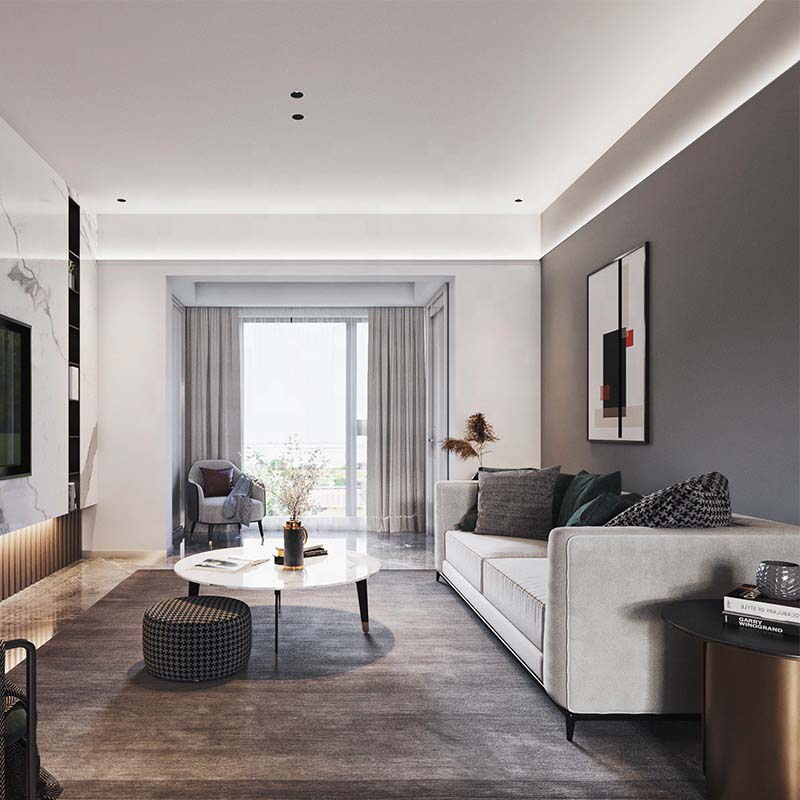

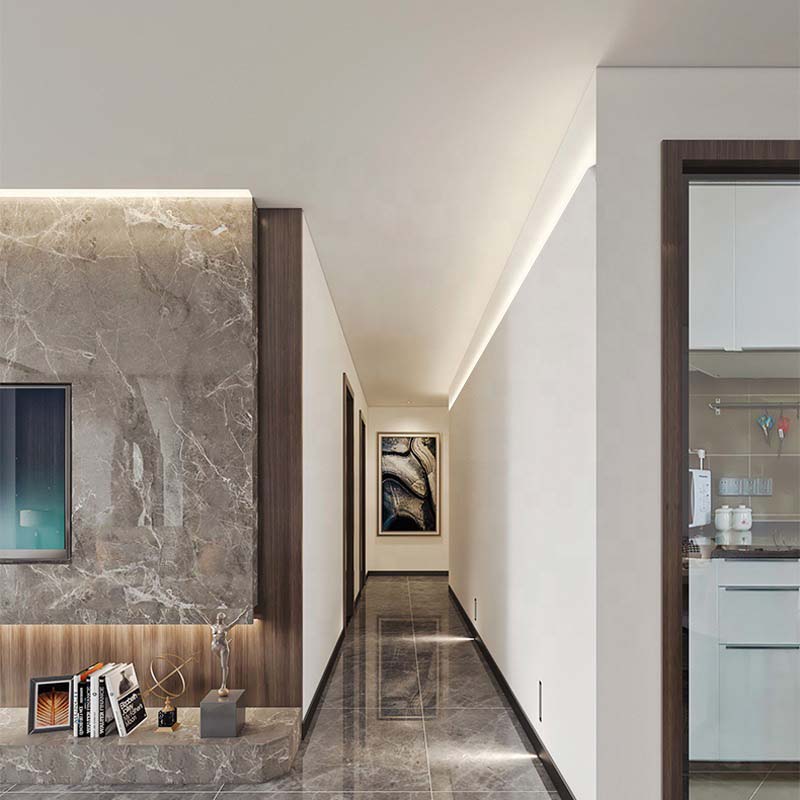

  • Application: Architectural / Cove / Indirect / Accent Lighting

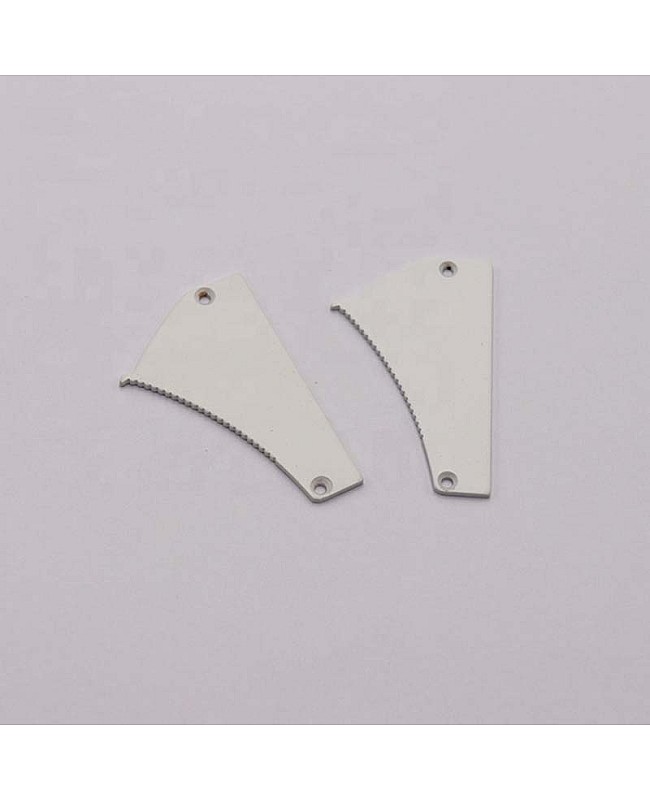

  • End Caps With Wire Holes Included
  • 90°, 90° Vertical And 180° LED Channel Couplers Sold Separately
  • 5 Years Warranty

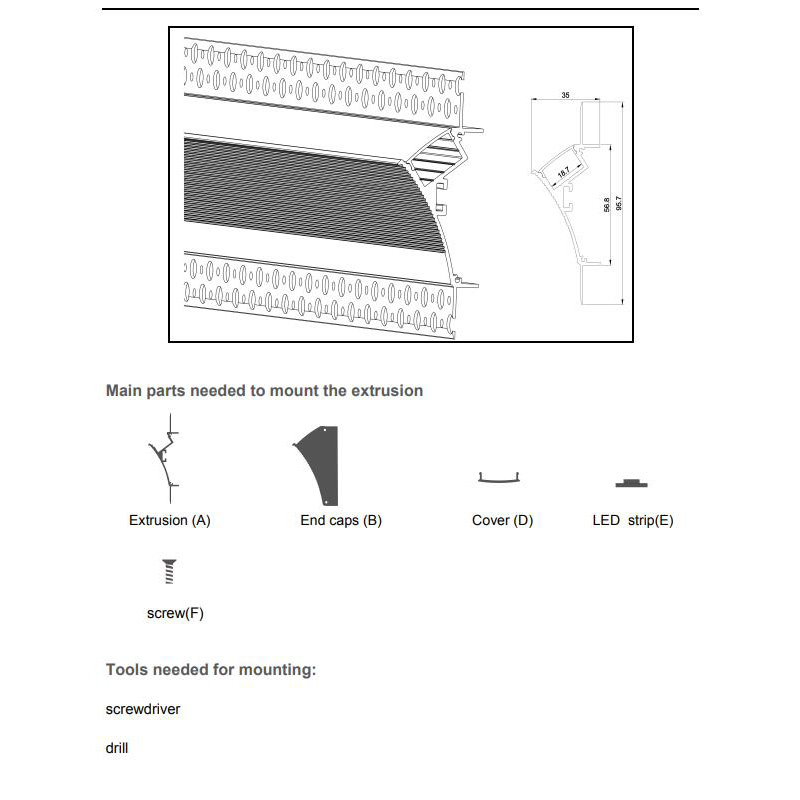

1*LED Strip Light Diffuser And Profile

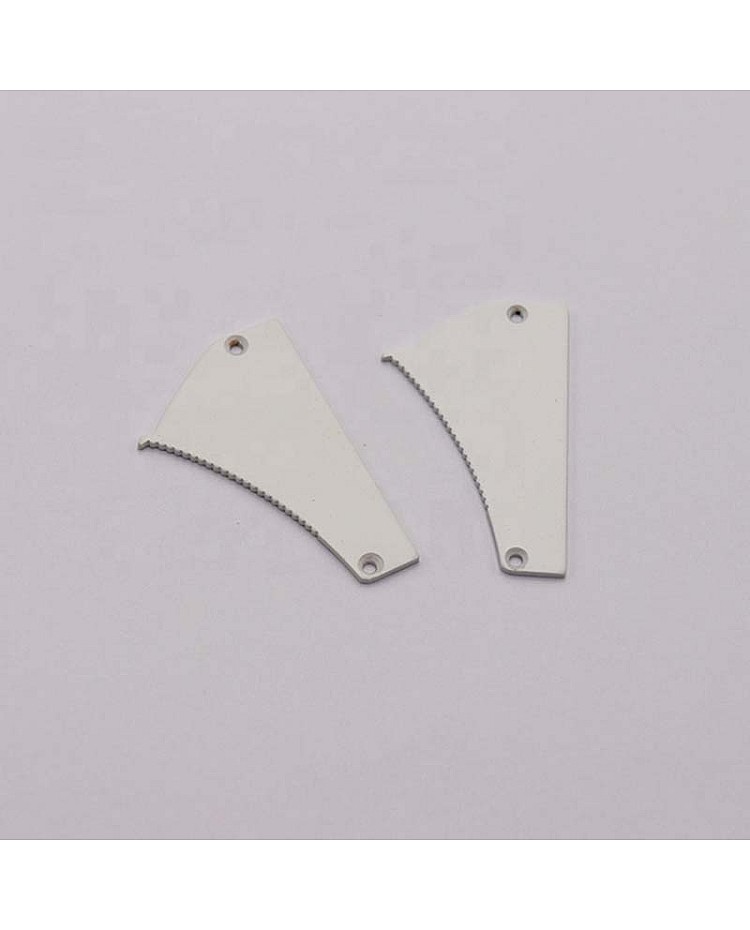

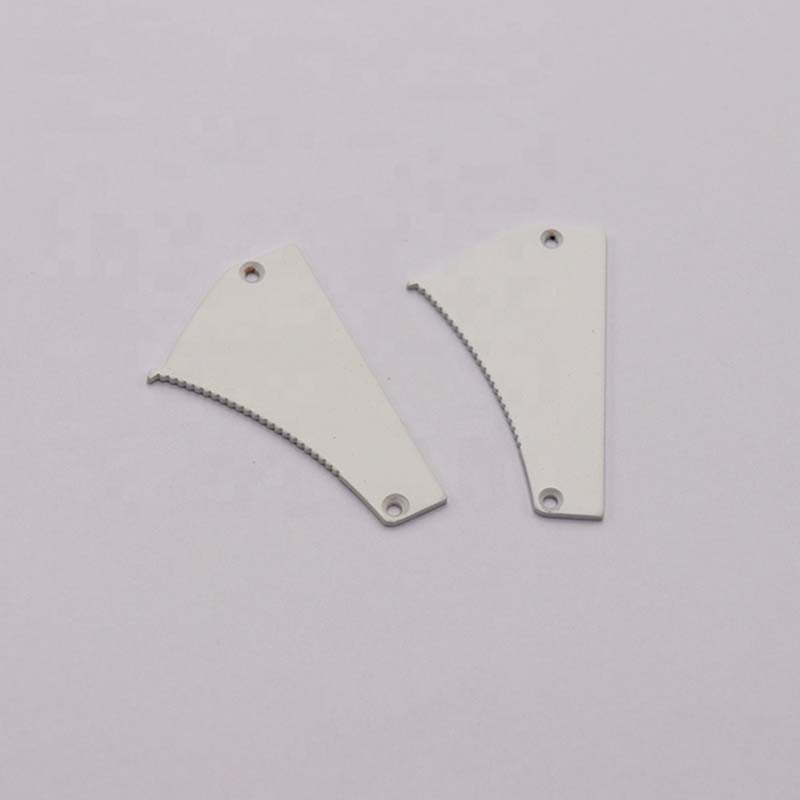

End Caps
