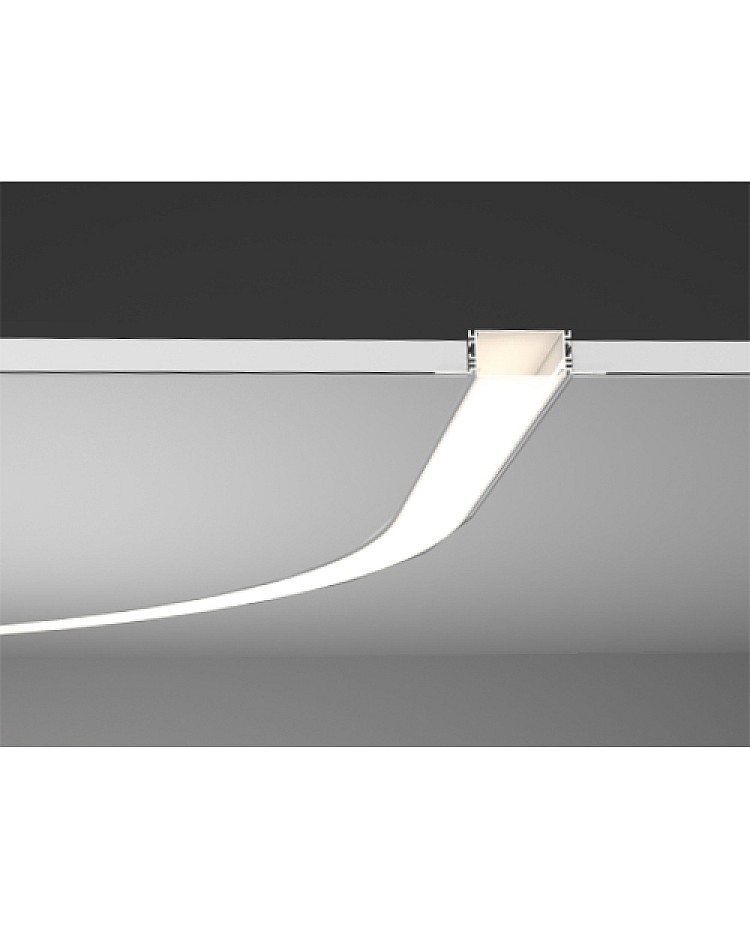

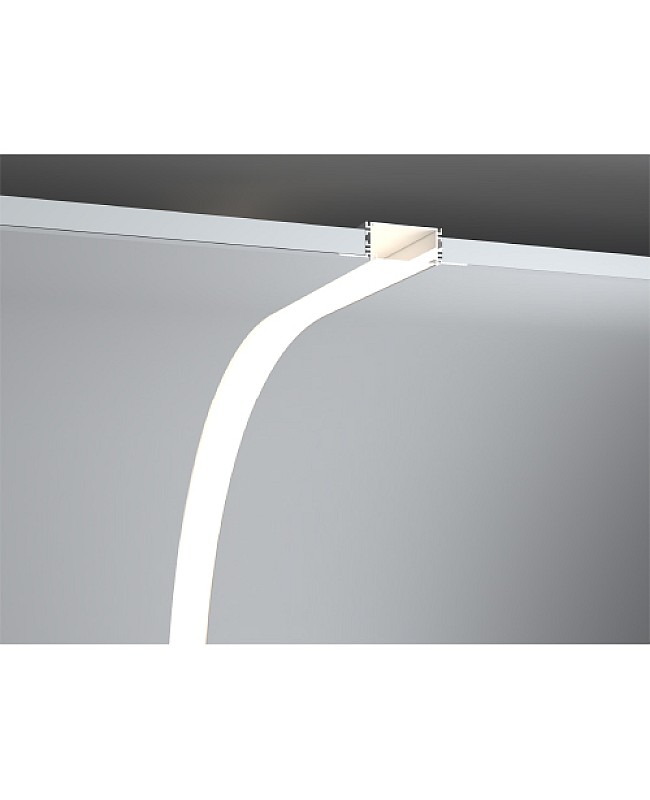

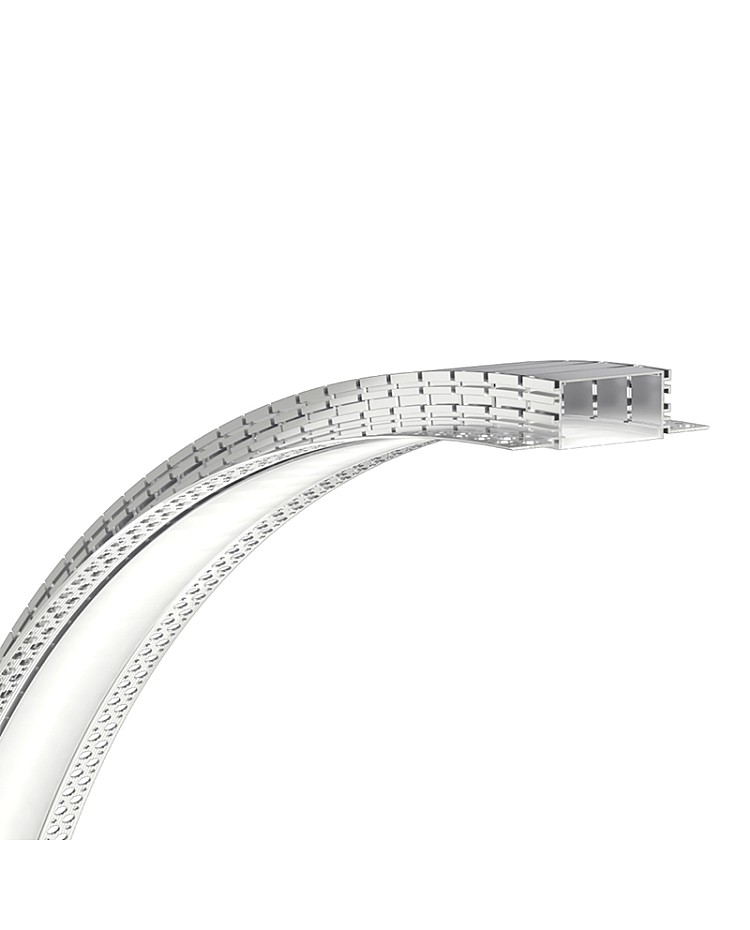

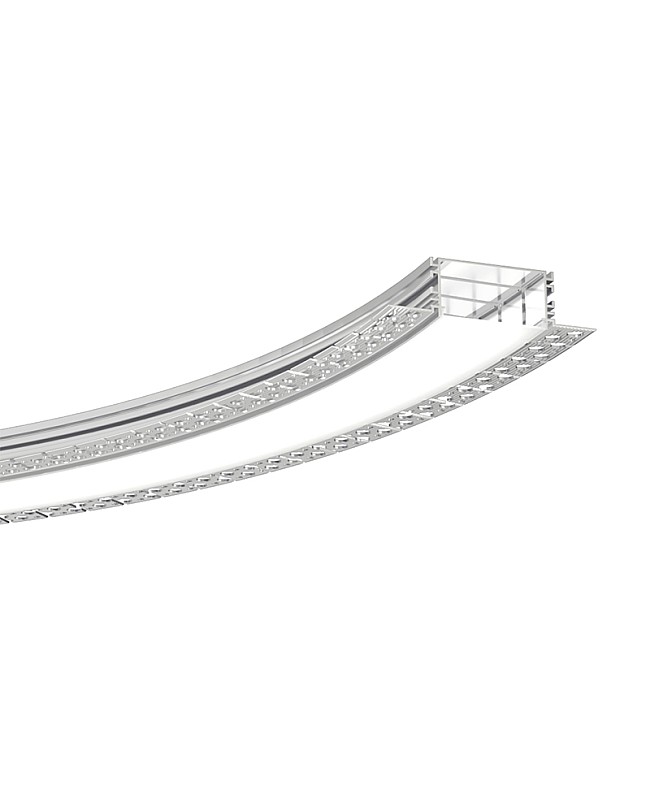

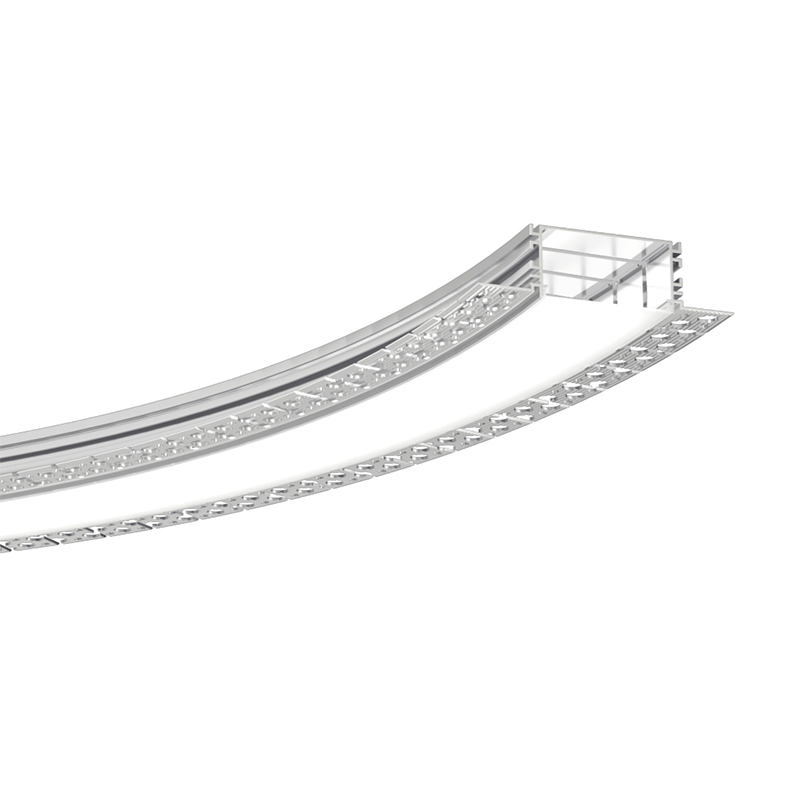

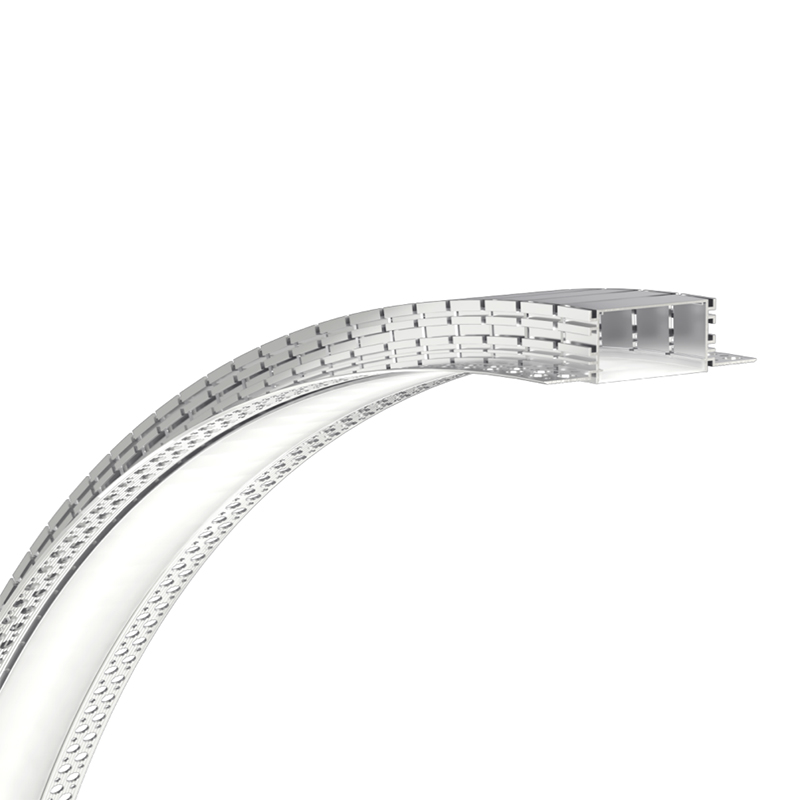

The 3.85-inch bendable LED channel tracks are designed for curved linear lighting, especially where the lighting needs to follow a curved design or irregular surfaces. They can hold, conceal, and protect LED strip lights. You can use them to create continuous, seamless light lines across ceilings, walls, and corners. With left-right and up-down bending capability, these flexible light channels enable architects and designers to achieve limitless creative lighting designs-straight lines, curves, waves, or 3D transitions from ceiling to wall to floor. The light channels are made of aluminum and feature anodized surface treatment for anti-oxidation and to extend their lifespan. The stock length is 1 m and 2 m per piece, and can be cut to any size you need. The diffusers are made of silicone material, which evenly diffuses the light, providing a softer glow and protecting the LEDs from dust and physical damage. The maximum length of silicone covers per roll is 50 meters. You can use them for a continuous lighting project without gaps or cuts to any size you need. The inner width is 49.2 mm; for the up and down bendable products, you can install multiple lines of strip lights on the bottom, which allows the maximum width of strip lights to be 49mm; for the left and right bending products, you can install 15 mm or 20 mm LED strips on the side or multiple lines of S-shaped light strips on the bottom.
Specifications:
- Type: Bendable LED channel track
- Model: 10030-LR (Left and right bending) / 10030-UD (Up and down bending)
- Colors: Silver ( aluminum track) / milky (silicone diffuser)
- Surface treatment: Anodized

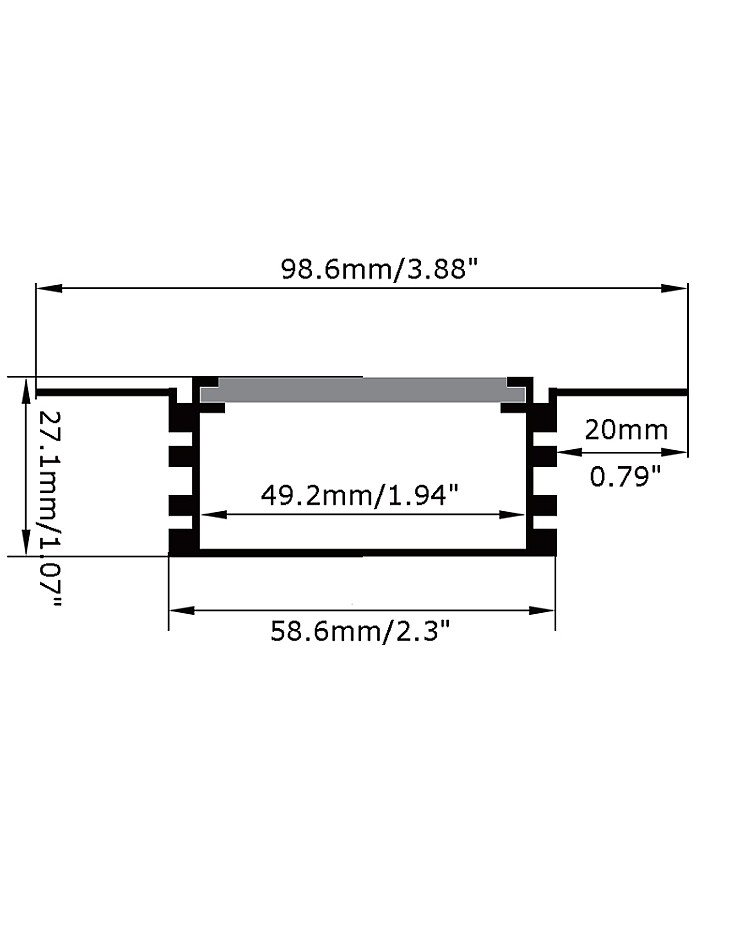

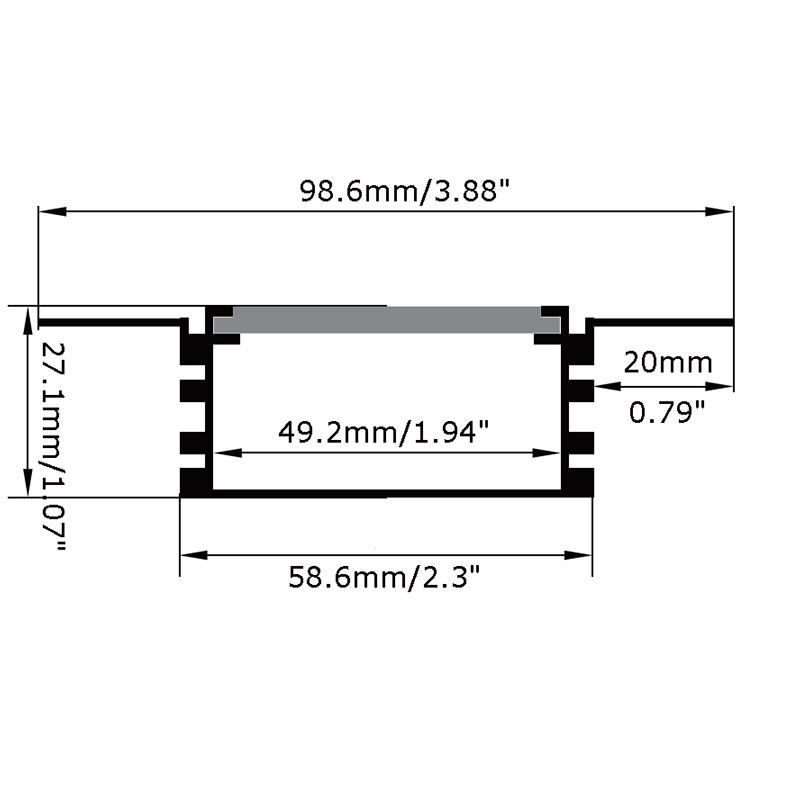

- Size ( W x H ): 98.6 mm x 27.1 mm ( 3.88" x 1.07" )
- Length available: 1 m ( 39“ ), 2 m ( 78" )
- Custom length: YES
- Inner width: 49.2 mm (1.94" )

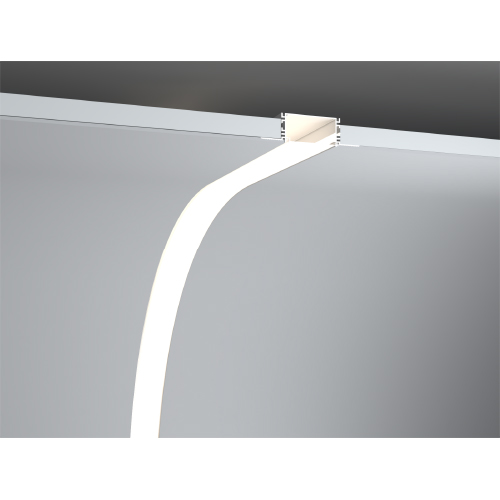

- Maximum width of strip lights: Side: 15 mm /20 mm LED strips; bottom: multiple S-shaped LED strips ( 10030-LR ); 49 mm ( 10030-UD )
- Diffusers: Silicone diffused covers
- Max length of diffuser: 50 meters per roll
- Minimum bending diameter: 1000 mm ( 10030-LR ) / 500 mm ( 10030-UD )
- End caps with and without wire holes are included

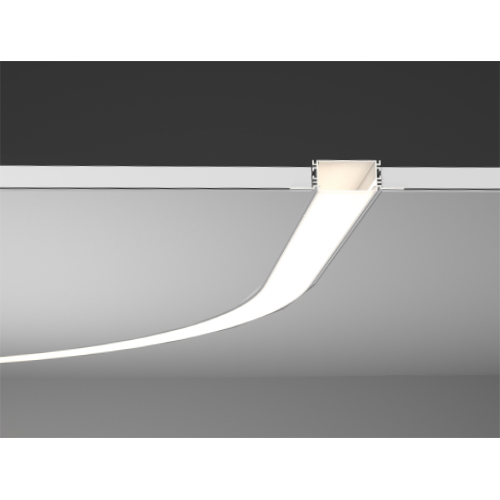

- Installation: Plaster-in
- Warranty: 3 years
Applications:

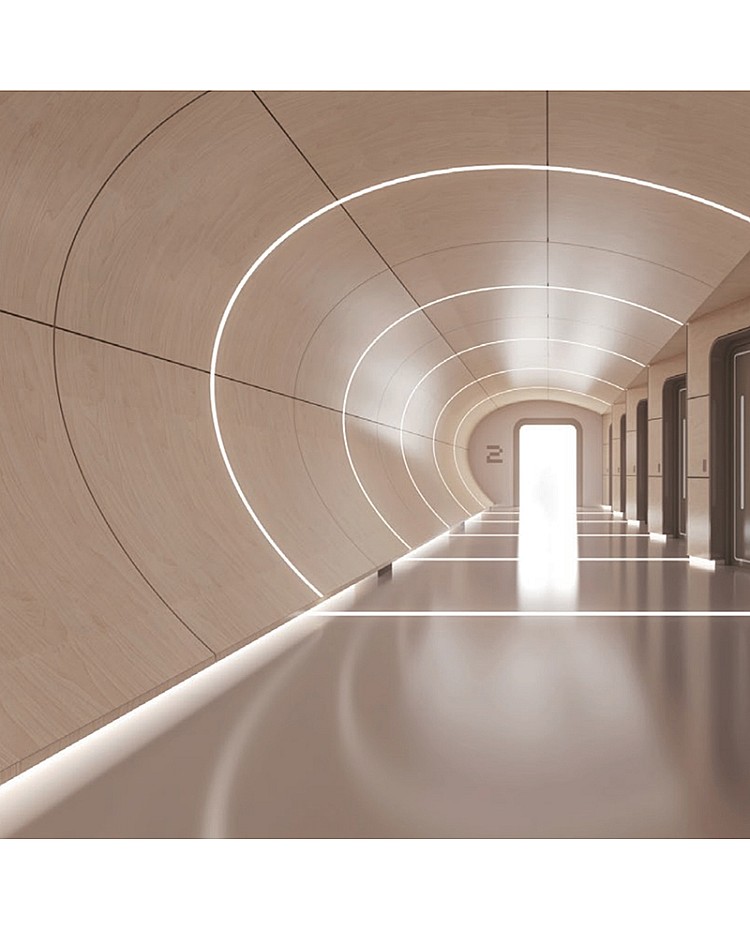

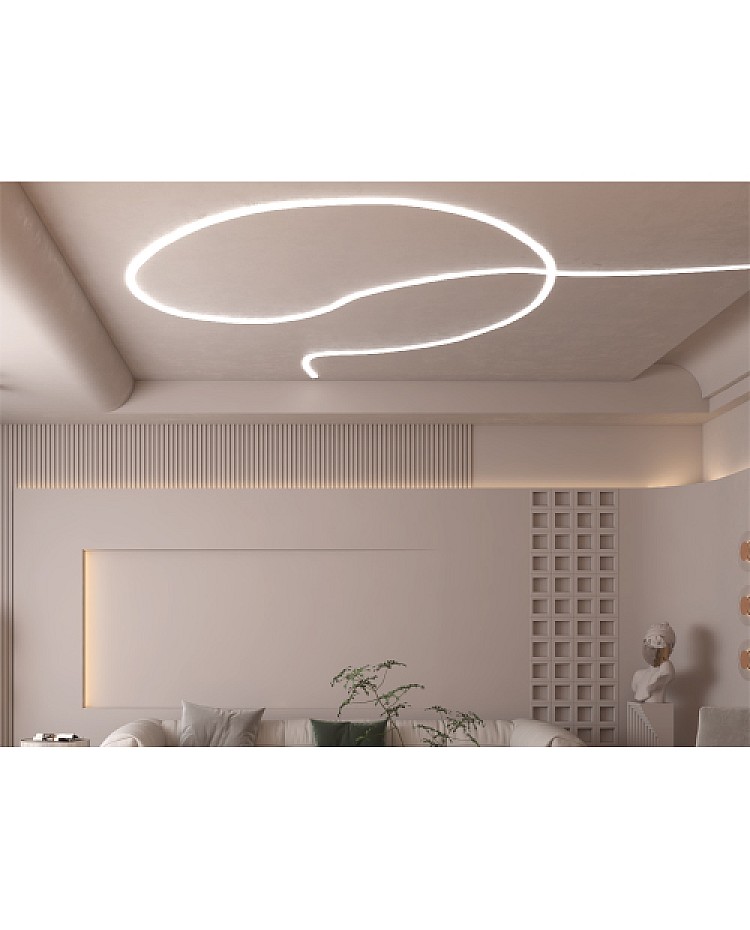

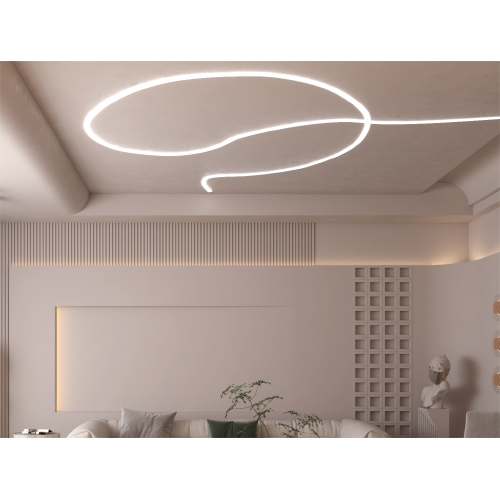

- Curved ceiling lighting: Create smooth, flowing light lines across ceilings with left and right bending or wave-like designs. Ideal for modern spaces requiring continuous, seamless illumination.

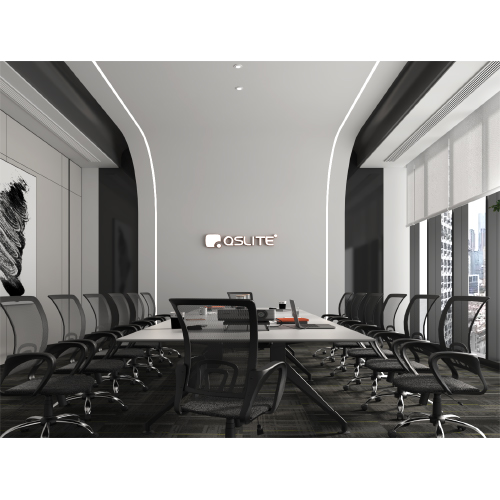

- Wall-to-ceiling Transitions: Perfect for designs where the light line curves from the wall to the ceiling, enhancing spatial depth and architectural features.
- Decorative cove & accent lighting: Highlight architectural shapes like arches, curves, and edges.
- Geometric & linear designs: Used for creating customized square, circular, or irregular patterns.

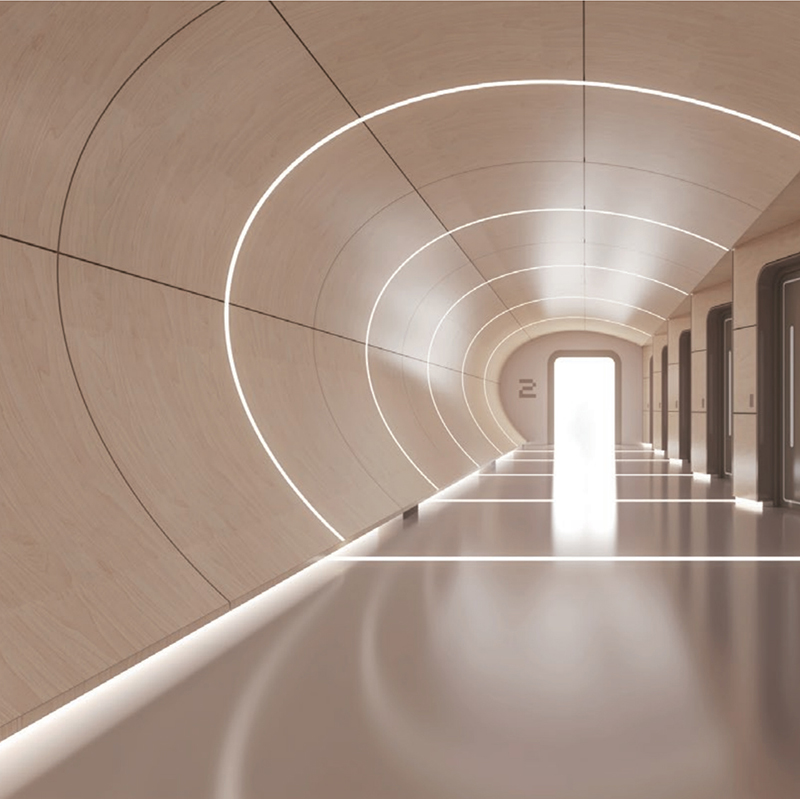

- Corridor & pathway lighting: Provide guidance lighting in hallways and tunnels.
- 3D continuous light lines: Enable design concepts where light flows uninterrupted from wall to ceiling to flow.
Includes:
1 * Bendable LED strip light track
1 * Silicone diffuser
1 * End caps
