The side-bending LED strip holders are designed for use in curved indirect lighting applications. They can be seamlessly integrated into 1/2 inch plasterboards, enabling smooth, flowing light lines that follow architectural curves, perfect for steps, staircases, platforms, or rounded coves. The aluminum holders are made of 6063-T5 extruded aluminum material, feature a silver anodized surface treatment for enhanced oxidation resistance, and have a longer lifespan. The stock lengths are 1 m and 2 m, and are easily cut to any size for your projects. With a left and right bending feature, the light holder can adapt to various degrees of curvature. The mini bending diameter is 600mm, ensuring a snug fit and uniform illumination along curved surfaces. Only semi-clear silicone diffusers are available, with a maximum length of 100 meters per roll. You can use them for long-distance, continuous lighting without gaps. They are made from high-quality silicone material and will diffuse the lighting evenly for cozy illumination. The inner width is 10.4 mm, and the maximum width of the strip lights is 10 mm.
Specifications:
- Type: Side bending LED Strip Holder for indirect lights
- Model: 4014B
- Material: 6063-T5 extruded aluminum + silicone
- Aluminum holder surface treatment: Anodized
- Colors: Silver ( LED tape holder ) / milky ( silicone cover )

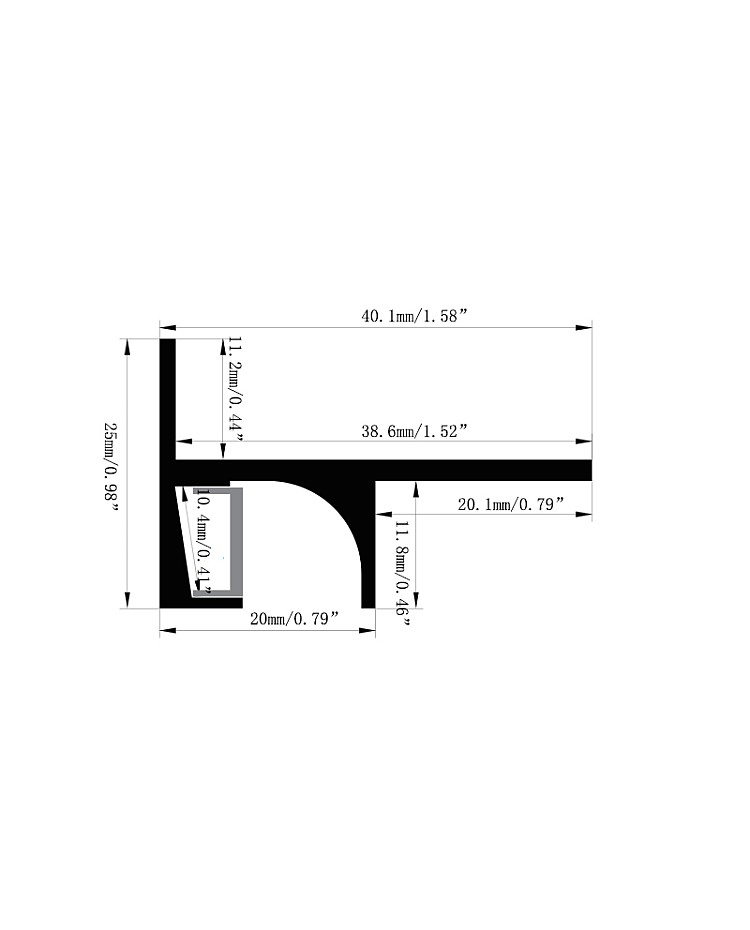

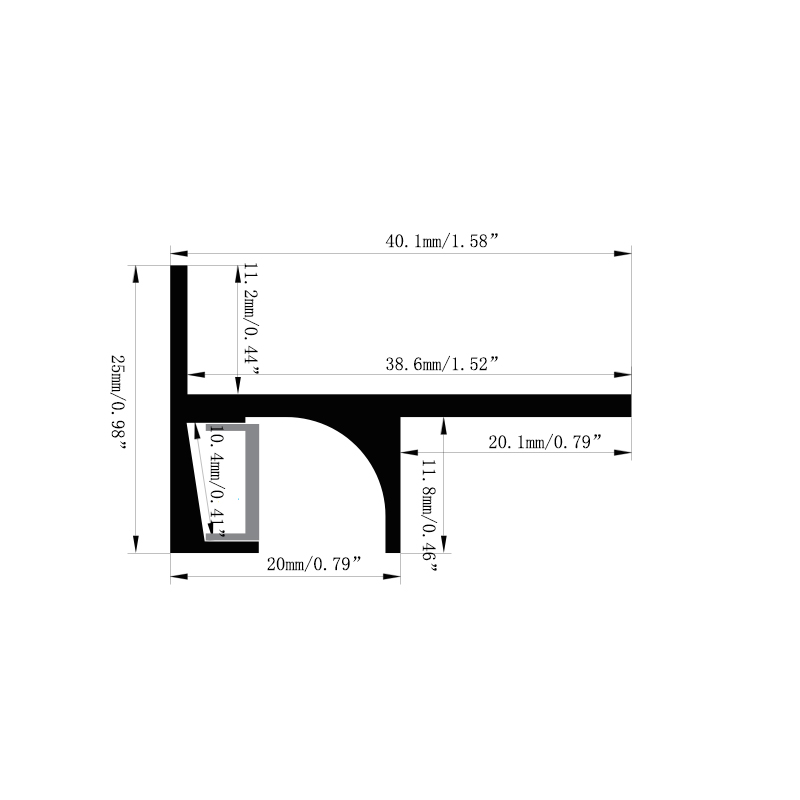

- Size( W x H ): 40.1 mm x 25 mm ( 1.58" x 0.98" )
- Lengths available: 1 m ( 39" ), 2 m ( 78" )
- Custom length: YES
- Silicone diffusers: Semi-clear
- Inner Width: 10.4 mm ( 0.41" )
- Max width of strip lights: 10 mm ( 0.41" )

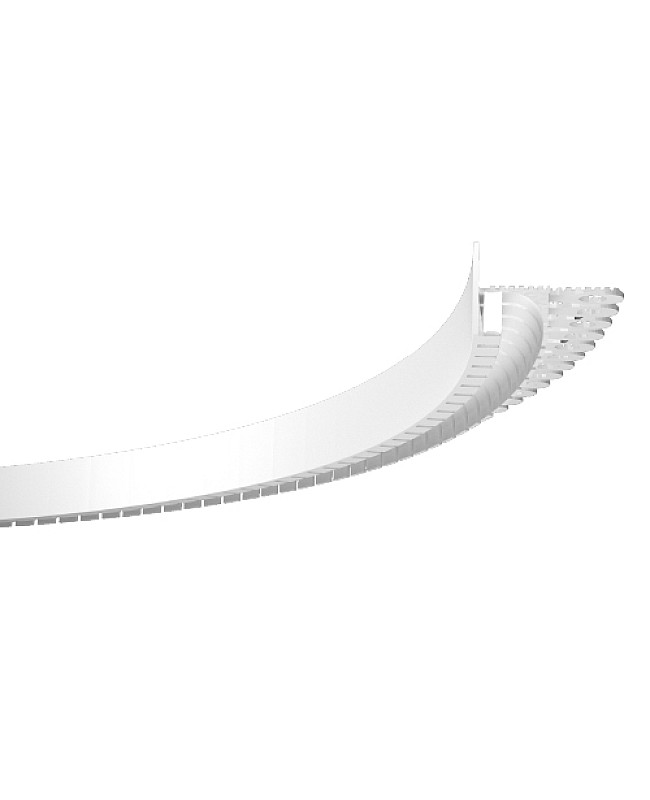

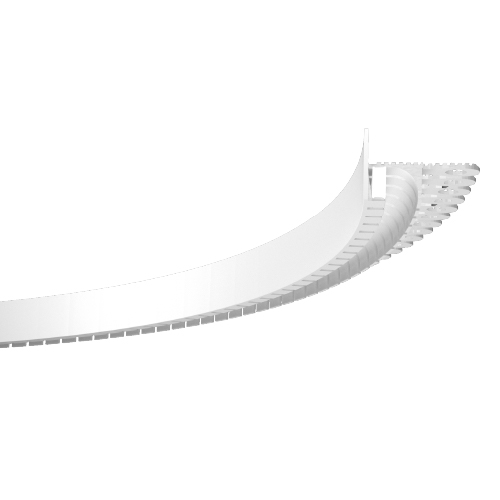

- Bending type: Side bendable
- Mini bending diameter: 600mm
- IP rating: IP20 non-waterproof
- End caps with/without wire holes are included
- Installation: Recessed
- Warranty: 3 years
Applications:

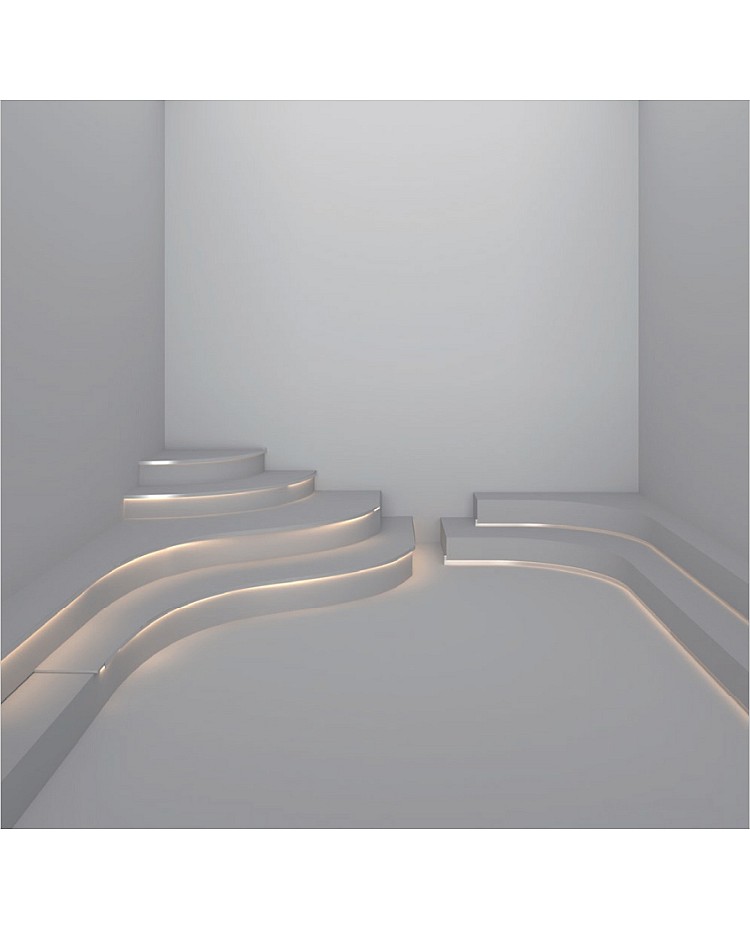

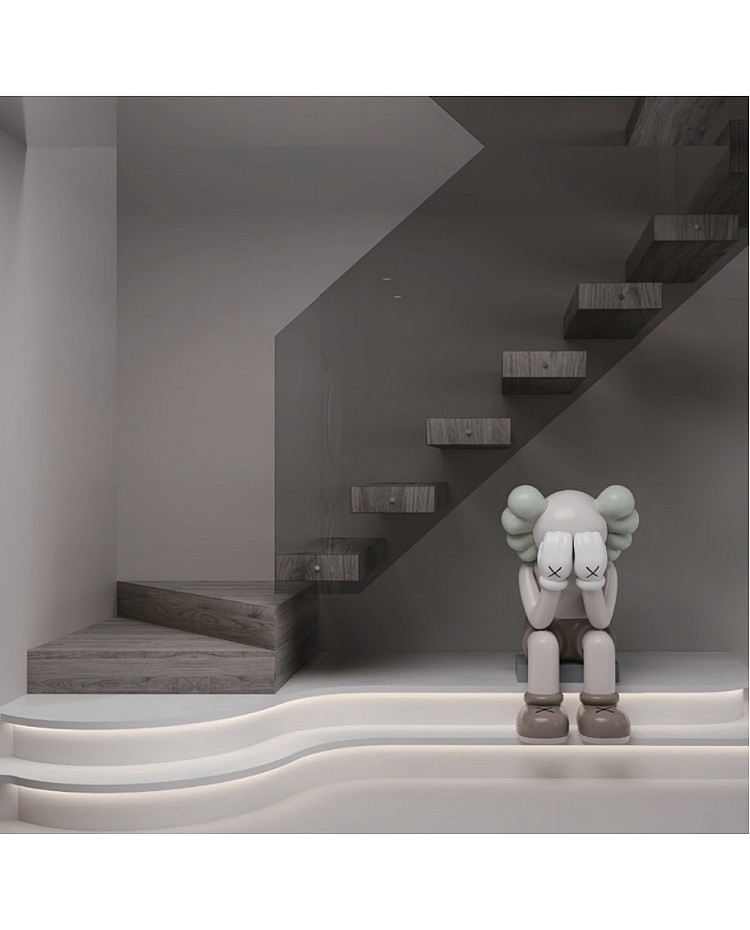

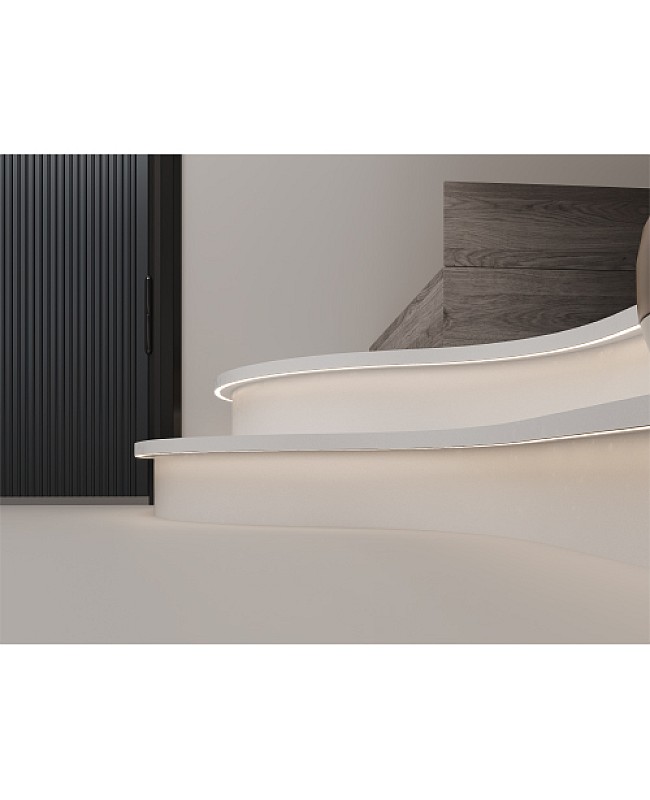

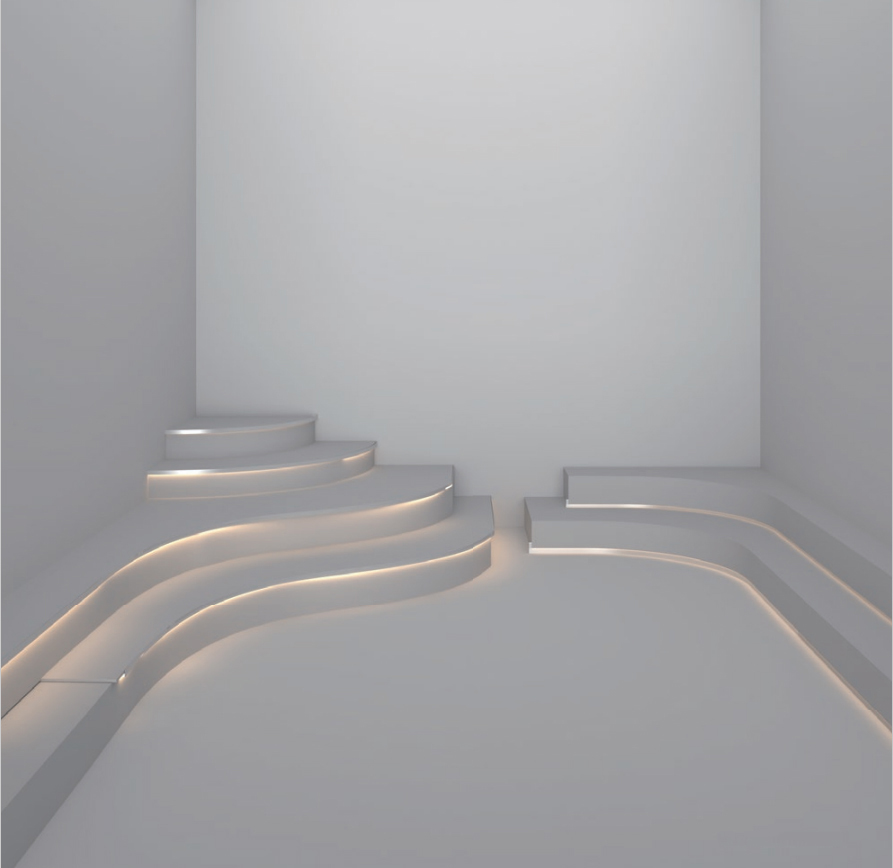

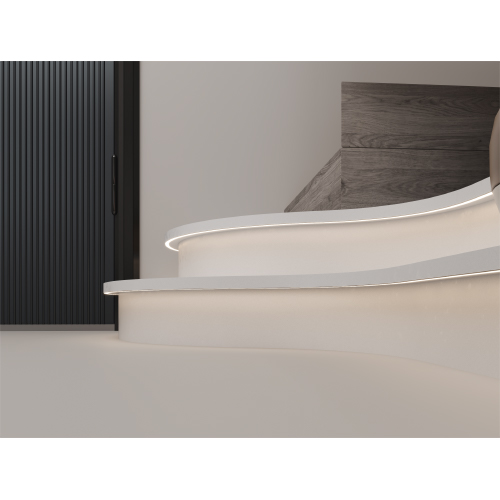

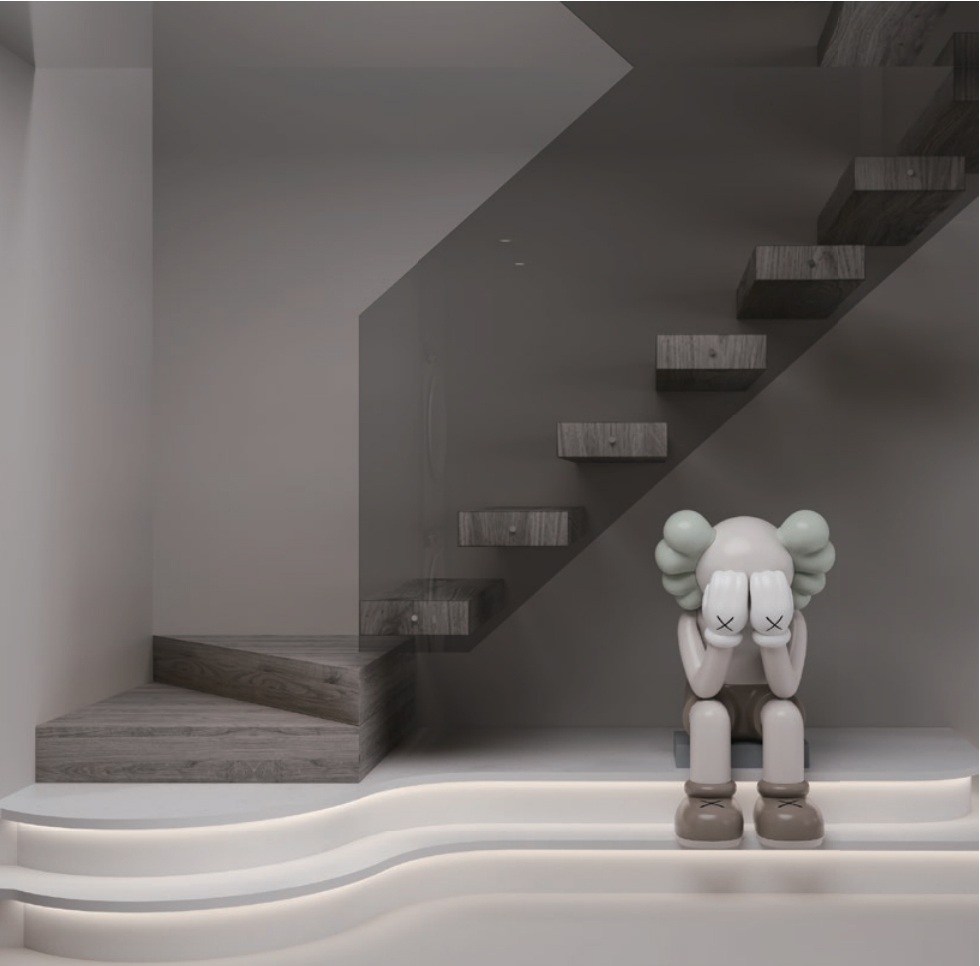

- Curved stair risers and step lighting

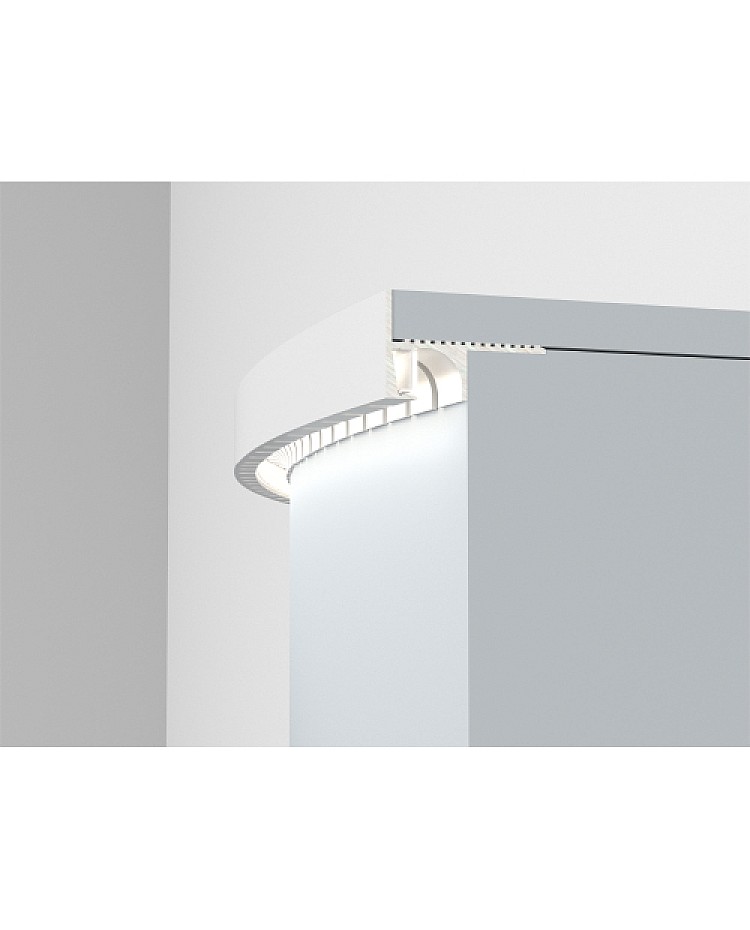

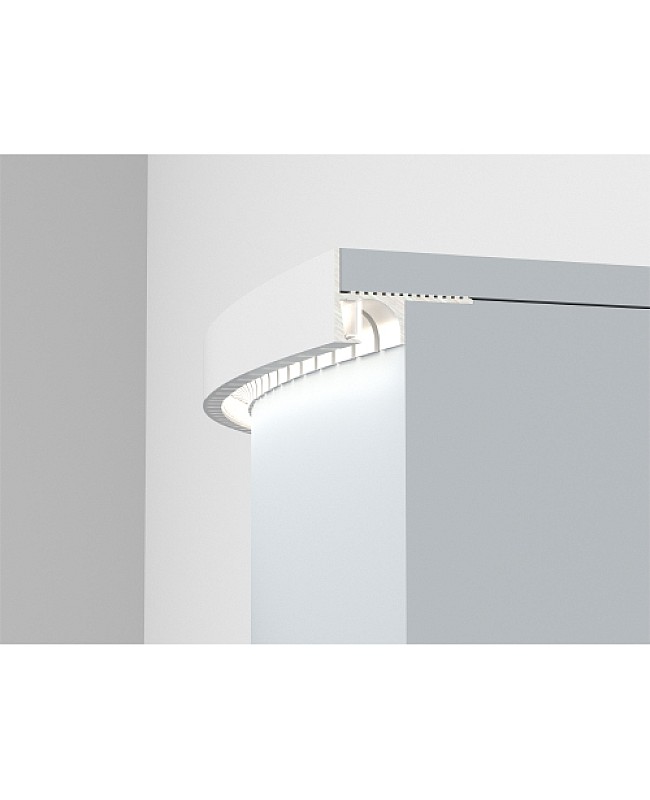

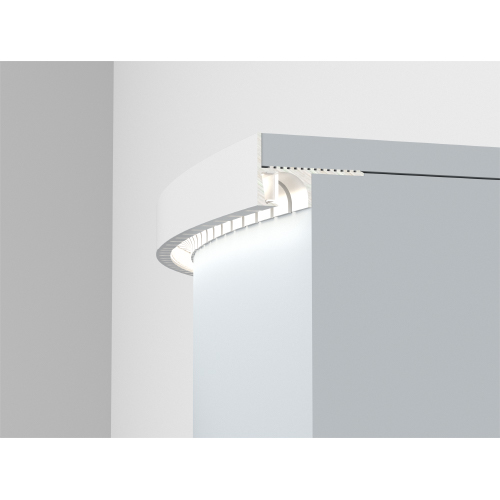

- Cove lighting for rounded ceilings or domes
- Architectural wall features or gallery niches
- Modern commercial or residential interiors
Includes:
1 * Bending LED holder
1 * Silicone cover
1 * End caps(with/without wire holes)
