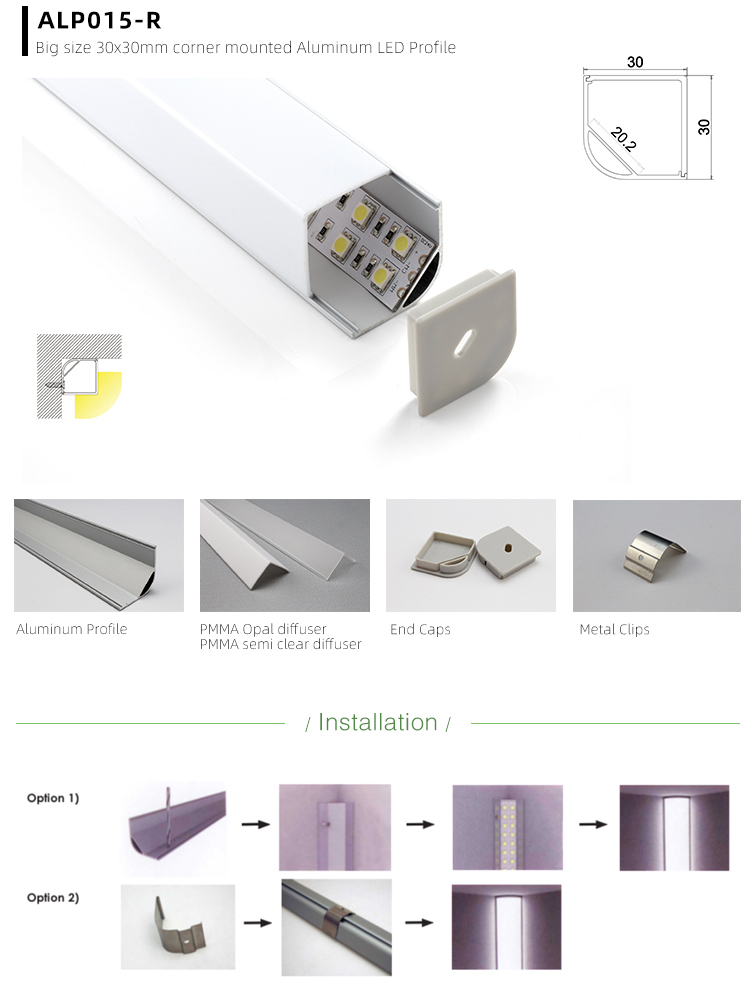

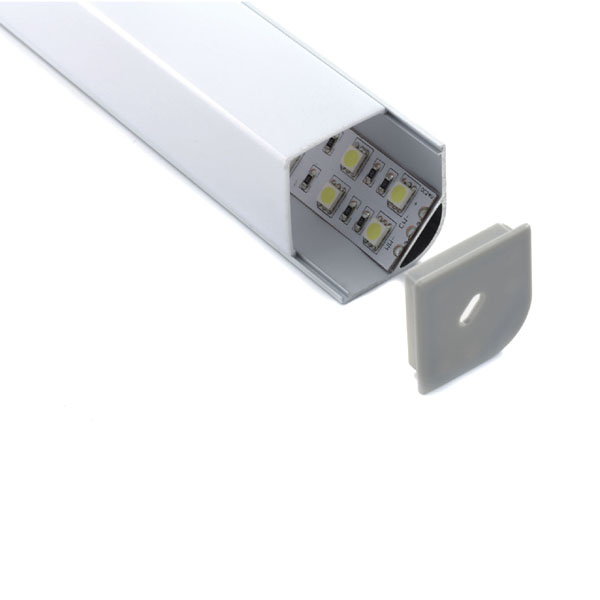

30MM Corner Aluminum Extrusion Profiles With Square Covers

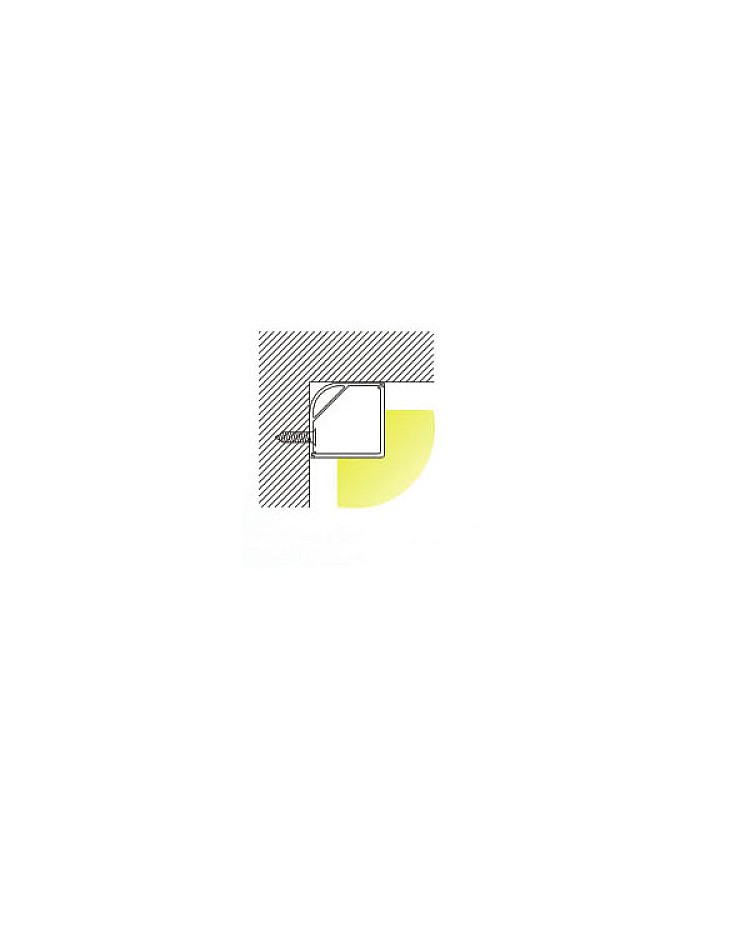

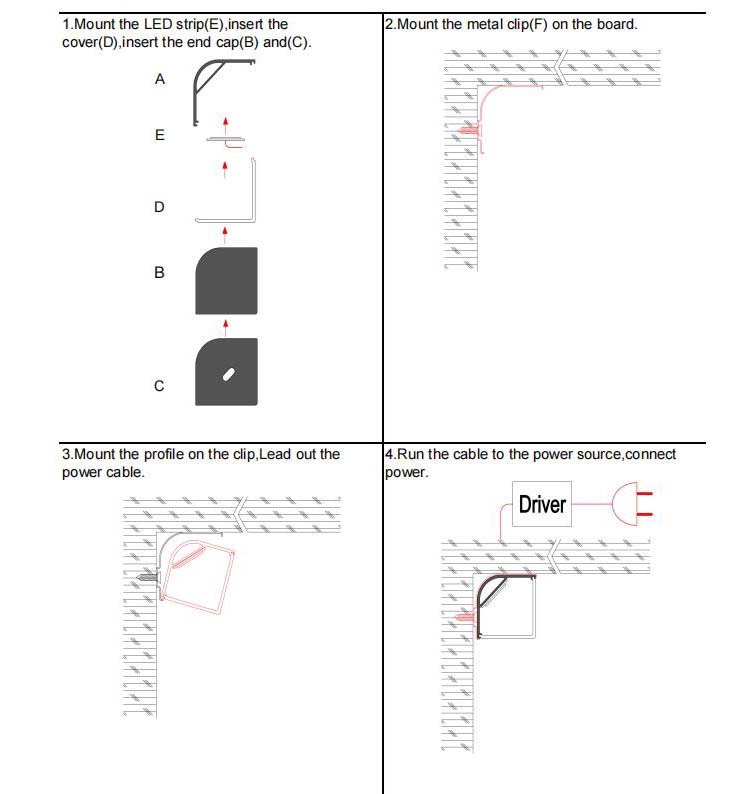

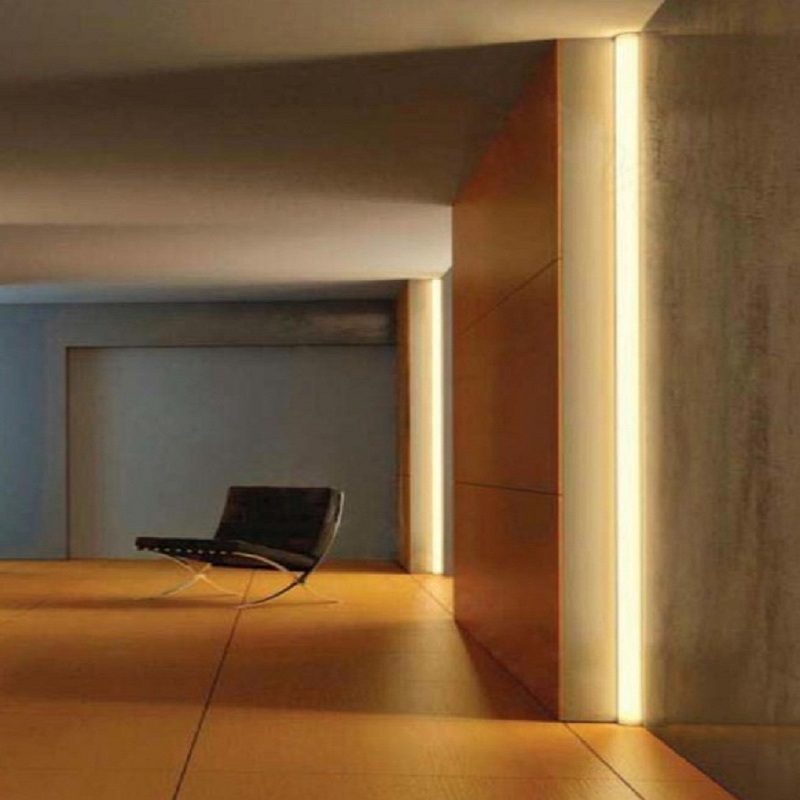

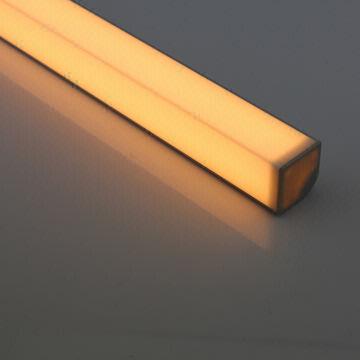

The aluminum extrusion profiles are designed for right-angle LED strip installations, creating elegant and professional corner lighting. They can be easily secured with metal clips in the corners and deliver 90° linear lighting along walls, ceilings, cabinets, stairs, and architectural features.

They are made of high-quality 6063-T5 aluminum alloy with an anodized finish, offering oxidation resistance and a longer lifespan. The inner width is 20.2 mm, allowing a maximum Strip Light width of 20 mm. Recommend adding double rows of COB, 3528, or 5050 LED light strips as the light source to ensure a uniform distribution without visible dots of light or dark areas. The standard lengths are 1 m and 2 m, with a maximum length of 3 m. You can cut to any length that fits your needs.

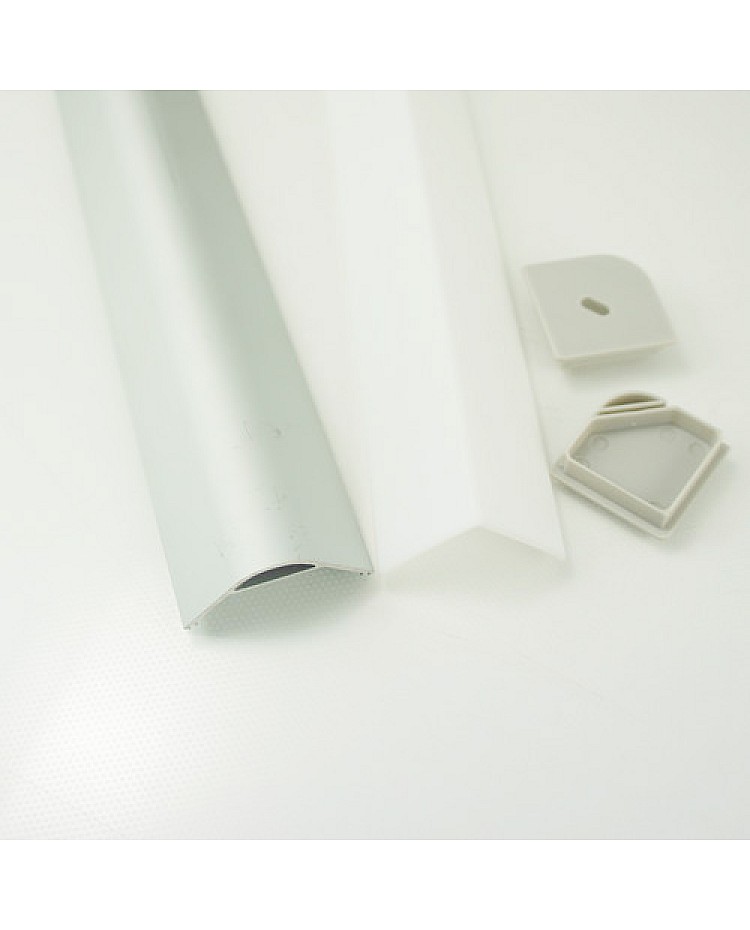

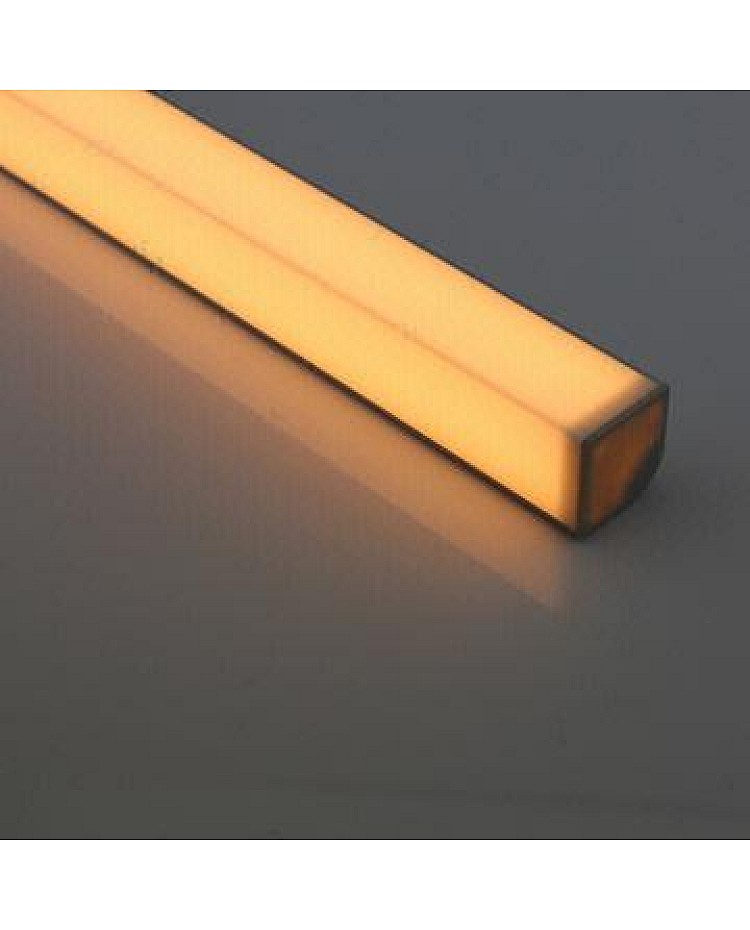

Three different covers are available: a PMMA opal matte cover, a PMMA clear cover, and a PMMA semi-clear cover. They are made of high-quality material from Germany, are anti-yellowing, have perfect light distribution, and deliver high output. The square PMMA covers also provide additional protection and durability, creating a bright, evenly illuminated space that ensures the corner profiles remain attractive and functional for years to come.

Specifications:

• Model: ALP015-R
• Material: Aluminum alloy (6063-T5)
• Surface treatment: Anodized
• Color: Silver

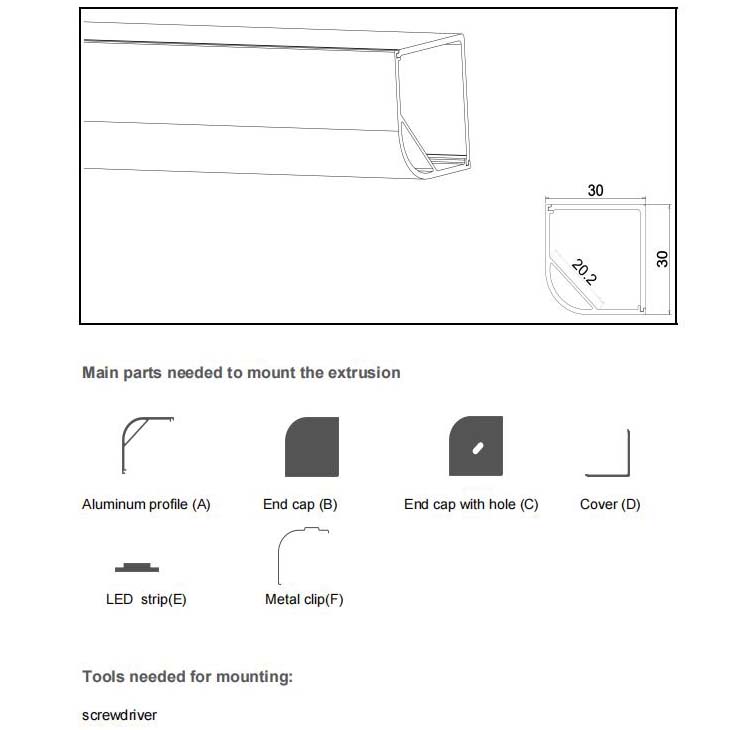

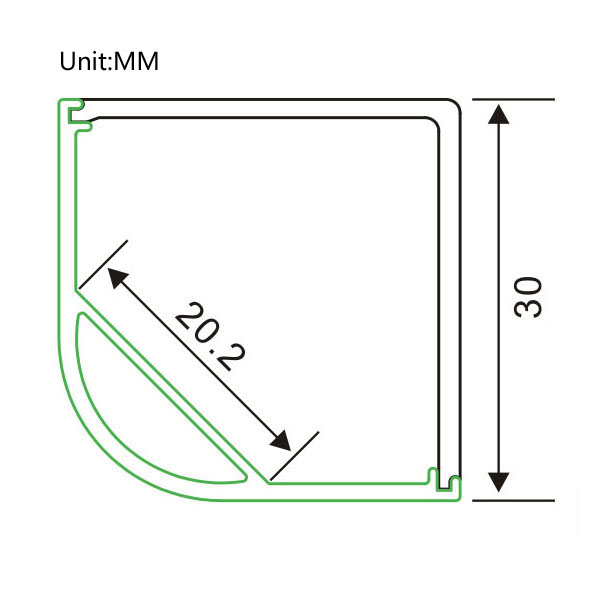

• Size ( Width x Height ): 30mm x 30mm / 1.18" x 1.18"
• Covers: PMMA opal matte cover/ PMMA semi-clear cover / PMMA clear cover
• Standard lengths: 1m ( 39.37" ), 2m ( 78.74" )
• Custom length available: YES

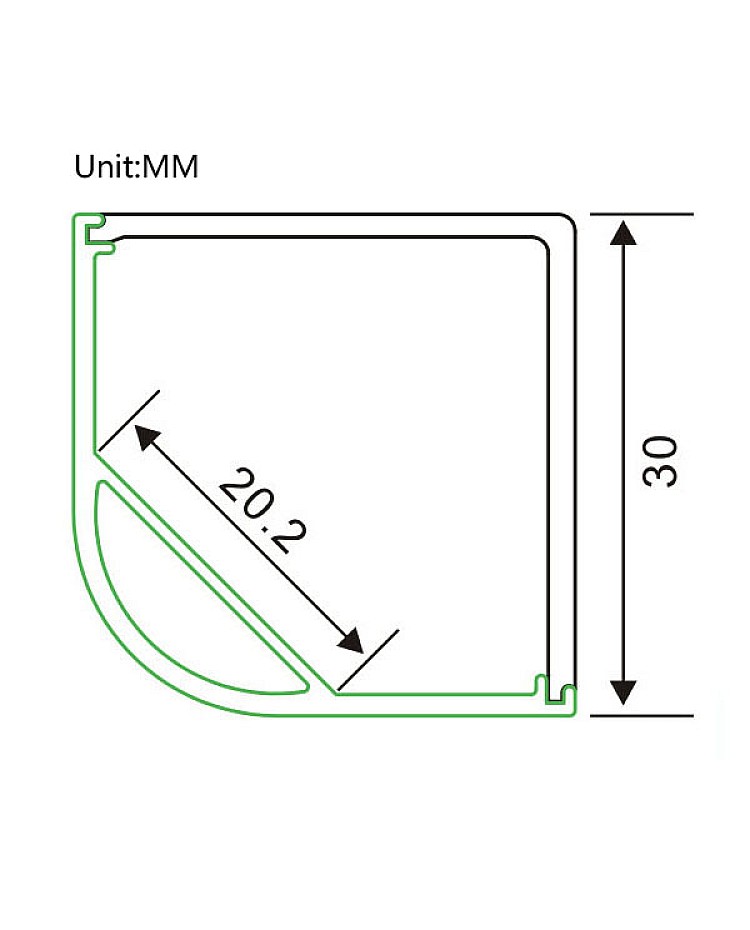

• Inner width: 20.2mm
• Max power: <15W/Meter
• Beam angle: 100°

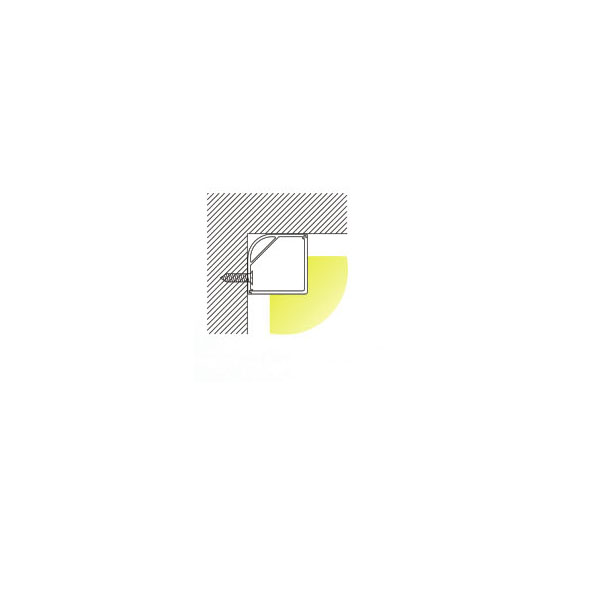

• Application: Corner-mounted

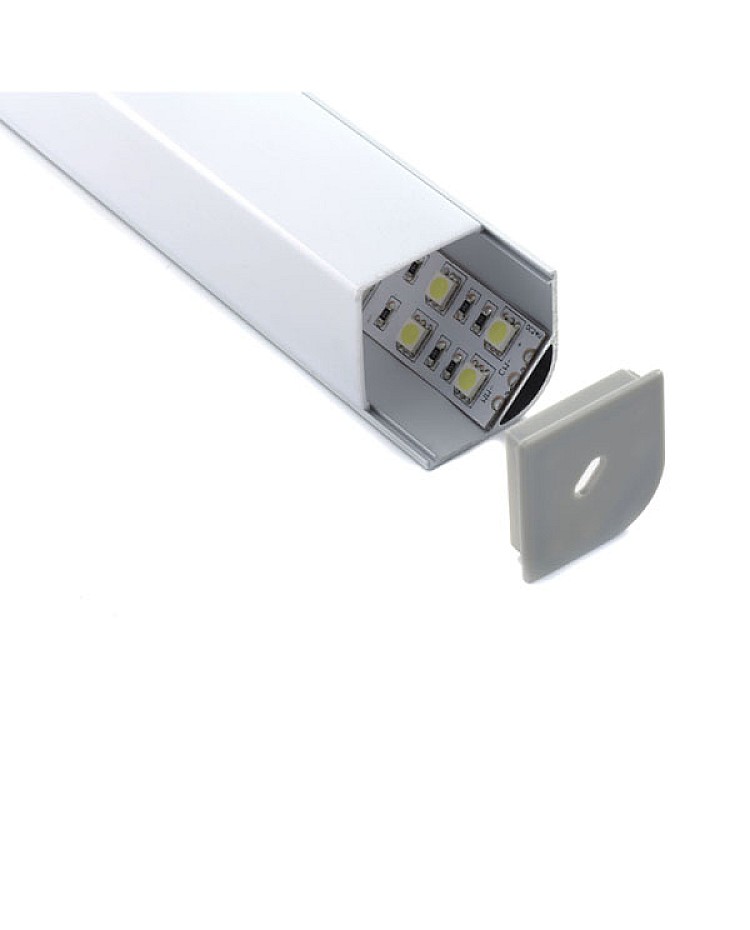

• End caps with and without wire holes are included
• LED strip lights sold separately
• 5 years warranty

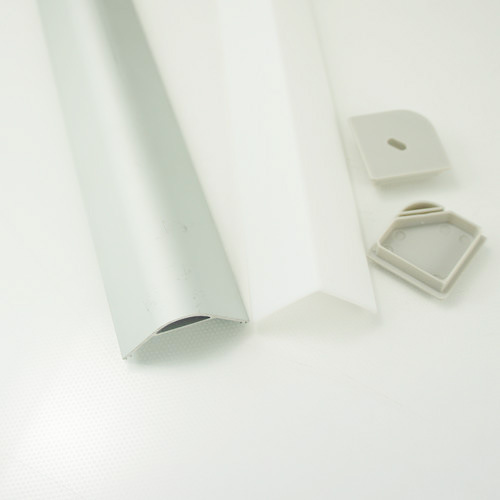

Package:

1 * Aluminum extrusion profile with PMMA diffuser

End caps(With and without wire holes)

Metal mounting clips
