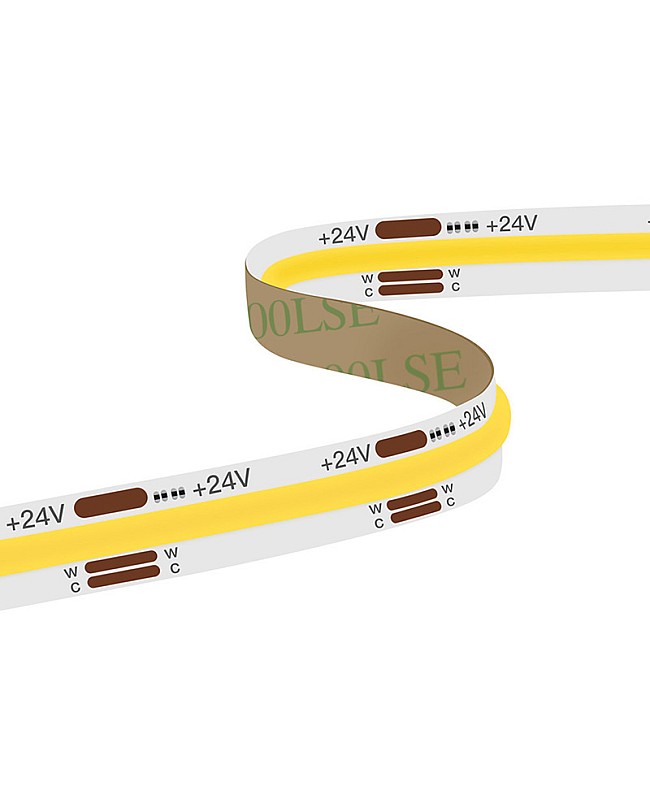

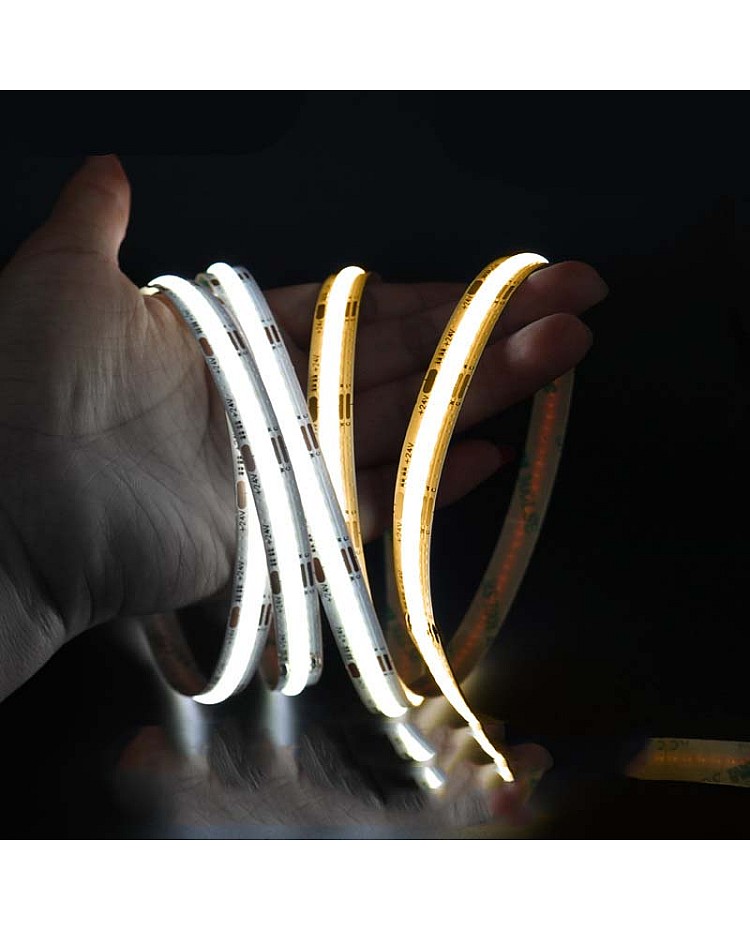

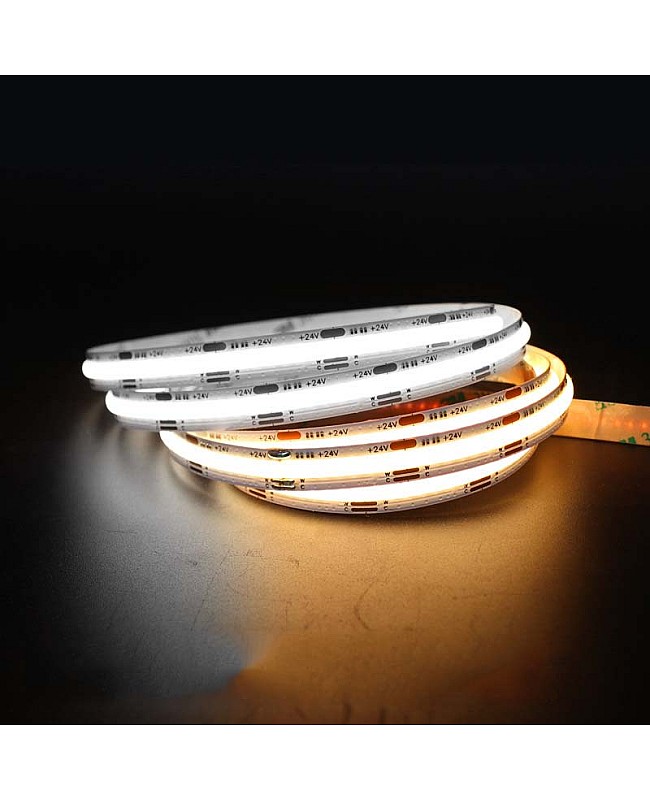

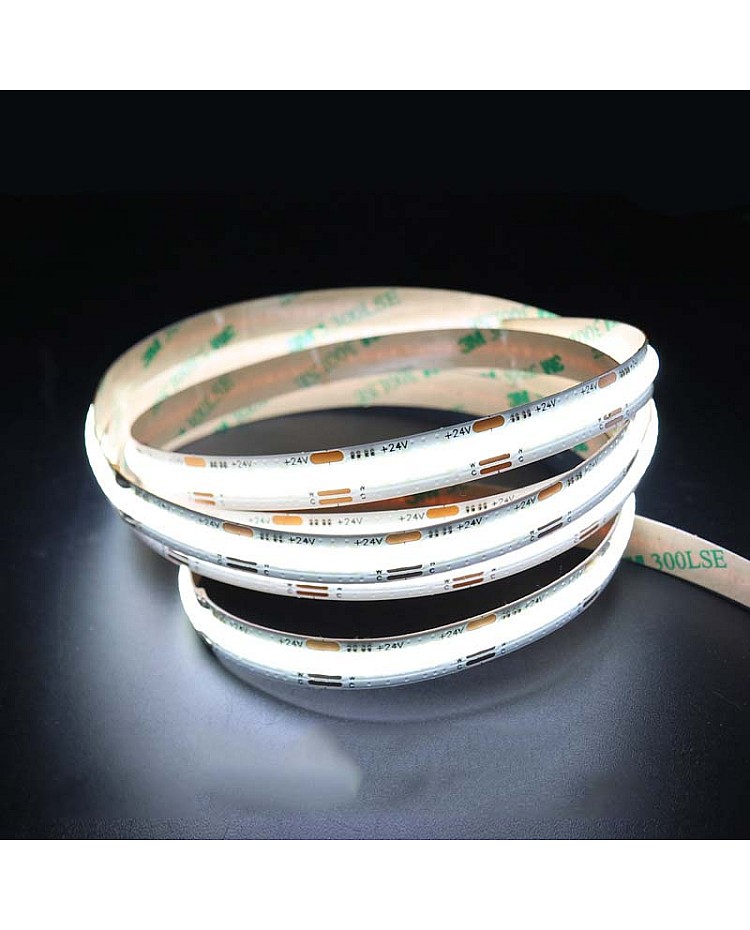

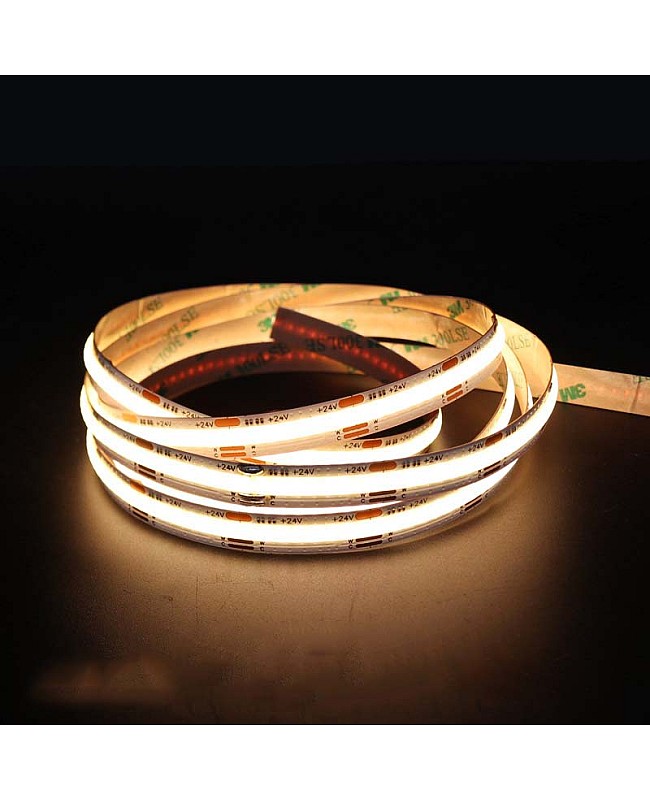

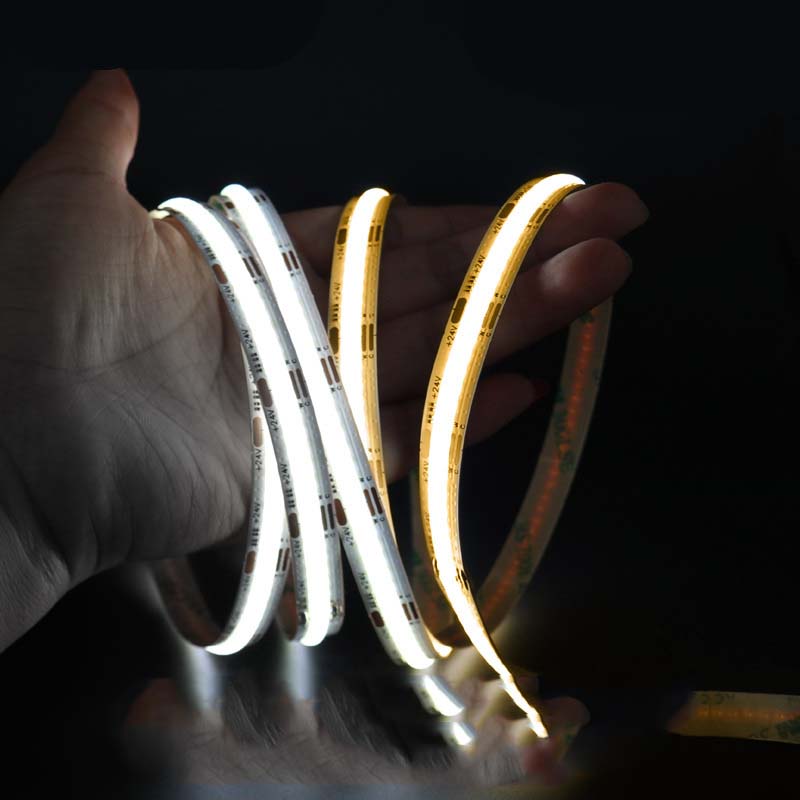

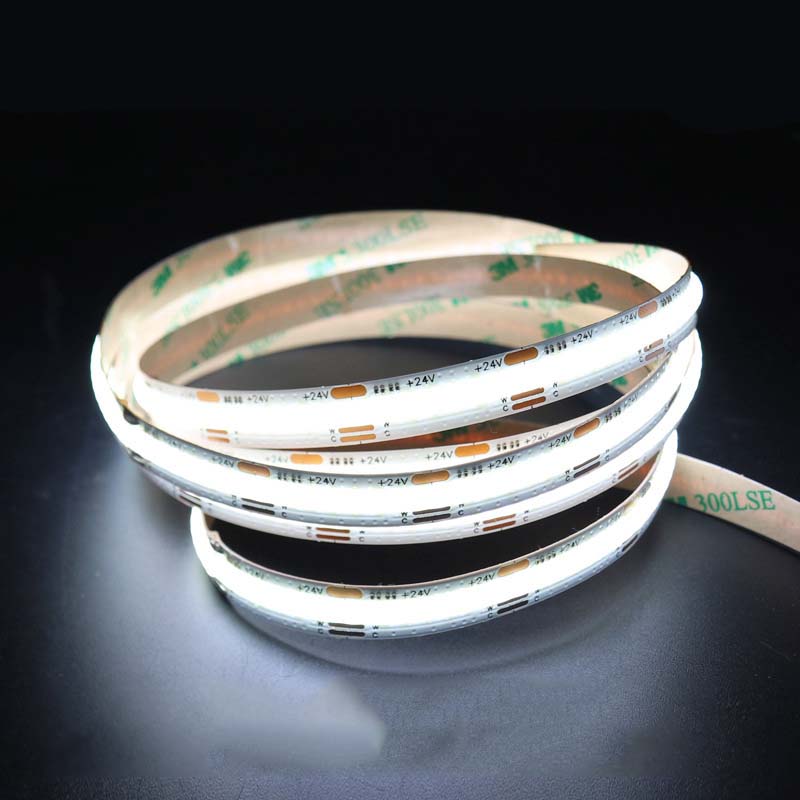

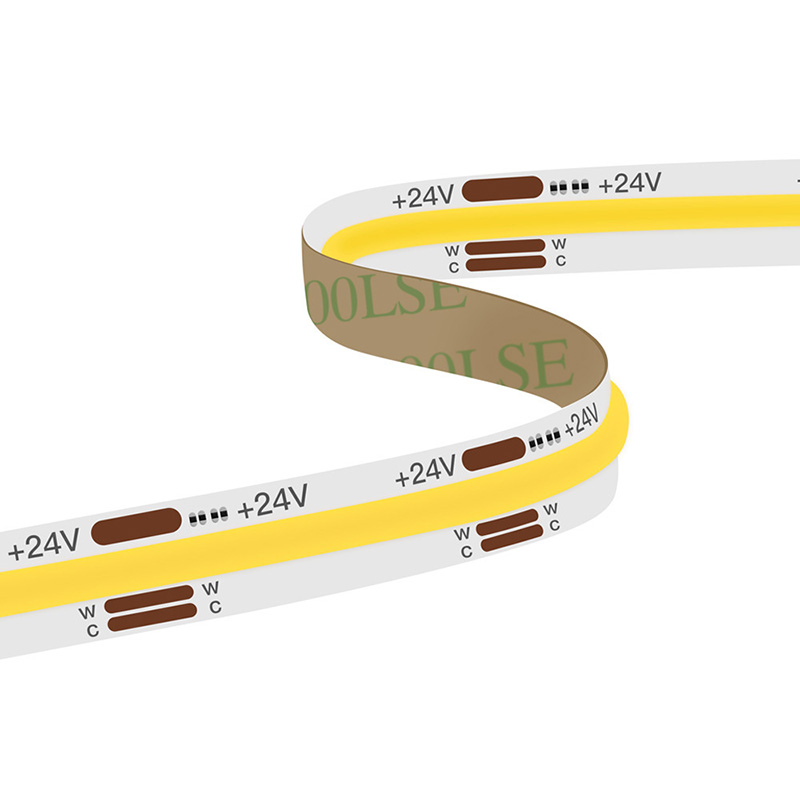

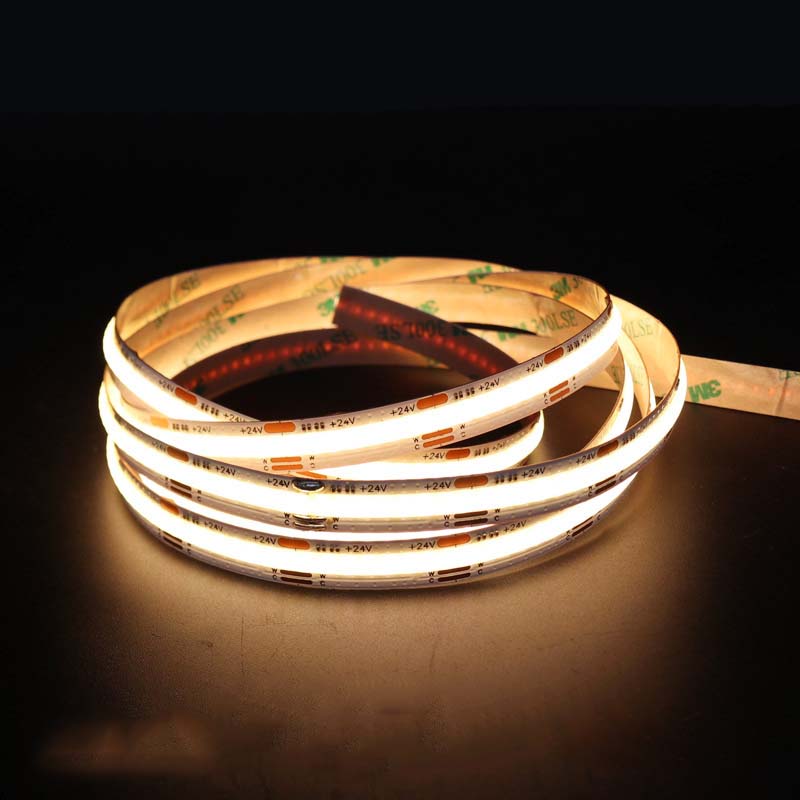

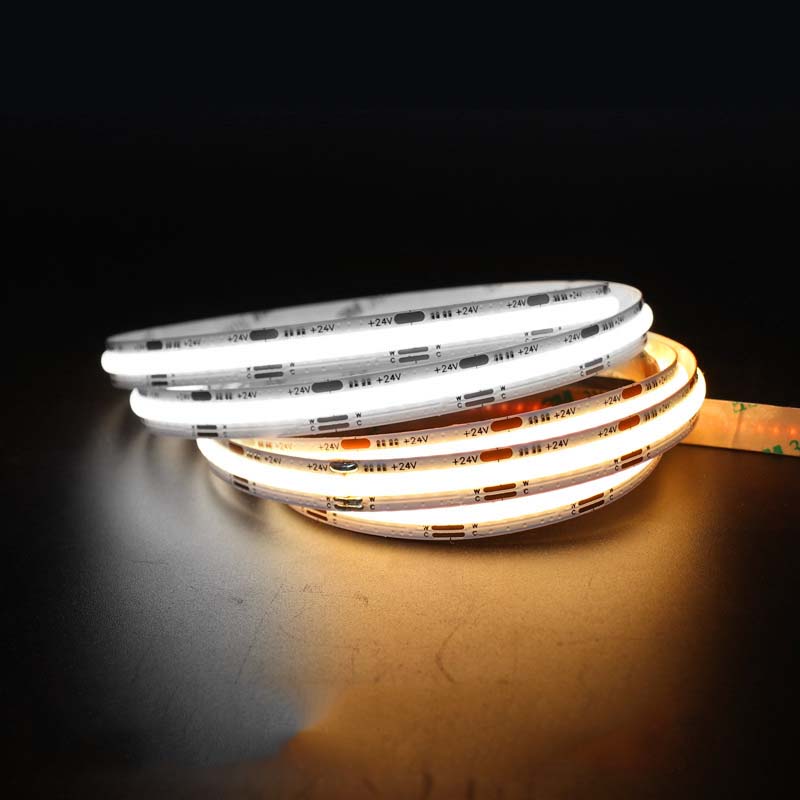

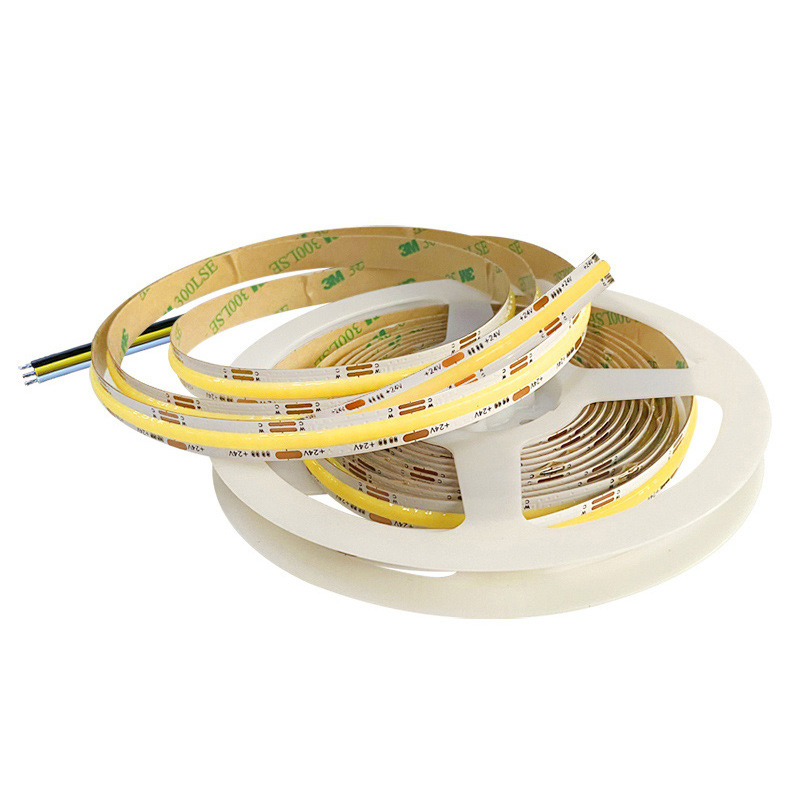

The tunable white COB LED strips deliver ultra-smooth, dimmable white light with an adjustable color temperature feature, making them perfect for applications that require precise light quality and ambiance control. Engineered with a high CRI (90+) and advanced COB technology, they eliminate hotspots and provide uniform illumination for residential, commercial, and architectural lighting applications. The CCT COB LED strips utilize dual white LED chips and allow for adjusting the color temperature from 2700K warm white to 6500K cool white. The newest chip-on-board technology enables the mounting of 576 LED chips on a single meter PCB board, a high-density feature that provides uniform illumination without visible light dots. The color rendering index value is higher than 90Ra, indicating excellent efficiency and color consistency. It brings a bright and comfortable visual experience. The standard length is 5 meters per roll, with a maximum length of 50 meters per roll. You can cut them to any length to meet your needs. There are two IP rating products available: IP20, which is non-waterproof, and IP67, which is waterproof. You can choose them for various environments. The back of IP20 products has double-sided adhesive tapes for easy surface mounting. The IP67 ones come with silicone clips that allow them to be mounted in wet environments for outdoor applications. To adjust color temperature and brightness, please connect to CCT LED dimmers.
Specifications:
- Model: COB-CCT
- Working voltage: 24V DC/ 12V DC
- LED brand: San An
- LED type: 1022
- LED density: 576 LEDs/m
- PCB width: 10 mm ( 0.39" )
- Power consumption: 5W+5W, 10W+10W, 15W+15W
- Color temperature Range: 2700K + 6500K
- Color rendering index: 90Ra +
- IP rating: IP20 non-waterproof / IP67 waterproof
- Angle view: 180°
- Lighting efficiency: 100-110lm/m
- Dimmable: YES
- Luminous flux(lm): 500-1650lm
- Cuttable length: 27.78 mm ( 1.09" )

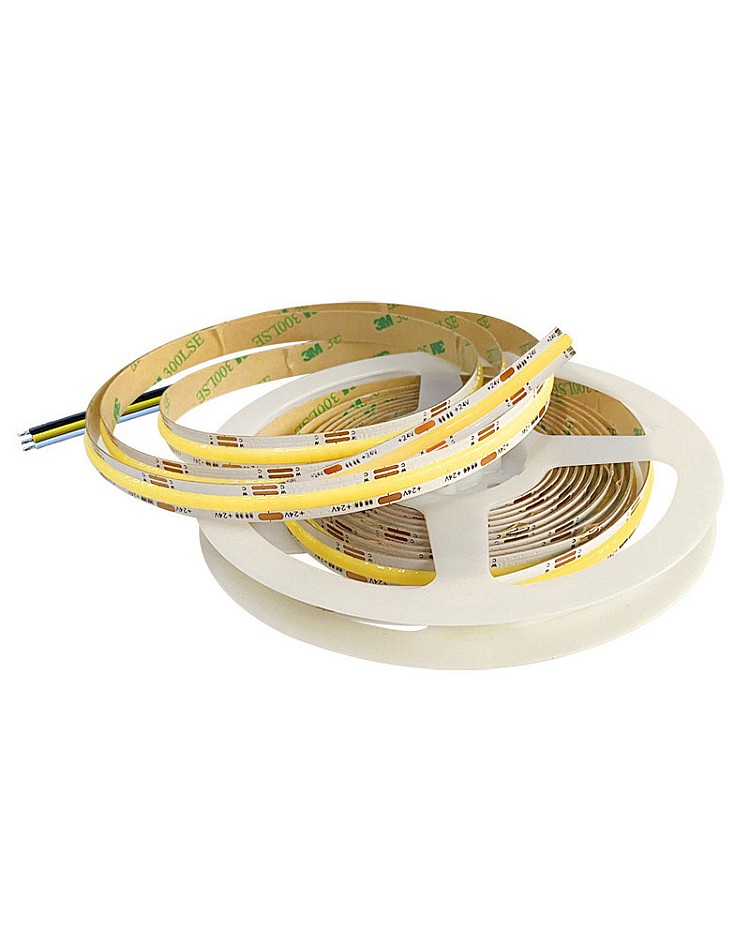

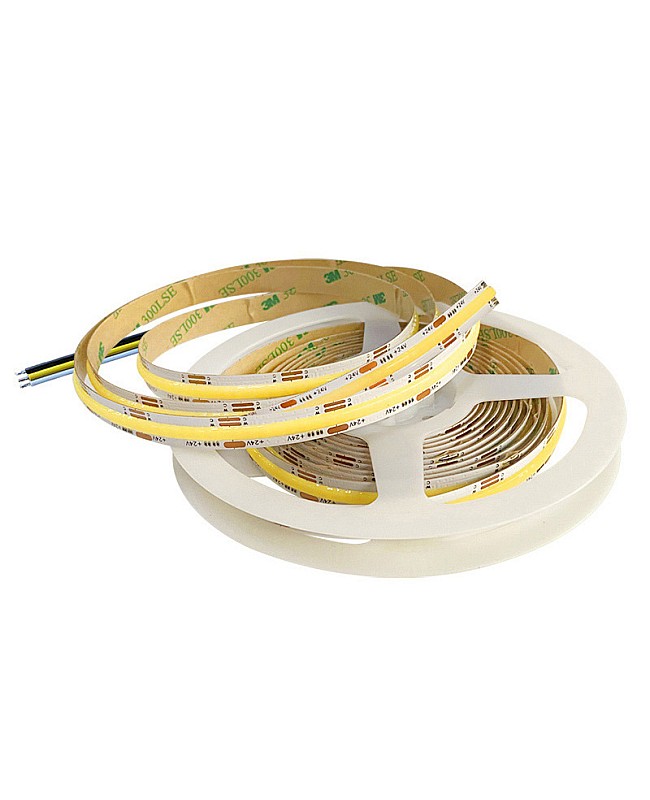

- Length: 5 meters ( 16.4ft ) per roll
- Working temperature: -20℃-45℃
- Lifespan: >50,000 Hours
- UL listed
- Warranty: 3 years
Includes:
1 * Tunable white COB LED strip
