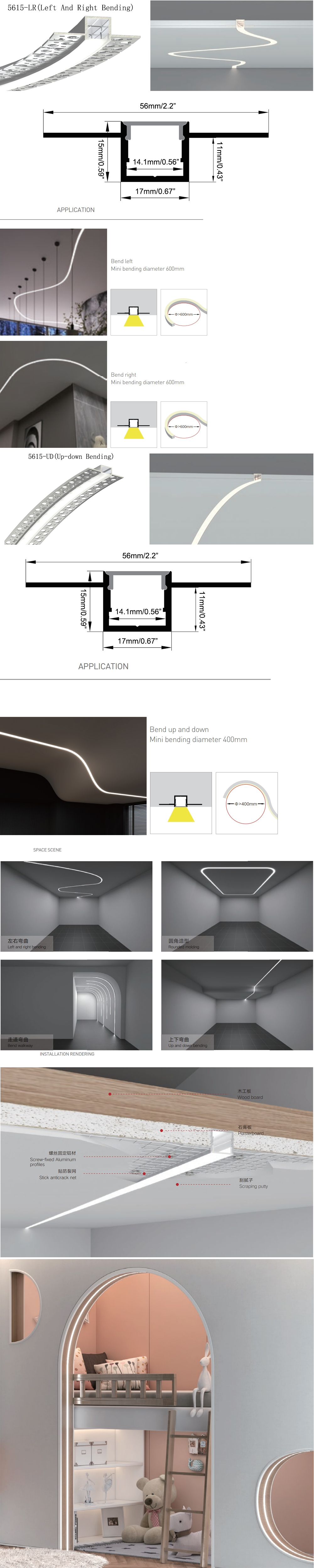

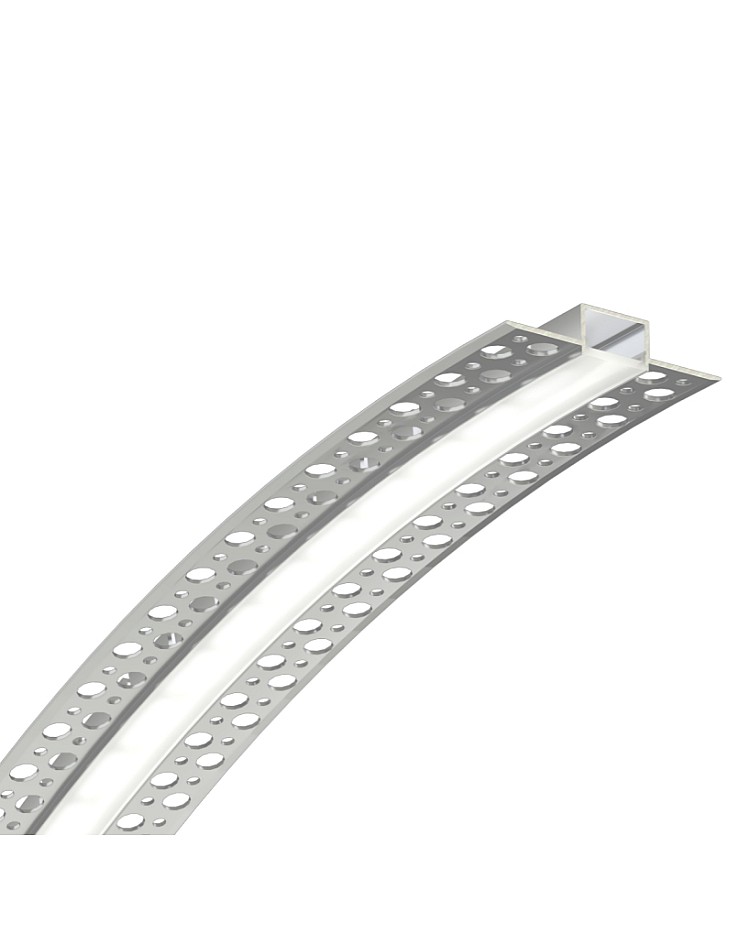

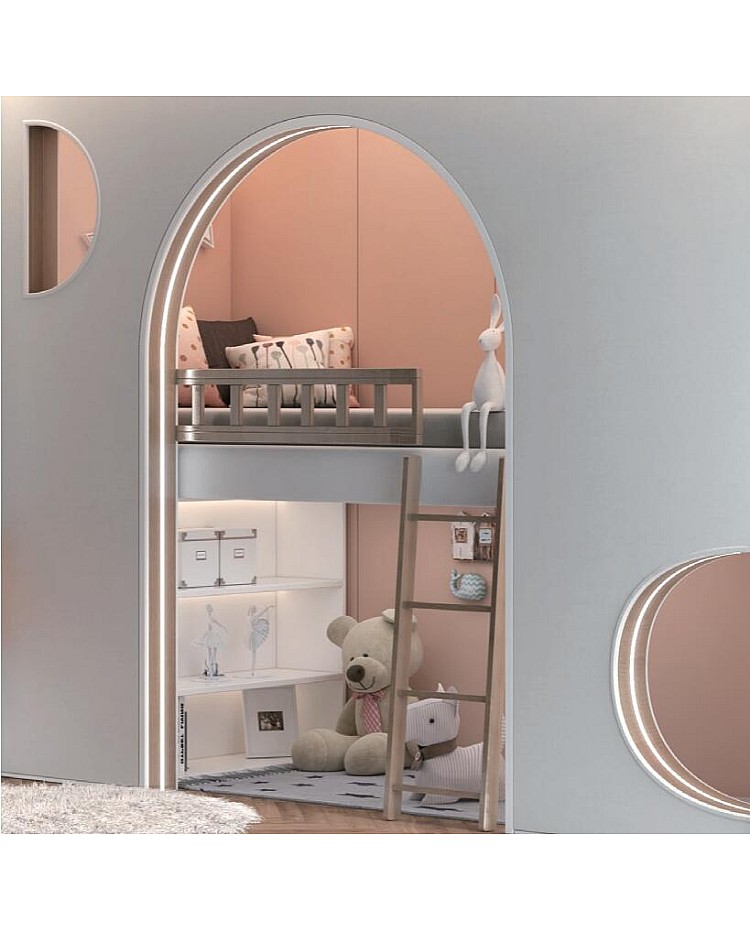

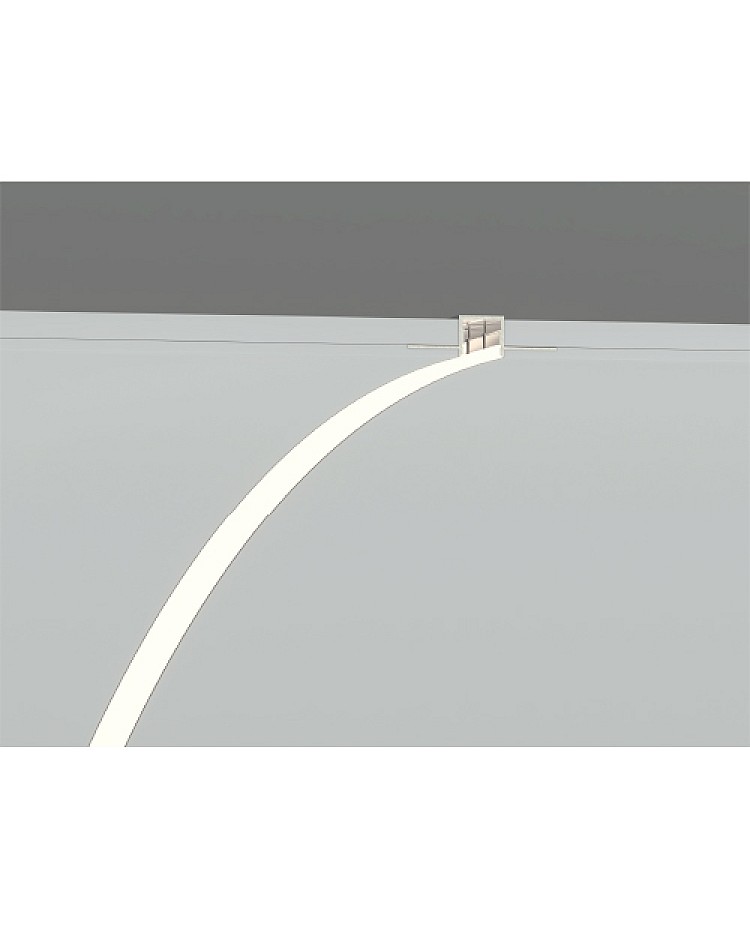

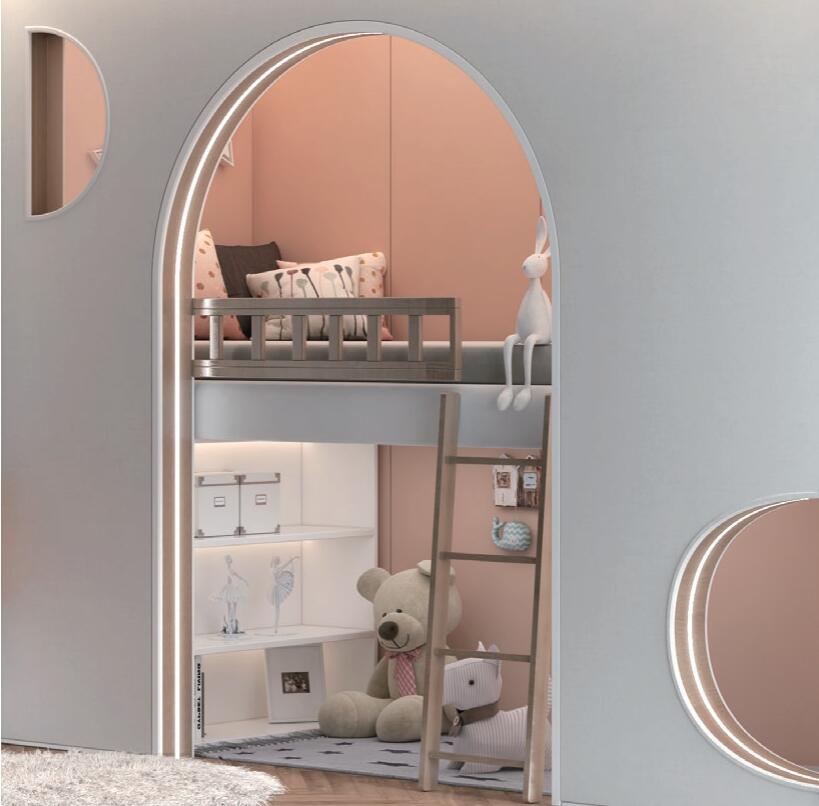

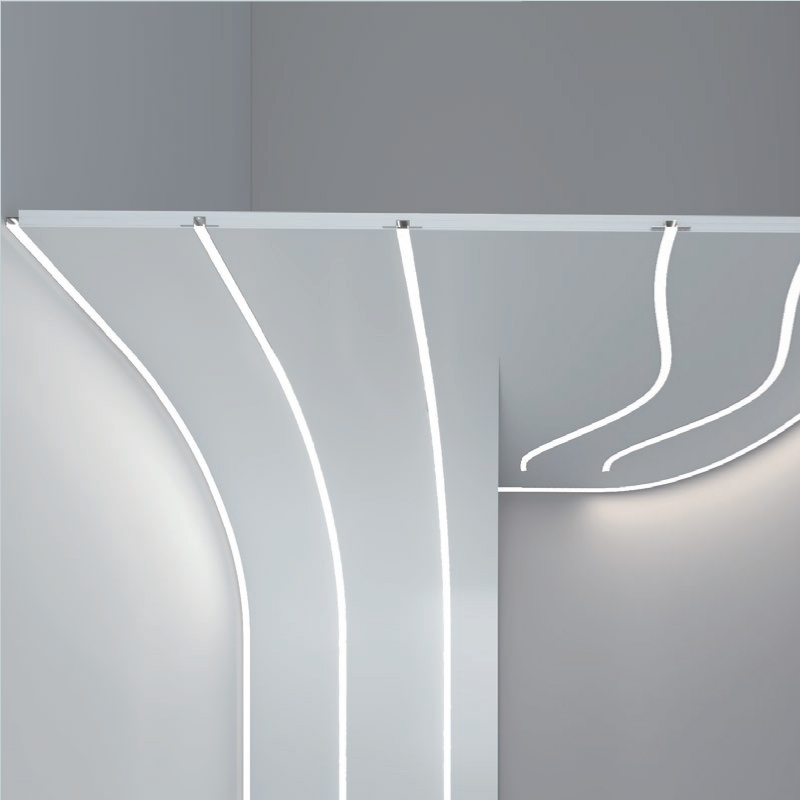

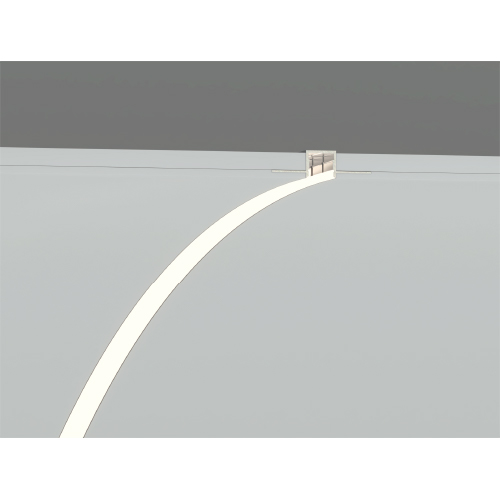

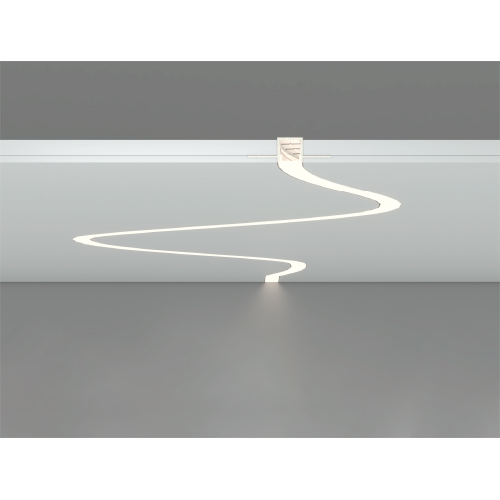

The 56mm trimless mud-in bendable aluminum channels allow seamless embedding into plaster or drywall, ensuring a clean, integrated look. Side-bending and up-down-bending products are available, easily conforming to curved surfaces and complex shapes, and are perfect for creating curved linear lighting for residential and commercial applications.
They are made of 6063-T5 extruded aluminum material and feature a silver anodized surface treatment for enhanced oxidation resistance and a longer lifespan. The stock lengths are 1 m, 2 m, and 3 m, and they can be cut to any size suitable for your needs. Only one type of diffuser is available: semi-clear diffusers made of high-quality silicone, which help diffuse the light evenly.

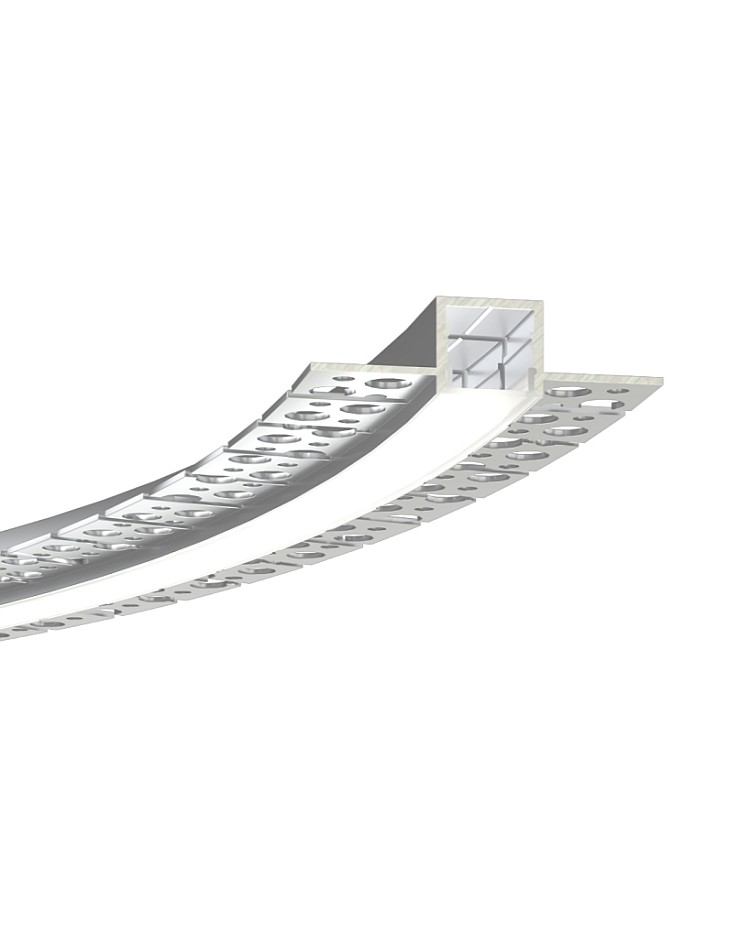

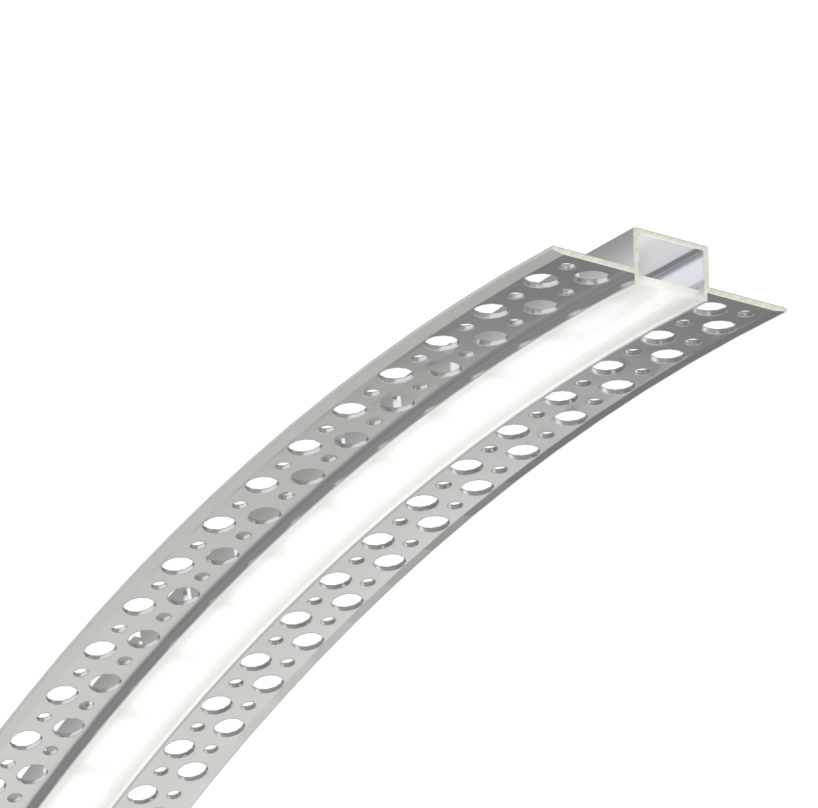

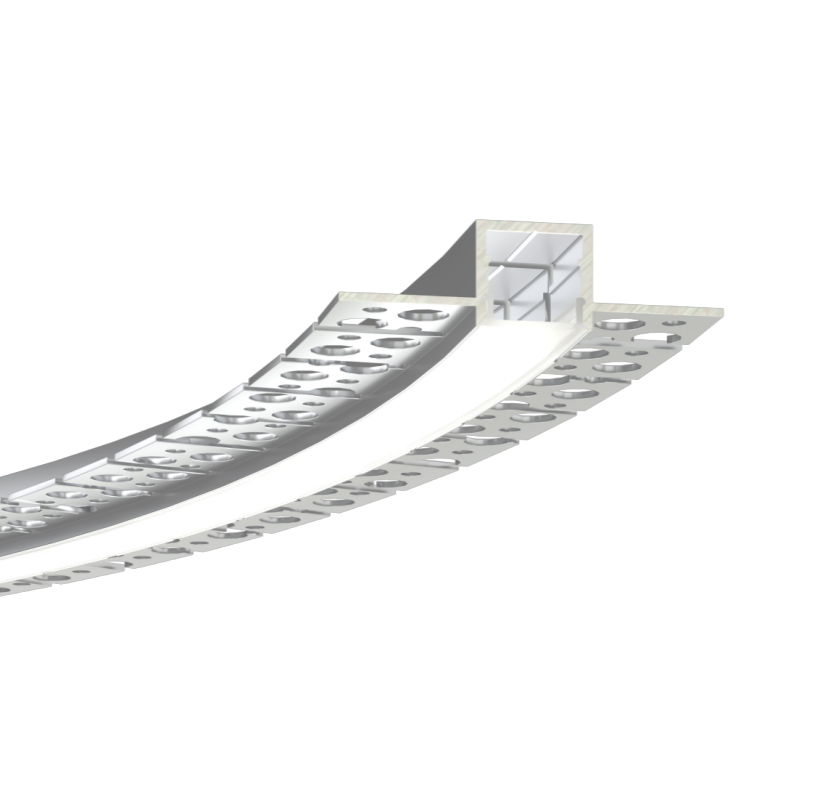

The inner width is 14.1mm, and you can install 5mm or 6mm flexible LED strips on the side or 14mm Zig-Zag LED strips on the bottom for side-bending products. The up-down bending products allow a maximum strip light width of 14mm. These bendable channels are ideal for achieving distinctive and innovative lighting effects quickly and precisely.
Specifications:
- Type: 56mm Mud-In Bendable Aluminum Light Channel
- Models: 5615-LR(Side Bending) / 5615-UD(Up-Down Bending)
- Material: 6063-T5 Extruded Aluminum
- Surface Treatment: Anodized
- Colors: Silver(Aluminum Channel) / Milky(Silicone Diffuser）

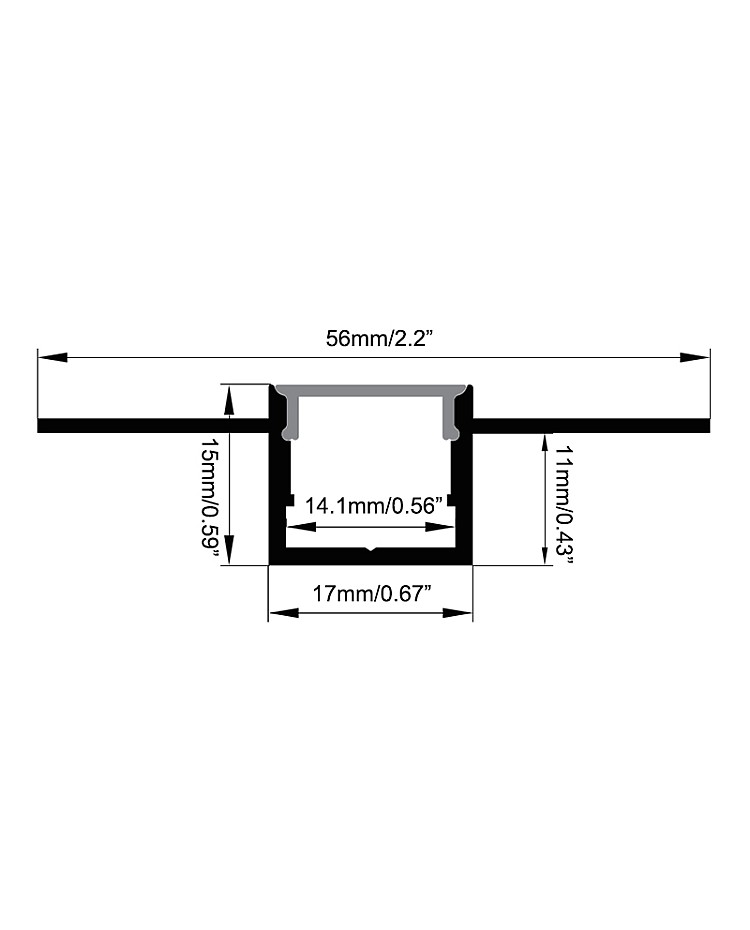

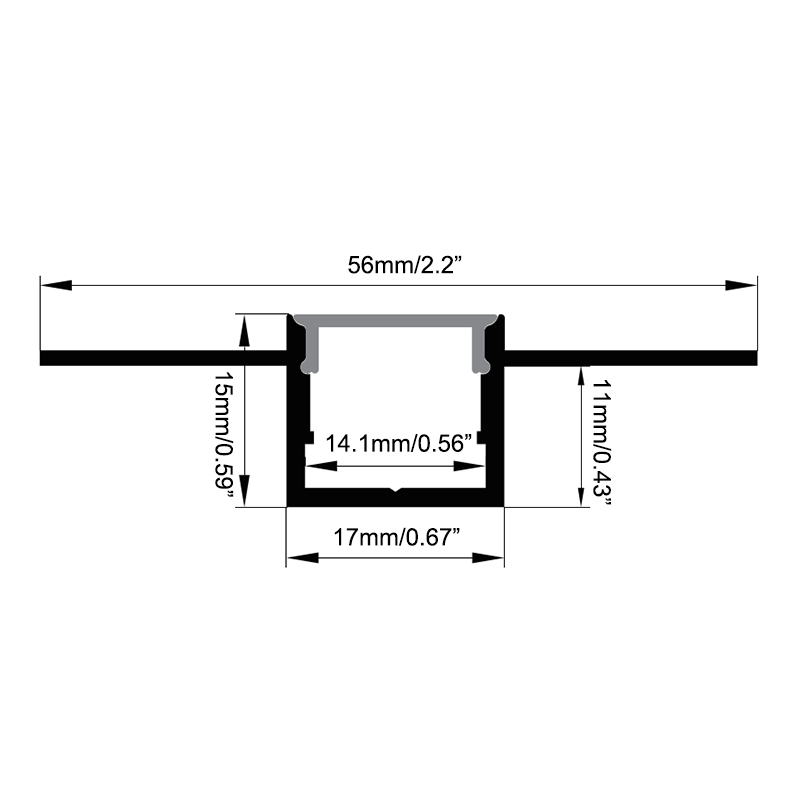

- Size: 56mm/2.2"*15mm/0.59"
- Aluminum Track Lengths Available: 1M, 2M, 3M
- Silicone Diffuser's Max Length: 50M/100M Per Roll
- Custom Length: Yes
- Inner Width: 14.1mm
- Max Width Of Flexible Strip Lights: 6mm/8mm For Side Mount / 14mm S Shape LED Strips For Bottom Mount(5615-LR) / 14mm(5615-UD)
- Diffusers: Semi-Clear
- Mini Bending Diameter: 600mm(5615-LR) / 400mm(5615-UD)
- Installation: Trimess Mud-In

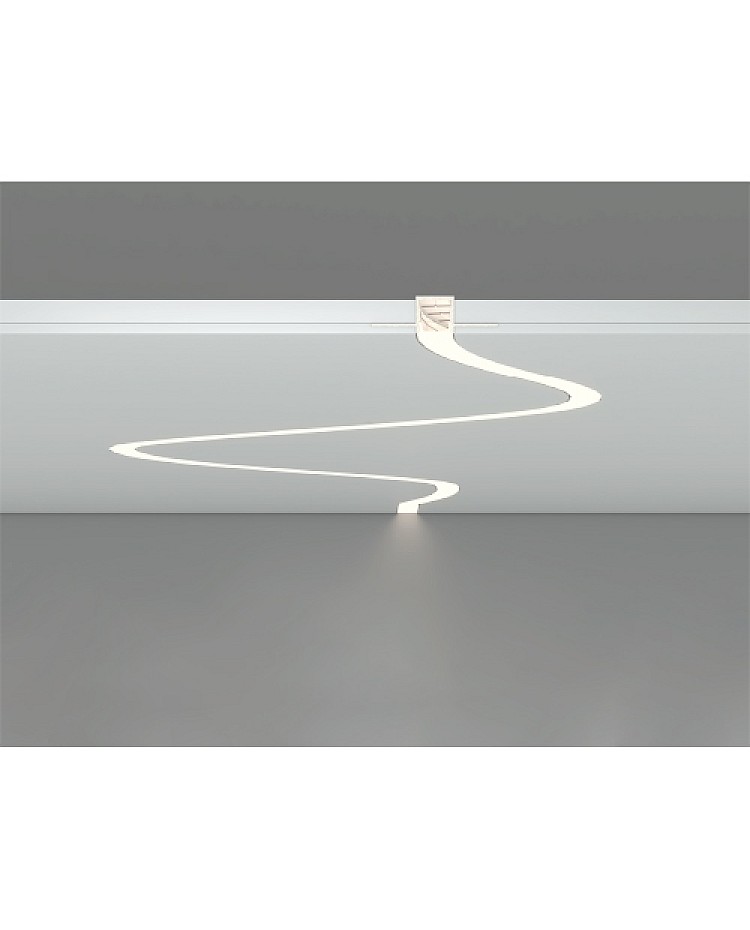

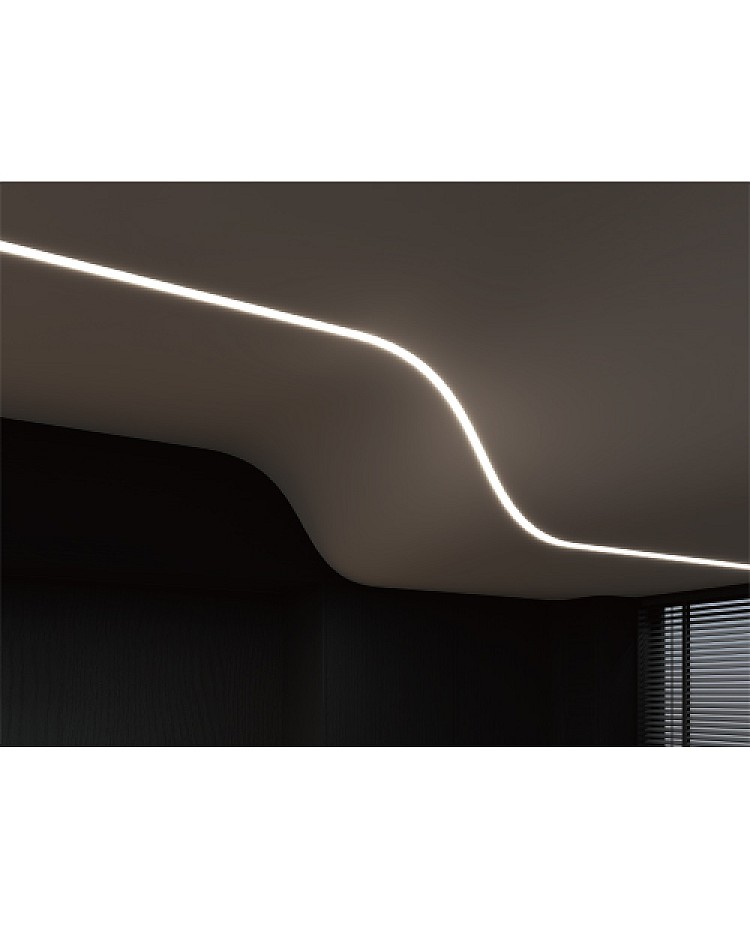

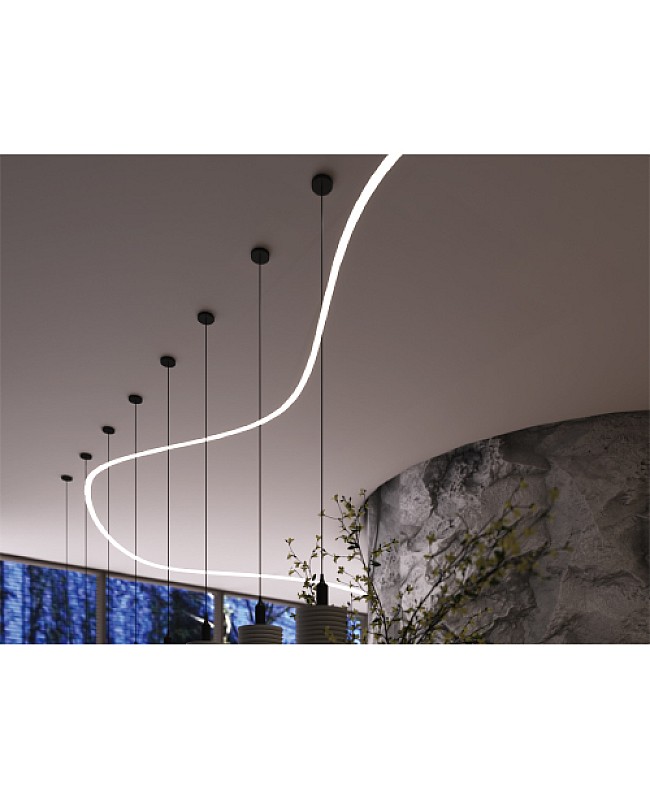

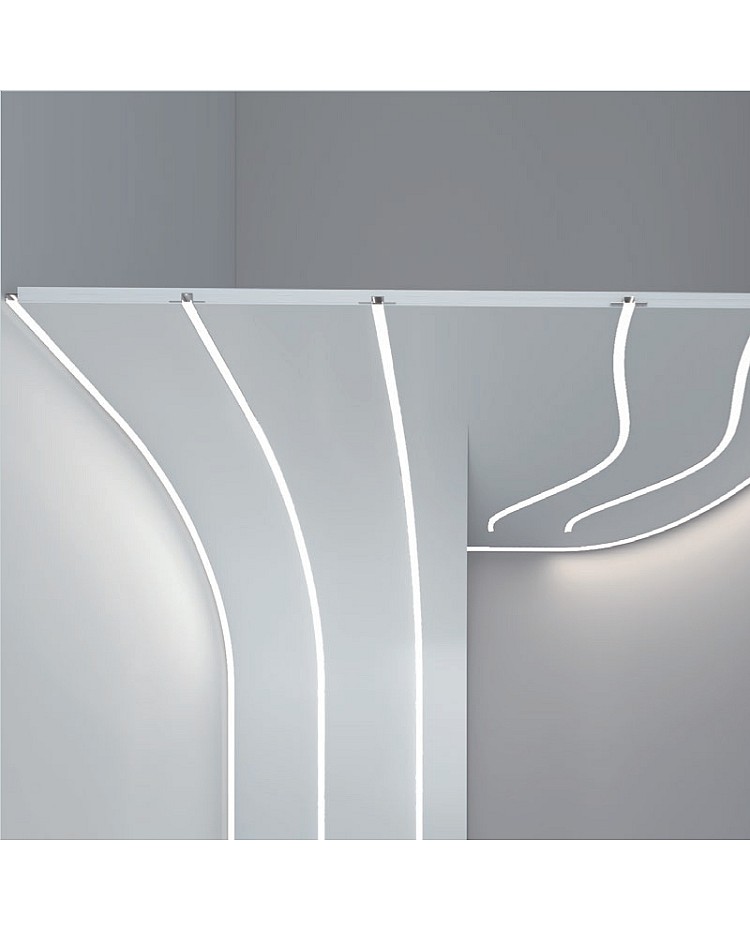

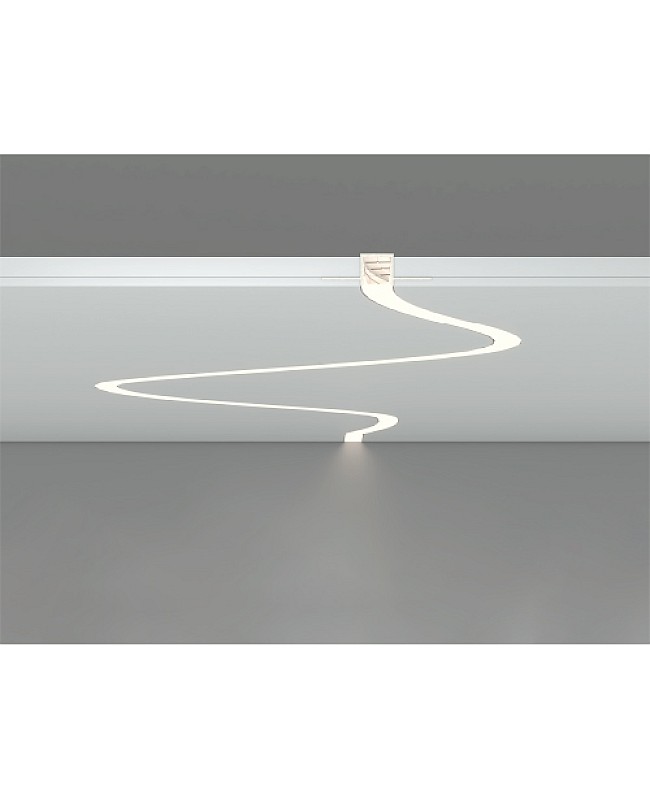

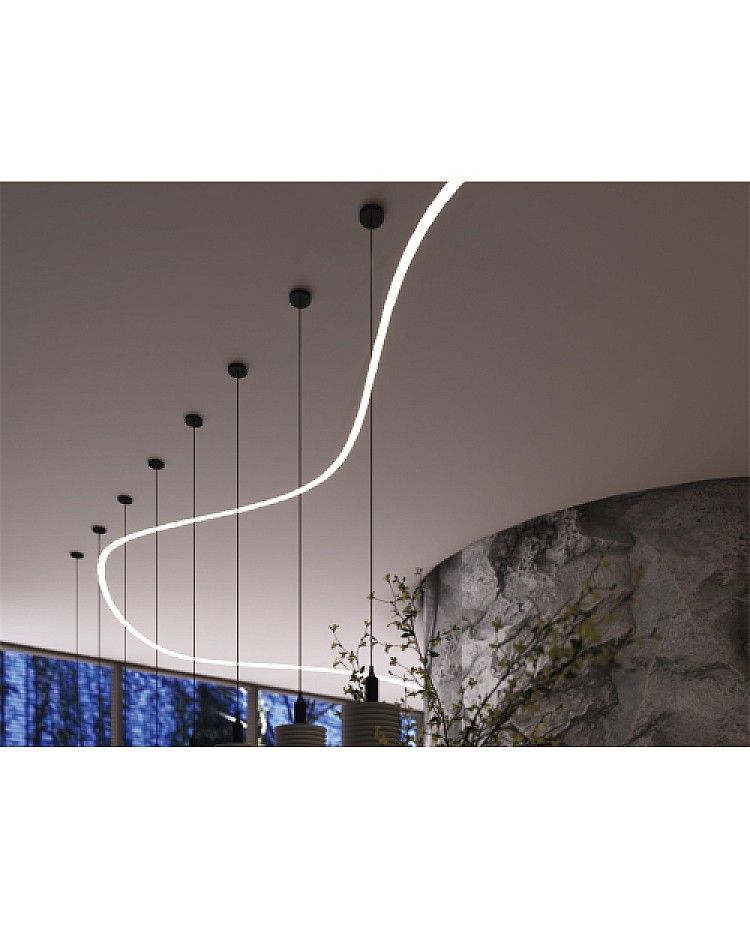

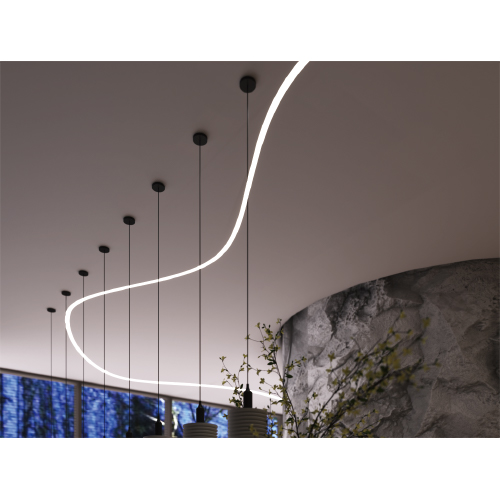

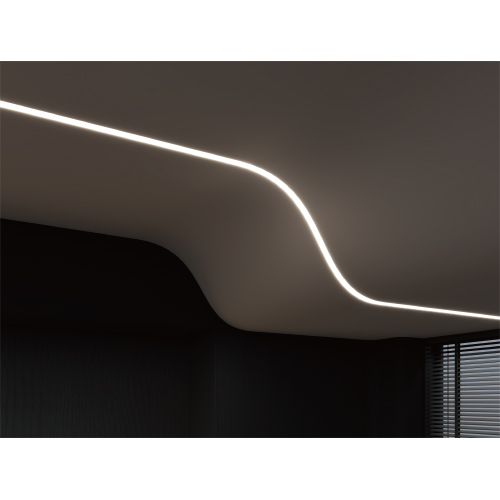

- Applications: Curved Linear Lighting On Walls, Ceilings, Walkways, Entrances, Stairs, Theaters, etc
- 3 Years Warranty
Includes:
1 * Bendable Aluminum Channel
1 * Silicone Diffuser
End Caps(With/Without Wire Holes)
