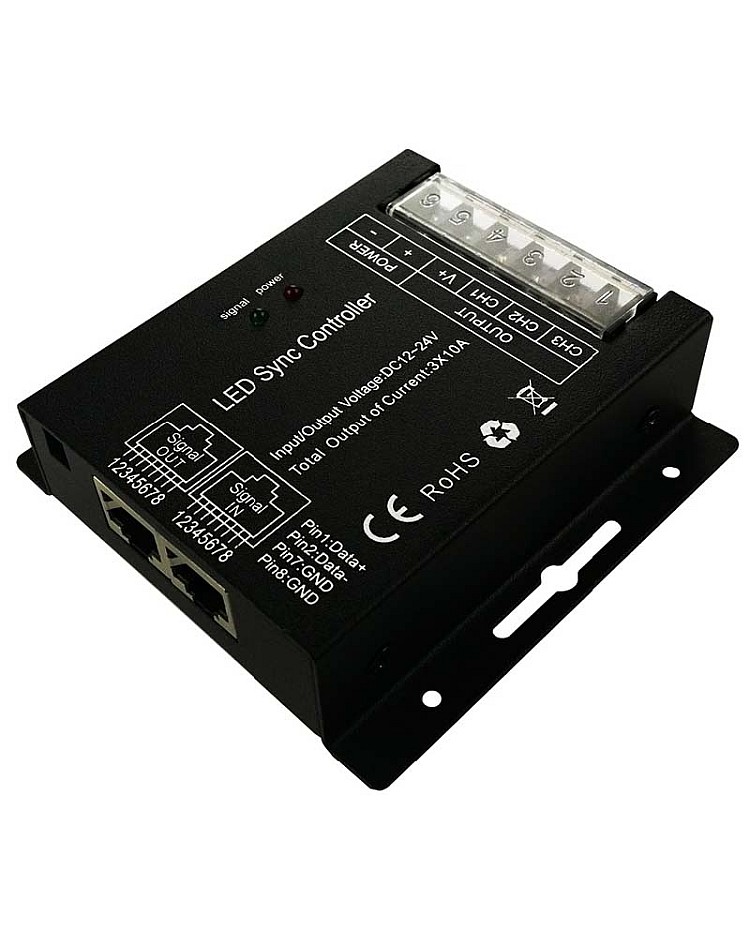

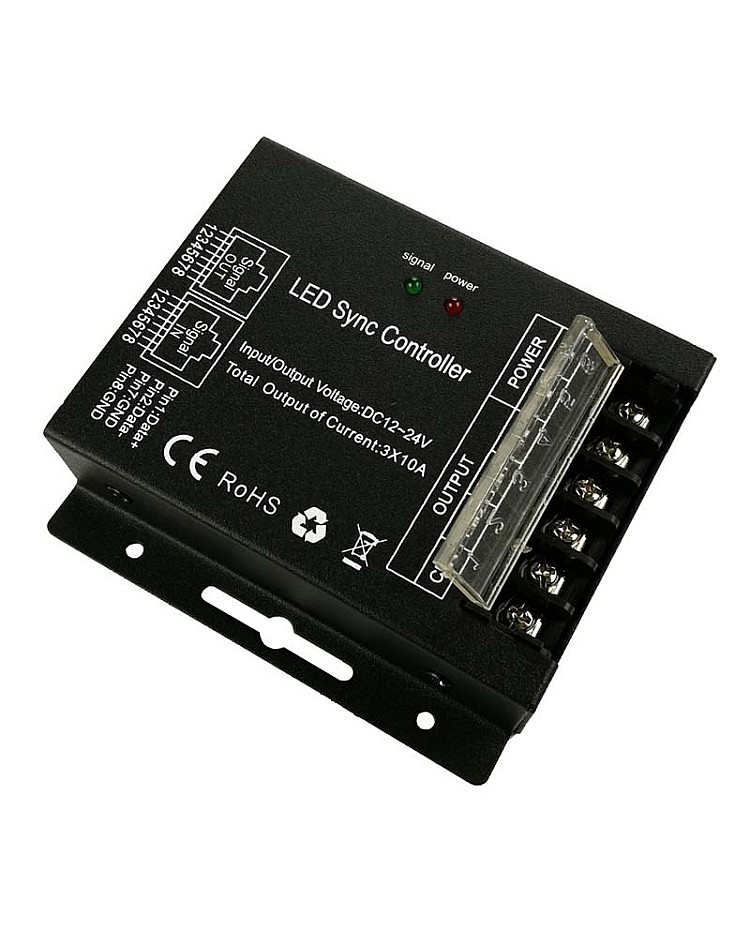

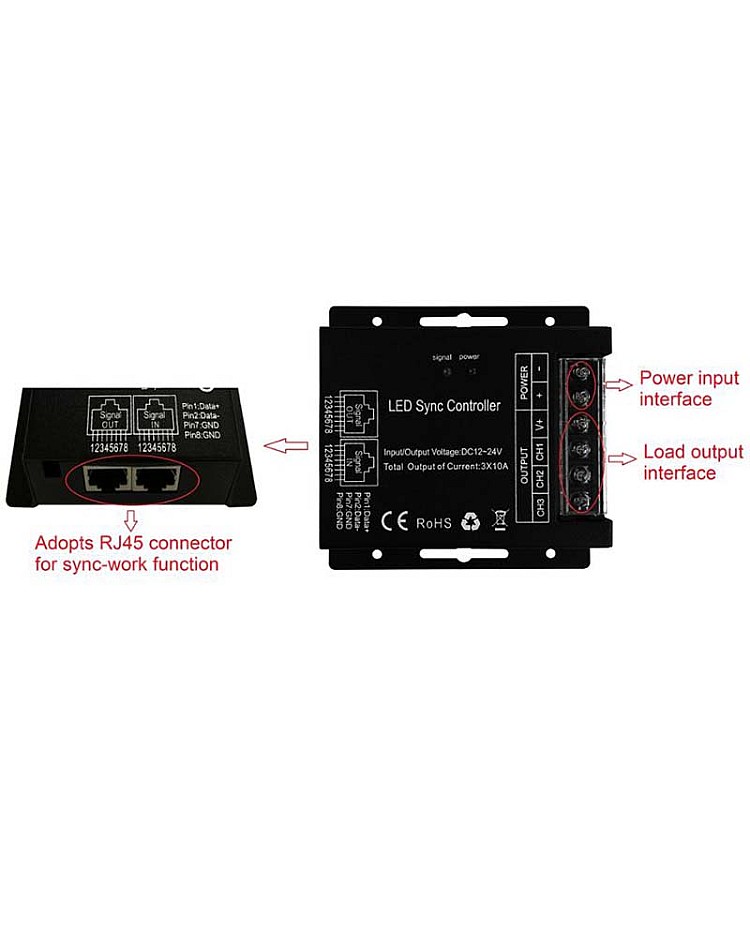

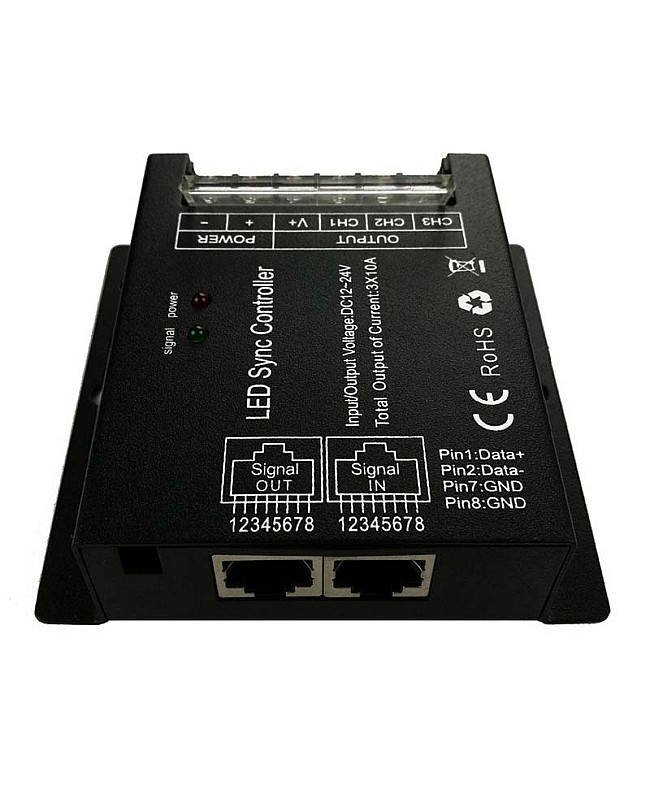

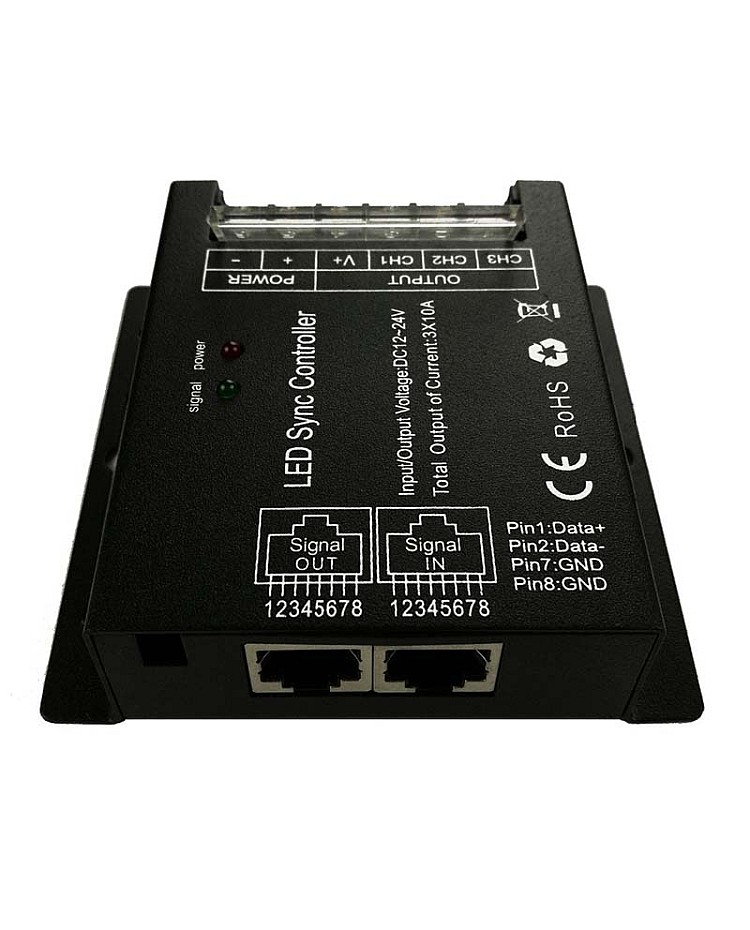

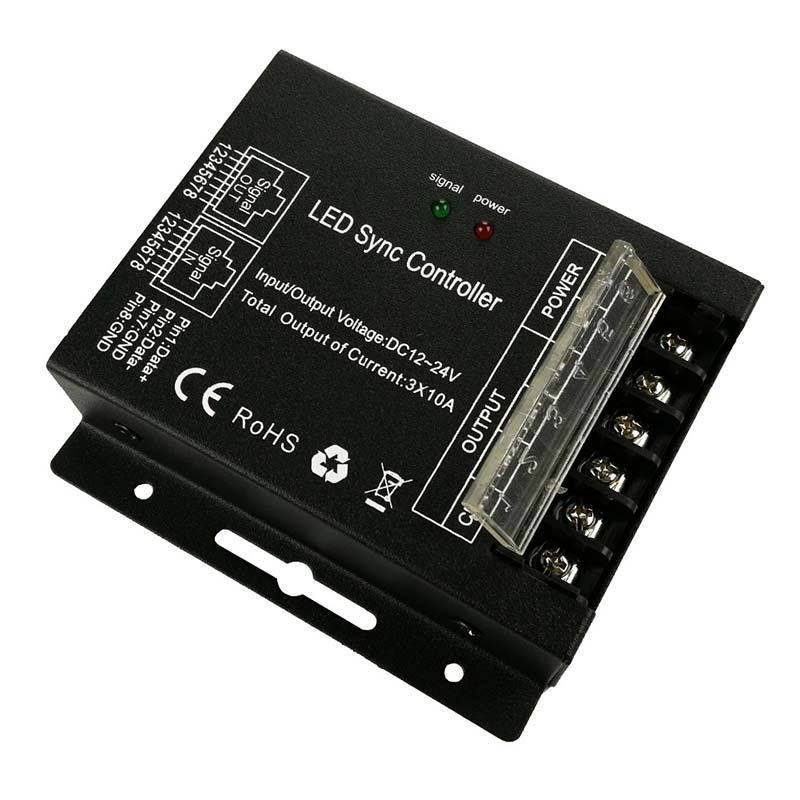

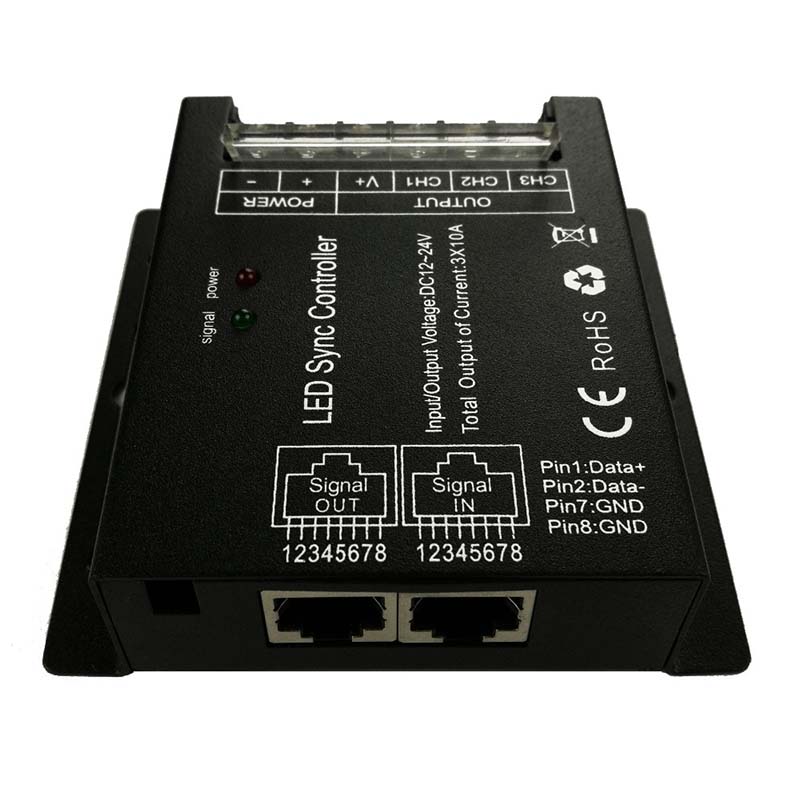

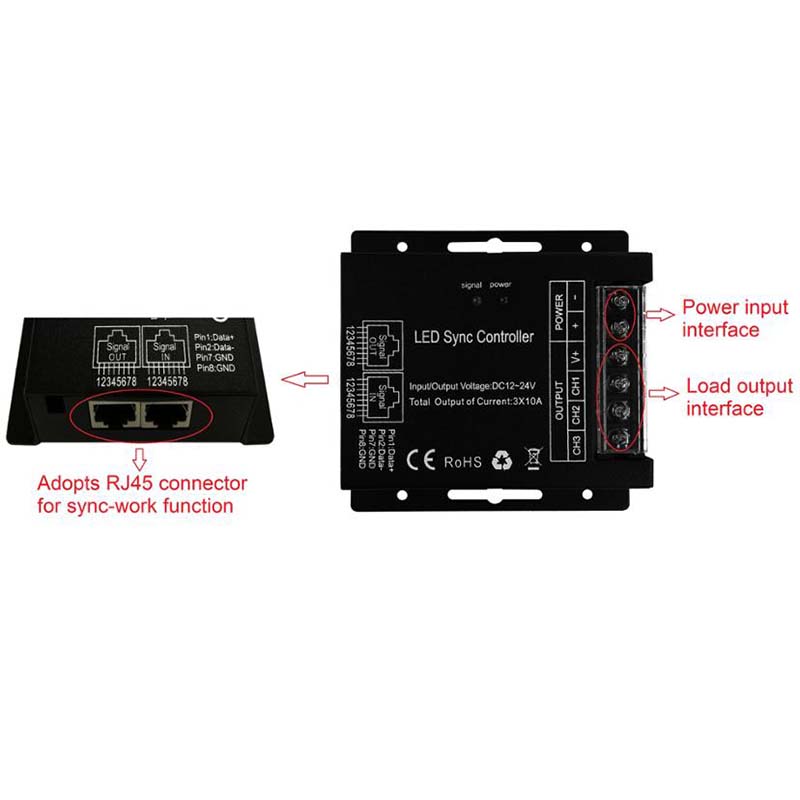

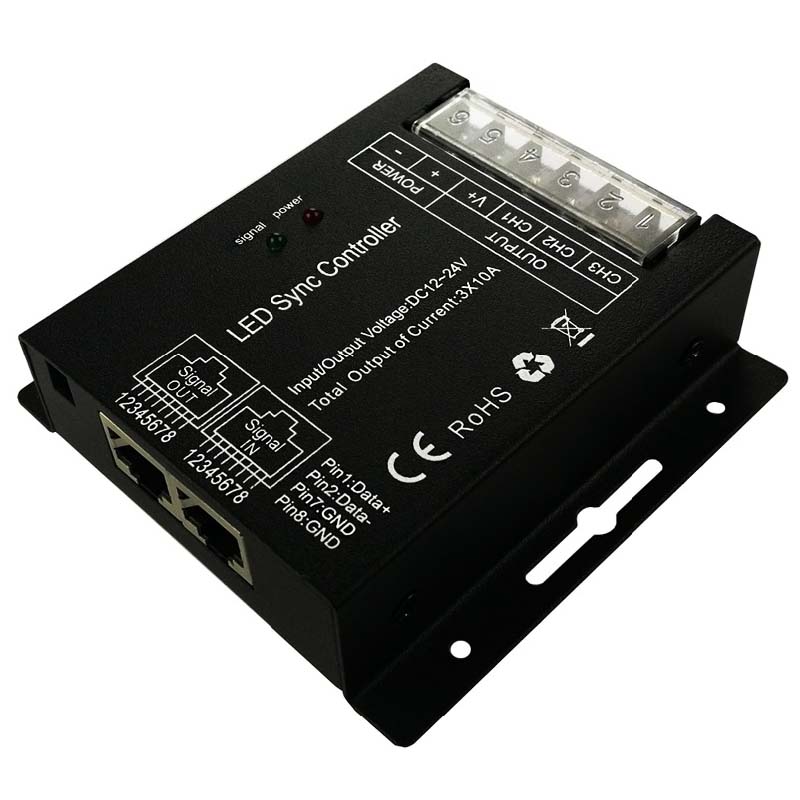

The Tunable White LED Controller with 14 Keys RF Remote adopts the advanced PWM digital control technology and is specially designed for the Cool White and Warm White LED Strips. With two output channels and a max loading power of up to 480W when working in 24V. The CCT LED Controller has a dual RJ45 port for sync-work and can connect multiple Controllers through the RJ45 Ports to achieve the synchronization function, a network cable length up to 80 meters. The 14 keys RF Remote Control includes nine modes: one static color and eight dynamic modes. The brightness of static color and speed of dynamic modes are adjustable. There are 2 DIY buttons designed for scene memory.


Features:

  • Working Temperature: -20-60℃
  • Size: 127*41*32mm(L*W*H)
  • Connecting Mode: Common Anode
  • Working Voltage: DC12-24V
  • Output Channels: 2
  • Max Output Current: <10A(Each Channel)
  • Max Loading Power: 240W(12V), 480W(24V)
  • RF Frequency: 433.9MHz
  • Output Gray: 256 Levels
  • Dual RJ45 Port For Sync-Wokr

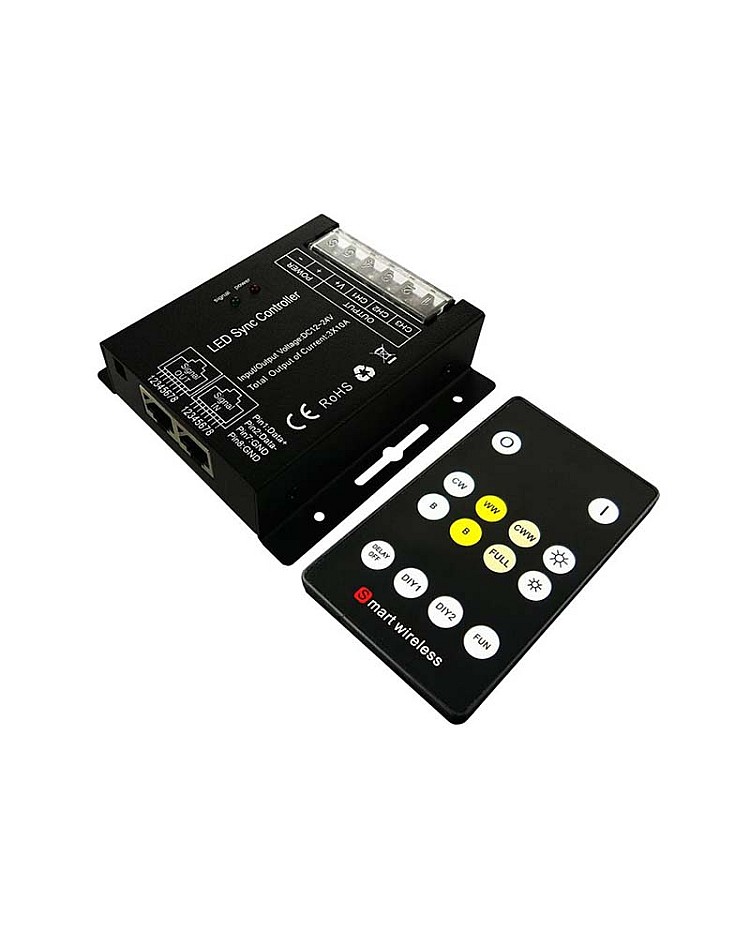

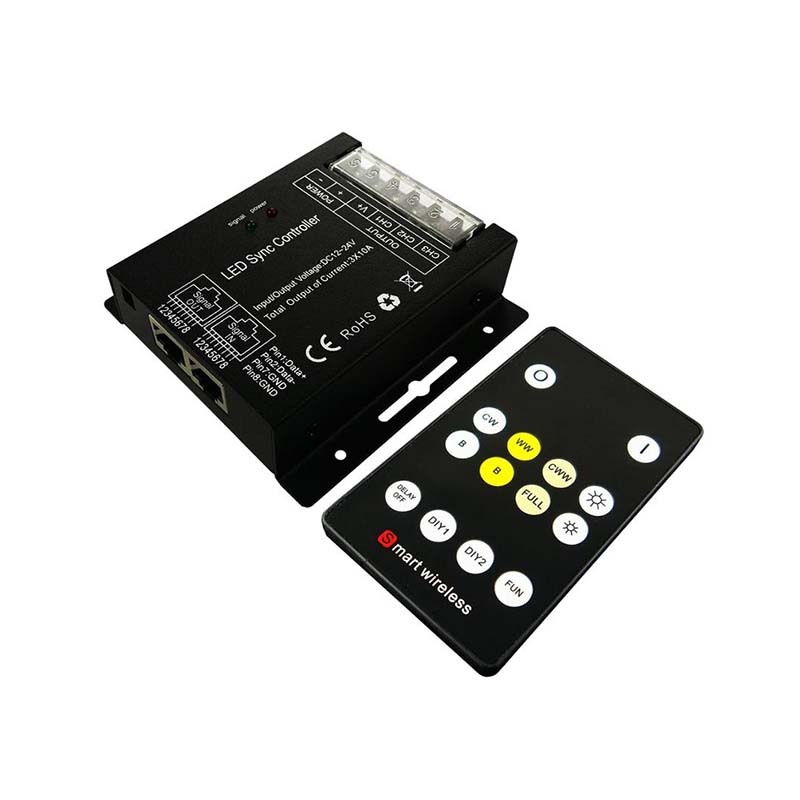

  • 14 Keys RF Remote Control Included
  • 9 Working Modes In Total, 1 Static Mode And 8 Dynamic Modes
  • Short Circuit Protection: YES
  • Weight: 300g
  • 3 Years Warranty


Includes:

1*Tunable White LED Controller

1*14 Keys RF Remote

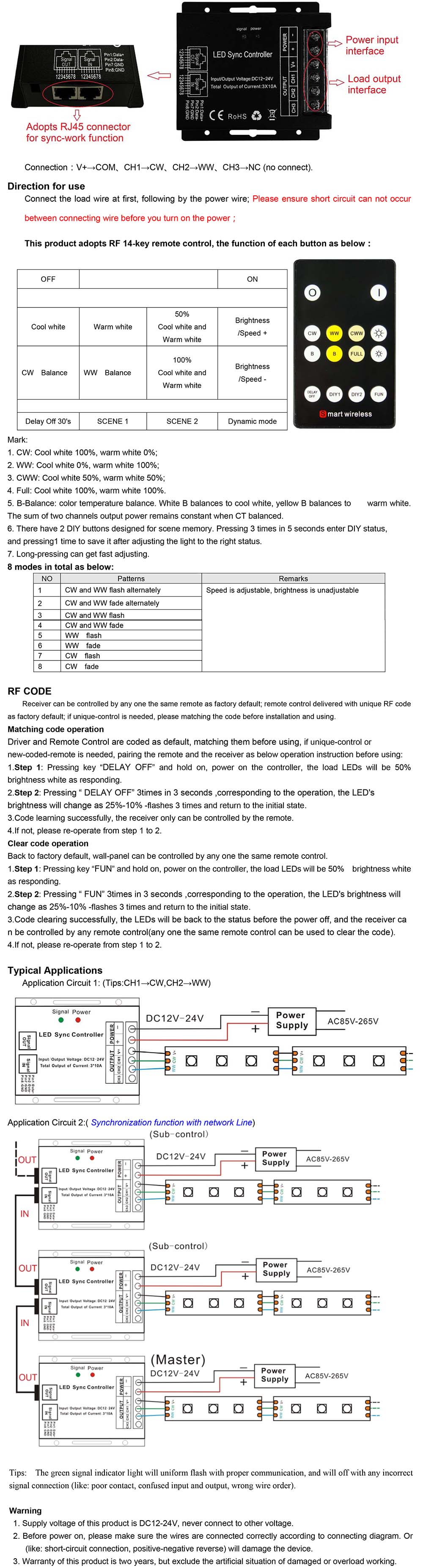

Correlated Color Temperature LED Controller
