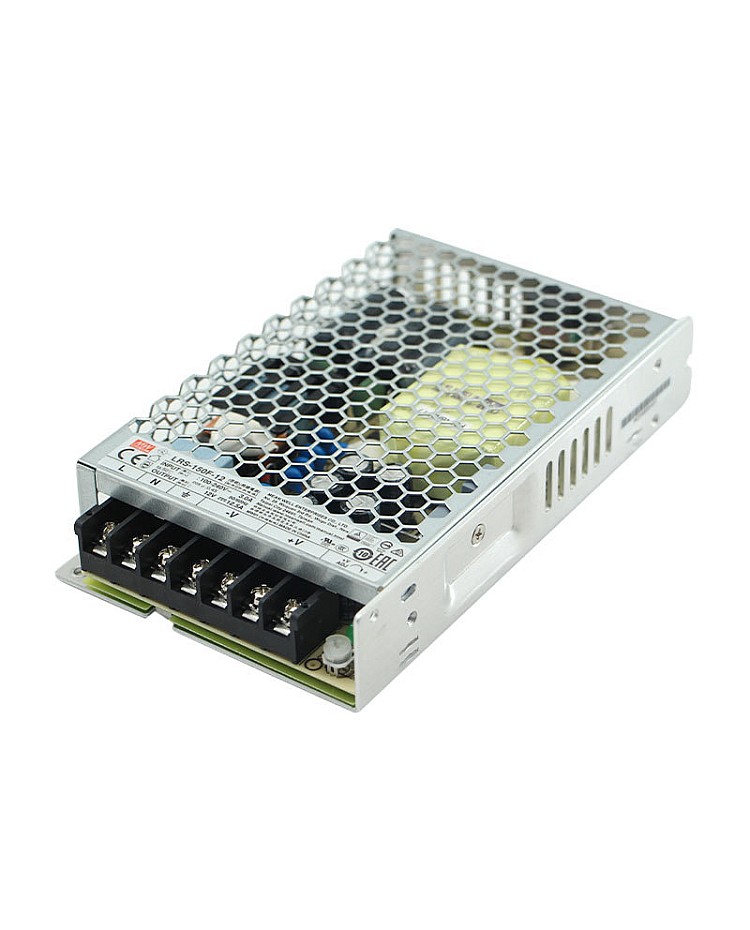

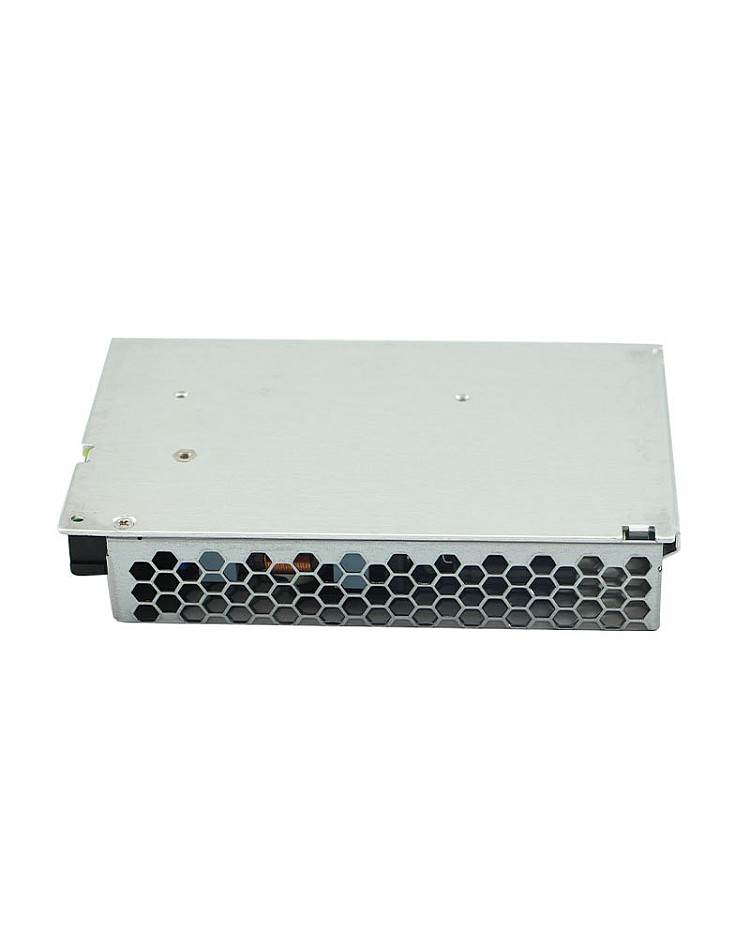

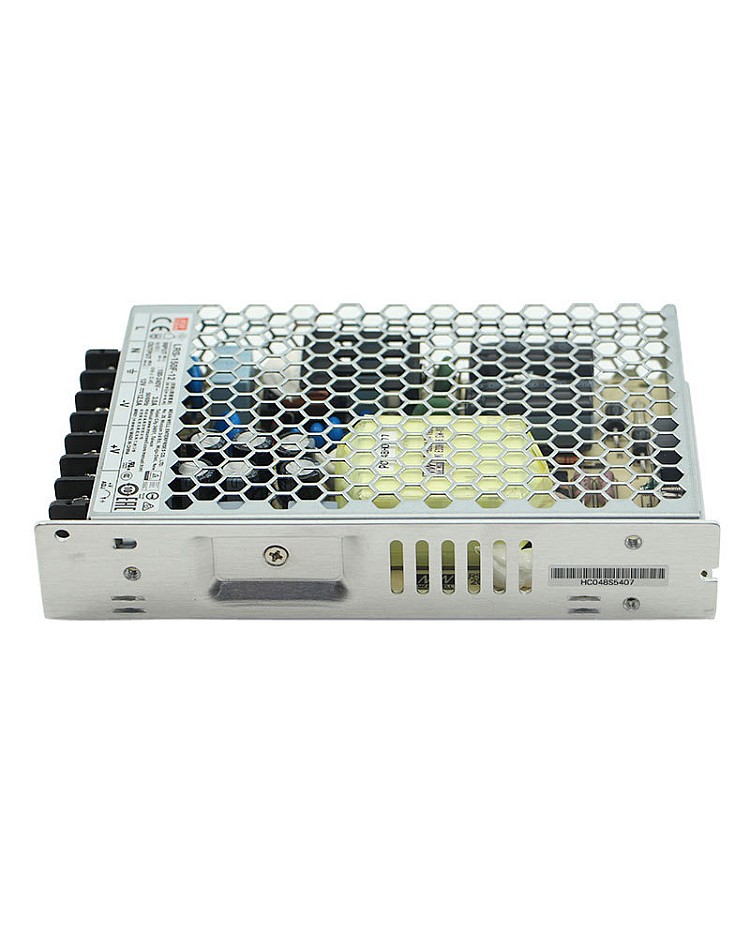

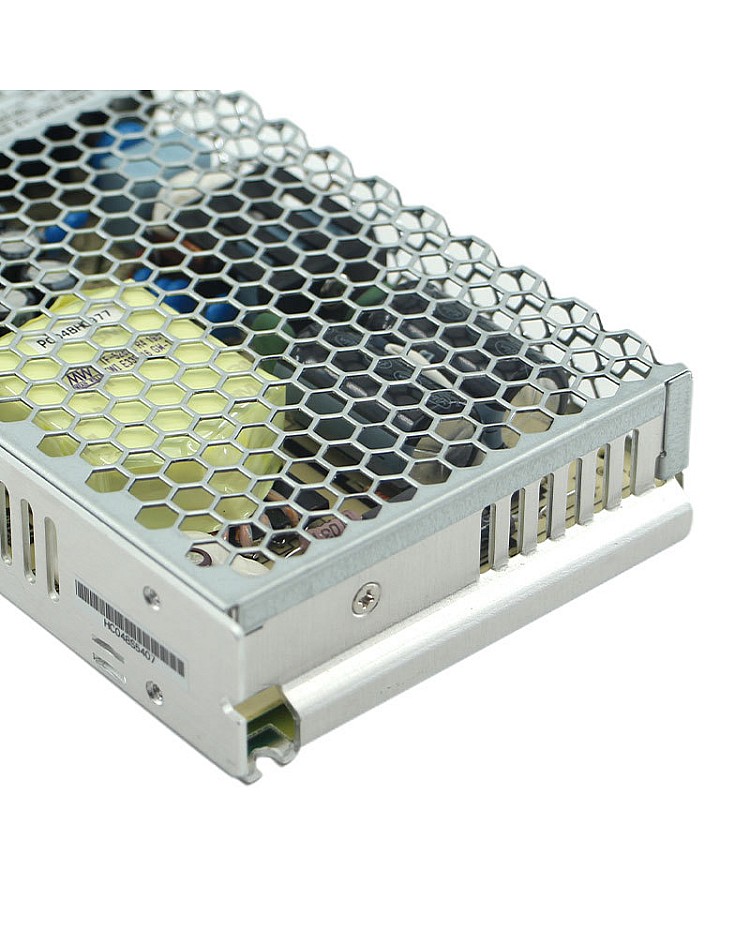

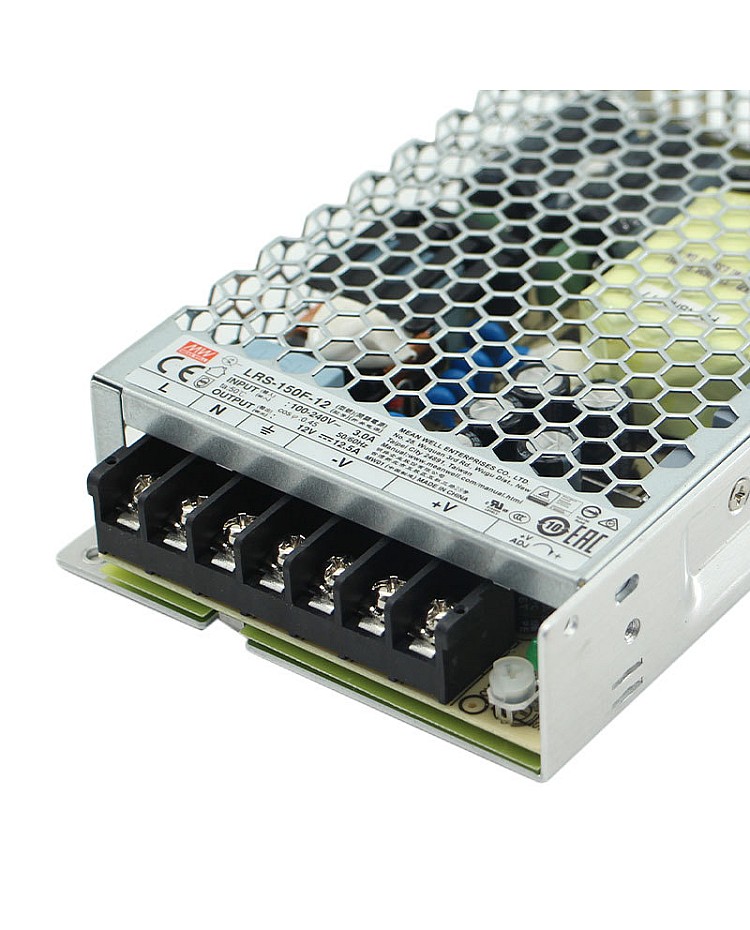

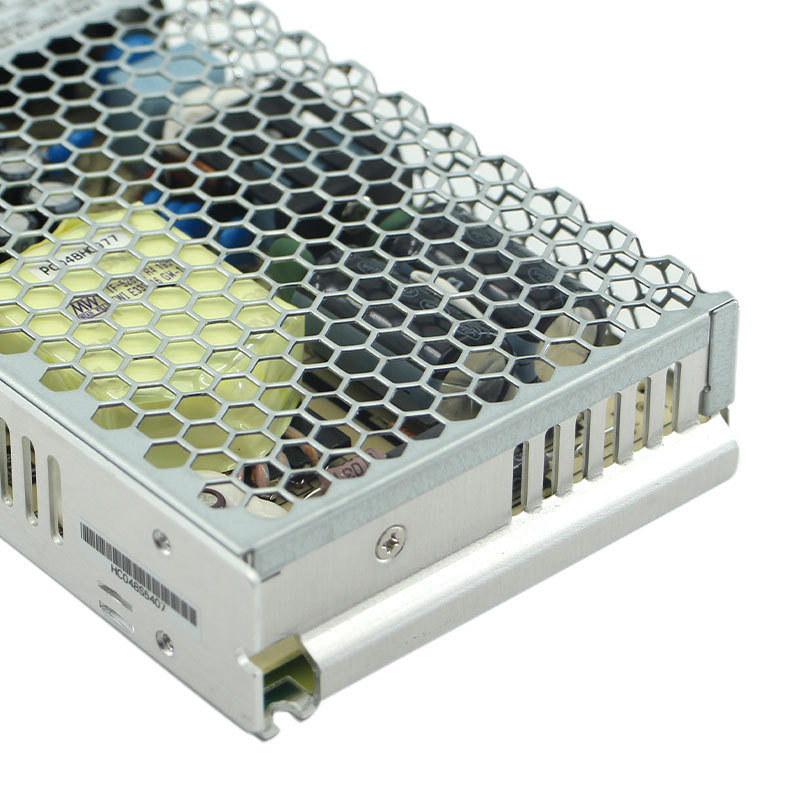

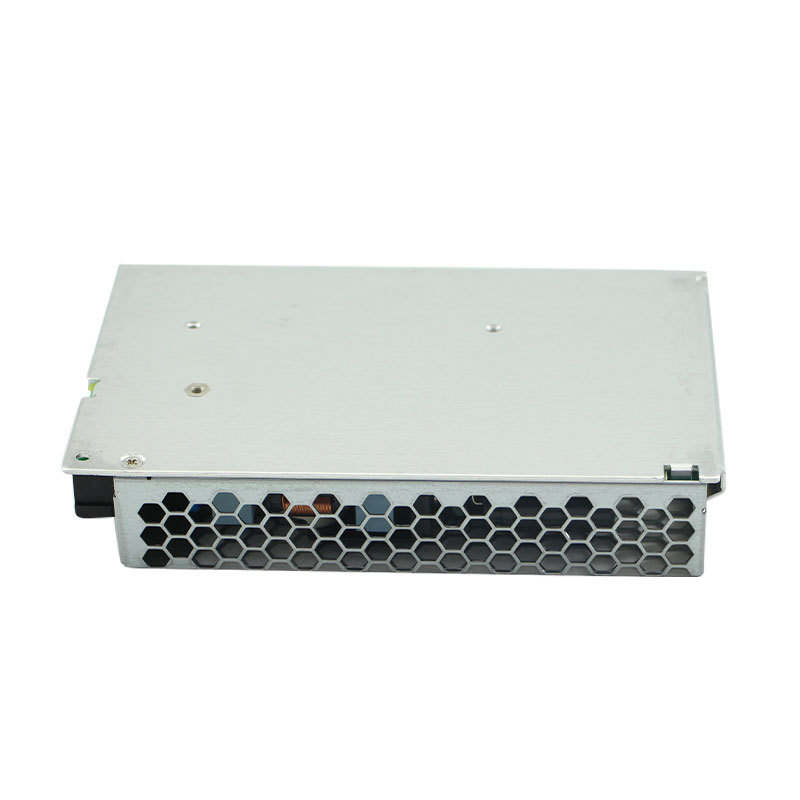

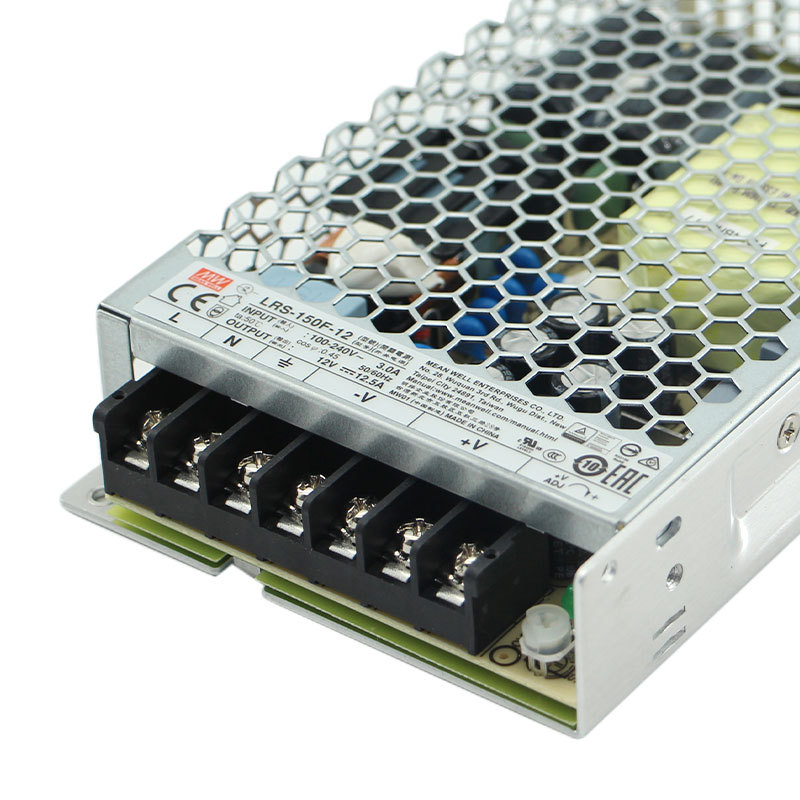

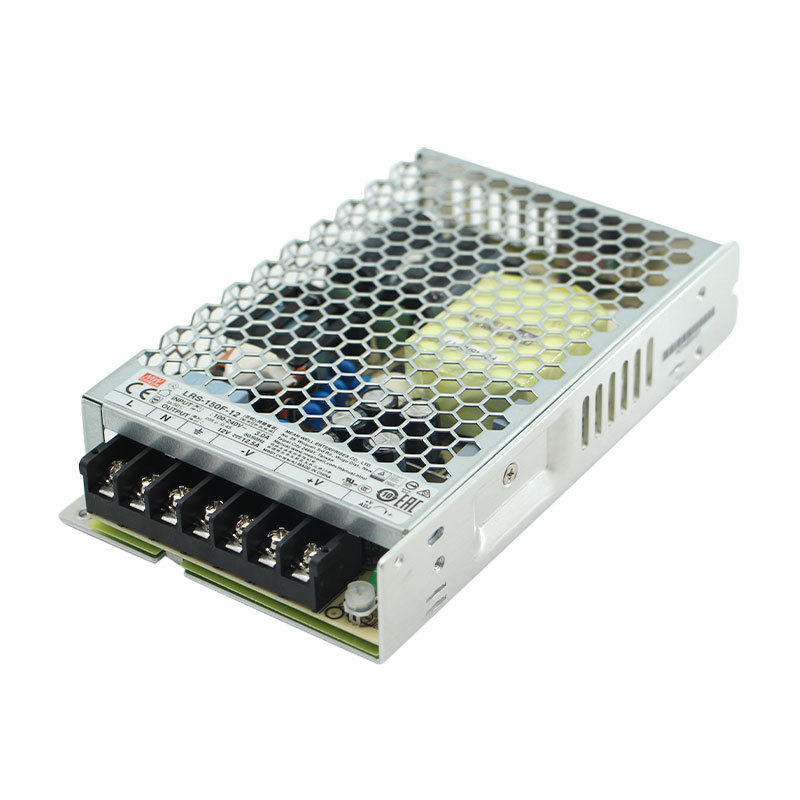

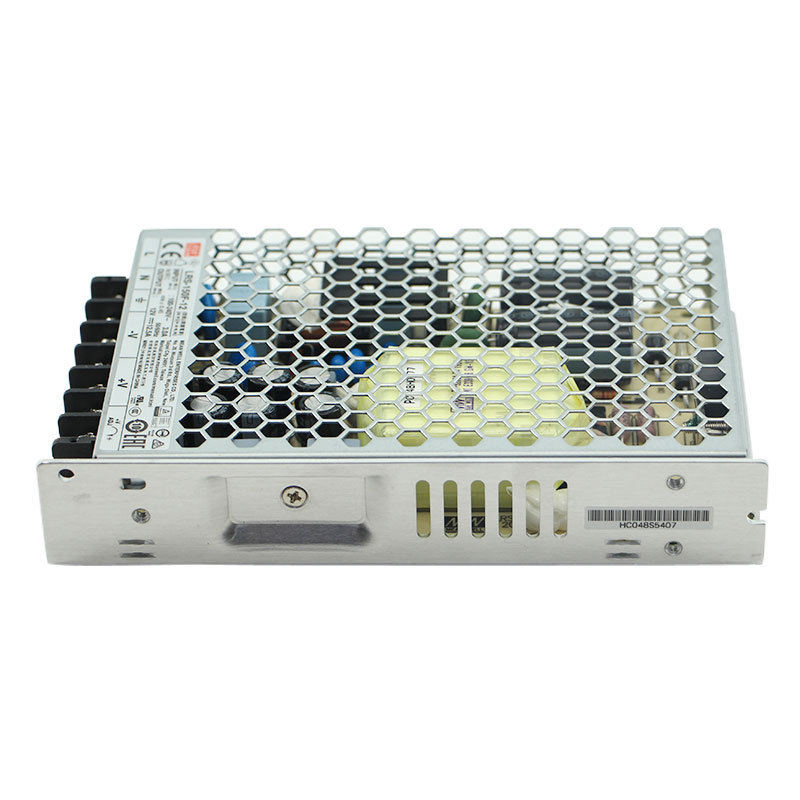

Check the LRS-150F Full Range Power Supply by Mean Well, which is a 150W single-output enclosed LED Driver with 30mm of low profile design, the full input range from AC85V to AC264V, you can choose the various output voltage products from DC5V to DC48V, the max loading power up to 158.4W when working in DC48V. in addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS 150F that the whole series operates from -30℃ through 70℃ under air convection without a fan. delivering an extremely low no-load power consumption of less than 0.5W, allows the end system to easily meet the worldwide energy requirement. the Meanwell Power Supply has complete protection functions and 5G anti-vibration capability, 3 years warranty.

  • Universal AC Input/Full Range
  • Withstand 300VAC Surge Input For 5 Seconds
  • No Load Power Consumption<0.5W
  • Miniature Size And 1U Low Profile
  • High Operating Temperature Up To 70℃
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Cooling By Free Air Convection
  • Compliance To IEC/EN 60335-1 And IEC/EN61558-1, 2-16 For Household Appliances
  • Operating Altitude Up To 5000 Meters
  • Withstand 5G Vibration Test
  • High Efficiency, Long Lifespan And High Reliability
  • LED Indicator For Power On
  • Over Voltage Category III
  • 100% Full Load Burn-In Test
  • 3 Years Warranty

Quick Links:

LRS-150F Specification Document


Features:

  • Model: LRS-150F

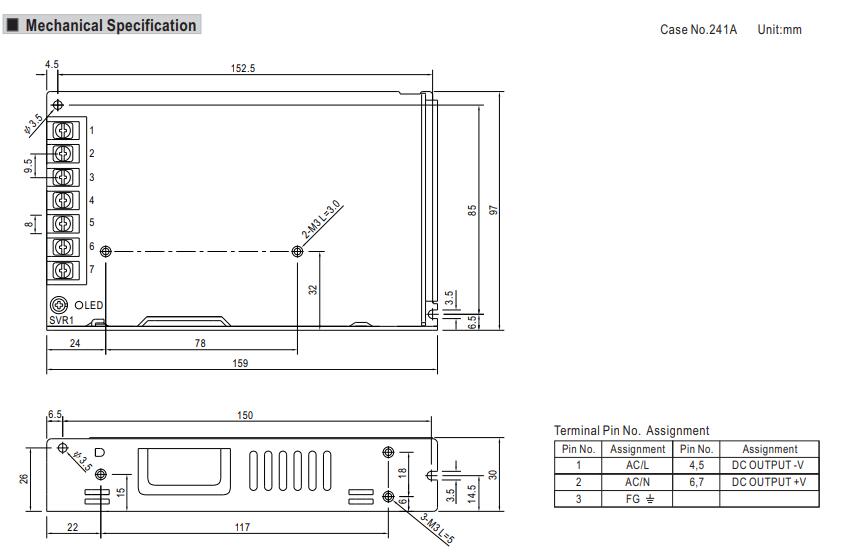

  • Size: 159*97*30mm(L*W*H)
  • Input Voltage: AC85-264VAC
  • Frequency Range: 47-63Hz
  • Output Voltage Range: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
  • Rated Current: 22A(DC5V), 12.5A(DC12V), 10A(DC15V), 6.5A(DC24V), 4.3A(DC36V), 3.3A(DC48V)
  • Rated Power: 110W(DC5V), 150W(DC12V), 150W(DC15V), 156W(DC24V), 154.8W(DC36V), 158.4W(DC48V)
  • Efficiency: 85%(DC5V), 87.5%(DC12V), 89%(DC15V), 89%(DC24V), 89%(DC36V), 90%(DC48V)
  • AC Current: 3A/115VAC; 1.7A/230VAC
  • Working Temperature: -30℃-+70℃
  • Vibration: 10-500Hz, 5G 10min./1 cycle, 60min. each along X, Y, Z axes
  • Safety Regulations: TUV EN62368-1, EN60335-1, EN61558-1/-2-16, UL62368-1 And GB4943
  • Over Load Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • 3 Years Warranty


Includes:

1*Meanwell LRS-150F Power Supply
