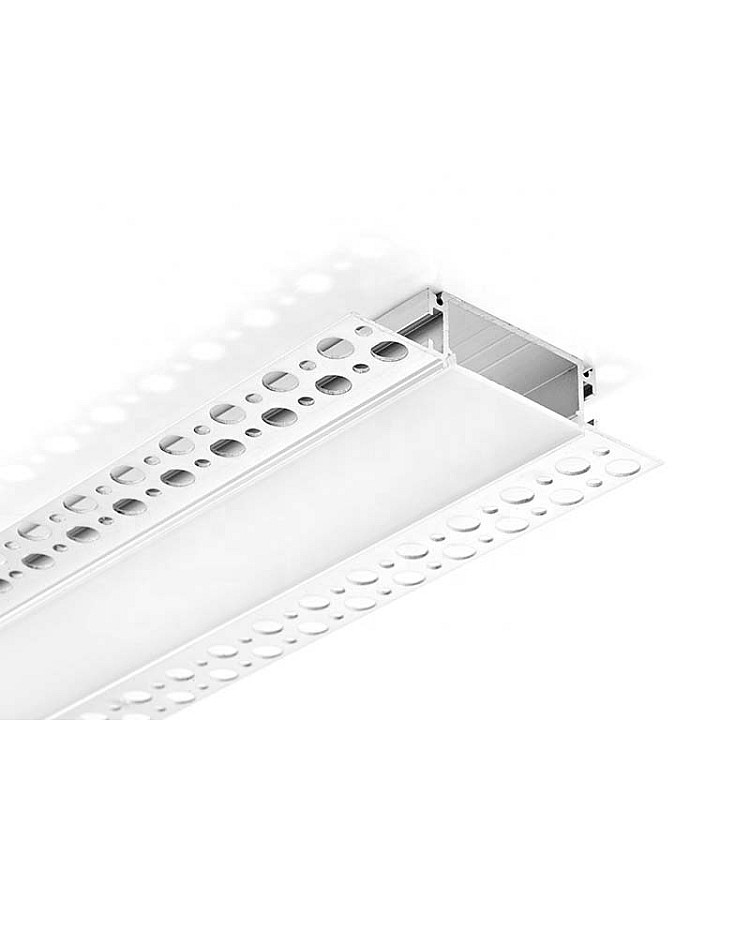

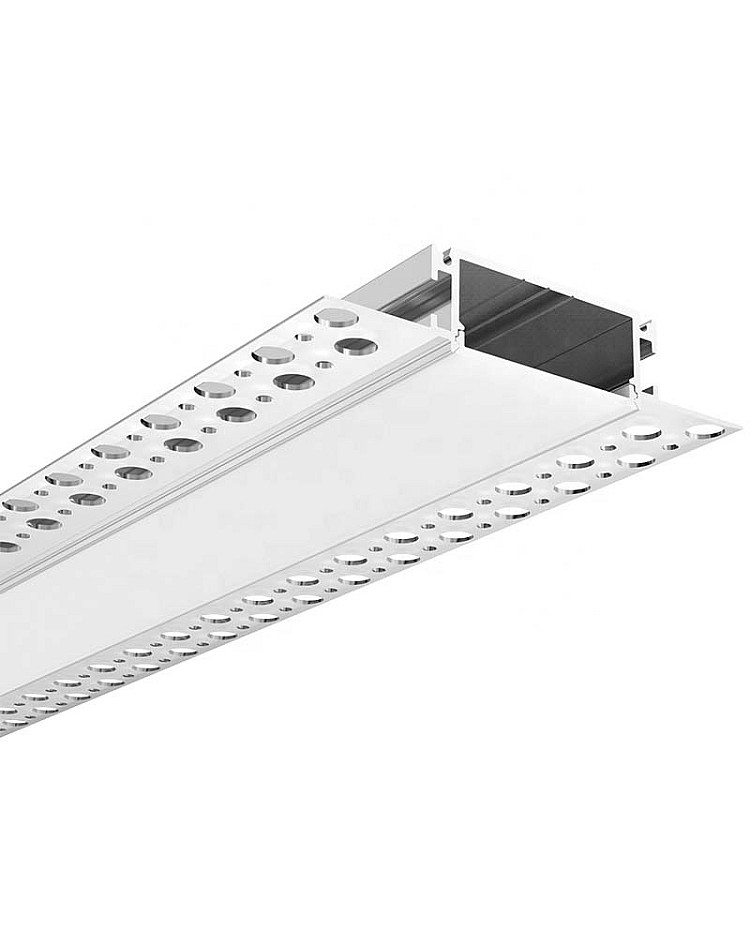

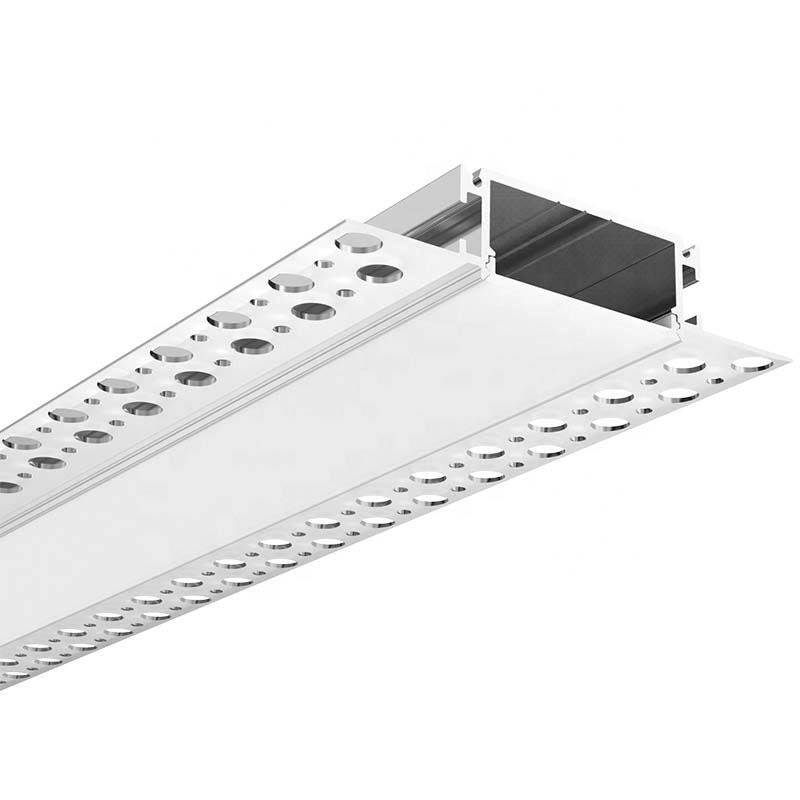

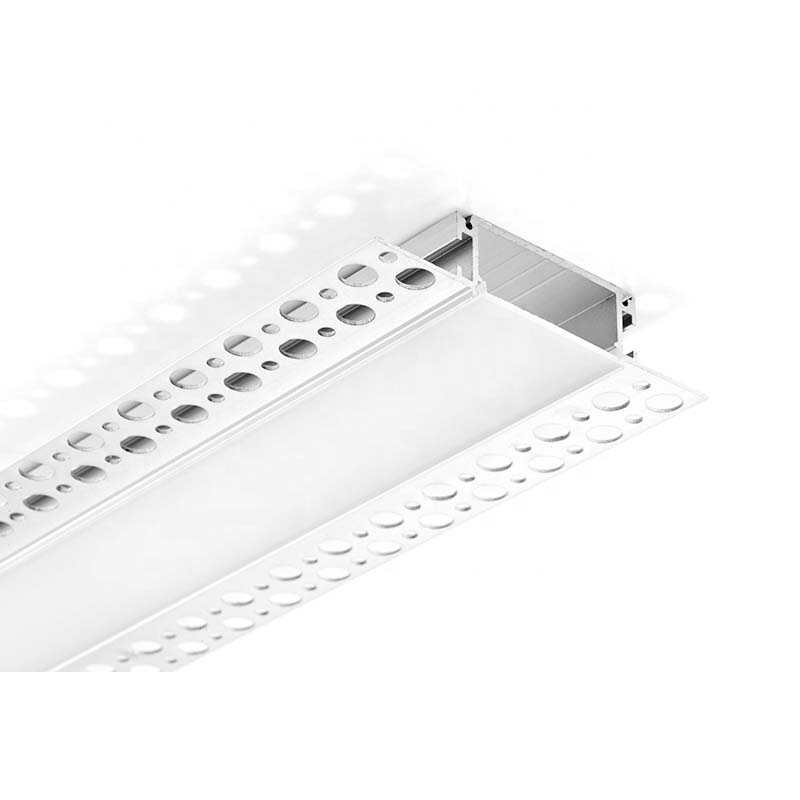

The 1.5-inch LED strip light extrusions are designed for trimless drywall integration and offer a modern and seamless lighting solution for architectural interiors. They can be seamlessly embedded into 5/8" drywall without a visible frame to provide a clean, flush finish. Come with diffused covers to evenly and softly diffuse the light emitted by strip lights, providing soft, glare-free illumination. Perfect for accent or task light in hallways, offices, retail spaces, or residential settings.
The inner width is 37 mm, allowing a maximum strip-light width of 36 mm. You can install high-power SMD or COB strip lights as the light source. The aluminum channels can serve as heat sinks for better heat dissipation. The drywall extrusions are crafted from high-quality extruded aluminum and feature anodized or powder-coated finishes for oxidation resistance.
The stock lengths are 2 m, 2.5 m, and 3 m, and custom lengths are supported. Only one type of diffuser is available: the PC diffused cover, made of brand material, which is anti-yellowing, provides perfect light distribution, and has no visible light dots. There are three types of corner connectors available: 90-degree outside, 90-degree inside, and L connectors for horizontal or vertical connections. Three types of joiners are sold separately, allowing for angled or straight connections.
Specifications:

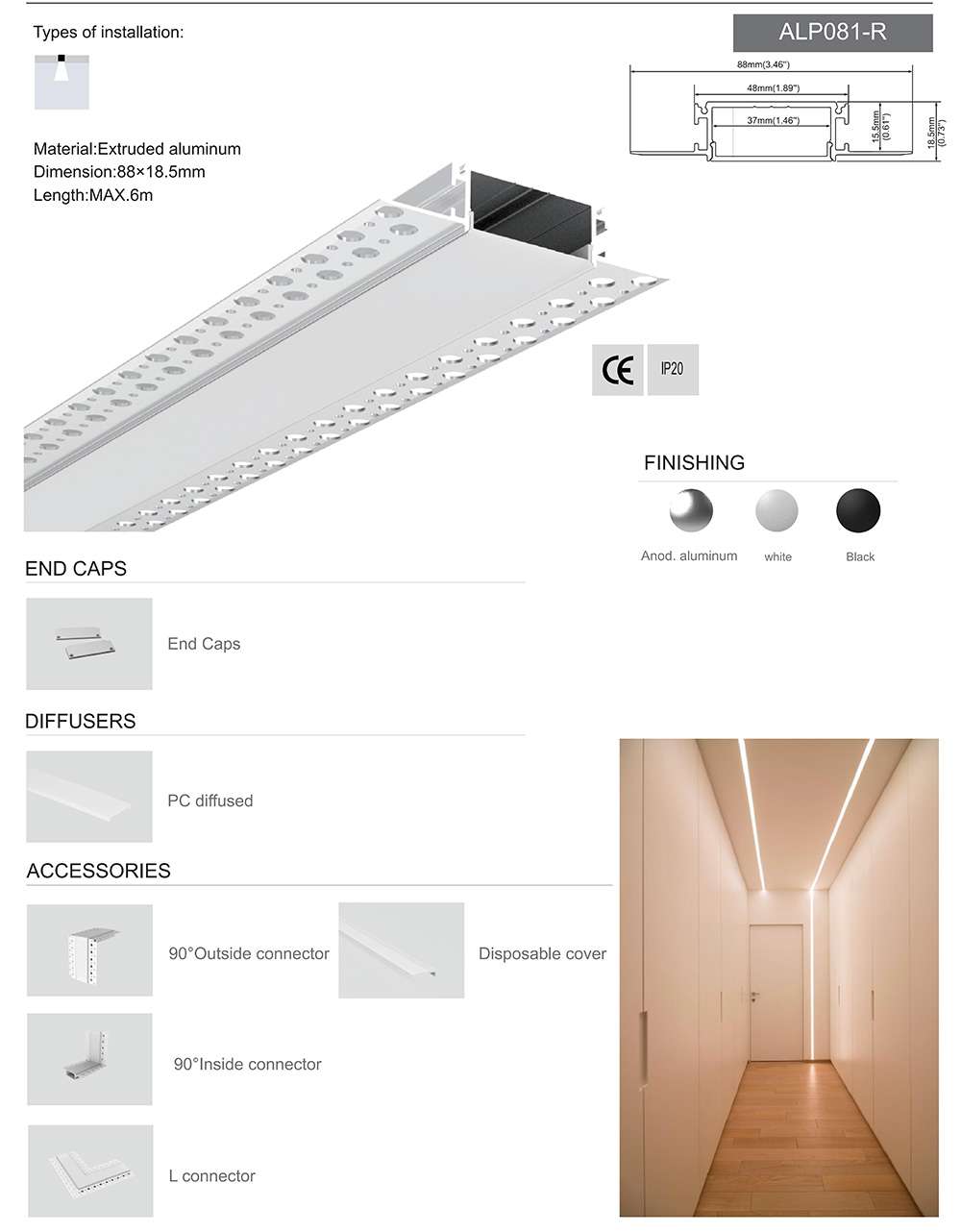

- Model: ALP081-R
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized or powder-coated
- Colors: Silver, white, black

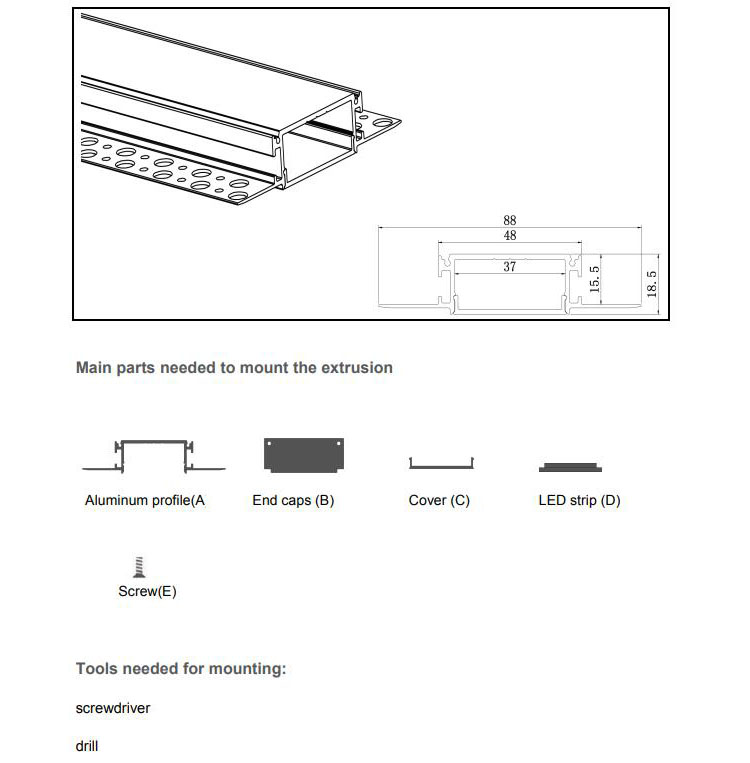

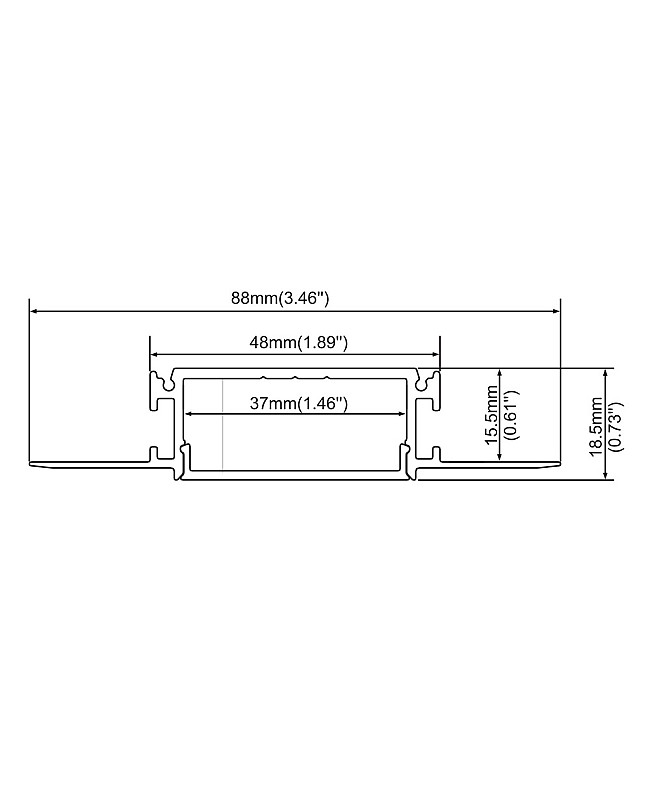

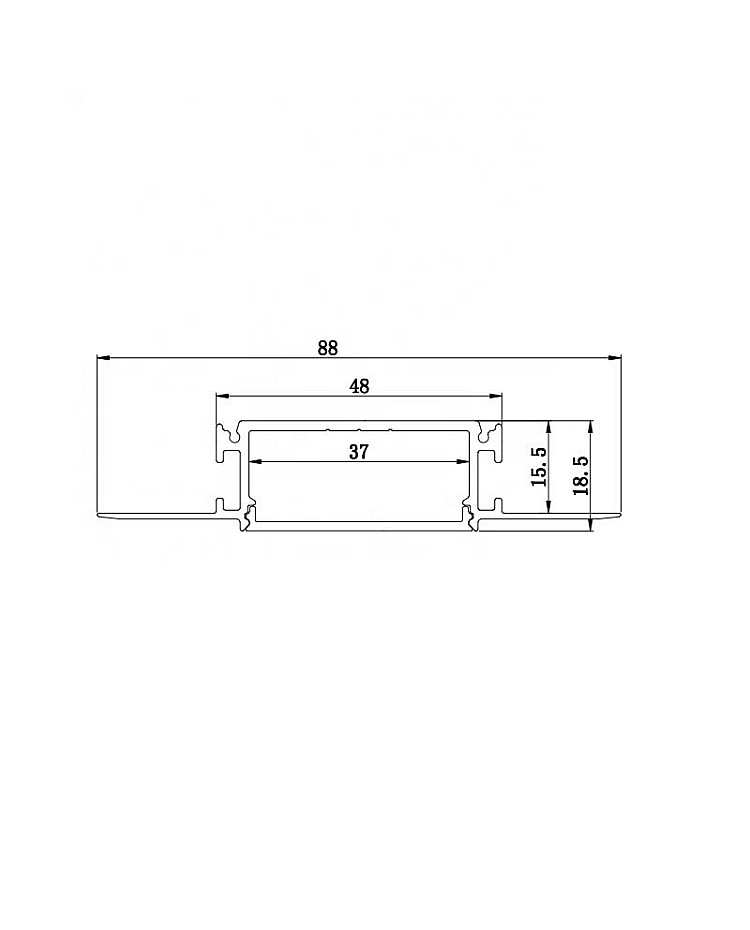

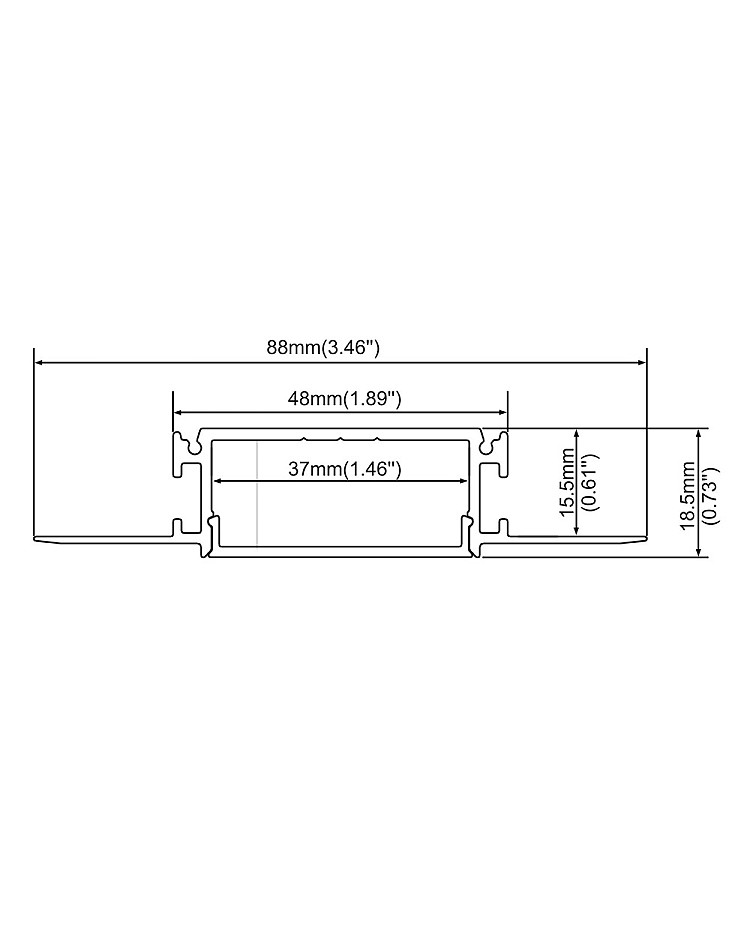

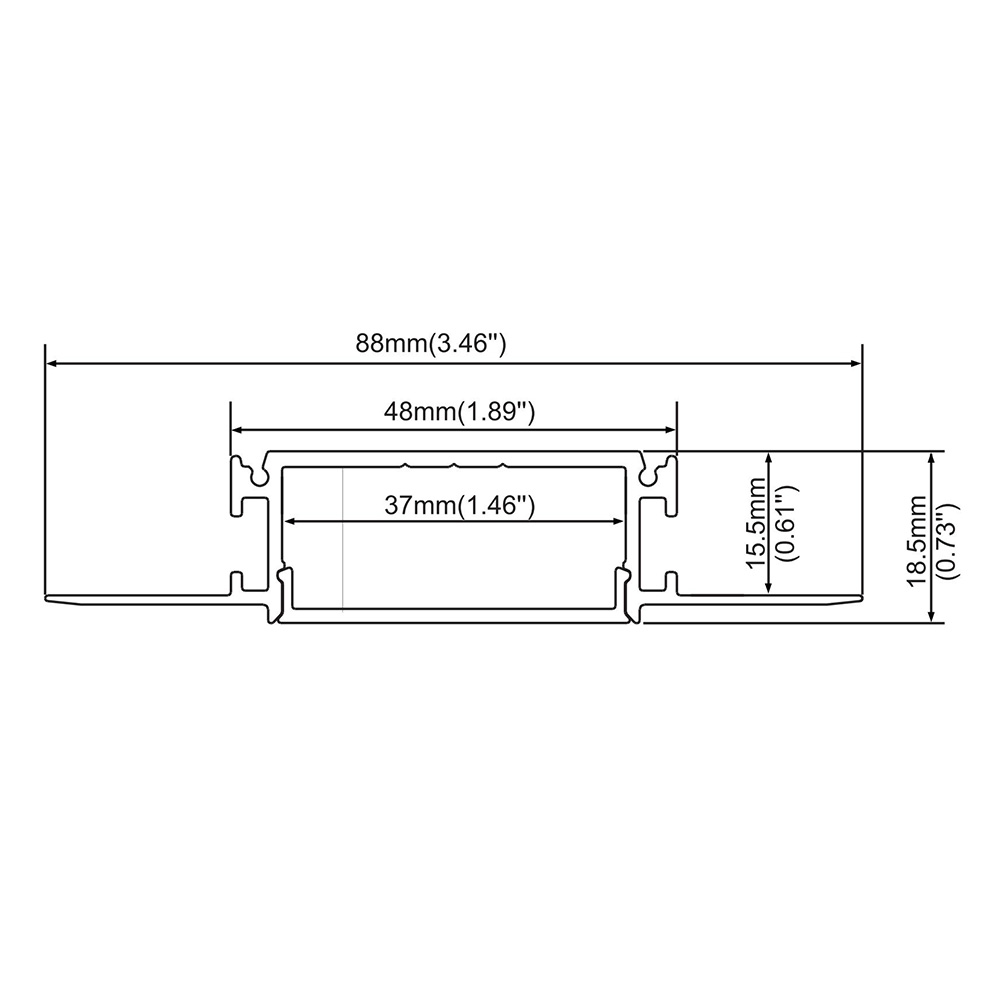

- Size ( W x H ) : 88 mm x 18.5 mm ( 3.46" x 0.73" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" ), 2.5 m ( 98" ), 3 m ( 118" )
- Custom length available: YES
- Inner with: 37 mm ( 1.46" )
- Diffuser: PC Diffused Cover
- Max LED strip width: 36 mm ( 1.42" )
- Max power: 18W/m
- 90°, 90° vertical, and 180° couplers sold separately

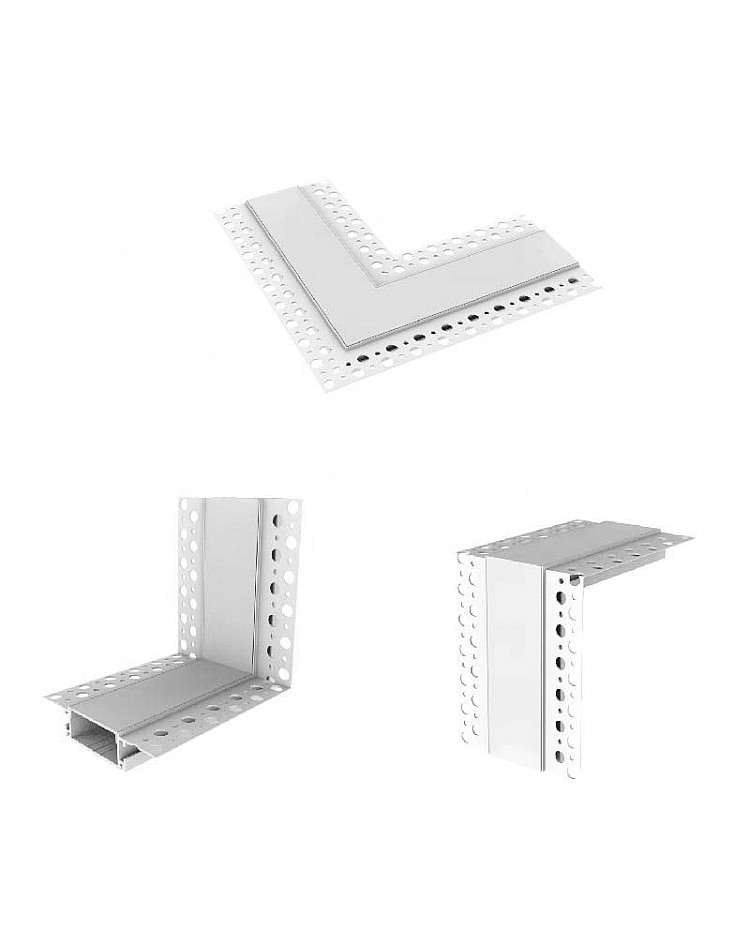

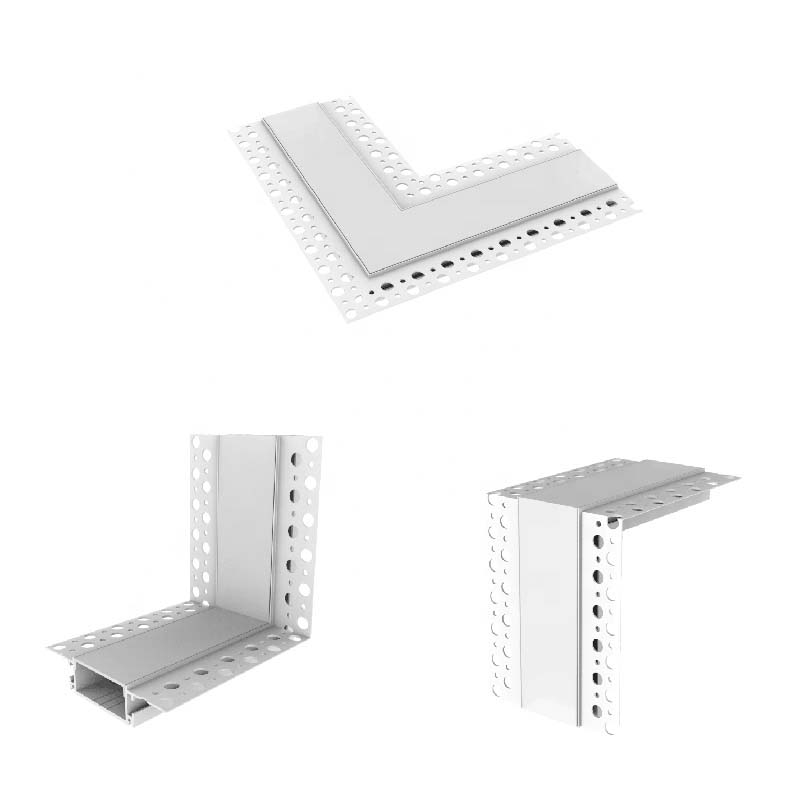

- 90° outside, 90° inside, and L connectors sold separately

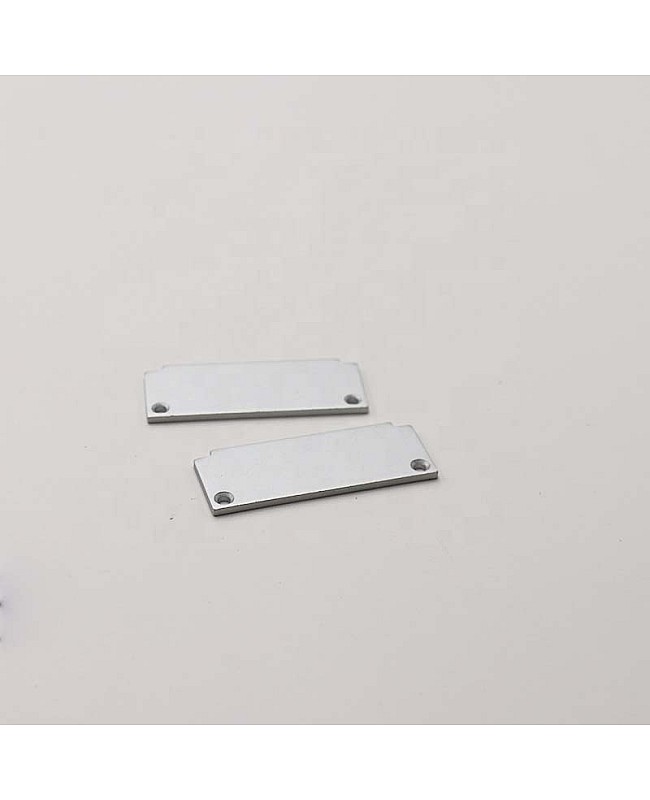

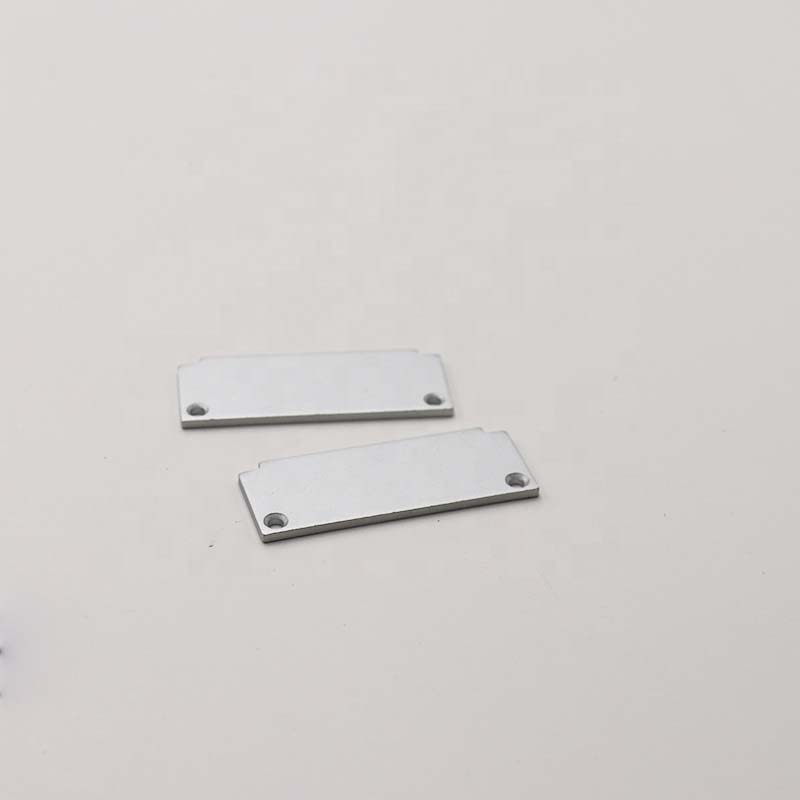

- End caps with and without wire holes are included

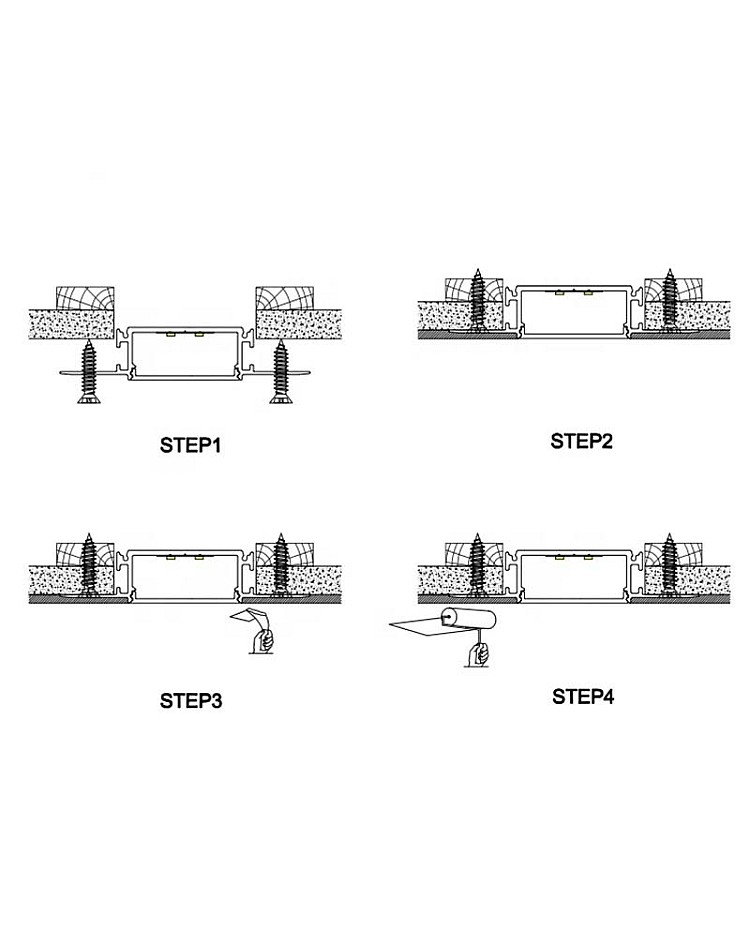

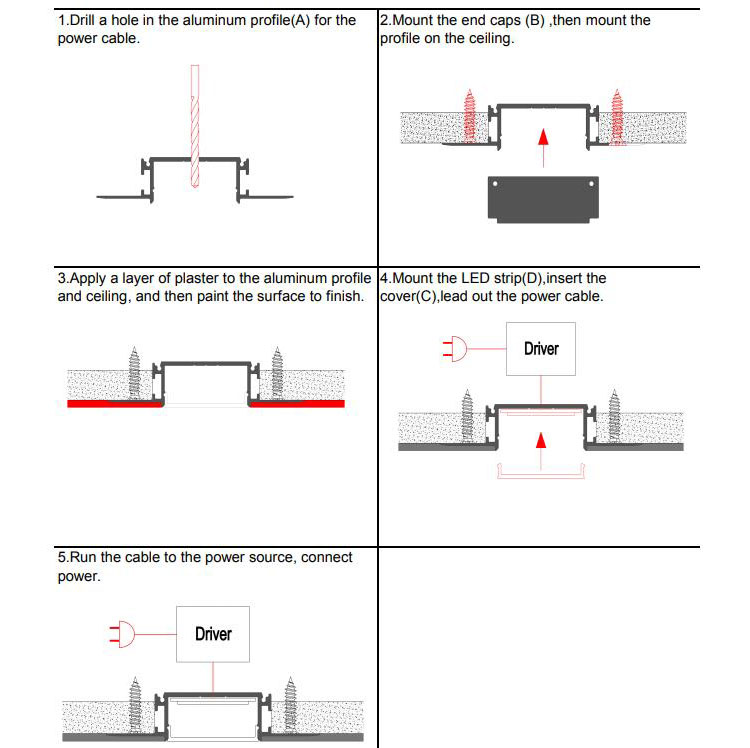

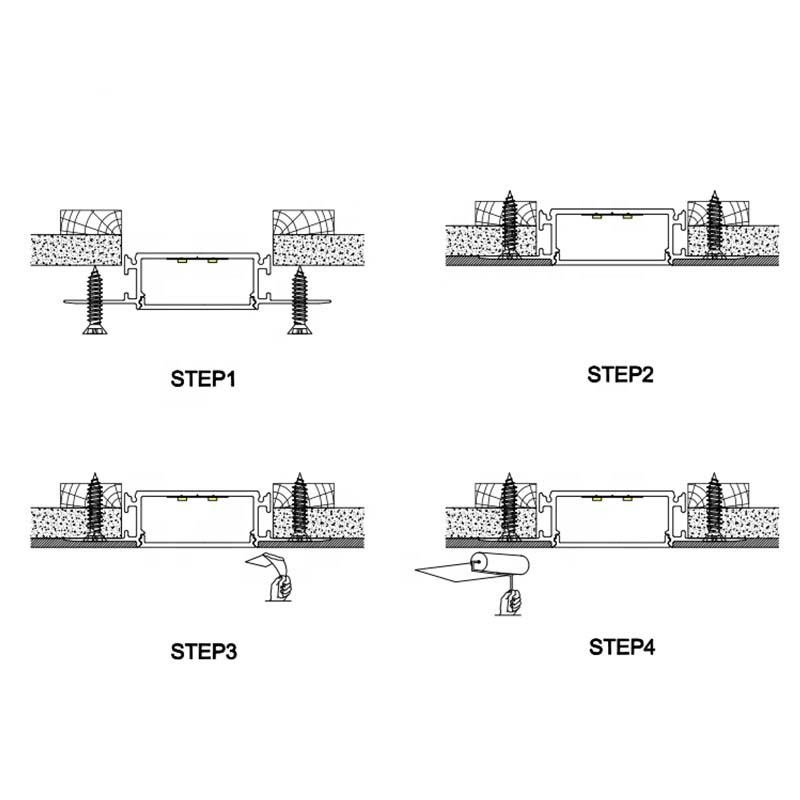

- Installation: Recessed into 5/8" drywall
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Corridors and hallways
- Residential or commercial ceilings and walls
- Modern, minimalist interiors requiring hidden light sources

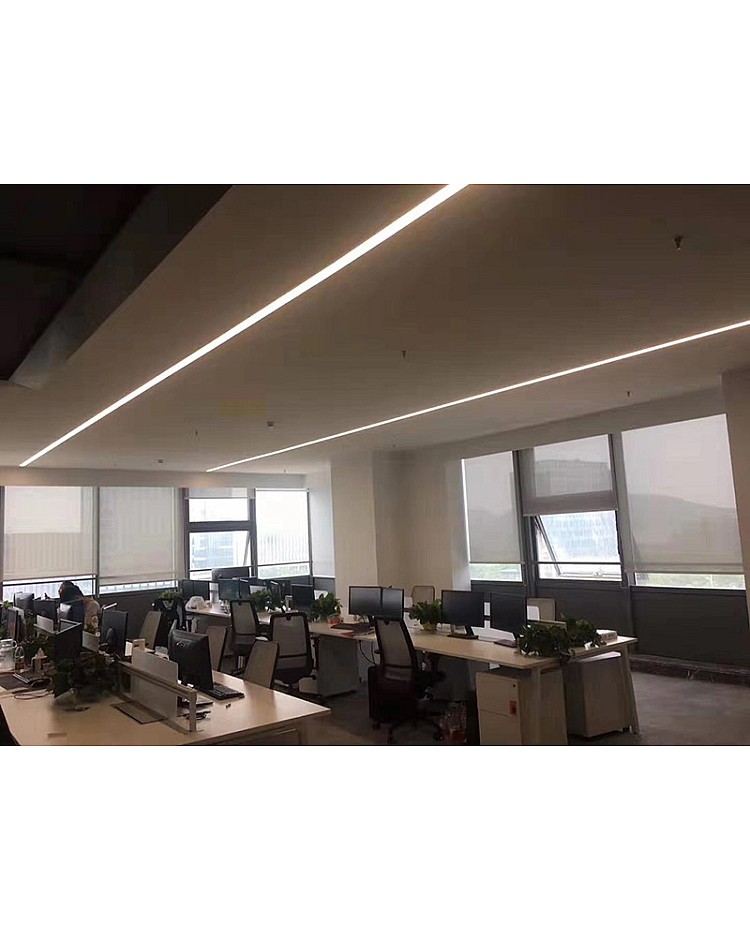

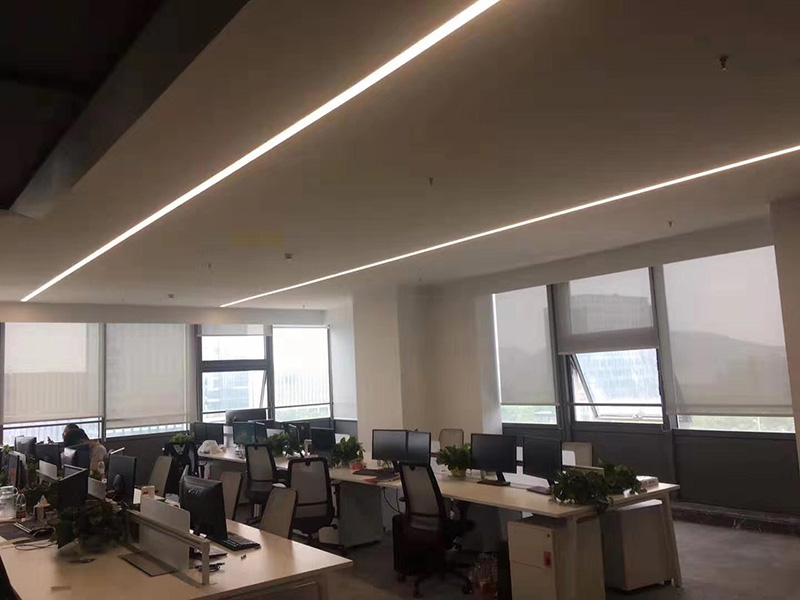

- Office and commercial buildings
- Architectural lighting designs
Includes:
1 * LED drywall extrusion with diffuser
End caps ( With and without wire holes)
