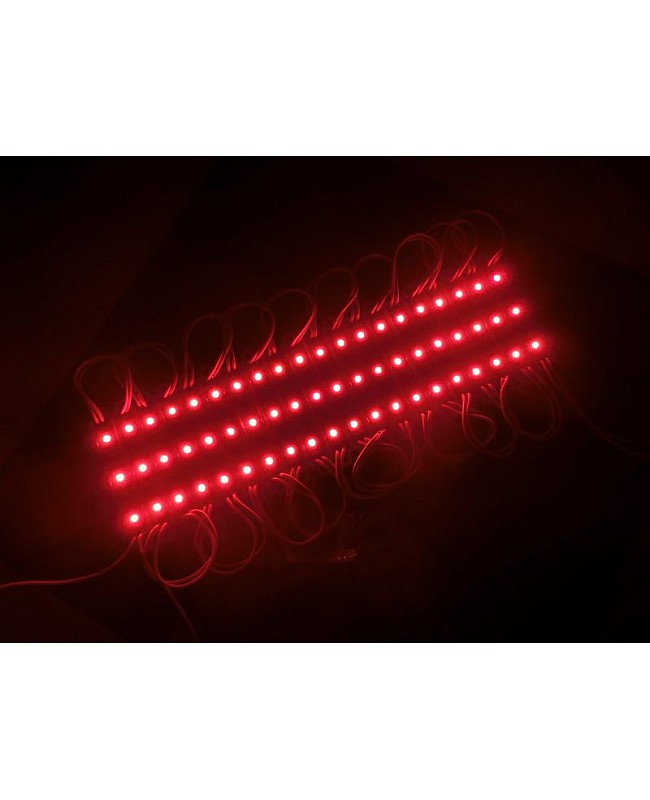

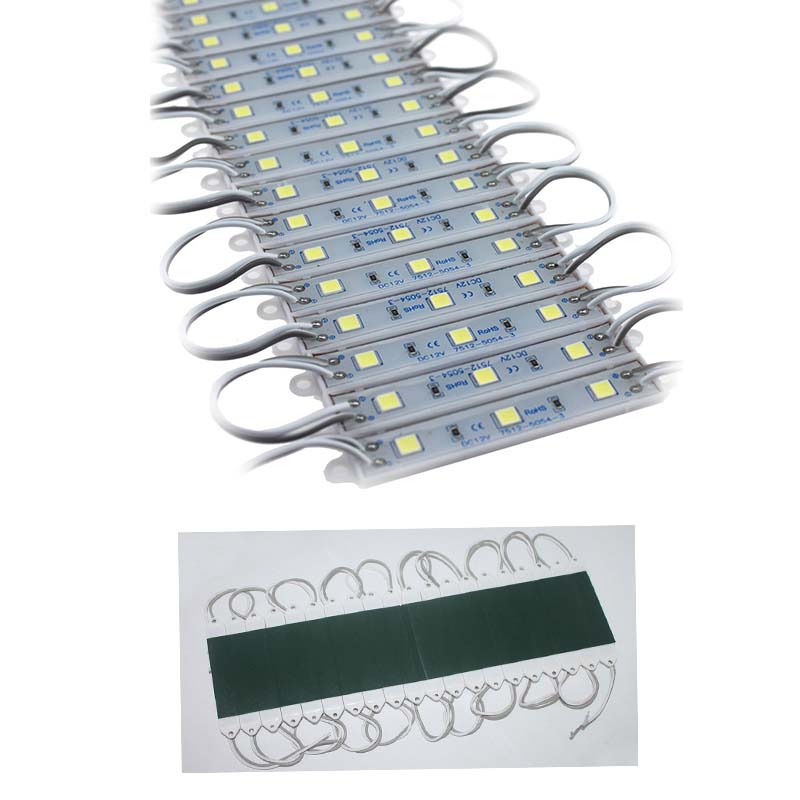

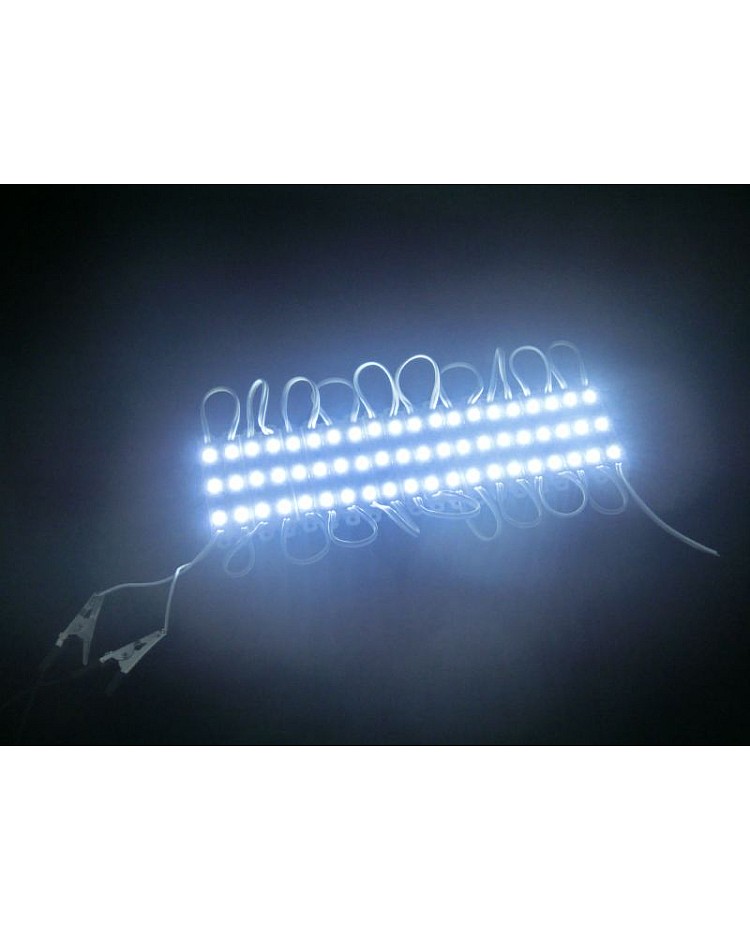

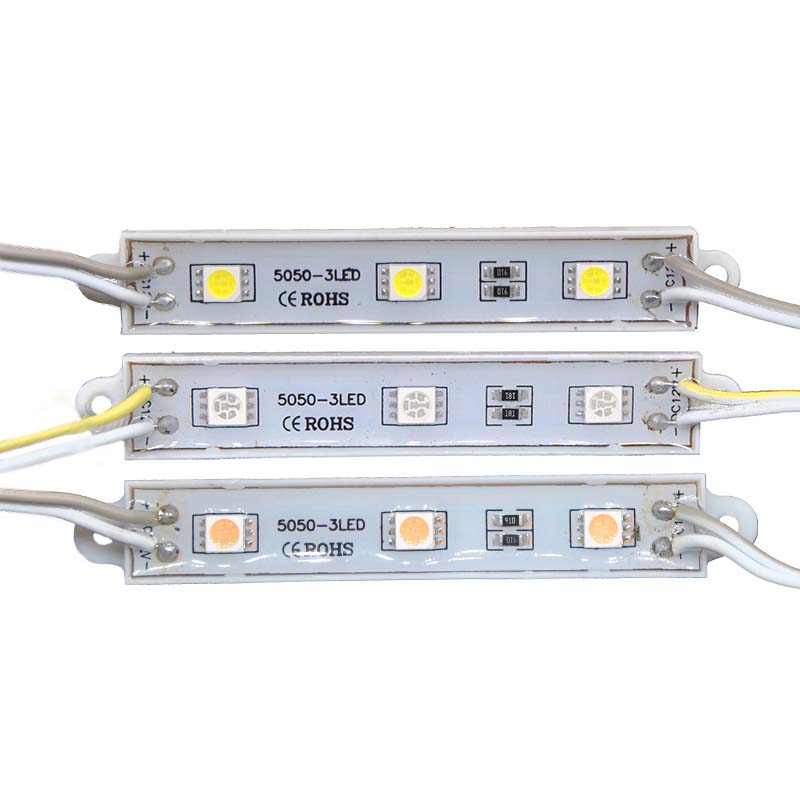

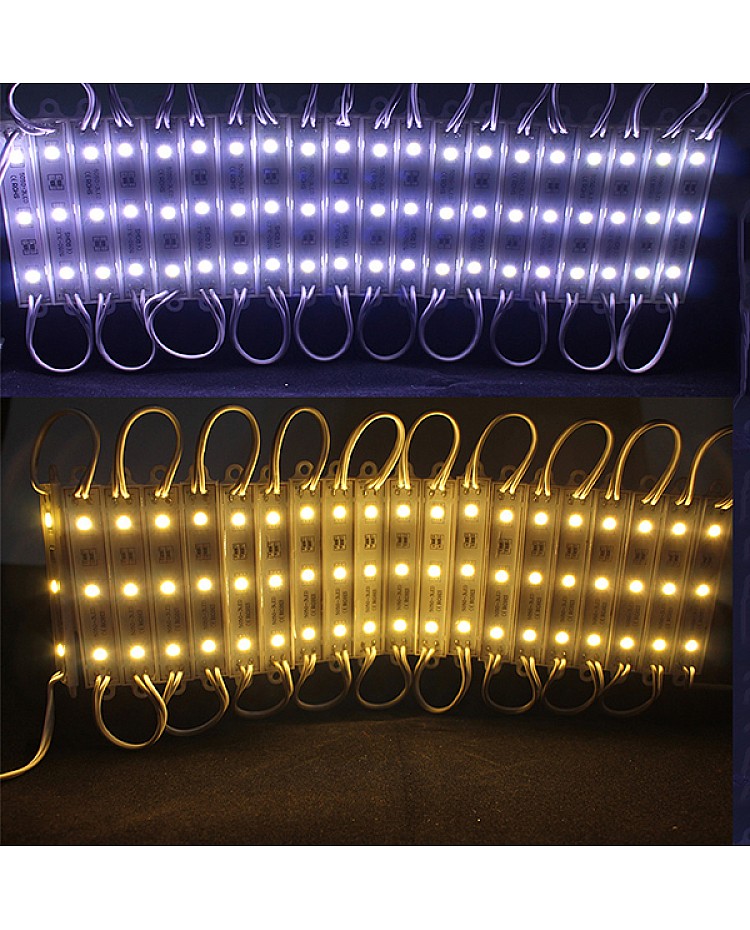

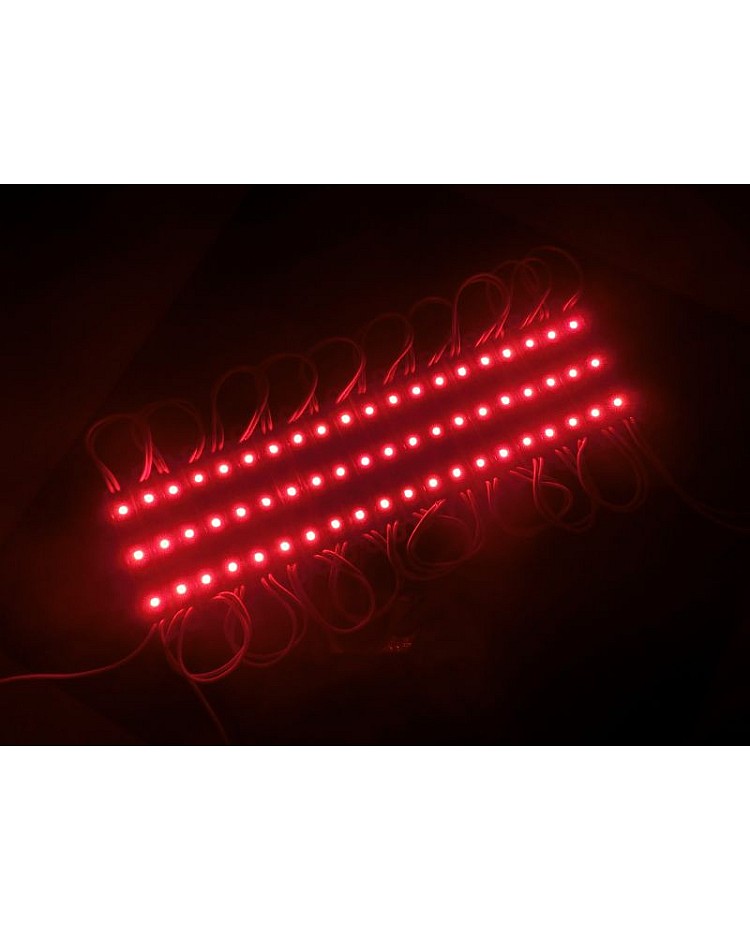

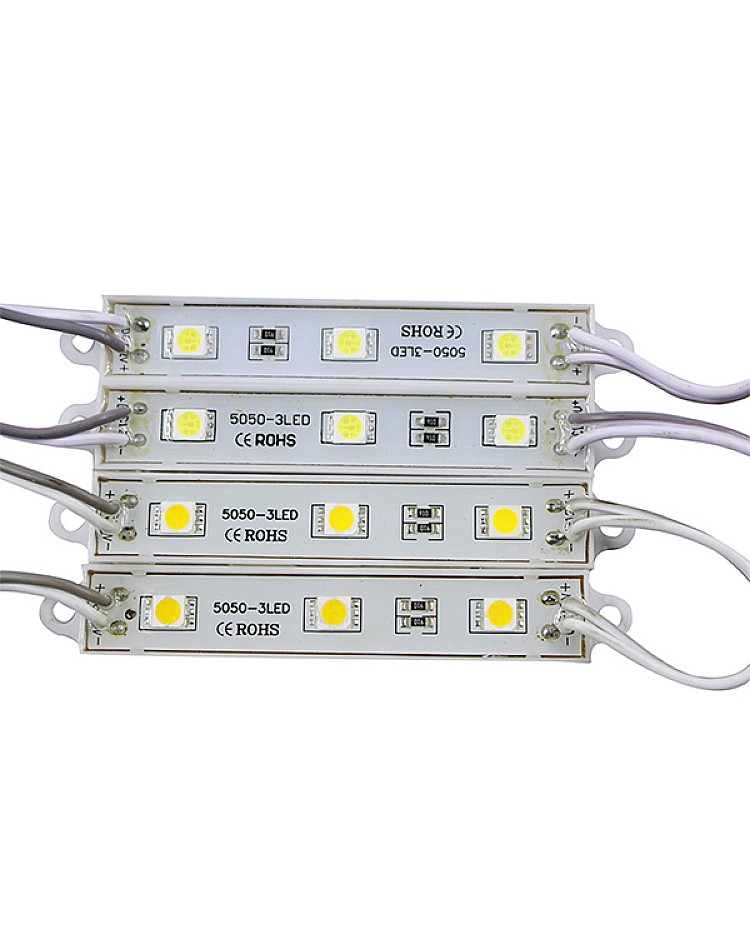

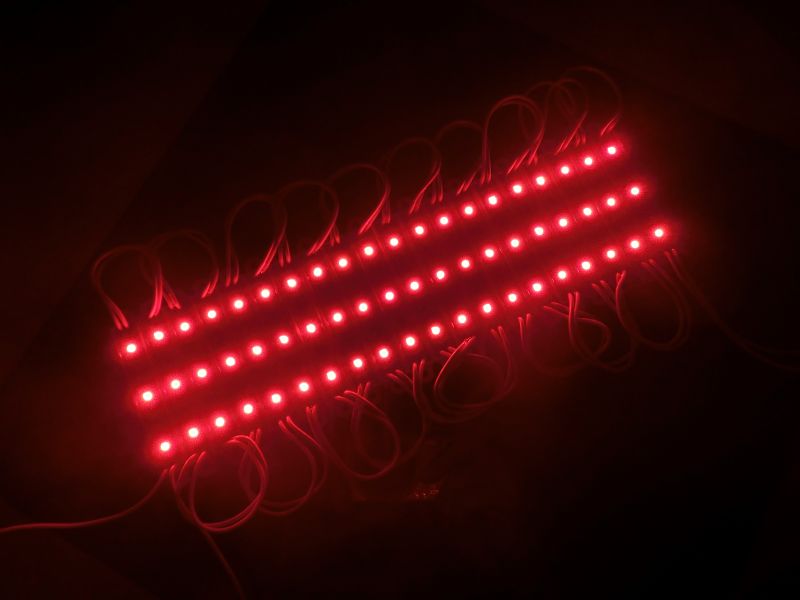

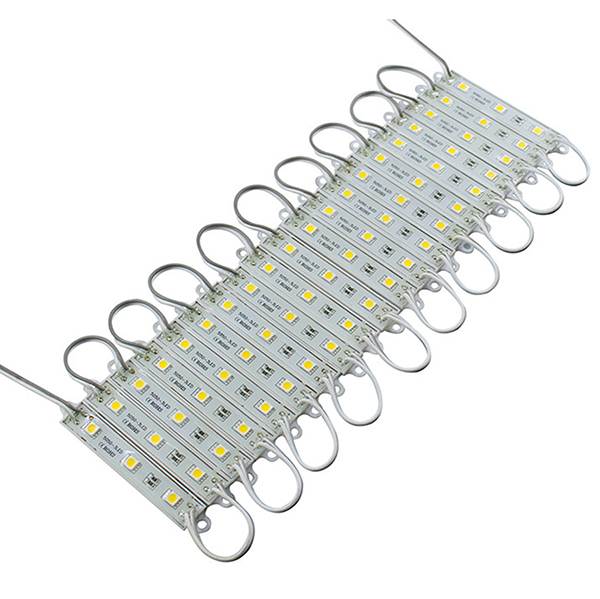

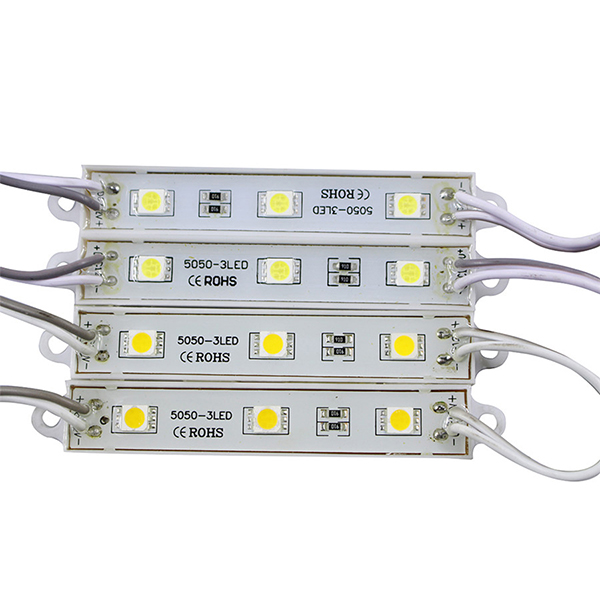

The 5050 LED modules use 3PCS super bright 5050 SMD LEDs as the light source. The 5050 LED light module works in DC12V, easily connects to the LED power supply to light them up, or can connect to the LED light dimmer to adjust the brightness. The back of the LED modules is equipped with double-sided tape, making them easy to install and use. 20 pieces per string, you can cut the LED light modules by yourself and reconnect them. The 5050 LED lighting modules are suitable for backlighting signs and letters. Save energy, with a long lifespan of over 35000 hours. CE, ROHS passed. You can choose the various emitting color products, better heat dissipation, low power consumption, longer lifespan, and maintenance-free. The LEDs were fixed on the ABS housing, and the surface was epoxy-coated; the waterproof level can reach IP65. You can use them in indoor or outdoor applications.
Specifications:
- Item NO: TY-5050-M001
- Manufacturer: TYoung
- Working Temperature: -40-+60℃
- Size: 75 mm*12 mm

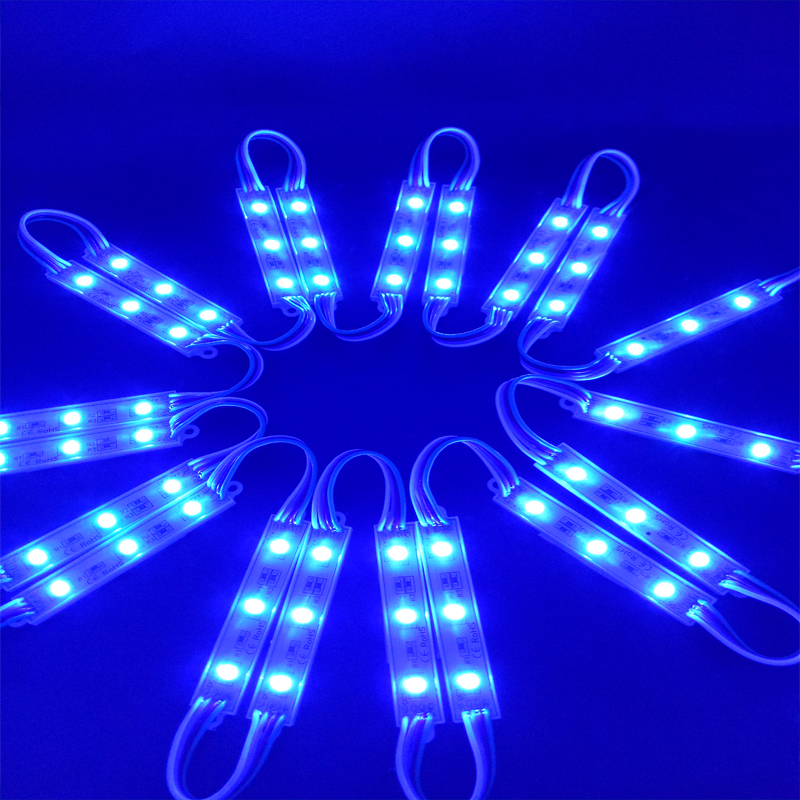

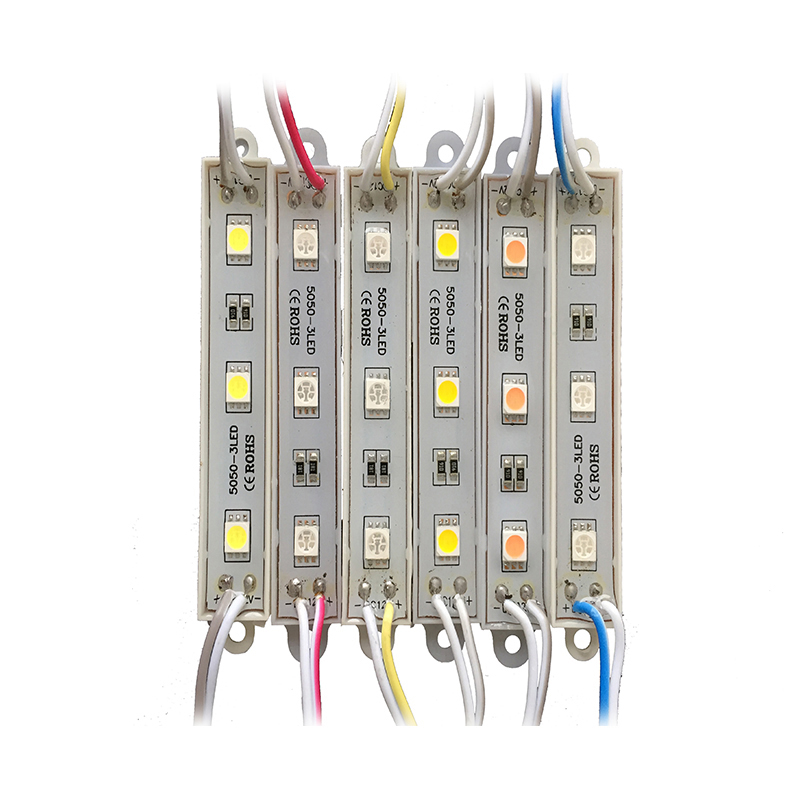

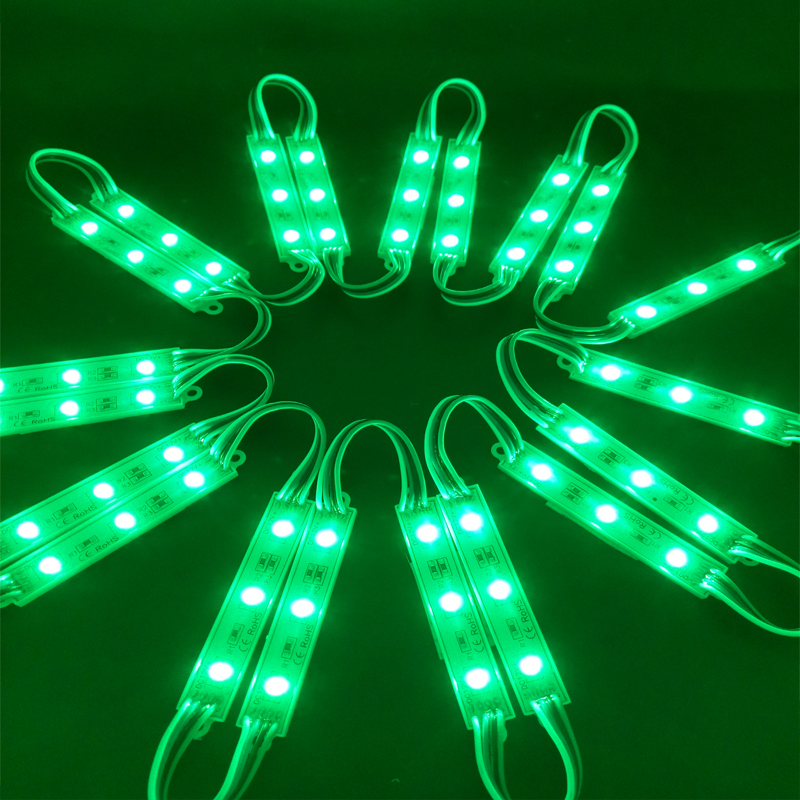

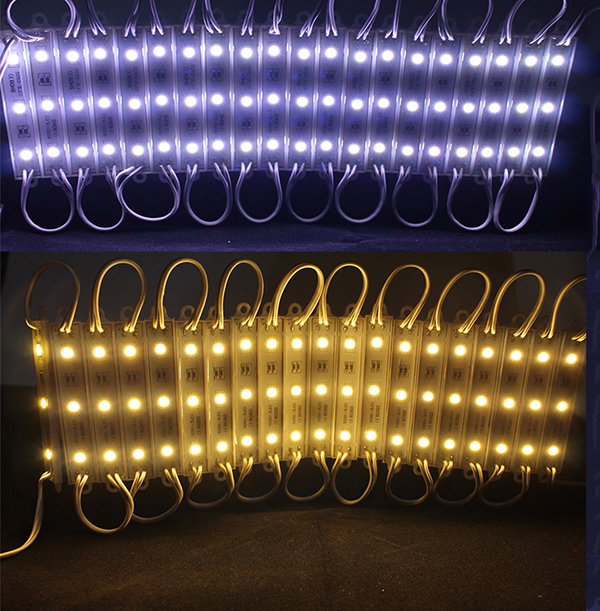

- Emitting Color: RGB/Red/White/Yellow/Blue/Green/Warm White
- Color Temperature: Cool White(6500K-12000K)/Warm White(2700-3200K)/Red(620nm)/Green(520nm)/Blue(45nm)/Yellow(590nm)
- Chip Material: AlGaInP
- LED: 5050 SMD LEDs
- LED Quantity: 3PCS
- Working Voltage: DC12V
- Power: 0.72W/PC
- IP Rating: IP65
- Luminous Flux: 42-48LM/PC
- Luminous Intensity: 14300 MCD
- Color Rendering Index: >75Ra
- View Angle: 120°
- Wire Length Between Modules: 10cm

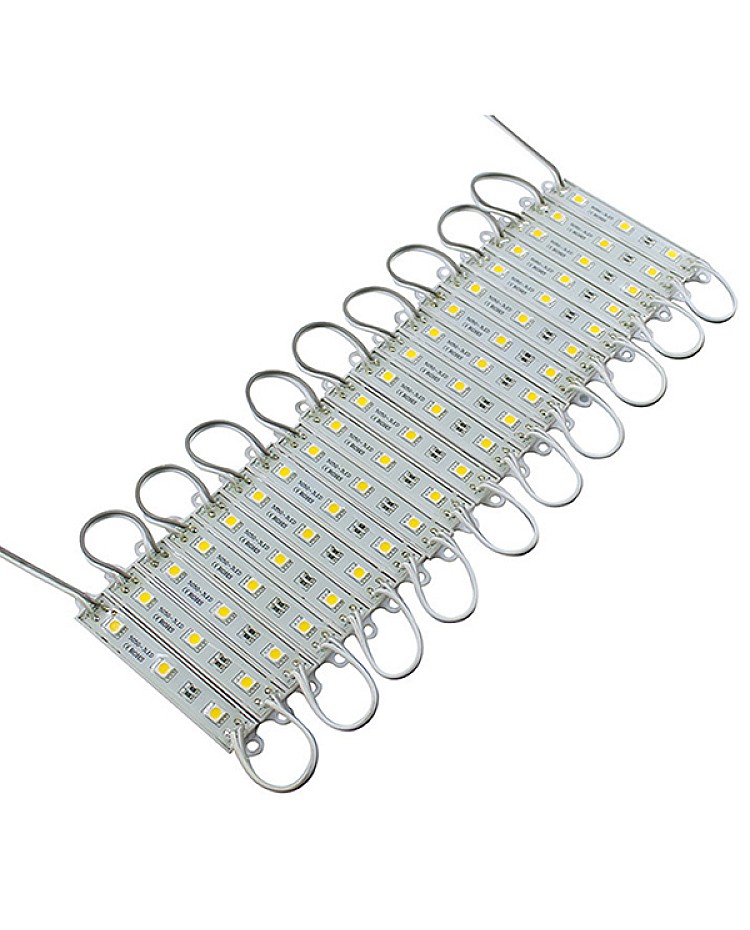

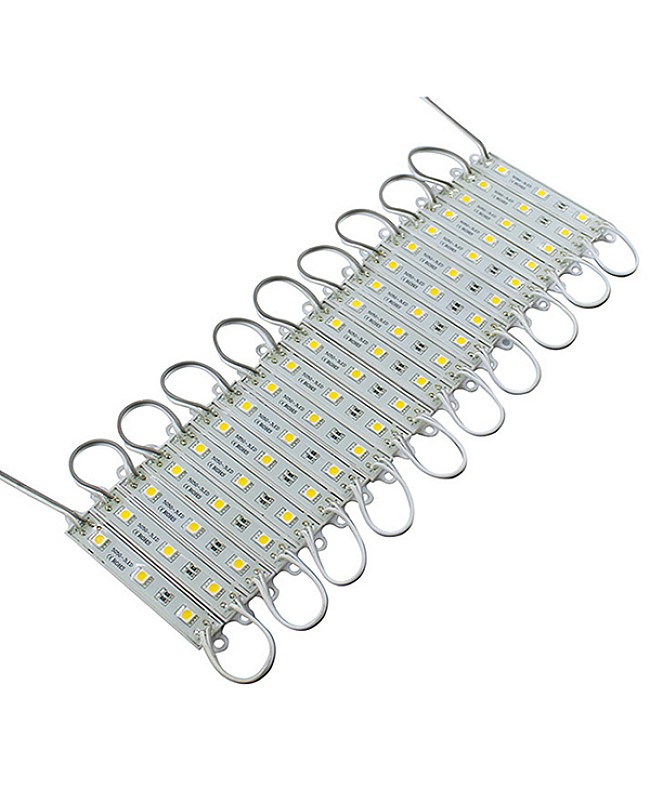

- 20PCS Per String

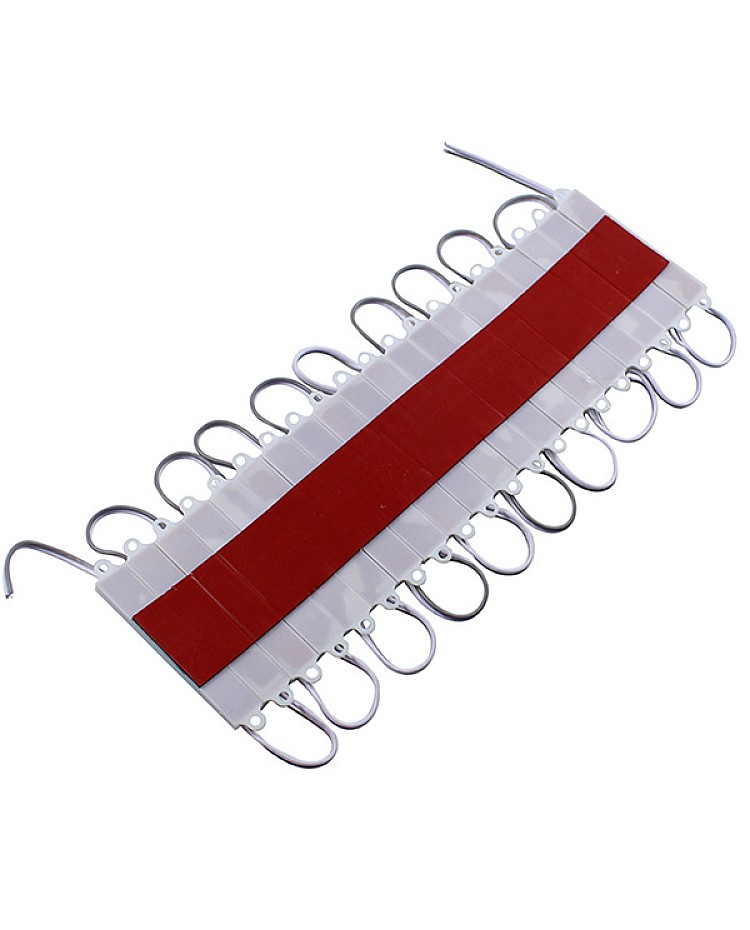

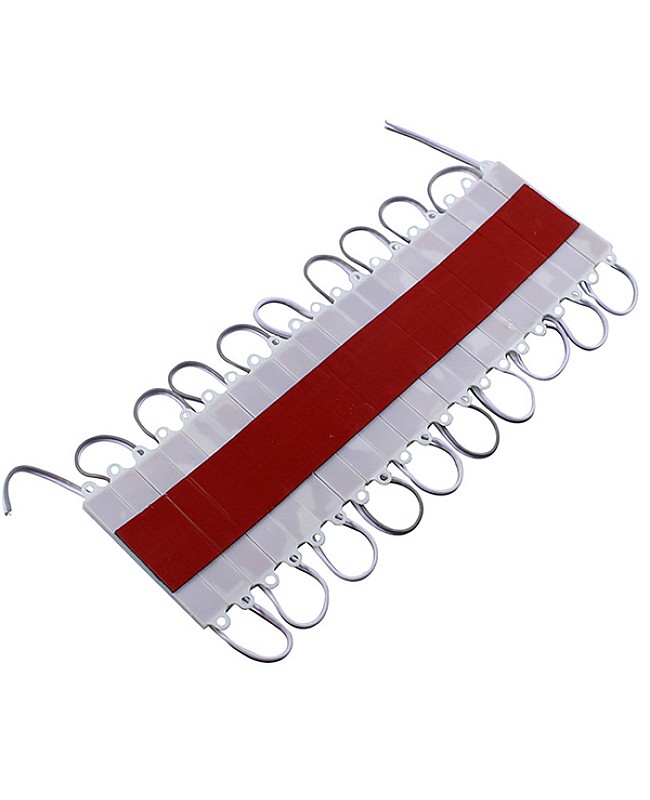

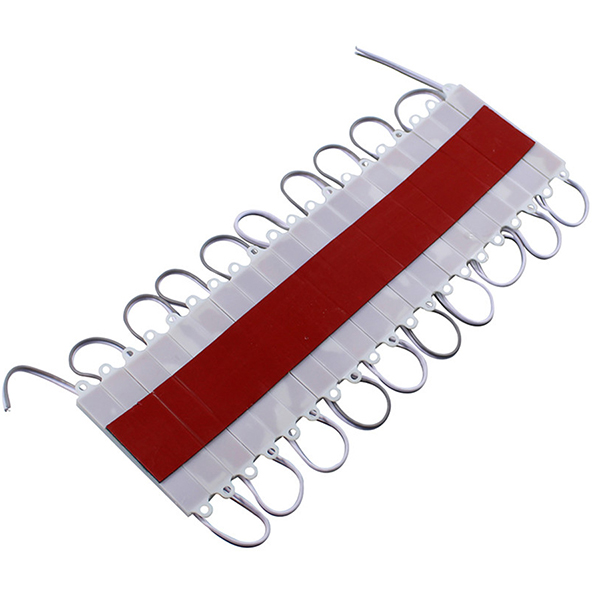

- Back With Double-sided Adhesive Tape
- Cuttable And Reconnectable
- Weight: 6.7g
- Certificate: CE, ROHS
- Lifespan: 35000-50000hours
- Warranty: 2 Years

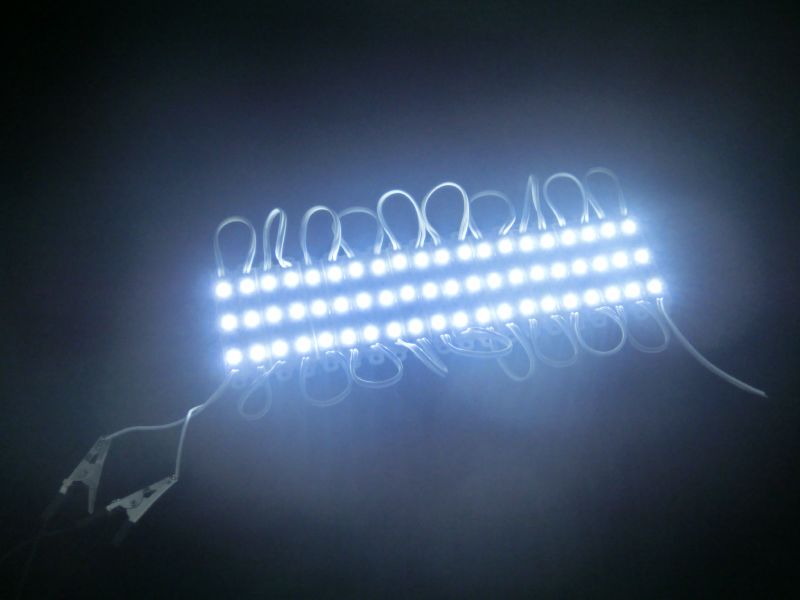

- Applications: Backlight for Sign, Letters, etc
Package:
1*5050 LED Module(20PCS Per String)
Applications:
Outdoor/Indoor Use, Cove Lighting
Path and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archway
DIY Lights for home use
Marine light, Task lighting
Replacement of Fluorescent light
Decorative lights for holiday, event, show, exhibition
