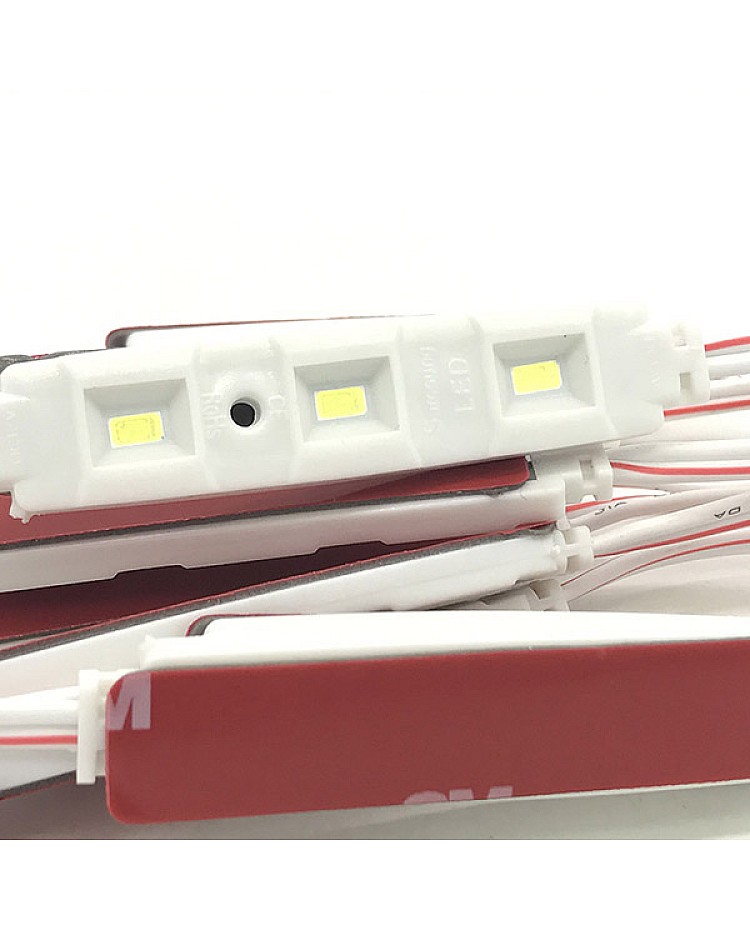

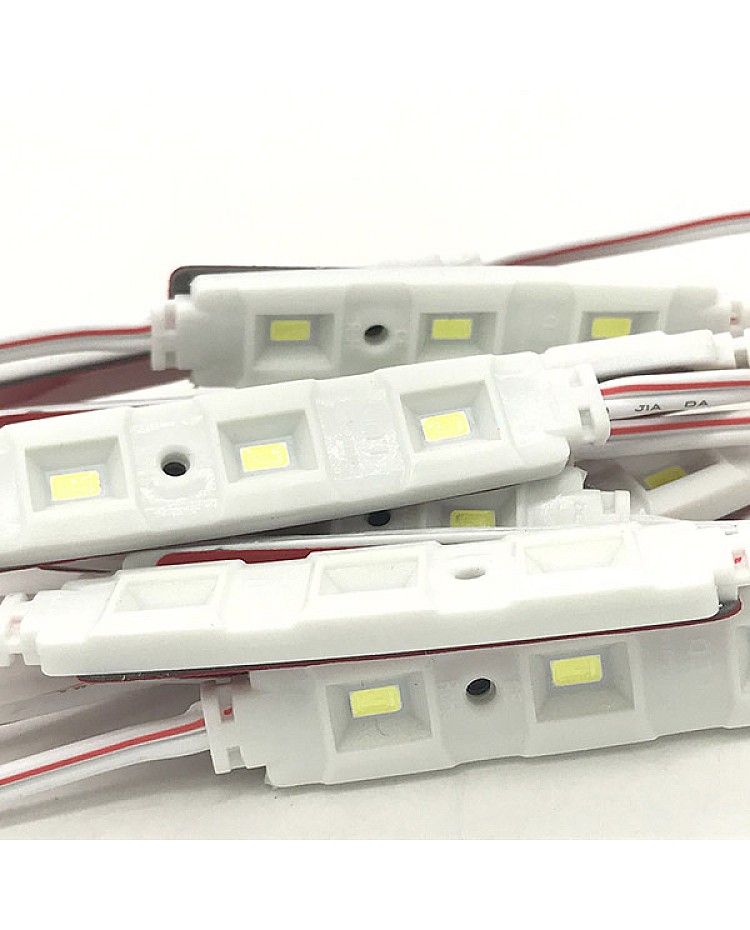

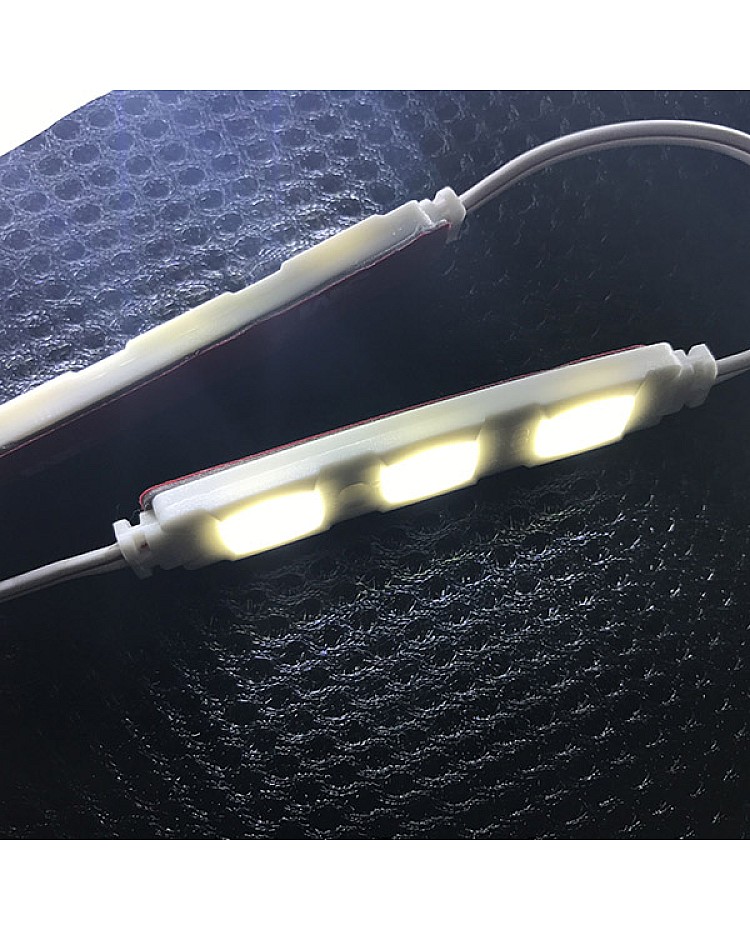

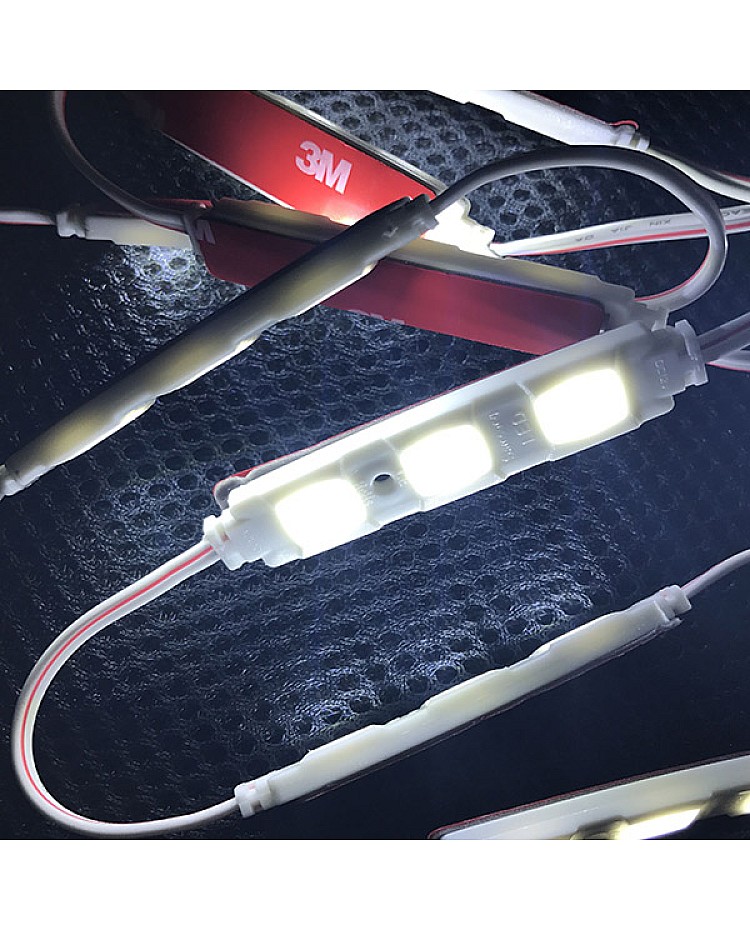

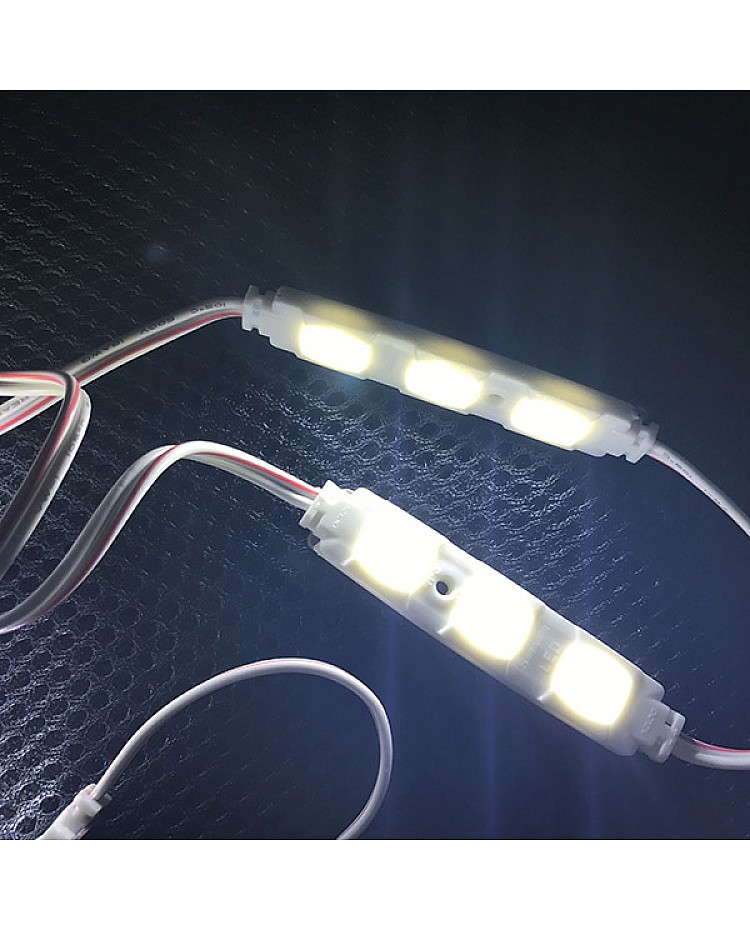

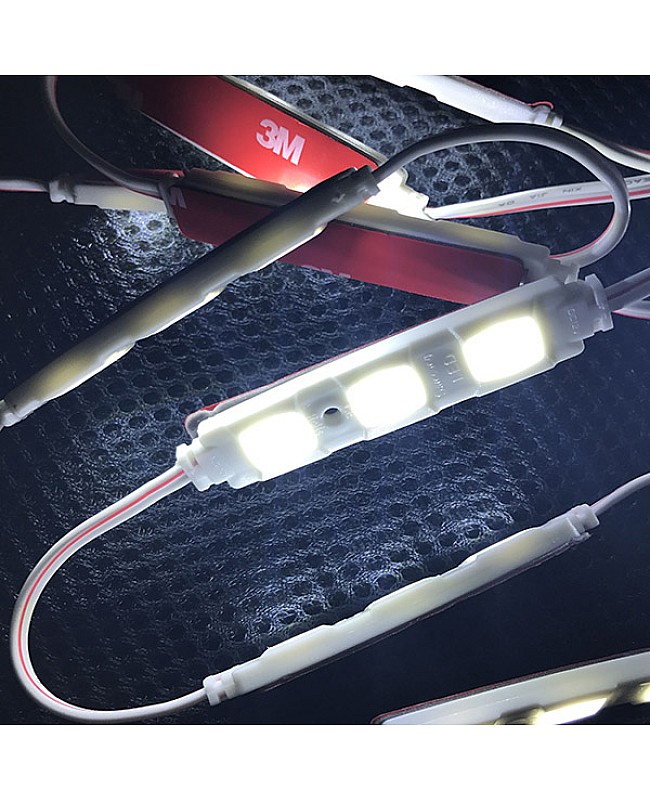

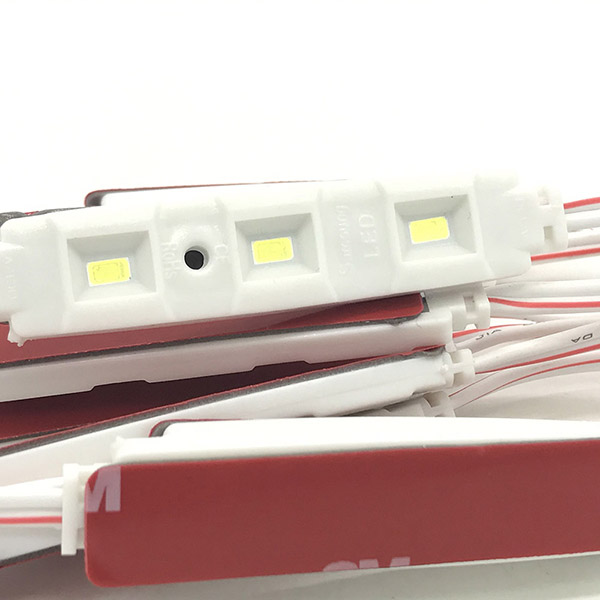

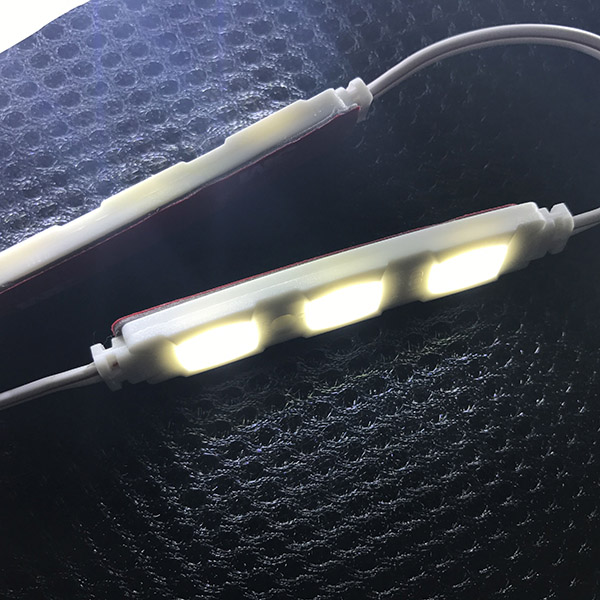

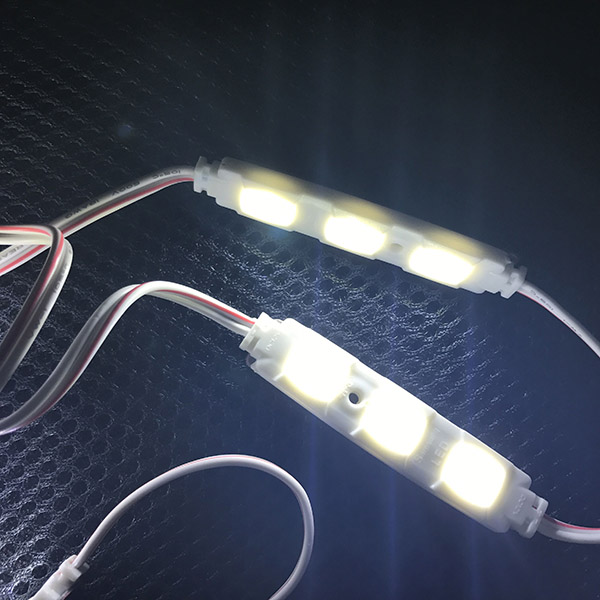

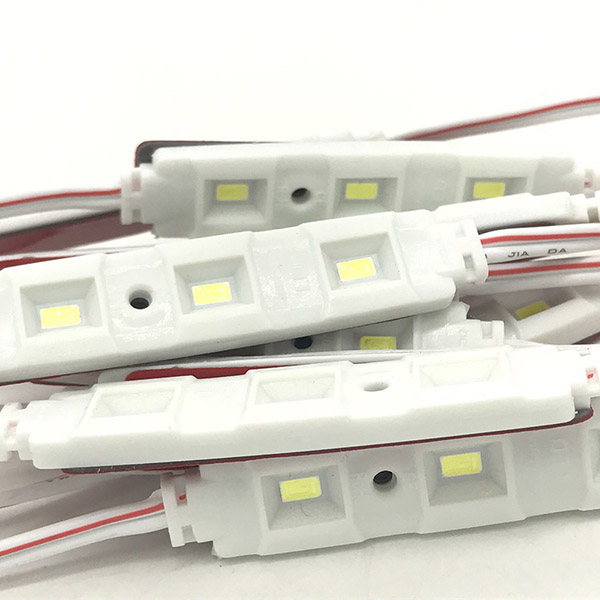

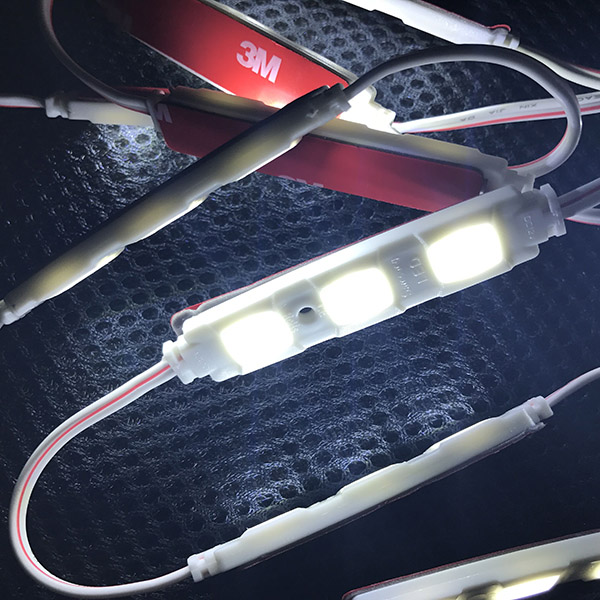

LED sign module working in DC12V, use high bright 5630 Samsung SMD LEDs as light source, 3pcs LEDs in each module, 10pcs modules per string, this style LED module with small size LED and slim size module, stable brightness with unstable power, the LED sign module can be powered by output 12v LED power supply or battery directly, comes with 5meters length wire, widely used to decorate the interior car frames and roof lighting, can be installed easily. provide 3 years warranty.



  • Model: LM5630W01
  • Material: ABS casing+aluminium PCB
  • Working voltage: DC12V
  • Power: 1.32W/PC
  • LED source: Samsung 5630 LEDs
  • LED quantity: 3PCS
  • Colors: cool white
  • Color temperature: 8000-14000K
  • Lumens: 120-150lm
  • Size: 64*15*5mm
  • Waterproof level: IP65
  • Wire length between module is 10-11cm
  • 3LEDs in one module and 10pcs modules per string
  • Stable brightness with unstable power
  • 3 years warranty
  • Applications: sign light, interior car frames and roof lighting

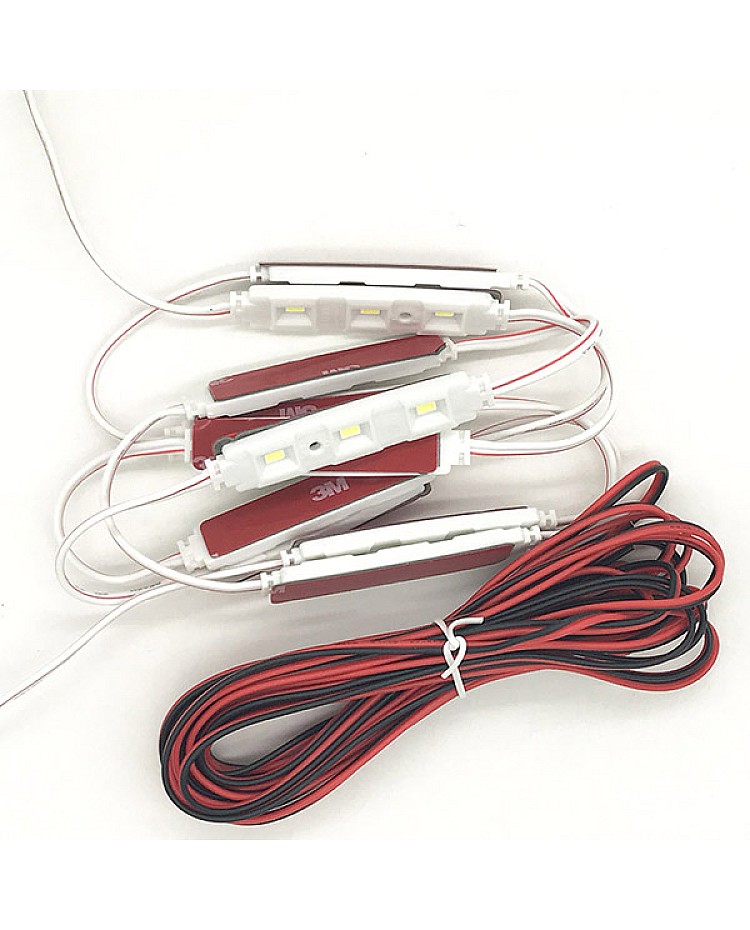

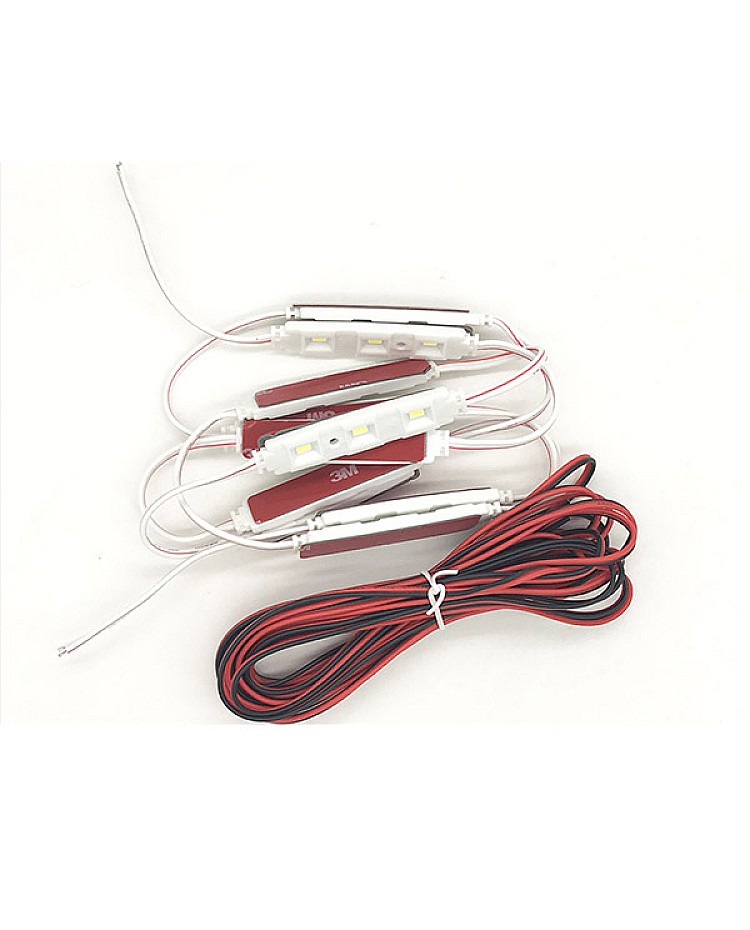

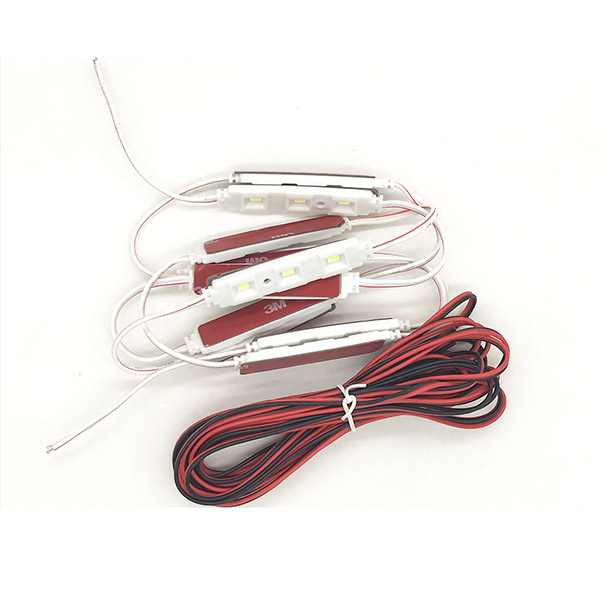

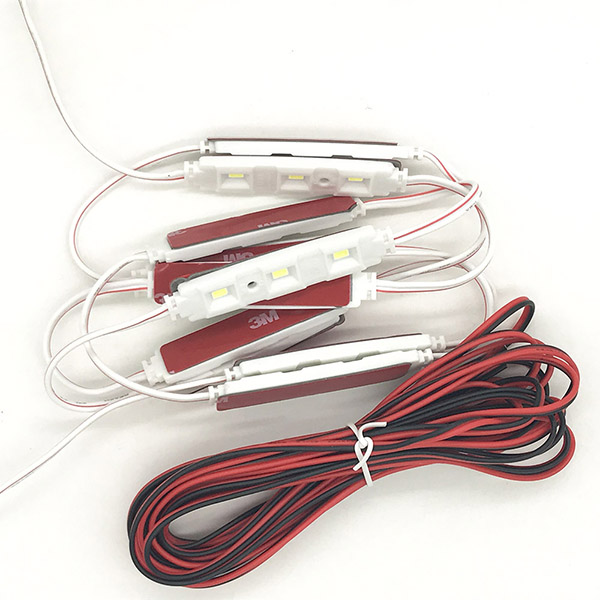

1*LED Sign Module(10PCS/String)

1*5 Meter Wire
