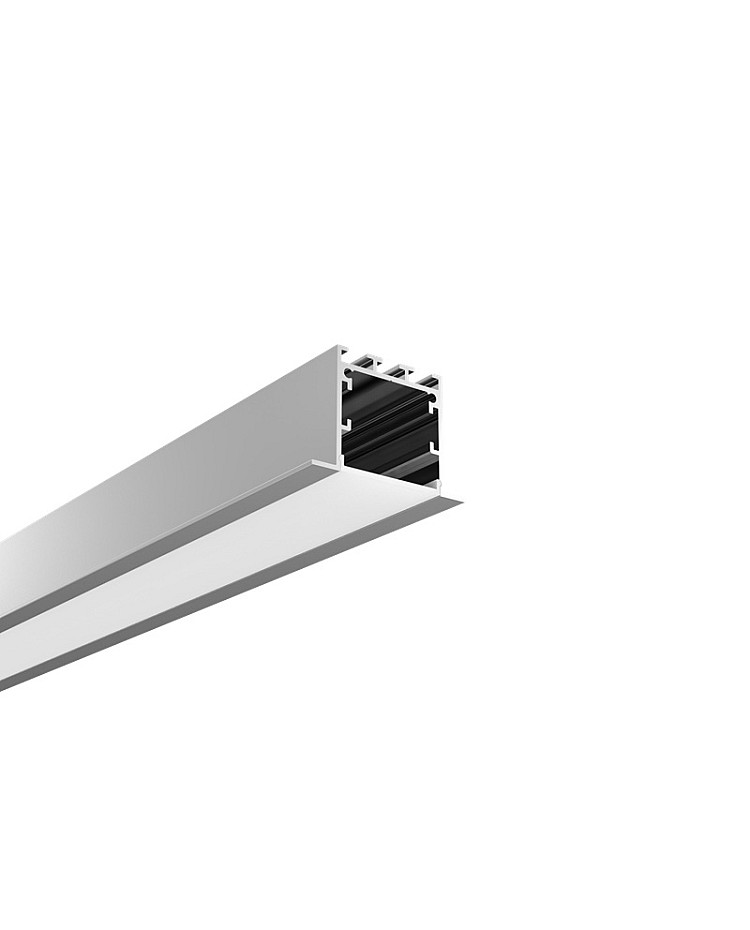

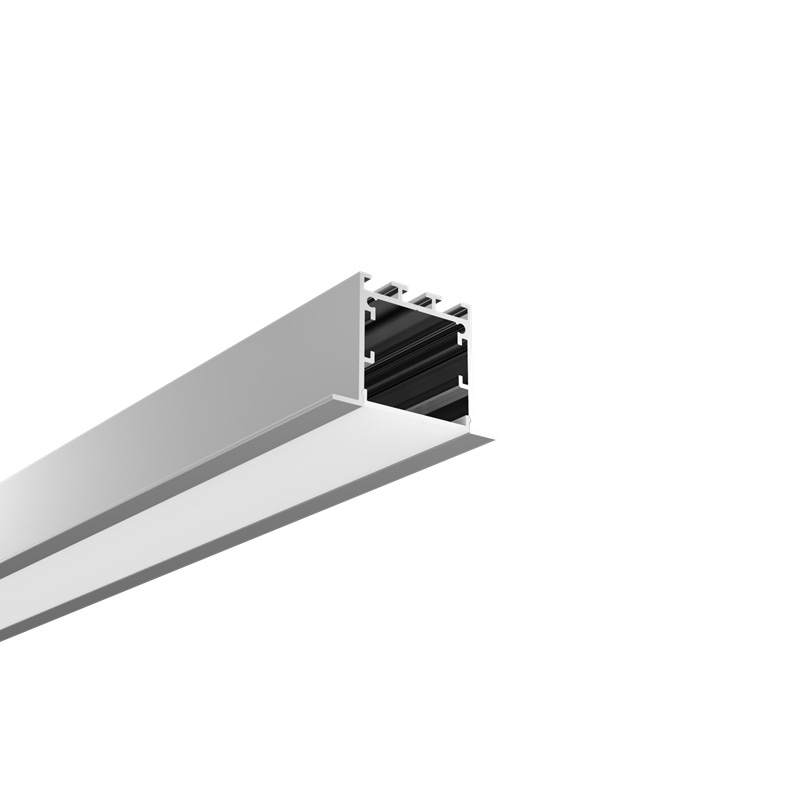

The 2-inch recessed Ceiling LED Light Channels are designed to be recessed into the ceilings or walls, providing a sleek and minimalist look for a modern lighting solution. It comes with diffusers to diffuse the lighting from Strip Lights evenly, creating dotless, bright line lighting in your room. They are made of the 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, durability, and long-lasting. The default length is 1M and 2M, and you can cut to any size to fulfill your needs. Only one type of diffuser is available: the PMMA Opal Matte Diffuser for smooth lighting effects. The Ceiling LED Extrusion is designed for large LED Projects and can recess into the wall or ceiling. The aluminum base allows you to install the Flexible LED Strips as the light source in multiple rows, and the max width of the LED Strips can not be over 24mm, allowing you to create a modern lighting effect, such as ambient lighting, task lighting, or accent lighting, etc. The Wall Aluminium Profile base can be used as a heat sinker for better heat dissipation of your LED Lights.


Features:

  • Material: Aluminium Alloy(6063-T5)
  • Model: ALP017-R5
  • Surface Treatment: Silver Anodized
  • Colors: Silver, White, Black

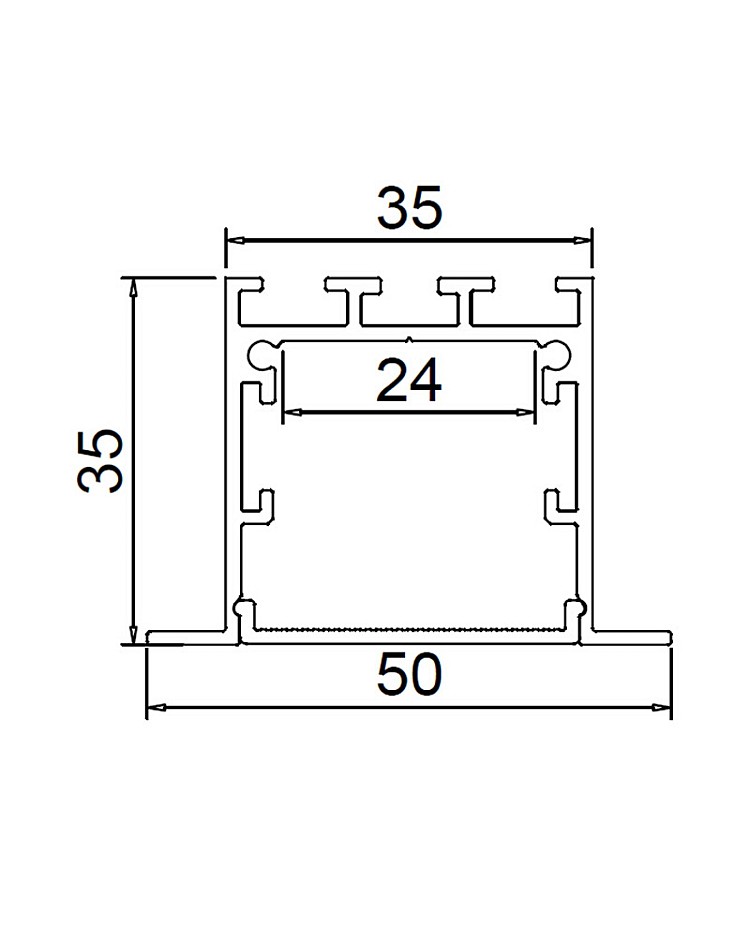

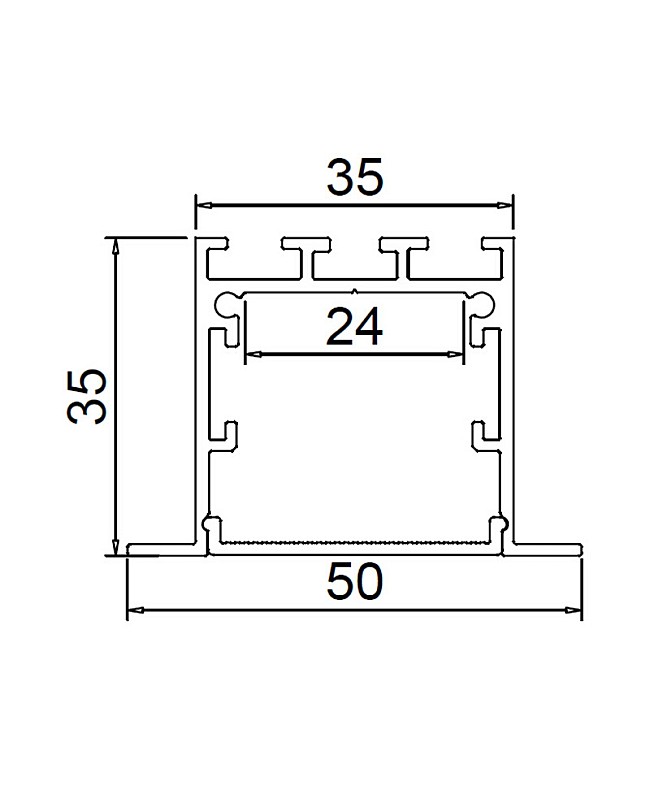

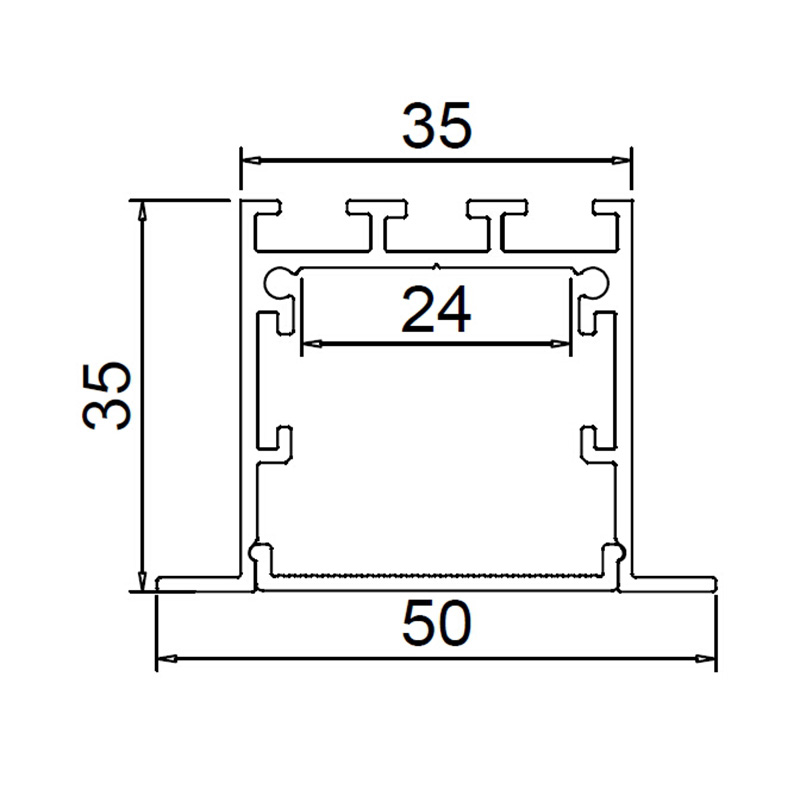

  • Size: 50*35mm
  • Covers: PMMA Opal Matte Diffuser
  • Default Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Inner Width: 24mm
  • Recommend LED Strips: 2835, 5050, 5730, 5630, 3528 In Double Rows
  • Max Power: <25W/Meter
  • End Caps And Spring Clips  Included
  • Flexible LED Strip Lights Sold Separately

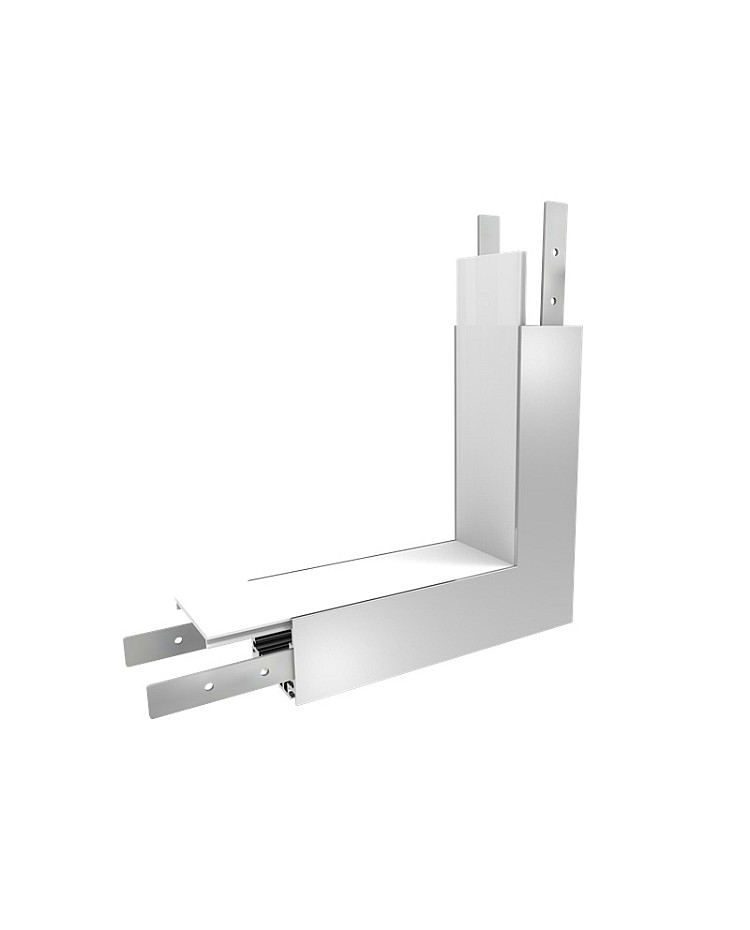

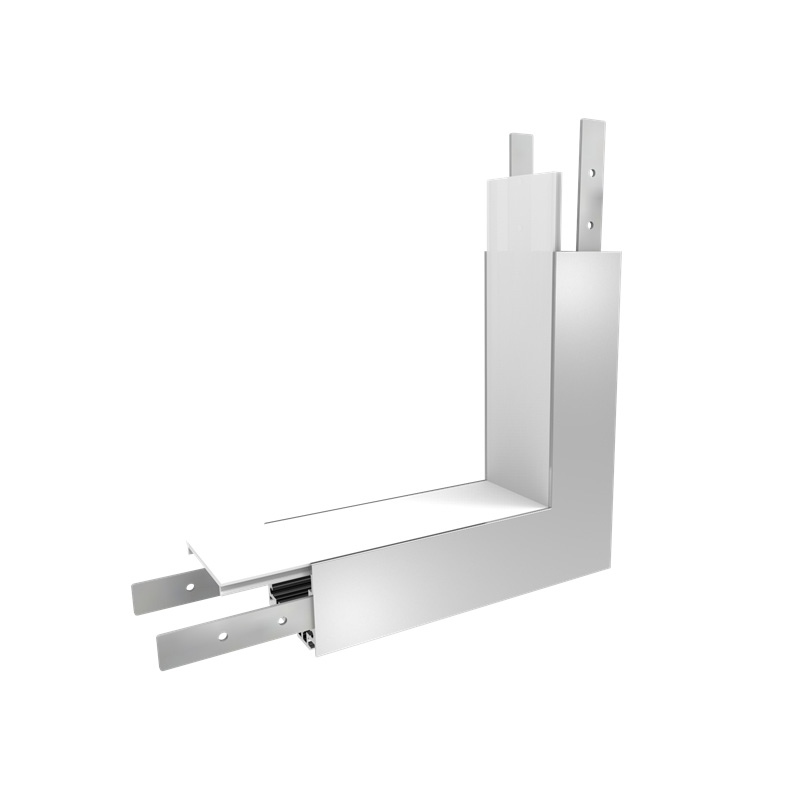

  • 90°, 90° Vertical, And 180° Couplers Sold Separately

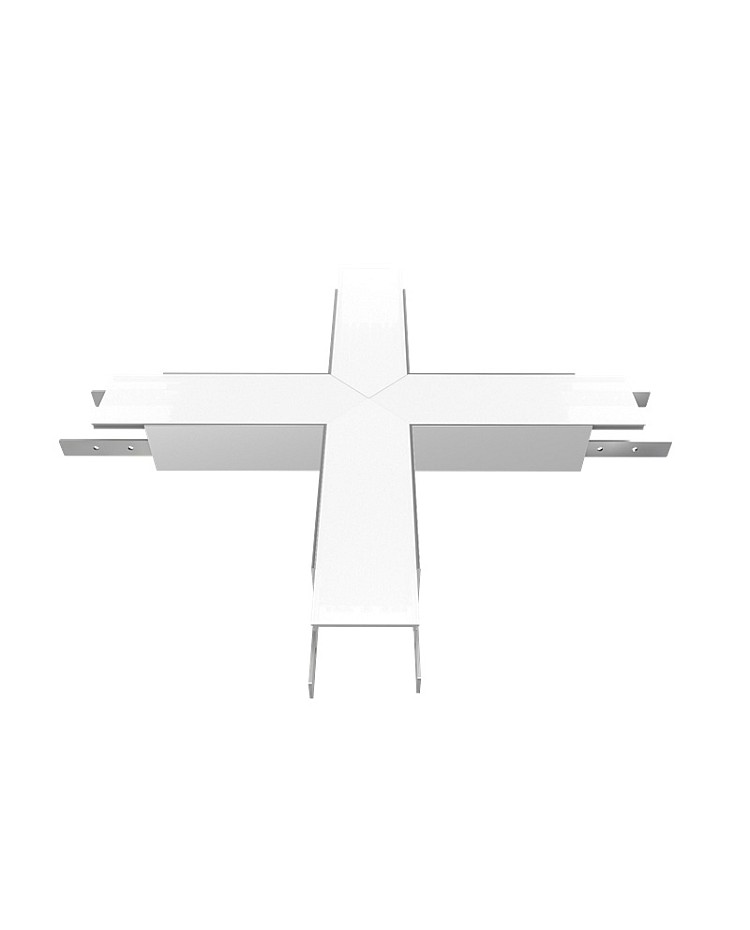

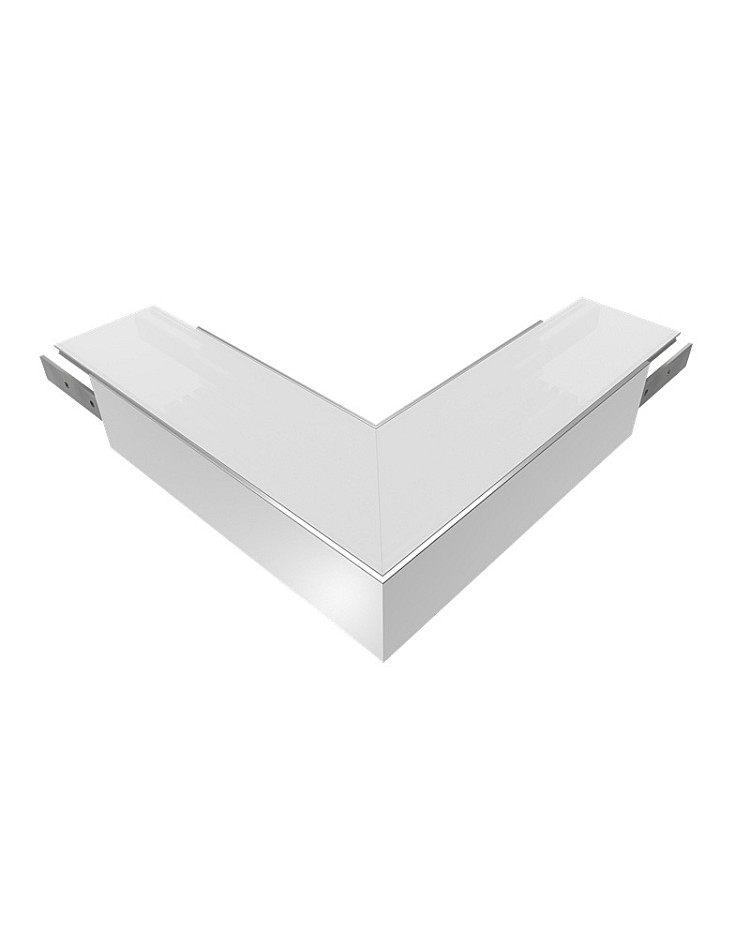

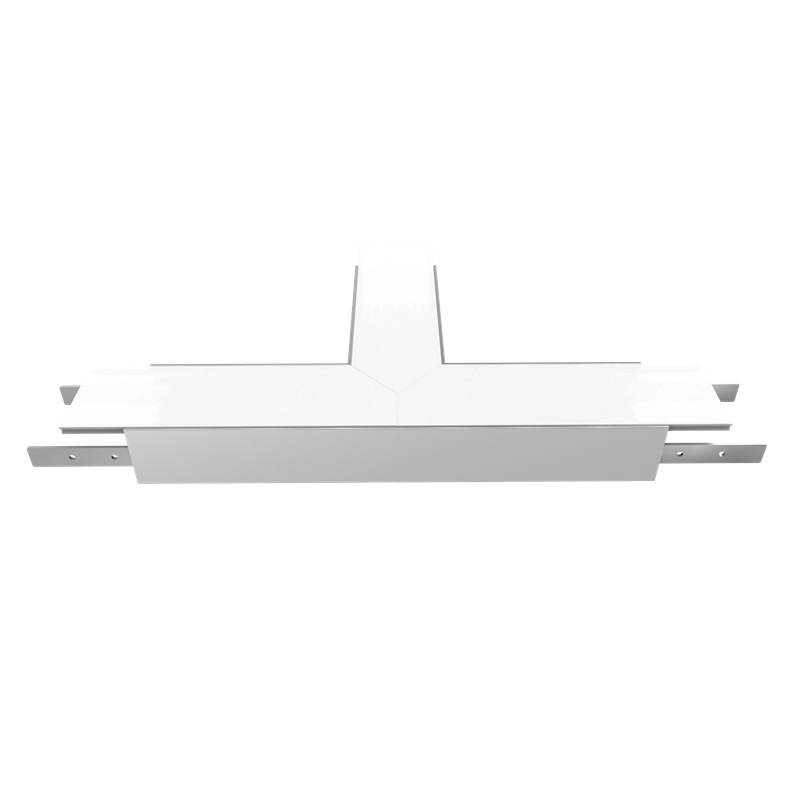

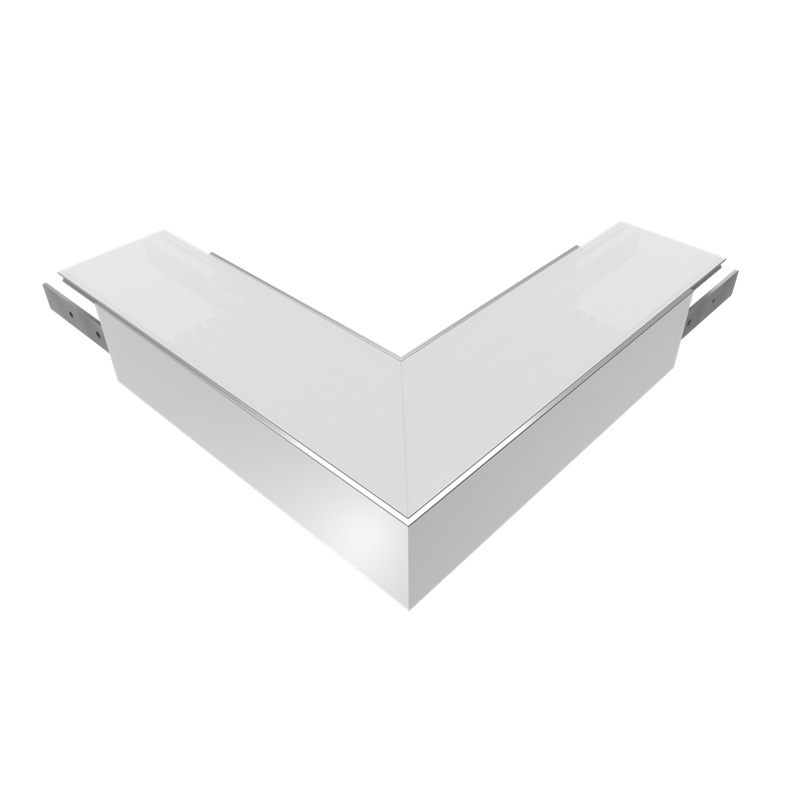

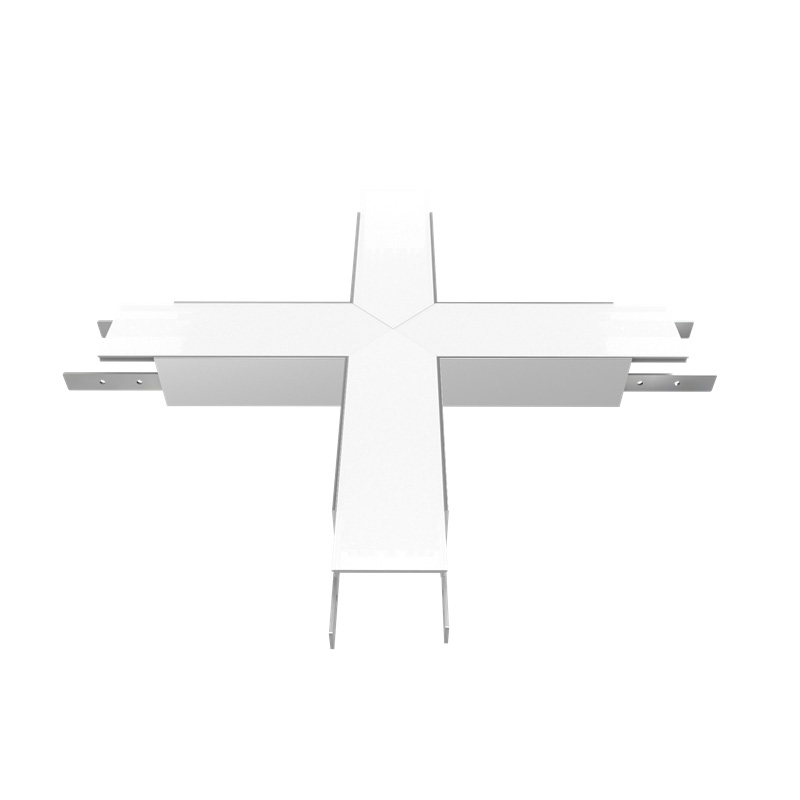

  • "L", "T", And Cross Shape Connectors Sold Separately
  • Installation: Ceiling / Wall Recessed

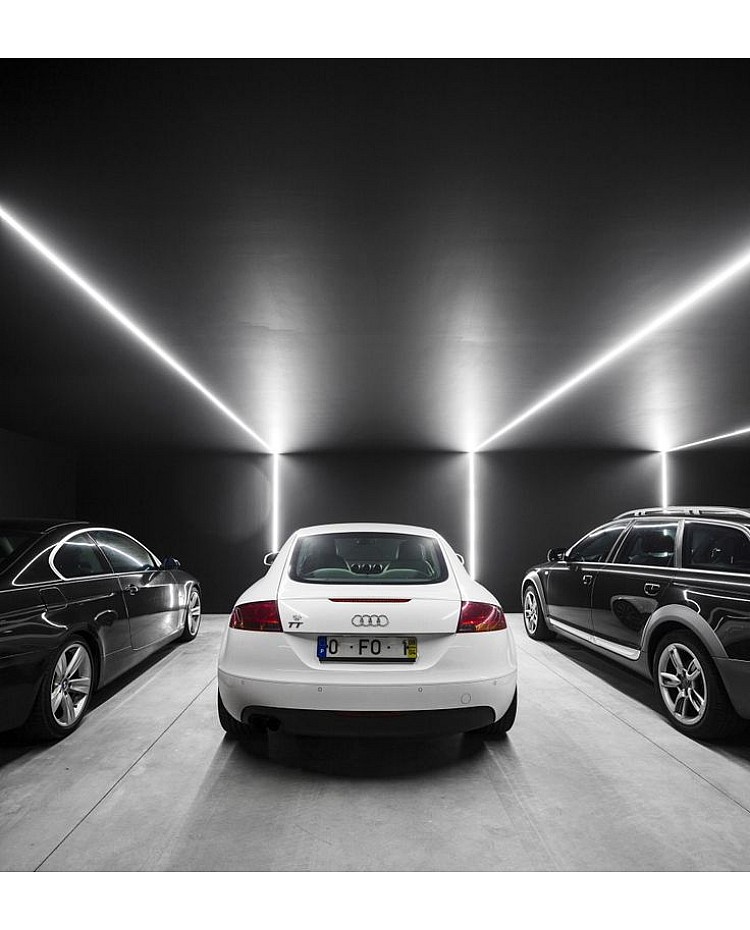

  • Applications: Office, Retail Stores, Supermarket, Shop, GYM, Car Shop, etc
  • 5 Years Warranty



Includes:

1*Ceiling Lighting Channel With Diffuser

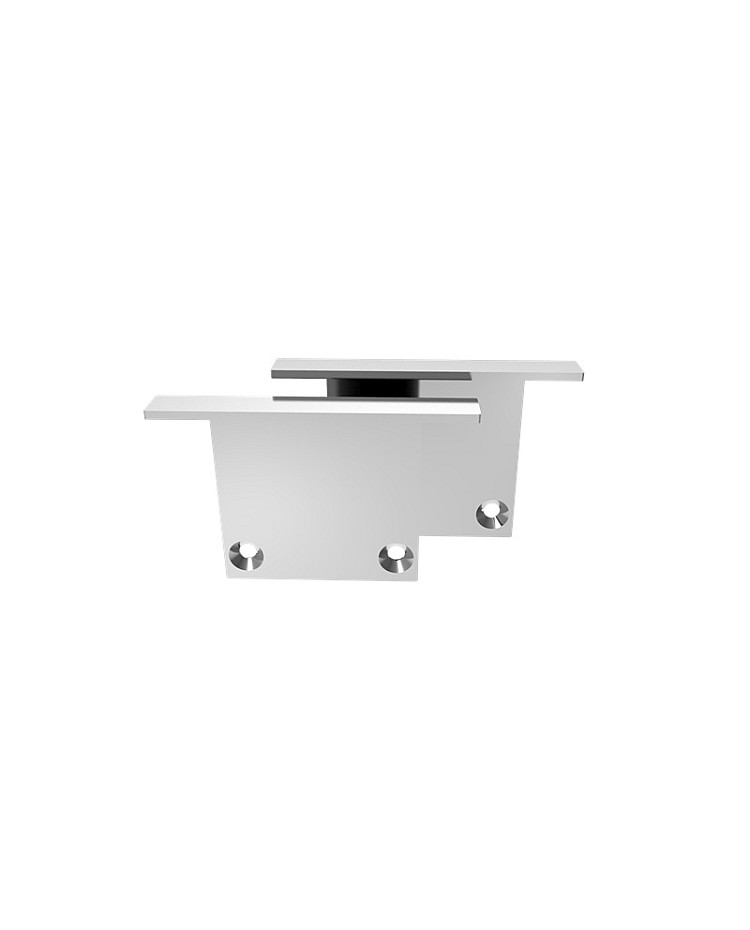

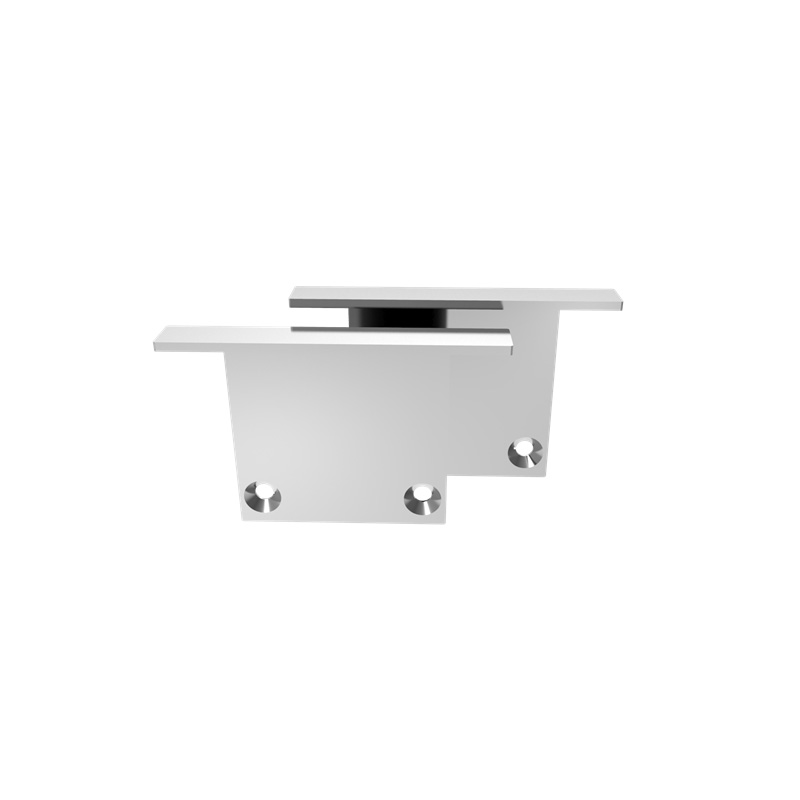

End Caps(With Wire Hole/Without Wire Hole)

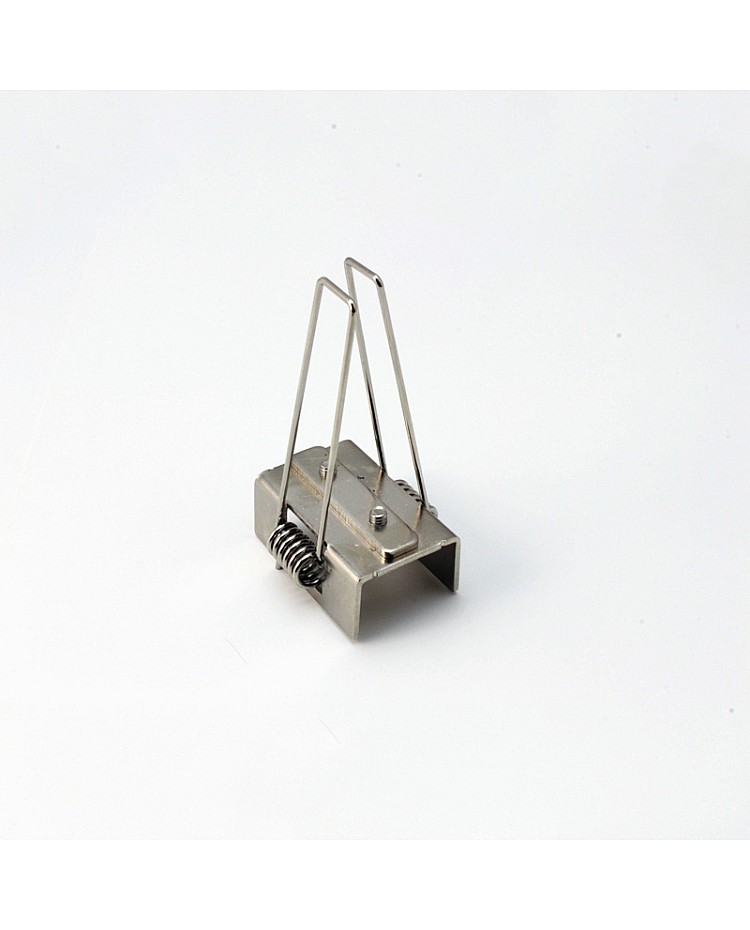

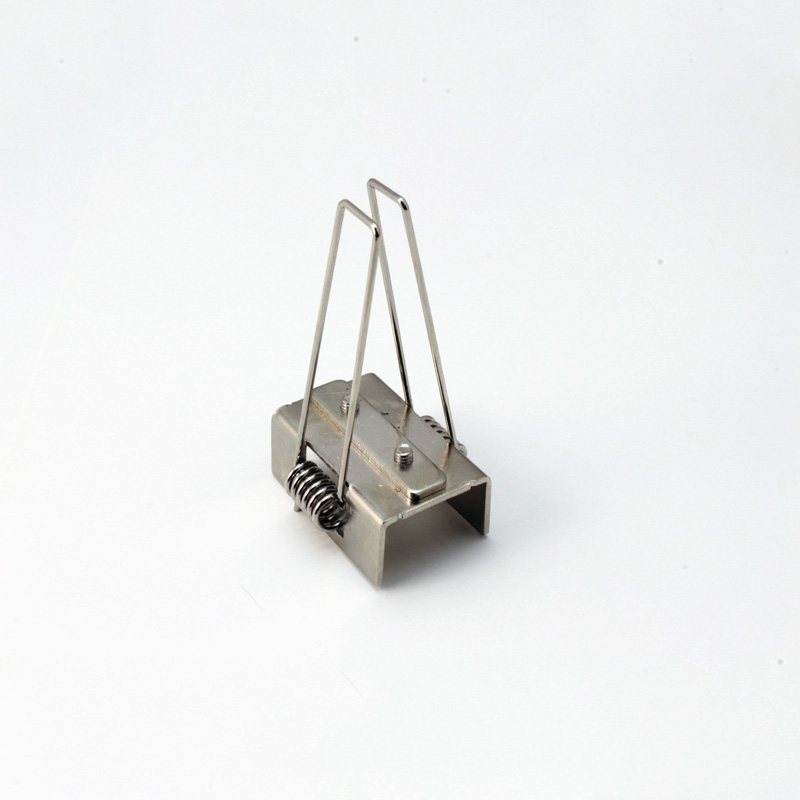

Spring Clips

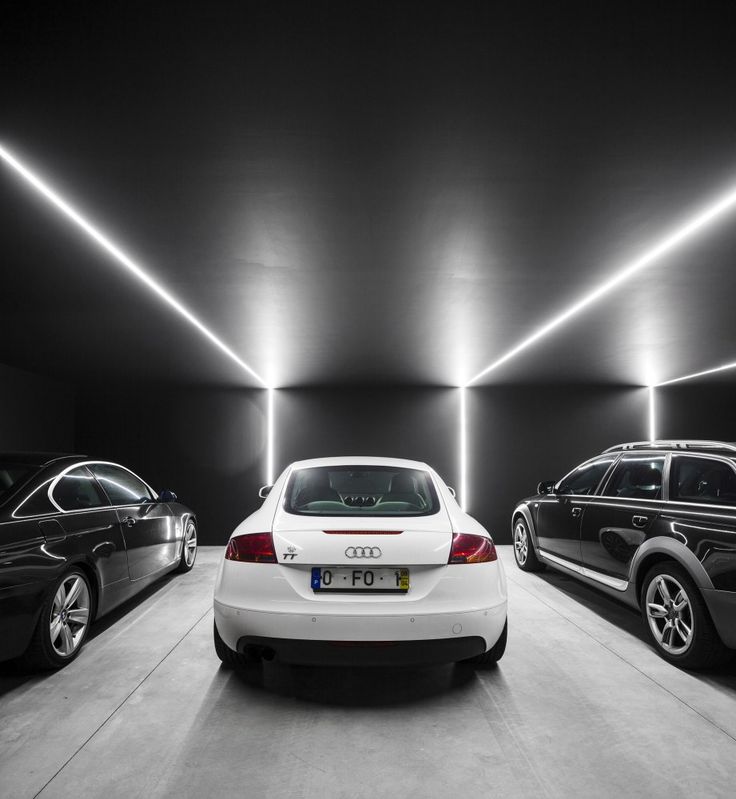

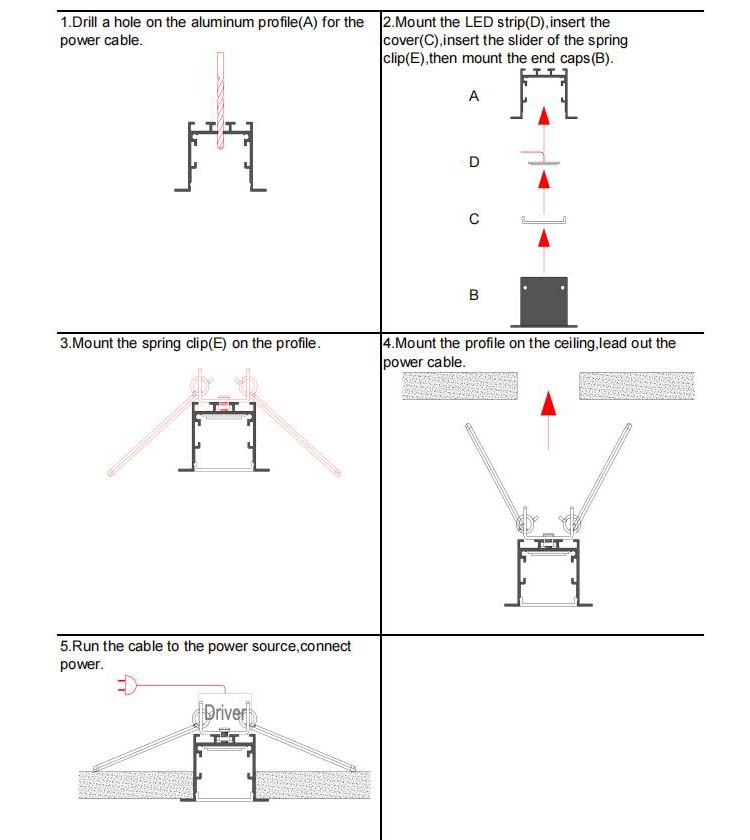

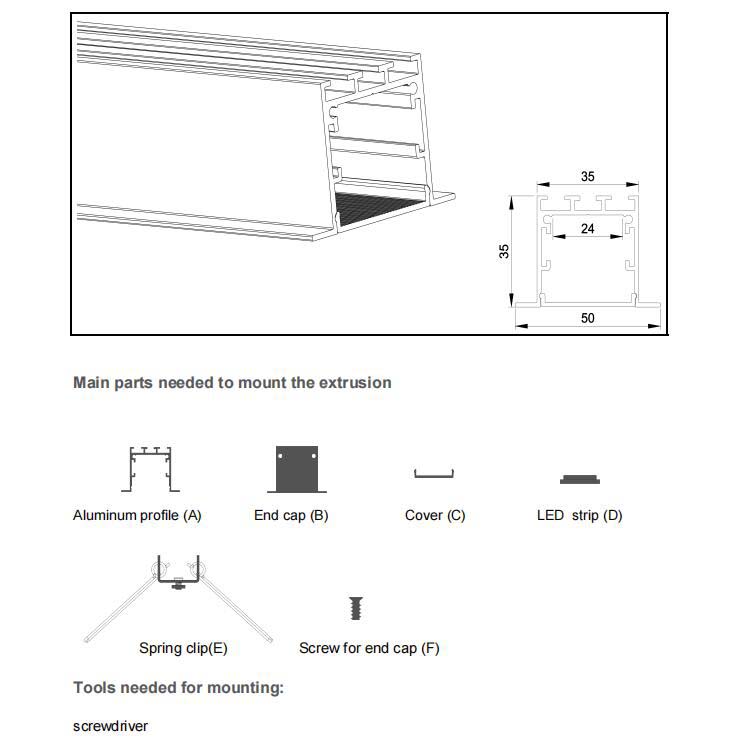

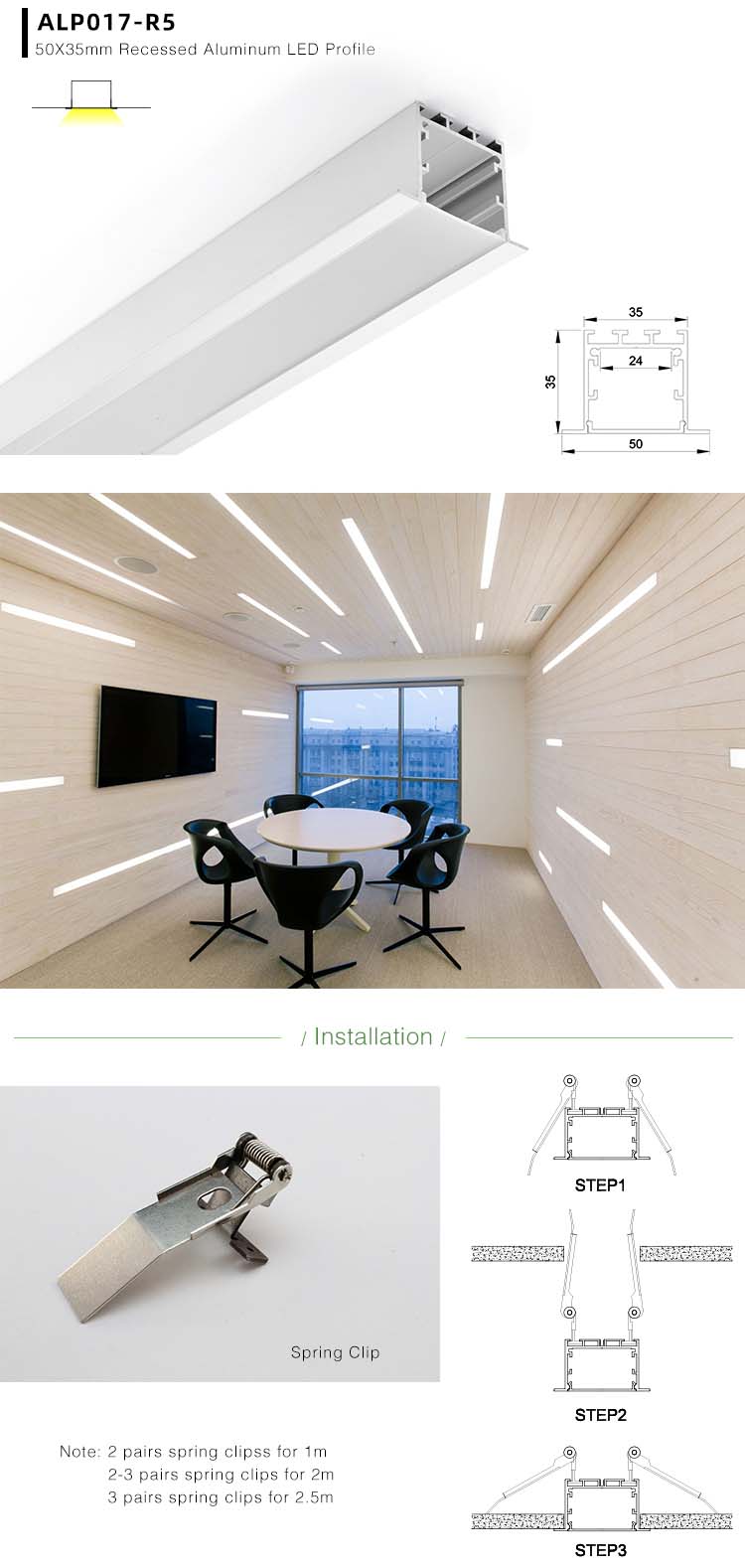

Recessed LED Aluminium Channels Installation Recessed LED Extrusion Ceiling Wall Recessed LED Channels LED Aluminium Extrusion Profiles
