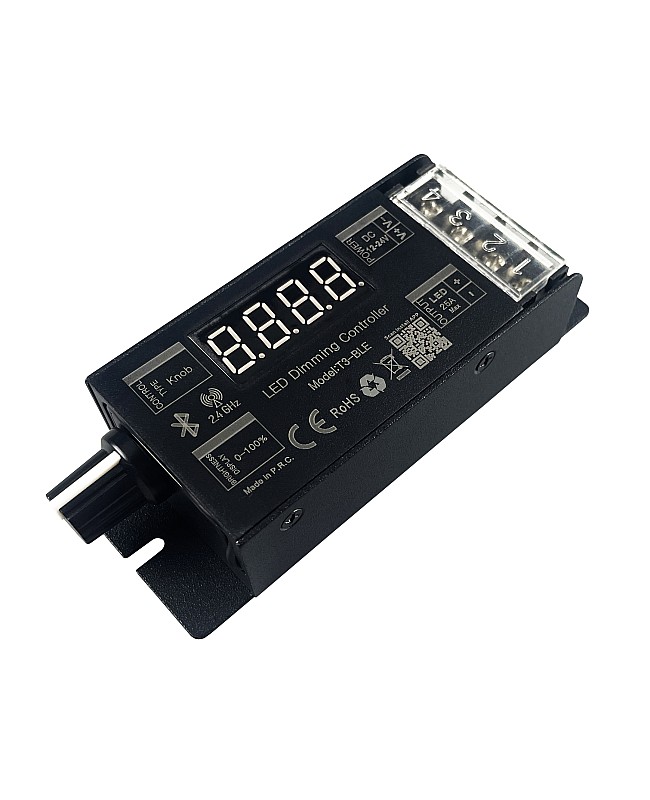

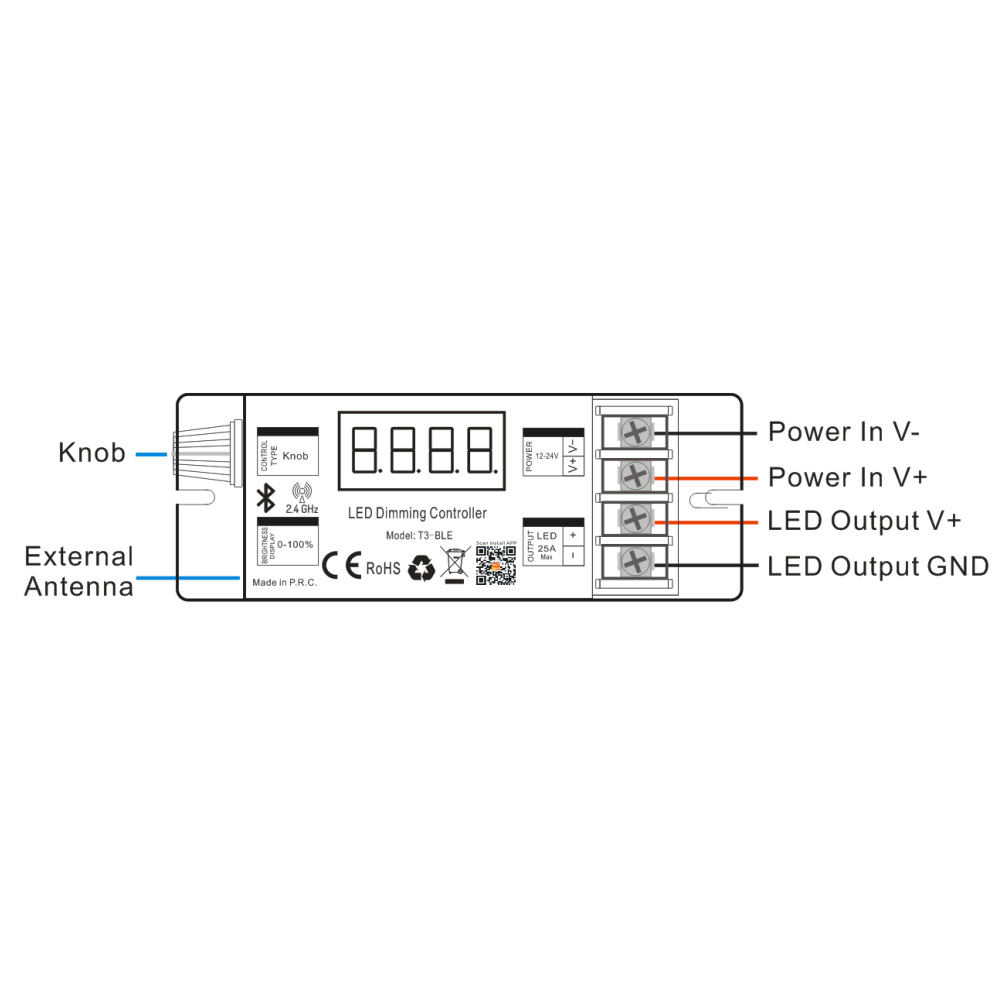

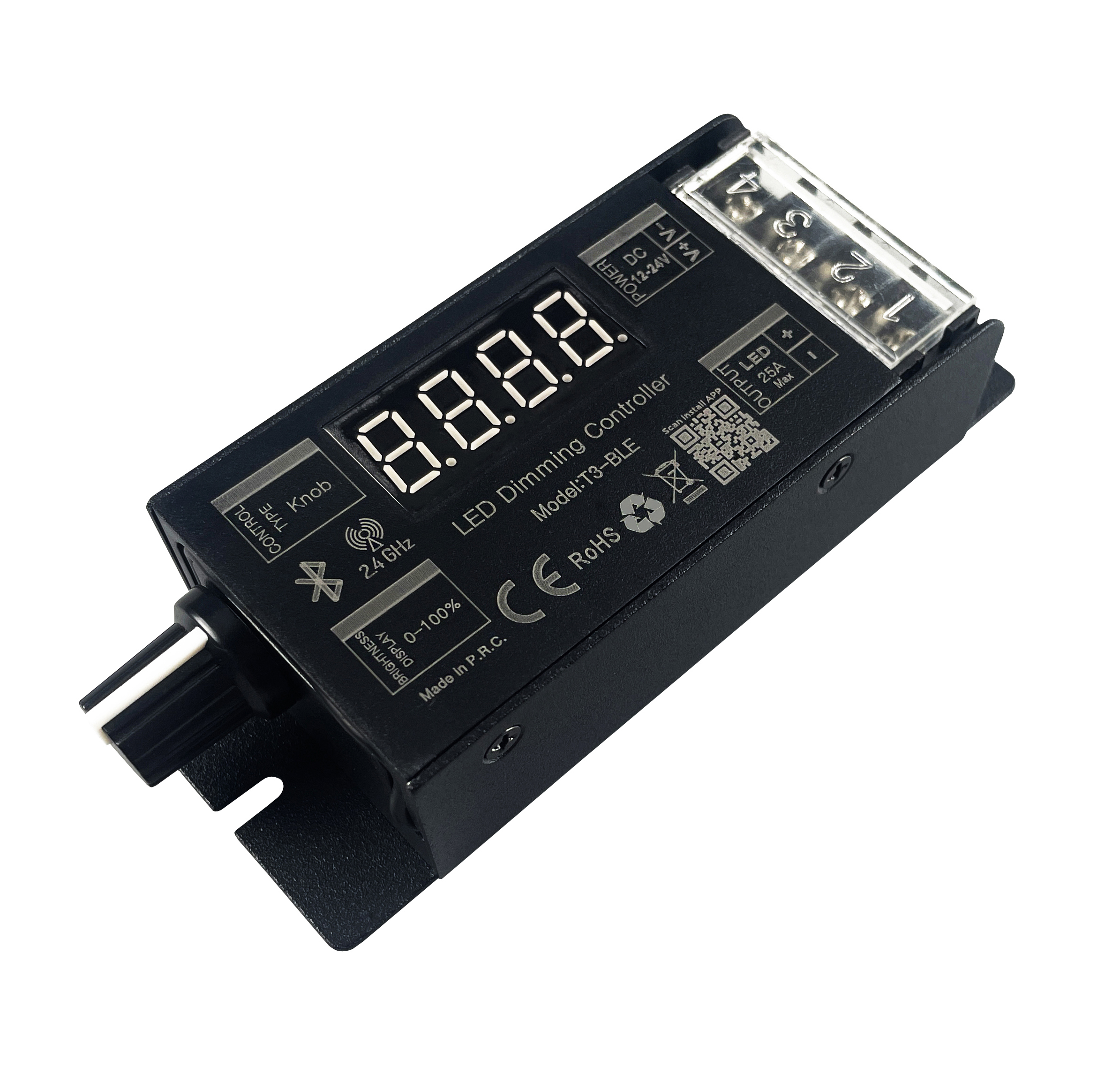

The Hoion T3-BLE 2.4 Bluetooth Mesh Dimmer is a high-power and low-voltage LED Strip Dimmer that uses advanced PWM control technology to control LED Lamps, LED Strips, Panel Lights, etc. The LED Lights can be dimmed or toned according to the needs of the applications to make the environment more harmonious. Bluetooth Mesh Light Dimmer adopts a 2.4G Wireless Remote Control and Bluetooth MESH APP control, long distance, penetrability, good synchronization, can realize synchronous control of countless Dimmers, the external antenna on the receiver can be extended out of the metal shell if needed with excellent synchronization technology, which can realize the wireless synchronization of all Dimmers. PWM frequency is adjustable from 500Hz to 15.6KHz. There is a knob button on the side, and you can rotate it to adjust the brightness from 0% to 100%. 5 levels of brightness can be achieved by short pressing the knob button. Tuya APP can control the BLE Light Dimmer to achieve smart control like group control, scene control, timer control, etc. You can scan the QR code on the Dimmer to download the APP to your smartphone. Following the pop-up prompt message with the APP to finish the rest of the connection operation, compatible with voice control via Amazon Alexa, Google Assistant, and Yandex Alice.
Features:
- Model: HX-T3-BLE
- Size: 103*40*24mm(L*W*H)
- Working Voltage: DC12-24V
- Output: 1 Channel
- Max Output Current: 25A
- Max Output Power: 300W/12V; 600W/24V

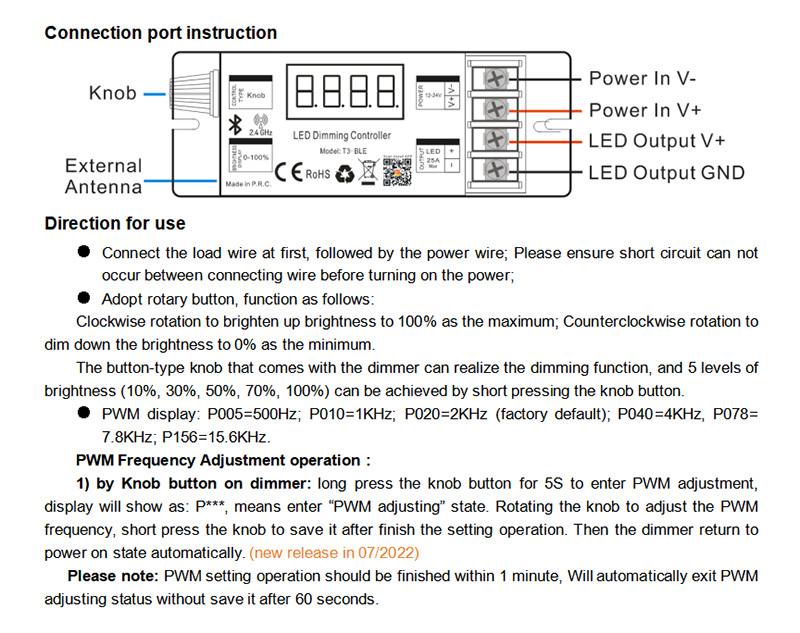

- PWM Frequency: 2KHz(Default), 500Hz, 1KHz, 4KHz, 7.8KHz, 15.6KHz
- Max Output Current: PWM≤2KHz:25A; PWM≤4/7.8KHz:15A; PWM=15.6KHz:10A
- Max Output Power: PWM≤2KHz:300W/12V, 600W/24V; PWM≤4/7.8KHz:180W/12V, 360W/24V; PWM=15.6KHz: 120W/12V, 240W/24V
- Static Power Consumption: <1W
- 5 Levels Brightness Adjustable By Knob Button: 10%, 30%, 50%, 70%, 100%
- Brightness Range: 1-100%
- Memory Function: YES
- Control Method: Knob, Remote Control, Tuya-APP

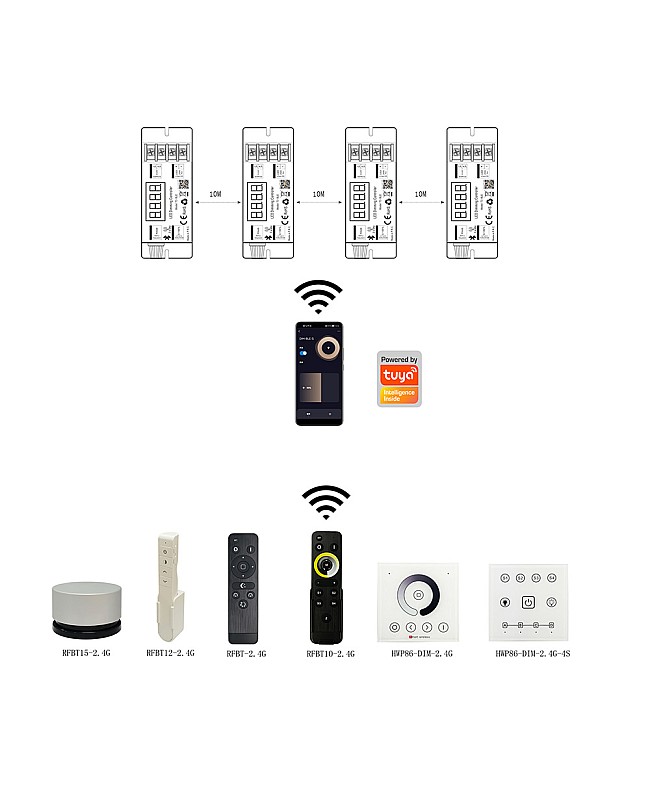

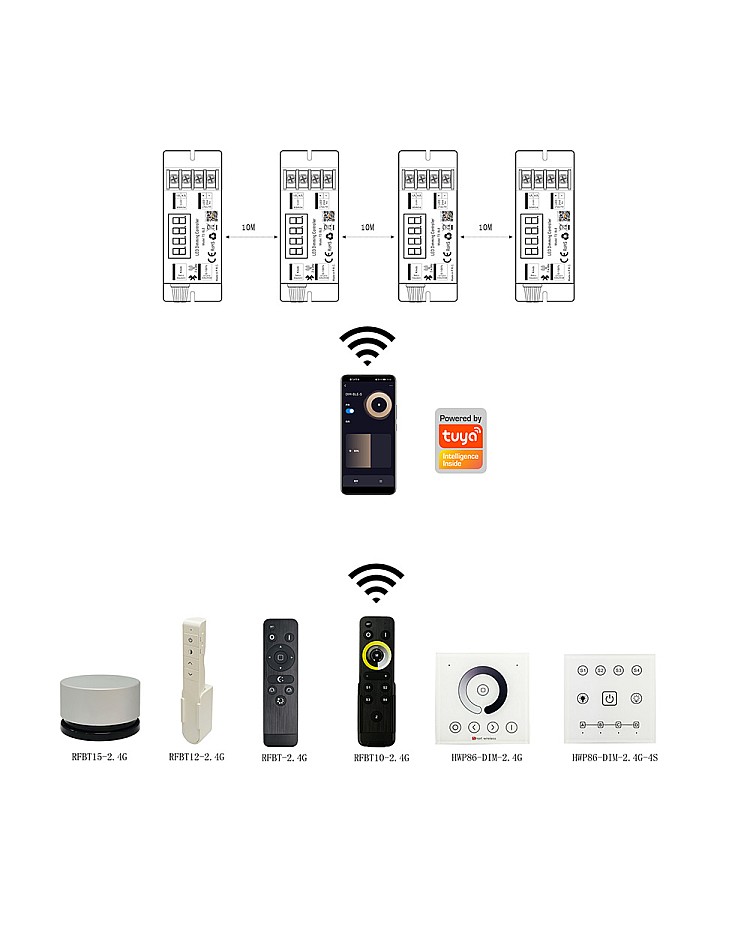

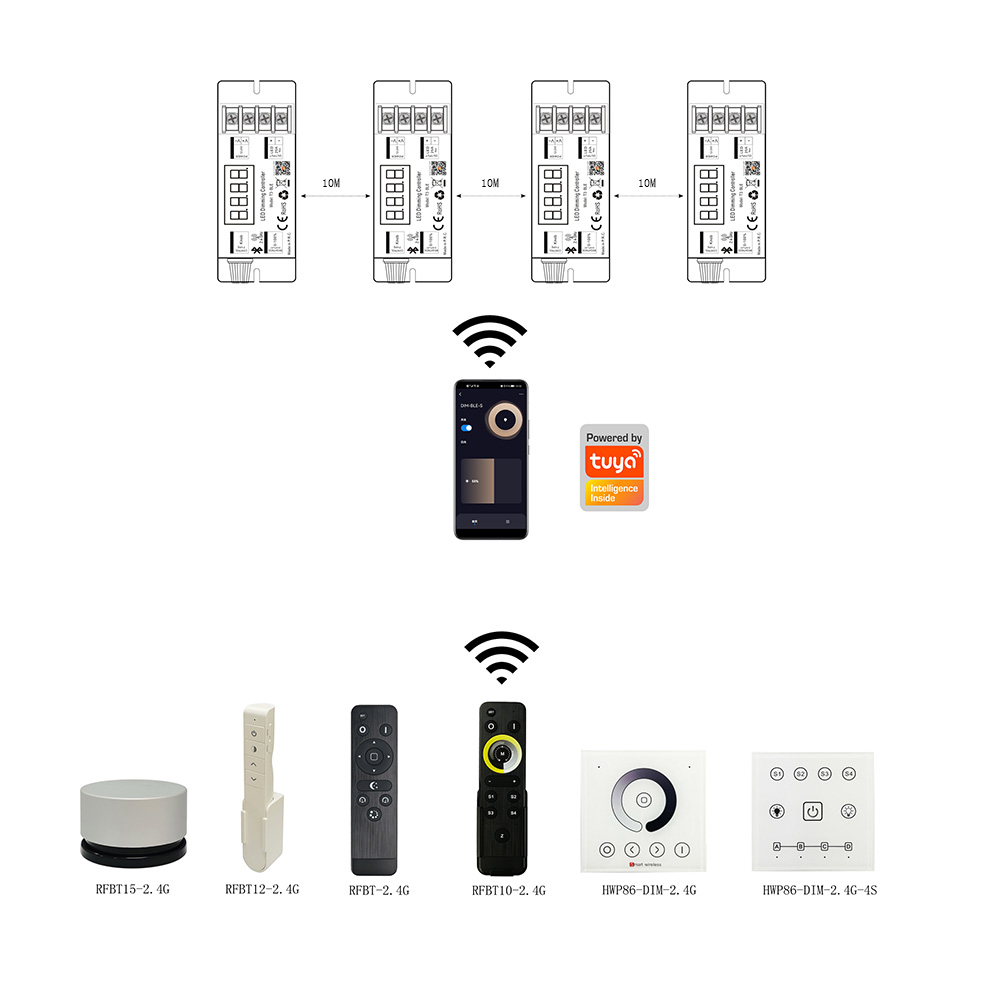

- Compatible With Hoion Remote Controls: HX-RFBT-2.4G(1 Zone), HX-RFBT10-2.4G(4 Zone), HX-RFBT12-2.4G(1 Zone), HX-RFBT15(1Zone ), HX-HWP86-DIM-2.4G-4S(4 Zone), HX-HWP86-DIM-2.4G(1 Zone), HX-HWP86-XSP(4 Zone), HX-WP86-AP(RF Signal Repeater)
- APP Name: Tuya
- Compatible With Voice Control Via Amazon Alexa, Google Assistant, Yandex Alice
- Wireless Synchronization
- Short Circuit Protection: YES
- Working Temperature: -20-60℃
- 3 Years Warranty
Includes:
1*Hoion Bluetooth Mesh Light Dimmer
