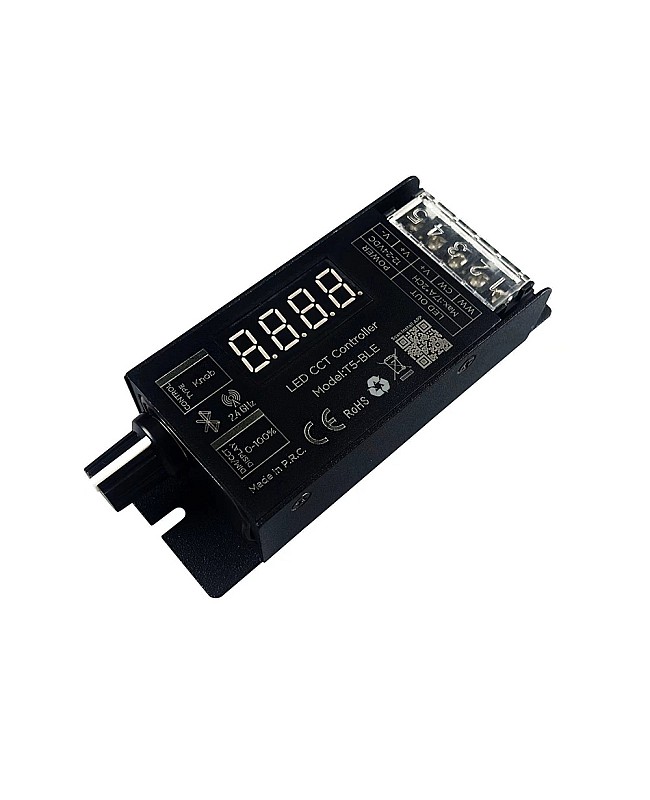

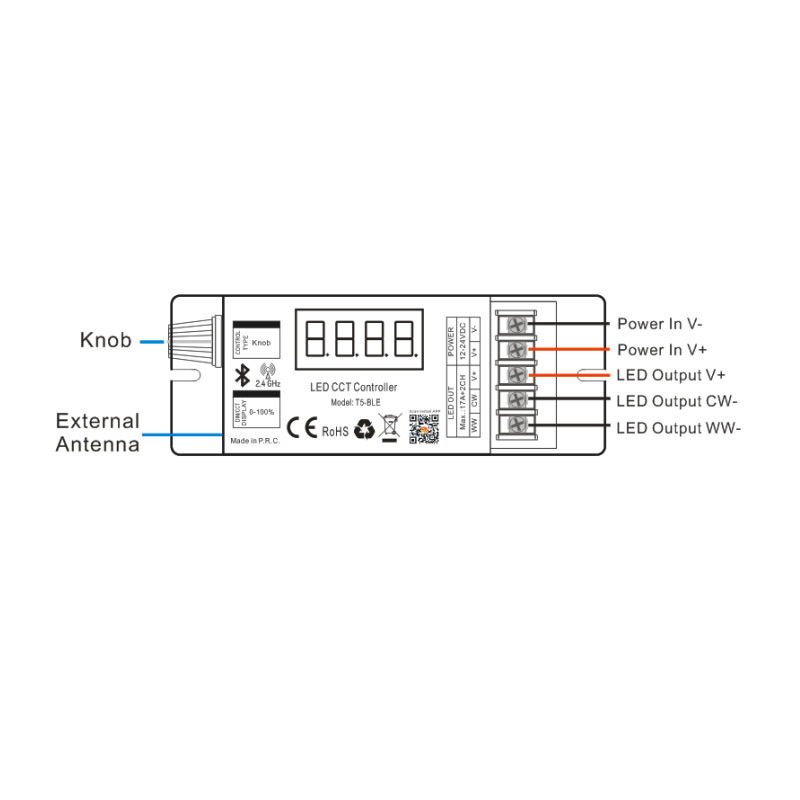

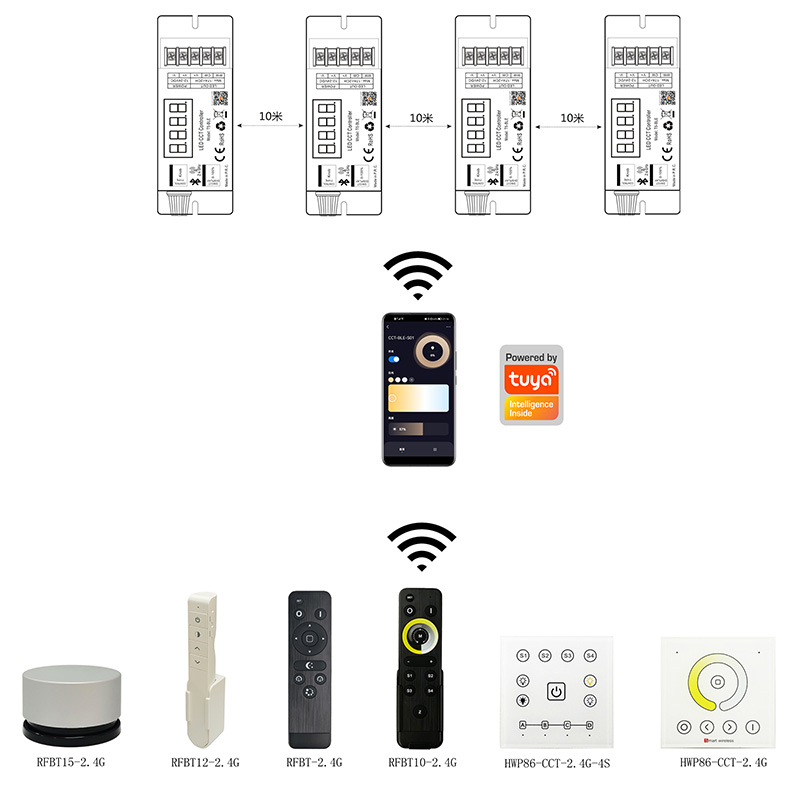

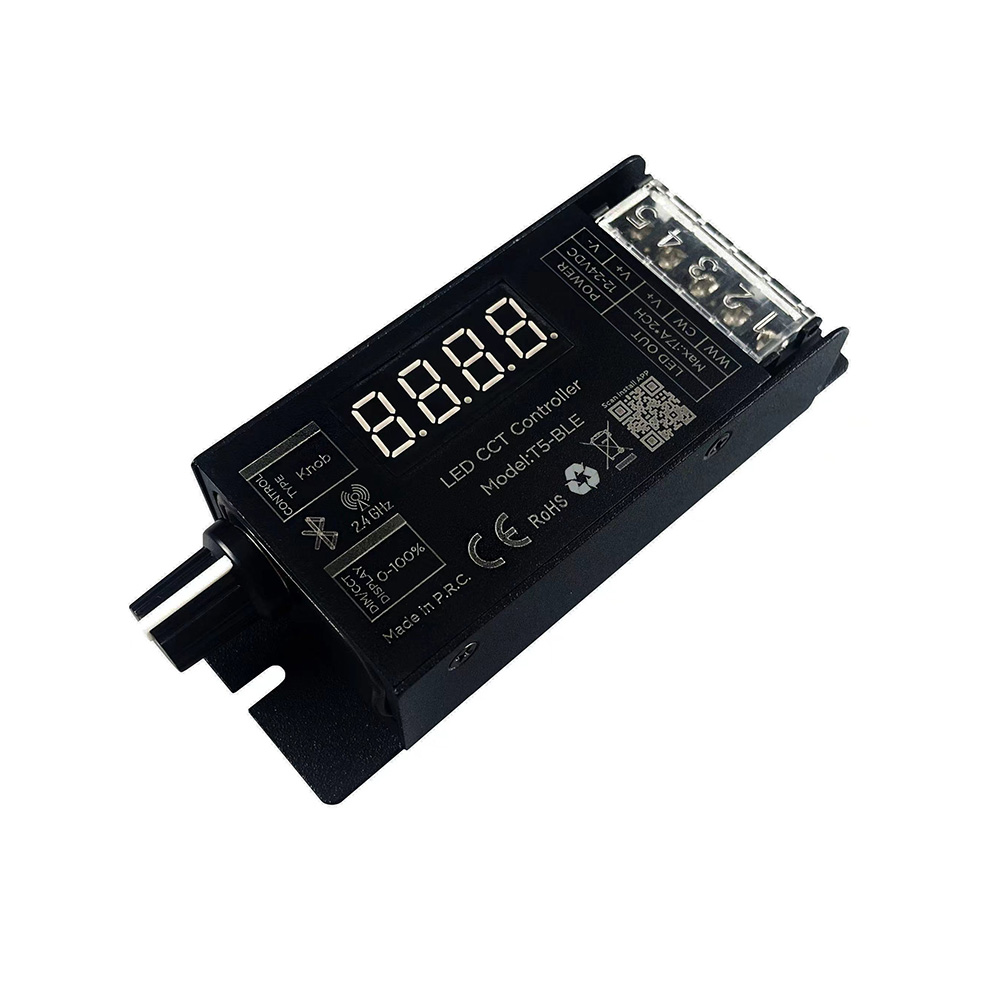

The Hoion T5-BLE high-power Bluetooth dual white light dimmers are designed for precise brightness and color temperature adjustment of tunable white lighting systems. They feature advanced Bluetooth wireless technology, enabling the adjustment of brightness and color temperature for various scenes via the Tuya app, remote control, and the knob button on the controller. The brightness range can be adjusted from 1% to 100% flicker-free, and the color temperature can be set from 100% warm white to 100% cool white. The dimmer has a digital tube showing the brightness level or color temperature. The LEDs can be dimmed or toned according to the application's needs to create a more harmonious environment. The PWM frequency is adjustable from 500Hz to 15.6KHz through the remote control or the knob button, and this button can also be used to adjust the brightness and color temperature. With the Bluetooth MESH APP control, the Hoion CCT dimmer can be controlled by the Tuya APP to achieve intelligent control, including group control, scene customization, timer scheduling, and more, making it a versatile solution for innovative lighting applications. Perfect for modern smart homes, offices, retail stores, and architectural lighting projects.
Specifications:
- Model: T5-BLE
- Size (L x W x H): 103 mm x 40 mm x 24 mm ( 4.06" x 1.57" x 0.94" )

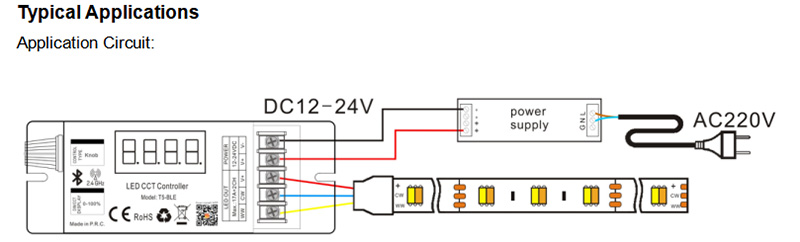

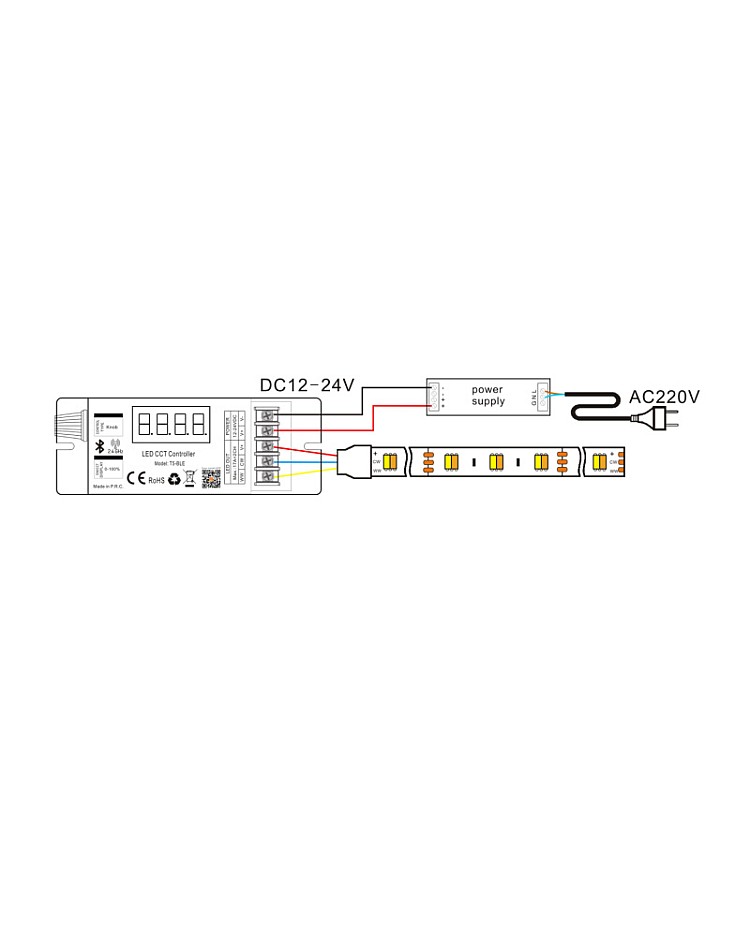

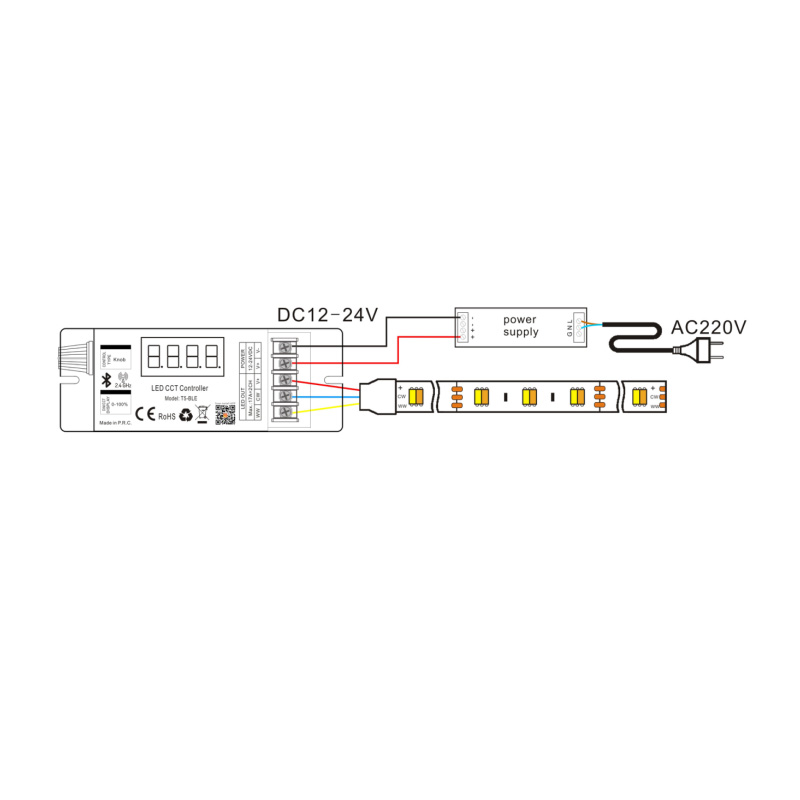

- Working voltage: DC12-24V

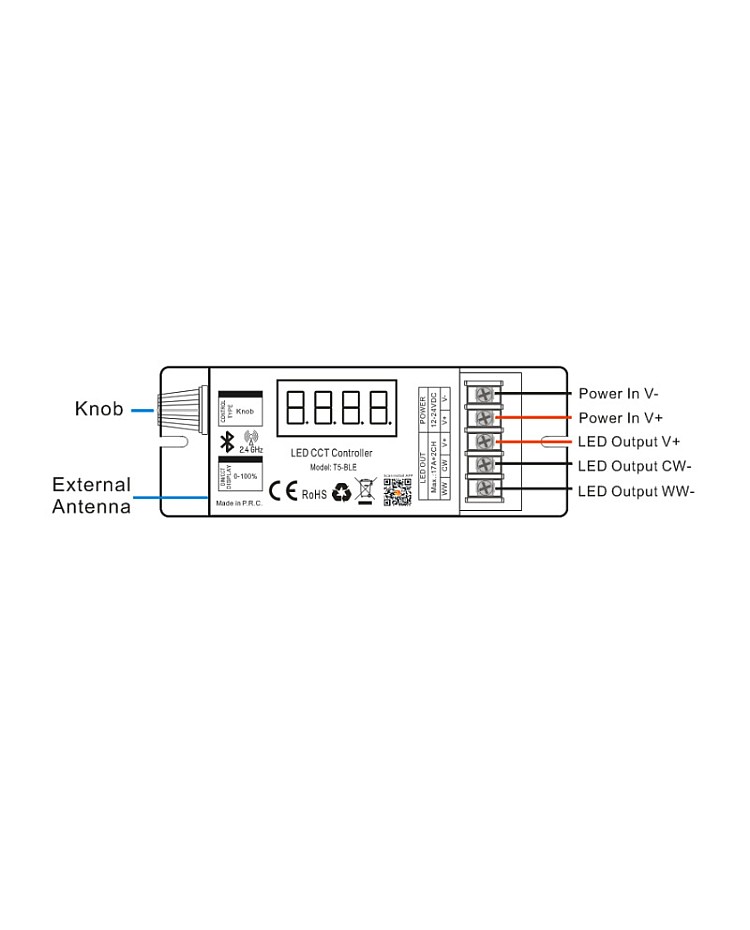

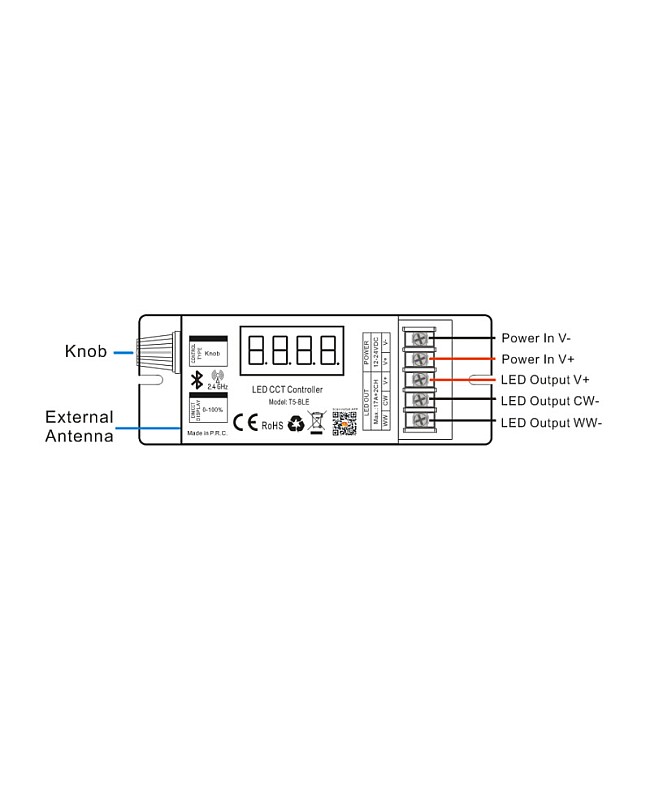

- Output: 2 channels
- Max output current: PWM≤2KHz: 17A; PWM=4/7.8KHz: 13A; PWM=15.6KHz: 10A
- Max output power: PWM≤2KHZ: 200W(12V), 400W(24V); PWM=4/7.8KHZ: 150W(12V), 300W(24V); PWM=15.6KHZ: 120W(12V), 240W(24V)
- Static power consumption: <1W
- Brightness range: 1-100%
- Color temperature range: 100% warm white ---100% cool white

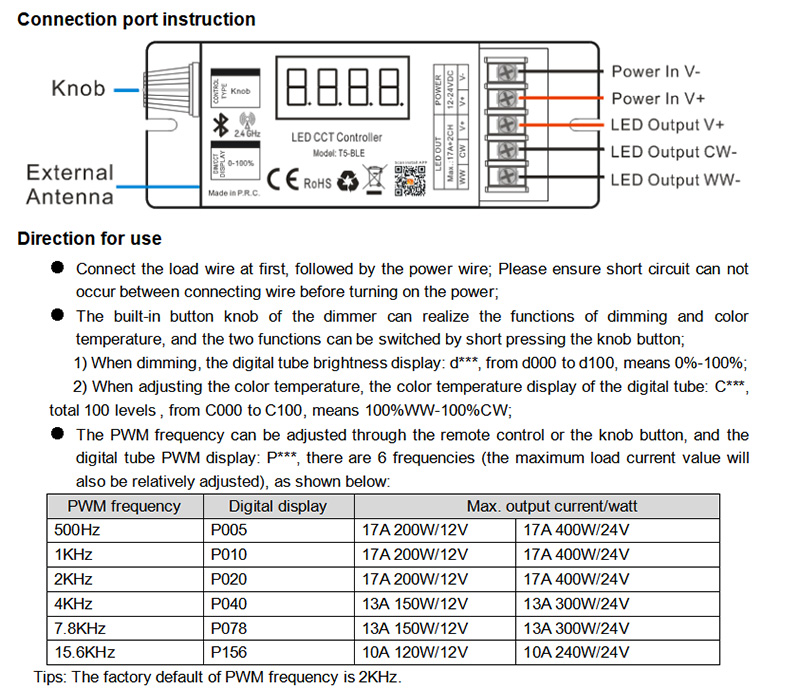

- PWM frequency: 2KHz ( factory default ), 500Hz, 1KHz, 4KHz, 7.8KHz, 15.6KHz
- RF frequency: 2.4G

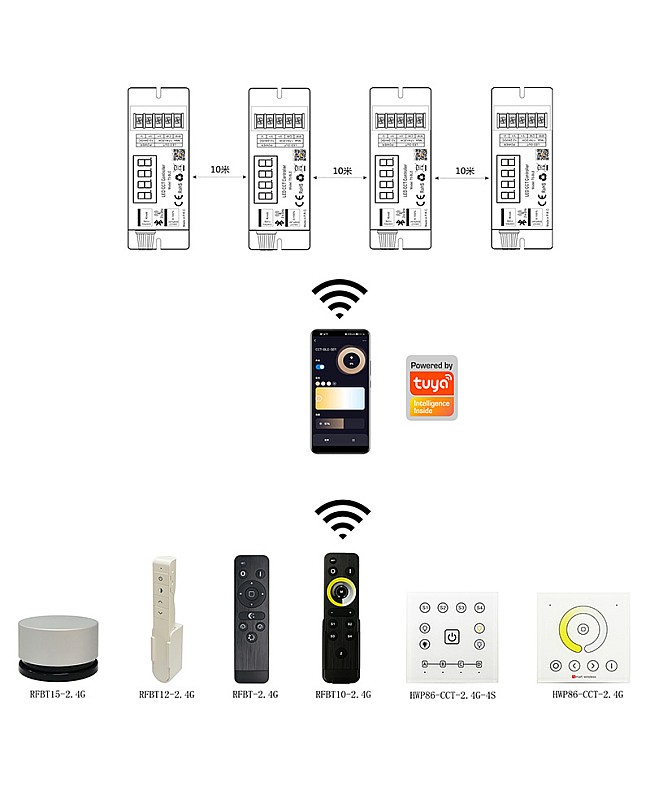

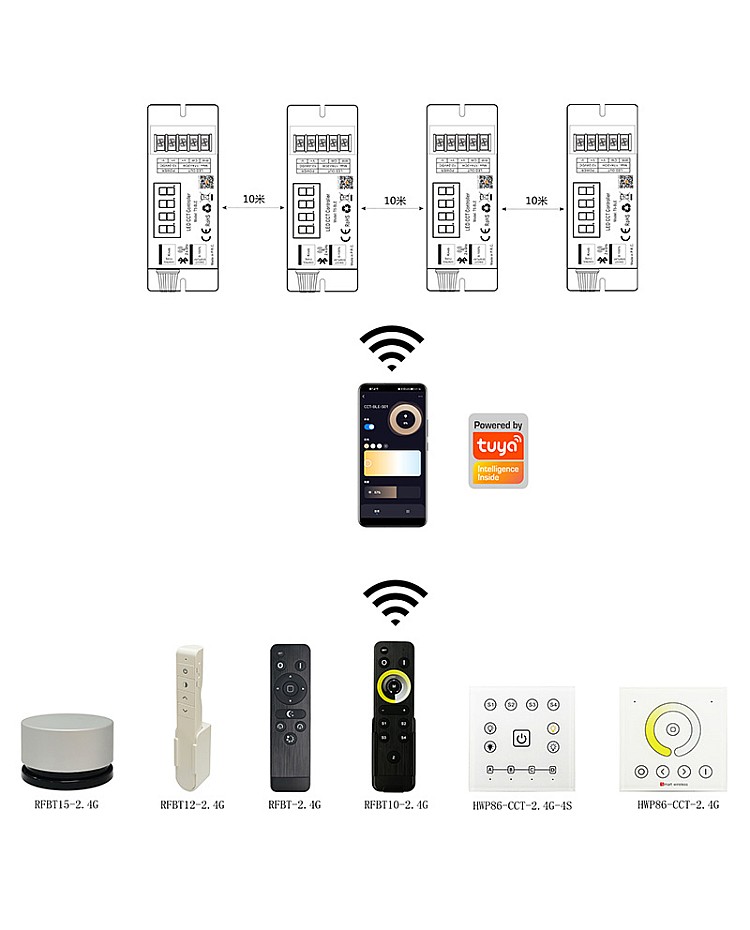

- Control methods: Knob, remote controls, Tuya APP
- Memory function: YES
- Short circuit protection: YES
- Working temperature: -20-60℃
- Warranty: 3 years
Includes:
1 * Hoion BLE Bluetooth dual white light dimmer
