In Stock
$8.45 $4.99 Sale -41% OFF
Reward Points: 5
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP147

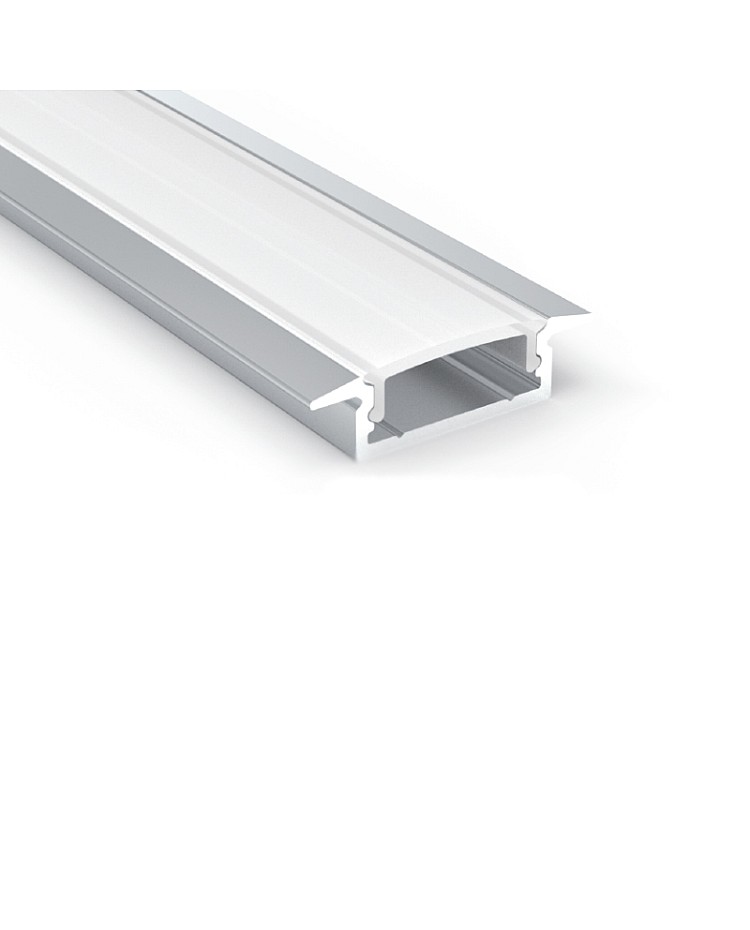

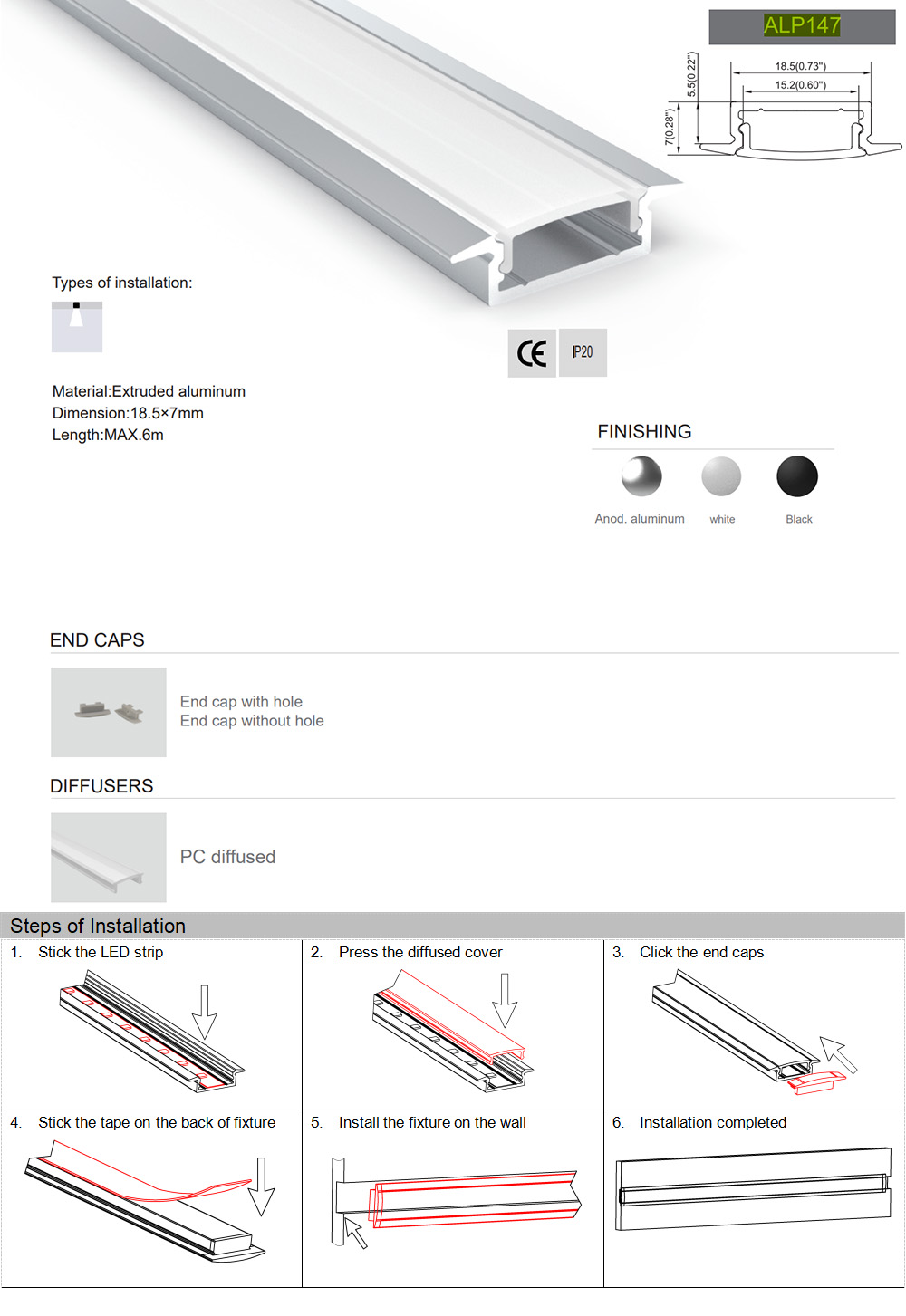

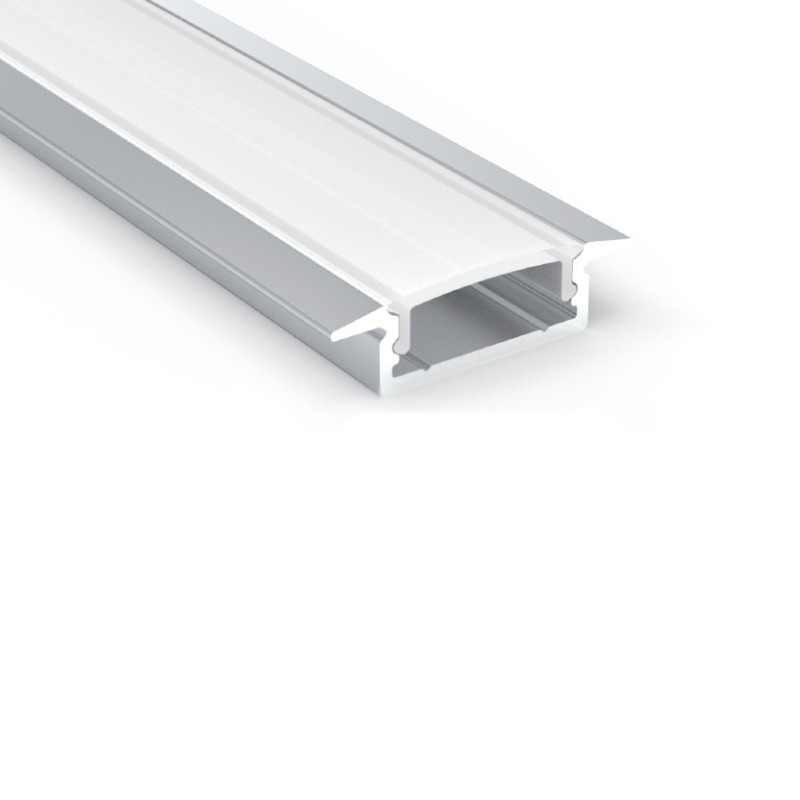

Check the LED Light Profiles with flange, the deep only 7mm, which can be recessed into the slim lighting projects. the LED Lighting Profiles are made of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation and has a longer lifespan than other similar products. there are 3 colors available, the default color is silver, you also can take white or black. the standard length is 1M, other lengths available, 1.5M, 2M, 2.5M, 3M and max length can do 6M, custom length available. there are 5 types of diffusers available, all of them are made of imported brand material, anti-yellowing, perfect lighting distribution. the inner width is 15.2mm, can work with SMD LED Light Strips and COB LED Tapes, the max width of LED Strips not over 15mm, easy to install the LED Strips on the Aluminum Base, the Aluminum Base can be used as a heat sinker for better heat dissipation, which will extend the lifespan of the LED Lights. the end caps with holes and without holes included, easy to connect the LED Light to a LED Driver to light up, if you want to adjust the brightness, you can add a LED Light Dimmer. the Lighting Profiles are non-waterproof, only recommend for indoor applications.


  • Model: ALP147
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized

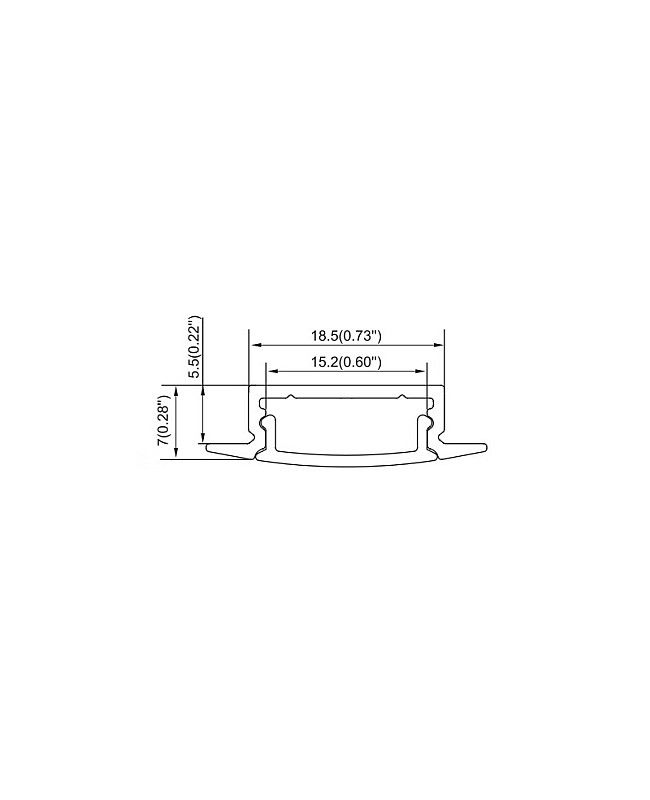

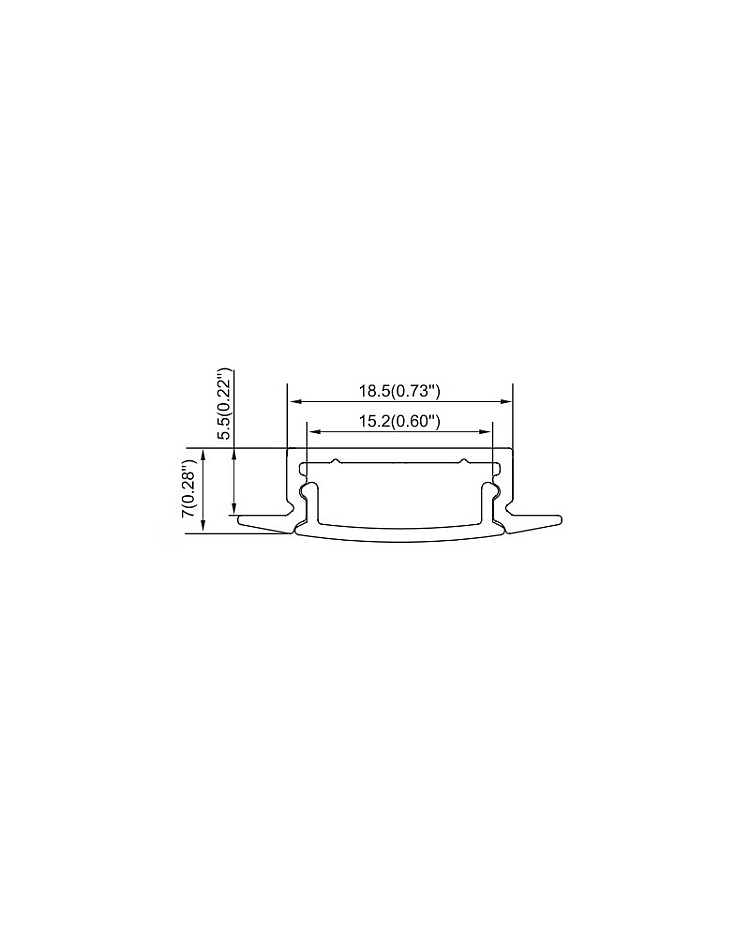

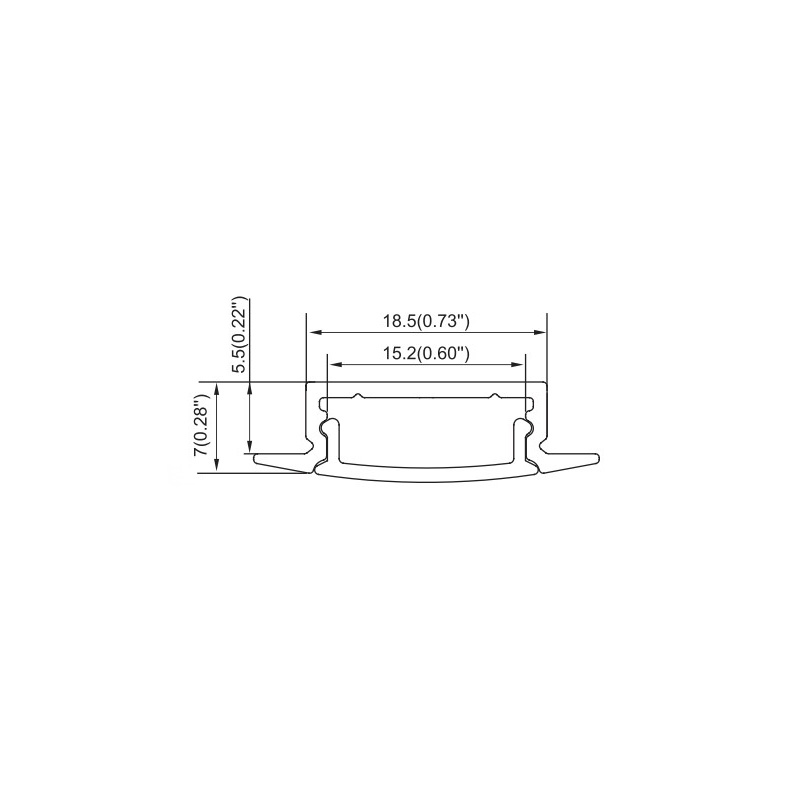

  • Size: 18.5*7mm(W*H)
  • Colors: Silver(Default), White, Black
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
  • Custom Length Available: YES
  • Diffusers: PC Diffused Cover, PC Semi-clear Cover, PC Clear Cover, PC Frosted Cover, Prismatic Cover
  • Inner Width: 15.2mm
  • Max LED Strip Width: 15mm
  • Max Power: 15W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rating: IP20 Non-waterproof
  • Installation: Recessed
  • 5 Years Warranty


1*LED Light Profile

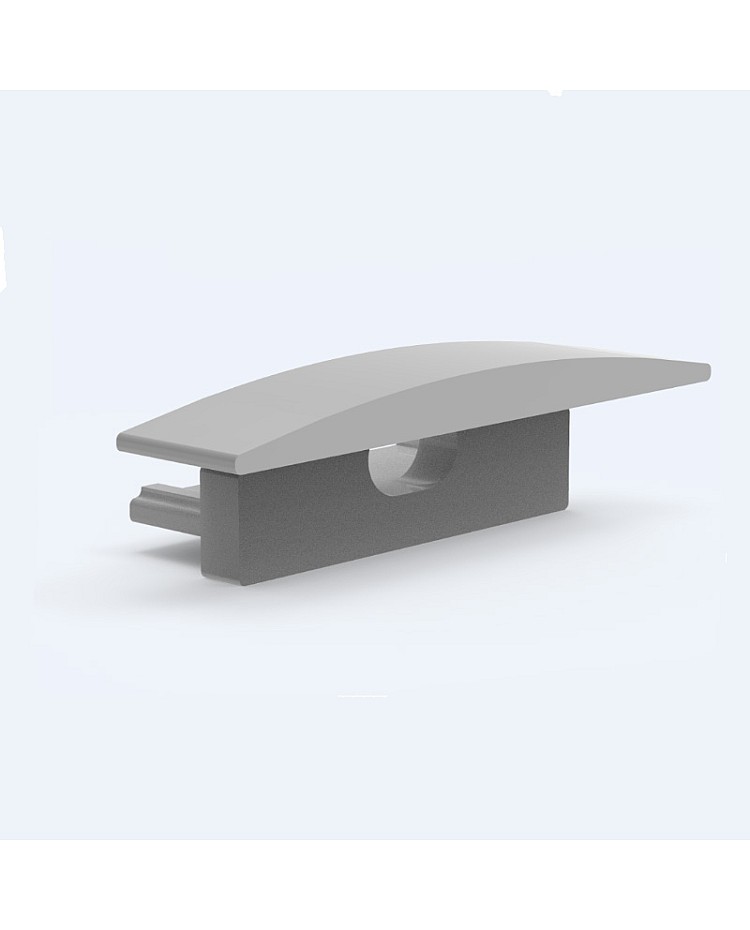

End Caps With Hole/Without Hole

LED Light Channels
