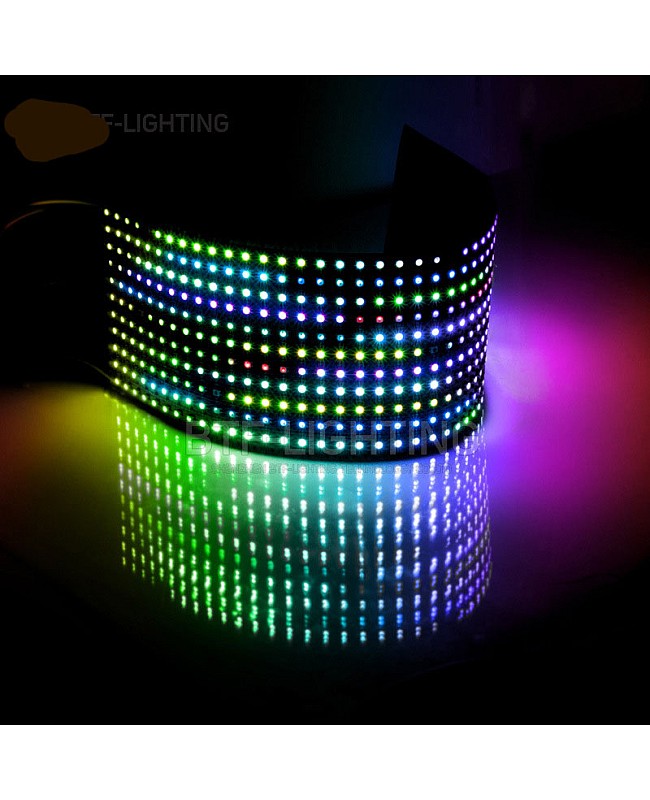

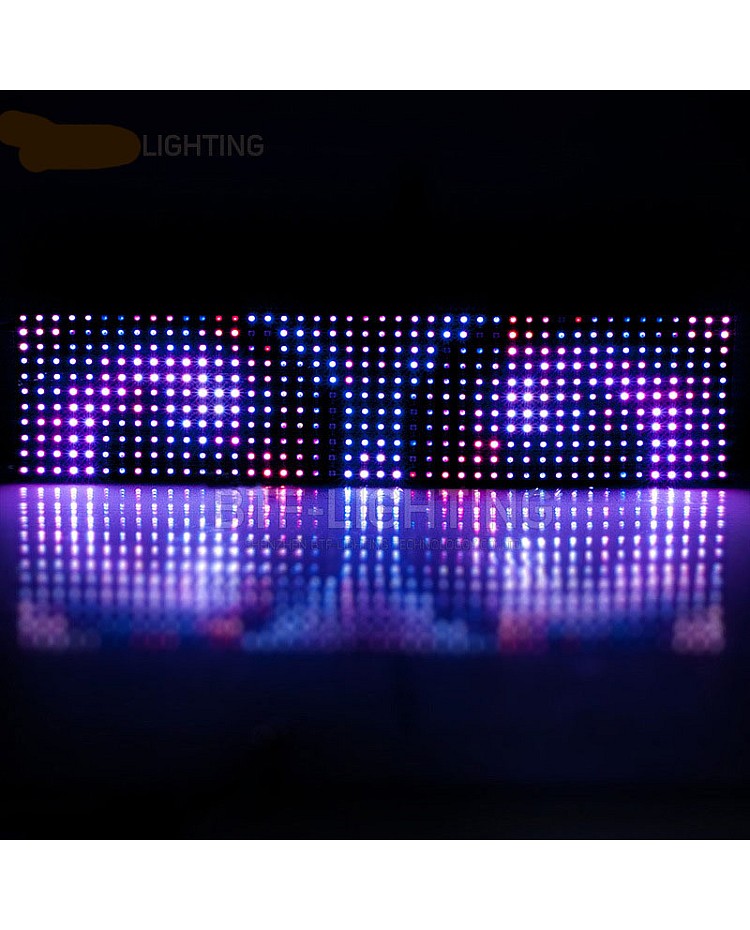

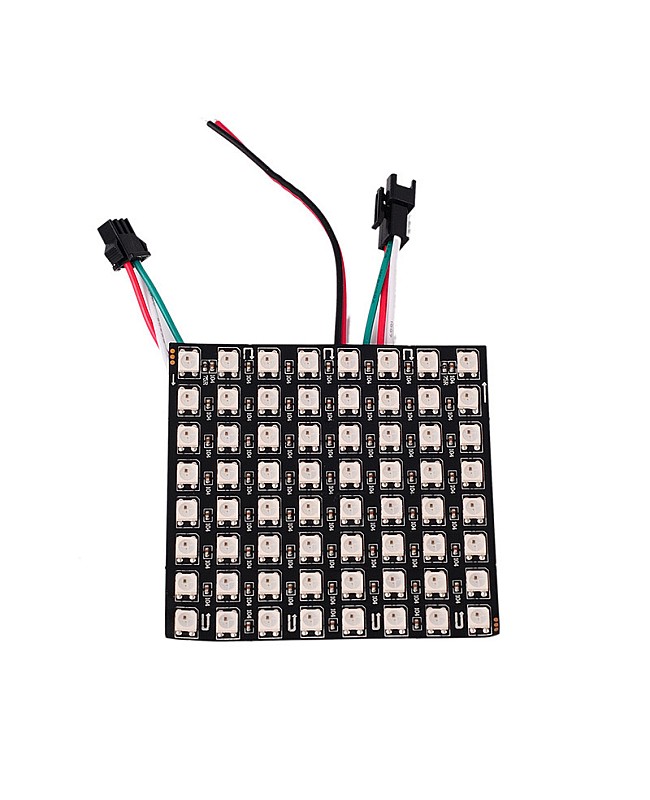

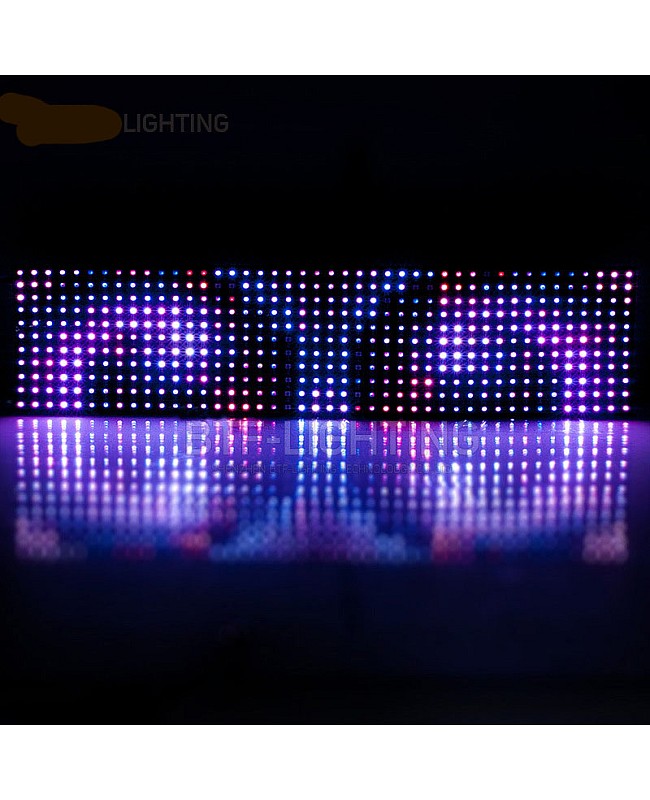

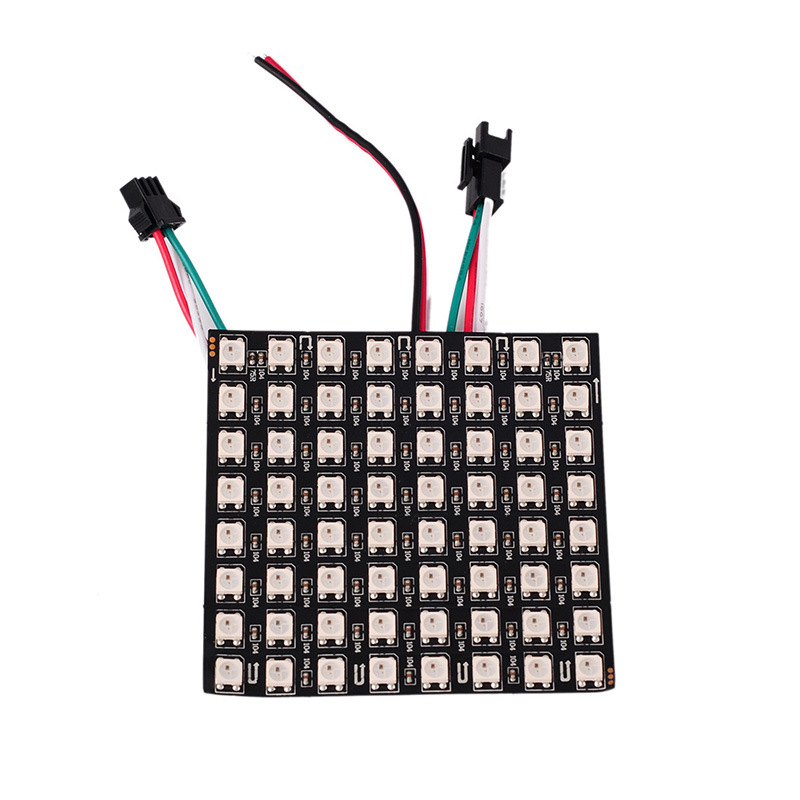

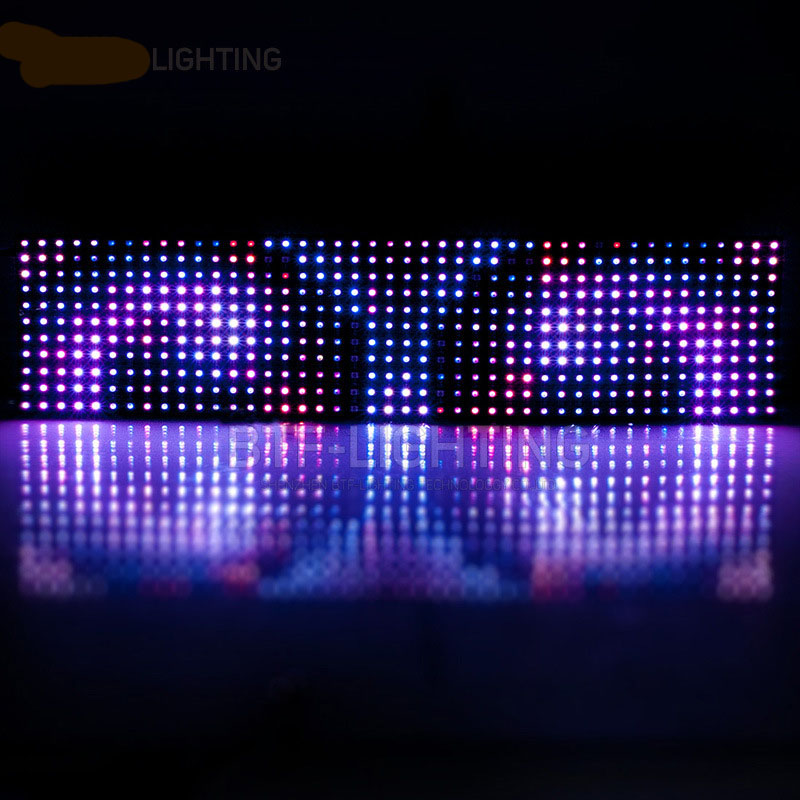

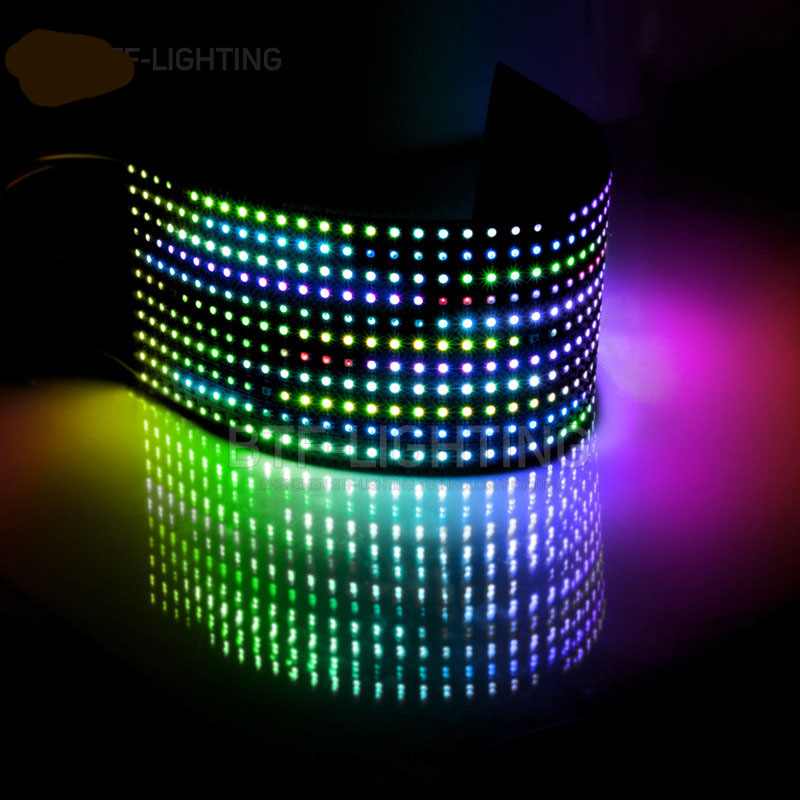

The programmable LED matrix panel screen has 3 sizes available. You can choose the various sizes with different SMD LEDs. The LEDs are mounted on the FPCB, and every piece of LED is built with a WS2812B IC. The LEDs can be controlled individually, working in DC5V, with Arduino controllers or other programmable SD controllers, arbitrarily cut off, flexible, easy to install, and bent. You can use them to achieve many amazing lighting effects like curtain-up, flowing water, raindrops, and jump flash. You can edit animation effects using CorelDRAW/Flash/LEDEdit software. The IP rating is IP20 non-waterproof and only recommended for indoor or dry locations. You can use them in LED screens, walls, advertising boards, and other lighting projects.
Specifications:
- Working Voltage: DC5V
- Power: 0.3W±0.01%/Pixel

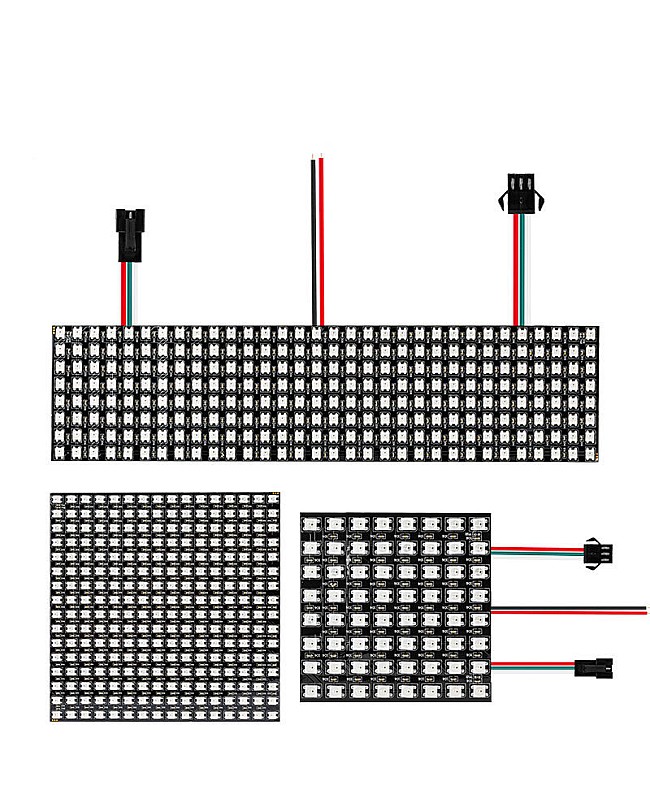

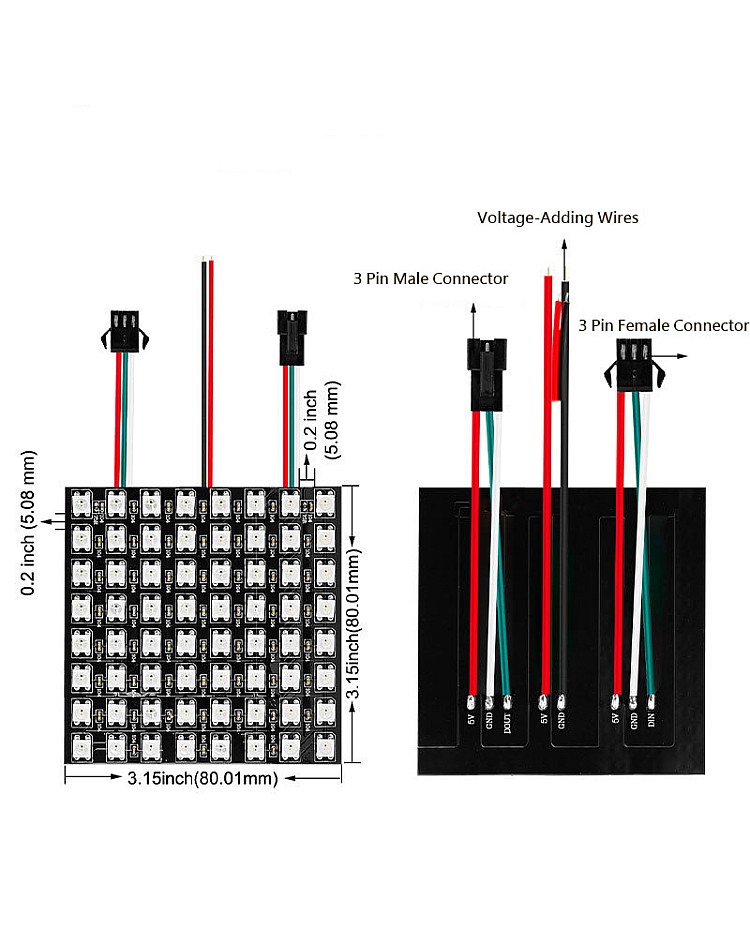

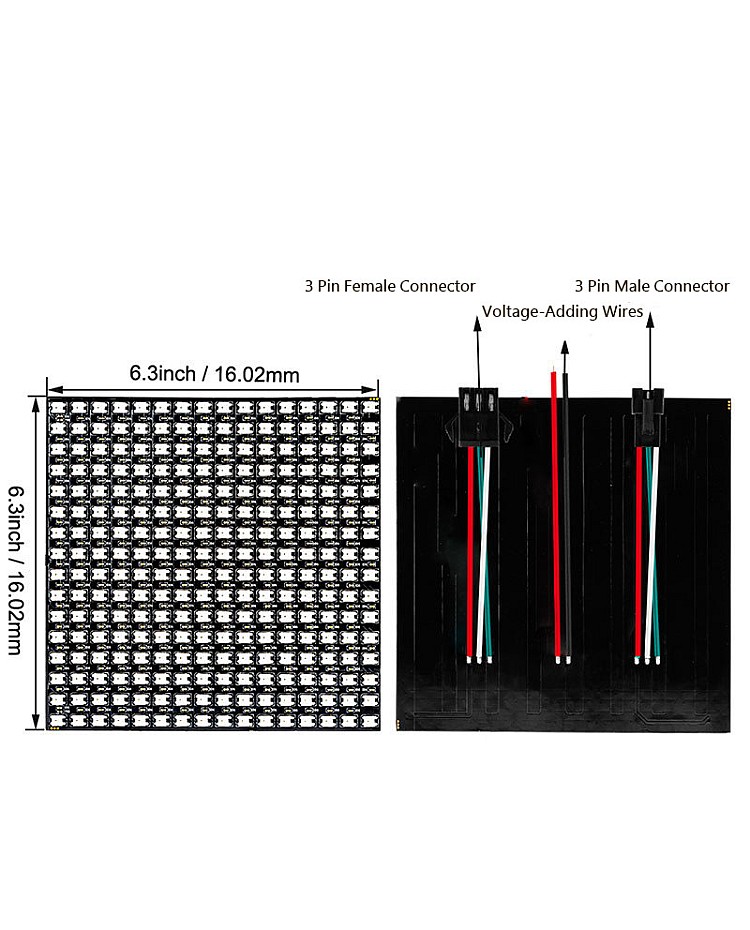

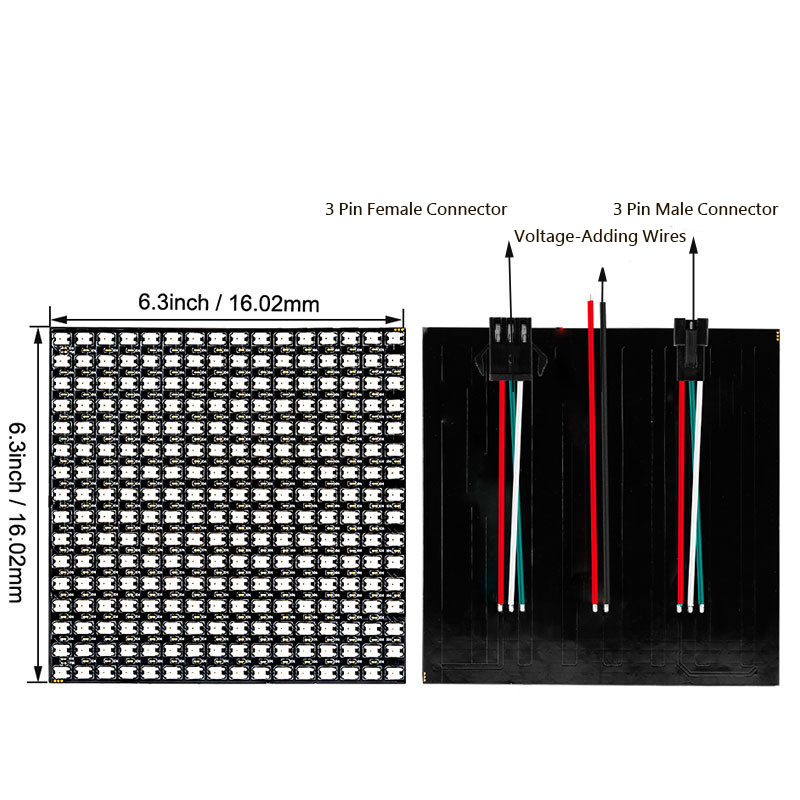

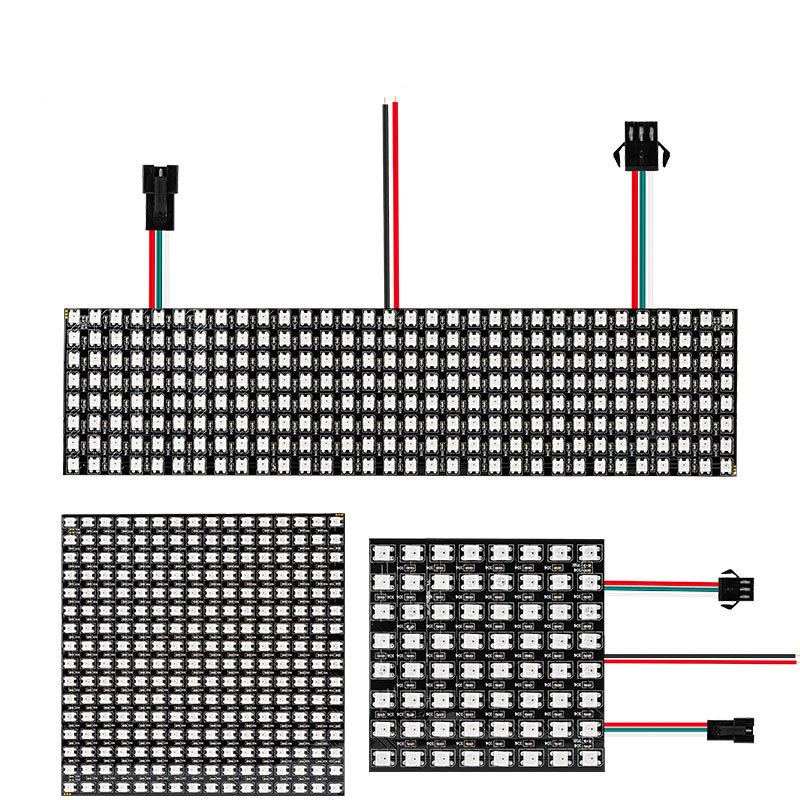

- Size: 8*8CM, 16*16CM, 8*32CM
- LED: 5050 RGB SMD LEDs
- LED Chip: Epistar
- IC Type: WS2812B Built-in
- Grayscale Levels: 256
- Beam Angle: 180°
- IP Rating: IP20

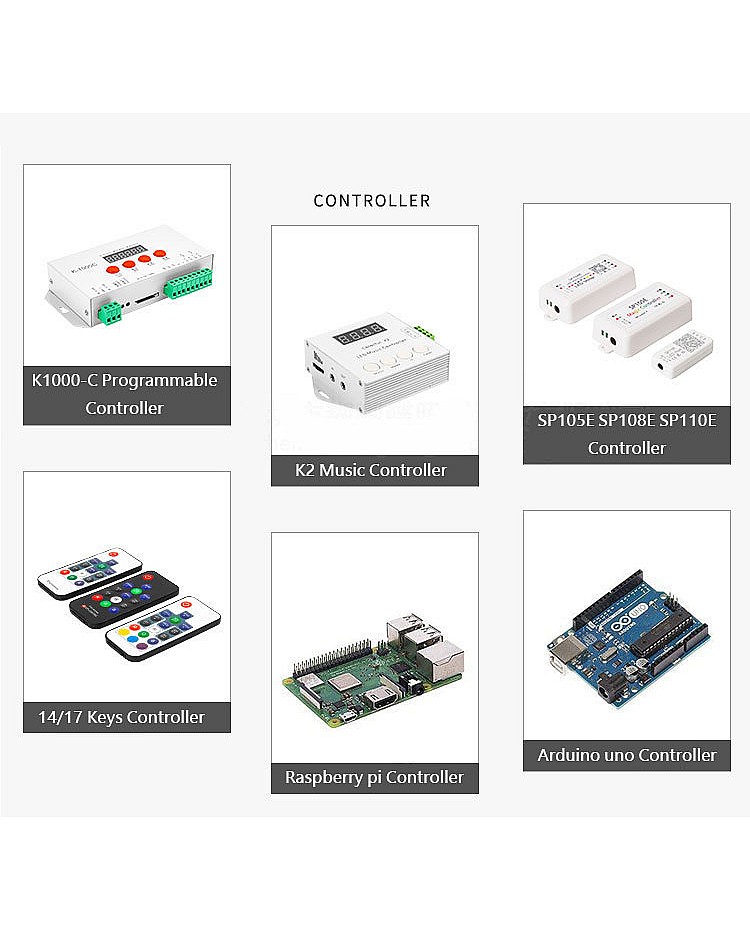

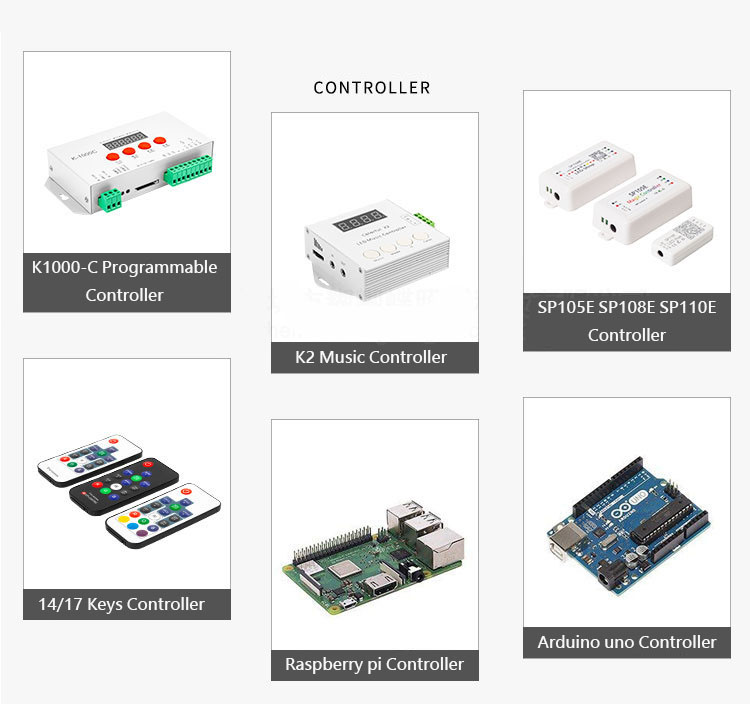

- Compatible With Arduino And Other SD Programmable LED Controllers

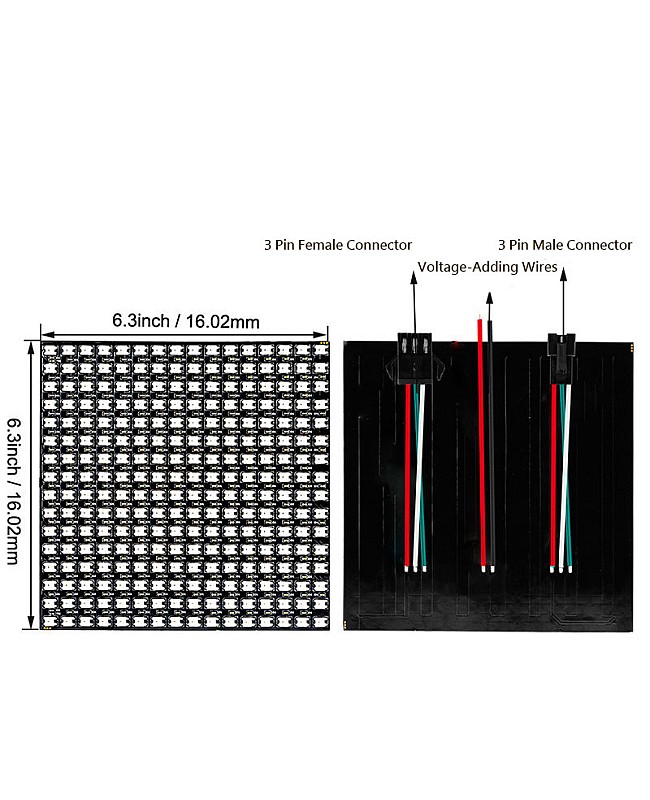

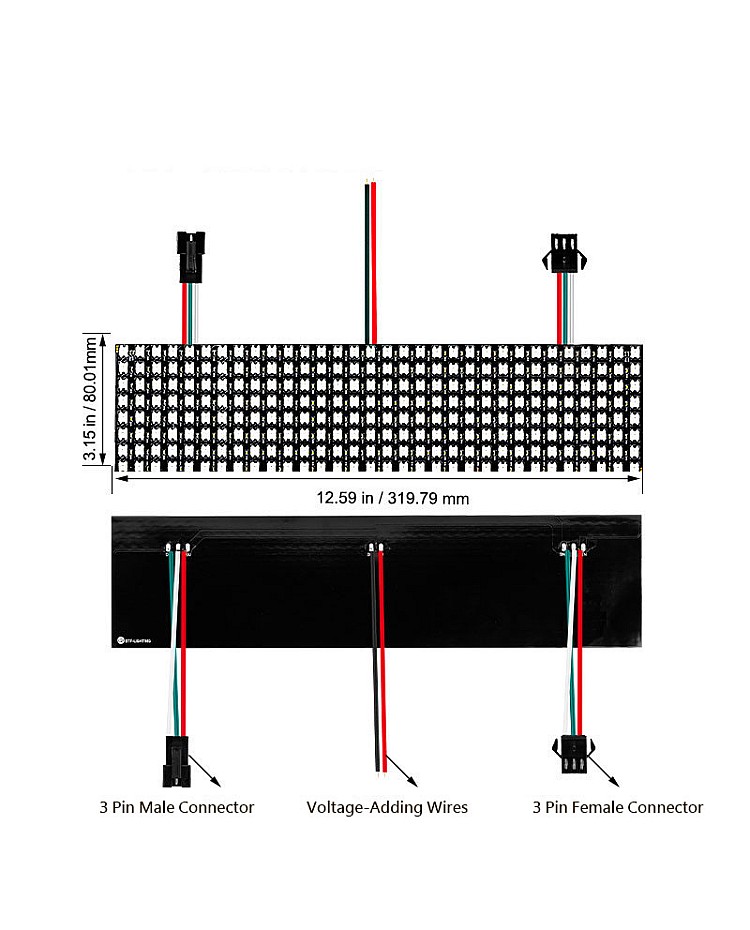

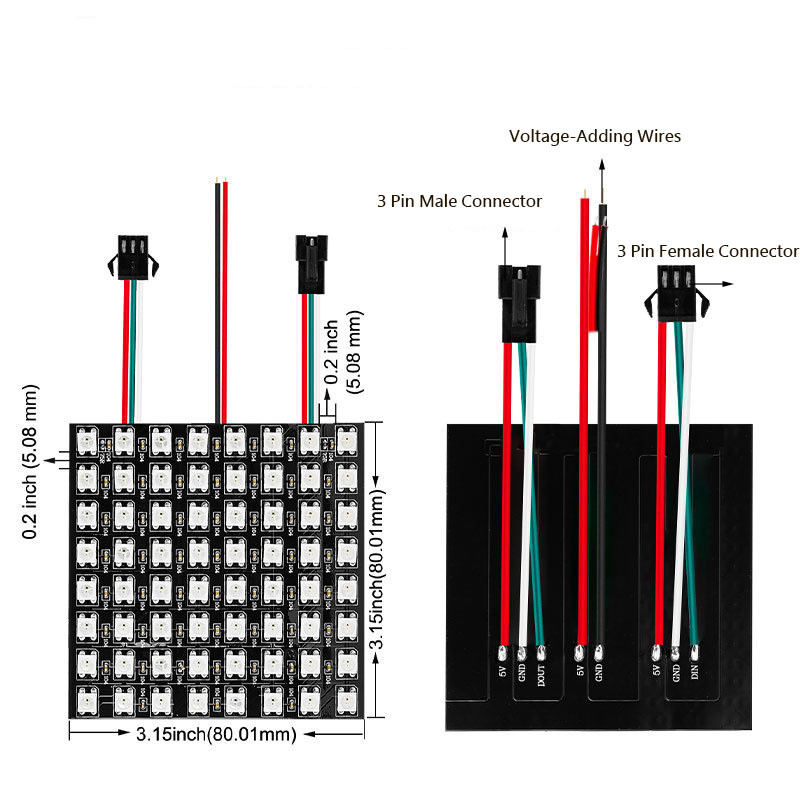

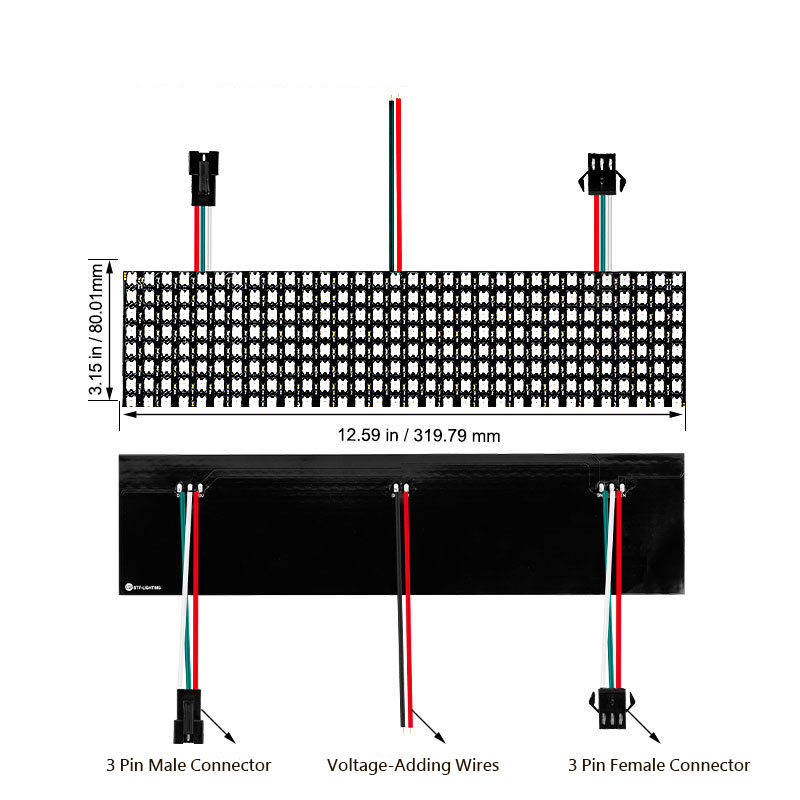

- Connections: VCC: Red; GND: Black; DAT: Blue
Includes:
1 * Programmable LED Matrix Panel Screen
