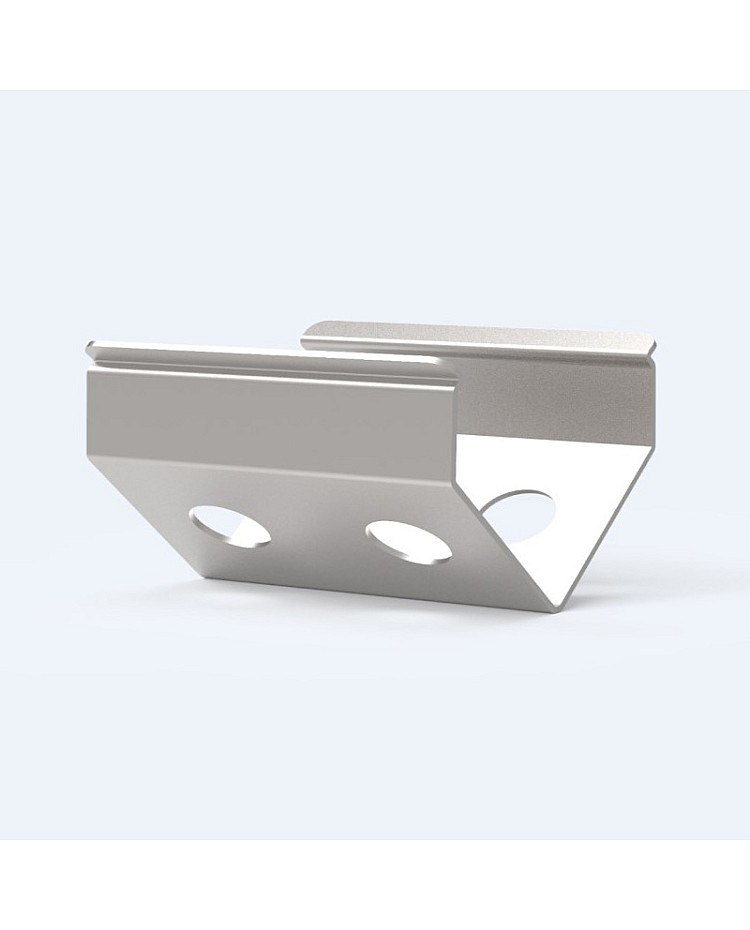

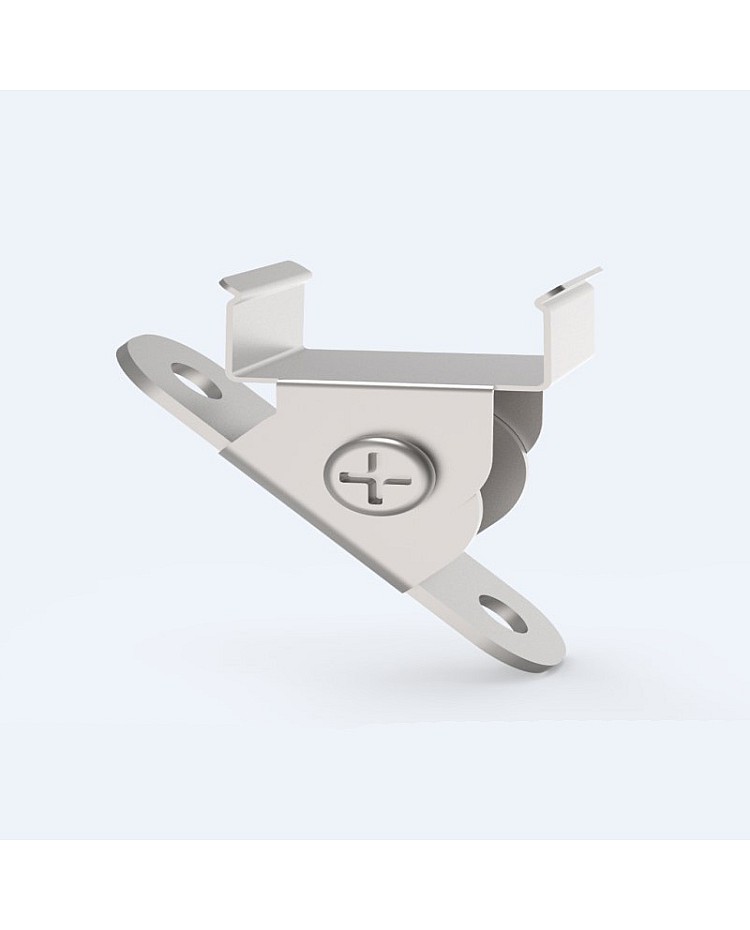

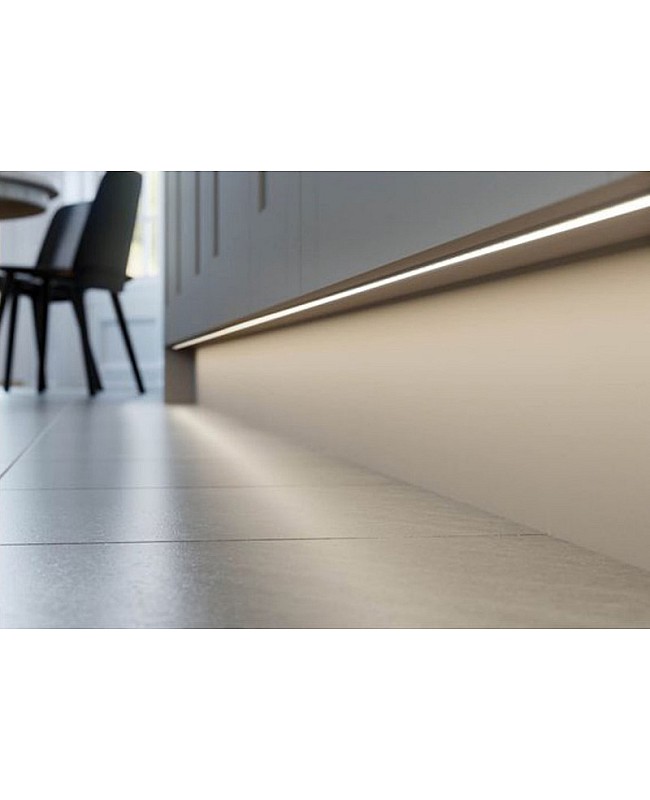

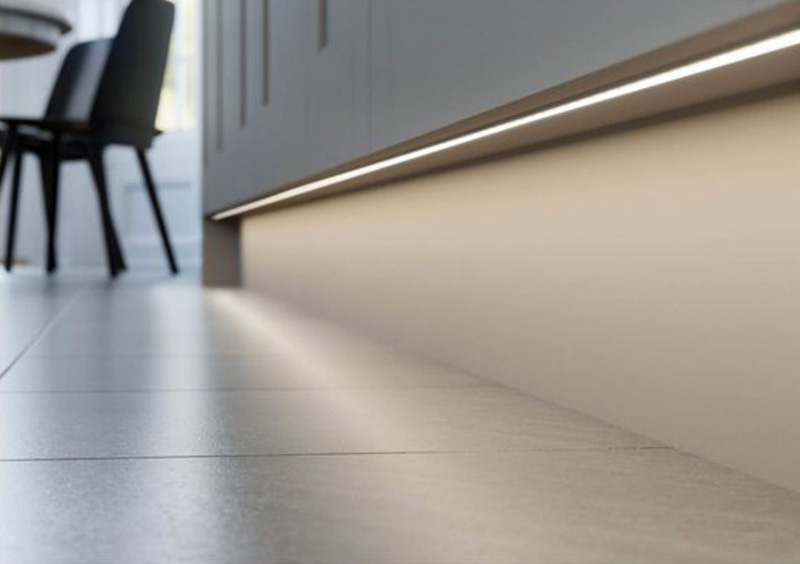

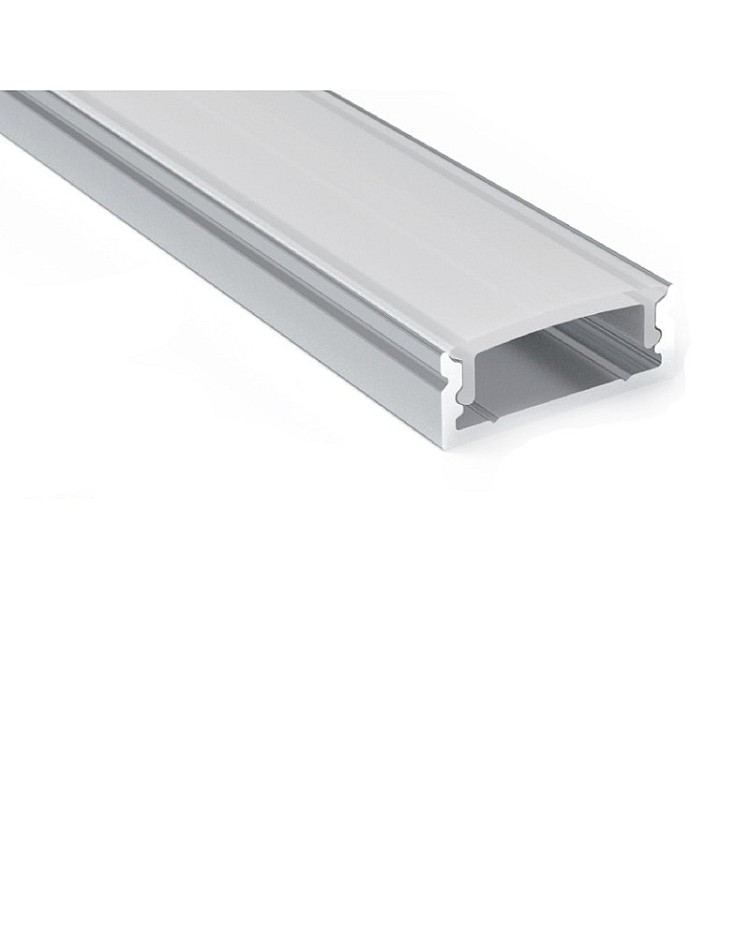

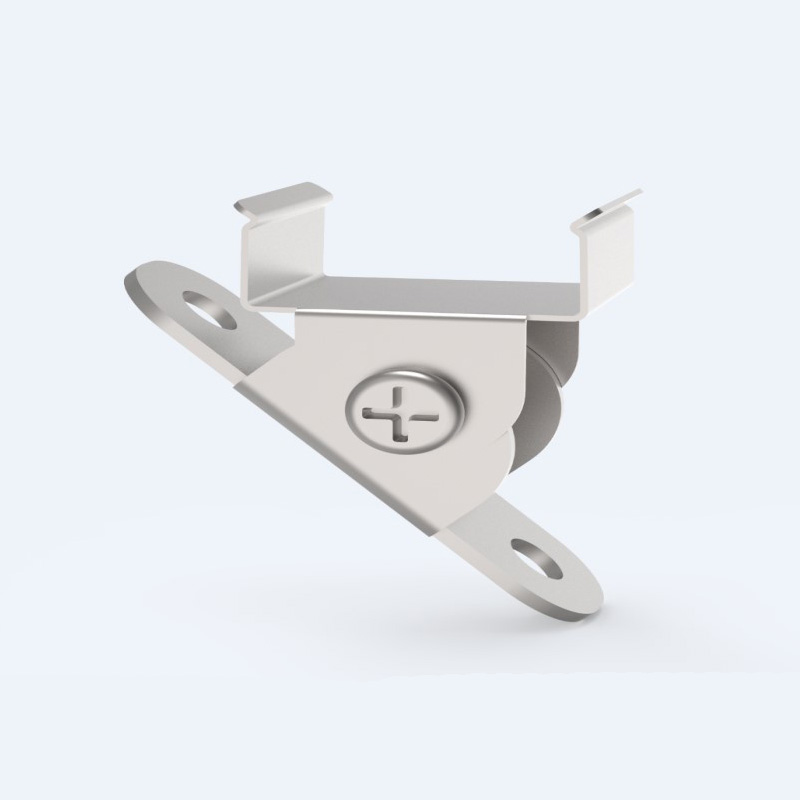

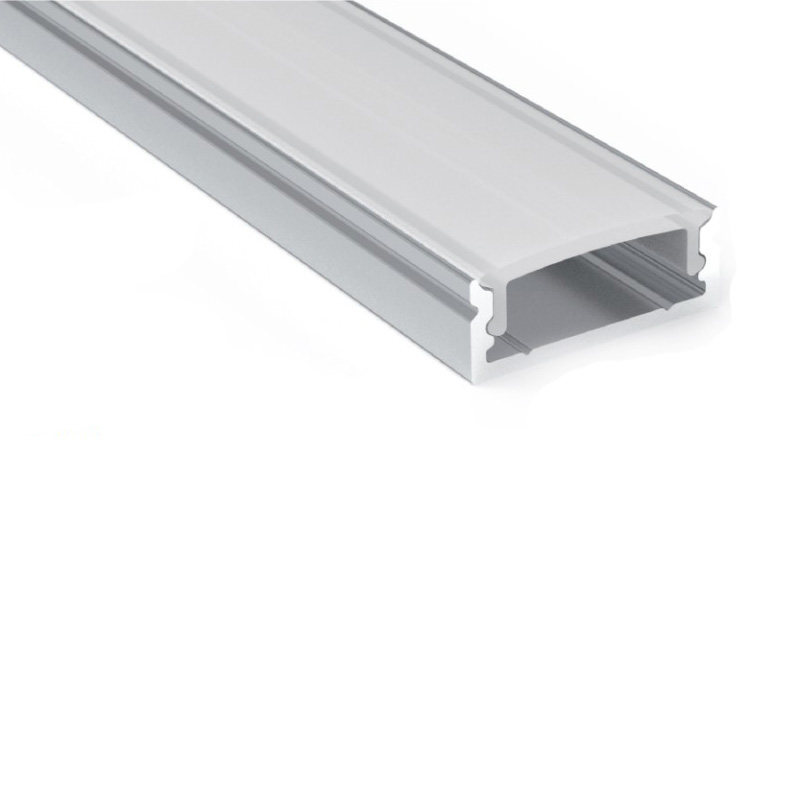

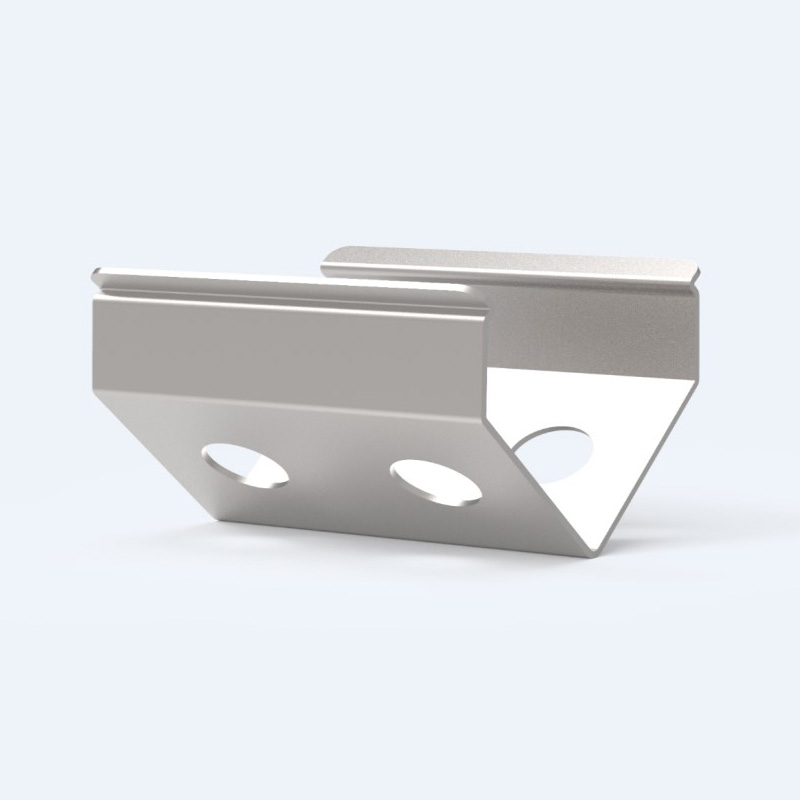

The ALP148 is a sleek, durable aluminum channel designed to house and conceal LED strip lights. The slim design makes it ideal for tight spaces where standard ones don't fit. They offer three types of mounting clips, each supporting multiple installation methods. You can choose adjustable brackets, metal mounting clips, and 45-degree mounting clips. Making it suitable for various applications: under-cabinets, furniture accent lighting, skirting boards, coves, staircases, and display shelves. There are three types of diffusers available to provide soft, uniform illumination at different brightness levels while eliminating LED glare. The diffusers are made of high-quality materials to prevent yellowing and ensure perfect light distribution. The slim LED profiles are made of extruded aluminum material and feature an anodized finish for enhanced oxidation resistance and a longer lifespan. The standard lengths are 1m and 2m, and can be easily cut to any length. They can also serve as heat sinks to enhance heat dissipation and extend the lifespan of LED strips. The inner width is 15.2mm, allowing a maximum strip light width of 15mm. With its minimalist design and high functionality, those low-profile LED light channels will offer modern aesthetics and reliable performance.

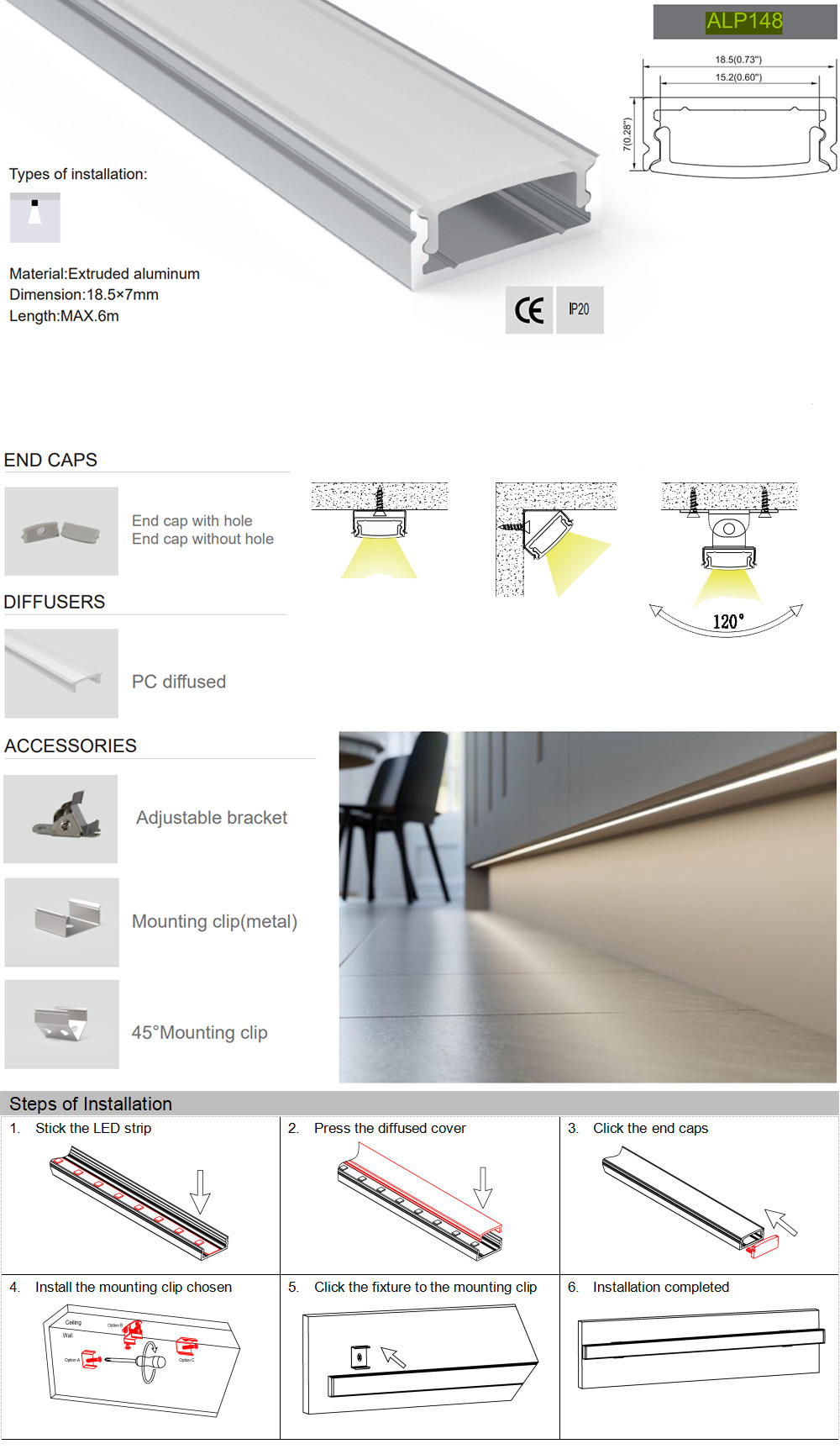

Specifications:
- Model: ALP148
- Material: Extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

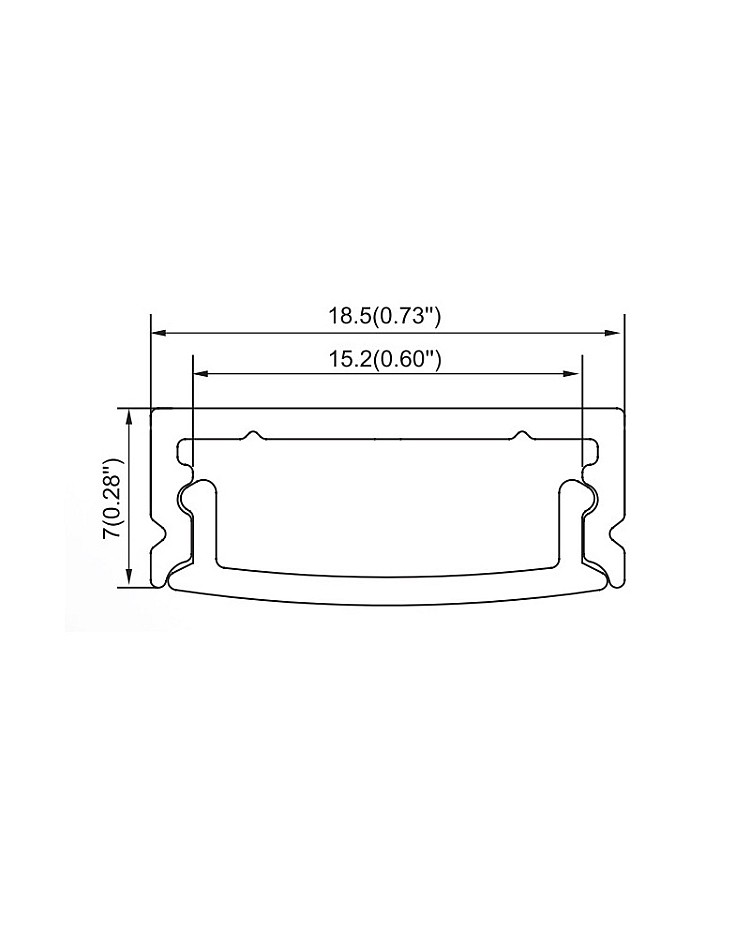

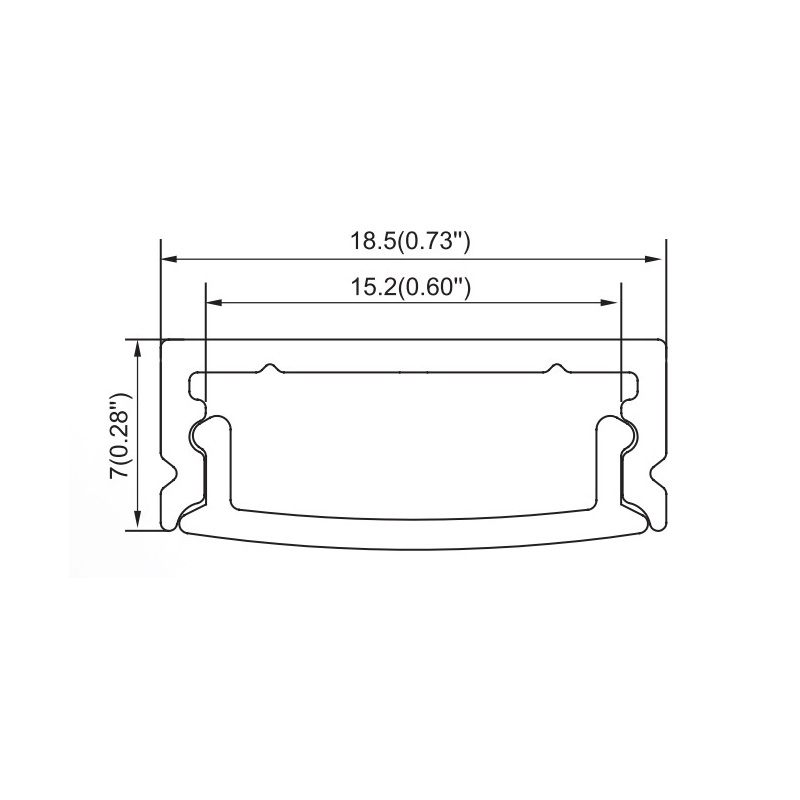

- Size ( W x H ): 18.5 mm x 7 mm ( 0.73" x 0.28" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Diffusers: PC diffused cover, PC semi-clear cover, PC clear cover
- Inner width: 15.2 mm ( 0.6" )
- Max width of LED strips: 15 mm ( 0.59" )
- Max power: 15W/m
- Beam angle: 100°
- Tolerance: ±1%
- IP rating: IP20 Non-waterproof

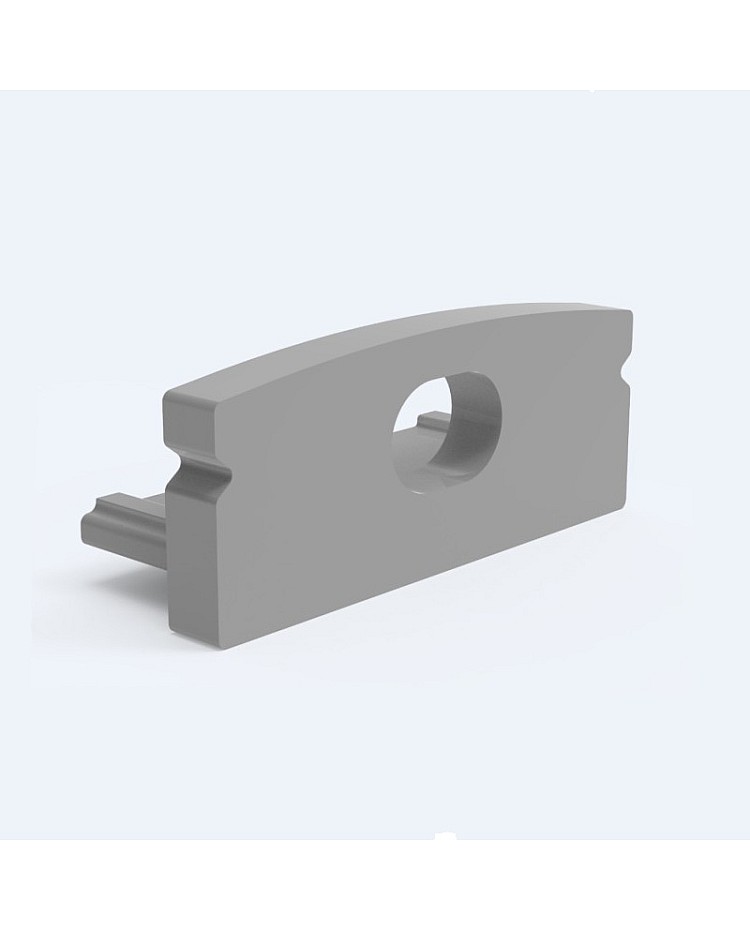

- End caps with and without wire hols are included
- Strip lights, dimmers, and light drivers are sold separately
- Installation: Surface-mounted
- Certifications: CE, ROHS
- Warranty: 5 years
Includes:
1 * LED channel track with diffuser

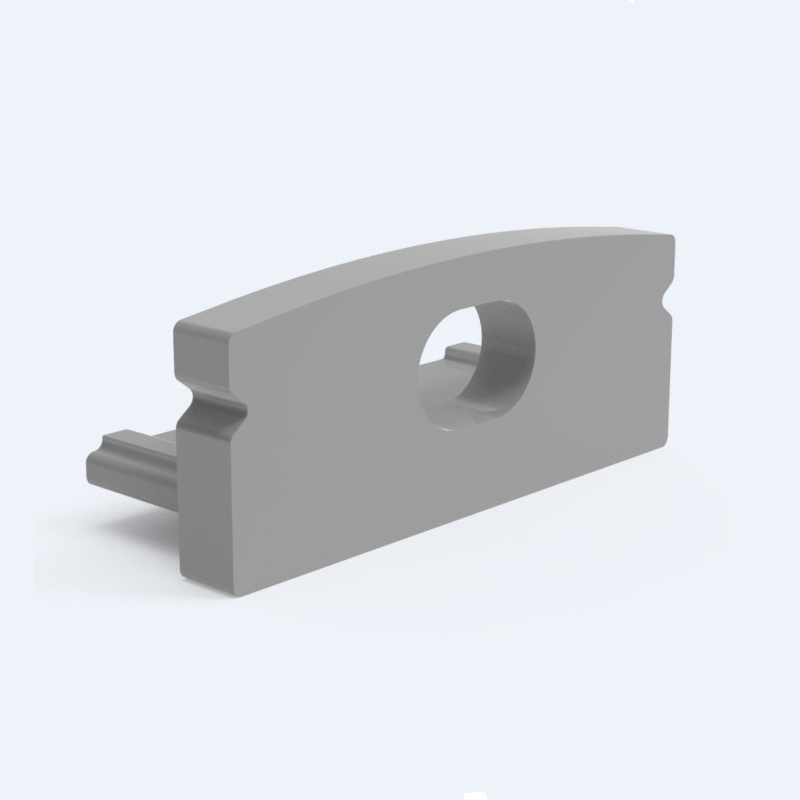

End caps (With/without wire hole)

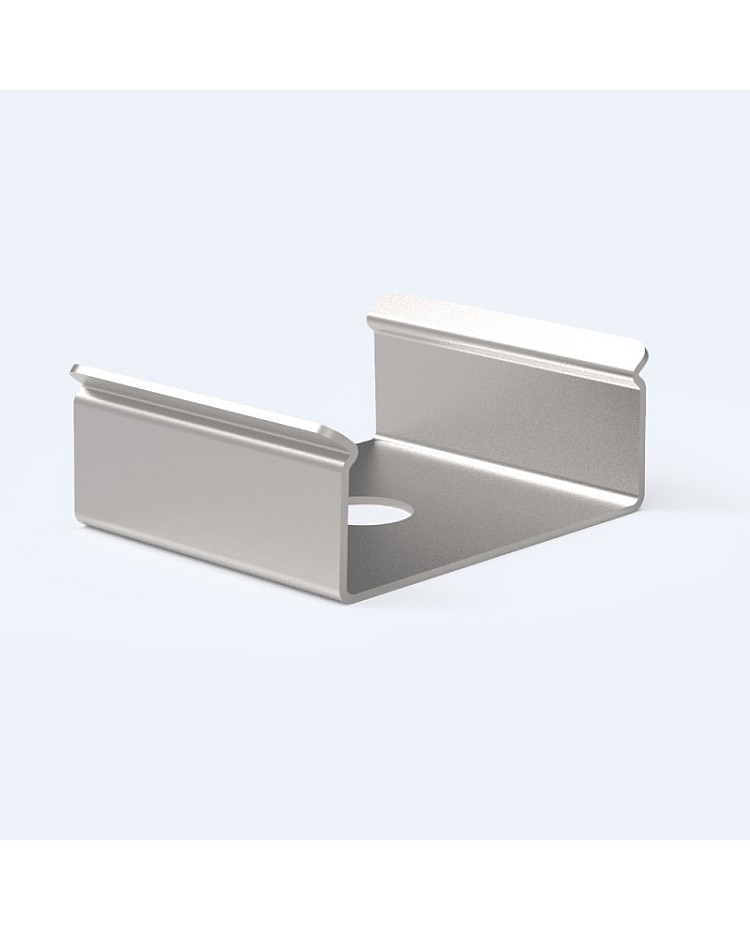

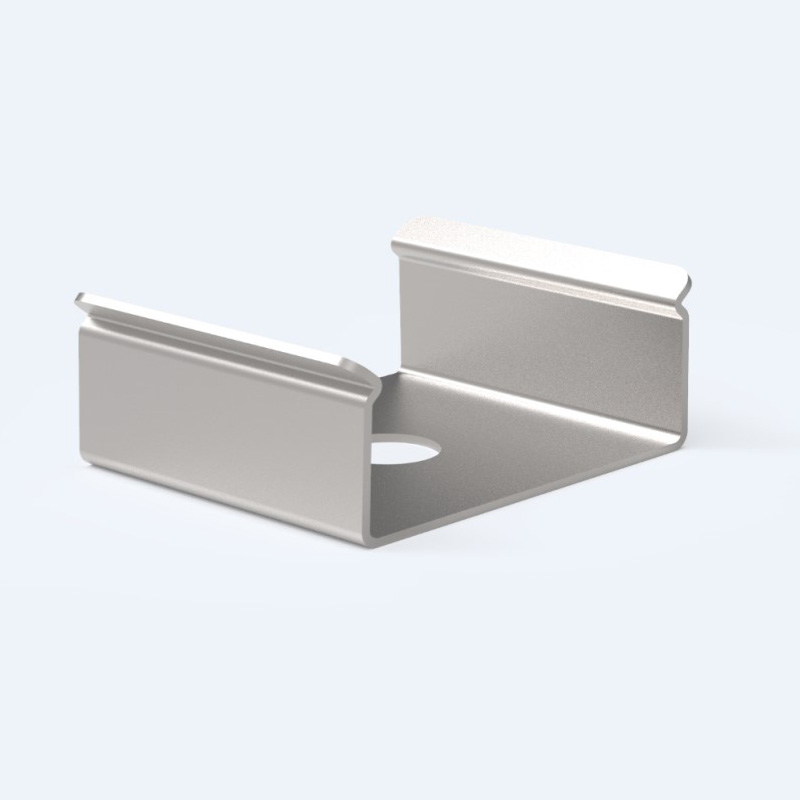

Metal clips
