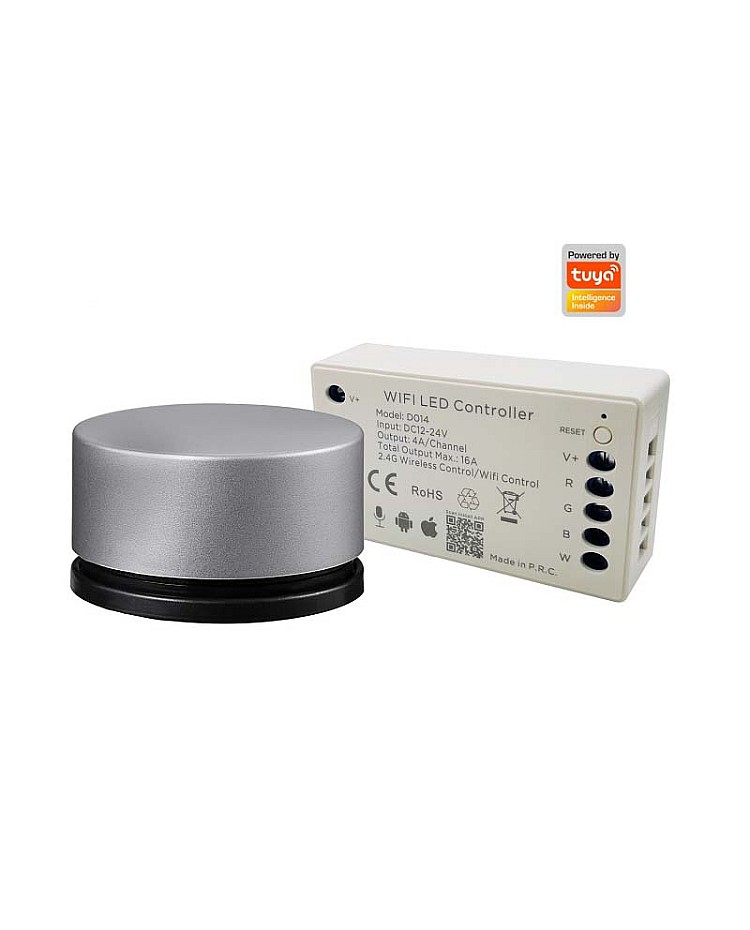

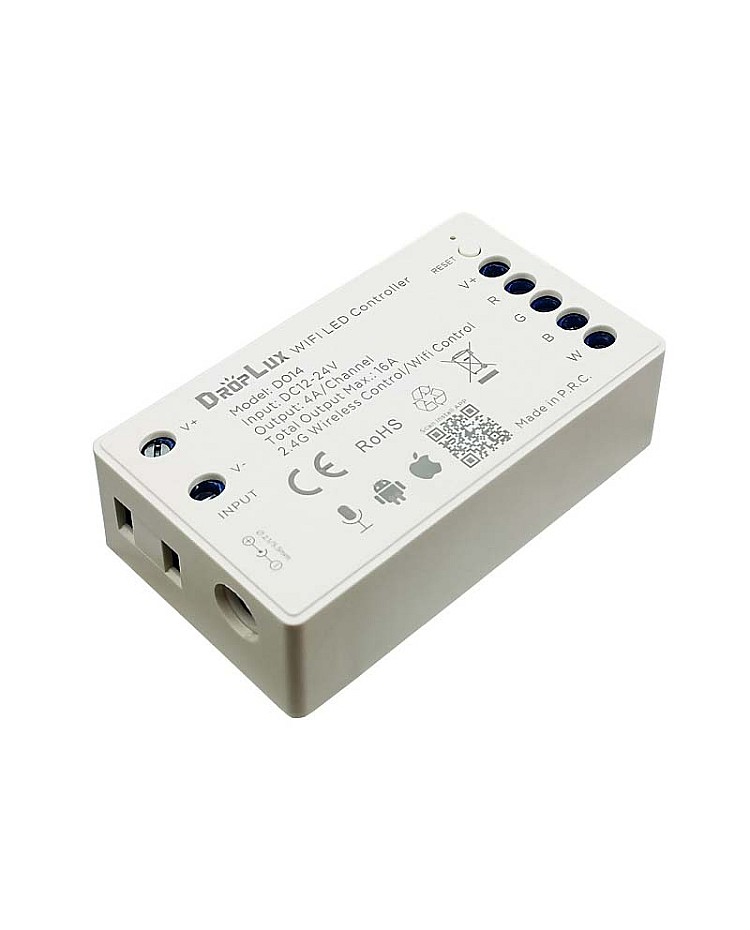

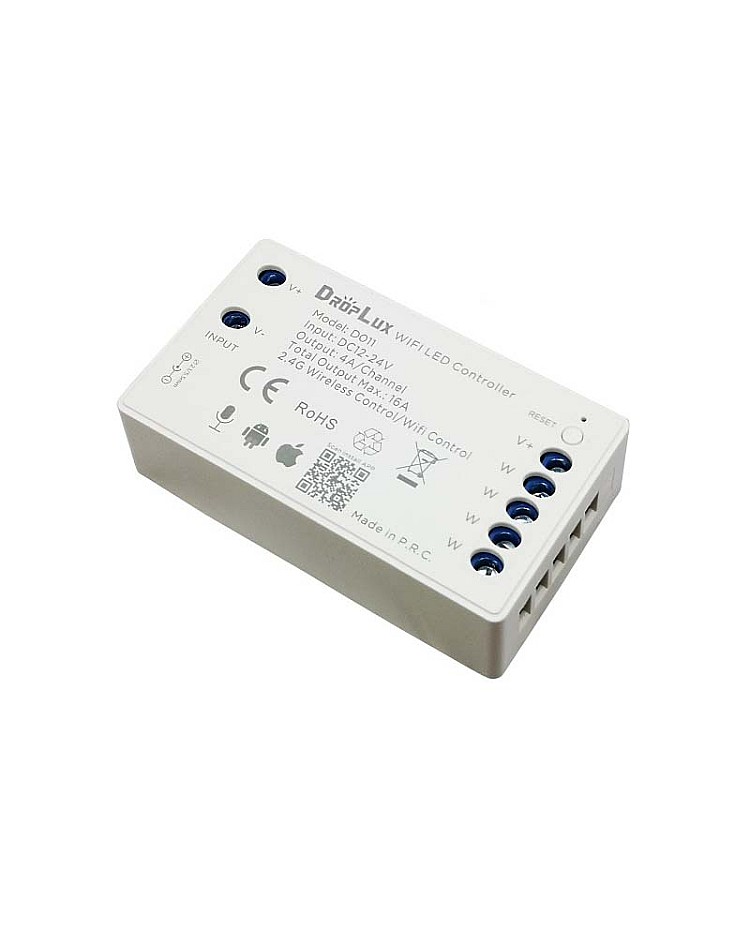

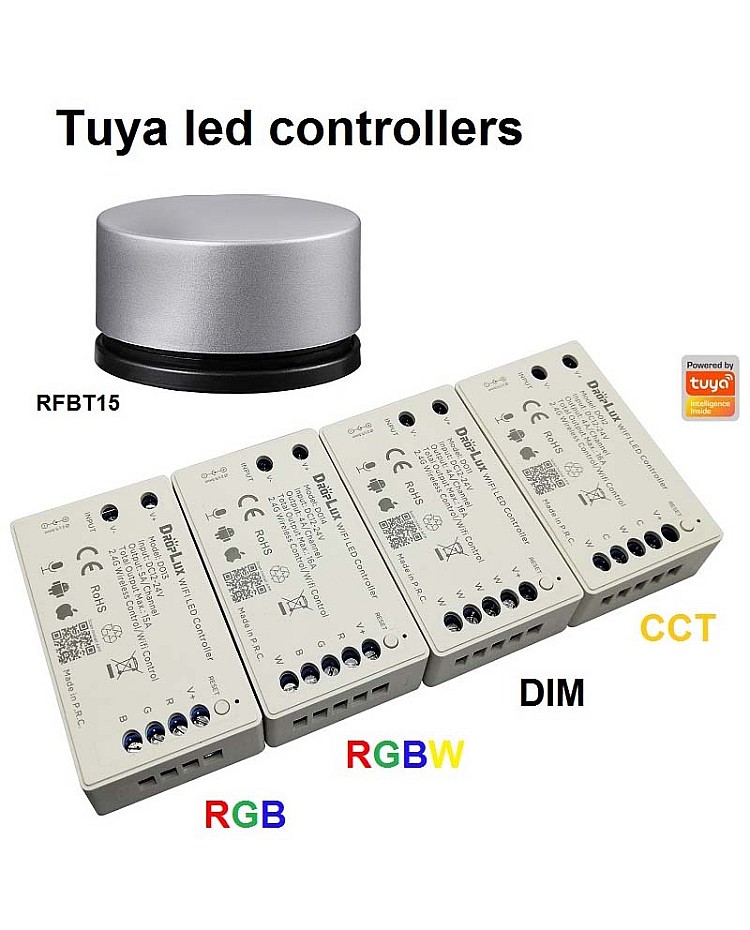

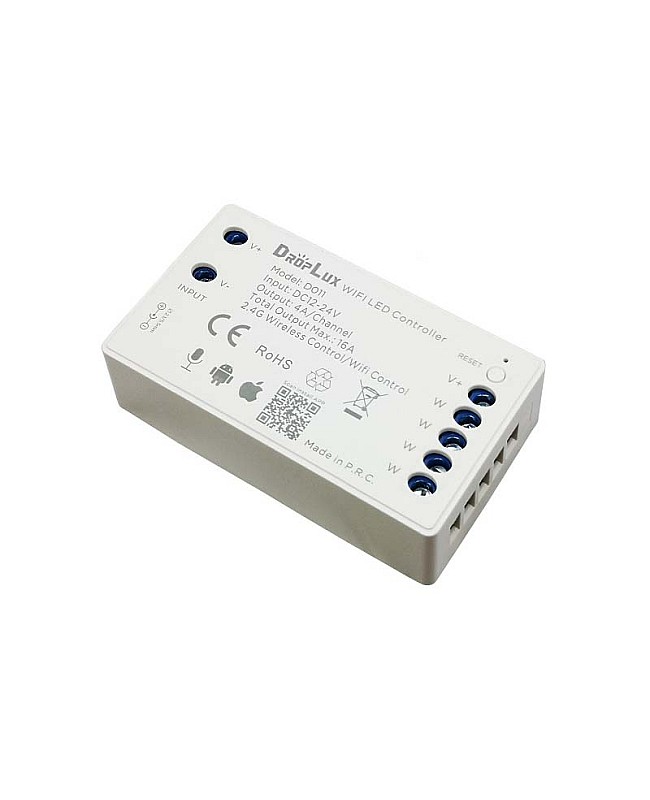

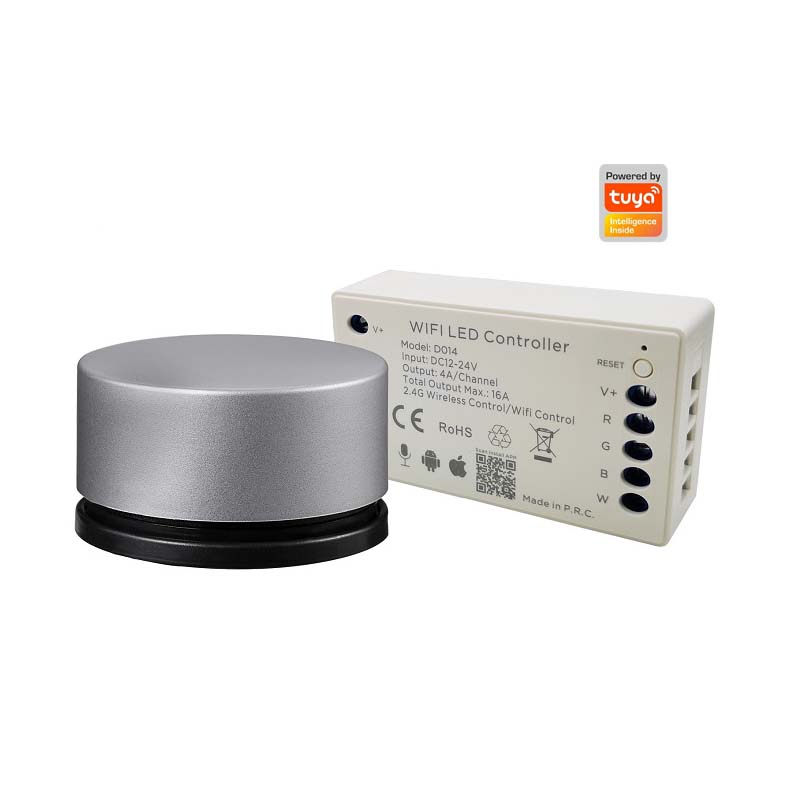

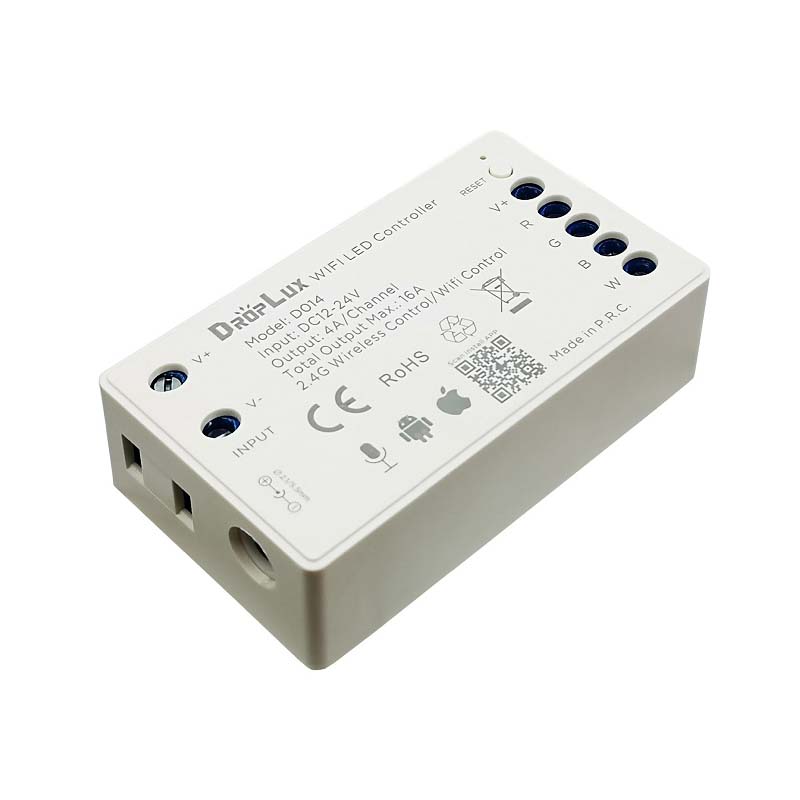

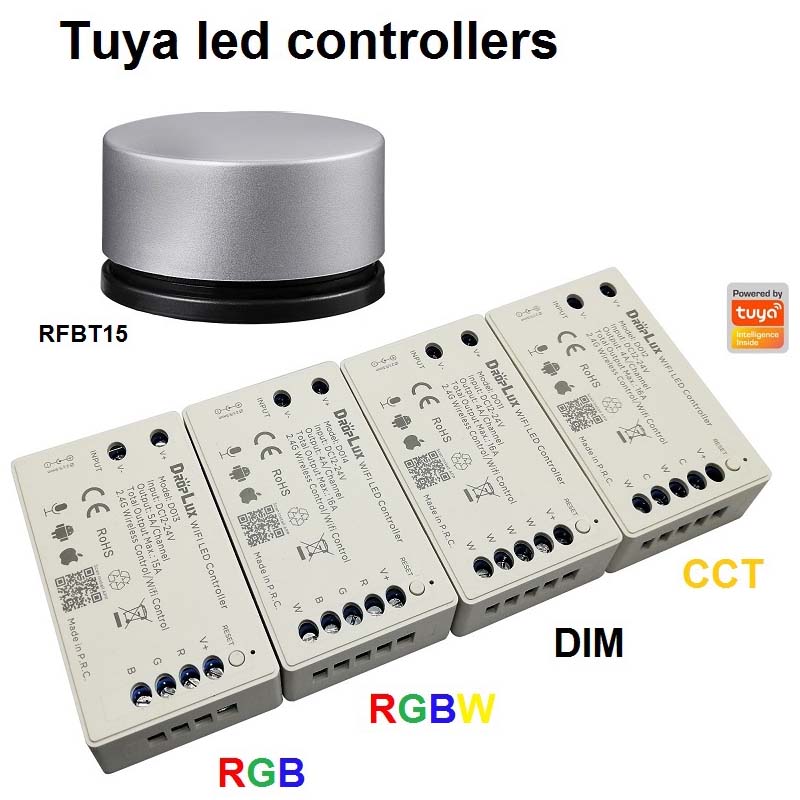

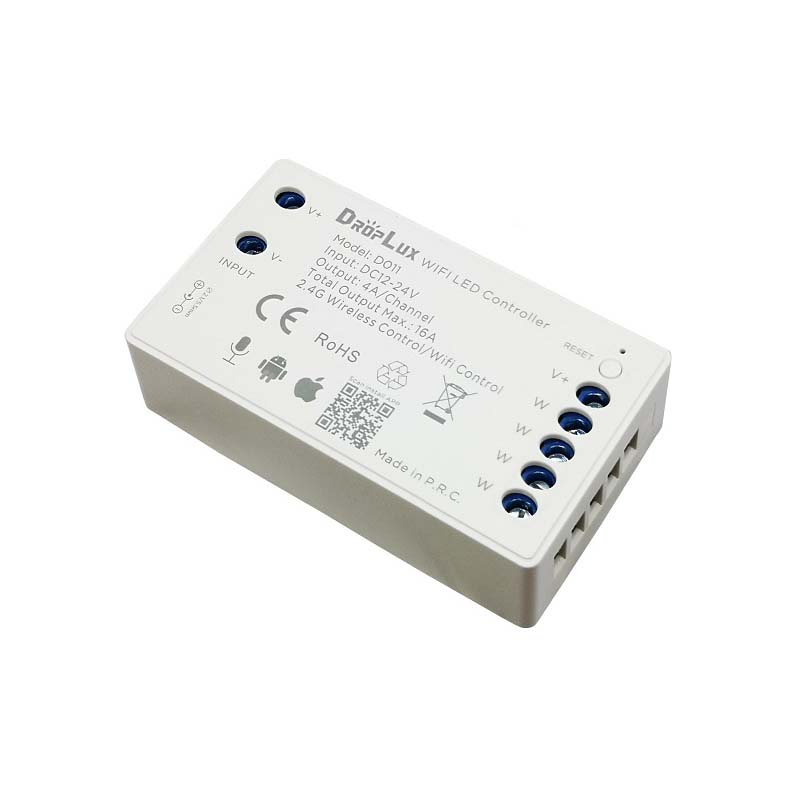

Check the TUYA series WIFI LED Controller for DIM, CCT, RGB or RGBW, the LED Controllers adopt the most advanced PWM(Pulse Width Modulation) digital control technology, working in 2.4GHz RF frequency and the WIFI control technology powered by TUYA, you can download the TUYA APP and control your LED Light by the App more smartly. the WIFI LED Controller also compatible with Amazon Alexa, Google Assistant and Yandex Alice. working in DC12V or DC24V, 4 output channels design, you can choose the various LED Controller, D011 for brightness-adjustable of single color LED Light, D012 for Dual White, D013 for RGB, D014 for RGBW. the max output current of each channel up to 4A, designed for the constant voltage LD light, the Wireless Rotate Remote included, you can press the remote to power on or power off the LED Light, rotate the remote to adjust the brightness of change the color-changing style simply.

WIFI LED Controller Features:

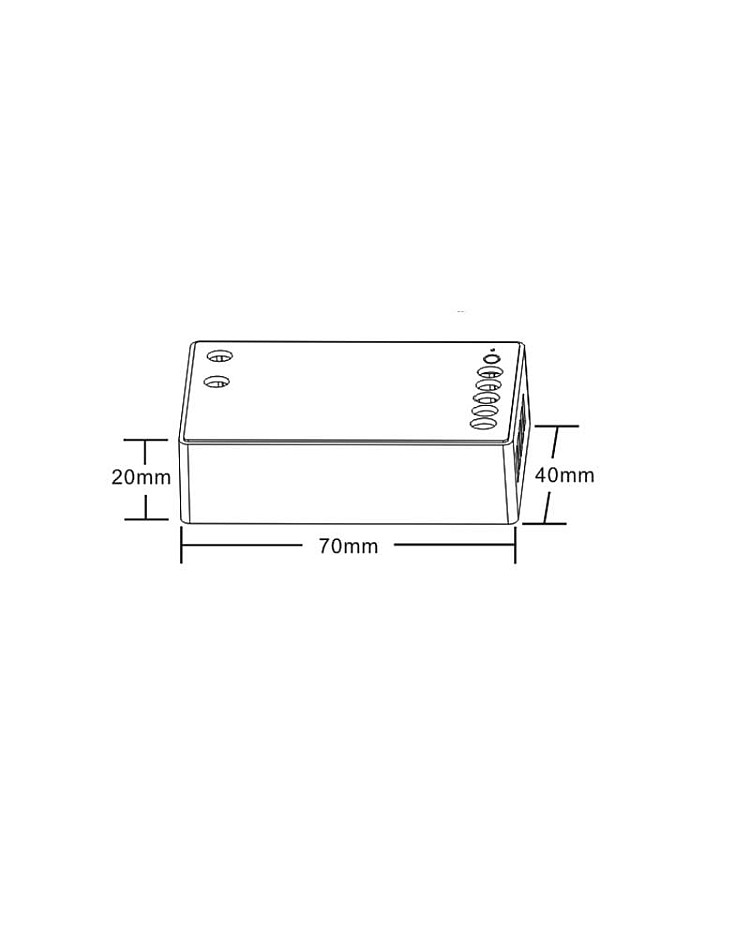

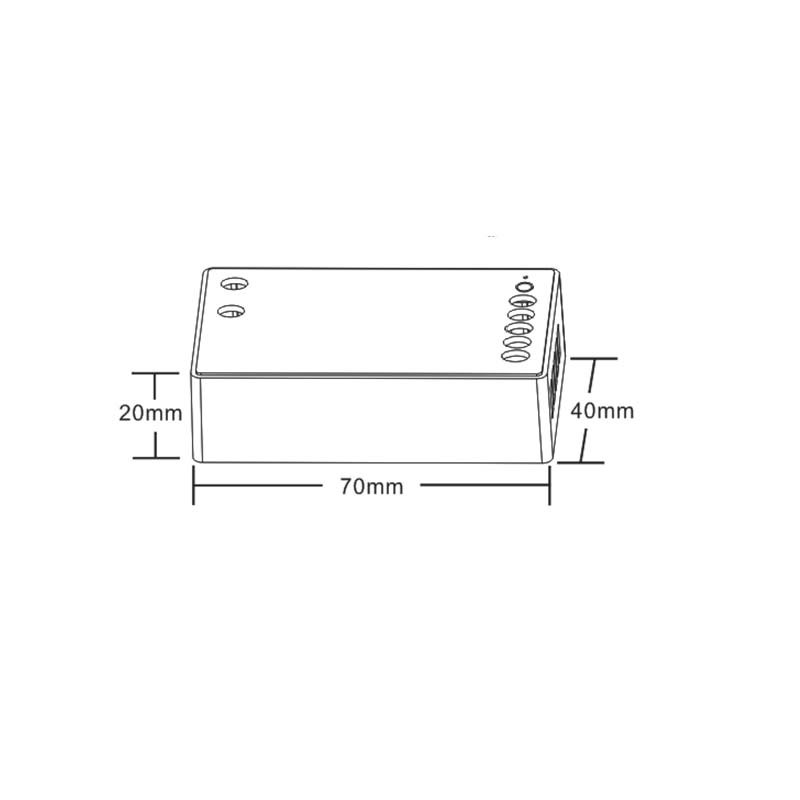

  • Size: 70*40*20mm
  • Working Temperature: -20℃~60℃
  • Working Voltage: DC12-24V
  • Static Power Consumption: <1W
  • Connecting Mode: Common Anode
  • Output Channels: 4
  • Output Current: ≤4A(Each Channel)
  • Max Output Power: 192W(12V)/384W(24V)
  • Grayscale: 1024 Levels
  • PWM Frequency: 1KHz
  • Speed Stage: 1024 Levels
  • RF Frequency: 2.4GHz
  • RF Distance: <20m
  • Short Circuit Protection: Yes
  • Memory Function: Yes
  • 3 Years Warranty

Wireless Rotate Remote Features:

  • Size: 60*60*35mm
  • Working Temperature: -20-60℃
  • Powered By 2PCS AAA Batteries
  • Working Voltage: DC3V
  • Standby Current: <25uA
  • Emission Current: <17mA
  • Sleep Power Consumption: <75uW
  • Emission Power Consumption: <51mW
  • RF Distance: <30m
  • RF Frequency: 2.4GHz
  • Accessories: 1*Holder,1* 3M Foam Sponge Glue


1*Smart TUYA WIFI LED Controller

1*Wireless Rotate Remote

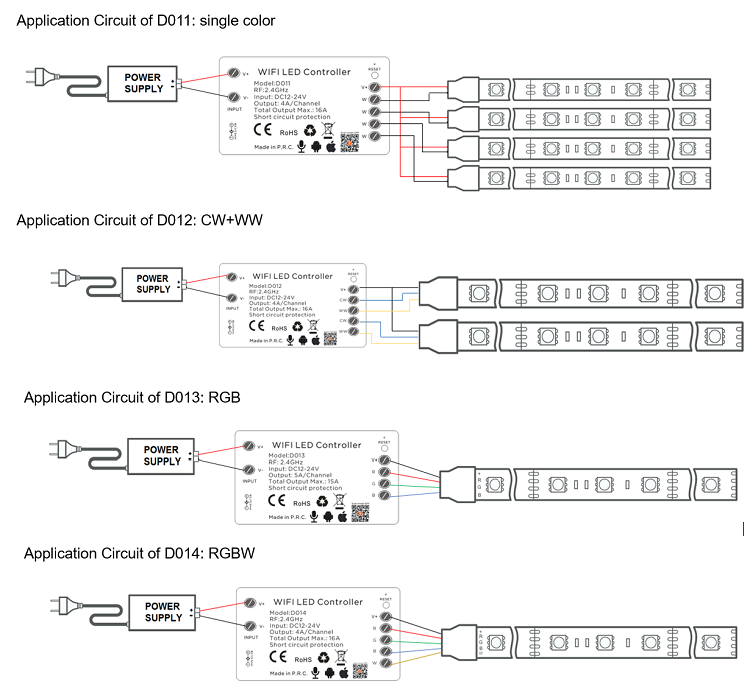

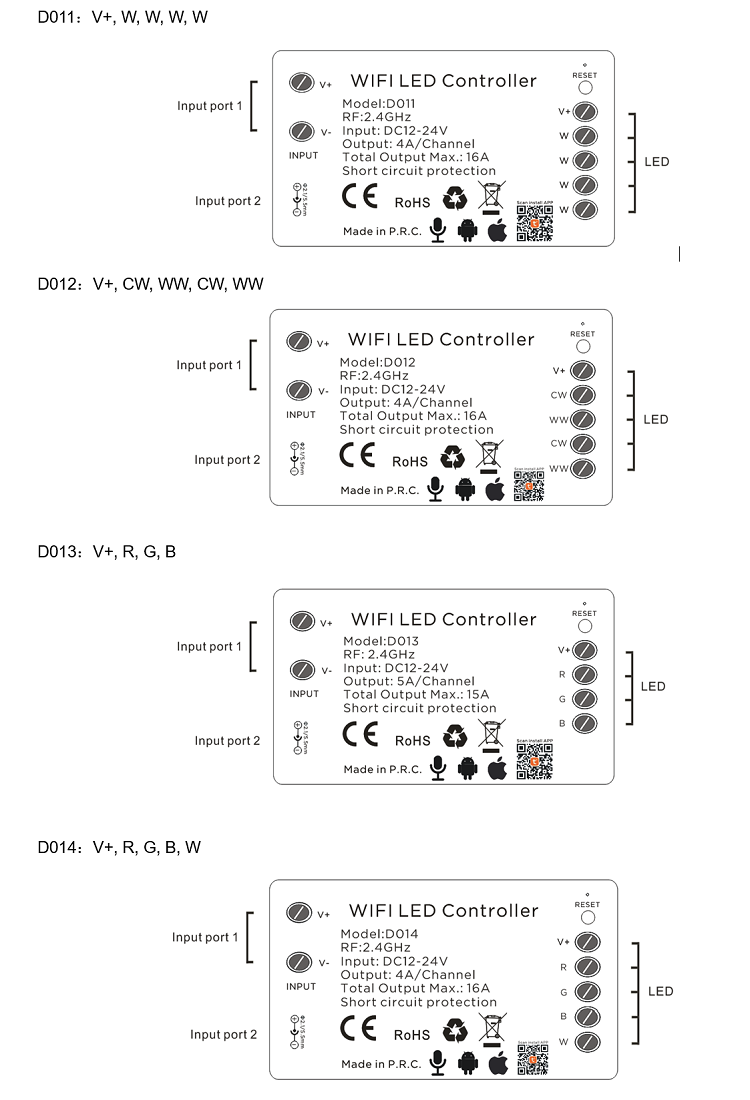

Smart Wireless LED Controllers Wireless LED Controller Applications
