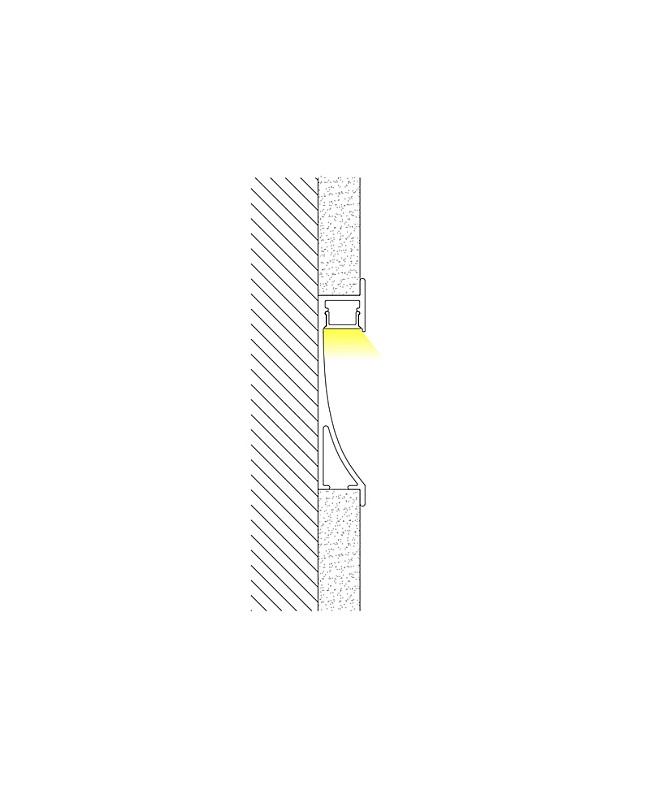

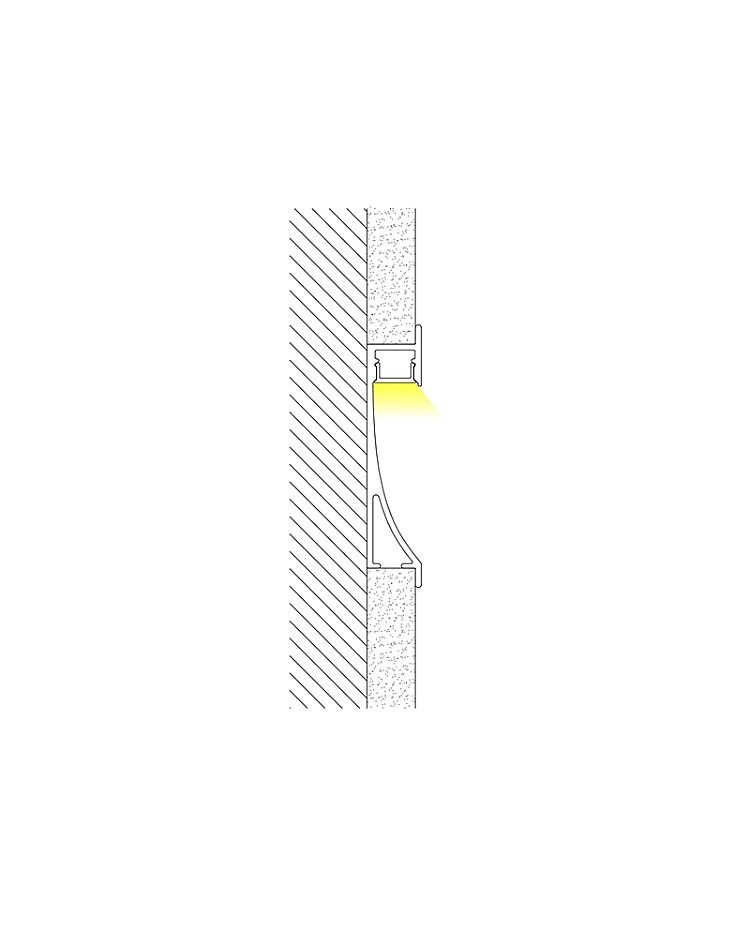

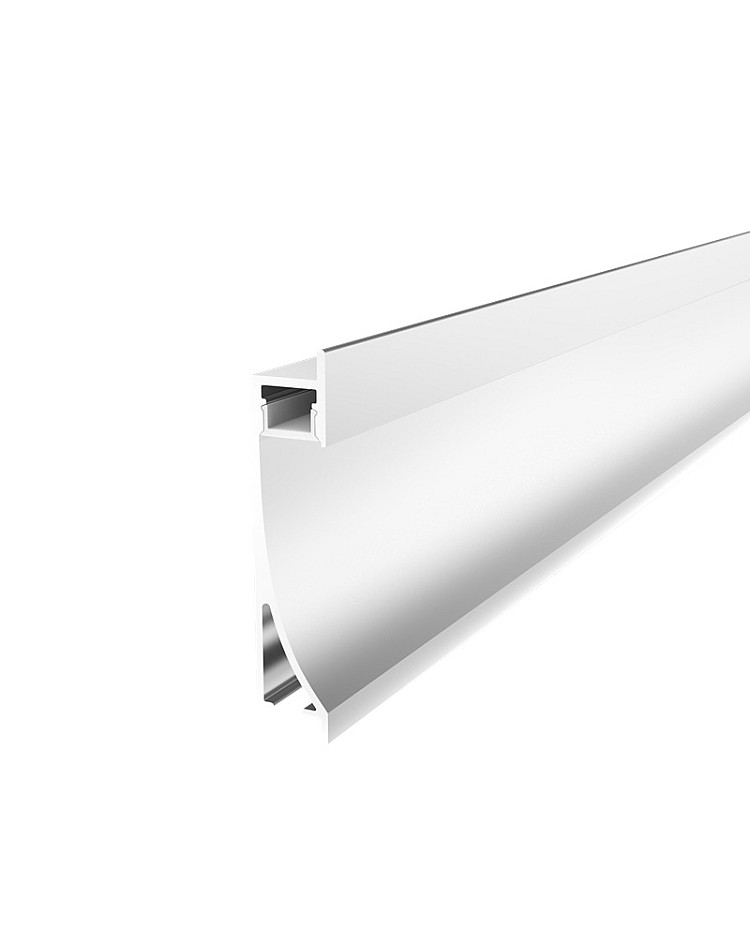

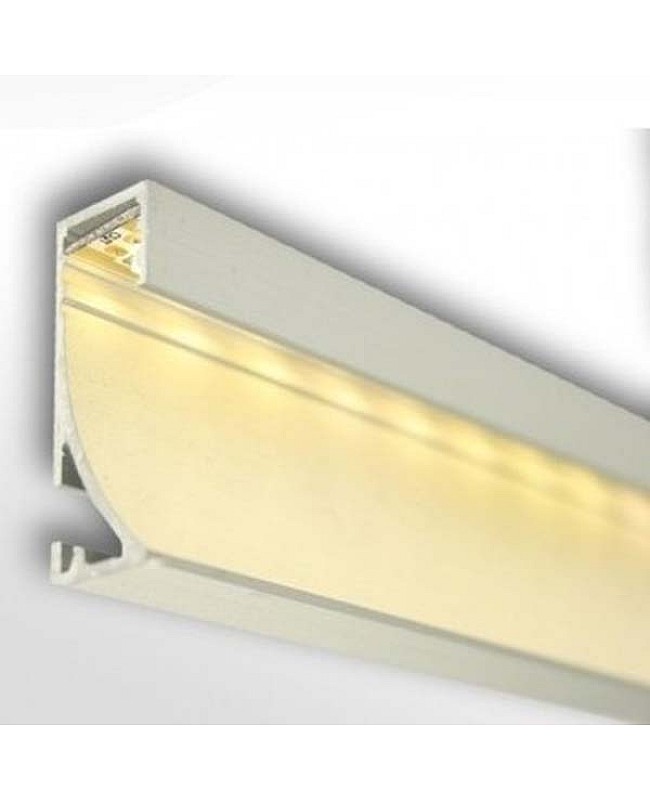

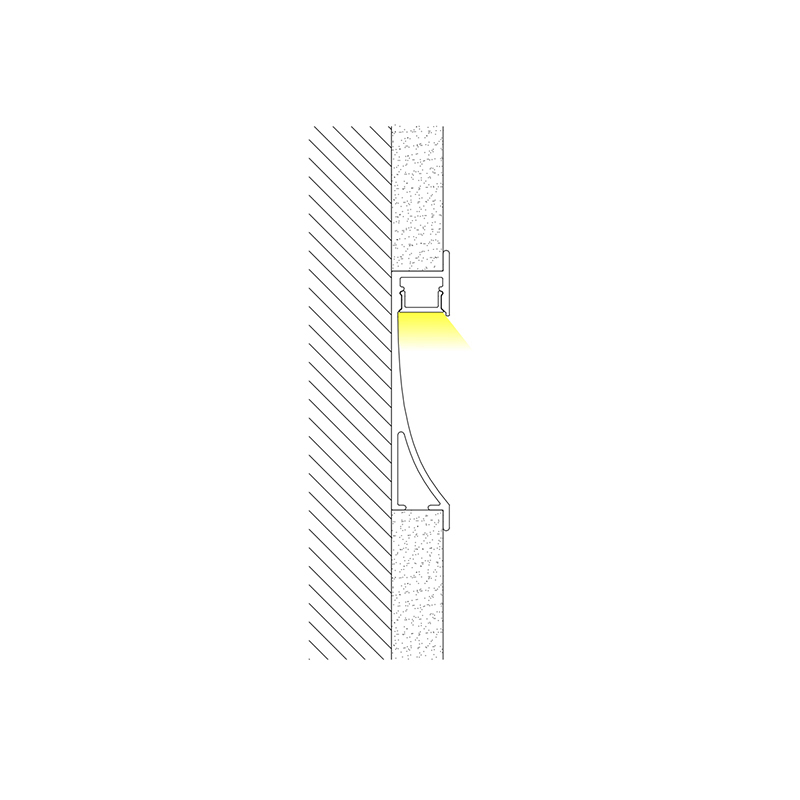

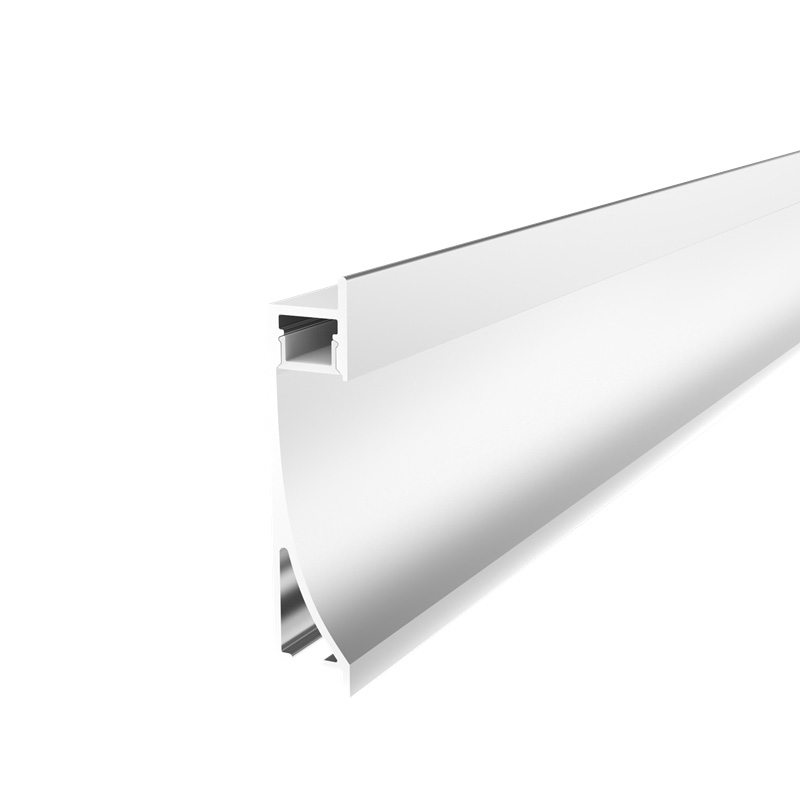

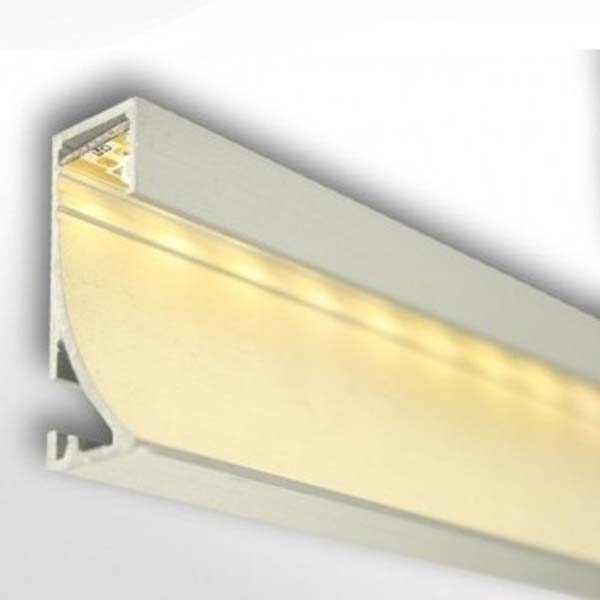

Those aluminium light profiles are designed for clean, integrated lighting along staircases, walls, and baseboards. They can be seamlessly recessed into drywall to create a flush, indirect lighting effect that's both functional and decorative. There is a reflective area that allows the light to shine indirectly on the walls or floors. The inner width is 10.3 mm, allowing for a maximum width of 10 mm for the LED strips. The indirect light LED channels are made of 6063-T5 aluminum alloy material and feature a silver anodized surface treatment, which enhances their anti-oxidation properties and prolongs their lifespan compared to similar products. Only one type of diffuser is available: a PC diffused cover, made of high-quality brand material with stable properties, anti-yellowing properties, and perfect light distribution, ensuring even light diffusion. The standard lengths are 1 m and 2m. You can cut to any size you need for your project, and custom lengths are also available. The end caps, with and without wire holes, are included, making it easy to connect the LED light to LED drivers or controllers. The LED skirting profiles are not waterproof and should only be used indoors.

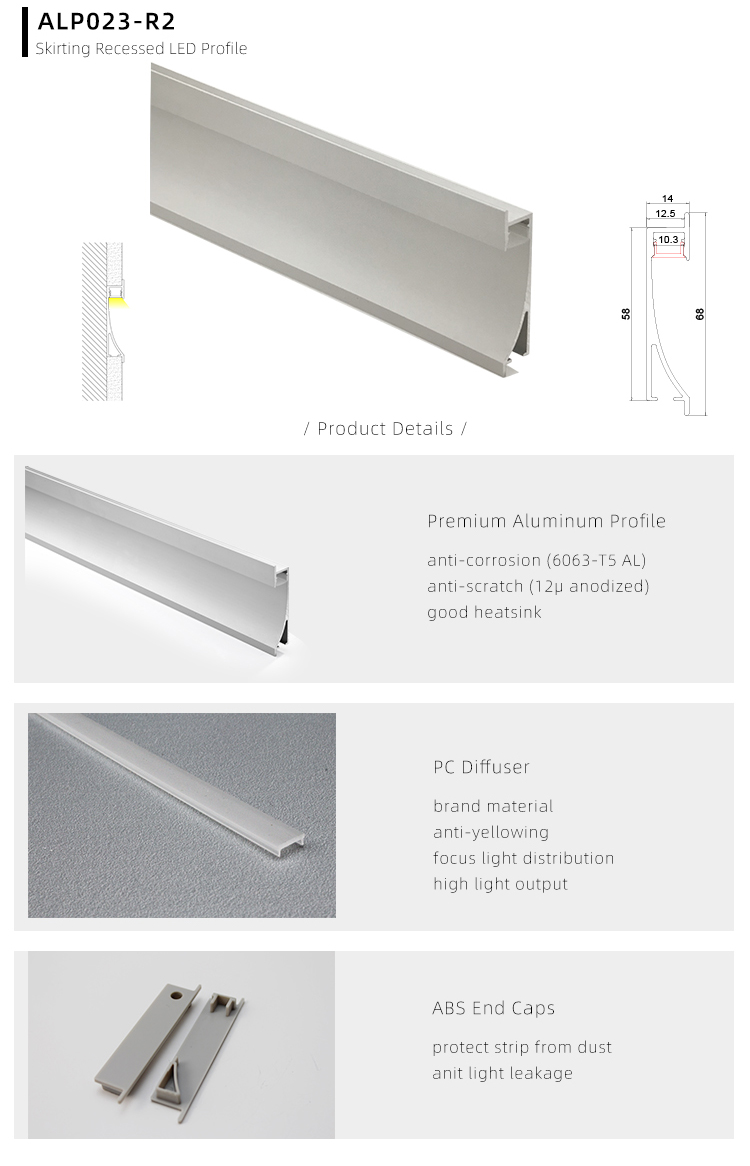

Specifications:
- Model: ALP023-R2
- Material: Aluminium alloy ( 6063-T5 )
- Surface treatment: Anodized
- Color: Silver

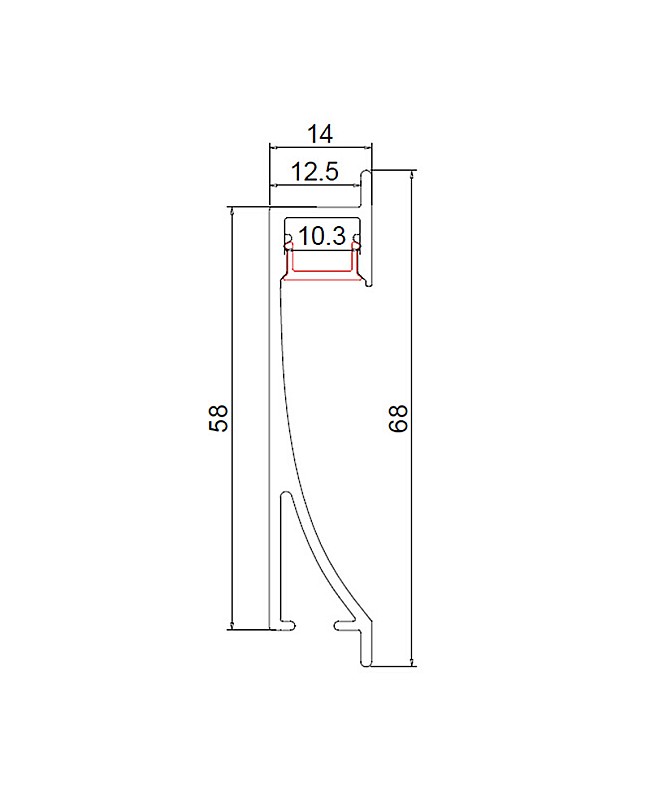

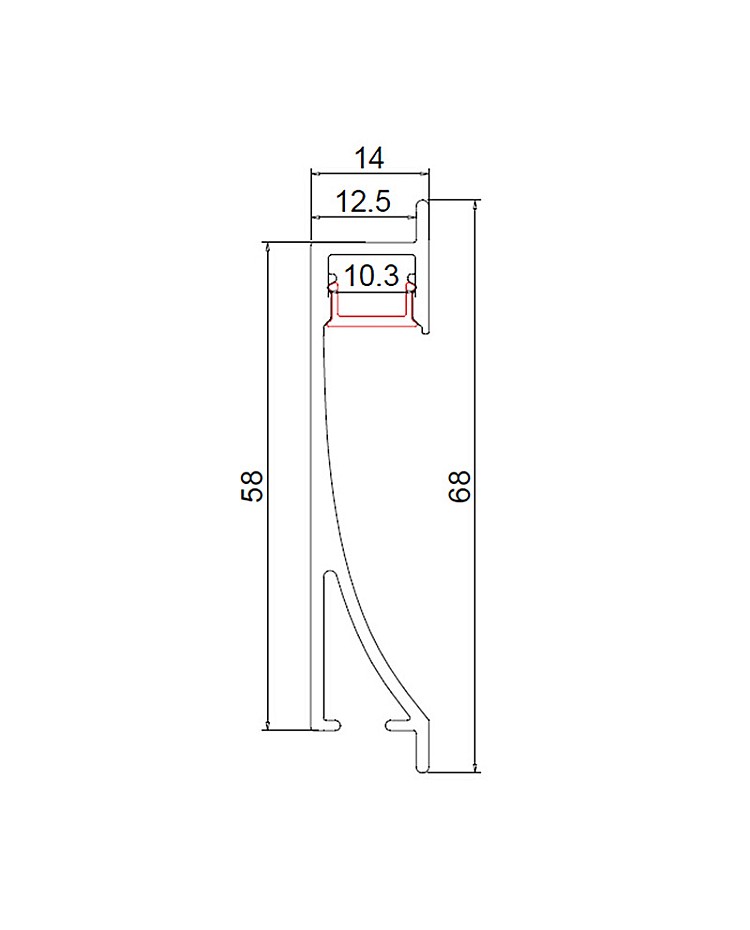

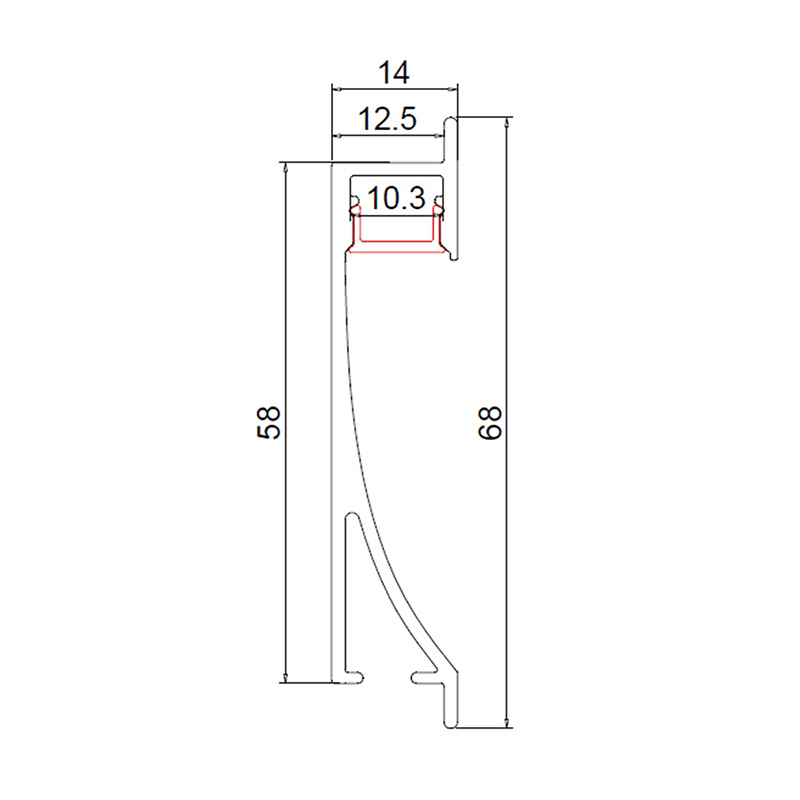

- Size ( W x H ): 68 mm x 14 mm ( 2.68" x 0.55" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 10.3 mm ( 0.41" )
- Max LED strip width: 10 mm ( 0.39" )
- Max power: 15W/m
- Diffusers: PC diffused cover

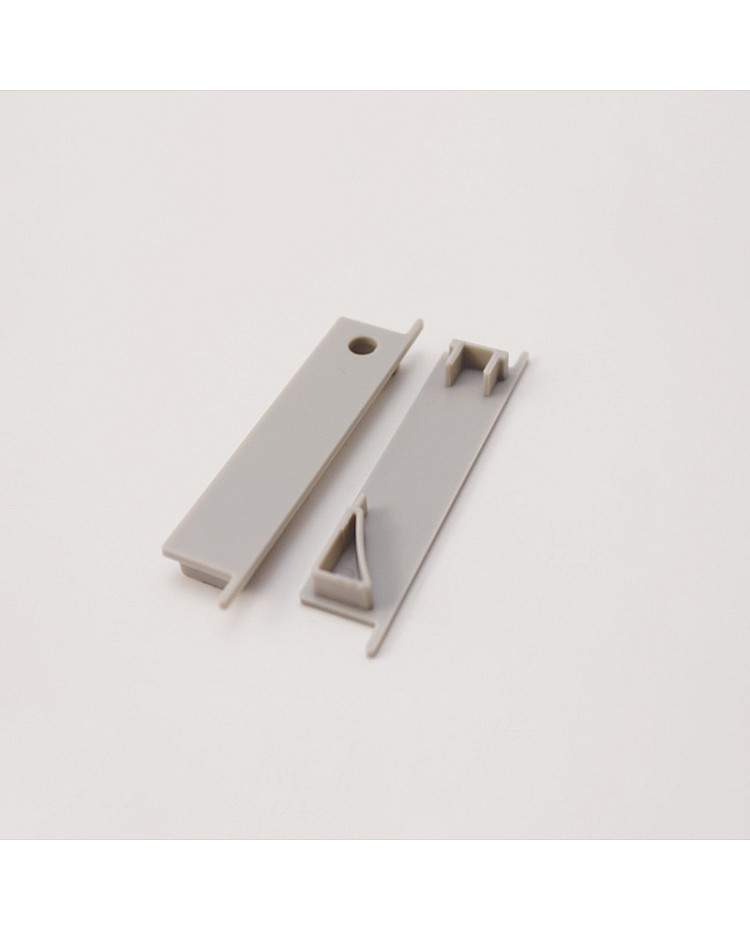

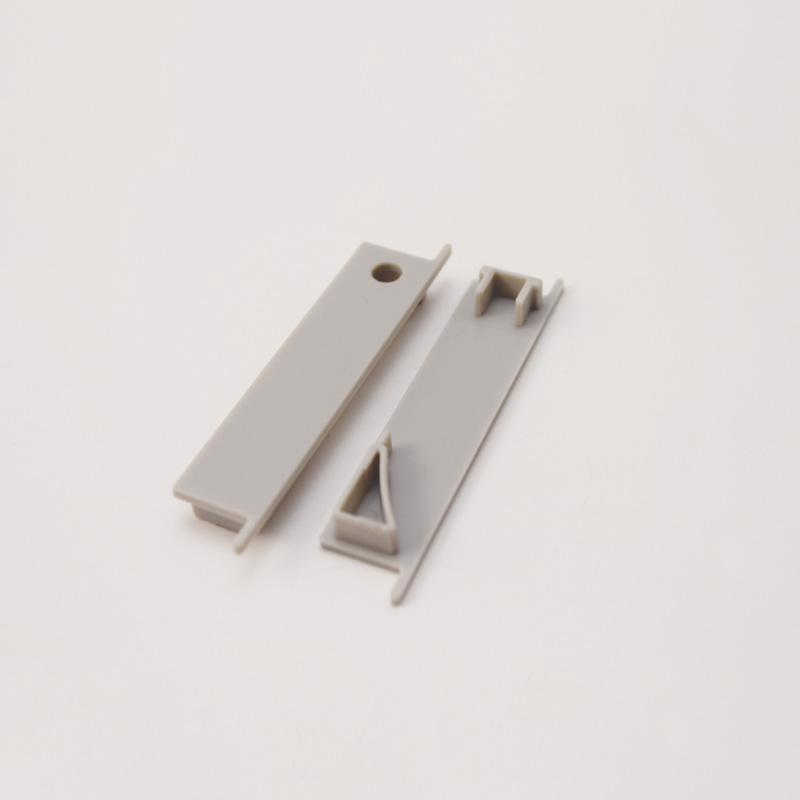

- End caps with and without wire holes are included
- LED light strips are sold separately

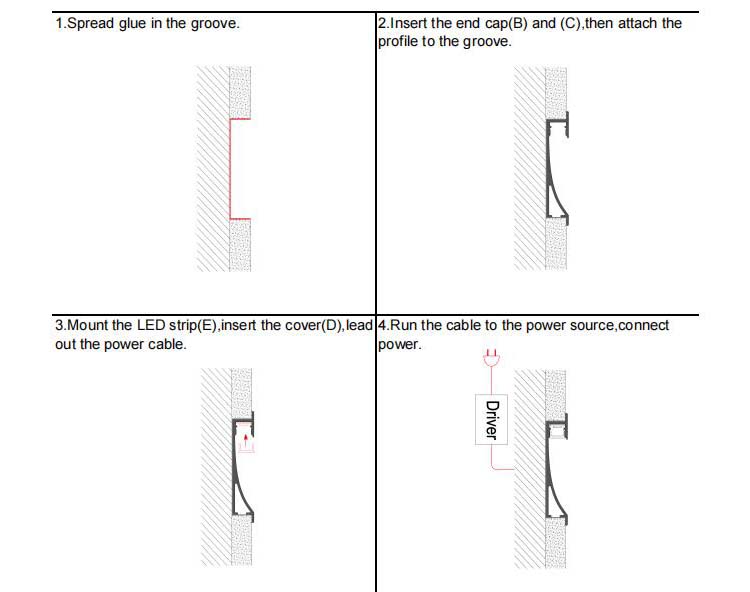

- Installation: Recessed
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

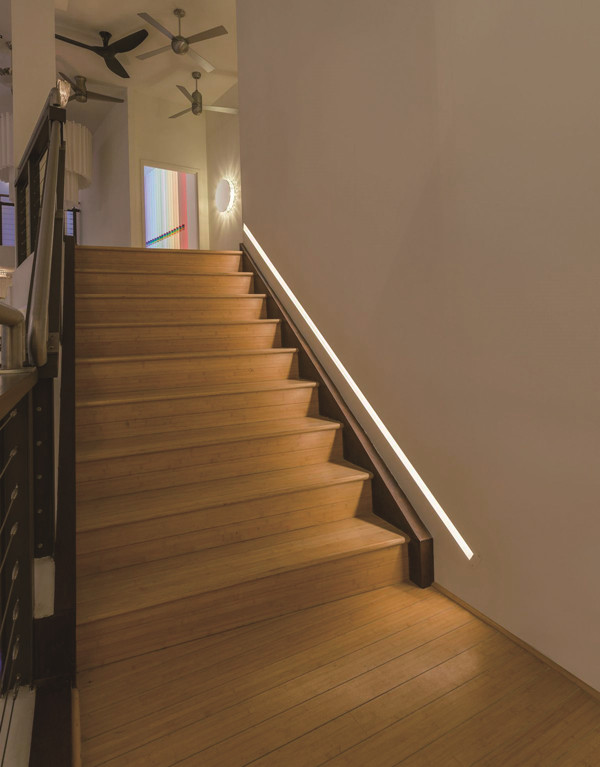

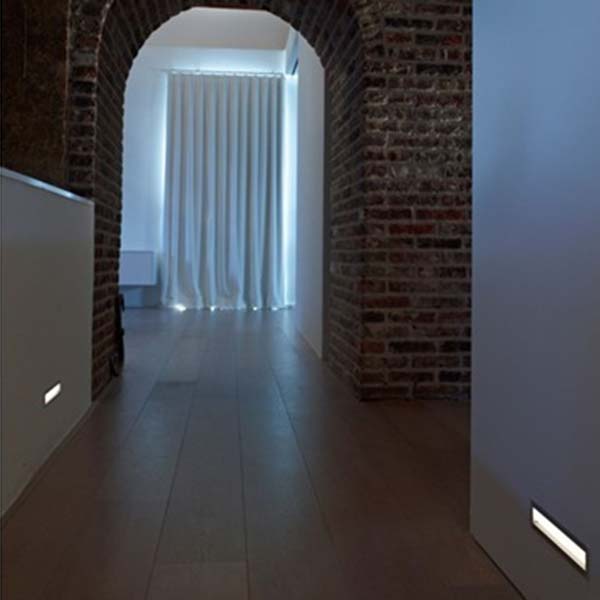

- Indirect wall lighting
- Wall-recessed skirting lighting

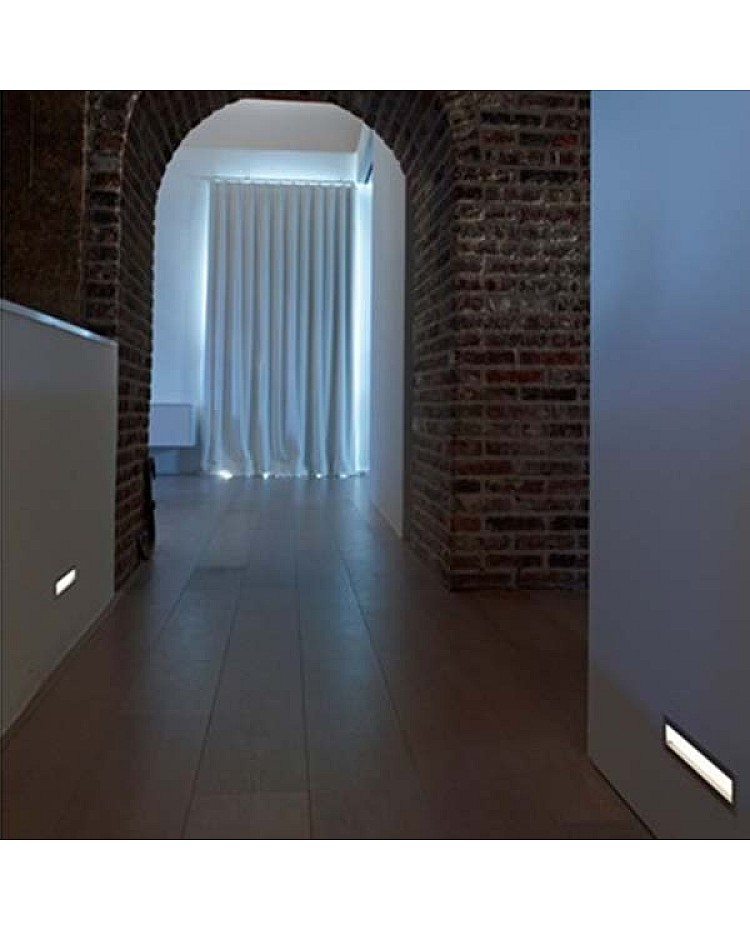

- Hotel and residential hallway illumination
- Architectural accent lines in lobbies or galleries
- Indirect lighting for safe navigation at night

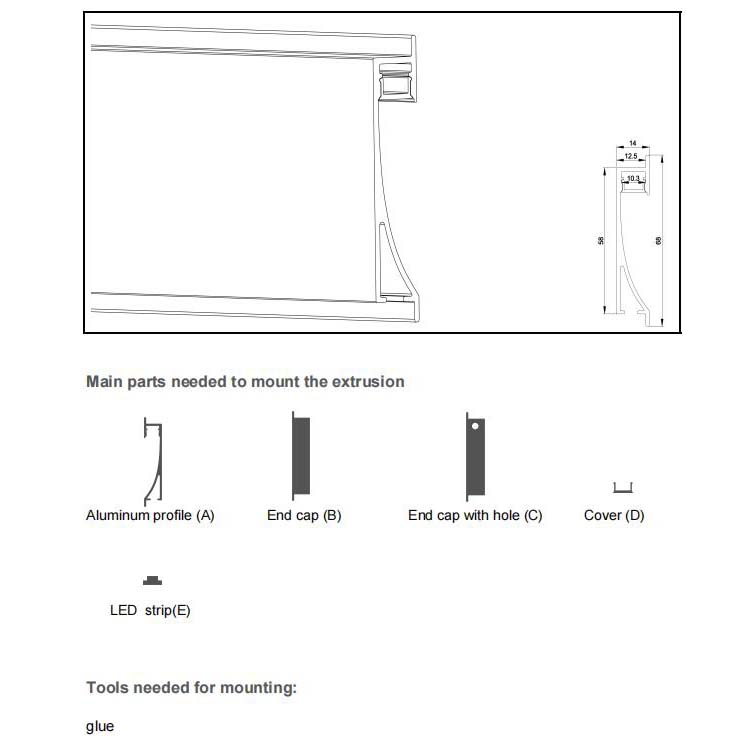

Includes:
1 * Recessed aluminium profile for LED light with diffuser
End caps ( With/without wire holes )
