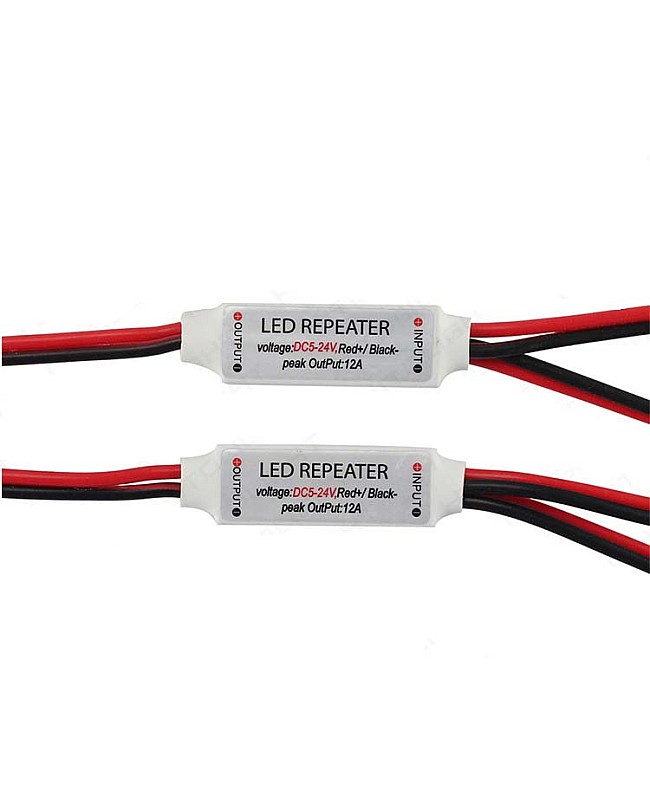

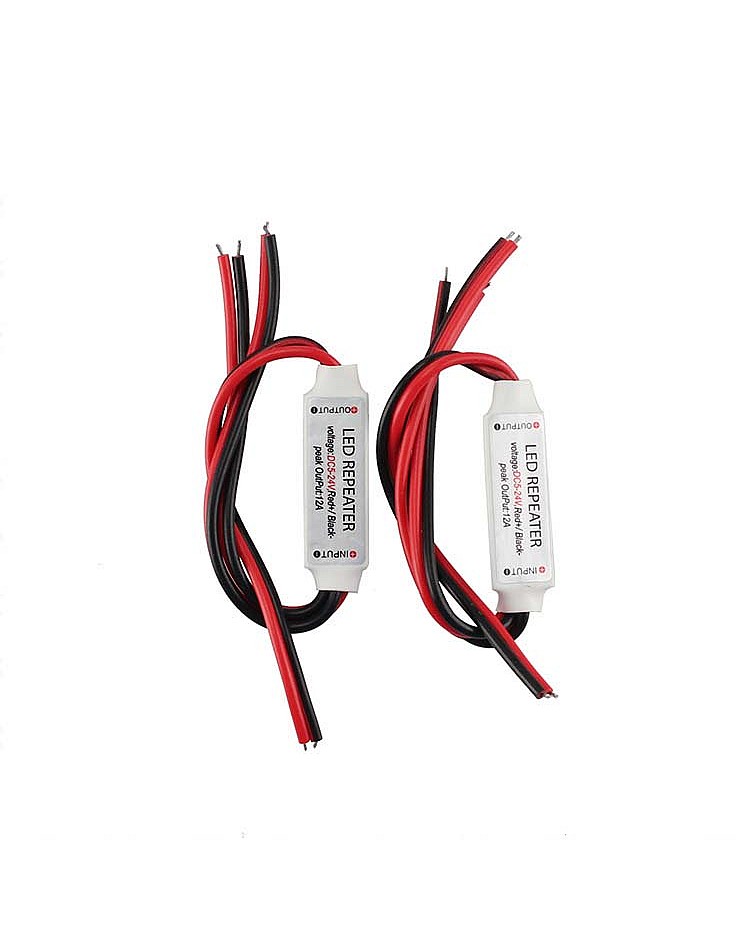

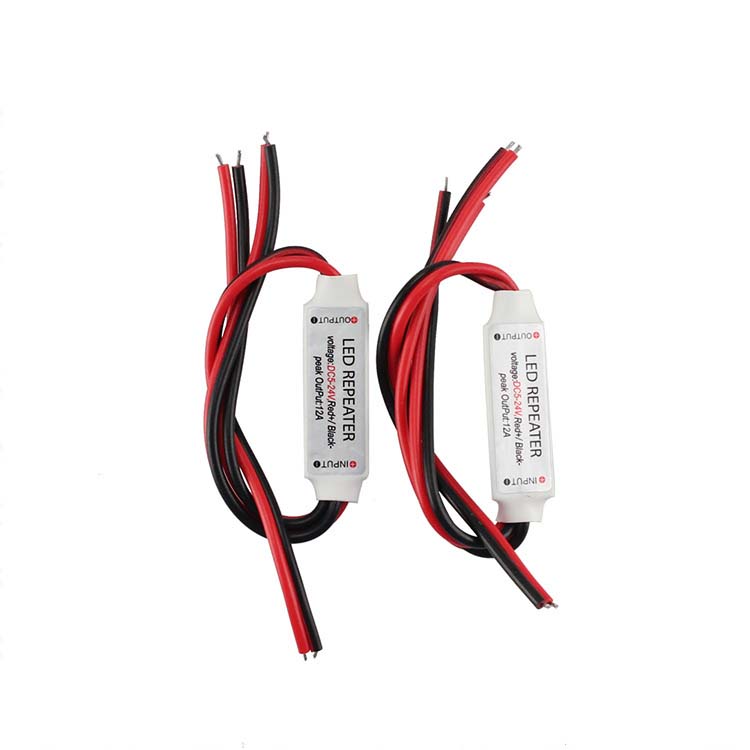

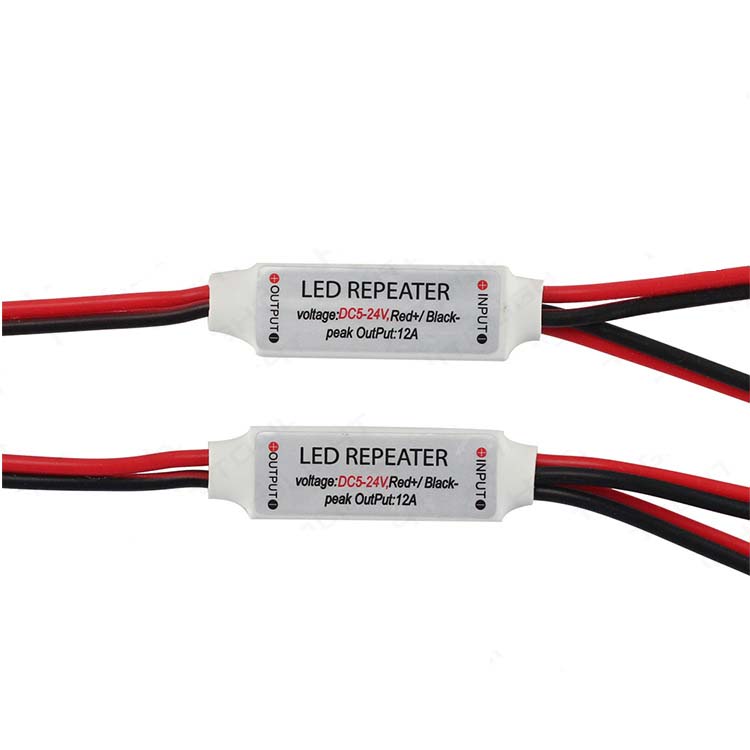

With a small size and lightweight design, the LED light mini amplifiers work with a wide voltage range from DC5V to DC24V, with a single output channel and a maximum output current of 12A. It will receive the signal from the LED controllers and transmit it to another group of single-color LED lights; all of them will sync work completely, not only the static colors but also the dynamic modes. You can use the mini LED amplifiers in a narrow place or furniture with the single colour LED strip lights.
Specifications:
- Item NO: TY-L-A-007
- Manufacturer: Ledbe
- Item Type: Mini LED Amplifier
- Size: 45*12*3mm(L*W*H)
- Working temperature: -20 ℃-60 ℃
- Working Voltage: DC5V, DC12V, DC24V
- Output Channels: 1
- Max Output Current: 12A
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- Power: 60W(DC5V), 144W(DC12V), 288W(DC24V)
- Wires: Red(V+)/Black(V-)
- Weight: 10g
- Certificate: CE, ROSH
- Warranty: 1 Year
Package:
1 * LED Light Mini Amplifier
