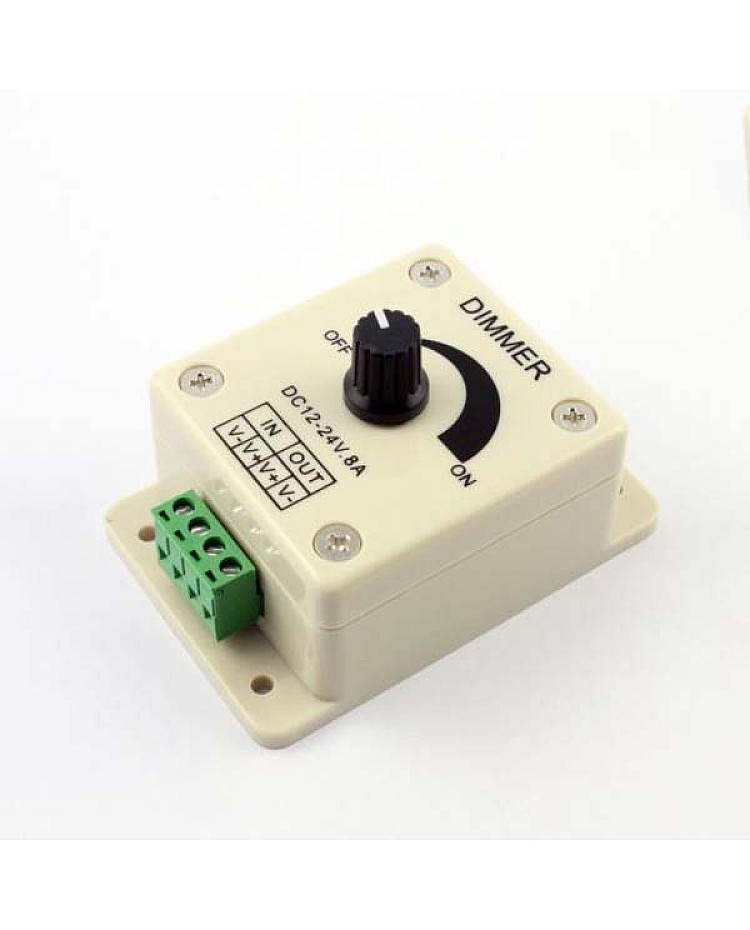

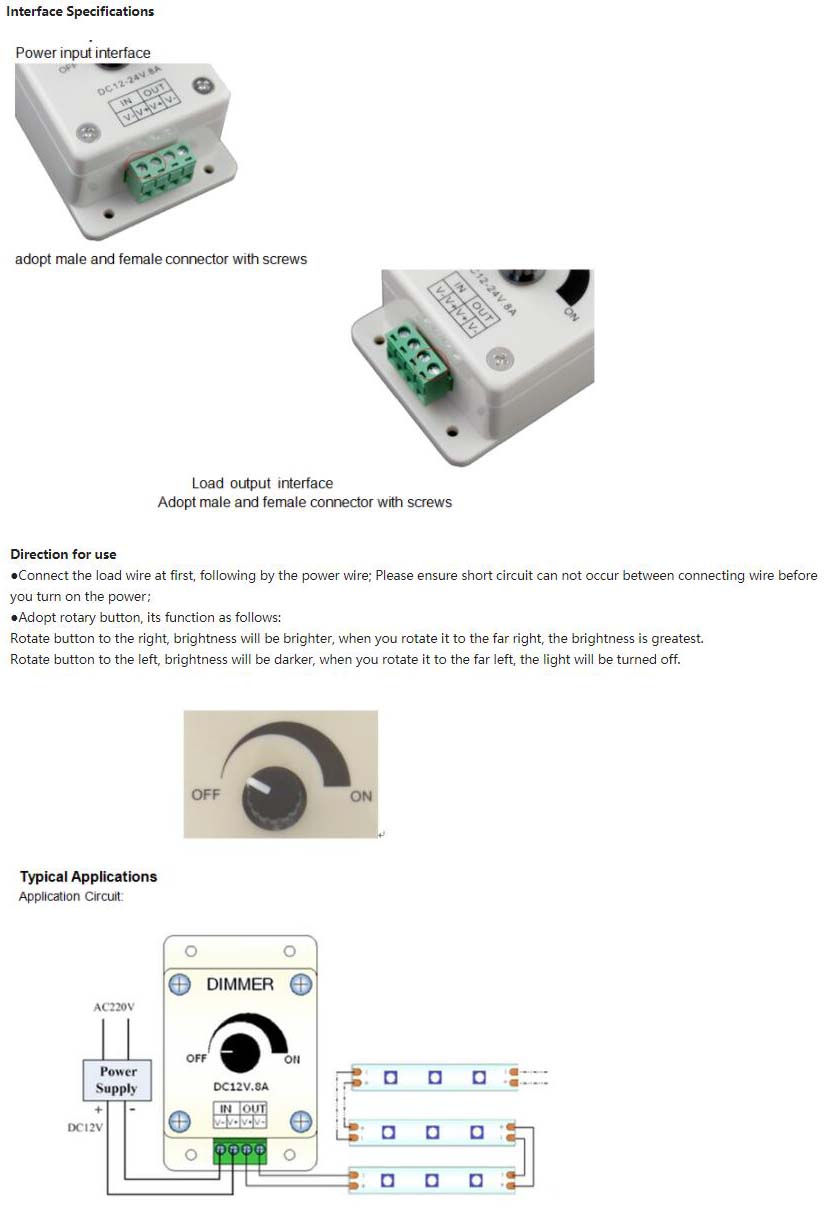

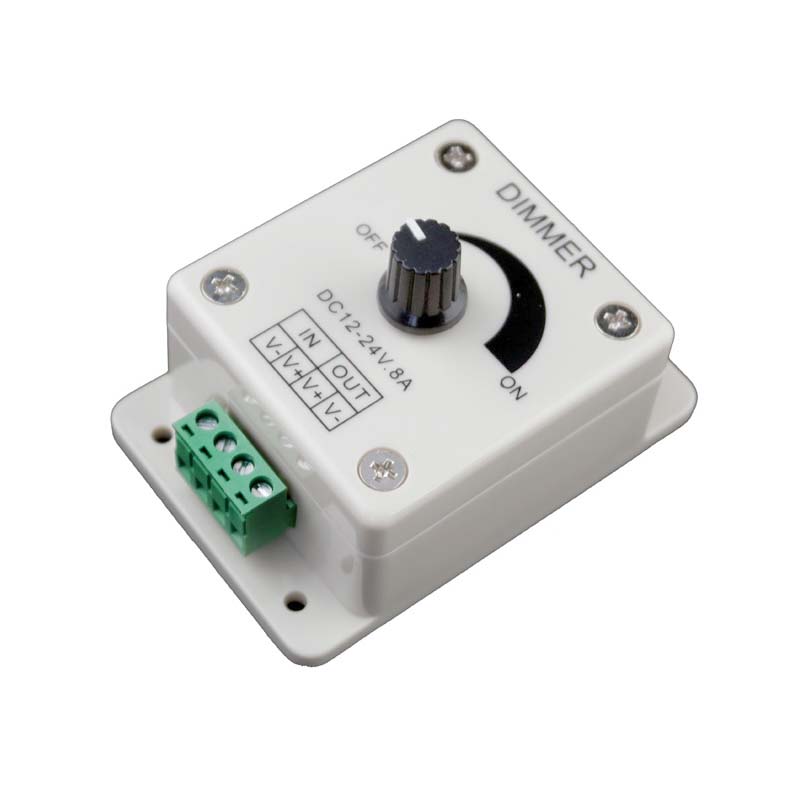

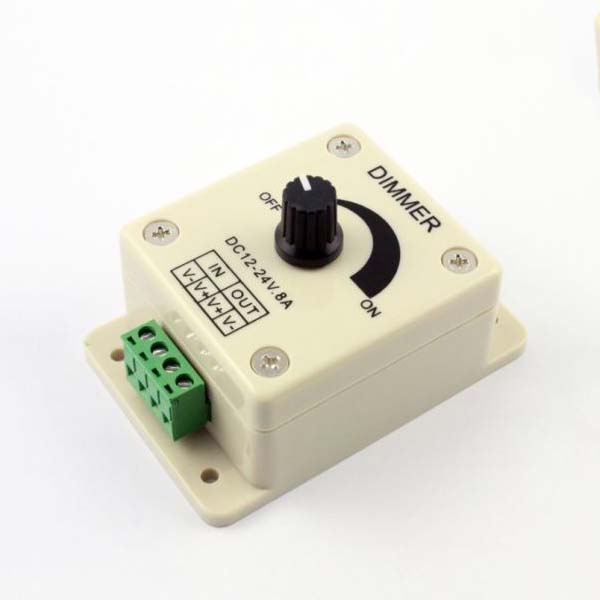

The single color LED strip dimmer can achieve stepless dimming, and adopts the knob control switch to adjust the brightness easily. With one output channel design, the max loading power is up to 192W when working on DC24V. LED strip light dimmer with male and female connectors with screws, easy to connect to the single color LED strips. With a knob switch to adjust the brightness. Rotate the button to the right; the brightness will be brighter when you rotate it to the far right. Rotate the button to the left, and the brightness will be darker. The light will be turned off when you rotate it to the far left.
Specifications:
- Working Temperature: -20-60℃
- Size: 89mm*59mm*35mm(L*W*H)
- Static Power Consumption: <1W
- Working Voltage: DC12V or DC24V
- Output Channel: 1
- Power: DC12V:≤96W; DC24V:≤192W
- Current: ≤8A

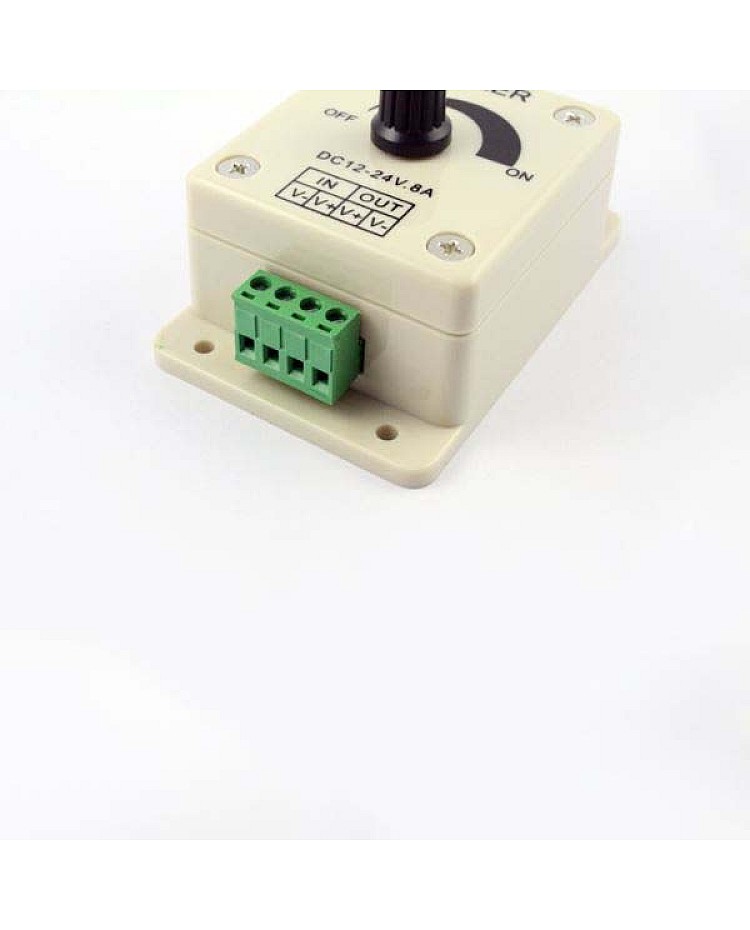

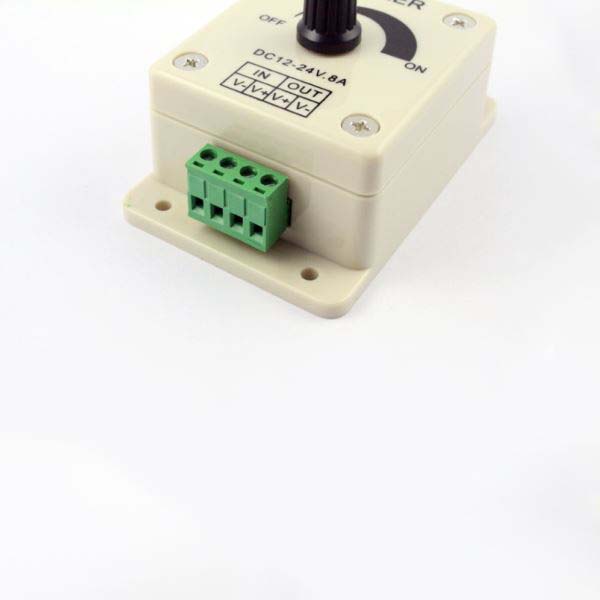

- Adopts Male And Female Connector With Screws

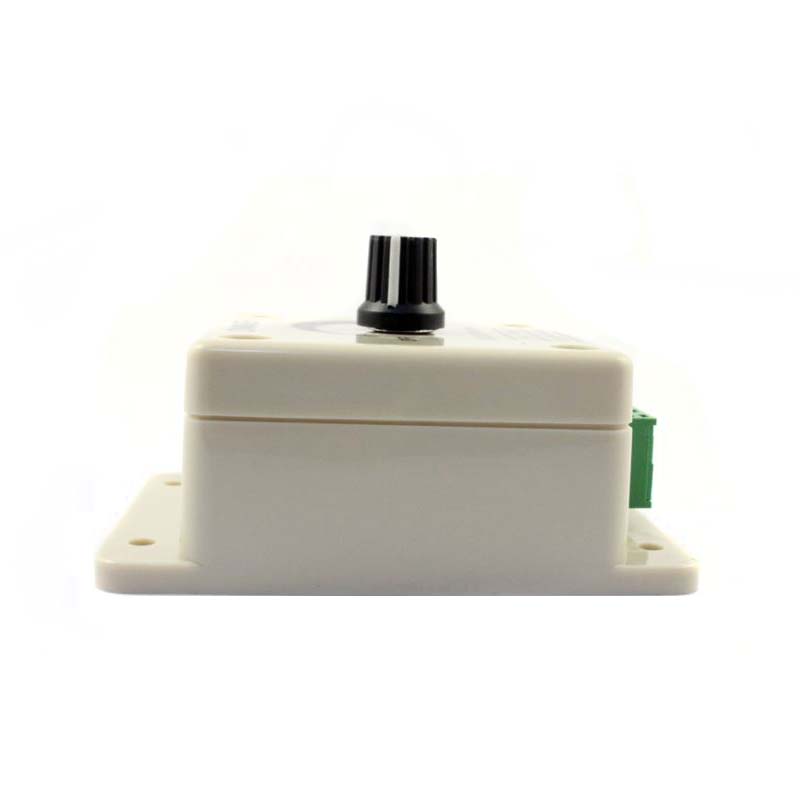

- Adopts Knob Switch To Adjust The Brightness
- Weight: 90G
Package:
1*LED Strip Dimmer
